Instrumentation
11
What you should do if the check
engine light illuminates
Light turns on solid:
This means that the OBD II system
has detected a malfunction.
Temporary malfunctions may cause
your
check engine light to
illuminate. Examples are:
¥ The vehicle has run out of fuel
(The engine may misfire or run
poorly.)
¥ Poor fuel quality or water in the
fuel
¥ The fuel cap may not have been
securely tightened. The
checkengine indicator light
illuminates when the ignition is
first turned to the ON position to
check the bulb. If it comes on
after the engine is started, one of
the engineÕs emission control
systems may be malfunctioning.
The light may illuminate without a
driveability concern being noted.
The vehicle will usually be drivable
and will not require towing.
12MInen 4/13/99 2:11 PM Page 11

Maintenance and care
200
1
1
2
The bulbs for the low beam, high
beam, turn signals and side lamps
are housed in the lamp assembly.
To replace a bulb, the complete
lamp assembly has to be removed
as follows:
1. Switch off the lamps.
2. Open the hood.
3. Remove the lower screw (2)
from the headlamp housing.
4. Remove the two upper screws
(1) from the headlamp housing.
5. Gently pull the headlamp
housing outward.
6. Replace the headlamp bulbs.
BULB REPLACEMENT
Handle a halogen headlamp
bulb carefully and keep out
of childrenÕs reach.Grasp the bulb
only by its plastic base and do not
touch the glass. The oil from your
hand could cause the bulb to
break the next time the
headlamps are operated.
Removing the headlamps
assembly
31MMCen 4/13/99 2:17 PM Page 200

Maintenance and care
201
Reinstalling the headlamp
assembly
The gasket lining must be seated
properly around the lamp assembly
when reinstalling.
All bulb connectors must be
correctly connected.
Install in the reverse order.
Headlamp Ð low beam
Pull off the connector, release the
wire clip and replace the bulb.
Pay attention to the tab guides
when replacing.
Headlamp alignment
Check the headlamp alignment
after each replacement of a bulb.
Refer to
Aiming the headlamps.
Headlamps Ð high beam
Replacement instructions are the
same as for the low beam
headlamp.
31MMCen 4/13/99 2:17 PM Page 201

Maintenance and care
202
Front turn signal/side lamps
Pull the socket out. Pull the bulb
out and replace it.
Foglamps (if equipped)
1. Turn the bulb counterclockwise
and pull it out of the light assembly.
2. Remove the electrical connector.
3. Fit the new bulb in reverse order
(do not touch the glass part of the
bulb).
31MMCen 4/13/99 2:17 PM Page 202

Maintenance and care
203
License plate lamp
Unscrew the bulb holder with a
screwdriver. Remove the bulb from
the clip holder.
Replace the new bulb in reverse
sequence.
Brake/turn signal/tail lamps
1. Disconnect the electrical
connector.
2. Turn the socket
counterclockwise and pull it out.
3. Turn the bulb counterclockwise
and pull it out.
4. To install, fit the new bulb in
reverse order.
Backup lamps
The backup lamps are located in
the trunk lid. Replacement
instructions are the same as for the
brake/turn signal/tail lamps.
31MMCen 4/13/99 2:17 PM Page 203

Maintenance and care
204
High-mounted brake lamp
Enter the rear seat compartment.
1. Remove the high mounted stop
lamp assembly.
2. Remove the red bulb cover.
3. Remove inoperative stop lamp
bulb.
To install, fit the new bulb in
reverse sequence.
On vehicles equipped with a rear
spoiler, the high-mounted brake
lamp is included in the spoiler.
See your dealer for repair.
Luggage compartment lamp
Pry out the light assembly from the
holder with a flat screwdriver. Turn
the spherical bulb under slight
pressure counterclockwise and
remove.
31MMCen 4/13/99 2:18 PM Page 204

Maintenance and care
205

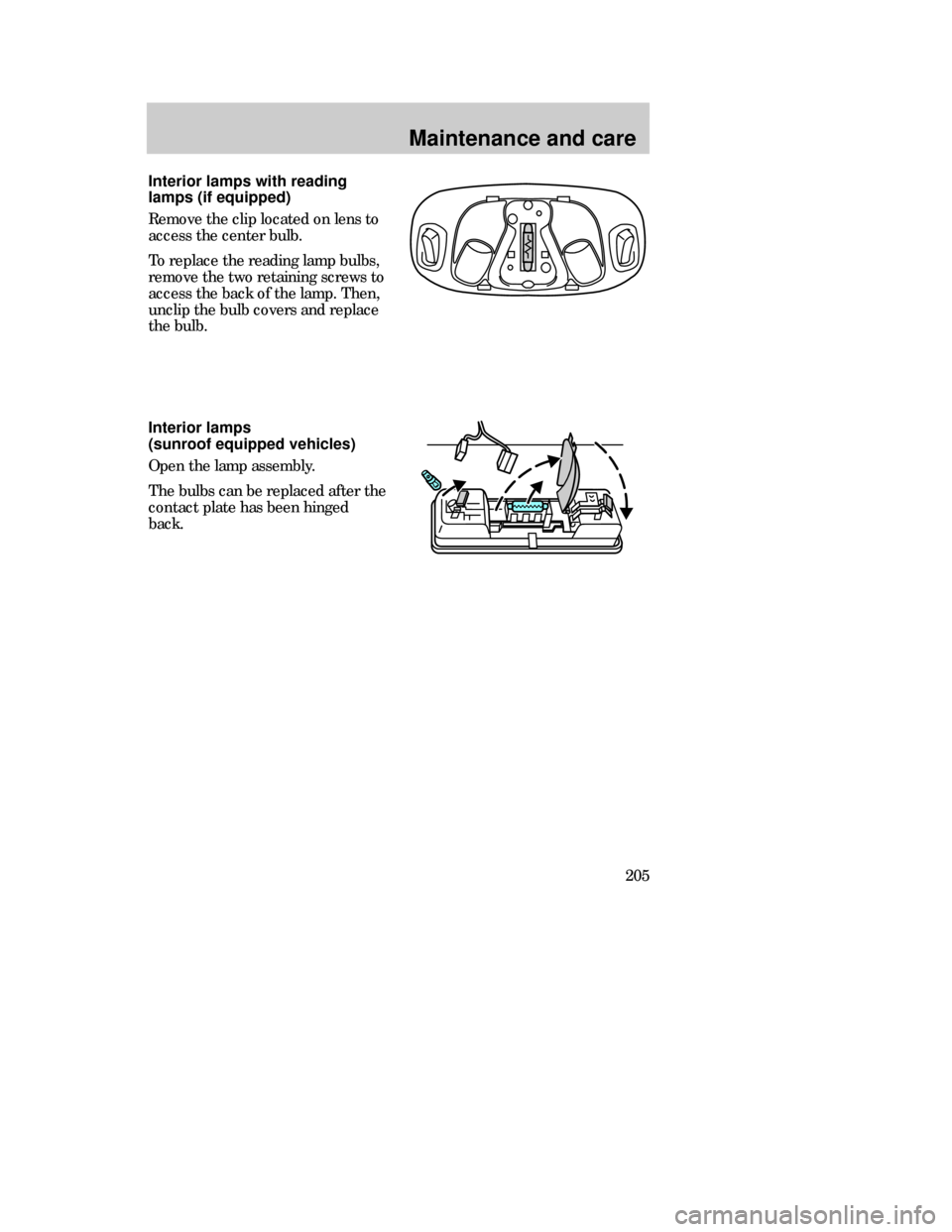

Interior lamps
(sunroof equipped vehicles)
Open the lamp assembly.
The bulbs can be replaced after the
contact plate has been hinged
back.
Interior lamps with reading
lamps (if equipped)
Remove the clip located on lens to
access the center bulb.
To replace the reading lamp bulbs,
remove the two retaining screws to
access the back of the lamp. Then,
unclip the bulb covers and replace
the bulb.
31MMCen 4/13/99 2:18 PM Page 205

Maintenance and care
206
FunctionTrade number
3457 NA
9005
9006
893
1157
1156 Front /turn lamp
Headlamp (high)
Headlamp (low)
Foglamp/License plate lamp
Rear tail/turn/brake lamp
Backup lamp
Bulb specifications
2723
C5W High-mounted brake lamp
Interior lamp211-2
License plate lamp
Reading lamp
578
31MMCen 4/13/99 2:18 PM Page 206

Index
236
APage
Accessory position on
the ignition . . . . . . . . . . . . . . . . . .52
Additives, engine oil . . . . . . . . .165
Air bag supplemental
restraint system
and child safety seats . . . . . . . .84
description . . . . . . . . . . . . . . . . .83
disposal . . . . . . . . . . . . . . . . . . .88
indicator light . . . . . . . . . . .13, 87
operation . . . . . . . . . . . . . . . . . .85
wearing safety belts . . . . . . . . .83
Air conditioning
(see Climate control system)
Alarm, activating panic . . . . . . . .67
Antenna, radio
(see Audio sytem) . . . . . . . . . . . .51
Anti-lock brake system (ABS) .112
Anti-theft system (see Passive
Anti-Theft System) . . . . . . . . . . .69
Antifreeze (see Engine coolant)
Audio system . . . . . . . . . . . . . . . .32
Automatic transaxle
driving with . . . . . . . . . . . . . . .119
fluid, adding . . . . . . . . . . . . . . .174
fluid, checking . . . . . . . . . . . . .174
fluid, refill capacities . . . . . . . .218
fluid, specification . . . . . . . . . .219
B
Backing up . . . . . . . . . . . . .119, 125
Battery
charging system warning light . .7
jumping a disabled battery . . .150
proper disposal, recycling . . . .178
replacement, specifications . .217
servicing . . . . . . . . . . . . . . . . . .176
BPage
Brake fluid
checking and adding . . . . . . . .168
specifications . . . . . . . . . . . . . .219
Brake-shift interlock . . . . . . . . .118
Brakelamps
(see Bulb replacement)
Brakes
anti-lock brake system (ABS) 112
brake warning light . . . . . . . . . .14
fluid, checking and adding . . .168
fluid, refill capacities . . . . . . . .218
fluid, specification . . . . . . . . . .219
parking . . . . . . . . . . . . . . . . . . .114
Built-in child seat
folding up the seat . . . . . . . . . .98
inspection after a collision . . . .98
interlock safety feature . . . . . . .94
operation . . . . . . . . . . . . . . . . . .93
retractors . . . . . . . . . . . . . . . . . .97
Break-in period . . . . . . . . . . . . . . .2
Bulbs, replacing
foglamps . . . . . . . . . . . . . . . . .202
headlamps . . . . . . . . . . . . . . . .200
high-mounted brake lamp . . . .204
license plate lamp . . . . . . . . . .203
rear lamps . . . . . . . . . . . . . . . .203
specifications . . . . . . . . . . . . . .206
C
Cabin air filter . . . . . . . . . . .31, 180
Capacities for refilling fluids . . .218
Carbon monoxyde in exhaust . .197
Catalytic converter . . . . . . . . . .196
Chains, tires . . . . . . . . . . . . . . . .188
Changing a tire . . . . . . . . . . . . .146
Charging system warning light . . .7
4MInden 04/14/1999 9:51 AM Page 236

Index
238
EPage
Engine oil
changing oil and filter . . . . . . .165
checking and adding . . . . . . . .165
dipstick . . . . . . . . . . . . . . . . . .163
disposal . . . . . . . . . . . . . . . . . .167
engine oil pressure
warning light . . . . . . . . . . . . . . .16
filter specifications . . . . . . . . .217
refill capacities . . . . . . . . . . . .218
specifications . . . . . . . . . . . . . .219
Exhaust fumes . . . . . . . . . .106, 197
F
Fan (see Engine fan)
Flasher, hazard . . . . . . . . . .54, 137
Flashing the lights . . . . . . . . . . . .55
Floor mats . . . . . . . . . . . . . . . . . .65
Fluid refill capacities . . . . . . . . .218
Foglamps . . . . . . . . . . . . . . .21, 202
Fuel
calculating fuel economy . . . .195
capacity . . . . . . . . . . . . . . . . . .218
choosing the right fuel . . . . . .192
consumption . . . . . . . . . . . . . .136
fuel gauge . . . . . . . . . . . . . . . . .19
low fuel warning light . . . . . . . .13
octane rating . . . . . . . . . . . . . .193
quality . . . . . . . . . . . . . . . . . . .193
running out of fuel . . . . . . . . .196
safety information relating
to automotive fuels . . . . . . . . .190
Fuel pump shut-off switch . . . .137
Fuse panels
engine compartment . . . . . . . .140
instrument panel . . . . . . . . . . .142
FPage
Fuses
charts . . . . . . . . . . . . . . . .141, 144
checking and replacing . . . . . .139
G
Gas mileage (see Fuel)
Gauges
engine coolant temperature . . .18
fuel . . . . . . . . . . . . . . . . . . . . . . .19
odometer . . . . . . . . . . . . . . . . . .19
speedometer . . . . . . . . . . . . . . .19
trip odometer . . . . . . . . . . . . . .19
GAWR
(Gross Axle Weight Rating) . . .127
Gearshift . . . . . . . . . . . . . .117, 123
GVWR
(Gross Vehicle Weight Rating) .127
H
Hazard flashers . . . . . . . . . .54, 137
Head restraints . . . . . . . . . . . . . .72
Headlamps
aiming . . . . . . . . . . . . . . . . . . .207
bulb specifications . . . . . . . . .206
daytime running light . . . . . . . .21
flashing . . . . . . . . . . . . . . . . . . .55
high beam . . . . . . . . . . . . . . . . .55
replacing bulbs . . . . . . . . . . . .200
turning on and off . . . . . . . . . . .20
warning chime . . . . . . . . . . . . . .17
High beams
indicator light . . . . . . . . . . . . . . .7
operation . . . . . . . . . . . . . . . . . .55
4MInden 04/14/1999 9:51 AM Page 238
