Page 201 of 232

²3.0L Vulcan engine
²3.0L Duratec engine
²Never wash or rinse the engine while it is running; water in the
running engine may cause internal damage.
Maintenance and care
201
Page 202 of 232

Cleaning the instrument panel
Clean with a damp cloth, then dry with a dry cloth.
Avoid cleaner or polish that increases the gloss of the upper portion of
the instrument panel. The dull finish in this area helps protect the driver
from undesirable windshield reflection.
Do not use chemical solvents or strong detergents when cleaning
the steering wheel or instrument panel to avoid contamination of
the air bag system.
Cleaning the instrument cluster lens
Clean with a damp cloth, then dry with a dry cloth.
Do not use household or glass cleaners as these may damage the lens.
Cleaning seats equipped with side air bags
Remove dust and loose dirt with a whisk broom or a vacuum cleaner.
Remove fresh spots immediately. Follow the directions that come with
the cleaner. Do not saturate the seat cover with upholstery cleaner.
Do not use chemical solvents or strong detergents when cleaning
the seat mounted side air bag. Such products could contaminate
the side air bag system and affect performance of the side air bag in a
collision.
Woodtone trim
Wipe stains with a soft cloth and a multi-purpose cleaning solution.
Inside windows
Use Ultra-Clear Spray Glass Cleaner (E4AZ-19C507±AA) for the inside
windows if they become fogged.
Maintenance and care
202
Page 203 of 232

Cleaning and maintaining the safety belts
Clean the safety belts with a mild soap solution recommended for
cleaning upholstery or carpets. Do not bleach or dye the belts, because
these actions may weaken the belt webbing.
Check the safety belt system periodically to make sure there are no
nicks, wear or cuts. If your vehicle has been involved in an accident,
refer to theSafety belt maintenancesection in theSeating and safety
restraintschapter.
Cleaning leather seats (if equipped)
To clean, simply use a soft cloth dampened with water and a mild soap.
Wipe the leather again with a damp cloth to remove soap residue. Dry
with a soft cloth. For tougher soiling concerns, Ford recommends using
the Deluxe Leather Care Kit F8AZ-19G253±AA, which is available from
your Ford Dealer. This mild cleaner and special pad, cleans the leather
and maintains its natural beauty. Follow the instructions on the cleaner
label. Regular cleaning of your leather upholstery helps maintain its
resiliency and color.
Do not use household cleaning products, alcohol solutions,
solvents or cleaners intended for rubber, vinyl or plastics.
Cleaning the interior fabric
Remove dust and loose dirt with a whisk broom or a vacuum cleaner.
Remove fresh spots immediately. Do not use household or glass cleaners.
These agents can stain and discolor the fabric. Use a mild soap and
water solution if necessary.
Maintenance and care
203
Page 204 of 232

MOTORCRAFT PART NUMBERS
Component 3.0L V6 Vulcan engine 3.0L DOHC V6
Duratec engine
Air filter element
1FA-1683 FA-1683
Fuel filter FG-1006 FG-81006
Battery (standard) BXT-58R BXT-36R
Battery (optional) BXT-36R N/A
Oil filter FL-400-S FL-820-S
PCV valve EV-228 EV-243
Spark plugs
2AWSF-32PP3AGSF-32W
1Do not use oil-impregnated air filter elements. Failure to use the
correct air filter element may result in severe engine damage. The
customer warranty may be voided for any damage to the engine if the
correct air filter element is not used.
2Refer to Vehicle Emissions Control Information (VECI) decal for spark
plug gap information.
3If a spark plug is to be removed for inspection, it must be reinstalled in
the same cylinder. If a spark plug needs to be replaced, use only spark
plugs with the service part number suffix letter as shown on the engine
decal.
Capacities and specifications
204
Page 205 of 232

REFILL CAPACITIES
Fluid Ford Part Name Application Capacity
Brake fluid
High Performance
DOT 3 Motor
Vehicle Brake FluidAll Fill to line on
reservoir
Engine
coolant
1Premium Engine
Coolant3.0L V6 Vulcan
engine11.0L
(11.6 quarts)
3.0L DOHC V6
Duratec engine10.0L
(10.6 quarts)
Engine oil
(includes filter
change)Motorcraft SAE
5W-30 Super
Premium Motor Oil3.0 V6 Vulcan
engine4.25L
(4.5 quarts)
3.0L DOHC V6
Duratec engine5.2L (5.5 quarts)
Fuel tank
capacityN/A All vehicles 68.1L
(18.0 gallons)
Power
steering fluidMotorcraft
MERCONtAT F3.0L V6 Vulcan
engineKeep in FULL
range on dipstick
3.0L DOHC V6
Duratec engineFill to line on
reservoir
Automatic
transaxle -
AX4NMotorcraft
MERCONtVATF3.0L V6 Vulcan
engine12.8L
(13.5 quarts)
3.0L DOHC V6
Duratec engine12.7L
(13.4 quarts)
Automatic
transaxle -
AX4SMotorcraft
MERCONtVATF3.0L V6 Vulcan
engine11.6L
(12.2 quarts)
Windshield
washer fluid -
FrontUltra-Clear
Windshield Washer
ConcentrateAll 2.8L (94.7 oz.)
Windshield
washer fluid -
RearUltra-Clear
Windshield Washer
ConcentrateWagon 1.8L (60.9 oz.)
1Use Ford Premium Engine Coolant (green in color). DO NOT USE Ford
Extended Life Engine Coolant (orange in color). Refer toAdding engine
coolant, in the Maintenance and Care chapter.
Capacities and specifications
205
Page 206 of 232

LUBRICANT SPECIFICATIONS
ItemsFord Part
Name or
equivalentFord Part
NumberFord
Specification
Brake fluid High
Performance
DOT 3 Motor
Vehicle Brake
FluidC6AZ-19542-AB ESA-M6C25-A
and DOT 3
Door latch, hood
latch, auxiliary
hood latch, seat
tracks, trunk
and liftgate
latchesMulti-Purpose
GreaseDOAZ-19584-AA
or
F5AZ-19G209-AAESA-M1C93-B
or
ESR-M1C159-A
Lock cylinders Penetrating and
Lock LubricantE8AZ-19A501-B none
Automatic
transaxle (AX4S
and AX4N)Motorcraft
MERCONtV
AT FXT-5-QM
MERCONtV
Engine oil Motorcraft SAE
5W-30 Super
Premium Motor
OilXO-5W30-QSP WSS-M2C153-G
and API
Certification
Mark
Constant
velocity jointsCV Joint Grease
(High Temp.)E43Z-19590-A ESP-M1C207-A
Engine coolant Ford Premium
Engine CoolantE2FZ-19549-AA
(in Canada,
Motorcraft
CXC-8-B)ESE-M97B44-A
Power steering
fluidMotorcraft
MERCONtAT FXT-2-QDX MERCONt
Windshield
washer fluidUltra-clear
Windshield
Washer
ConcentrateC9AZ-19550-AC ESR-M17P5-A
Capacities and specifications
206
Page 207 of 232

ENGINE DATA
Engine 3.0L V6 Vulcan
engine3.0L DOHC V6
Duratec engine
Cubic inches 182 183
Required fuel 87 octane 87 octane
Firing order 1-4-2-5-3-6 1-4-2-5-3-6
Spark plug gap 1.07-1.17 mm
(0.042-0.046 inch)1.3-1.4 mm
(0.052-00.056 inch)
Ignition system EDIS Coil on plug
Compression ratio 9.3:1 10.0:1

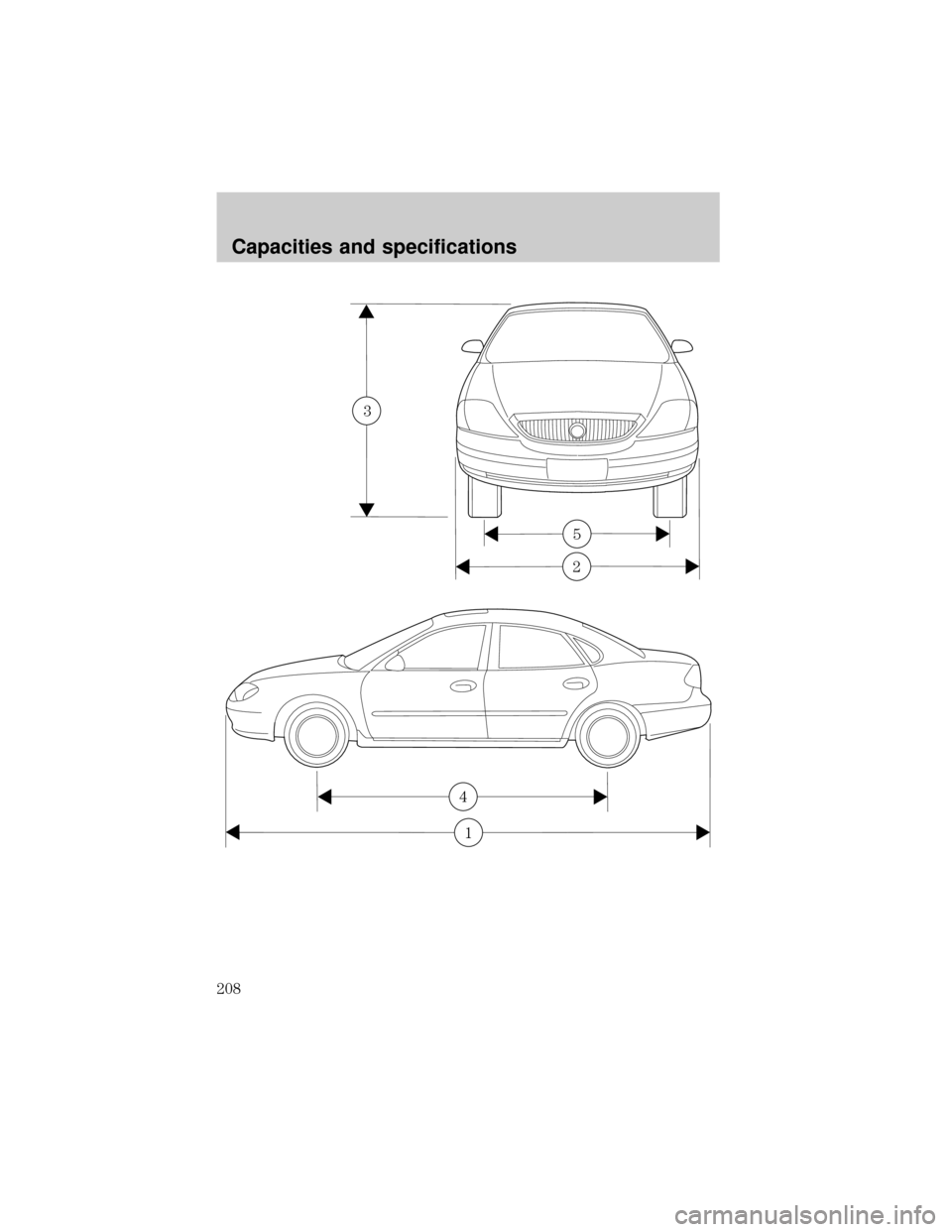

VEHICLE DIMENSIONS
Vehicle dimensions Sedan mm (in) Wagon mm (in)
(1) Overall length 5 016.5 (197.7) 5 069.8 (199.6)
(2) Overall width 1 854.2 (73.0) 1 854.2 (73.0)
(3) Overall height 1 399.5 (56.1) 1 472.0 (57.9)
(4) Wheelbase 2 755.9 (108.5) 2 755.9 (108.5)
(5) Track - Front 1 564.6 (61.6) 1 564.6 (61.6)
(5) Track - Rear 1 577.0 (62.1) 1 577.0 (62.1)
Capacities and specifications
207
Page 208 of 232

5
2
3
4
1
Capacities and specifications
208
Page 209 of 232

IDENTIFYING YOUR VEHICLE
Certification label
The National Highway Traffic Safety
Administration Regulations require
that a Certification Label be affixed
to a vehicle and prescribe where the
Certification Label may be located.
The Certification Label is located on
the front door latch pillar on the
driver's side.
1
4
MFD. BY FORD MOTOR CO. IN U.S.A.
EXT PNT: XXXXXX XXXXXX RC: XX DSO: XXXX F0000
BAR INT TR TP/PS R AXLE TR SPR T0000
X XX XXX X XX X XXXX
UTC
ÑFOHT-15294A10-GA
MAXIMUM LOAD=OCCUPANTS + LUGGAGE=XXXKG/XXXXLB
OCCUPANTS: X TOTAL X FR X 2ND X RR OCCUPANTS LUGGAGE
XX XXXKG/XXXXLB
TIRE: XXXX/XXXXX XXX X XXXKG/XXXXLB
PRESSURE (FR) XXX kPa/33 PSI COLD
PRESSURE (RR) XXX kPa/33 PSI COLD
TRAILER TOWING - SEE OWNER GUIDE
DATE: XXXXX GVWR:XXXXX LB/ XXXXX KG
VIN: XXXXXXXXXXXXXXXXX TYPE: XXXXXXXXXXXXXXX FGAWR: XXXXXX/XXXXXXX RGAWR: XXXXXXX/XXXXXXX
THIS VEHICLE CONFORMS TO ALL APPLICABLE FEDERAL
MOTOR VEHICLE SAFETY STANDARDS IN EFFECT ON THE
DATE OF MANUFACTURE SHOWN ABOVE.
Capacities and specifications
209
Page 210 of 232

Vehicle identification number
The vehicle identification number is
attached to a metal tag and is
located on the driver side
instrument panel. (Please note that
in the graphic XXXX is
representative of your vehicle
identification number.)
Engine number
The engine number (the last eight numbers of the vehicle identification
number) is stamped on the engine block, frame and transaxle.
XXXXXXXXXXXXXXXXX
