Servicing Your Villager
367
%*
[SV44700(ALL)01/93]

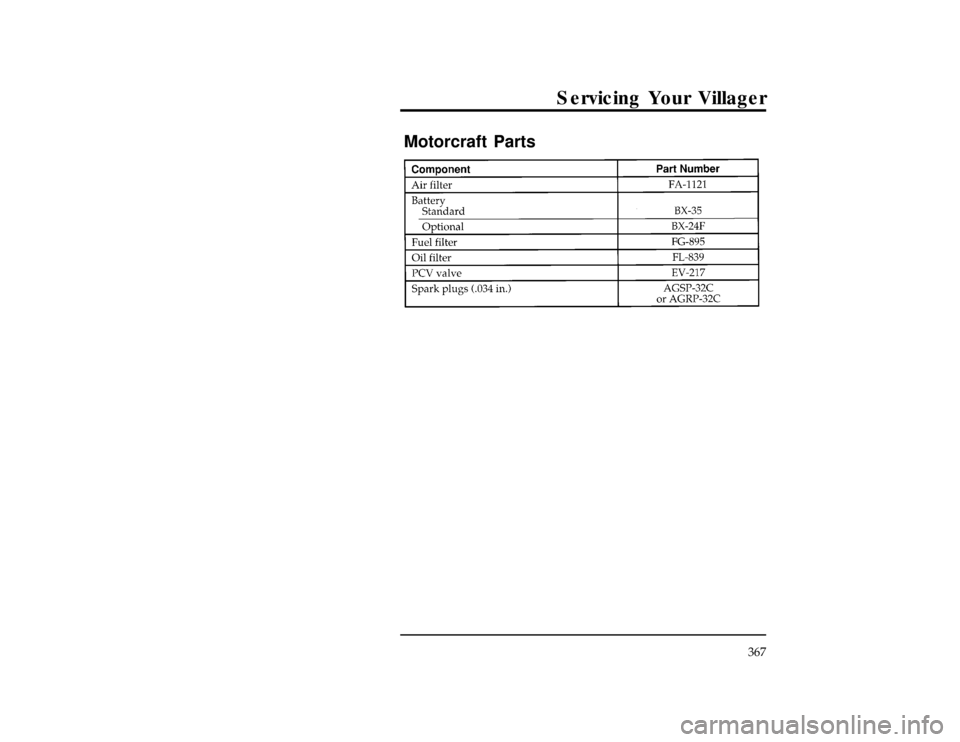

Motorcraft Parts
[SV44800(ALL)04/94]
eighteen pica
chart:0040215-GFile:15vxsvn.ex
Update:Wed Jun 5 12:25:18 1996

368
%*
[SV44900(ALL)01/93]

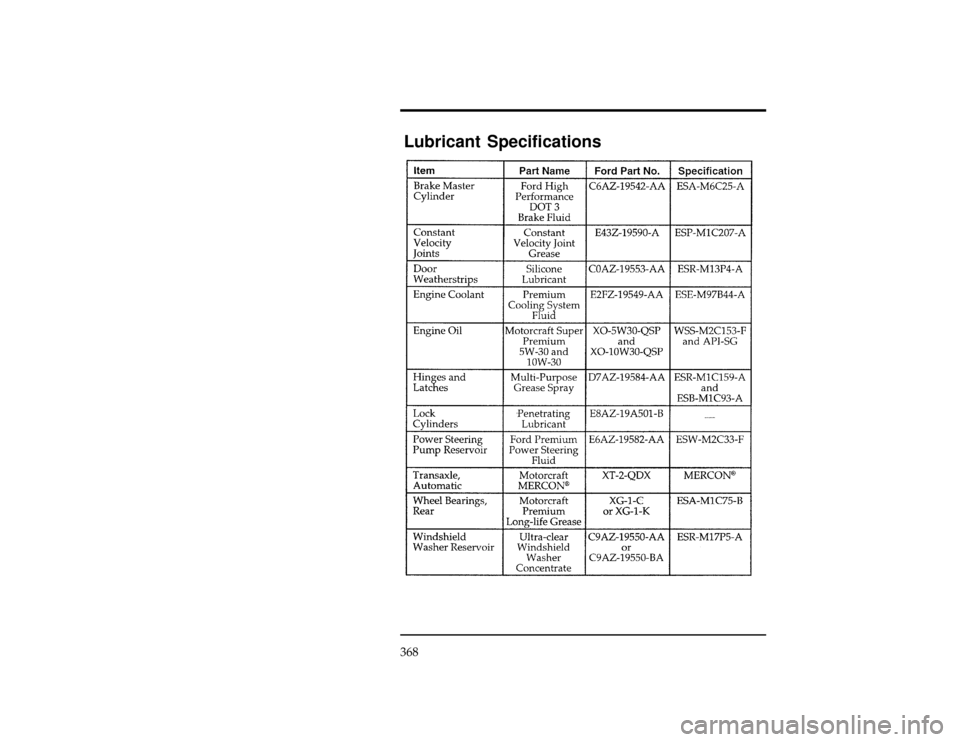

Lubricant Specifications
[SV45000(ALL)05/96]
thirty pica
chart:0040216-JFile:15vxsvn.ex
Update:Wed Jun 5 12:25:18 1996

Servicing Your Villager
369
%*
[SV45100(ALL)01/95]
Vehicle Storage
*
[SV45200(ALL)01/95]
Maintenance Tips
*
[SV45300(ALL)01/93]
If you plan on storing your vehicle for an extended period of
time (60 days or more), refer to the following maintenance
recommendations to keep your vehicle in good operating
condition.
*
[SV45400(ALL)01/95]
General
*
[SV45500(ALL)01/93]
n
Store your vehicle in a dry, ventilated place.
*
[SV45600(ALL)01/95]
n
Protect from sunlight, if possible.
*
[SV45700(ALL)01/93]
n
When your vehicle is stored outside, it will require regular
maintenance to protect against rust and damage.
*
[SV45800(ALL)01/95]
Body
*
[SV45900(ALL)01/93]
n
Wash your vehicle thoroughly to remove dirt, grease, oil, tar
or mud from exterior surfaces, rear wheel housings and
underside of front fenders.
*
[SV46000(ALL)01/95]
n
Touch-up raw or primed metal to prevent rust.
*
[SV46100(ALL)01/93]
n
Cover chrome and stainless steel parts with a thick coat of
auto wax to prevent discoloration. Re-wax as necessary when
your vehicle is washed.
*
[SV46200(ALL)04/95]
n
Lubricate all hood, door and trunk lid hinges and latches
with a light grade oil.
*
[SV46300(ALL)01/95]
n
Cover interior soft trim to prevent fading.
*
[SV46400(ALL)01/95]
n
Keep all rubber parts free from oil and solvents.
File:15vxsvn.ex
Update:Wed Jun 5 12:25:18 1996

370
%*
[SV46500(ALL)01/95]
Engine
*
[SV46600(ALL)01/93]
n
Start the engine every fifteen days. Run it at fast idle until it
reaches normal operating temperature.
*
[SV46700(ALL)01/93]
n
With your foot on the brake, shift the transaxle into all gears
while the engine is running.
%*
[SV46800(ALL)01/95]
Fuel system
%*
[SV47000(ALL)07/94]
n
Fill fuel tank with high-quality unleaded fuel until the first
automatic shutoff of the fuel pump nozzle.
*
[SV47100(ALL)09/95]
NOTE: During extended periods of vehicle storage (60 days or
more), fuel may deteriorate due to oxidation. This can
damage rubber and other polymers in the fuel system
and may also clog small orifices.
*
[SV47200(ALL)01/95]
Ford Gas Stabilizer should be added whenever actual or
expected storage periods exceed 60 days. Follow the instructions
on the label. The vehicle should then be operated at idle speed
to circulate the additive throughout the fuel system.
*
[SV47300(ALL)01/95]
A volatile corrosion inhibitor added to the fuel system will
protect the fuel system's inner surfaces from corrosion. Follow
the instructions packaged with the product.
%*
[SV47400(ALL)01/95]
Cooling system
*
[SV47500(ALL)01/93]
n
Protect your vehicle against freezing temperatures.
%*
[SV47600(ALL)01/95]
Battery
*
[SV47700(ALL)01/93]
n
Check and recharge the battery as necessary.
*
[SV47800(ALL)01/95]
n
Keep connections clean and covered with a light coat of
grease.
File:15vxsvn.ex
Update:Wed Jun 5 12:25:18 1996

Servicing Your Villager
371
%*
[SV47900(ALL)01/95]
Brakes
*
[SV48000(ALL)01/93]
n
Make sure the brakes and parking brake are fully released.
%*
[SV48100(ALL)01/95]
Tires
*
[SV48200(ALL)05/95]
n
Maintain recommended air pressure.
*
[SV48300(ALL)01/95]
Miscellaneous
*
[SV48400(ALL)01/93]
n
Make sure all linkages, cables, levers and clevis pins under
the vehicle are covered with grease to prevent rust.
*
[SV48500(ALL)01/93]
n
Lubricate working parts to prevent corrosion.
File:15vxsvn.ex
Update:Wed Jun 5 12:25:18 1996

372
*
[SV99950(ALL)05/95]
thirty-two pica
chart:MERCADVIL
File:15vxsvn.ex
Update:Wed Jun 5 12:25:18 1996

Quick Index
375
[QI00500(ALL)06/95]
full page art:0040311-AFile:16vxqin.ex
Update:Fri Jun 7 13:39:37 1996

376
[QI00600(ALL)06/95]
full page art:0040363-A

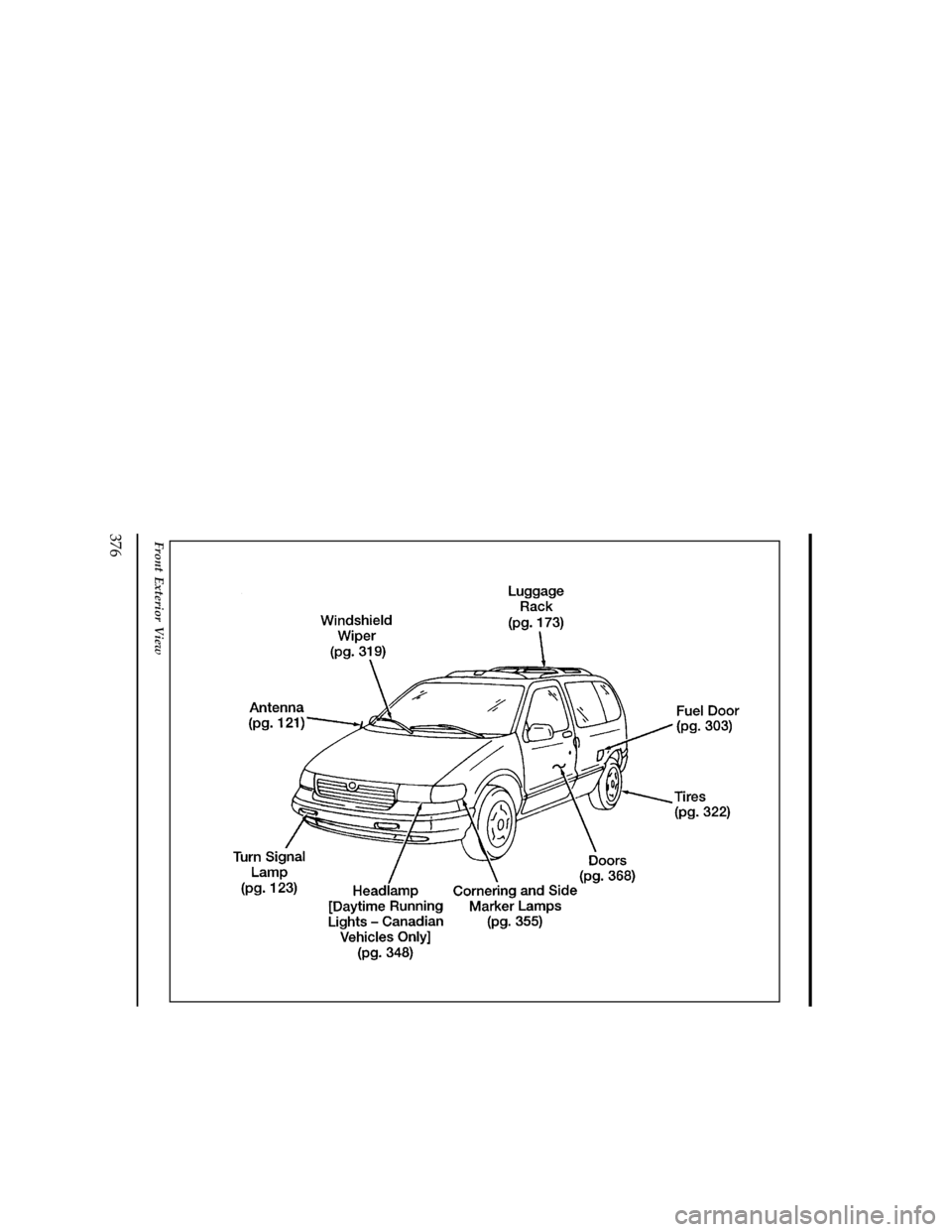

Front Exterior View
File:16vxqin.ex
Update:Fri Jun 7 13:39:37 1996

Quick Index
377
[QI00640(ALL)02/95]
full page art:0040360-A

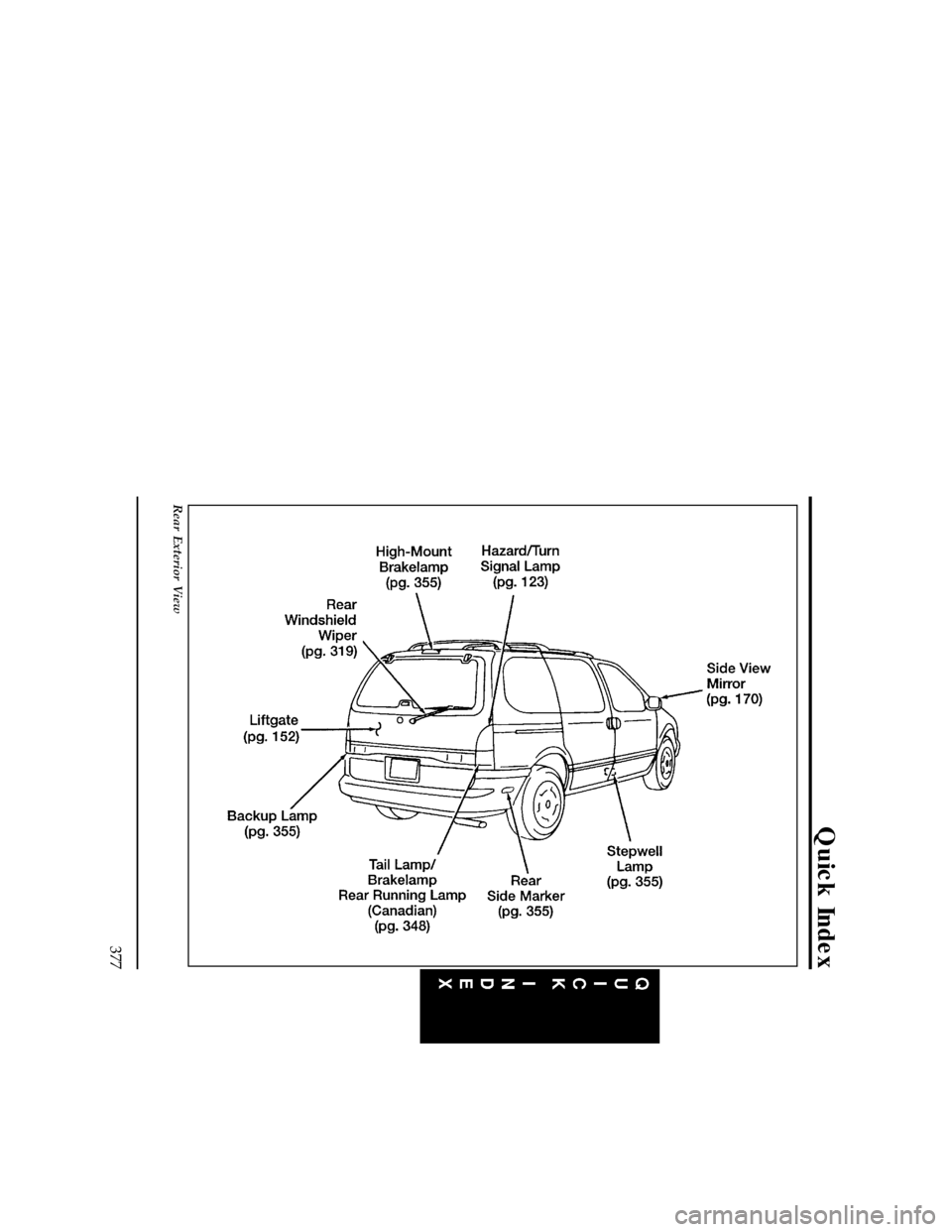

Rear Exterior View
File:16vxqin.ex
Update:Fri Jun 7 13:39:37 1996

378
[QI01000(ALL)02/95]
full page art:0040366-A

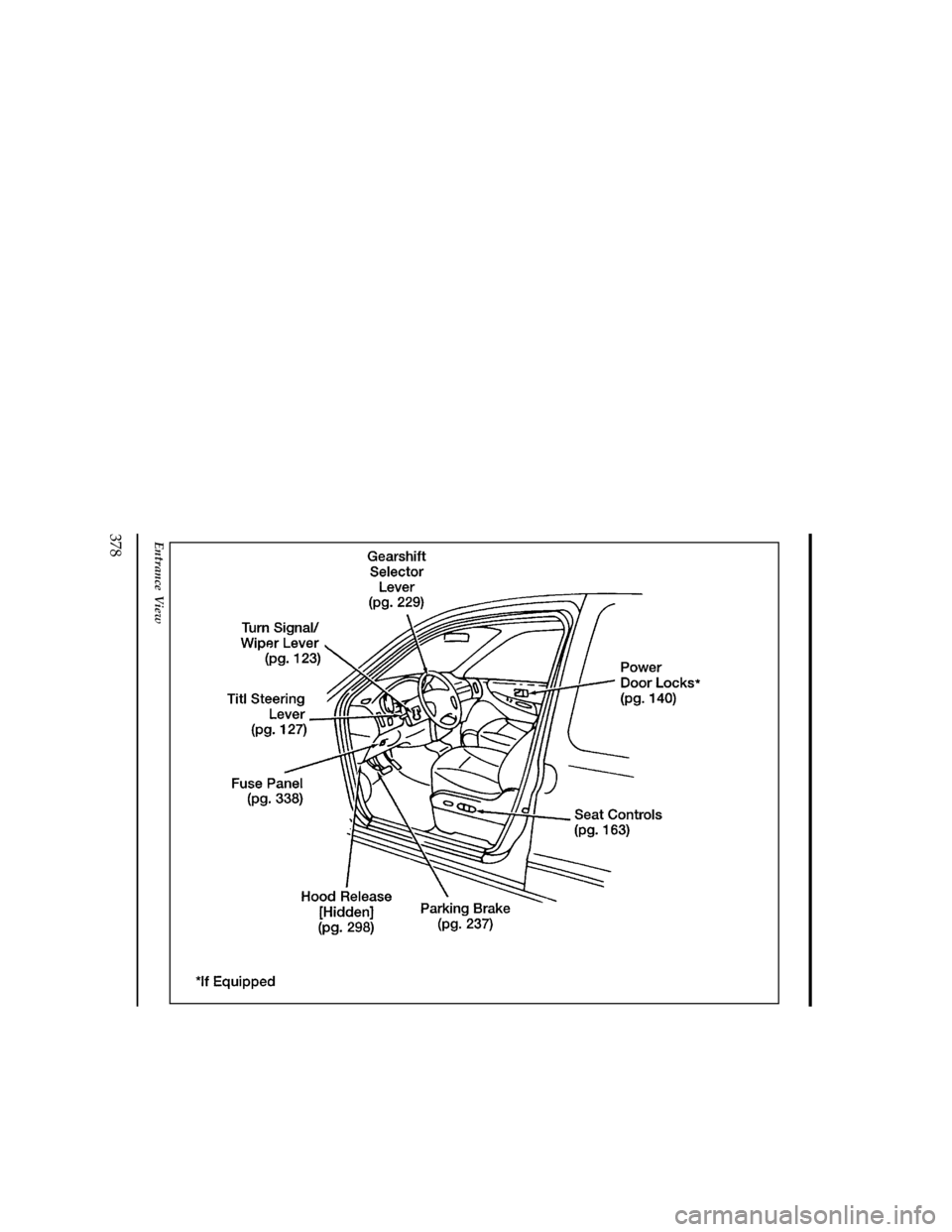

Entrance View
File:16vxqin.ex
Update:Fri Jun 7 13:39:37 1996
