Gauges
%*
[IS06900(ALL)05/96]
Fuel Gauge
[IS07000(ALL)01/96]
The fuel gauge displays approximately how much fuel you have
in the fuel tank. The fuel gauge indicator may vary slightly
while the vehicle is in motion. This is the result of fuel
movement within the tank. An accurate reading may be
obtained when the vehicle is on smooth, level ground.
[IS07100(ALL)01/96]
7-1/2 pica art:0040056-A
Fuel gauge
%*
[IS07200(ALL)03/96]
Engine Coolant Temperature Gauge
[IS07300(ALL)05/96]
This gauge is accompanied by a thermometer symbol. It
indicates the temperature of the engine coolant when the
ignition is in the ON position.
[IS07400(ALL)01/96]
As the engine warms up, the pointer will move to the
NORMAL band. When you are driving in heavy traffic or
experiencing stop-and-go conditions in hot weather, the pointer
may move to the very top of the normal band.
[IS07500(ALL)01/96]
Under any circumstances, if the pointer moves past the upper
limit of the NORMAL band, the engine is overheating and
engine damage may occur.
File:03vxisn.ex
Update:Thu May 30 09:45:36 1996

Instrumentation
19
*
[IS07600(ALL)03/96]
If your engine overheats:
*
[IS07700(ALL)03/96]1.
Pull off the road as soon as it is safely possible.
*
[IS07800(ALL)03/96]2.
Turn off the engine. If you do not stop the engine as soon as
safely possible, severe engine damage could result.
*
[IS07900(ALL)03/96]3.
Let the engine cool.DO NOT REMOVE COOLANT
SYSTEM FILL CAP UNTIL THE ENGINE IS COOL.
[IS08000(ALL)01/96]4.
Check the coolant level following the instructions on
checking and adding coolant to your engine, seeEngine
coolantin the Index. If you do not follow these instructions,
you or others could be injured.
*
[IS08100(ALL)04/96]5.
Refer toAdding Engine Coolantin theMaintenance and Care
chapter. Add as much coolant as your engine needs. If the
engine continues to overheat, have the cooling system
serviced.
[IS08300(ALL)01/96]
7-1/2 pica art:0040057-A
Engine coolant temperature gauge
File:03vxisn.ex
Update:Thu May 30 09:45:36 1996

Instrumentation
23
[IS09600(ALL)01/96]
The electronic cluster has all of the same warning lights as the
mechanical cluster, however, some of the gauges will be
electronic instead of analog. In addition, the electronic cluster
has a fuel computer for measuring fuel economy, distance to
empty and outside air temperature.
%*
[IS09700(ALL)03/96]
Engine Coolant Temperature Gauge
[IS09800(ALL)01/96]
This gauge shows you the temperature of the engine coolant
and is identified by a thermometer symbol. The letter H means
that the coolant is hot, C means that it is cold, and NORMAL
means that the coolant is within the normal operating range.
[IS09900(ALL)01/96]
The indicator bar on the graph will move into the normal
operating range as the engine warms up. When you are in
heavy traffic or stop-and-go driving in hot weather, the gauge
may read at the very top of the NORMAL range. This is
acceptable.
[IS10000(ALL)01/96]
However, if the indicator bar on the graph moves into the H
(hot) position, the engine is overheating and may cause engine
damage. If this happens, you should stop your vehicle as soon
as safely possible. Turn off the engine and let it cool. Check the
coolant level to be sure that it is at the proper level. If your
vehicle needs more coolant, seeEngine coolant, checking and
addingin the Index and read the section regarding adding
coolant.
File:03vxisn.ex
Update:Thu May 30 09:45:36 1996

24
[IS10100(ALL)01/96]
10-1/2 pica
art:0040068-A
Engine coolant temperature gauge
%*
[IS10200(ALL)05/96]
Fuel Gauge
[IS10300(ALL)01/96]
The fuel gauge displays approximately how much fuel you have
in the fuel tank. The number of bars illuminated in the display
indicates how much fuel is left. An accurate reading may be
obtained when the vehicle is on smooth, level ground.
[IS10350(ALL)01/96]
7-1/2 pica art:0040070-A
Fuel gauge
File:03vxisn.ex
Update:Thu May 30 09:45:36 1996

Controls and Features
59
[CF02400(ALL)04/96]
Turning on the heat
[CF02500(ALL)01/96]
Heat will be available when the engine has been running for a
sufficient time as indicated by the engine coolant temperature
gauge.
*
[CF02600(ALL)01/96]
To heat the inside of your vehicle:
[CF02700(ALL)01/96]1.
Press the function selector button for Floor.
[CF02800(ALL)01/96]
13-1/2 pica
art:0040302-A
Heating only climate control system panel
[CF02900(ALL)01/96]2.
Turn the temperature control knob toward the WARM (red)
area.
[CF03000(ALL)01/96]3.
Turn the fan speed knob to the speed of your choice. When
your vehicle warms up, you may want to set the fan speed
knob to a lower speed, or adjust the temperature control
knob to a lower setting to maintain a comfortable
temperature.
File:05vxcfn.ex
Update:Thu May 30 09:49:09 1996

Controls and Features
69
[CF09300(ALL)01/96]
The display window and the function selector buttons indicate
how the system is operating. The display window shows the
selected temperature and displays AUTO if you are operating in
the AUTOMATIC mode. If you override the automatic mode by
selecting any of the function selector buttons, AUTO no longer
appears in the display window and the appropriate function
selector button(s) illuminate. The display window also indicates
manual (thumbwheel) control of the fan speed when a
His
shown.
[CF09400(ALL)01/96]
Automatic Operation
[CF09450(ALL)01/96]
Push the AUTOMATIC button and select the desired
temperature. The selected temperature and AUTO appear in the
display window. The ATC heats or cools to achieve the set
temperature. It is important to note that if the ATC engages
your vehicle's air-conditioning, it will do so automatically
without illuminating the A/C button.
[CF09500(ALL)05/96]
When in AUTOMATIC and weather conditions require heat, air
is sent to the floor. However, a feature is included in the ATC
to prevent blowing cold air to the floor if the engine coolant is
not warm enough to provide heating. Within three or four
minutes (of determining the engine coolant is warm enough),
the fan speed gradually increases and airflow changes to the
floor.
[CF09600(ALL)05/96]
If specific conditions exist (such as window fogging), the five
override buttons allow specific airflow selection. The
thumbwheel allows you to adjust the fan speed to suit your
needs.
[CF09700(ALL)01/96]
Temperature Selection
[CF09800(ALL)01/96]
The
dTEMP
cbutton on the left side of the control panel is
for temperature selection. The
dside lowers the set
temperature, and the
cside raises the set temperature. Press
and hold either side of the button to rapidly change the
temperature setting in one degree increments to either65ÊF
File:05vxcfn.ex
Update:Thu May 30 09:49:09 1996

214
*
[TO08400(ALL)01/96]
RWARNING
Do not park, idle, or drive your vehicle in dry grass or
other dry ground cover. The emission system heats up
the engine compartment and exhaust system, which can
start a fire.
*
[TO08500(ALL)01/96]
If you consistently start your vehicle in subzero temperatures,
use an engine block heater (if your vehicle has this option).
%*
[TO08600(ALL)01/96]
Engine Block Heater (If equipped)
[TO08700(ALL)01/96]
Engine block heaters are strongly recommended if you live in a
region where temperatures reachs10ÊF (s23ÊC) orbelow. An
engine block heater warms the engine coolant, which improves
starting, warms up the engine faster, and allows the
heater-defrost system to respond more quickly.
*
[TO08900(ALL)01/96]
RWARNING
To prevent electrical shock, do not use your heater with
ungrounded electrical systems or two-pronged (cheater)
adapters.
*
[TO09000(ALL)01/96]
For best results, plug the heater in at least three hours before
you start your vehicle. Using the heater for longer than three
hours will not damage the engine, so you can leave it plugged
in all night to start your vehicle the following morning.
%*
[TO09005(ALL)01/96]
What To Do If The Engine Does Not Start
%*
[TO09010(ALL)01/96]
Fuel Pump Shut-Off Switch
*
[TO09015(ALL)03/96]
If the engine cranks but does not start or does not start even
after a small collision, the fuel pump shut-off switch may have
been activated. The shut-off switch is a device intended to stop
the fuel pump when your vehicle has been involved in a
substantial jolt. Refer to theRoadside emergenciessection for more
information.
File:08vxton.ex
Update:Thu May 30 09:53:35 1996

Maintenance and Care
287
[MC18423(ALL)01/96]
13-1/2 pica
art:0040205-C
Brake fluid master cylinder reservoir
%*
[MC18425(ALL)02/96]
Windshield Washer Fluid
[MC18435(ALL)01/96]
Check the level of the windshield washer fluid every time you
stop for fuel, or when the warning light indicates low washer
fluid. The reservoir for washer fluid is located in the engine
compartment. This reservoir contains the fluid for both the
windshield and liftgate washers.
*
[MC18440(ALL)01/96]
RWARNING
Do not put windshield washer fluid in the container for
the engine coolant.
*
[MC18445(ALL)05/96]
If sprayed to clean the glass, engine coolant or antifreeze could
make it difficult to see through the windshield.
File:11vxmcn.ex
Update:Mon Jun 10 15:17:05 1996

Maintenance and Care
289
%*
[MC18475(ALL)01/96]
Engine Coolant
%*
[MC18500(ALL)01/96
]
Checking the Engine Coolant
*
[MC18550(ALL)05/96]
NOTE: Be sure to read and understandPrecautions When
Servicing Your Vehicleat the beginning of this chapter.
[MC18600(ALL)03/96]
Your vehicle's engine coolant protects the engine from
overheating in the summer and from freezing in the winter.
Check the level of the engine coolant at least once a month, but
preferably each time you stop for fuel. Simply check the coolant
reservoir, located in the engine compartment. The coolant
should stay between the MIN and MAX marks. It will be closer
to MAX when the engine is warm and closer to MIN when the
engine is cold. To locate the coolant reservoir, see the diagram
of your vehicle's engine underEngine Compartmentin the
Capacities and Specificationschapter.
File:11vxmcn.ex
Update:Mon Jun 10 15:17:05 1996

290
*
[MC18700(ALL)05/96]
Adding Engine Coolant
[MC18800(ALL)01/96]
17-1/2 pica
art:0040197-C

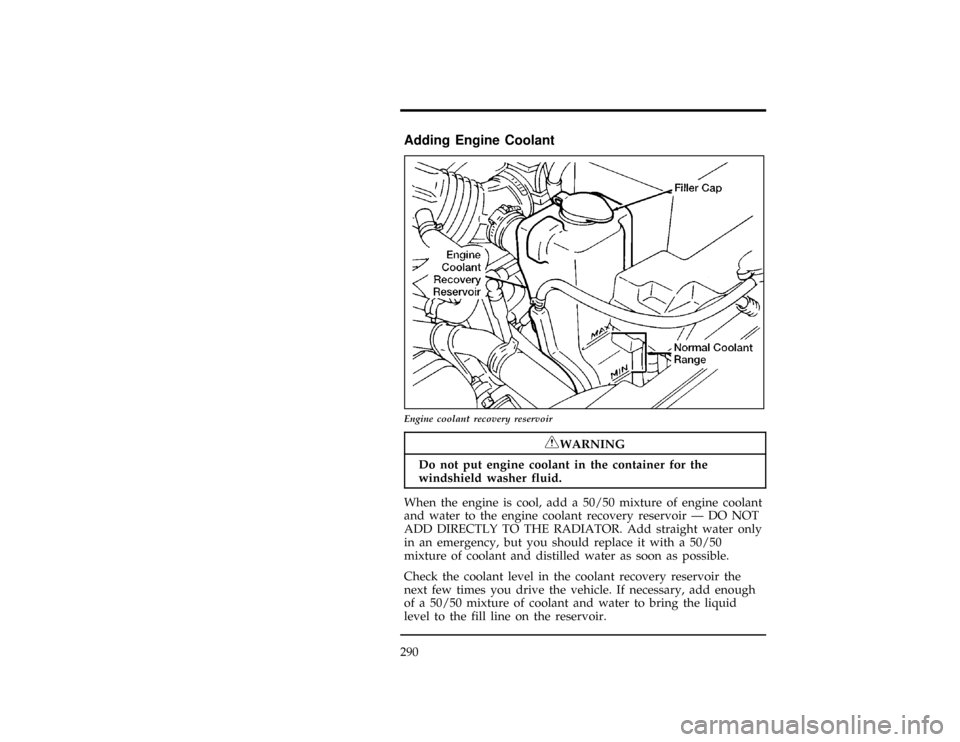

Engine coolant recovery reservoir
*
[MC18900(ALL)05/96]
RWARNING
Do not put engine coolant in the container for the
windshield washer fluid.
*
[MC19000(ALL)05/96]
When the engine is cool, add a 50/50 mixture of engine coolant
and water to the engine coolant recovery reservoir Ð DO NOT
ADD DIRECTLY TO THE RADIATOR. Add straight water only
in an emergency, but you should replace it with a 50/50
mixture of coolant and distilled water as soon as possible.
*
[MC19025(ALL)05/96]
Check the coolant level in the coolant recovery reservoir the
next few times you drive the vehicle. If necessary, add enough
of a 50/50 mixture of coolant and water to bring the liquid
level to the fill line on the reservoir.
File:11vxmcn.ex
