Roadside Emergencies
259
*
[ER00615(ALL)01/96]
10-1/2 pica
art:0040173-B
Removing the spare tire retainer
*
[ER00620(ALL)01/96]
Stowing the spare tire
[ER00625(ALL)05/96]1.
To raise the tire to the stowed position, lay the tire on the
ground with the inboard side facing up. Install the retainer
through the wheel center and slide the tire under the vehicle.
Fit the hex-shaped end of the lug wrench over the hex nut
in the floor of the cargo area. Turn the lug wrench clockwise
until the tire is raised to its original position underneath the
vehicle.
[ER00630(ALL)01/96]
NOTE: The lug wrench ratchets when the tire is raised to the
stowed position. It will not allow you to over-tighten.
*
[ER00635(ALL)01/96]2.
Check for proper seating against the underbody supports
and retighten if necessary.
*
[ER00640(ALL)01/96]
RWARNING
Make sure the spare tire and jacking equipment are
stowed and secured in the proper storage location.
File:10vxern.ex
Update:Thu May 30 09:55:50 1996
Page 258 of 389
260
%*
[ER00645(ALL)03/96]
Preparing to Change the Tire
*
[ER00650(ALL)01/96]
You should only raise your vehicle with a jack properly placed
at the front or rear jacking points.
*
[ER00655(ALL)05/96]1.
Make sure that your vehicle will not move or roll and that
the tires and jack are on a level, solid surface. Put the
gearshift lever in P (Park). Set the parking brake and block
the wheel Ð in both directions Ð that is diagonally opposite
the tire that you are changing.
*
[ER00660(ALL)01/96]
RWARNING
When one of the front wheels is off the ground, the
transaxle alone will not prevent the vehicle from moving
or slipping off the jack, even if the vehicle is in P (Park).
*
[ER00665(ALL)01/96]
RWARNING
To prevent the vehicle from moving when you change a
tire, be sure the parking brake is set, then block (in both
directions) the wheel that is diagonally opposite (other
side and end of the vehicle) to the tire being changed.
*
[ER00670(ALL)03/96]
RWARNING
If the vehicle slips off the jack, you or someone else
could be seriously injured.
[ER00675(ALL)05/96]2.
Get out the spare tire and jack. See previous section for
instructions on spare tire removal. The jack is located in the
rear storage compartment in the right door panel of the
cargo area. You will have to unfasten the jack before
removing it as shown in the illustration. The jack handle is
in the tool kit located behind the jack.
File:10vxern.ex
Update:Thu May 30 09:55:50 1996
Page 262 of 389
264
*
[ER00720(ALL)01/96]
7-1/2 pica art:0040182-A

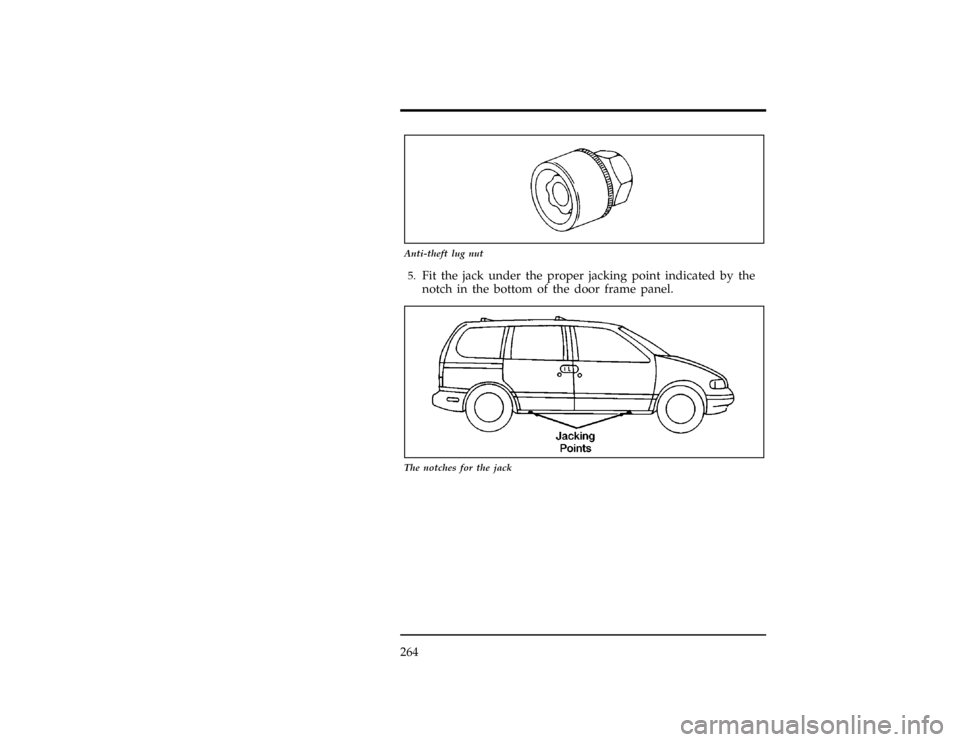

Anti-theft lug nut
*
[ER00725(ALL)01/96]5.
Fit the jack under the proper jacking point indicated by the
notch in the bottom of the door frame panel.
[ER00730(ALL)01/96]
10-1/2 pica
art:0040180-A
The notches for the jack
