Page 9 of 233
ContentsThe fastest way to find information on a partic‐
ular topic or item is by using the index, refer to
page 220.6Notes
At a glance
12Cockpit16Radio
Controls
20Opening and closing32Adjusting40Transporting children safely44Driving56Displays66Lamps71Safety86Driving stability control systems90Driving comfort104Climate control110Interior equipment112Digital compass118Storage compartments
Driving tips
124Things to remember when driving127Loading130Saving fuel
Entertainment
138Tone139Radio145Multimedia
Communication
152Bluetooth hands-free systemMobility162Refueling164Fuel166Wheels and tires178Engine compartment180Engine oil183Coolant184Maintenance186Replacing components198Breakdown assistance203Care
Reference
210Technical data212Appendix216License Texts and Certifications220Everything from A to Z
Online Edition for Part no. 01 40 2 925 116 - X/13
Page 63 of 233
These messages can be hidden for approx.
8 seconds. After this time, they are dis‐
played again automatically.▷Other Check Control messages are hidden
automatically after approx. 20 seconds.
They are stored and can be displayed again
later.
Displaying stored Check Control
messages
1. Press the button.2. "Vehicle Info"3."Vehicle status"4."Check Control"5.Selecting the desired Check Control mes‐
sage
Messages after trip completion
Special messages that are displayed during
driving are displayed again after the ignition is
switched off.
Fuel gauge The vehicle inclination may
cause the display to vary.
The arrow beside the fuel pump
symbol shows which side of the
vehicle the fuel filler flap is on.
Hints on refueling, refer to page 162.
Tachometer
Always avoid engine speeds in the red warning
field. In this range, the fuel supply is interrupted
to protect the engine.
Engine oil temperature
If the engine oil along with the engine becomes
too hot, a Check Control message is displayed.
Coolant temperature If the coolant along with the engine becomes
too hot, a Check Control message is displayed.
Check the coolant level, refer to page 183.
Odometer and trip odom‐
eter
Odometer and trip odometer are displayed in
the instrument cluster.
Resetting the trip odometer Press the knob.▷The odometer is displayed
when the ignition is switched
off.▷When the ignition is switched
on, the trip odometer is re‐
set.
External temperature
External temperature warning If the indicator drops to
+37 ℉/+3 ℃, a signal sounds.
A Check Control message is dis‐
played.
There is an increased risk of ice
on roads.
Ice on roads
Even at temperatures above
+37 ℉/+3 ℃, there can be a risk of ice on
roads.
Seite 59DisplaysControls59
Online Edition for Part no. 01 40 2 925 116 - X/13
Page 182 of 233

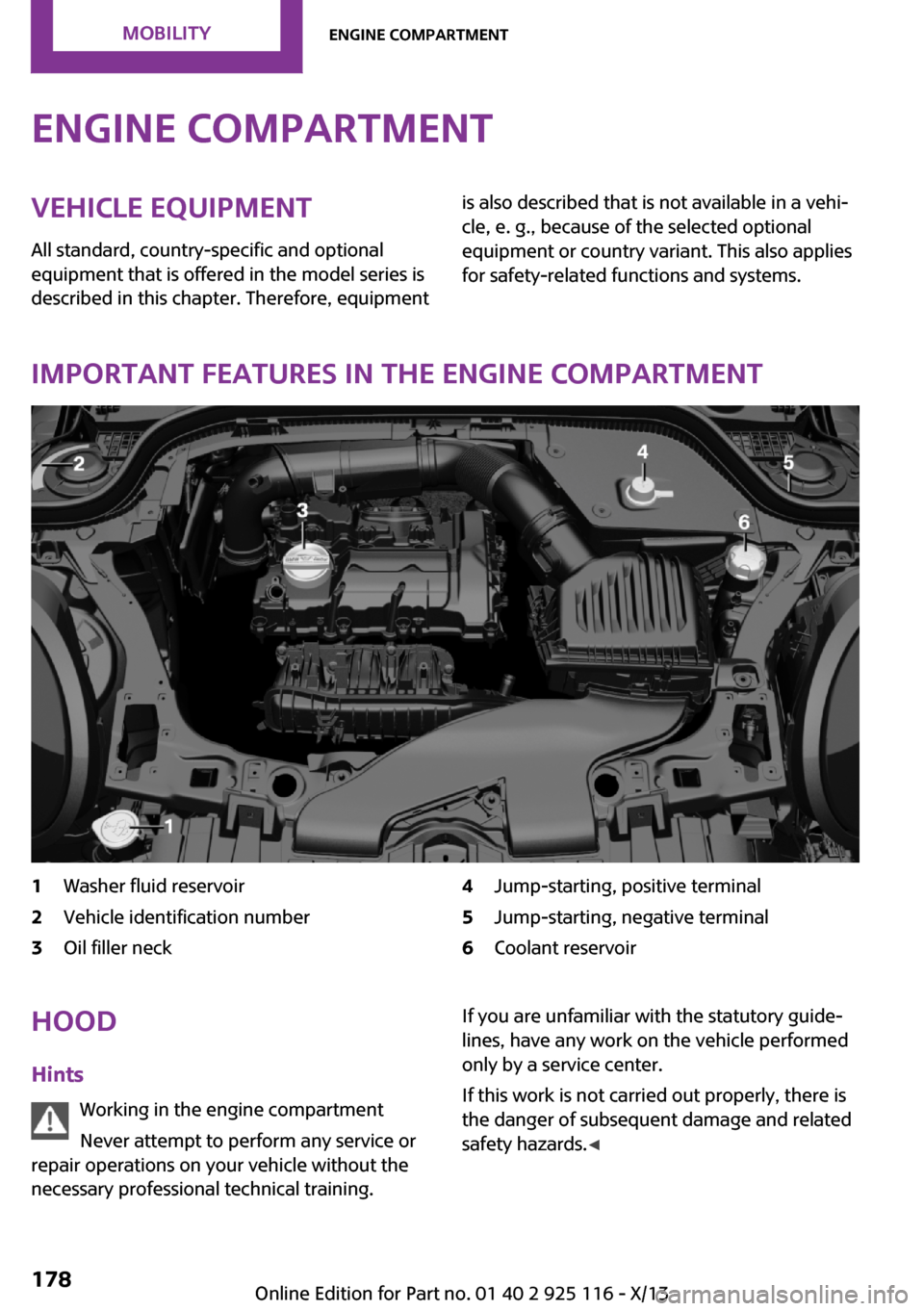

Engine compartmentVehicle equipment
All standard, country-specific and optional
equipment that is offered in the model series is
described in this chapter. Therefore, equipmentis also described that is not available in a vehi‐
cle, e. g., because of the selected optional
equipment or country variant. This also applies
for safety-related functions and systems.
Important features in the engine compartment
1Washer fluid reservoir2Vehicle identification number3Oil filler neck4Jump-starting, positive terminal5Jump-starting, negative terminal6Coolant reservoirHood
Hints Working in the engine compartment
Never attempt to perform any service or
repair operations on your vehicle without the
necessary professional technical training.If you are unfamiliar with the statutory guide‐
lines, have any work on the vehicle performed
only by a service center.
If this work is not carried out properly, there is
the danger of subsequent damage and related
safety hazards. ◀Seite 178MobilityEngine compartment178
Online Edition for Part no. 01 40 2 925 116 - X/13
Page 187 of 233
CoolantVehicle equipment
All standard, country-specific and optional
equipment that is offered in the model series is
described in this chapter. Therefore, equipment
is also described that is not available in a vehi‐
cle, e. g., because of the selected optional
equipment or country variant. This also applies
for safety-related functions and systems.
General information Danger of burns from hot engine
Do not open the cooling system while the
engine is hot; otherwise, escaping coolant may
cause burns. ◀
Suitable additives
Only use suitable additives; otherwise,
engine damage may occur. The additives are
harmful to your health. ◀
Coolant consists of water and additives.
Not all commercially available additives are
suitable for your vehicle. Ask your service cen‐
ter for suitable additives.
Coolant levelChecking
There are yellow Min and Max marks in the
coolant reservoir.1.Let the engine cool.2.Turn the coolant reservoir lid counterclock‐
wise to unscrew and open it.3.The coolant level is correct when it is be‐
tween these two marks.
Adding engine oil
1.Let the engine cool.2.Turn the coolant reservoir lid counterclock‐
wise to unscrew and open it.3.If the coolant is low, slowly add coolant up
to the specified level; do not overfill.4.Turn the cap.5.Have the cause of the coolant loss elimi‐
nated as soon as possible.
Disposal
Comply with the relevant environmen‐
tal protection regulations when dispos‐
ing of coolant and coolant additives.
Seite 183CoolantMobility183
Online Edition for Part no. 01 40 2 925 116 - X/13
Page 225 of 233
C
California Proposition 65 Warning 7
Camera-based cruise control, ACC 90
Camera, care 206
Can holder, refer to Cu‐ pholder 119
Car battery 196
Car care products 204
Care, displays 206
Care, vehicle 204
Cargo 127
Cargo area 115
Cargo area, adapting size 120
Cargo area, enlarging 116
Cargo area lid 24
Cargo area, storage compart‐ ments 120
Cargo cover 115
Cargo, securing 128
Cargo straps, securing cargo 128
Car key, refer to Remote con‐ trol 20
Carpet, care 206
Car wash 203
Catalytic converter, refer to Hot exhaust system 125
CBS Condition Based Serv‐ ice 184
Center armrest 119
Center console 14
Changes, technical, refer to Safety 6
Changing parts 186
Changing the station 140
Changing wheels 193
Changing wheels/tires 171
Check Control 57
Children, seating position 40
Children, transporting safely 40
Child restraint fixing sys‐ tem 40 Child restraint fixing system
LATCH 41
Child restraint fixing systems, mounting 40
Child seat, mounting 40
Child seats 40
Chrome parts, care 205
Cigarette lighter 115
Cleaning, displays 206
Climate control 104, 106
Clock 60
Closing/opening via door lock 23
Closing/opening with remote control 22
Clothes hooks 120
Coasting 133
Coasting with engine decou‐ pled, coasting 133
Coasting with idling en‐ gine 133
Cold starting, refer to Starting the engine 45
Collision warning with City Braking function 80
Combination switch, refer to Turn signals 49
Combination switch, refer to Wiper system 49
Comfort Access 25
Compact wheel 194
Compartments in the doors 119
Compass 112
Compressor 173
Computer 63
Condensation on win‐ dows 108
Condensation under the vehi‐ cle 126
Condition Based Service CBS 184
Confirmation signal 27
Control systems, driving stabil‐ ity 86
Convenient opening 22 Coolant 183
Coolant temperature 59
Cooling function 105, 108
Cooling, maximum 107
Cooling system 183
Cornering lamp 68
Corrosion on brake discs 126
Cruise control 96
Cruise control, active 90
Cruise control, refer to cam‐ era-based cruise control 90
Cruising range 60
Cupholder 119
Current fuel consumption 60
D
Damage, tires 171
Damping control, dynamic 87
Data, technical 210
Date 60
Date, radio 65
Date, setting on radio 65
Daytime running lights 67
Defrosting, refer to defrosting the windows 105
Defrosting, refer to Windows, defrosting 108
Defrosting the windows 105
Dehumidifying, air 105, 108
Diesel particulate filter 125
Digital clock 60
Digital compass 112
Digital radio 141
Dimensions 210
Dimmable exterior mirrors 38
Dimmable interior rearview mirror 38
Direction indicator, refer to Turn signals 49
Display, electronic, instrument cluster 57
Display lighting, refer to In‐ strument lighting 70
Displays 56
Displays, cleaning 206 Seite 221Everything from A to ZReference221
Online Edition for Part no. 01 40 2 925 116 - X/13

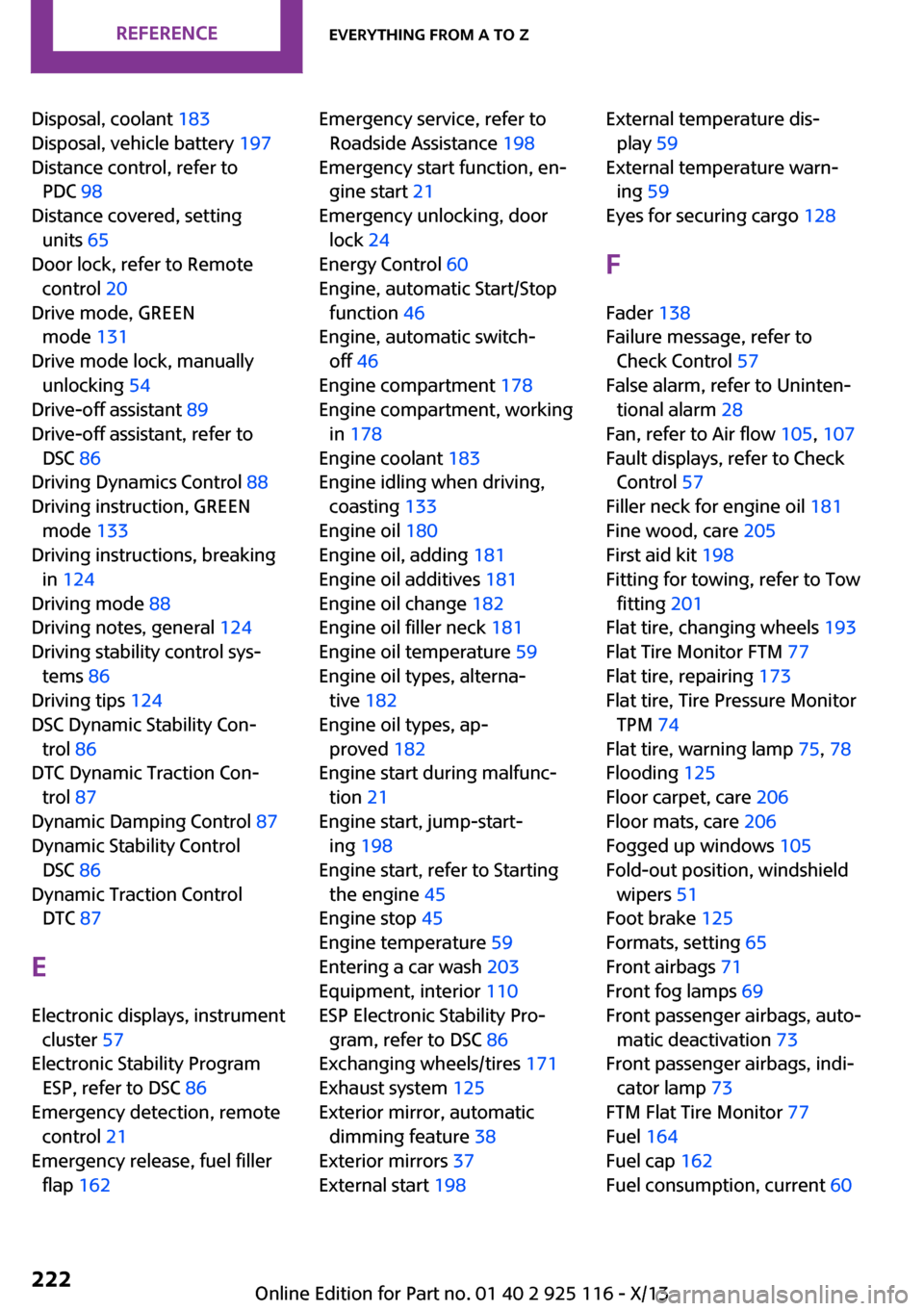

Page 226 of 233
Disposal, coolant 183
Disposal, vehicle battery 197
Distance control, refer to PDC 98
Distance covered, setting units 65
Door lock, refer to Remote control 20
Drive mode, GREEN mode 131
Drive mode lock, manually unlocking 54
Drive-off assistant 89
Drive-off assistant, refer to DSC 86
Driving Dynamics Control 88
Driving instruction, GREEN mode 133
Driving instructions, breaking in 124
Driving mode 88
Driving notes, general 124
Driving stability control sys‐ tems 86
Driving tips 124
DSC Dynamic Stability Con‐ trol 86
DTC Dynamic Traction Con‐ trol 87
Dynamic Damping Control 87
Dynamic Stability Control DSC 86
Dynamic Traction Control DTC 87
E Electronic displays, instrument cluster 57
Electronic Stability Program ESP, refer to DSC 86
Emergency detection, remote control 21
Emergency release, fuel filler flap 162 Emergency service, refer to
Roadside Assistance 198
Emergency start function, en‐ gine start 21
Emergency unlocking, door lock 24
Energy Control 60
Engine, automatic Start/Stop function 46
Engine, automatic switch- off 46
Engine compartment 178
Engine compartment, working in 178
Engine coolant 183
Engine idling when driving, coasting 133
Engine oil 180
Engine oil, adding 181
Engine oil additives 181
Engine oil change 182
Engine oil filler neck 181
Engine oil temperature 59
Engine oil types, alterna‐ tive 182
Engine oil types, ap‐ proved 182
Engine start during malfunc‐ tion 21
Engine start, jump-start‐ ing 198
Engine start, refer to Starting the engine 45
Engine stop 45
Engine temperature 59
Entering a car wash 203
Equipment, interior 110
ESP Electronic Stability Pro‐ gram, refer to DSC 86
Exchanging wheels/tires 171
Exhaust system 125
Exterior mirror, automatic dimming feature 38
Exterior mirrors 37
External start 198 External temperature dis‐
play 59
External temperature warn‐ ing 59
Eyes for securing cargo 128
F
Fader 138
Failure message, refer to Check Control 57
False alarm, refer to Uninten‐ tional alarm 28
Fan, refer to Air flow 105, 107
Fault displays, refer to Check Control 57
Filler neck for engine oil 181
Fine wood, care 205
First aid kit 198
Fitting for towing, refer to Tow fitting 201
Flat tire, changing wheels 193
Flat Tire Monitor FTM 77
Flat tire, repairing 173
Flat tire, Tire Pressure Monitor TPM 74
Flat tire, warning lamp 75, 78
Flooding 125
Floor carpet, care 206
Floor mats, care 206
Fogged up windows 105
Fold-out position, windshield wipers 51
Foot brake 125
Formats, setting 65
Front airbags 71
Front fog lamps 69
Front passenger airbags, auto‐ matic deactivation 73
Front passenger airbags, indi‐ cator lamp 73
FTM Flat Tire Monitor 77
Fuel 164
Fuel cap 162
Fuel consumption, current 60 Seite 222ReferenceEverything from A to Z222
Online Edition for Part no. 01 40 2 925 116 - X/13
Page 229 of 233
Octane rating, refer to Gaso‐line quality 164
Odometer 59
Oil 180
Oil, adding 181
Oil additives 181
Oil change 182
Oil change interval, service re‐ quirements 60
Oil filler neck 181
Oil types, alternative 182
Oil types, approved 182
Old batteries, disposal 197
Onboard Diagnostics OBD 184
Onboard vehicle tool kit 186
Opening/closing via door lock 23
Opening/closing with remote control 22
Optional equipment, standard equipment 6
Outside air, refer to Automatic recirculated-air control 108
Overheating of engine, refer to Coolant temperature 59
P Paint, vehicle 204
Panoramic glass sunroof 30
Parallel parking assistant 100
Park Distance Control PDC 98
Parked vehicle, condensa‐ tion 126
Parking aid, refer to PDC 98
Parking assistant 100
Parking brake 48
Parking lamps 66
Particulate filter 125
Passenger side mirror, tilting downward 37
PDC Park Distance Control 98
Pedestrian warning with city braking function 83
Performance Control 87 Personal Profile 21
Phone 152
Pinch protection system, glass sunroof 31
Pinch protection system, win‐ dows 29
Plastic, care 205
Power failure 196
Power windows 29
Pressure, tire air pressure 166
Pressure warning, tires 77
Profile, refer to Personal Pro‐ file 21
Protective function, glass sun‐ roof 31
Protective function, win‐ dows 29
R Radiator fluid 183
Radio, AM/FM stations 139
Radio, control ele‐ ments 139, 145
Radio, FM/AM 139
Radio, muting 139
Radio-operated key, refer to Remote control 20
Radio, overview 139, 145
Radio ready state 45
Radio, satellite radio 143
Radio, save stations 141
Radio, traffic bulletins 142
Rain sensor 50
Rear fog lamps 69
Rear lamps 190
Rear luggage rack 129
Rearview mirror 37
Rear window de‐ froster 105, 108
Recirculated-air filter 109
Recirculated-air mode 105, 108
Recommended tire brands 172
Refueling 162 Remaining range 60
Remote control/key 20
Remote control, blocking 21
Remote control, malfunc‐ tion 23
Remote control, replacing the battery 20
Remote control, univer‐ sal 110
Replacement fuse 197
Replacing parts 186
Replacing the battery, remote control 20
Replacing wheels/tires 171
Reporting safety defects 9
RES button 92
Reserve warning, refer to Range 60
Resetting the tone set‐ tings 138
Reset, Tire Pressure Monitor TPM 75
Retaining straps, securing cargo 128
Retreaded tires 172
Right-hand traffic, lamp set‐ ting 69
Roadside parking lamps 66
RON gasoline quality 164
Roof load capacity 210
Roof-mounted luggage rack 128
Rope for tow-starting/ towing 201
RSC Run Flat System Compo‐ nent, refer to Run-flat
tires 173
Rubber components, care 205
Run-flat tires 173
S
Safe braking 125
Safety 6 Seite 225Everything from A to ZReference225
Online Edition for Part no. 01 40 2 925 116 - X/13
