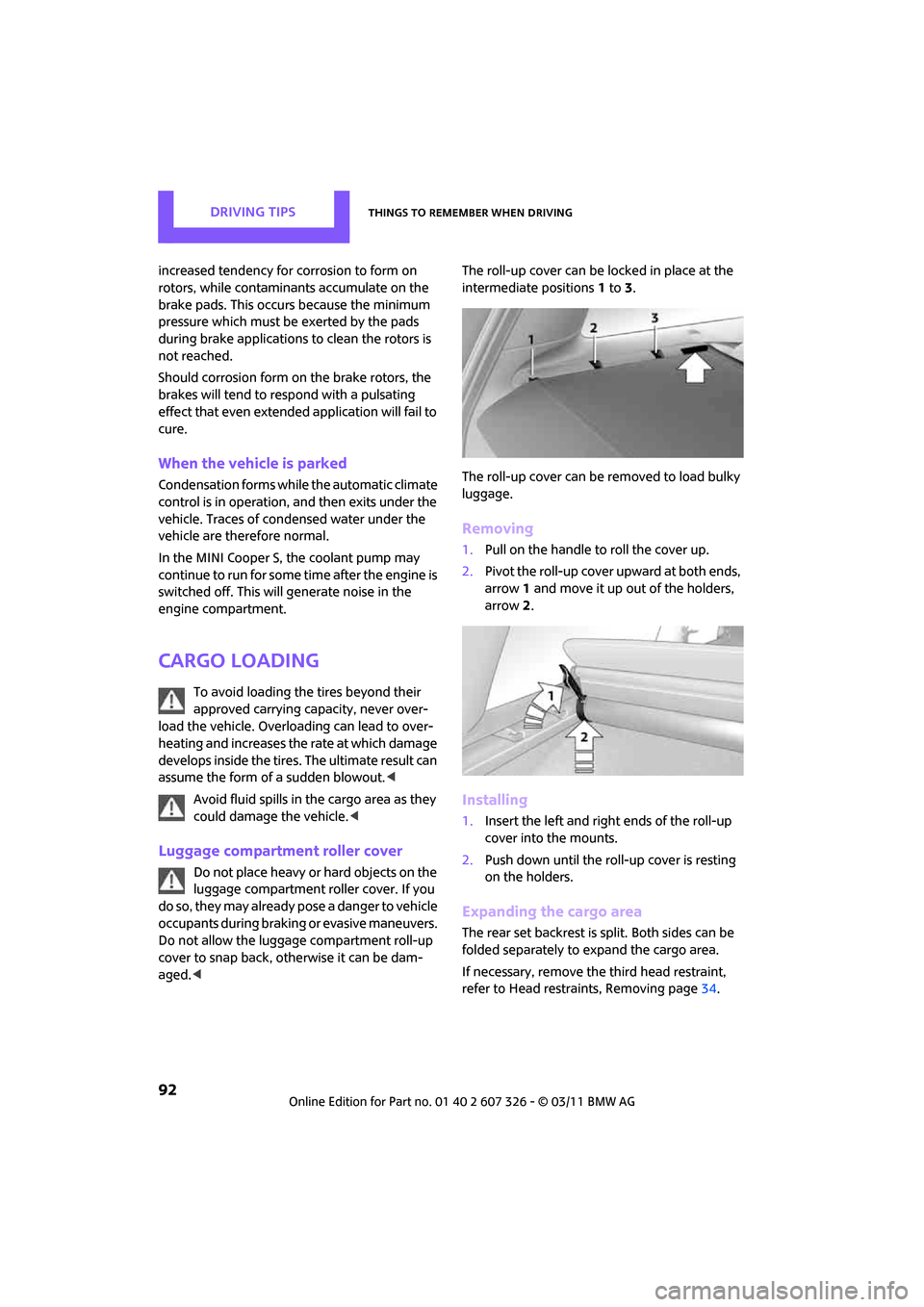

DRIVING TIPSThings to remember when driving
92
increased tendency for corrosion to form on
rotors, while contaminan ts accumulate on the
brake pads. This occurs because the minimum
pressure which must be exerted by the pads
during brake applications to clean the rotors is
not reached.
Should corrosion form on the brake rotors, the
brakes will tend to respond with a pulsating
effect that even extended application will fail to
cure.
When the vehicle is parked
Condensation forms while the automatic climate
control is in operation, and then exits under the
vehicle. Traces of condensed water under the
vehicle are therefore normal.
In the MINI Cooper S, the coolant pump may
continue to run for some time after the engine is
switched off. This will generate noise in the
engine compartment.
Cargo loading
To avoid loading the tires beyond their
approved carrying ca pacity, never over-
load the vehicle. Overloading can lead to over-
heating and increases the rate at which damage
develops inside the tires. The ultimate result can
assume the form of a sudden blowout. <
Avoid fluid spills in the cargo area as they
could damage the vehicle. <
Luggage compartment roller cover
Do not place heavy or hard objects on the
luggage compartment roller cover. If you
do so, they may already po se a danger to vehicle
occupants during braking or evasive maneuvers.
Do not allow the luggage compartment roll-up
cover to snap back, ot herwise it can be dam-
aged. < The roll-up cover can be locked in place at the
intermediate positions
1to 3.
The roll-up cover can be removed to load bulky
luggage.
Removing
1. Pull on the handle to roll the cover up.
2. Pivot the roll-up cover upward at both ends,
arrow 1 and move it up out of the holders,
arrow 2.
Installing
1. Insert the left and right ends of the roll-up
cover into the mounts.
2. Push down until the roll-up cover is resting
on the holders.
Expanding the cargo area
The rear set backrest is split. Both sides can be
folded separately to expand the cargo area.
If necessary, remove th e third head restraint,
refer to Head restraints, Removing page 34.

Under the hoodMOBILITY
137
Important parts of the engine compartment
1Vehicle identification number*
2Battery, under the cover 157
3 Engine oil dipstick 137
4 Engine oil filler neck 138 5
Coolant expansion tank 139
6 Reservoir for washer fl uid for the headlamp
and window washer system 49
7 Engine compartment fuse box 156
Engine oil
The engine oil consumption is dependent on
driving style and driving conditions.
Check the engine oil level regularly, e.g. when
refueling.
Checking engine oil level
1.With the vehicle's engi ne at normal operat-
ing temperature, i.e. after uninterrupted
driving for at least 6 miles/10 km, park the
vehicle on a level surface.
2. Switch off the engine. 3.
Pull the dipstick out after approx. 5 minutes
and wipe it off with a lint-free cloth, paper
towel or similar material.
4. Carefully push the dipstick all the way into
the guide tube and pull it out again.
The oil level should be between the two
marks on the dipstick.

Under the hoodMOBILITY
139
Coolant
Coolant consists of half water and half additive.
Not all commercially available additives are suit-
able for your MINI. Your MINI dealer knows
which additives are suitable and will be glad to
advise you.Only use suitable additives; otherwise,
engine damage may result. Because addi-
tives are harmful to your health, it is important
to follow the instructions on the containers. <
Comply with the appropriate environmen-
tal protection regulations when disposing
of coolant additives. <
Coolant temperature
If the coolant, and therefore the engine, should
overheat, then a warning li ght will go on, refer to
page 164.
Checking coolant level
Do not add coolant to the cooling system
when the engine is hot. Escaping coolant
can cause burns. <
Do not open the hood until the engine has
cooled down.
The coolant level is correct if it is between the
Min and Max markings.
Topping off
1. Turn the cap of the expansion tank a little
counterclockwise to allow any accumulated pressure to escape, then continue turning to
open.
2. Slowly fill to the correct fluid level; do not
overfill.
3. Close by turning the cap.
Have the reason for the coolant loss eliminated
as soon as possible.

Indicator and warning lampsMOBILITY
171
Selector lever position P not engaged.
Ignition cannot be switched offEngage selector lever position P when
you wish to switch off the ignition,
page
41.
Cruise control system fail edHave the system checked.
Park Distance Control fail edHave the system checked.
Bulb of exterior lighting system failed Have the exterior lighting checked as
soon as possible.
Low-beam headlamp or fog lamp
failed Have the lamps checked as soon as
possible.
High-beam headlamp failed Have the high-beam headlamps
checked.
Rear fog lamp failed Have the rear fog lamp checked.
Headlamp beam th row adjustment
system failed Have the headlamp beam throw
adjustment system checked.
Coolant level too low Add coolant immediately, page 139.
Engine oil pressure too low Stop immediately and switch off the
engine. You cannot continue your
journey. Contact your MINI dealer.
Lights up in red:
Service appointment overdue Arrange a service appointment.
Check service requirements, page 56.
Lights up in yellow:
Service due Arrange a service appointment.
Check service requirements, page 56.
12Cause What to do

180
REFERENCEEverything from A to Z
Everything from A to Z
INDEX
A
ABS Antilock Brake System61
Accessories, refer to Your individual vehicle 4
Acknowledgment signals for
locking/unlocking vehicle 22
Activated-charcoa l filter for
automatic climate control 82
Adaptive Light Control 74
Additives
– coolant 139
– engine oil 138
Adjusting temperature inside the car, refer to Air
conditioner 79
Adjusting temperature inside the car, refer to Automatic
climate control 80
Air conditioner 78
Air conditioning mode
– air conditioner 79
– automatic cl imate control80
– ventilation 82
Air distribution
– automatic 81
– individual 80
– manual 80
Air flow rate 79,81
– air conditioning system 79
– automatic cl imate control81
– heating, ventilation 79
Air outlets, refer to Air vents 78
Air pressure, checking, refer to Tire inflation pressure 128
Air recirculation, refer to Recir-
culated-air mode 79,81
Air supply
– air conditioner 79
– automatic cl imate control80
– ventilation 82 Air vents
78
Airbags 69
– sitting safely 32
– warning lamp 71
Airing, refer to Ventilation82
AKI, refer to Fuel grade 127
Alarm system 27
All-season tires, refer to Winter tires 135
Ambient air, refer to Recircu- lated-air mode 79,81
Ambient lighting 77
Antenna, care 142
Antifreeze
– coolant 139
– washer fluid 49
Anti
lock Brake System ABS 61
Anti-theft alarm system, refer
to Alarm system 27
Anti-theft system 21
Approved axle loads, refer to Weights 178
Approved engine oils 138
Approved gross vehicle weight, refer to Weights 178
Armrest, refer to Center
armrest 85
Ashtray 87
Assistant systems, refer to
– Dynamic Stability Control DSC 61
Audio device, external 85
AUTO program for automatic climate control 81
Auto radio, refer to Radio MINI
Boost CD 100
Automatic
– air distribution 81
– air flow rate 81
– cruise control 49
– headlamp control 72Automatic climate control
78
– automatic air distribution 81
Automatic station search 101
Automatic station storage 102
Automatic transmission with Steptronic 43
– interlock 44
– overriding selector lever lock 45
– shiftlock 44
– sport program 45
AUX In connection 100
AUX-IN, refer to External audio device 85
Average fuel consumption 52
– setting the units 55
Average speed 52
Axle loads, refer to
Weights 178
B
Background lighting, refer to
Ambient lighting 77
Backrests, refer to Seats 33
Backup lamps
– replacing bulb 150
Band-aids, refer to First aid pouch 157
Bar, refer to Tow-starting, towing away 159
Base plate for telephone or
mobile phone
– refer to Snap-in adapter 123
Battery 155
– charging 155
– disposal 30,155
– jump-starting 157
– temporary power failure 155
Battery renewal
– remote control 30

REFERENCEEverything from A to Z
182
Child restraint systems38
Child seats 38
Chrome parts, care 144
Chrome parts, refer to
Care 142
Cigarette lighter 87
Cleaning headlamps 48
– washer fluid 49
Clock
– 12 h/24 h mode 55
– setting time 57
Closing
– from inside 24
– from outside 21
Clothes hooks 86
Club Door 26
Cockpit 10
Cold start, refer to Starting the engine 42
Comfort Access 28
– replacing the battery 30
– what to observe before
entering a car wash 29
Comfort area, refer to Around the center console 14
Compartment for remote control, refer to Ignition
lock 41
Compressed audio files 105
Computer 52
Condensation, refer to When the vehicle is parked 92
Condition Based Service
CBS 140
Configuring settings, refer to Personal Profile 20
Connecting vacuum cleaner, refer to Connecting electrical
appliances 87
Consumption, refer to Average fuel consumption 52
Control Display
– settings 53
Controls and displays 10
Convenient access, refer to
Comfort Access 28 Convenient operation
– windows
22
Convenient start, refer to Starting the engine 42
Coolant 139
– checking level 139
– filling 139
Coolant temperature 139
Cooling fluid, refer to Coolant 139
Cooling, maximum 81
Copyright 2
Cornering light, refer to
Adaptive Light Control 74
Cruising range 52
Cupholders 87
Curb weight, refer to Weights 178
C

urrent fuel consumption 52
D
Dashboard instruments, refer
to Displays 12
Dashboard lighting, refer to
Instrument lighting 76
Dashboard, refer to Cockpit 10
Data 176
– capacities 179
– dimensions 177
– engine 176
– weights 178
Data memory 141
Date
– setting 58
Date setting 101
Daytime running lights 73
DBC Dynamic Brake Control, refer to Brake Assist 61
Deactivating front passenger airbags 70
Deadlocking, refer to
Locking 22
Defect
– door lock 24
– fuel filler flap 126
Defogging windows 80,82 Defrost positi
on, refer to
Defrosting windows 80,82
Defrosting windows 80,82
Defrosting windows and
removing condensation
– air conditioner 80
– automatic climate control 82
Defrosting windshield, refer to Defrosting windows 80,82
Differential, breaking in 90
Digital radio, refer to HD Radio 103
Dimensions 177
Dipstick, engine oil 137
Directional indicators, refer to Turn signals 46
Displacement, refer to Engine data 176
Display lighting, refer to
Instrument lighting 76
Displays 12
– instrument cluster 12
Displays and controls 10
Displays, care 145
Disposal
– of coolant 139
– remote control battery 30
– vehicle battery 155
Distance remaining to service, refer to Service
requirements 56
Distance warning, refer

to Park
Distance Control PDC 60
Door
– rear, refer to Club Door 26
Door key, refer to Integrated
key/remote control 20
Door lock 24
Door lock, confirmation
signals 22
Doors, manual operation 24
DOT Quality Grades 132
Double doors, refer to Split Rear Barn Doors 26
Drinks holders, refer to
Cupholders 87

Everything from A to ZREFERENCE
183
Drive-off assistant, refer to Hill
Assist 63
Driving dynamics control, refer to Sport button 63
Driving lamps, refer to Parking lamps/low beams 72
Driving notes 90
Driving off on inclines, refer to Hill Assist 63
Driving stability control
systems 60
Driving through water 91
Driving tips, refer to Driving
notes 90
Dry air, refer to Cooling function 82
DSC Dynamic Stability Control 61
DTC Dynamic Traction
Control 62
Dynamic Brake Control DBC, refer to Brake Assist 61
Dynamic Stability Control DSC 61
Dynamic Traction Control
DTC 62
E
Eject button 106
Electrical malfunction
– door lock 24
– fuel filler flap 126
Electronic brake-force distribution 61
Electronic Stability Program
ESP, refer to Dynamic
Stability Control DSC 61
Emergency operation, refer to
Manual operation
– door lock 24
– fuel filler flap 126
– transmission lock, automatic transmission 45
Emergency services, refer to
Roadside Assistance 157Engine
– breaking in
90
– data 176
– overheated, refer to Coolant
temperature 139
– speed 176
– starting 42
– starting, Comfort Access 28
– switching off 42
Engine compartment 137
Engine coolant, refer to Coolant 139
Engine oil
– adding 138
– additives, refer to Approved engine oils 138
– alternative oil types 138
– approved engine oils 138
– capacity 138
– checking level 137
– dipstick 137
– intervals between changes,
refer to Service
requirements 56
– MINI Maintenance
System 140
Engine oil level, checking 137
Engine output, refer to Engine
data 176
Engine starting, refer to
Starting the engine 42
ESP Electronic Stability Program, refer to Dynamic
Stability Control DSC 61
Exhaust system, refer to Hot exhaust system 90
Exterior mirrors 36
– adjusting 36
– automatic heating 36
– folding in and out 36
External audio device 85,100
External temperature display
– change units of measure 55
– in the on-board computer 55Eyes
– for tow-

starting and towing
away 159
– for tying down loads 95
F
Failure messages, refer to
Check Control 58
Failure of an electrical
consumer 156
Fast forward
– CD 106
Fastening safety be lts, refer to
Safety belts 35
Fault messages, refer to Check
Control 58
Filter
– microfilter for air
conditioner 80
– microfilter/activated- charcoal filter for automatic
climate control 82
Fine wood, care 145
First aid pouch 157
Fixture for remote control, refer to Ignition lock 41
Flash when locking/
unlocking 22
Flat load floor 94
Flat tire
– run-flat tires 134
– Tire Pressure Monitor TPM 65
Flat Tire Monitor FTM 63
– indicating a flat tire 64
– initializing the system 64
– snow chains 64
– system limits 64
Flat tires, refer to Tire
condition 133
Floor mats, care 144
Floor plate, refe r to Flat load
floor 94
Fog lamps
– replacing bulb 149,150
Folding rear seat backrest 92

REFERENCEEverything from A to Z
186
Manual operation
– door lock24
– fuel filler flap 126
– transmission lock, automatic
transmission 45
Manual station search 102
Manual transmission 43
Manual washing 143
Master key, refer to Integrated key/remote control 20
Maximum cooling 81
Maximum speed
– with winter tires 135
Medical assistance, refer to First aid pouch 157
Microfilter
– for air conditioner 80
– for automatic climate control 82
– MINI Maintenance System 140
Microfilter/activated-charcoal
filter
– MINI Maintenance System 140
Microphone for telephone 14
MINI Internet page 4
MINI Maintenance System 140
Mirror dimming feature 36
Mirrors 36
– exterior mirrors 36
– heating 36
– interior rearview mirror 36
Mobile phone
– adjusting volume 117
– connecting, refer to Mobile
phone, pairing 114
– installation location, refer to Center armrest 85
– pairing 114
– refer to separate Owner's Manual
– What to do if… 116
Mobile phone, installation
location, refer to Center
armrest 85 Mobile phone, refer to
separate Owner's Manual
Mobility System 151
Modifications, technical, refer
to For your own safety 5
Monitoring syst em for tire
pressures, refer to Flat Tire
Monitor 63
MP3 105
Multifunction switch
– refer to Turn signals/ headlamp flasher 46
– refer to Wiper system 47
Multifunctional steering wheel, refer to Buttons on
the steering wheel 11
Music tracks
– playing a track 106
– random order 106
N
Neck support, refer to Head
restraints 34
Nets, refer to Storage
compartments 86
New tires 134
Number of cylinders, refer to
Engine data 176
Number of safety belts 32
Nylon rope, refer to Tow rope 159
O
OBD socket, refer to Socket for
On-Board Diagnosis 141
Octane ratings, refer to Fuel specifications 127
Odometer 51
Oil consumption 137
Oil level 137
Oil, refer to Engine oil 137
Oil types 138
Old batteries, refer to
Disposal 155
Onboard vehicle toolkit 146Opening and closing
– Comfort Access
28
– from inside 24
– from outside 21
– using the door lock 24
– using the remote control 21
Opening and unlocking
– from inside 25
Opening/closing the Split Rear Barn Doors 26
Outlets
– refer to Ventilation 82
Outlets, refer to Air vents 78
Output, refer to Engine data 176
Outside-air mode
– automatic climate control 81
Overheated engine, refer to Coolant temperature 139
P
Paintwork, care143
Park Distance Control PDC 60
Parking
– vehicle 42
Parking aid, refer to Park Distance Control PDC 60
Parking brake 43
Parking lamps, replacing
bulb 149
Parking lamps/low beams 72
Parts and accessories, refer to
Your individual vehicle 4
Pathway lighting 73
PDC
– volume 100
Personal Profile 20
Phone numbers
– dialing 118
Pinch protection system
– windows 31
Plastic parts, care 144
Playing a track scan
– CD 106

Everything from A to ZREFERENCE
189
Steering wheel37
– adjustment 37
– buttons on steering wheel 11
– lock 41
– shift paddles 45
Steptronic, refer to Automatic transmission with
Steptronic 43
Storage area
– cargo area 92
Storage compartment, front passenger side 86
Storage compartments 86
Storage space
– storage compartments 86
Storing the vehicle 145
Storing tires 135
Stowage, refer to Storage compartments 86
Summer tires, re fer to Wheels
and tires 128
Switches, refer to Cockpit 10
Switching off
– engine 42
Switching off the engine
– Start/Stop button 41
Switching on
– CD player 100,105
– Radio MINI Boost CD 100
Switching the cooling function
on and off 82
Symbols 4
T
Tachometer 51
Tail lamp, refer to Tail lamps 150
– replacing bulb 150
Tail lamps 150
Tank volume, refer to Capacities 179
Technical data 176
Technical modifications 5Telephone
112
– hands-free system 120
– installation location, refer to Center armrest 85
– refer to separate Owner's Manual
– voice commands 120
Telephone call, refer to the Owner's Manual for the
telephone
Temperature display
– setting the units 55
Temperature of coolant, refer
to Coolant temperature 139
Temperature setting
– air conditioner 79
– automatic climate control 81
Tempomat, refer to Cruise control 49
Tensioning straps, refer to Securing cargo 95
The individual vehicle 4
Third brake lamp, refer to Center brake lamp 151
Three-point safety belt 35
Tightening the lug bolts
– keys 146
– torque 155
Tightening torque, refer to Tightening lug bolts 155
Time
– setting 101
Tire change set
– space-saver spare tire 146
Tire failure
– Flat Tire Monitor 64
– indicator/warning lamp 64
– MINI Mobility System 151
– run-flat tires 65
– space-saver spare tire 153
– Tire Pressure Monitor 65
Tire inflation pressure 128
– loss 64
– space-saver spare tire 128Tire Pressure Monitor TPM
65
– limitations of system 66
– resetting system 66
– warning lamp 66
Tire pressure monitoring, refer to Flat Tire Monitor 63
Tire Quality Grading 132
Tires
– age 133
– breaking in 90
– changi

ng, refe r to Changing
wheels 153
– condition 133
– damage 133
– inflation pressure 128
– inflation pressure loss 66
– minimum tread depth 133
– new tires 134
– pressure monitoring, refer to
Flat Tire Monitor 63
– pressure monitoring, refer to Tire Pressure Monitor
TPM 65
– puncture 64
– size 131
– wear indicators, refer to Minimum tread depth 133
– winter tires 135
– with emergency operation properties 134
Tires with emergency operation properties, refer to
Run-flat tires 134
Tires with safety features, refer
to Run-flat tires 134
Tone
– middle setting 101
Tone control 101
Tools, refer to Onboard vehicle
toolkit 146
Torque 176
– lug bolts 155
Tow bar 159
Tow fitting 159
– screw thread 159
Tow fittings for tow-starting and towing away 159
