Chrome surfacesCarefully clean components such as the radia‐
tor grille or door handles with an ample supply
of water, possibly with shampoo added, partic‐
ularly when they have been exposed to road
salt. For additional treatment, use a chrome
polish.
Light-alloy wheels
When cleaning the wheels on the vehicle, only
use a neutral wheel rim cleaner with a pH value
of 5 to 9.
Do not use abrasive cleaners or a steam jet hot‐
ter than 140 ℉/60 ℃; otherwise, damage may
result. Adhere to the manufacturer instructions.
Aggressive, acidic, or alkaline cleaners may de‐
stroy the protective coating of neighboring
components such as the brake disc.
Exterior sensors The sensors on the outside of the vehicle, such
as for Park Distance Control, must be kept clean
and free of ice to ensure that they remain fully
functional.
Decorative trim Clean decorative trims and fine wood compo‐
nents with a moist cloth only. Then dry with a
soft cloth.
Safety belts Dirty belt straps impede the reeling action and
thus have a negative impact on safety.
No chemical cleaning
Do not clean chemically; this can destroy
the webbing. ◀
Carpets/floor mats No objects in the area around the pedals
Keep floor mats, carpets, and any other
objects out of the area of motion of the pedals;
otherwise, the function of the pedals could be
impeded while drivingDo not place additional floor mats over existing
mats or other objects.
Only use floor mats that have been approved
for the vehicle and can be properly fixed in
place.
Ensure that the floor mats are securely fastened
again when they are returned after being re‐
moved, such as for cleaning. ◀
Floor mats can be removed for cleaning.
If they are very dirty, clean with a microfiber
cloth and water or an interior cleaner. To pre‐
vent matting of the carpet, rub back and forth
in the direction of travel only.
Displays
To clean the displays, such as the radio or dis‐
play elements, use an antistatic microfiber
cloth.
Cleaning displays
Do not use chemical or household cleans‐
ers.
Keep all fluids and moisture away from the
unit.
Otherwise, they could affect or damage surfa‐
ces or electrical components.
Avoid pressing too hard when cleaning and do
not use abrasive materials; otherwise, damage
can result. ◀
CD/DVD drives No cleaning CD
Do not use cleaning CDs; otherwise, parts
of the drive may become damaged. ◀
Long-term vehicle storage
Your service center can advise you on what to
consider when storing the vehicle for longer
than three months.Seite 251CareMobility251
Online Edition for Part no. 01 40 2 911 452 - VI/13

FIND ME.

Online Edition for Part no. 01 40 2 911 452 - VI/13

At a glanceControlsDriving tipsNavigationEntertainmentCommunicationMobilityReferenceOnline Edition for Part no. 01 40 2 911 452 - VI/13

Technical dataVehicle equipment
This chapter describes all series equipment as
well as country-specific and special equipment
offered for this model series.Therefore, it alsodescribes equipment that may not be found in
your vehicle, for instance due to the selected
special equipment or the country version. This
also applies to safety-related functions and sys‐
tems.
Engine specifications
CooperCooper SJohn Cooper WorksDisplacementcu in/cm³97.5/1,59897.5/1,59897.5/1,598No. of cylinders444Maximum outputhp121181208at engine speedrpm6,0005,5006,000Maximum torquelb ft/Nm114/155177/240192/260with overboost–192/260207/280at engine speedrpm4,2501,600-5,0001,750-5,500with overboost–1,730-4,5002,000-5,100Overboost briefly increases the highest torque during rapid acceleration, for example when pass‐
ing another vehicle.
Dimensions
MINI

MINICooperCooper S
John Cooper WorksWidth with mirrorsinches/mm75.3/1,91375.3/1,913Width without mirrorsinches/mm66.3/1,68366.3/1,683Height without roof antennainches/mm55.4/1,40755.4/1,407Lengthinches/mm146.6/3,723146.8/3,729Seite 254ReferenceTechnical data254
Online Edition for Part no. 01 40 2 911 452 - VI/13

MINICooperCooper S
John Cooper WorksWith aerodynamic bumperinches/mm-148.0/3,758Track width, frontinches/mm57.4/1,45957.4/1,459Track width, rearinches/mm57.8/1,46757.8/1,467Wheelbaseinches/mm97.1/2,46797.1/2,467Smallest turning circle dia.ft/m35/10.735/10.7
MINI Clubman

MINI ClubmanCooperCooper S
John Cooper WorksWidth with mirrorsinches/mm75.3/1,91375.3/1,913Width without mirrorsinches/mm66.3/1,68366.3/1,683Height without roof antennainches/mm56.1/1,42656.4/1,432Lengthinches/mm155.9/3,961155.9/3,961With aerodynamic bumperinches/mm-157.2/3,994Track width, frontinches/mm57.4/1,45957.2/1,453Track width, rearinches/mm57.8/1,46757.5/1,461Wheelbaseinches/mm100.3/2,547100.3/2,547Smallest turning circle dia.ft/m36/1136/11Weights
Never exceed either the approved axle loads or
the gross vehicle weight.MINI

CooperCooper SJohn Cooper WorksCurb weight, road ready, with maximum special equipmentManual transmissionlbs/kg2,535/1,1502,668/1,2102,679/1,215Automatic transmissionlbs/kg2,612/1,1852,712/1,2302,723/1,235Approved gross vehicle weightSeite 255Technical dataReference255
Online Edition for Part no. 01 40 2 911 452 - VI/13

CooperCooper SJohn Cooper WorksManual transmissionlbs/kg3,384/1,5353,494/1,5853,527/1,600Automatic transmissionlbs/kg3,461/1,5703,538/1,6053,571/1,620Approved front axle loadManual transmissionlbs/kg1,830/8301,918/8701,929/875Automatic transmissionlbs/kg1,907/8651,962/8901,973/895Approved rear axle loadlbs/kg1,664/7551,664/7551,676/760Approved roof load capacitylbs/kg165/75165/75165/75Cargo area capacitycu ft/
liter5.7-24.0/160-6805.7-24.0/160-6805.7-24.0/160-680
MINI Clubman

CooperCooper SJohn Cooper WorksCurb weight, road ready, with maximum special equipmentManual transmissionlbs/kg2,712/1,2302,833/1,2852,844/1,290Automatic transmissionlbs/kg2,789/1,2652,877/1,3052,888/1,310Approved gross vehicle weightManual transmissionlbs/kg3,549/1,6103,671/1,6653,715/1,685Automatic transmissionlbs/kg3,627/1,6453,726/1,6903,759/1,705Approved front axle loadManual transmissionlbs/kg1,830/8301,918/8701,940/880Automatic transmissionlbs/kg1,907/8651,962/8901,984/900Approved rear axle loadlbs/kg1,830/8301,841/8351,863/845Approved roof load capacitylbs/kg165/75165/75165/75Cargo area capacitycu ft/
liter9.2-32.8/260-9309.2-32.8/260-9309.2-32.8/260-930Seite 256ReferenceTechnical data256
Online Edition for Part no. 01 40 2 911 452 - VI/13

Capacities
NotesFuel tankUS gal/litersApprox. 13.2/50Fuel quality, refer to
page 208Including reserve ofUS gal/litersApprox. 2.1/8Seite 257Technical dataReference257
Online Edition for Part no. 01 40 2 911 452 - VI/13

Short commands for voice
activation systemVehicle equipment
This chapter describes all series equipment as
well as country-specific and special equipment
offered for this model series.Therefore, it also
describes equipment that may not be found in
your vehicle, for instance due to the selected
special equipment or the country version. This
also applies to safety-related functions and sys‐
tems.
General information Instructions for voice activation system, refer to
page 26.To have the available spoken instructions read
out loud: ›Voice commands‹
The following short commands apply to vehi‐
cles equipped with a voice activation system.
They have no function in vehicles in which only
the mobile phone is operated using the voice.
Adjusting
Vehicle
FunctionCommandOpens the main menu.›Main menu‹Open the options.›Options‹Open the settings.›Settings‹Settings on the Control Display.›Control display‹Open the time and date.›Time and date‹Open the language and units.›Language and units‹Open the speed limit.›Speed‹Open the light.›Lighting‹Open the door lock.›Door locks‹Seite 258ReferenceShort commands for voice activation system258
Online Edition for Part no. 01 40 2 911 452 - VI/13

Vehicle information
Computer
FunctionCommandOpen the computer.›Onboard info‹Open the trip computer.›Trip computer‹
Vehicle
FunctionCommandOpen the vehicle information.›Vehicle info‹Open the vehicle status.›Vehicle status‹
Navigation
General information
FunctionCommandNavigation menu.›Navigation‹Open the destination entry.›Enter address‹Enter the address.›Enter address‹Enter the town/city.›City‹Enter the country.›State‹Enter the postal code.›Postal Code‹Open destination guidance.›Guidance‹Start destination guidance.›Start guidance‹Terminate destination guidance.›Stop guidance‹Open the home address.›Home address‹Open the route criteria.›Route preference‹Open the route.›Route information‹Switch on the spoken instruction.›Switch on voice instructions‹Repeat the spoken instruction.›Repeat voice instructions‹Seite 259Short commands for voice activation systemReference259
Online Edition for Part no. 01 40 2 911 452 - VI/13

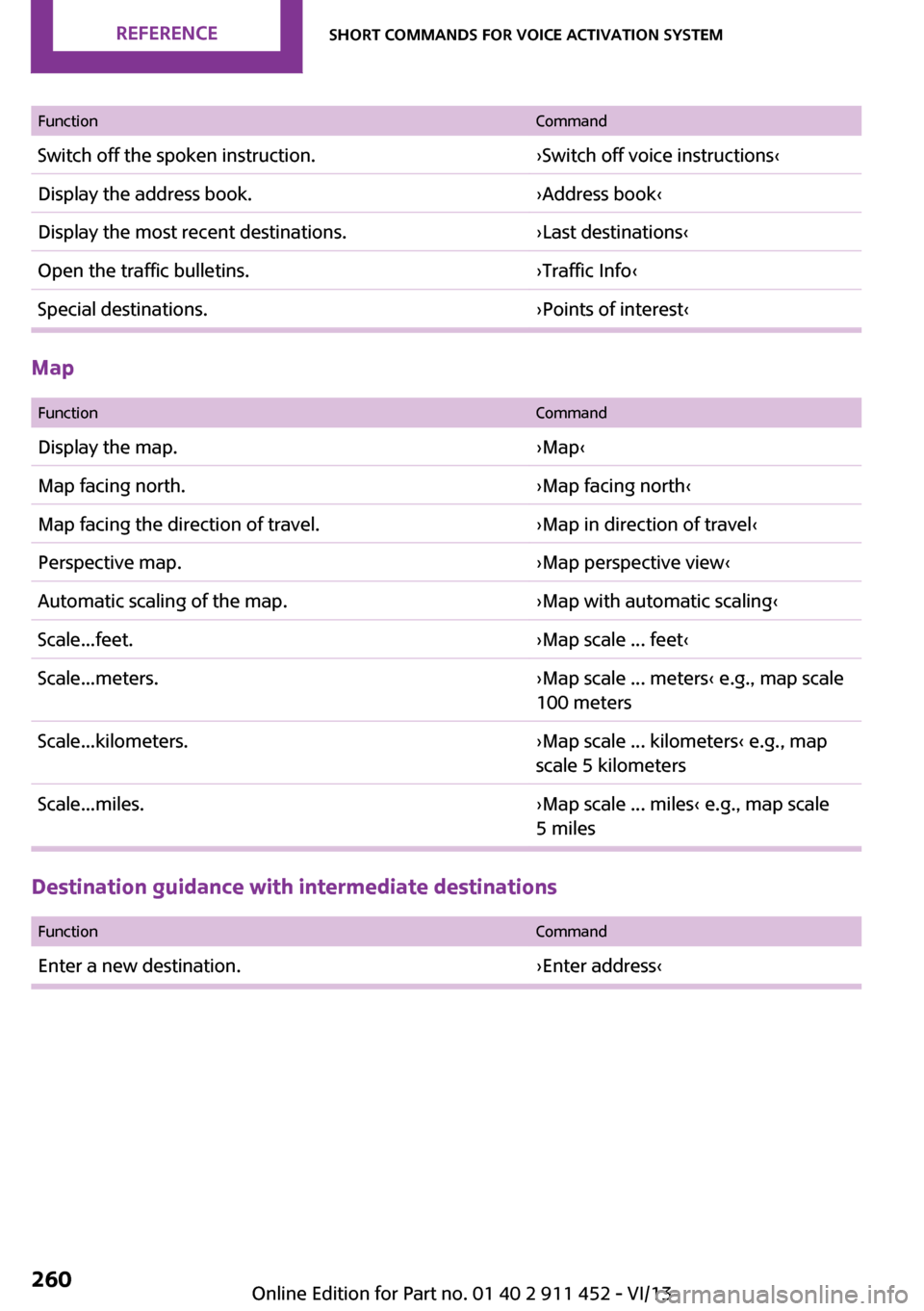

FunctionCommandSwitch off the spoken instruction.›Switch off voice instructions‹Display the address book.›Address book‹Display the most recent destinations.›Last destinations‹Open the traffic bulletins.›Traffic Info‹Special destinations.›Points of interest‹
Map

FunctionCommandDisplay the map.›Map‹Map facing north.›Map facing north‹Map facing the direction of travel.›Map in direction of travel‹Perspective map.›Map perspective view‹Automatic scaling of the map.›Map with automatic scaling‹Scale...feet.›Map scale ... feet‹Scale...meters.›Map scale ... meters‹ e.g., map scale
100 metersScale...kilometers.›Map scale ... kilometers‹ e.g., map
scale 5 kilometersScale...miles.›Map scale ... miles‹ e.g., map scale
5 miles
Destination guidance with intermediate destinations

FunctionCommandEnter a new destination.›Enter address‹Seite 260ReferenceShort commands for voice activation system260
