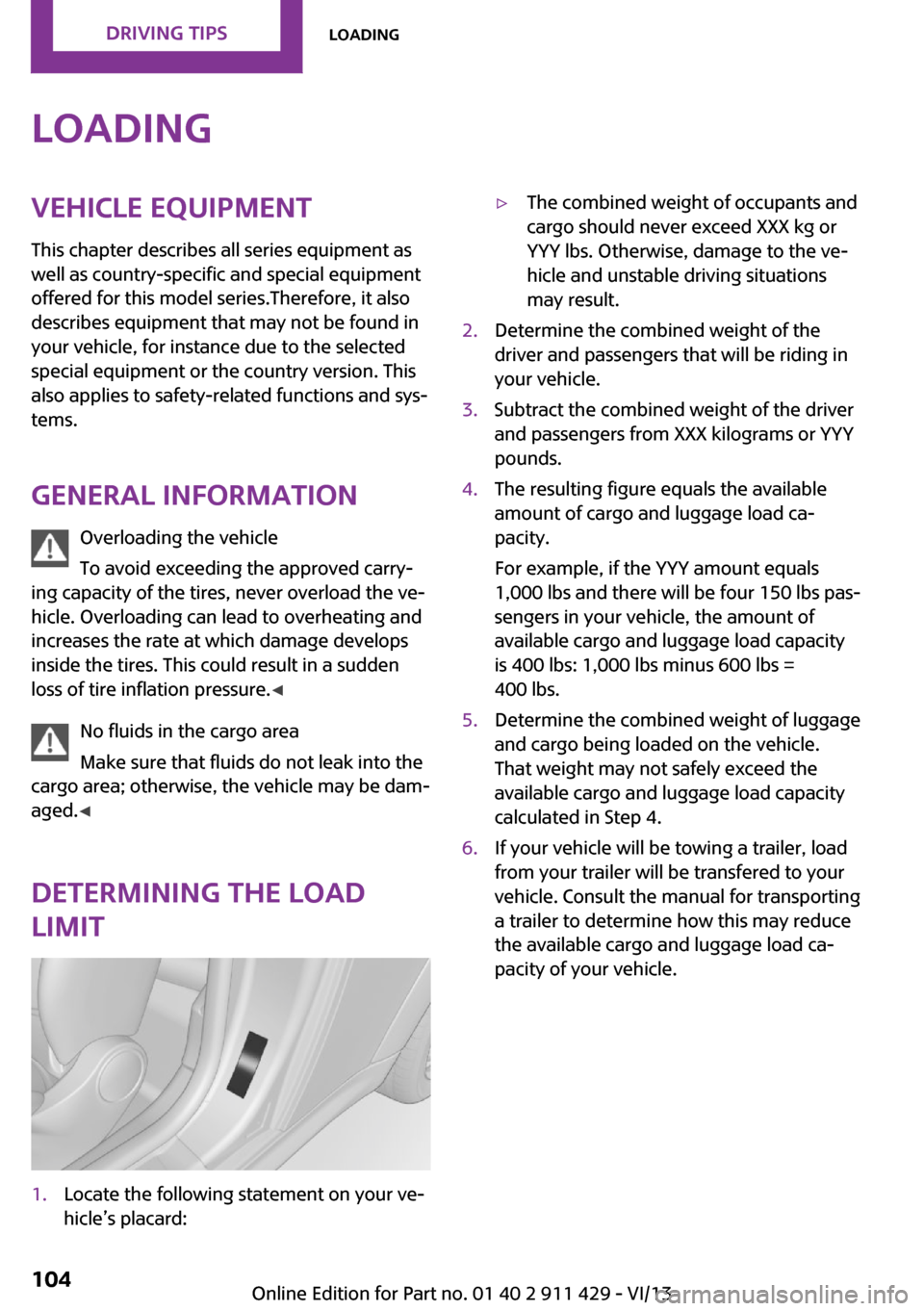

load capacity MINI Clubman 2014 Owner's Manual

LoadingVehicle equipment
This chapter describes all series equipment as
well as country-specific and special equipment
offered for this model series.Therefore, it also
describes equipment that may not be found in
your vehicle, for instance due to the selected
special equipment or the country version. This
also applies to safety-related functions and sys‐
tems.
General information Overloading the vehicle
To avoid exceeding the approved carry‐
ing capacity of the tires, never overload the ve‐
hicle. Overloading can lead to overheating and
increases the rate at which damage develops
inside the tires. This could result in a sudden
loss of tire inflation pressure. ◀
No fluids in the cargo area
Make sure that fluids do not leak into the
cargo area; otherwise, the vehicle may be dam‐ aged. ◀
Determining the load
limit1.Locate the following statement on your ve‐
hicle’s placard:▷The combined weight of occupants and
cargo should never exceed XXX kg or
YYY lbs. Otherwise, damage to the ve‐
hicle and unstable driving situations
may result.2.Determine the combined weight of the
driver and passengers that will be riding in
your vehicle.3.Subtract the combined weight of the driver
and passengers from XXX kilograms or YYY
pounds.4.The resulting figure equals the available
amount of cargo and luggage load ca‐
pacity.
For example, if the YYY amount equals
1,000 lbs and there will be four 150 lbs pas‐
sengers in your vehicle, the amount of
available cargo and luggage load capacity
is 400 lbs: 1,000 lbs minus 600 lbs =
400 lbs.5.Determine the combined weight of luggage
and cargo being loaded on the vehicle.
That weight may not safely exceed the
available cargo and luggage load capacity
calculated in Step 4.6.If your vehicle will be towing a trailer, load
from your trailer will be transfered to your
vehicle. Consult the manual for transporting
a trailer to determine how this may reduce
the available cargo and luggage load ca‐
pacity of your vehicle.Seite 104Driving tipsLoading104
Online Edition for Part no. 01 40 2 911 429 - VI/13

11.Unscrew the valve extension from the valve
of the compact wheel.12.Unscrew the dust cap from the extension
and attach it to the valve of the compact
wheel.
The defective wheel cannot be stowed in the
compact wheel holder because it has a differ‐
ent size.
MINI Clubman: removing the compact
wheel
The compact wheel is located under the wheel
change set in the cargo area.
1.Fold up the floor mat.2.Unscrew the nut, arrow, and take out the
compact wheel.
Driving with compact wheel
Do not exceed a speed of
50 mph/80 km/h.
Drive conservatively and do not exceed a speed
of 50 mph/80 km/h. Otherwise, changes in the
driving characteristics could result, for example
reduced track stability on braking, extended
braking distance, and altered self-steering
characteristics in the limit range. In conjunction
with winter tires, these characteristics are more
pronounced. ◀
Only mount one compact wheel
Only one compact wheel may be
mounted. Restore the wheels and tires to their
original size as quickly as possible. Failure to do
so is a safety risk. ◀
Check the tire inflation pressure at the next op‐
portunity and correct it if necessary. Replace
the defective tire as soon as possible and have
the new wheel balanced.
Preparing wheel change
Observe the safety precautions regarding flat
tires, refer to page 151.
Additional safety precautions in the event
of a wheel change
Change the wheel only on a level, firm surface
which is not slippery.
The vehicle or the jack could slip to the side if
you attempt to raise the vehicle on a soft or
slippery surface, snow, ice, tiles, etc. Do not use
a wooden block or similar object as a support
base for the jack, as this would prevent it from
extending to its full support height and reduce
its load-carrying capacity.
To avoid serious or fatal injury: never lie under
the vehicle, and never start the engine while it
is supported by the jack. ◀1.Place the folding wheel chock behind the
front wheel of the other vehicle side; if the
vehicle is on an incline, place it in front of
this wheel. If the vehicle is parked on a
steep incline, additionally secure the vehi‐
cle against rolling.2.Expose the lug bolts if necessary.3.Loosen the lug bolts a half turn.
Jacking up vehicle
Seite 171Replacing componentsMobility171
Online Edition for Part no. 01 40 2 911 429 - VI/13

CooperCooper SJohn Cooper WorksManual transmissionlbs/kg3,384/1,5353,494/1,5853,527/1,600Automatic transmissionlbs/kg3,461/1,5703,538/1,6053,571/1,620Approved front axle loadManual transmissionlbs/kg1,830/8301,918/8701,929/875Automatic transmissionlbs/kg1,907/8651,962/8901,973/895Approved rear axle loadlbs/kg1,664/7551,664/7551,676/760Approved roof load capacitylbs/kg165/75165/75165/75Cargo area capacitycu ft/
liter5.7-24.0/160-6805.7-24.0/160-6805.7-24.0/160-680
MINI Clubman

CooperCooper SJohn Cooper WorksCurb weight, road ready, with maximum special equipmentManual transmissionlbs/kg2,712/1,2302,833/1,2852,844/1,290Automatic transmissionlbs/kg2,789/1,2652,877/1,3052,888/1,310Approved gross vehicle weightManual transmissionlbs/kg3,549/1,6103,671/1,6653,715/1,685Automatic transmissionlbs/kg3,627/1,6453,726/1,6903,759/1,705Approved front axle loadManual transmissionlbs/kg1,830/8301,918/8701,940/880Automatic transmissionlbs/kg1,907/8651,962/8901,984/900Approved rear axle loadlbs/kg1,830/8301,841/8351,863/845Approved roof load capacitylbs/kg165/75165/75165/75Cargo area capacitycu ft/
liter9.2-32.8/260-9309.2-32.8/260-9309.2-32.8/260-930Seite 198ReferenceTechnical data198
