MINI Clubman 2017 Owner's Manual

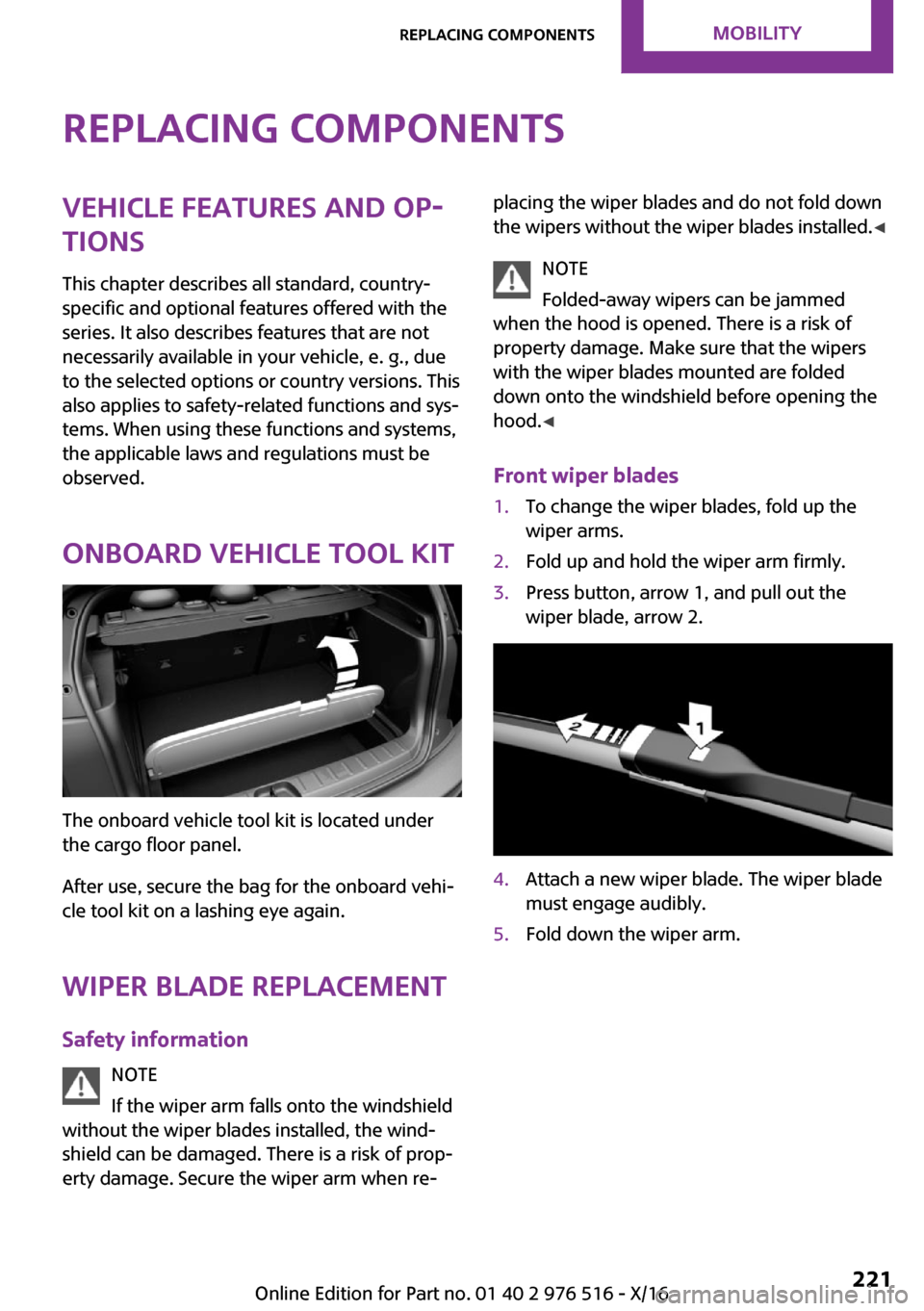

Replacing
componentsVehicle
features
and
op

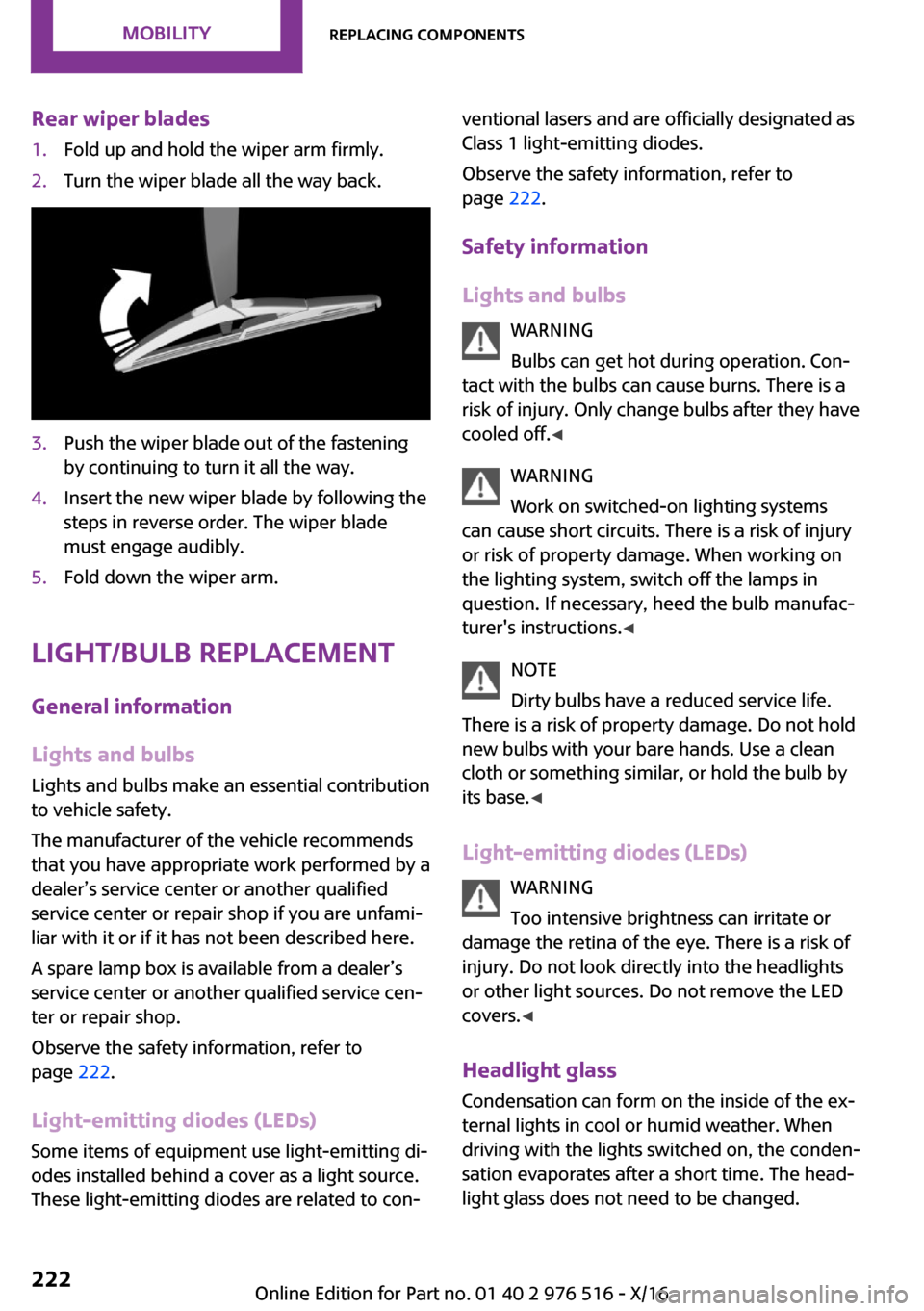

Rear
wiper
blades1.Fold up and hold the wiper arm firmly.2.Turn the wiper blade all the way back.3.Push the wiper blade out of the fasteningby continuing to turn it all the way.4.Insert the new wiper blade by following the
steps in reverse order. The wiper blade
must engage audibly.5.Fold down the wiper arm.
Light/bulb
replacement
General
information
Lights
and
bulbs
Lights and bulbs make an essential contribution
to vehicle safety.
The manufacturer of the vehicle recommends that you have appropriate work performed by a dealer

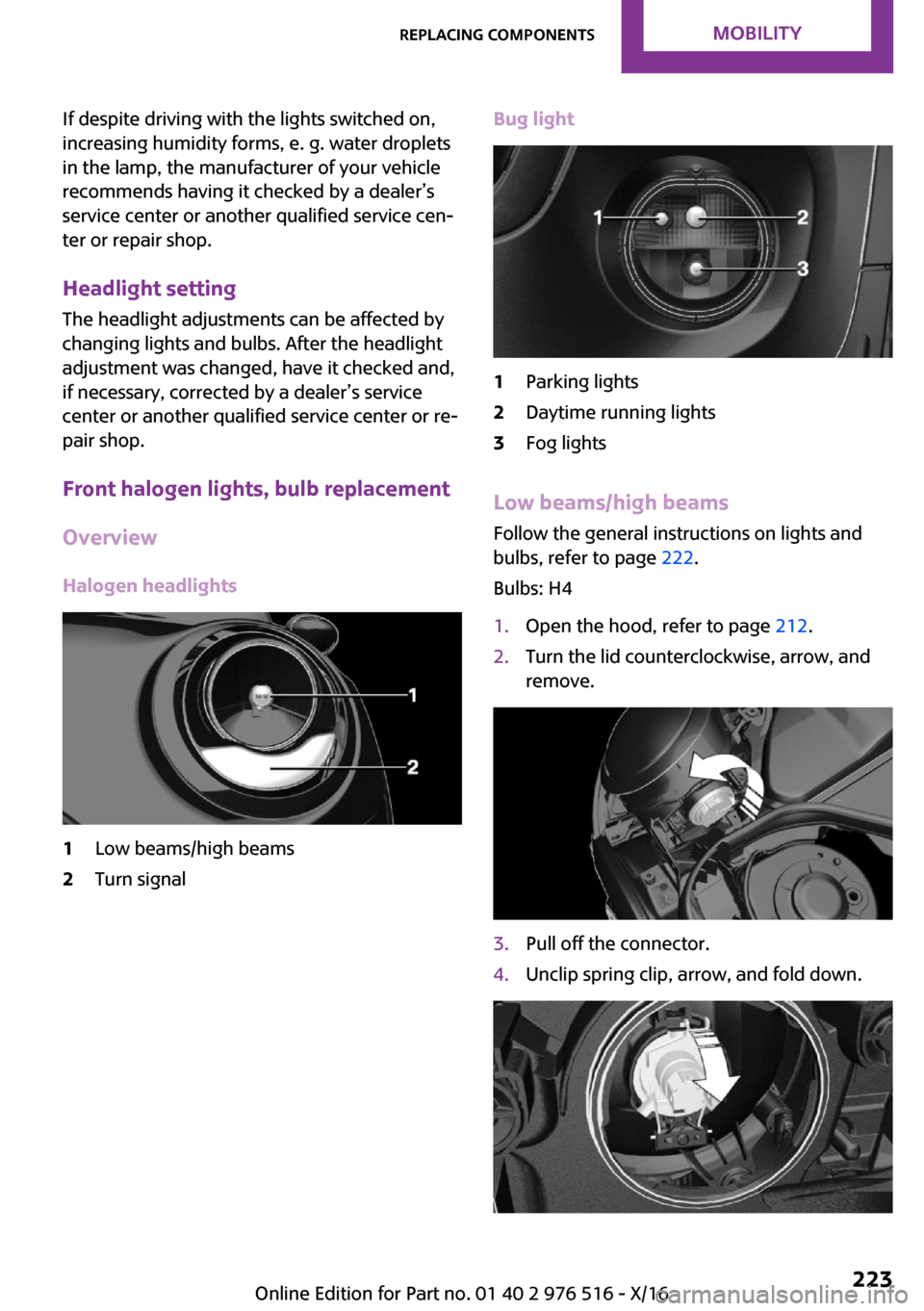

If despite driving with the lights switched on,increasing humidity forms, e. g. water droplets
in the lamp, the manufacturer of your vehicle
recommends having it checked by a dealer

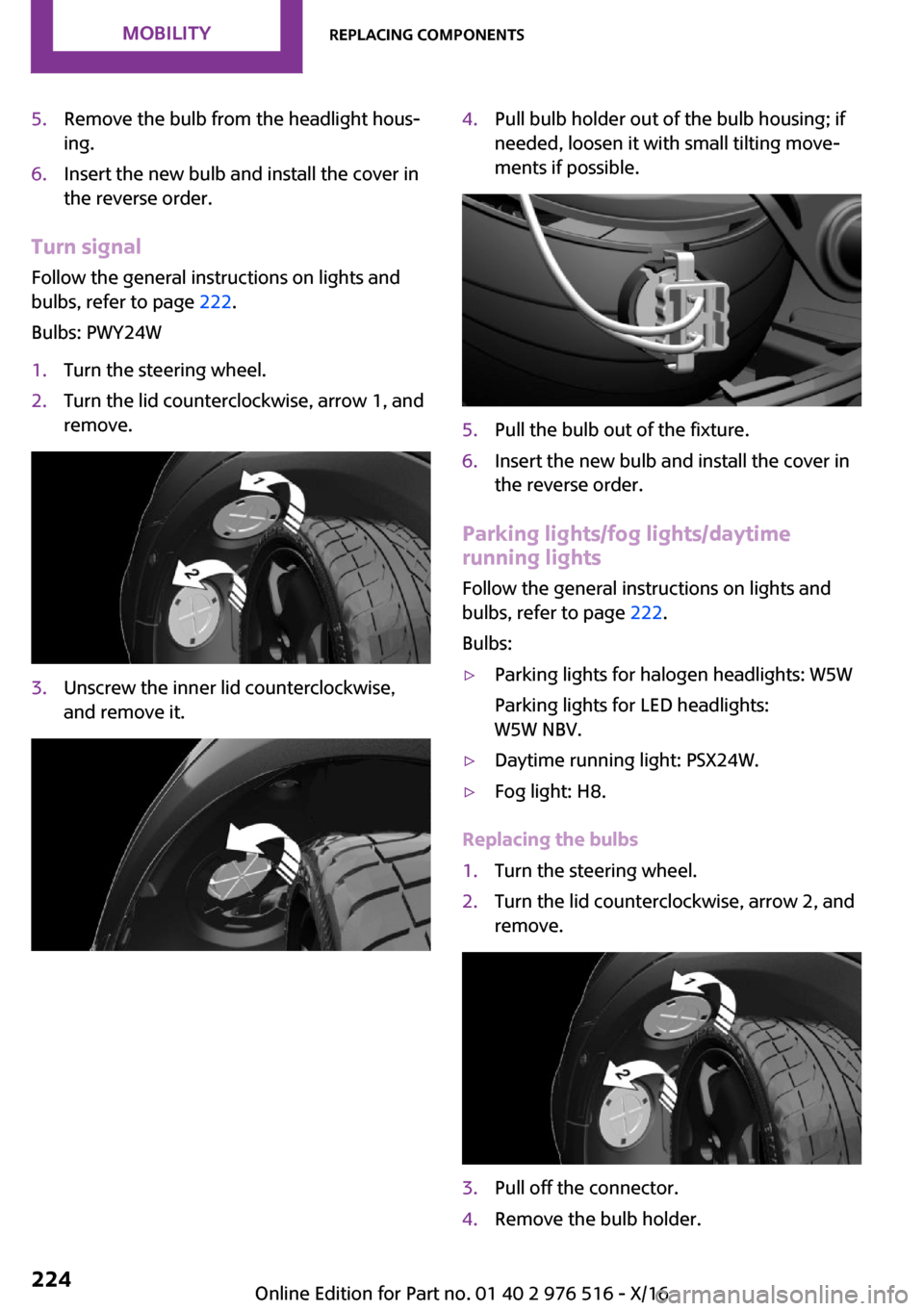

5.Remove the bulb from the headlight hous~ing.6.Insert the new bulb and install the cover in
the reverse order.
Turn
signal
Follow the general instructions on lights and
bulbs, refer to page 222.

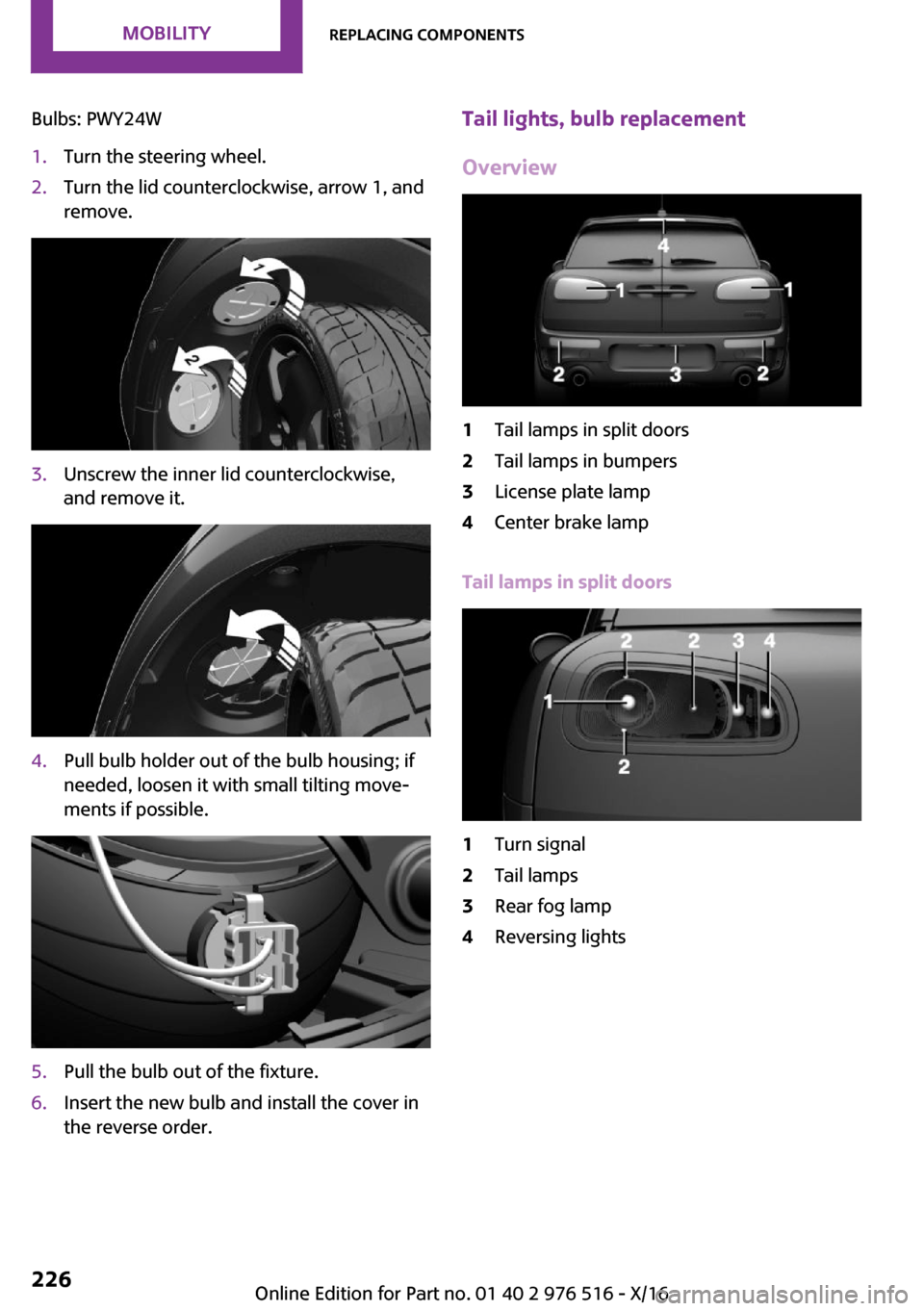

Bulbs: PWY24W
1.Turn the steering wheel.2.Turn the lid counterclockwise, arrow 1, and remove.3.Unscrew the inner lid counterclockwise,and remove it.4.Pull bulb holder out of the bulb housing; ifneeded, loosen it with small tilting move~ments if possible.5.Pull the bulb out of the fixture.6.Insert the new bulb and install the cover in
the reverse order.
Parking
lights/fog
lights/daytime
running
lights
Follow the general instructions on lights andbulbs, refer to page 222.
Bulbs:
'

'

Bulbs: PWY24W1.Turn the steering wheel.2.Turn the lid counterclockwise, arrow 1, andremove.3.Unscrew the inner lid counterclockwise,and remove it.4.Pull bulb holder out of the bulb housing; ifneeded, loosen it with small tilting move~ments if possible.5.Pull the bulb out of the fixture.6.Insert the new bulb and install the cover in
the reverse order.Tail
lights,
bulb
replacement
Overview1Tail lamps in split doors2Tail lamps in bumpers3License plate lamp4Center brake lamp
Tail
lamps
in
split
doors
1Turn signal2Tail lamps3Rear fog lamp4Reversing lightsSeite 226MOBILITYReplacing
components226
Online Edition for Part no. 01 40 2 976 516 - X/16

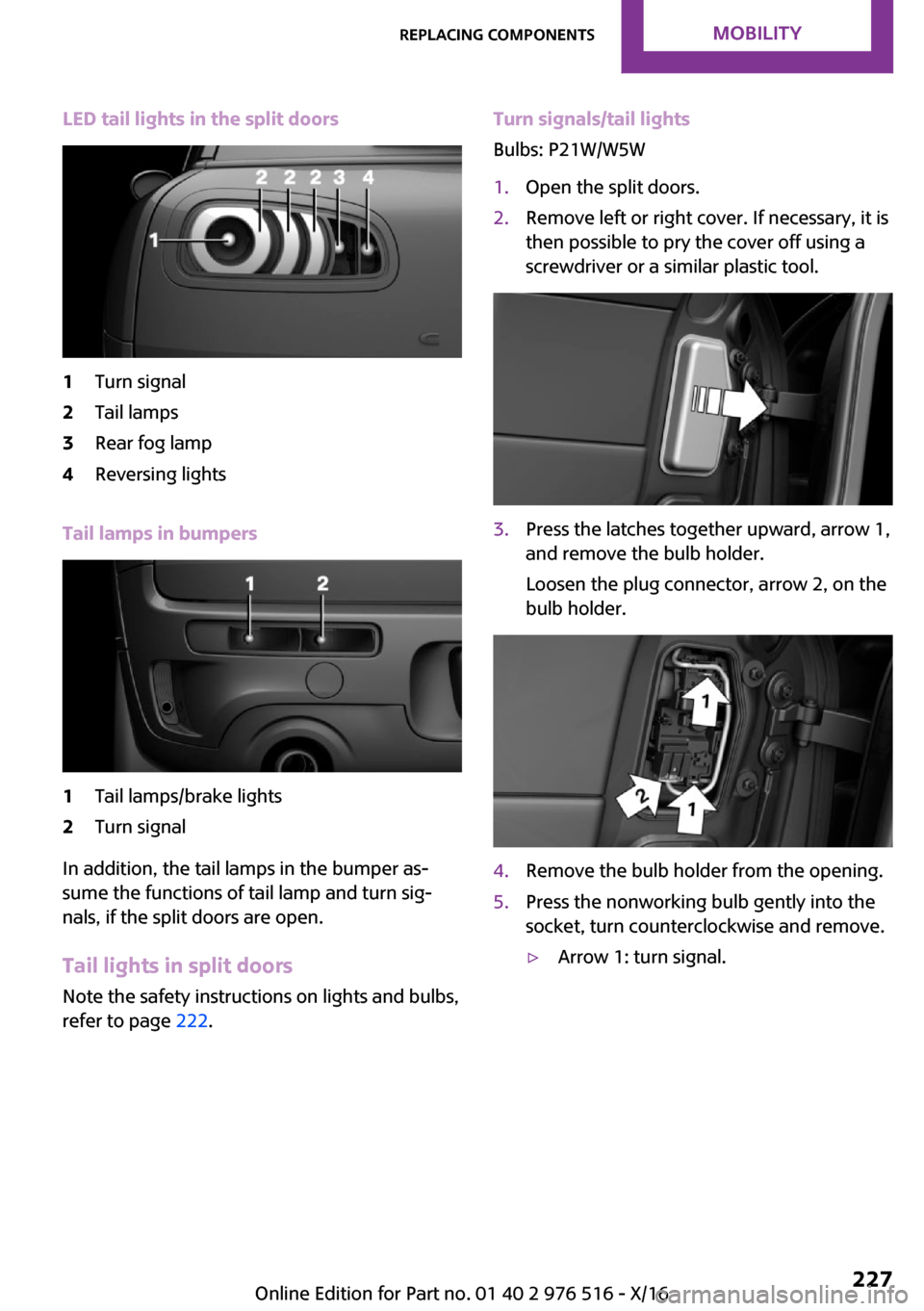

LED
tail
lights
in
the
split
doors1Turn signal2Tail lamps3Rear fog lamp4Reversing lights
Tail
lamps
in
bumpers
1Tail lamps/brake lights2Turn signal
In addition, the tail lamps in the bumper as~sume the functions of tail lamp and turn sig~
nals, if the split doors are open.
Tail
lights
in
split
doors Note the safety instructions on lights and bulbs,
refer to page 222.
Turn
signals/tail
lights

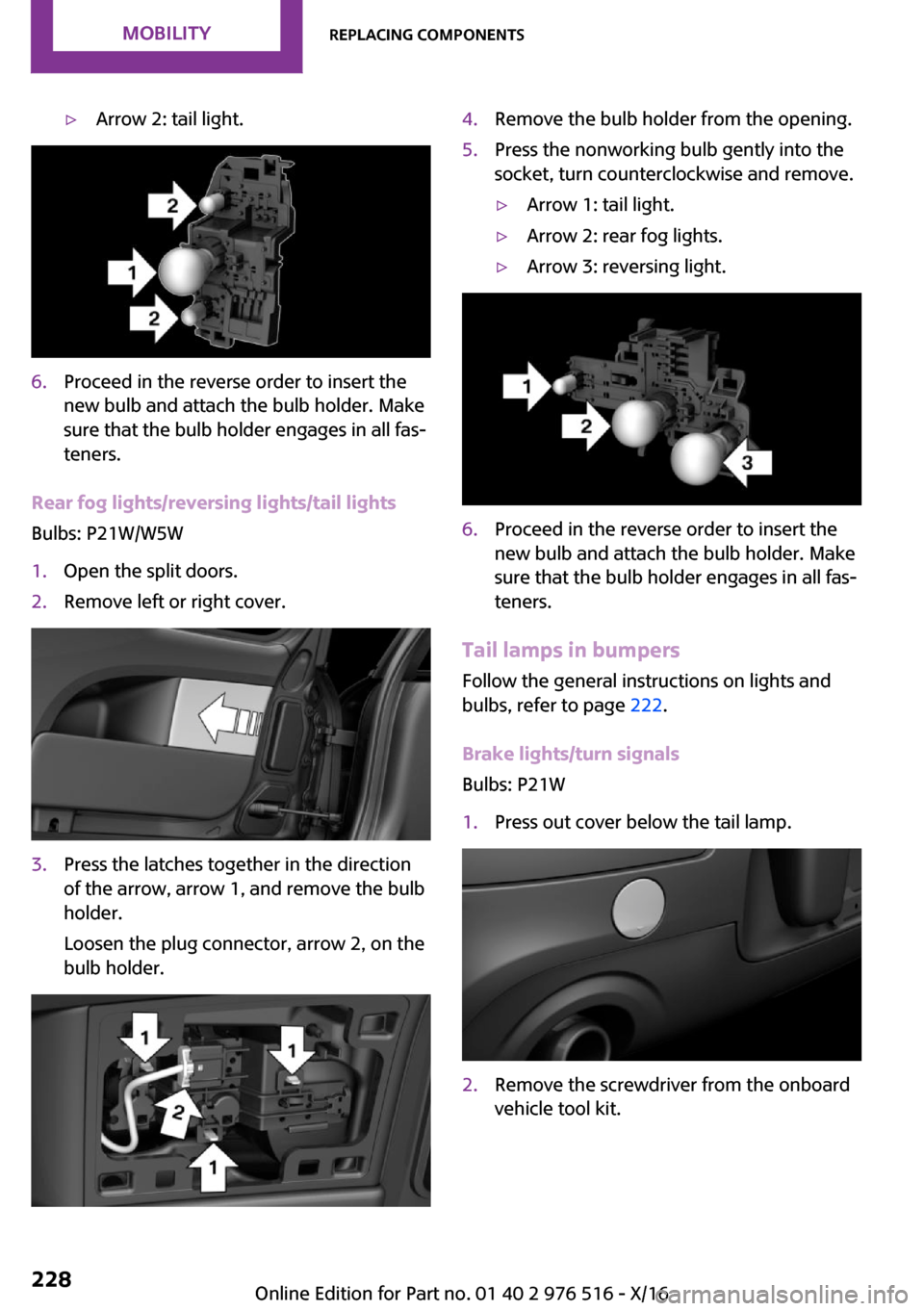

Bulbs: P21W/W5W1.Open the split doors.2.Remove left or right cover. If necessary, it is then possible to pry the cover off using ascrewdriver or a similar plastic tool.3.Press the latches together upward, arrow 1,and remove the bulb holder.
Loosen the plug connector, arrow 2, on the
bulb holder.4.Remove the bulb holder from the opening.5.Press the nonworking bulb gently into the socket, turn counterclockwise and remove.'

'

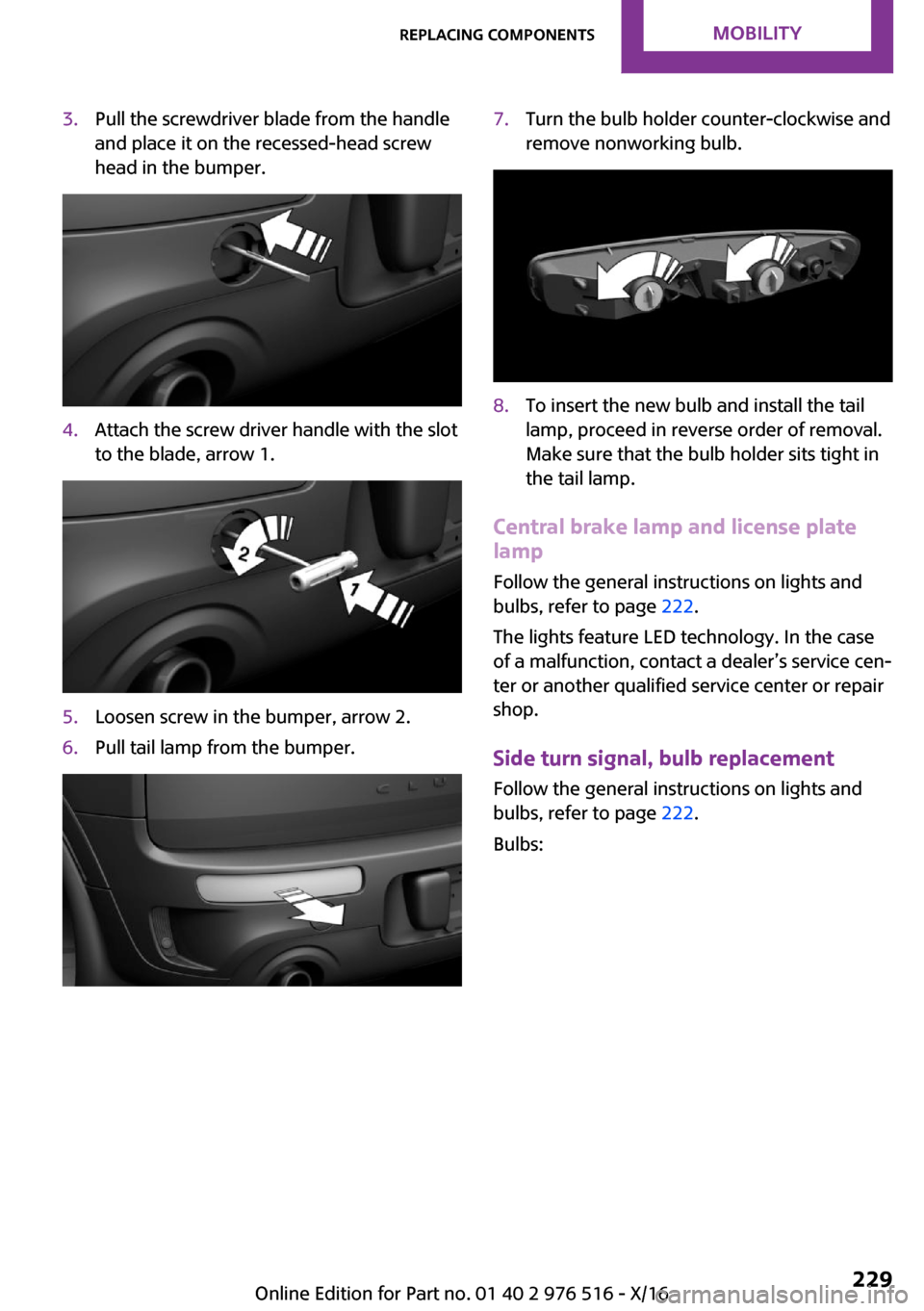

3.Pull the screwdriver blade from the handleand place it on the recessed-head screw
head in the bumper.4.Attach the screw driver handle with the slot to the blade, arrow 1.5.Loosen screw in the bumper, arrow 2.6.Pull tail lamp from the bumper.7.Turn the bulb holder counter-clockwise and
remove nonworking bulb.8.To insert the new bulb and install the tail
lamp, proceed in reverse order of removal.
Make sure that the bulb holder sits tight in
the tail lamp.
Central
brake
lamp
and
license
plate
lamp
Follow the general instructions on lights andbulbs, refer to page 222.
The lights feature LED technology. In the case
of a malfunction, contact a dealer

'
