odometer MINI Convertible 2010 Owner's Manual

REFERENCE
AT A GLANCE CONTROLS DRIVING TIPS MOBILITY
11
3Always Open Timer55
7Ignition lock44
8Buttons
* on steering wheel
9Horn: the entire surface
10Adjusting the steering wheel40
11Releasing the hood116 4Tachometer12
Instrument lighting77
Resetting the trip odometer53
5
Wiper system49
6Switching the ignition on/off and
starting/stopping the engine44
Continuing cruise control
*51
Right:
Storing speed and accelerating or
decelerating
Left:
Increase or reduce volume
Activating/deactivating cruise
control
*52
Telephone
*:
Accepting and ending a call, start-
ing dialing
* of selected phone
number and redialing if no phone
number is selected
Activating/deactivating voice acti-
vation system
*
Changing radio station
Selecting music track
Scrolling through phone book and
lists with stored phone numbers

Cockpit
12
Displays
1Tachometer53
with indicator and warning lamps13
2Display for
>Clock53
>Outside temperature53
>Current vehicle speed53
>Indicator and warning lamps13
3Resetting the trip odometer534Display for
>Position of automatic transmission
*46
>Computer
*54
>Date of next scheduled service, and
remaining distance to be driven58
>Odometer and trip odometer53
>Initializing the Flat Tire Monitor
*66
>Resetting the Tire Pressure Monitor
*68
>Settings and information56
>Personal Profile settings18
5Instrument lighting77
6Speedometer
with indicator and warning lamps13
7Fuel gauge54
8Radio display, refer to separate Owner's
Manual
9Radio, refer to separate Owner's Manual

REFERENCEAT A GLANCE CONTROLS DRIVING TIPS MOBILITY
53

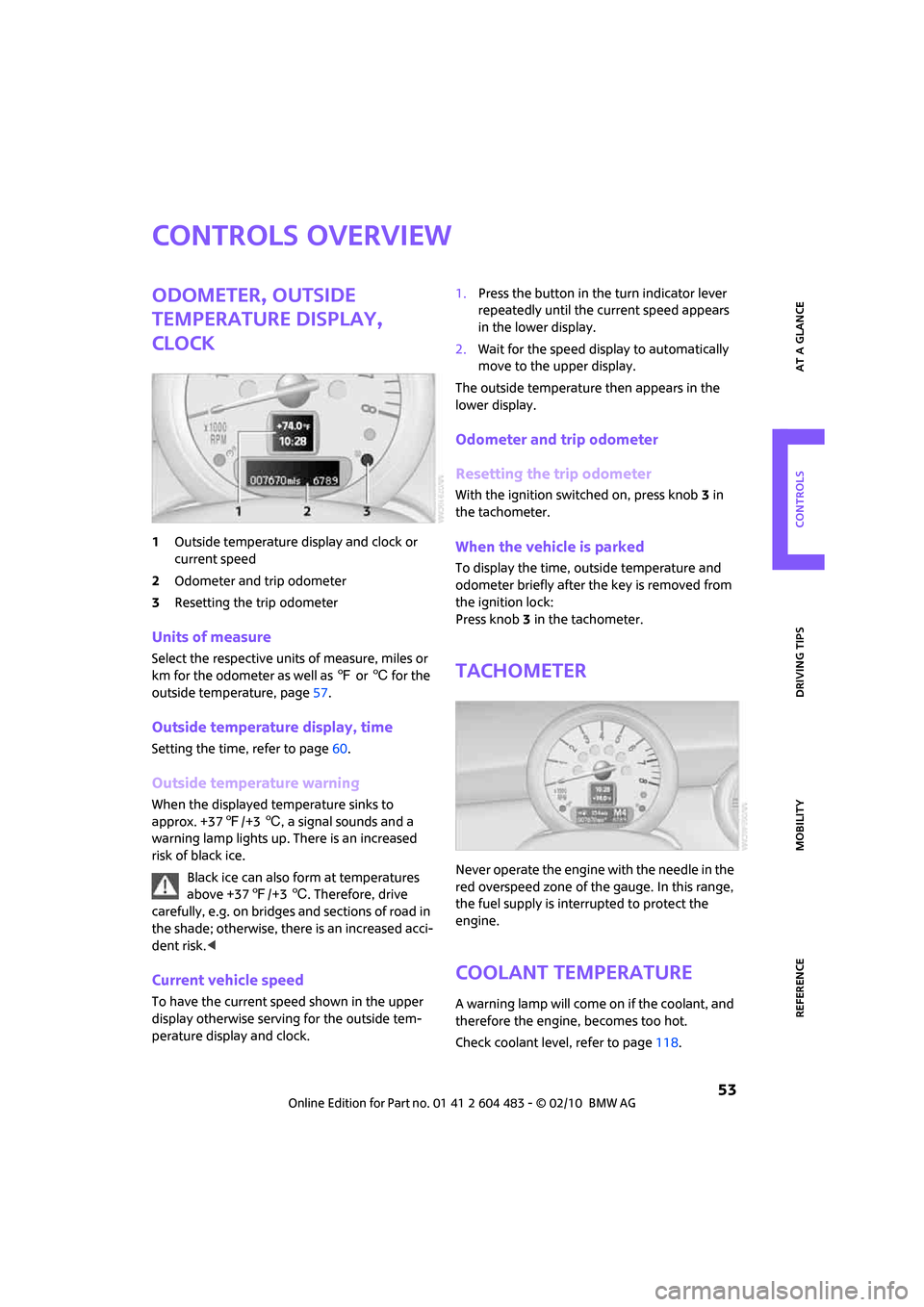

Controls overview
Odometer, outside
temperature display,
clock
1Outside temperature display and clock or
current speed
2Odometer and trip odometer
3Resetting the trip odometer
Units of measure
Select the respective units of measure, miles or
km for the odometer as well as 7 or 6 for the
outside temperature, page57.
Outside temperature display, time
Setting the time, refer to page60.
Outside temperature warning
When the displayed temperature sinks to
approx. +377/+36, a signal sounds and a
warning lamp lights up. There is an increased
risk of black ice.
Black ice can also form at temperatures
above +377/+36. Therefore, drive
carefully, e.g. on bridges and sections of road in
the shade; otherwise, there is an increased acci-
dent risk.<
Current vehicle speed
To have the current speed shown in the upper
display otherwise serving for the outside tem-
perature display and clock.1.Press the button in the turn indicator lever
repeatedly until the current speed appears
in the lower display.
2.Wait for the speed display to automatically
move to the upper display.
The outside temperature then appears in the
lower display.
Odometer and trip odometer
Resetting the trip odometer
With the ignition switched on, press knob 3 in
the tachometer.
When the vehicle is parked
To display the time, outside temperature and
odometer briefly after the key is removed from
the ignition lock:
Press knob 3 in the tachometer.
Tachometer
Never operate the engine with the needle in the
red overspeed zone of the gauge. In this range,
the fuel supply is interrupted to protect the
engine.
Coolant temperature
A warning lamp will come on if the coolant, and
therefore the engine, becomes too hot.
Check coolant level, refer to page118.

REFERENCEAT A GLANCE CONTROLS DRIVING TIPS MOBILITY
55
Current fuel consumption
Displays the current fuel consumption to allow
you to see whether your current driving style is
conducive to fuel economy with minimum
exhaust emissions.
Average speed
Periods with the vehicle parked and the engine
switched off are not included in the calculations
of average speed.
To reset average speed: press the button in the
turn indicator lever for approx. 2 seconds.
Current vehicle speed
To have the current speed shown in the upper
display otherwise serving for the outside tem-
perature display and clock.
1.Press the button in the turn indicator lever
repeatedly until the current speed appears
in the lower display.
2.Wait for the speed display to automatically
move to the upper display.
The outside temperature then appears in the
lower display of the computer.
Always Open Timer
If driving the MINI Convertible with its soft top
down, the driving times are displayed digitally
on the tachometer.
The following driving times are displayed:
1Total driving time
2Current driving time
To reset the display2:
Press and hold the button in the turn indicator
lever or the "Reset trip odometer" button,
page12, for approx. 2 seconds.To reset the total driving time, contact your MINI
dealer.
Analog to Always Open Timer
The analog Always Open Timer indicates the
number of hours and minutes that you drove
with the convertible top down. A maximum of
6 hours and 59 minutes can be displayed.
The total driving time is displayed digitally in the
tachometer.
1LED hour display
2Minute display

Everything from A to Z
166
Octane ratings, refer to Fuel
specifications103
Odometer53
Oil consumption117
Oil level117
Oil, refer to Engine oil117
Oil types118
Old batteries, refer to
Disposal135
Onboard vehicle tool kit125
Opening and closing
– Comfort Access26
– from inside23
– from outside19
– using the door lock22
– using the remote control19
Opening and unlocking
– from inside23
Outlets
– refer to Ventilation83
Outlets, refer to Air vents79
Output, refer to Engine
data154
Outside temperature
display53
– change units of measure57
– in the onboard computer57
Outside-air mode
– automatic climate control82
Overheated engine, refer to
Coolant temperature53
P
Paintwork, care122
Park Distance Control PDC63
Parking
– vehicle45
Parking aid, refer to Park
Distance Control PDC63
Parking brake45
Parking lamps, replacing
bulb127
Parking lamps/low beams74
Parts and accessories, refer to
Your individual vehicle4
Pathway lighting74
Personal Profile18Pinch protection system
– windows30
Plastic parts, care124
Pollen
– refer to Microfilter for air
conditioner81
– refer to Microfilter/activated-
charcoal filter for automatic
climate control83
Power convertible top30
Power failure135
Power windows29
Power windows, refer to
Windows29
Pressure monitoring of tires,
refer to Tire Pressure Monitor
TPM68
Pressure monitoring, tires66
– Flat Tire Monitor66
Pressure, tires104
Protective function, refer to
Pinch protection system
– windows30
Puncture
– Flat Tire Monitor66
R
Radio key, refer to Integrated
key/remote control18
Radio position, refer to Radio
readiness44
Radio readiness44
– switched off44
– switched on44
Rain sensor49
Range, refer to Cruising
range54
Reading lamps78
Rear fog lamp77
– indicator lamp140
– replacing bulb129
Rear lamps
– bulb replacement129
Rear lamps, refer to Tail
lamps128
Rear luggage rack97
Rear seat backrest, folding94Rear seats
– folding the backrests94
Rear window defroster80,82
Rearview mirror, refer to
Mirrors39
Recirculated-air mode80,82
Recirculation of air, refer to
Recirculated-air
mode80,82
Reclining seat, refer to
Backrest36
Refueling102
Releasing
– hood116
Remote control18
– battery renewal28
– Comfort Access26
– garage door opener84
– liftgate21
– malfunctions22,27
– service data119
Replacement remote
control18
Replacing bulbs, refer to
Lamps and bulbs125
Replacing tires, refer to New
wheels and tires114
Reporting safety defects6
Reserve warning, refer to Fuel
gauge54
Reservoir for washer
systems51
Restraint systems
– for children41
– refer to Safety belts38
Reverse gear
– automatic transmission with
Steptronic47
– manual transmission46
Roadside Assistance136
Roadside parking lamps76
– replacing bulb127
Roadworthiness test, refer to
Service requirements58
Roof load capacity157
Roof-mounted luggage
rack97

REFERENCEAT A GLANCE CONTROLS DRIVING TIPS MOBILITY
169
Traction control, refer to
– Dynamic Stability Control
DSC64
Trailer operation
– trailer loads and gross vehicle
weight157
Transmission
– automatic transmission with
Steptronic46
– manual transmission46
– overriding selector lever lock
for automatic transmission
with Steptronic48
Transport securing devices,
refer to Securing cargo96
Transporting children safely41
Tread depth, refer to Minimum
tire tread113
Trip odometer53
Trip-distance counter, refer to
Trip odometer53
Triple turn signal activation48
Trunk lid
– emergency operation24
– releasing manually24
Trunk, refer to Luggage
compartment in the MINI
Convertible94
Turn signal indicator48
– front, replacing bulb127
– indicator lamp12
– rear, replacing bulb128
– side, replacing bulb128
Turning circle, refer to
Dimensions155
Tying down loads, refer to
Cargo loading96
U
Uniform Tire Quality Grading
UTQR112
Units
– average fuel consumption57
– temperature57
Universal garage door opener,
refer to Integrated universal
remote control84
Universal remote control84Unlatching, refer to
Unlocking27
Unlocking
– from inside23
– from outside19
– liftgate27
– without remote control, refer
to Comfort Access26
Upholstery, care123
USB audio interface86
V
Valve
– dust cap133
Vehicle
– battery134
– breaking in92
– cargo loading94
– dimensions155
– Identification Number, refer
to Engine compartment117
– parking45
– storage124
– weight157
Vehicle jack132
– jacking points134
Ventilation
– air conditioner83
Vents, refer to Air vents79
Vents, refer to Ventilation83
Volume of cargo area157
W
Warning and indicator
lamps13,140
Warning messages, refer to
Check Control61
Warning triangle136
Washer fluid51
– capacity of reservoir51
Washer fluid reservoir51
Waste tray, refer to Ashtray88
Water on roads, refer to
Driving through water93
Waterfall lighting, refer to
Ambient lighting78Wear indicators in tires, refer to
Minimum tread depth113
Weights157
Welcome lamps74
Wheel stud wrench
– space-saver spare tire132
Wheelbase, refer to
Dimensions155
Wheels and tires104
Wheels, new114
Width, refer to
Dimensions155
Wind deflector33
Window washer, refer to
Washer fluid51
Window washer reservoir,
refer to Washer fluid
– volume, refer to
Capacities158
Window washer system49
– washer fluid51
– washer jets51
Windows29
– closing29
– convenient operation20
– opening29
– pinch protection system30
Windshield
– cleaning50
– defrosting and removing
condensation81,83
Windshield wiper blades,
changing125
Windshield wipers, refer to
Wiper system49
Winter tires115
– storage115
Wiper blade replacement125
Wiper system49
Work in the engine
compartment116
Wrench/screwdriver, refer to
Onboard vehicle tool kit125
X
Xenon lamps
– replacing bulb126
