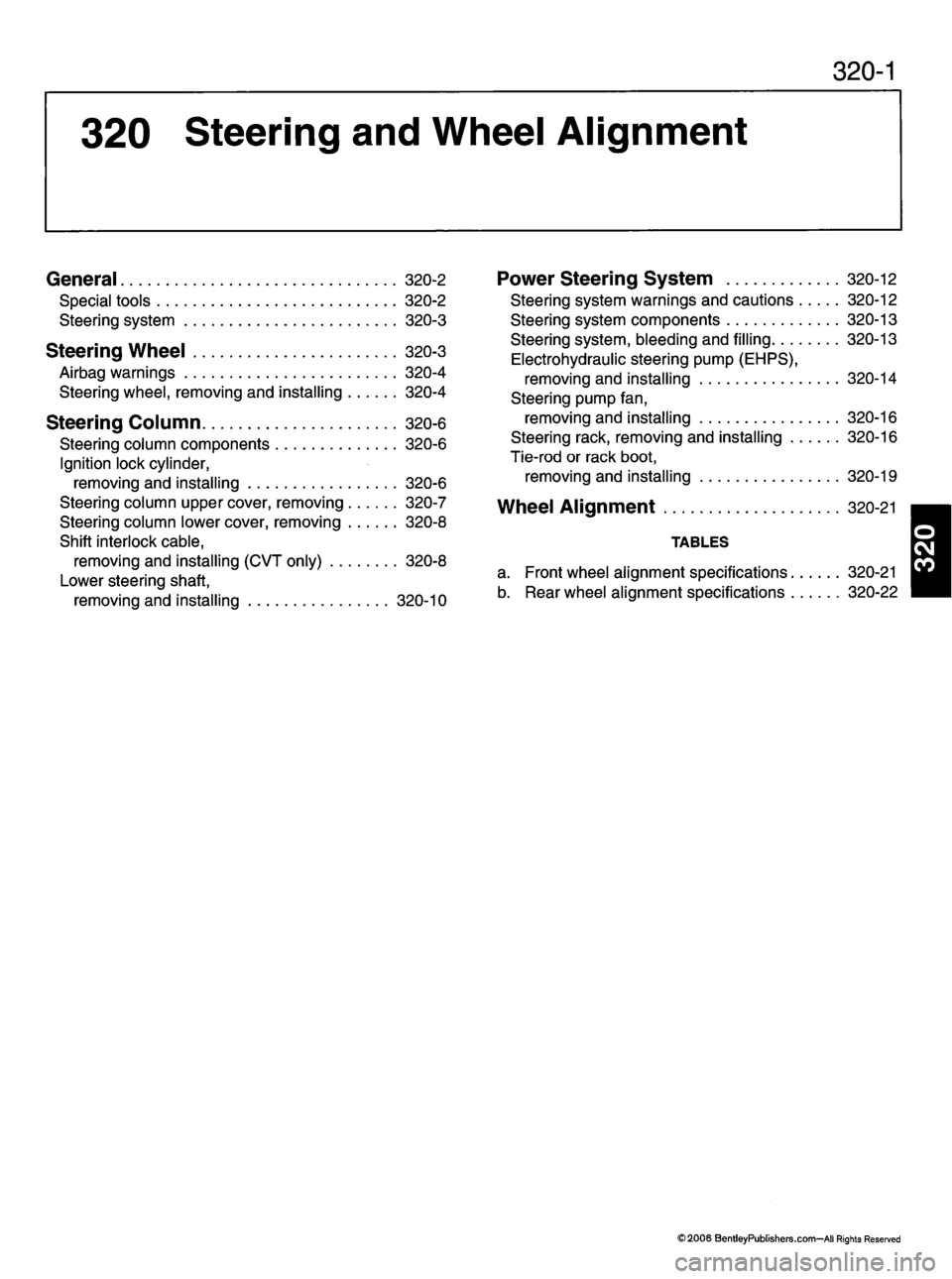

320-1
320 Steering and Wheel Alignment

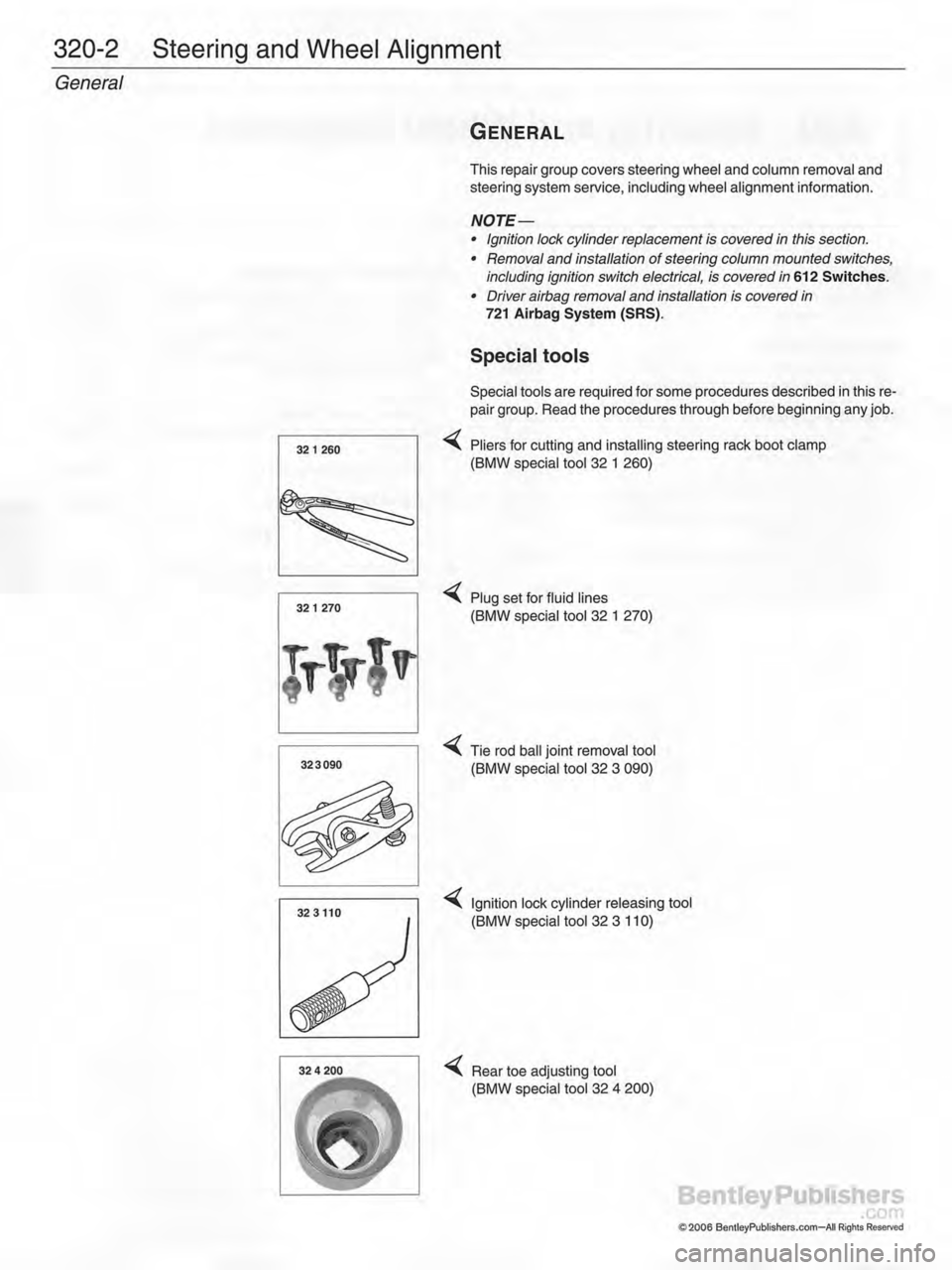

General 320-2
S p e c i a l t o o l s 3 2 0 - 2
S t e e r i n g s y s t e m 3 2 0 - 3

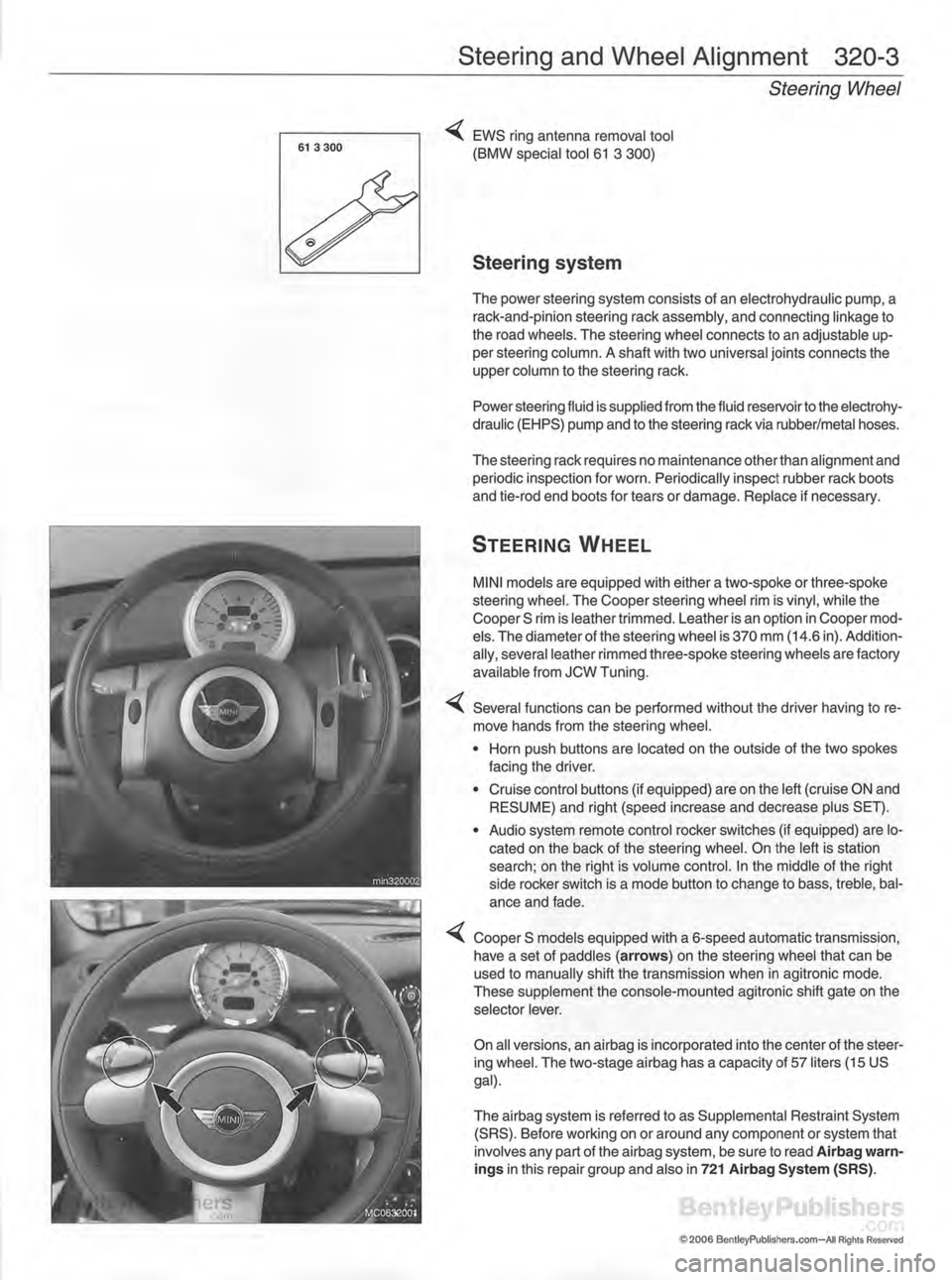

Steering Wheel 320-3
A i r b a g w a r n i n g s 3 2 0 - 4 Steering wheel, removing and installing 320-4
Steering Column 320-6
S t e e r i n g c o l u m n c o m p o n e n t s 3 2 0 - 6
Ignition lock cylinder, removing and installing 320-6
Steering column upper cover, removing 320-7
Steering column lower cover, removing 320-8
Shift interlock cable,
r e m o v i n g a n d i n s t a l l i n g ( C V T o n l y ) 3 2 0 - 8
Lower steering shaft,
removing and installing 320-10
P o w e r S t e e r i n g S y s t e m 3 2 0 - 1 2
Steering system warnings and cautions 320-12
S t e e r i n g s y s t e m c o m p o n e n t s 3 2 0 - 1 3
Steering system, bleeding and filling 320-13Electrohydraulic steering pump (EHPS), removing and installing 320-14
Steering pump fan, removing and installing 320-16
Steering rack, removing and installing 320-16
Tie-rod or rack boot,
removing and installing 320-19
Wheel Alignment 320-21
TA B L E S
a. Front wheel alignment specifications 320-21
b. Rear wheel alignment specifications 320-22
1
©2006 BentleyPublishers.com-AII Rights Reserved
