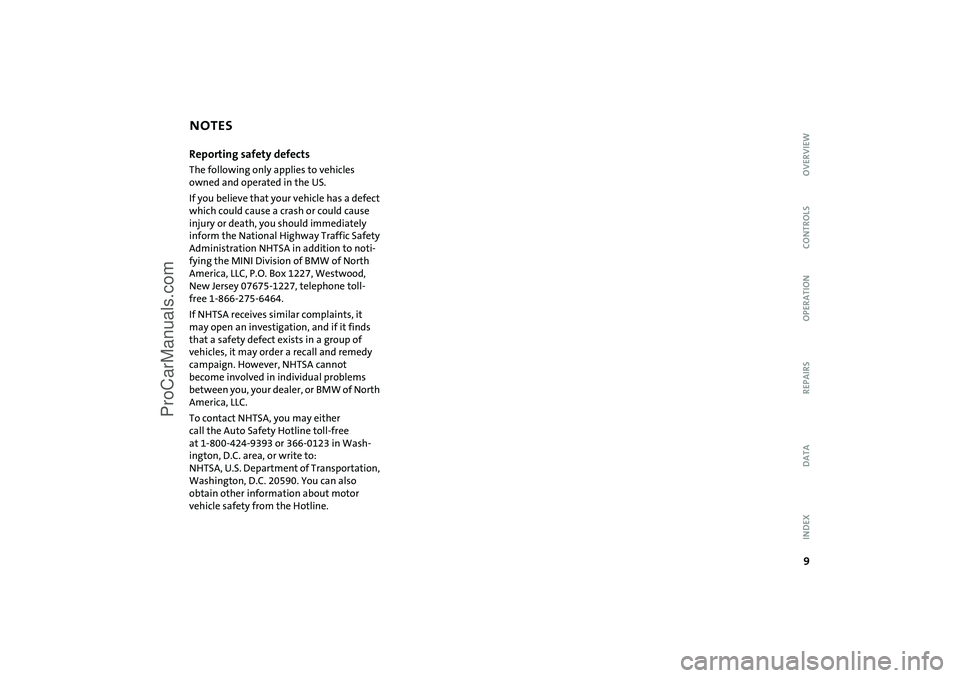

Reporting safety defects
The following only applies to vehicles
owned and operated in the US.
If you believe that your vehicle has a defect
which could cause a crash or could cause
injury or death, you should immediately
inform the National Highway Traffic Safety
Administration NHTSA in addition to noti-
fying the MINI Division of BMW of North
America, LLC, P.O. Box 1227, Westwood,
New Jersey 07675-1227, telephone toll-
free 1-866-275-6464.
If NHTSA receives similar complaints, it
may open an investigation, and if it finds
that a safety defect exists in a group of
vehicles, it may order a recall and remedy
campaign. However, NHTSA cannot
become involved in individual problems
between you, your dealer, or BMW of North
America, LLC.
To contact NHTSA, you may either
call the Auto Safety Hotline toll-free
at 1-800-424-9393 or 366-0123 in Wash-
ington, D.C. area, or write to:
NHTSA, U.S. Department of Transportation,
Washington, D.C. 20590. You can also
obtain other information about motor
vehicle safety from the Hotline.
NOTES
ProCarManuals.com

10
ProCarManuals.com

OVERVIEW

CONTROLS
OPERATION, CARE, MAINTENANCE
OWNER SERVICE PROCEDURES
INDEX TECHNICAL DATA

11
OVERVIEW REPAIRS OPERATION CONTROLS DATA INDEX

Overview
ProCarManuals.com

12

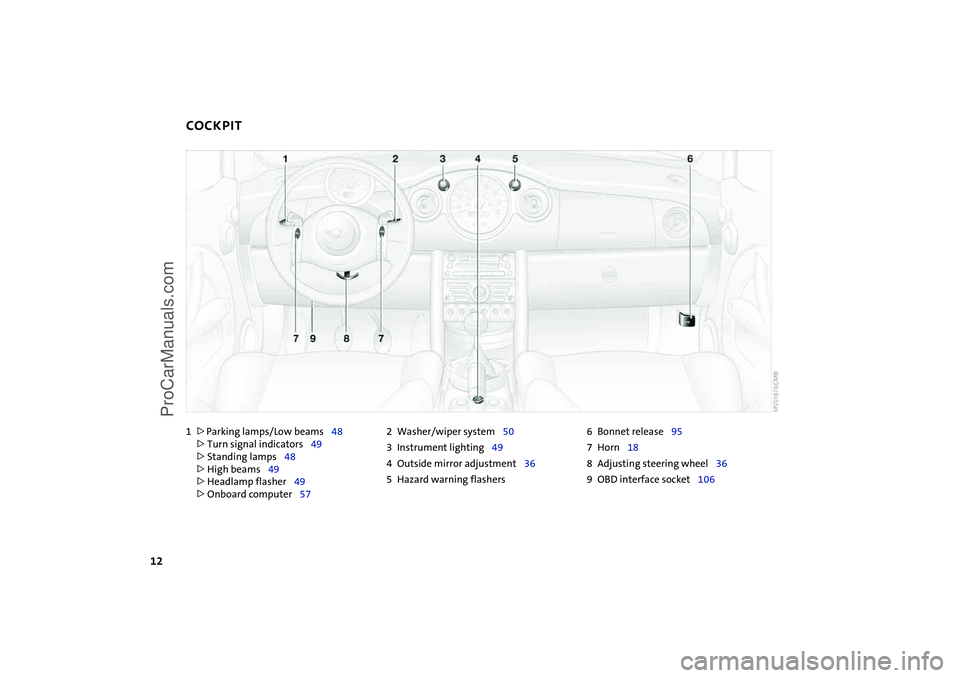

COCKPIT

1
>
Parking lamps/Low beams48
>
Turn signal indicators49
>
Standing lamps48
>
High beams49
>
Headlamp flasher49
>
Onboard computer572Washer/wiper system50
3Instrument lighting49
4Outside mirror adjustment36
5Hazard warning flashers6Bonnet release95
7Horn18
8Adjusting steering wheel36
9OBD interface socket106
ProCarManuals.com

13
OVERVIEW REPAIRS OPERATION CONTROLS DATA INDEX

DISPLAY ELEMENTS

1Tachometer54
with indicator and warning lamps,
page 15 ff
2Display for onboard computer57
If there is no onboard computer:
Display of outside temperature and cur-
rent vehicle speed
3Speedometer with indicator and warning
lamps, page 15 ff4Indicator for
>
Odometer54
>
Trip odometer54
>
Service interval56
>
Program display for Continuously Vari-
able automatic Transmission
(CVT)47
5Trip odometer, reset to zero546Fuel gauge54
7Engine coolant temperature gauge55
ProCarManuals.com

14
DISPLAY ELEMENTS WITH NAVIGATION SYSTEM

*
1Tachometer54
with indicator and warning lamps,
page 15 ff
2Additional indicator and warning lamps,
page 16 ff, display for onboard computer
in navigation system, refer to separate
Owner's Manual 3Speedometer with indicator and warning
lamps, page 15 ff
4Trip odometer, reset to zero545Indicator for
>
Odometer54
>
Trip odometer54
>
Service interval56
>
Program display for Continuously Vari-
able automatic Transmission
(CVT)47
ProCarManuals.com

15
OVERVIEW REPAIRS OPERATION CONTROLS DATA INDEX

INDICATOR AND WARNING LAMPS

Technology that monitors itself
The system runs a check on the indicator
and warning lamps marked by
+

each time
you switch on the ignition. They each light
up once for different periods of time.
If a malfunction should occur in one of
these systems, the corresponding lamp
does not go out after the engine is started
or it lights up while the vehicle is moving.
You will see below the correct way to react
to this.
Red: stop immediately
Battery charge current
+

The battery is no longer being
charged. Indicates a defective alter-
nator drive belt or a problem with the
charge circuit. Please contact the nearest
MINI Dealer.
If this lamp lights up, the power-assist for
steering can be deactivated.
If the drive belt is defective, do not
continue driving. The engine could be
damaged due to overheating. When the
power-assist is deactivated, increased
steering effort is required.
<
Engine oil pressure

+

Stop immediately. Switch off
engine. Check the engine oil and fill
as needed. Please contact the nearest MINI
Dealer.
Do not continue driving; otherwise,
the engine could be damaged
because of inadequate lubrication.
<

Brake warning lamp
+


Lights up although parking brake is
released: check the brake fluid
level. Before driving further, be sure to
comply with the information on pages 86
and 101.
Brake warning lamp for Canadian
models.
With navigation system option:
Coolant temperature warning
lamp in the speedometer
+

Lights up while driving:
Engine is too hot. Switch off the engine
immediately and allow to cool down, also
refer to page 55.
ProCarManuals.com

16
INDICATOR AND WARNING LAMPS

Yellow: stop immediately
Flat Tire Monitor
+

Flashes: tire failure.
Reduce speed immediately and
stop the vehicle.
With Run Flat tires:
Carefully reduce the driving speed to below
50 mph / 80 km/h and continue to a safe
location.
In both cases, avoid hard brake applications
and steering maneuvers. Check the tire
inflation pressures.
Conduct in the event of a flat tire, refer to
pages 93, 116, 117, 121.
General information on the system, refer to
page 62.
Red and yellow: continue driving
cautiously
Brake warning light together with
yellow indicator lamp for ABS, CBC,
EBD and ASC/DSC:
The control system ABS, CBC, EBD
and ASC/DSC has failed. Drive cau-
tiously and defensively. Avoid full
brake applications.
Please have the system checked by
your MINI Dealer as soon as possible.
More information on pages 59, 60.
Brake warning lamp together with
the yellow indicator warning lamps
ABS, CBC, EBV and ASC/DSC for
Canadian models.
Red: an important reminder
Brake warning lamp
with parking brake applied.
More information on the parking
brake on page 43.
Brake warning lamp for Canadian
models.
Fasten safety belts
+

Lights up for several seconds or, de-
pending on the version, until after
the safety belts are fastened. A signal
*
also
sounds depending on the version.
More information on page 35.
Depending on the level of equipment,
the indicator lamp is in the vicinity of
the navigation system.
<
Airbags
+

Please have the system inspected
at your MINI Dealer.
More information on page 65.
Depending on the level of equipment,
the indicator lamp is in the vicinity of
the navigation system.
<
Bonnet/Tailgate
Lights up when the bonnet and/or
tailgate are open.
More information on pages 27, 95.
Brake pads
Have the condition of the brake
pads checked.
More information on page 86.
Depending on the level of equipment,
the indicator lamp is in the vicinity of
the navigation system.
<
ProCarManuals.com

17
OVERVIEW REPAIRS OPERATION CONTROLS DATA INDEX

INDICATOR AND WARNING LAMPS

Yellow: check as soon as possible
Flat Tire Monitor
+

Stays lit: the system is defective.
Please have the system inspected
at your MINI Dealer.
More information on page 62.
Antilock Brake System (ABS)
+

ABS has been deactivated in
response to system malfunction.
Conventional braking efficiency is avail-
able. Please have the system inspected at
your MINI Dealer.
More information on page 61.
ABS indicator lamp for Canadian
models.
All Season traction Control (ASC)/
Dynamic Stability Control (DSC)
+

Indicator lamp flashes:
System active: drive and braking forces are
regulated.
The indicator lamp stays lit: ASC/DSC
switched off with button or defective. In
the event of a defect: please have the sys-
tem inspected at your MINI Dealer.
More information on pages 59, 60.
Service Engine Soon
+

If the warning lamp comes on
either continuously or intermit-
tently, this indicates a malfunction in the
emissions-related electronic systems.
Although the vehicle remains operational,
you should have the systems checked by
your MINI Dealer at the earliest possible
opportunity.
Service Engine Soon warning lamp
for Canadian models.
Engine electronics
*

+

Malfunction in the engine electron-
ics. You can continue to drive with
reduced engine output or engine speed.
Please have the system inspected at your
MINI Dealer.
Check Gas Cap
*
+

This indicator lamp comes on
when the fuel gas cap is loose or
missing. Close the gas cap tightly:
Refer to page 85.
Depending on the level of equipment,
the indicator lamp is in the vicinity of
the navigation system.
<

Green: for your information
Turn signal indicators
Flashes when turn signal indicator
is on.
Rapid flashing: the system is defective.
More information on page 49.
Cruise control
Lights up when the cruise control is
activated: operation via the multi-
function steering wheel or multifunction
sports steering wheel.
More information on page 52.
Blue: for your information
High beams
Comes on when the high beams
are on or the headlamp flasher is
actuated.
More information on page 49.
ProCarManuals.com

18
MULTIFUNCTION STEERING WHEELS

*
Steering wheels with multifunctions
The control buttons integrated within the
multifunction steering wheel and the mul-
tifunction sports steering wheel have been
designed to allow you to operate a number
of accessories both quickly and safely, with-
out taking your eyes from the road:
>
Some audio source functions
>
Cruise control.

Steering wheel
1Call up and continue cruise control
2Activate/interrupt/deactivate cruise
control
3Store and accelerate cruise control
4Store and decelerate cruise control
Right:
5Volume
6Changing between radio, CD and cas-
sette
Left:
5Operation of:
>
Radio
Press briefly: next/previous station
stored in memory
Extended pressure: station scan
>
CD
Press briefly: jump to next track
Extended pressure: search within cur-
rent title
>Cassette
Press briefly: jump to next track or
stop fast forward
Extended pressure: fast forward/
rewind
If the Wave radio is installed, the
above options for cassette
player operation are not available.<
