check engine MINI COOPER 2009 Owner's Manual

REFERENCEAT A GLANCE CONTROLS DRIVING TIPS MOBILITY

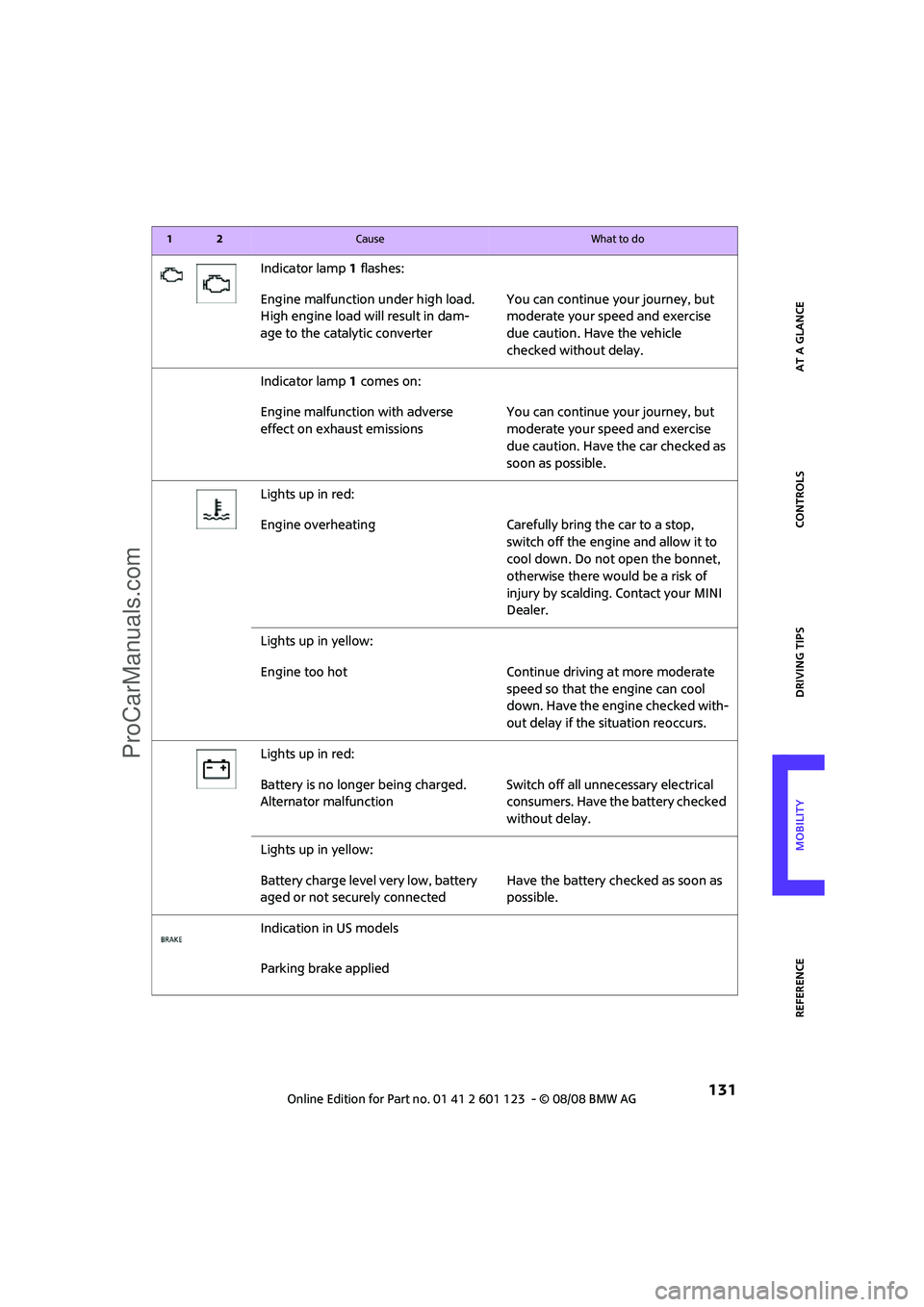

131
Indicator lamp1 flashes:
Engine malfunction under high load.
High engine load will result in dam-
age to the catalytic converterYou can continue your journey, but
moderate your speed and exercise
due caution. Have the vehicle
checked without delay.
Indicator lamp1 comes on:
Engine malfunction with adverse
effect on exhaust emissionsYou can continue your journey, but
moderate your speed and exercise
due caution. Have the car checked as
soon as possible.
Lights up in red:
Engine overheating Carefully bring the car to a stop,
switch off the engine and allow it to
cool down. Do not open the bonnet,
otherwise there would be a risk of
injury by scalding. Contact your MINI
Dealer.
Lights up in yellow:
Engine too hot Continue driving at more moderate
speed so that the engine can cool
down. Have the engine checked with-
out delay if the situation reoccurs.
Lights up in red:
Battery is no longer being charged.
Alternator malfunctionSwitch off all unnecessary electrical
consumers. Have the battery checked
without delay.
Lights up in yellow:
Battery charge level very low, battery
aged or not securely connectedHave the battery checked as soon as
possible.
Indication in US models
Parking brake applied
12Cause What to do
ProCarManuals.com

REFERENCEAT A GLANCE CONTROLS DRIVING TIPS MOBILITY
133
Indication in US models
Vehicle electronics failed You cannot continue your journey.
Contact your MINI Dealer.
Indication
* in Canadian models
Vehicle electronics failed You cannot continue your journey.
Contact your MINI Dealer.
Indication
* in Canadian models
Vehicle electronics failed You cannot continue your journey.
Contact your MINI Dealer.
Lights up in red: Have the system in question checked
without delay.
>Starter failed or
>ignition malfunctioning. Engine
restart only possible when brake
is depressed or
>lighting system failed. Low
beams/tail lamps and brake
lamps still operational. All other
lamps failedThe engine cannot be restarted.
Lights up in yellow:
>Control of the brake lamps failed
or
>fuel supply malfunctioningYou can continue your journey, but
moderate your speed and exercise
due caution. Have the system in ques-
tion checked without delay.
Flashing:
Dynamic Stability Control DSC or
Dynamic Traction Control DTC is con-
trolling drive and braking forces, refer
also to page56
Dynamic Traction Control activated
(see page 58)
12Cause What to do
ProCarManuals.com

Indicator and warning lamps
136
Lights up in red:
>Transmission limp-home pro-
gram active with restricted range
of gears, possibly with reduced
accelerationYou can continue your journey, but
moderate your speed and exercise
due caution. Have the system
checked without delay.
>Gears can be engaged without
depressing the brakeAlways depress the brake to engage a
gear.
>Automatic selector lever locked Overriding the selector lever lock,
page41.
Lights up in yellow: Have the system checked as soon as
possible.
>Automatic selector lever locked:
Selector lever locked in position P
with engine running and brake
depressed orOverriding the selector lever lock,
page41.
>brake signal malfunctioning: gear
can be engaged without depress-
ing the brakeTo engage a gear while the vehicle is
at a standstill, always depress the
brake. Before leaving the vehicle,
move the selector lever to position P
and switch off the engine.
Lights up in red:
Transmission overheating Bring the car to a stop and move the
selector lever to position P. Allow the
transmission to cool down. You can
continue your journey, but moderate
your speed and exercise due caution.
Have the system checked if the situa-
tion reoccurs.
Lights up in yellow:
Transmission too hot Avoid high engine loads. You can con-
tinue your journey, but moderate
your speed and exercise due caution.
Selector lever position P not engaged.
Vehicle not prevented from rolling
12Cause What to do
ProCarManuals.com

REFERENCEAT A GLANCE CONTROLS DRIVING TIPS MOBILITY
137
Selector lever position P not engaged.
Ignition cannot be switched offEngage selector lever position P when
you wish to switch off the ignition,
page37.
Lights up in red:
Electric steering wheel lock malfunc-
tioningThe engine can no longer be started. If
applicable, do not switch off the
engine. Contact your MINI Dealer.
Lights up in yellow:
Electric steering wheel lock engaged Move the steering wheel before start-
ing the engine.
Cruise control system failed Have the system checked.
Park Distance Control failed Have the system checked.
Bulb of exterior lighting system failed Have the exterior lighting checked as
soon as possible.
Low-beam headlamp or fog lamp
failedHave the lamps checked as soon as
possible.
High-beam headlamp failed Have the high-beam headlamps
checked.
Rear fog lamp failed Have the rear fog lamp checked.
Headlamp beam throw adjustment
system failedHave the headlamp beam throw
adjustment system checked.
Coolant level too low Add coolant immediately, page105.
Engine oil pressure too low Stop immediately and switch off the
engine. You cannot continue your
journey. Contact your MINI Dealer.
12Cause What to do
ProCarManuals.com

From A to Z
146
From A to Z
INDEX
A
Accessories, refer to Your
individual vehicle4
Activated-charcoal filter for
automatic climate control76
Additives
– coolant105
– engine oil105
Adjusting temperature inside
the car, refer to Air
conditioner73
Adjusting temperature inside
the car, refer to Automatic
climate control74
Air conditioner72
Air conditioning mode
– air conditioner73
– automatic climate control74
– ventilation76
Air distribution
– automatic75
– individual74
– manual74
Air flow rate73,75
– air conditioning system73
– automatic climate control75
– heating, ventilation73
Air outlets, refer to Air vents72
Air pressure, checking, refer to
Tire inflation pressure94
Air recirculation, refer to
Recirculated-air
mode73,75
Air supply
– air conditioner73
– automatic climate control74
– ventilation76
Air vents72
Airbags64
– sitting safely29
– warning lamp66
Airing, refer to Ventilation76AKI, refer to Fuel
specifications93
Alarm system24
All-season tires, refer to Winter
tires102
Ambient air, refer to
Recirculated-air
mode73,75
Ambient lighting71
Antenna, care109
Antifreeze
– coolant105
– washer fluid44
Antilock Brake System ABS57
Anti-theft alarm system, refer
to Alarm system24
Anti-theft system19
Approved axle loads, refer to
Weights144
Approved engine oils105
Approved gross vehicle
weight, refer to Weights144
Armrest, refer to Center
armrest79
Arrival time
– computer49
Ashtray81
Assistant systems, refer to
– Dynamic Stability Control
DSC57
AUC Automatic recirculated-
air control75
Audio device, external79
AUTO program for automatic
climate control75
Automatic
– air distribution75
– air flow rate75
– cruise control45
– headlamp control67
Automatic climate control72
– automatic air distribution75Automatic recirculated-air
control AUC75
Automatic transmission with
Steptronic39
– interlock40
– overriding selector lever
lock41
– shiftlock40
– sport program40
AUX-In, refer to External audio
device79
Average fuel consumption48
– setting the units50
Average speed49
Axle loads, refer to
Weights144B
Background lighting, refer to
Ambient lighting71
Backrests, refer to Seats29
Backup lamps
– replacing bulb116
– replacing bulbs in MINI116
Band-aids, refer to First aid
pouch123
Bar, refer to Tow-starting,
towing away126
Battery122
– charging122
– disposal27,122
– jump starting123
– temporary power failure122
Battery renewal
– remote control27
Being towed125
Belt tensioner, refer to Safety
belts32
Belts, refer to Safety belts32
Beverage holders, refer to Cup
holders81
ProCarManuals.com

REFERENCEAT A GLANCE CONTROLS DRIVING TIPS MOBILITY
147
Blower, refer to Air flow
rate73,75
Bonnet103
Bottle holders, refer to Cup
holders81
Brake Assist57
Brake fluid, refer to Service
requirements52
Brake lamps
– replacing bulbs in MINI116
Brake pads, breaking in84
Brake rotors85
– brakes84
– breaking in84
Brake system84
– breaking in84
– disc brakes85
– MINI Maintenance
System107
Brakes
– ABS57
– breaking in84
– MINI Maintenance
System107
– parking brake39
– service requirements52
Brakes, refer to Braking
safely85
Breakdown service, refer to
Roadside Assistance123
Break-in period84
Breaking in the clutch84
Bulb changing, refer to Lamps
and bulbs113
Button for starting the
engine37
Buttons on the steering
wheel11
C
California Proposition 65
warning5
Can holders, refer to Cup
holders81
Capacities144
Car battery, refer to Vehicle
battery122
Car care109Car key, refer to Keys/remote
controls18
Car phone
– installation location, refer to
Center armrest79
– refer to separate Owner's
Manual
Car wash85
Car wash, care109
Car washes109
Care109
– Car washes109
– Car-care products109
– CD/DVD drives111
– High-pressure washers109
– internal111
– Leather111
– Manual washing110
– Upholstery and fabrics111
– Windows110
– Wiper blades110
Cargo area
– capacity144
Cargo bay86
– convenient access26
– cover86
– lamp70
– opening from outside23
Cargo bay, expanding86
Cargo bay lamp70
Cargo bay lid, refer to
Tailgate23
Cargo loading87
– securing cargo88
– stowing cargo87
– vehicle86
Cargo, securing88
Carpets, care111
Catalytic converter, refer to
Hot exhaust system84
Center armrest79
Center brake lamp117
Center console, refer to
Around the center
console14
Central locking system19
– convenient access25
– from inside22
– from outside19Changing bulbs
113
Changing wheels119
Chassis number, refer to
Engine compartment104
Check Control54
Child's seats35
Child-restraint fixing system
LATCH36
Child-restraint systems35
Chock, folding
– space-saver spare tire119
Chrome parts, care110
Chrome parts, refer to
Care109
Cigarette lighter81
Cleaning headlamps43
– washer fluid44
Clock47
– 12h/24h mode50
– setting time53
Closing
– from inside22
– from outside19
Clothes hooks80
Cockpit10
Cold start, refer to Starting the
engine38
Comfort access
– what to observe before
entering a car wash26
Comfort access, refer to
Convenient access25
Comfort area, refer to Around
the center console14
Compartment for remote
control, refer to Ignition
lock37
Computer48
Condensation, refer to When
the vehicle is parked85
Condition Based Service
CBS107
Configuring settings, refer to
Personal Profile18
Confirmation signals for
vehicle locking/unlocking20
Connecting vacuum cleaner,
refer to Connecting electrical
appliances81
ProCarManuals.com

From A to Z
148
Consumption indicator
– average fuel consumption48
Consumption, refer to Average
fuel consumption48
Control Display
– settings49
Controls and displays10
Convenience start, refer to
Starting the engine38
Convenient access25
– replacing the battery27
Convenient operation
– windows20
Coolant105
– checking level105
– filling105
Coolant temperature47
Cooling fluid, refer to
Coolant105
Cooling, maximum75
Copyright2
Cruising range48
Cup holders81
Curb weight, refer to
Weights144
Current fuel consumption49
D
Dashboard instruments, refer
to Displays12
Dashboard lighting, refer to
Instrument lighting70
Dashboard, refer to Cockpit10
Data142
– capacities144
– dimensions143
– engine142
– weights144
Date
– setting54
Daytime running lamps68
DBC Dynamic Brake Control,
refer to Brake assist57
Deactivating front passenger
airbags65
Deadlocking, refer to
Locking20Defect
– door lock22
– fuel filler door92
Defogging windows74,76
Defrost position, refer to
Defrosting windows74,76
Defrosting windows74,76
Defrosting windows and
removing condensation
– air conditioner74
– automatic climate control76
Differential, breaking in84
Digital clock47
Dimensions143
Dipstick, engine oil104
Directional indicators, refer to
Turn signals41
Displacement, refer to Engine
data142
Display lighting, refer to
Instrument lighting70
Displays12
– instrument combination12
Displays and controls10
Displays, care111
Disposal
– of coolant105
– remote control battery27
– vehicle battery122
Distance remaining to service,
refer to Service
requirements52
Distance warning, refer to Park
Distance Control PDC56
Diving stability control
systems56
Door key, refer to Integrated
key/remote control18
Door lock
22
Door lock, confirmation
signals20
Doors, manual operation22
DOT Quality Grades99
Drinks holders, refer to Cup
holders81
Drive-off assistant, refer to Hill
Start Assist58
Driving dynamics control, refer
to Sport button59Driving lamps, refer to Parking
lamps/low beams67
Driving notes84
Driving off on inclines, refer to
Hill Start Assist58
Driving through water85
Driving tips, refer to Driving
notes84
Dry air, refer to Cooling
function76
DTC Dynamic Traction Control
DTC58
Dynamic Brake Control DBC,
refer to Brake assist57
Dynamic Stability Control
DSC57
Dynamic Traction Control58
E
Electrical malfunction
– door lock22
– fuel filler door92
Electronic brake-force
distribution57
Electronic Stability Program
ESP, refer to Dynamic
Stability Control DSC57
Emergency operation, refer to
Manual operation
– door lock22
– fuel filler door92
– transmission lock, automatic
transmission41
Emergency services, refer to
Roadside Assistance123
Engine
– breaking in84
– data142
– overheated, refer to Coolant
temperature47
– speed142
– starting38
– starting, convenient
access25
– switching off38
Engine compartment104
Engine coolant, refer to
Coolant105
ProCarManuals.com

REFERENCEAT A GLANCE CONTROLS DRIVING TIPS MOBILITY
149
Engine oil
– adding105
– additives, refer to Approved
engine oils105
– approved engine oils105
– capacity105
– checking level104
– dipstick104
– intervals between changes,
refer to Service
requirements52
– MINI Maintenance
System107
Engine oil level, checking104
Engine output, refer to Engine
data142
Engine starting, refer to
Starting the engine38
Error messages, refer to Check
Control54
ESP Electronic Stability
Program, refer to Dynamic
Stability Control DSC57
Event data recorders108
Exhaust system, refer to Hot
exhaust system84
Exterior mirrors33
– adjusting33
– automatic heating33
– folding in and out33
External audio device79
External care
– 109
Eyes
– for tow-starting and towing
away125
– for tying down loads88
F
Failure messages, refer to
Check Control54
Failure of an electrical
consumer122
Fasten safety belts reminder,
refer to Seat belt
reminder32
Fastening safety belts, refer to
Safety belts32Filter
– microfilter for air
conditioner74
– microfilter/activated-
charcoal filter for automatic
climate control76
Fine wood, care111
First aid pouch123
Fixture for remote control,
refer to Ignition lock37
Flash when locking/
unlocking20
Flat tire
– Run-Flat Tires101
– Tire Pressure Monitor TPM61
Flat Tire Monitor FTM59
– indicating a flat tire60
– initializing the system59
– malfunction60
– snow chains59
– system limits59
Flat tires, refer to Tire
condition100
Floor mats, care111
Fog lamps
– replacing bulb115,117
Folding rear seat backrest86
Footbrake, refer to Braking
safely85
Footwell lamps70
For your own safety4
Front airbags64
Front fog lamps70
– indicator lamp128
– replacing bulb115
Front seat adjustment29
Frost on windows, refer to
Defrosting windows74,76
FTM, refer to Flat Tire
Monitor59
Fuel93
– gauge48
– high-quality brands93
– quality93
– specifications93
– tank capacity144
Fuel clock, refer to Fuel
gauge48Fuel display, refer to Fuel
gauge
48
Fuel filler door92
– releasing in the event of
electrical malfunction92
Fuses122
G
Garage door opener, refer to
Integrated universal remote
control77
Gasoline
– refer to Average
consumption48
Gasoline display, refer to Fuel
gauge48
Gasoline, refer to Required
fuel93
Gear indicator
– automatic transmission with
Steptronic39
Gear shifting
– automatic transmission40
– manual transmission39
Gearshift lever
– automatic transmission with
Steptronic40
– manual transmission39
General driving notes84
Glass sunroof, electric27
– convenient operation20,22
– opening, closing27
– raising27
– remote control20
Glove compartment79
Grills, refer to Air vents72
Gross vehicle weight, refer to
Weights144
H
Halogen lamps
– replacing bulb114
Handbrake, refer to Parking
brake39
Hands-free system14
Hazard warning flashers14
Head airbags64
ProCarManuals.com

REFERENCEAT A GLANCE CONTROLS DRIVING TIPS MOBILITY
151
Locking
– adjusting confirmation
signal20
– from inside22
– from outside20
– without remote control, refer
to Convenient access25
Locking and unlocking doors
– confirmation signals20
– from inside22
– from outside19
Low beams67
– automatic67
– replacing bulb114
Lower back support, refer to
Lumbar support30
Luggage compartment lid,
refer to Tailgate23
Luggage compartment, refer
to Cargo bay23
Luggage rack, refer to Roof-
mounted luggage rack88
Lumbar support30
M
M+S tires, refer to Winter
tires102
Maintenance, refer to Service
Booklet
Maintenance system107
Malfunction warnings, refer to
Check Control54
Manual air distribution74
Manual mode
– automatic transmission with
Steptronic40
Manual operation
– door lock22
– fuel filler door92
– transmission lock, automatic
transmission41
Manual transmission39
Manual washing110
Master key, refer to Integrated
key/remote control18
Maximum cooling75
Maximum speed
– with winter tires102Medical assistance, refer to
First aid pouch123
Microfilter
– for air conditioner74
– for automatic climate
control76
– MINI Maintenance
System107
Microfilter/activated-charcoal
filter
– MINI Maintenance
System107
Microphone for telephone14
MINI Internet page4
MINI Maintenance System107
Mirror dimming feature33
Mirrors33
– exterior mirrors33
– heating33
– interior rearview mirror33
Mobile phone
– installation location, refer to
Center armrest79
– refer to separate Owner's
Manual
Mobile phone, installation
location, refer to Center
armrest79
Mobile phone, refer to the
separate Owner's Manual
Mobility System117
Modifications, technical, refer
to For your own safety4
Monitoring system for tire
pressures, refer to Flat Tire
Monitor59
Multifunction switch
– refer to Turn signals/
headlamp flasher41
– refer to Wiper system42
Multifunctional steering
wheel, refer to Buttons on
the steering wheel11
N
Neck support, refer to Head
restraints31Nets, refer to Storage
compartments80
New tires101
Number of cylinders, refer to
Engine data142
Nylon rope, refer to Tow
rope126
O
OBD socket, refer to Socket for
Onboard Diagnosis107
Octane ratings, refer to Fuel
specifications93
Odometer47
Oil consumption104
Oil level104
Oil, refer to Engine oil104
Old batteries, refer to
Disposal122
Onboard tool kit113
Opening and closing
– convenient access25
– from inside22
– from outside19
– using the door lock22
– via the remote control19
Opening and unlocking
– from inside22
Outlets
– refer to Ventilation76
Outlets, refer to Air vents72
Output, refer to Engine
data142
Outside temperature
display47
– changing unit of measure50
– on onboard computer50
Outside-air mode
– automatic climate control75
Overheated engine, refer to
Coolant temperature47
P
Paintwork, care110
Park Distance Control PDC56
Parking
– vehicle38
ProCarManuals.com

REFERENCEAT A GLANCE CONTROLS DRIVING TIPS MOBILITY
155
V
Valve
– dust cap120
Vehicle
– battery122
– breaking in84
– cargo loading86
– dimensions143
– Identification Number, refer
to Engine compartment104
– parking38
– storage112
– weight144
Vehicle jack119
– jacking points121
Ventilation
– air conditioner76
Vents, refer to Air vents72
Vents, refer to Ventilation76
Volume of cargo area144
W
Warning and indicator
lamps13,128
Warning messages, refer to
Check Control54
Warning triangle123
Washer fluid44
– capacity of reservoir44
Washer fluid reservoir44
Waste tray, refer to Ashtray81
Water on roads, refer to
Driving through water85
Waterfall lighting, refer to
Ambient lighting71
Wear indicators in tires, refer to
Minimum tread depth100
Weights144
Welcome lamps67
Wheel stud wrench
– space-saver spare tire119
Wheelbase, refer to
Dimensions143
Wheels and tires94
Wheels, new101
Width, refer to
Dimensions143Window washer, refer to
Washer fluid44
Window washer reservoir,
refer to Washer fluid
– volume, refer to
Capacities144
Windows28
– closing28
– convenient operation20
– opening28
– pinch protection system28
Windshield
– cleaning43
– defrosting and removing
condensation74,76
Windshield, defrosting, refer to
Defrosting windows74,76
Windshield washer system42
– washer fluid44
– washer nozzles44
Windshield wiper blades,
changing113
Windshield wipers, refer to
Wiper system42
Winter tires102
– storage102
Wiper blade replacement113
Wiper system42
Work in the engine
compartment103
Wrench/screwdriver, refer to
Onboard tool kit113
X
Xenon lamps
– replacing bulb114
ProCarManuals.com
