dimensions MINI COOPER 2011 Owners Manual

CareMOBILITY
153
Care
Car-care products
Regular cleaning and care helps to maintain the
value of your MINI.
The manufacturer of your MINI recommends
using manufacturer-approved products to clean
and care for your vehicle.
Your MINI dealer would be pleased to advise
you on cleaning and care products and services
for your MINI.The ingredients of original MINI Care
Products have been tested, and the
products have been tested in the laboratory
and in practice. They offer optimum care and
protection for your vehicle. <
Do not use any cleansers containing
alcohol or solvents as these may cause
damage. <
Cleaning agents may contain hazardous
or health-damaging substances. Follow
the warning and hazard instructions on the
packaging. For interior cleaning, always open
the doors or windows of the vehicle.
Do not use any products that are not intended
for cleaning the vehicle. <
External care
Washing your vehicle
Especially during the winter months the
vehicle should be frequently washed.
Dirt and road salt can damage the vehicle. <
After washing the vehicle, apply the
brakes briefly to dry them; otherwise,
water can reduce brakin g efficiency over the
short term and the brake rotors can corrode. <
Car washes
Preference should be given to cloth car washes.
Do not use automatic high-pressure car
washes; otherwise, water may drip into
the vehicle around the windows. <
Before driving into the car wash, check if the
system is suitable for your MINI. Observe the
following points:
> Vehicle dimensions, page 189
> If necessary: fold in the outside mirrors,
page 41
> Maximum permissible tire width
Avoid car washes with tracks higher than
4 in/10 cm; otherwise, the chassis could
be damaged. <
Preparations for driving into the car wash:
> Unscrew the rod antenna.
> Deactivate the rain sensor
* to prevent
unintentional wiping.
> Deactivate the rear window wiper
* and
protect it from damage. Ask the car wash
operator about measures that can be taken
to protect the wipers.
> Remove addition al attachments, e.g. spoil-
ers or telephone antennas, if there is a
possibility that they could be damaged.
> Inserting the remote control into the ignition
lock.
Automatic transmission
Before driving into the ca r wash, make sure that
the vehicle can roll:
1. Place the remote control, even with Comfort
Access, in the ig nition lock.
2. Move the selector lever to position N.
3. Release the parking brake.
4. Switch off the engine.
5. Insert the remote control in the ignition lock
so that the vehicle can roll.

MOBILITYReplacing components
166
4.Raise the lifting handle slightly.
5. Squeeze the securing spring.
6. The space-saver spare tire is released and
must be held by the lifting handle.
7. Lower the space-saver spare tire with the
lifting handle.
8. Unscrew the lifting handle.
9. Pull the space-saver spare tire underneath
the vehicle out toward the rear.
10. Position the space-save r spare tire with the
valve facing upward.
11. Unscrew the valve extension from the valve
of the space-saver spare tire. 12.
Unscrew the dust cap from the extension
and place it on the valve of the space-saver
spare tire.
Due to its different dimensions, the
damaged wheel cannot be placed in the
recess for the space-saver spare tire. <
Driving with the space-saver spare tire
Drive cautiously and do not exceed a
speed of 50 mph/80 km/h. Changes may
occur in vehicle handling such as lower track
stability during braking, longer braking dis-
tances and changes in self-steering properties
when close to the handling limit. These proper-
ties are more noticeable with winter tires. <
Only one space-saver spare tire may be
mounted at one time. Mount a wheel and
tire of the original size as soon as possible, to
avoid any safety risks. <
Check the tire inflat ion pressure at the
earliest opportunity and correct it if
necessary. Replace the defe ctive tire as soon as
possible and have the ne w wheel/tire assembly
balanced. <
Preparing for a tire change
Observe the safety precautions regarding
flat tires on page 163.<
Additional safety measures when chang-
ing tires:
Only change the tire wh en parked on a surface
that is level, firm and not slippery.
The vehicle or the jack could slip sideways on
soft or slippery support surfaces, such as snow,
ice, flagstones, etc.
Do not use a wooden block or similar object as a
support base for the jack, as this would prevent
it from extending to its full support height and
reduce its load-carrying capacity.
Do not lie under the vehicle or start the engine
when the vehicle is supported by the jack; other-
wise, there is a risk of fatal injury. <

Technical dataREFERENCE
189

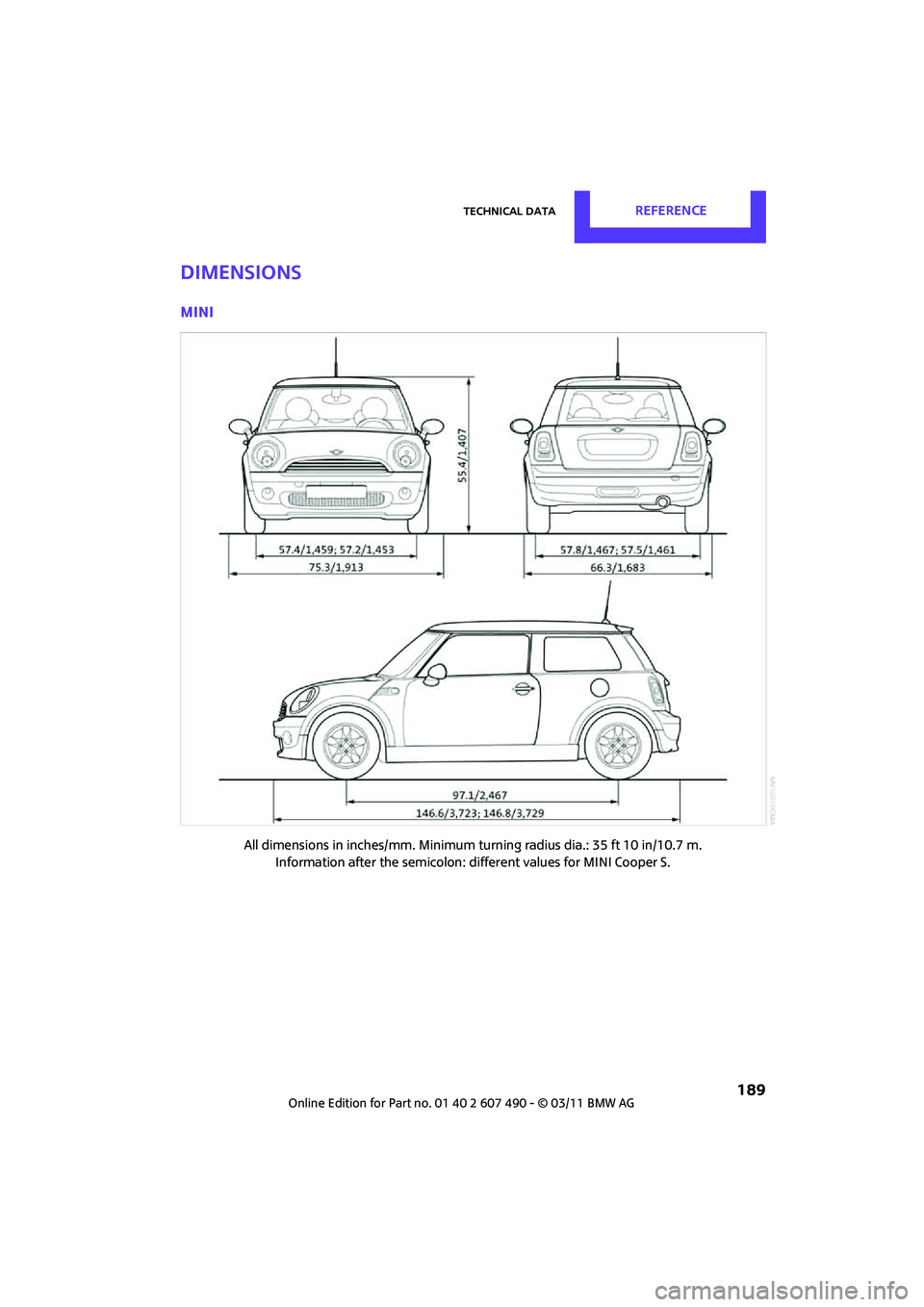

Dimensions
MINI
All dimensions in inches/mm. Minimum turning radius dia.: 35 ft 10 in/10.7 m.
Information after the semicolon: different values for MINI Cooper S.

REFERENCETechnical data
190
MINI Convertible
All dimensions in inches/mm. Minimum turning radius dia.: 35 ft 10 in/10.7 m.
Information after the semicolon: different values for MINI Cooper S.

REFERENCEEverything from A to Z
196
Chassis number, refer to Engine compartment 147
Check Control 64
Child restraint fixing system
LATCH 44
Child restraint systems 43
Child seats 43
Chrome parts, care 155
Chrome parts, refer to Care 153
Cigarette lighter 93
Cleaning headlamps 53
– washer fluid 54
Clock
– 12 h/24 h mode 61
– setting time 63
Closing
– from inside 25
– from outside 21
Clothes hooks 92
Cockpit 10
Cold start, refer to Starting the
engine 47
Comfort Access 28
– replacing the battery 30
– what to observe before entering a car wash 29
Comfort area, refer to Around
the center console 14
Compartment for remote
control, refer to Ignition
lock 46
Compressed audio files 111
Computer 57
Condensation, refer to When the vehicle is parked 98
Condition Based Service CBS 151
Configuring settings, refer to
Personal Profile 20
Connecting vacuum cleaner, refer to Connecting electrical
appliances 93
Consumption, refer to Average fuel consumption 57
Control Display
– settings 59 Controls and displays
10
Convenient access, refer to Comfort Access 28
Convenient operation
– convertible top 24
– windows 22
Convenient start, refer to
Starting the engine 47
Convertible top 32
Coolant 149
– checking level 149
– filling 149
Coolant temperature 149
Cooling, maximum 87
Cooli

ng fluid, refer to
Coolant 149
Copyright 2
Cornering light, refer to Adaptive Light Control 80
Cruising range 57
Cupholders 93
Curb weight, refer to
Weights 191
Current fuel consumption 57
D
Dashboard, refer to Cockpit 10
Dashboard instruments, refer to Displays 12
Dashboard lighting, refer to Instrument lighting 82
Data 188
– capacities 193
– dimensions 189
– engine 188
– weights 191
Data memory 152
Date
– setting 64
Date setting 107
Daytime running lights 79
DBC Dynamic Brake Control, refer to Brake Assist 67
Deactivating front passenger
airbags 76 Deadlocking, refer to
Locking 22
Defect
– door lock 25
– fuel filler flap 132
Defogging windows 86,88
Defrosting windows 86,88
Defrosting windows and removing condensation
– air conditioner 86
– automatic climate control 88
Defrosting windshield, refer to Defrosting windows 86,88
Defrost positi on, refer to
Defrosting windows 86,88
Differential, breaking in 96
Digital radio, refer to HD Radio 109
Dimensions 189
Dipstick, engine oil 147
Directional indicators, refer to Turn signals 51
Displacement, refer to Engine data 188
Display lighting, refer to
Instrument lighting 82
Displays 12
– instrument cluster 12
Displays, care 156
Displays and controls 10
Disposal
– of coolant 149
– remote control battery 30
– vehicle battery 168
Distance remaining to service, refer to Service
requirements 62
Distance warning, refer

to Park
Distance Control PDC 66
Door key, refer to Integrated key/remote control 20
Door lock 24
Door lock, confirmation signals 23
Doors, manual operation 25
DOT Quality Grades 142

REFERENCEEverything from A to Z
198
Floor mats, care156
Fog lamps
– replacing bulb 160,162
Folding rear seat backrest 98
Folding roof , refer to
Convertible top with
integrated sliding sunroof 32
Footbrake, refer to Braking safely 97
Footwell lamps 82
For your own safety 5
Front airbags 75
Front fog lamps 81
– indicator lamp 173
– replacing bulb 160
Front seat adjustment 38
Frost on windows, refer to Defrosting windows 86,88
FTM, refer to Flat Tire
Monitor 69
Fuel 133
– gauge 56
– high-quality brands 133
– quality 133
– specifications 133
– tank volume 193
Fuel clock, refer to Fuel gauge 56
Fuel consumption display
– average fuel consumption 57
Fuel display, refer to Fuel gauge 56
Fuel filler flap 132
– releasing in the event of electrical malfunction 132
Fuses 168
G
Garage door opener, refer to
Integrated universal remote
control 89
Gasoline
– refer to Average fuel consumption 57 Gasoline, refer to Required
fuel 133
Gasoline display, refer to Fuel gauge 56
Gear indicator
– automatic transmission with Steptronic 48
Gear shifting
– automatic transmission 49
– manual transmission 48
Gearshift lever
– automatic transmission with Steptronic 49
– manual transmission 48
General driving notes 96
Glass roof, electric 30
– convenient operation 22,24
– opening, closing 30
– remote control 22
– tilting 30
Glove compartment 91
Grills, refer to Air vents 84
Gross vehicle weight, refer to Weights 191
H
Halogen lamps
– replacing bulb 159
Handbrake, refe r to Parking
brake 48
Hands-free system 14,126
Hazard warning flashers 14
HD Radio 109
Head airbags 75
Headlamp control,
automatic 78
Headlamp flasher 51
– indicator lamp 11,173
Headlamp glass lens 159
Headlamps
– replacing bulb 159
Headlamps, care 154
Head Light, refer to Adaptive Light Control 80
Head restraints 39
– sitting safely 37 Heated
– mirrors
41
– rear window 85,88
– seats 40
Heating 84
– mirrors 41
– rear window 85,88
– seats 40
Heavy loads, refer to Stowing cargo 101
Height, refer to Dimensions 189
Height adjustment
– seats 38
– steering wheel 42
High beams 81
– headlamp flasher 81
– indicator lamp 173
– replacing bulb 159
High water, refer to Driving through water 97
Hill Assist 69
Hills 97
Holders for cups 93
Homepage 4
Hood 146
Horn 10
Hot exhaust system 96
Hydroplaning 97
I
IBOC, refer to HD Radio 109
Ignition 46
– switched off 47
– switched on 46
Ignition key, refer to Integrated key/remote
control 20
Ignition key position 1, refer to Radio readiness 46
Ignition key position 2, refer to
Ignition on 46
Ignition lock 46
Imprint 2
Incoming call 124

Everything from A to ZREFERENCE
199
Indicator and warning lamps 13,173
– Tire Pressure Monitor TPM 73
Indicator lighting, refer to
Instrument lighting 82
Individual air distribution 86
Individual settings, refer to
Personal Profile 20
Inflation pressure monitoring, refer to Tire Pressure Monitor
TPM 72
Initializing
– Flat Tire Monitor FTM 70
– glass roof, electric 31
Instrument cluster, refer to Displays 12
Instrument lighting 82
Instrument panel, refer to Cockpit 10
Instrument panel, refer to Displays 12
Integrated key 20
Integrated universal remote control 89
Interior lamps 82
– remote control 23
Interior rearview mirror 42
– automatic dimming
feature 42
Interlock 49
Intermittent mode of the wipers 52
Internet page 4
J
Jacking points 167
Jets, refer to Window washer nozzles 53
Jumpering, refer to Jump- starting 169
Jump-starting 169
K
Key, refer to Keys/remote
controls 20
Keyless-Go, refer to Comfort Access 28
Keyless opening and closing,
refer to Comfort Access 28
Key Memory, refer to Personal Profile 20
Keypad dialing 124
Kickdown 49
– automatic transmission with
Steptronic 49
Knock control 133
L
Lamps, refer to Parking lamps/
Low beams 78
Lamps and bulbs, replacing bulbs 158
Lashing eyes, refer to Securing cargo 101
LATCH child restraint fixing
system 44
Leather care 155
LEDs light-emitting diodes 159
Length, refer to Dimensions 189
License plate lamp
– bulb replacement 162
Liftgate 26
– Comfort Access 29
– emergency operation 26
– manually releasing 26
– opening/closing 26
– opening from outside 26
– unlocking with remote
control 24
Light alloy wheels, care 155
Light-emitting diodes
LEDs 159
Lighter 93
– socket 93 Lighting
– lamps and bulbs
158
– of the instruments 82
– of vehicle, refer to Lamps 78
Light switch 78
Limit 185
Listening to test scan
– Radio MINI Boost CD 108
Load 100
Load securing equipment,
refer to Securing cargo 101
Lock buttons of doors, refer to
Locking 25
Locking
– adjusting confirmation signal 23
– from inside 25
– from outside 22
– without remote control, refer
to Comfort Access 28
Locking and unlocking doors
– confirmation signals 23
– from inside 25
– from outside 21
Longlife oils
– approved motor oils 149
Low beams 78
– automatic 78
– replacing bulb 159
Lower back suppo rt, refer to
Lumbar support 39
Luggage compartment
– emergency operation, refer
to
Manual unlocking 26
– increasing the capacity 99
– opening from the inside 26
Luggage compartment, refer to Cargo area 26
Luggage compartment lid,
refer to Liftgate 26
Luggage rack, re fer to Roof-
mounted luggage rack 102
Lumbar support 39

REFERENCEEverything from A to Z
202
Run-flat tires144
– flat tire 71
– tire inflation pressure 134
– tire replacement 144
– winter tires 145
S
Safety belt
– number37
Safety Belt Reminder 41
Safety belts 40
– damage 41
– indicator lamp 41
– reminder 41
– sitting safely 37
Safety belts, care 156
Safety systems
– airbags 75
– Antilock Brake System ABS 67
– Dynamic Stability Control
DSC 67
– safety belts 40
Safety tires, refer to Run-flat
tires 144
Satellite radio 110
– enabling 110
Scan, listening to test
– Radio MINI Boost CD 108
Screw thread for tow fitting 171
Searching
– CD player 112
– radio 107
Searching for a music track
– CD 112
Seat adjustment
– mechanical 38
Seats 38
– adjusting the seats 38
– heating 40
– sitting safely 37
Securing the vehicle
– from inside 25
– from outside 21 Selector lever
– automatic transmission with
Steptronic 49
Selector lever lock
– automatic transmission with Steptronic, refer to
Shiftlock 49
– overriding manually 50
Selector lever positions
– automatic transmission with
Steptronic 49
Service, refer to Roadside Assistance 169
Service car, refe r to Roadside
Assistance 169
Service data in the remote
control 151
Service Interval Display, refer to Condition Based Service
CBS 151
Service requirement display, refer to Condition Based
Service CBS 151
Service requirements 62
Settings
– clock, 12 h/24 h mode 61
Setting the time format 107
Shifting gears
– automatic transmission with Steptr
onic49
– manual transmission 48
Shiftlock
– automatic transmission, refer
to Changing selector lever
positions 49
Side airbags 75
Side turn signal
– replacing bulb 161
Side windows, refer to
Windows 31
Signal horn, refer to Horn 10
Sitting safely 37
– airbags 37
– safety belts 37
– with head restraint 37
Size, refer to Dimensions 189Sliding/tilt sunroof
– refer to Glass roof, electric
30
Slipstream deflector, refer to Wind deflector 36
Slot for remote control 46
Smokers' package, refer to Ashtray 93
Snap-in adapter
– inserting/removing 129
– use 118
Snap-in adapter, refer to Center armrest storage
compartment 92
Snow chains 145
Socket, refer to Connecting electrical appliances 93
Socket for On-Board Diagnosis OBD 152
Space-saver spare tire
– changing tires 165
– inflation pressure 134
Spare wheel, refer to Space-
saver spare tire 165
Special oils, refer to Approved engine oils 149
Speed 188
– with winter tires 145
Speed-dependent volume 106
Speedo, refer to Speedometer 12
Speedometer 12
Split-folding rear seats 100
Split rear backrest, refer to
Split-folding rear seats 100
Split rear seat backrest, refer to Expanding the cargo area 98
Sport button 69
Stability control, refer to Driving stability control
systems 67
Start/Stop button 46
– starting the engine 47
– switching off the engine 47
Starting, refer to Starting the engine 47

REFERENCEEverything from A to Z
204
Tone
– middle setting107
Tone control 107
Tools, refer to Onboard vehicle
toolkit 157
Torque 188
– lug bolts 167
Tow bar 172
Tow fitting 171
– screw thread 171
Tow fittings for tow-starting and towing away 171
Towing 171
– car with automatic transmission 171
– methods 172
Tow rope 172
Tow-starting 171
TPM, refer to Tire Pressure
Monitor 72
Track width, refer to Dimension 189
Traction control, refer to
– Dynamic Stability Control DSC 67
Trailer operation
– trailer loads an d gross vehicle
weight 191
Transmission
– automatic transmission with Steptronic 48
– manual transmission 48
– overriding selector lever lock
for automatic transmission
with Steptronic 50
Transporting children safely 43
Transport securing devices, refer to Securing cargo 101
Tread depth, refer to Minimum
tire tread 143
Trip-distance counter, refer to Trip odometer 56
Triple turn si gnal activation 51
Trip odometer 56 Trunk, refer to Luggage
compartment in the MINI
Convertible 99
Trunk lid
– emergency operation, refer to Manual unlocking 26
Turning circle, refer to
Dimensions 189
Turn signal 51
– front, replacing bulb 160
– indicator lamp 12
– rear, replacing bulb 161
– side, replacing bulb 161
Tying down loads, refer to Cargo loading 101
U
Uniform Tire Quality Grading
UTQR 142
Units
– average fuel consumption 61
– temperature 61
Universal garage-door opener, refer to Integrated universal
remote control 89
Universal remote control 89
Unlatching, refer to
Unlocking 29
Unlocking
– from inside 25
– from outside 21
– liftgate 29
– without remote control, refer
to Comfort Access 28
Upholstery, care 155
USB audio interface 113
V
Valve
– dust cap166 Vehicle
– battery
167
– breaking in 96
– cargo loading 98
– dimensions 189
– identification number, refer to Engine compartment 147
– parking 47
– storage 156
– weight 191
Vehicle jack 157
– jacking points 167
Ventilation
– air conditioner 88
Vents, refer to Air vents 84
Vents, refer to Ventilation 88
Voice commands
– telephone 127
Voice phone book 128
Volume
– bell 106
– mobile phone 124
– PDC 106
– setting speed- dependent 106
Volume of cargo area 191
W
Warning and indicator
lamps 13,173
Warning messages, refer to Check Control 64
Warning triangle 169
Washer fluid 53
– capacity of reservoir 54
Washer fluid reservoir 54
Waste tray, refer to Ashtray 93
Waterfall lighti ng, refer to
Ambient lighting 83
Water on roads, refer to Driving through water 97
Wear indicators in tires, refer to Minimum tread depth 143

Everything from A to ZREFERENCE
205
Weights191
Welcome lamps 78
Wheelbase, refer to Dimensions 189
Wheels, new 144
Wheels and tires 134
Wheel stud wrench
– space-saver spare tire 157
Width, refer to Dimensions 189
Wind deflector 36
Windows 31
– closing 31
– convenient operation 22
– opening 31
– pinch protection system 32
Window washer, refer to
Washer fluid 54
Window washer reservoir, refer to Washer fluid
– volume, refer to Capacities 193
Window washer system 52
– washer fluid 54
– washer jets 53
Windshield
– cleaning 53
– defrosting and removing condensation 86,88
Windshield wiper blades, changing 158
Windshield wipers, refer to Wiper system 52
Winter tires 145
– storage 145
Wiper blade replacement 158
Wiper system 52
WMA 111
Work in the engine compartment 146
Wrench/screwdriver, refer to Onboard vehicle toolkit 157X
Xenon lamps
– replacing bulb159
