width MINI COOPER 2013 Owners Manual

MOBILITYWheels and tires
202

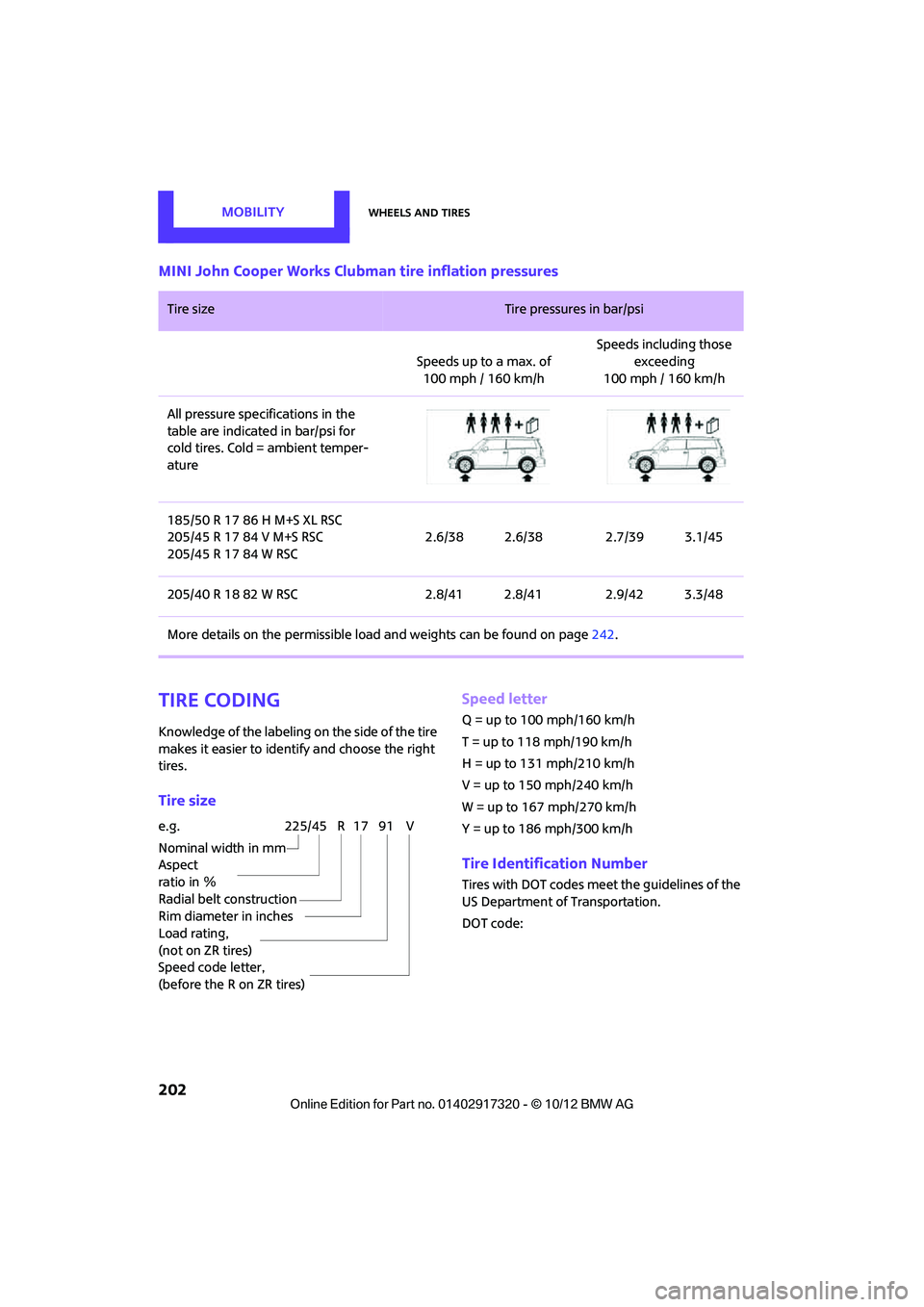

MINI John Cooper Works Clubman tire inflation pressures
Tire coding
Knowledge of the labeling on the side of the tire
makes it easier to identify and choose the right
tires.
Tire size Speed letter
Q = up to 100 mph/160 km/h
T = up to 118 mph/190 km/h
H = up to 131 mph/210 km/h
V = up to 150 mph/240 km/h
W = up to 167 mph/270 km/h
Y = up to 186 mph/300 km/h
Tire Identification Number
Tires with DOT codes meet the guidelines of the
US Department of Transportation.
DOT code:
Tire size Tire pressures in bar/psi
Speeds up to a max. of 100mph / 160km/h Speeds including those
exceeding
100 mph / 160 km/h
All pressure specifications in the
table are indicated in bar/psi for
cold tires. Cold = ambient temper-
ature
185/50 R 17 86 H M+S XL RSC
205/45 R 17 84 V M+S RSC
205/45 R 17 84 W RSC 2.6/38 2.6/38 2.7/39 3.1/45
205/40 R 18 82 W RSC 2.8/41 2.8/41 2.9/42 3.3/48
More details on the permissible load and weights can be found on page242.
e.g.
Nominal width in mm
Aspect
ratio in Ξ
Radial belt construction
Rim diameter in inches
Load rating,
(not on ZR tires)
Speed code letter,
(before the R on ZR tires)225/45 R 17 91 V

00320051004F004C00510048000300280047004C0057004C005200510003

Wheels and tiresMOBILITY
203

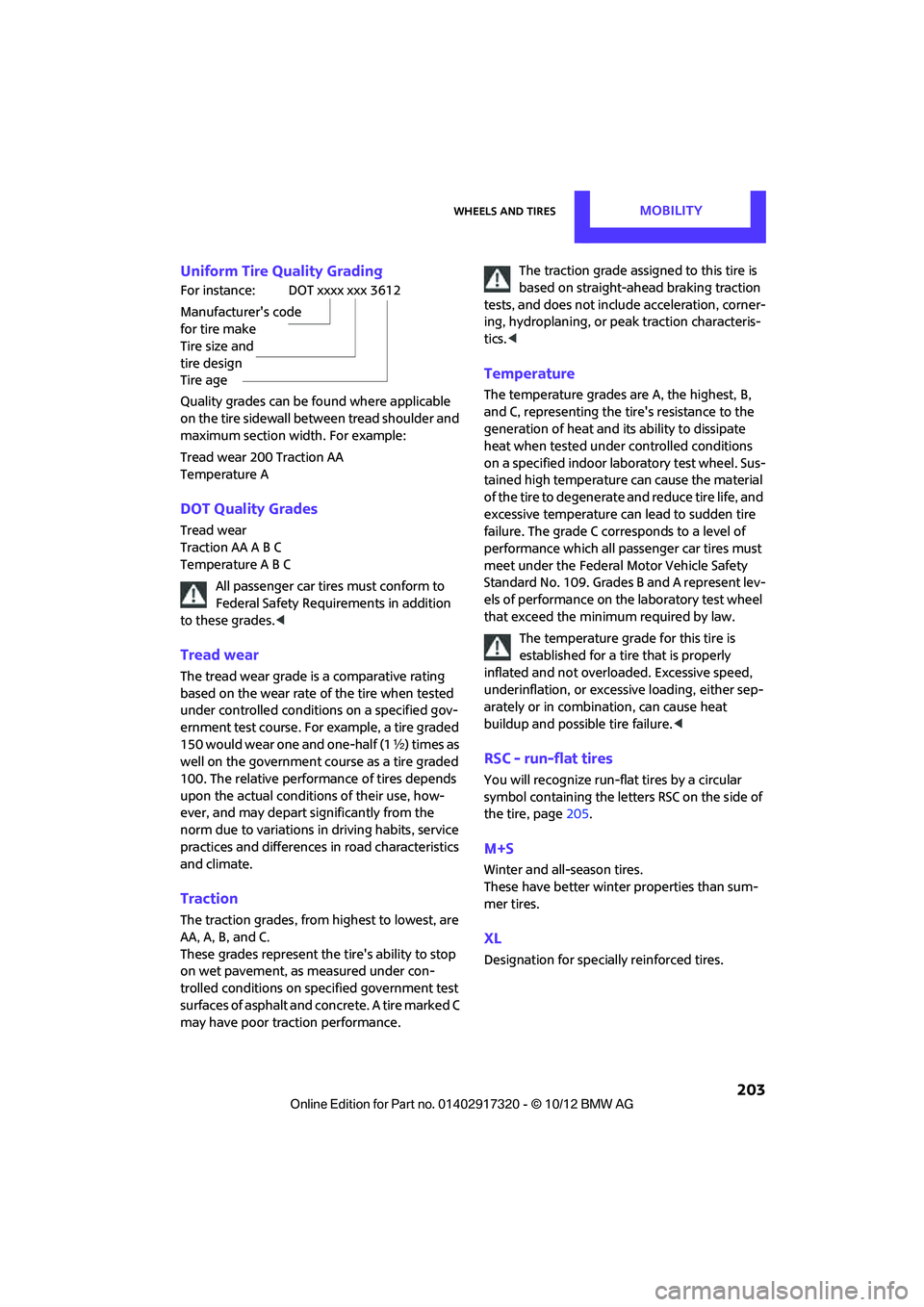

Uniform Tire Quality Grading
Quality grades can be found where applicable
on the tire sidewall between tread shoulder and
maximum section width. For example:
Tread wear 200 Traction AA
Temperature A
DOT Quality Grades
Tread wear
Traction AA A B C
Temperature A B C
All passenger car tires must conform to
Federal Safety Requirements in addition
to these grades. <
Tread wear
The tread wear grade is a comparative rating
based on the wear rate of the tire when tested
under controlled conditions on a specified gov-
ernment test course. For example, a tire graded
150 would wear one and one-half (1 γ) times as
well on the government course as a tire graded
100. The relative performance of tires depends
upon the actual conditio ns of their use, how-
ever, and may depart si gnificantly from the
norm due to variations in driving habits, service
practices and differences in road characteristics
and climate.
Traction
The traction grades, from highest to lowest, are
AA, A, B, and C.
These grades represent the tire's ability to stop
on wet pavement, as measured under con-
trolled conditions on specified government test
surfaces of asphalt and concrete. A tire marked C
may have poor traction performance. The traction grade assigned to this tire is
based on straight-ahead braking traction
tests, and does not incl ude acceleration, corner-
ing, hydroplaning, or peak traction characteris-
tics. <
Temperature
The temperature grades are A, the highest, B,
and C, representing the tire's resistance to the
generation of heat and its ability to dissipate
heat when tested under controlled conditions
on a specified indoor labo ratory test wheel. Sus-
tained high temperature can cause the material
of the tire to degenerate and reduce tire life, and
excessive temperature can lead to sudden tire
failure. The grade C corresponds to a level of
performance which all passenger car tires must
meet under the Federal Motor Vehicle Safety
Standard No. 109. Grades B and A represent lev-
els of performance on the laboratory test wheel
that exceed the minimum required by law.
The temperature grade for this tire is
established for a tire that is properly
inflated and not overloaded. Excessive speed,
underinflation, or excessive loading, either sep-
arately or in combinat ion, can cause heat
buildup and possible tire failure.<
RSC - run-flat tires
You will recognize run-flat tires by a circular
symbol containing the letters RSC on the side of
the tire, page 205.
M+S
Winter and all-season tires.
These have better winter properties than sum-
mer tires.
XL
Designation for specia lly reinforced tires.
For instance:
Manufacturer's code
for tire make
Tire size and
tire design
Tire age
DOT xxxx xxx 3612

00320051004F004C00510048000300280047004C0057004C005200510003

CareMOBILITY
213
Care
Vehicle equipment
In this chapter, all production, country, and
optional equipment that is offered in the model
range is described. Equipment is also described
that is not available because of, for example,
selected options or count ry version. This also
applies to safety related functions and systems.
Car-care products
Regular cleaning and care helps to maintain the
value of your MINI.
The manufacturer of your MINI recommends
using manufacturer-approved products to clean
and care for your vehicle.
Your MINI dealer would be pleased to advise
you on cleaning and care products and services
for your MINI.
The ingredients of original MINI Care Prod-
ucts have been tested, and the products
have been tested in the laboratory and in prac-
tice. They offer optimum care and protection for
your vehicle.<
Do not use any cleansers containing alco-
hol or solvents as these may cause dam-
age. <
Cleaning agents may contain hazardous
or health-damaging substances. Follow
the warning and hazard instructions on the
packaging. For interior cleaning, always open
the doors or windows of the vehicle.
Do not use any products that are not intended
for cleaning the vehicle. <
External care
Washing your vehicle
Especially during the winter months the
vehicle should be frequently washed. Dirt
and road salt can damage the vehicle.<
After washing the vehicle, apply the
brakes briefly to dry them; otherwise,
water can reduce braking efficiency over the
short term and the brake rotors can corrode. <
Regularly open the hood and clear out any
debris such as leaves th at may have collected in
the region of the windshield.
Car washes
Preference should be given to cloth car washes.
Do not use automatic high-pressure car
washes; otherwise, water may drip into
the vehicle around the windows. <
Before driving into the car wash, check if the sys-
tem is suitable for your MINI. Observe the fol-
lowing points:
> Vehicle dimensions, page 239.
> If necessary: fold in the outside mirrors,
page 42.
> Maximum permissible tire width.
Avoid car washes with tracks higher than
4 in/10 cm; otherwise, the chassis could
be damaged. <
Preparations for driving into the car wash:
> Unscrew the rod antenna.
> Deactivate the rain sensor to prevent unin-
tentional wiping.
> Deactivate rear window wiper and protect it
from damage. Ask the car wash operator
about measures that can be taken to protect
the wipers.

00320051004F004C00510048000300280047004C0057004C005200510003

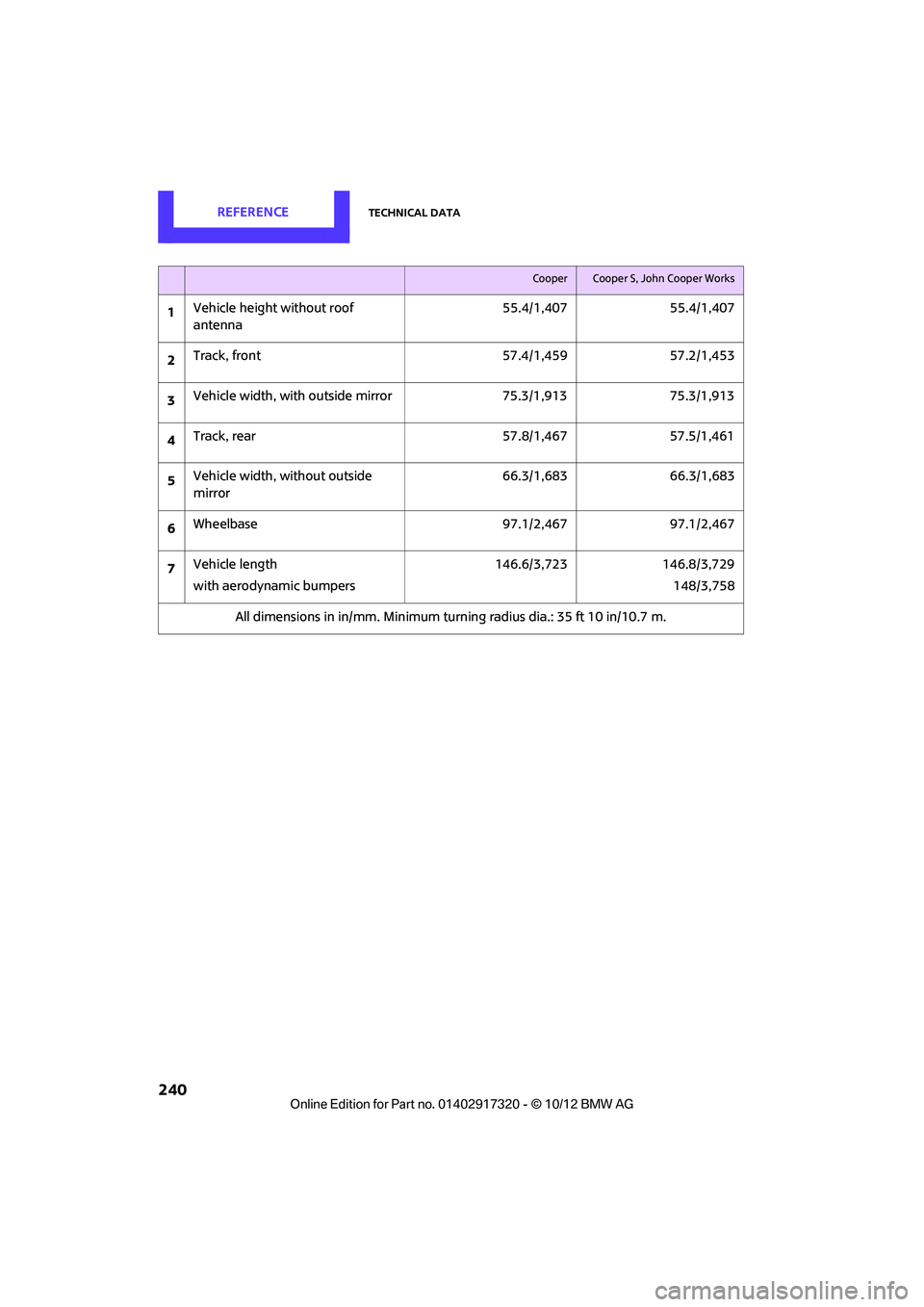

REFERENCETechnical data
240
CooperCooper S, John Cooper Works
1Vehicle height without roof
antenna 55.4/1,407 55.4/1,407
2 Track, front 57.4/1,459 57.2/1,453
3 Vehicle width, with outside mirror 75.3/1,913 75.3/1,913
4 Track, rear 57.8/1,467 57.5/1,461
5 Vehicle width, without outside
mirror 66.3/1,683 66.3/1,683
6 Wheelbase 97.1/2,467 97.1/2,467
7 Vehicle length
with aerodynamic bumpers 146.6/3,723 146.8/3,729
148/3,758
All dimensions in in/mm. Minimum tu rning radius dia.: 35 ft 10 in/10.7 m.

00320051004F004C00510048000300280047004C0057004C005200510003

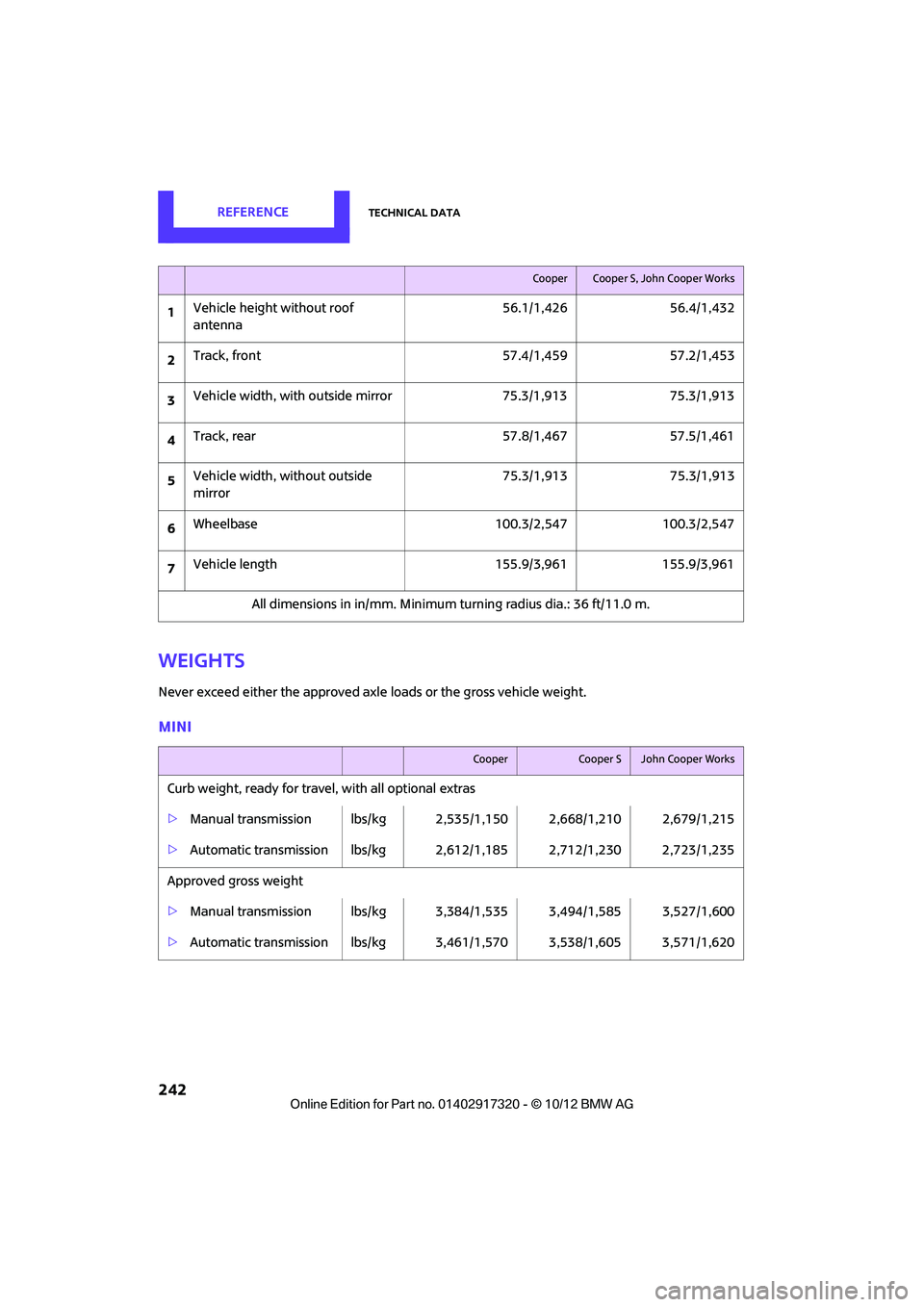

REFERENCETechnical data
242
Weights
Never exceed either the approved axle loads or the gross vehicle weight.
MINI
CooperCooper S, John Cooper Works
1Vehicle height without roof
antenna 56.1/1,426 56.4/1,432
2 Track, front 57.4/1,459 57.2/1,453
3 Vehicle width, with outside mirror 75.3/1,913 75.3/1,913
4 Track, rear 57.8/1,467 57.5/1,461
5 Vehicle width, without outside
mirror 75.3/1,913 75.3/1,913
6 Wheelbase 100.3/2,547 100.3/2,547
7 Vehicle length 155.9/3,961 155.9/3,961
All dimensions in in/mm. Minimum turning radius dia.: 36 ft/11.0 m.
CooperCooper SJohn Cooper Works
Curb weight, ready for travel , with all optional extras
> Manual transmission lbs/kg 2, 535/1,150 2,668/1,210 2,679/1,215
> Automatic transmission lbs/kg 2,612/1,185 2,712/1,230 2,723/1,235
Approved gross weight
> Manual transmission lbs/kg 3, 384/1,535 3,494/1,585 3,527/1,600
> Automatic transmission lbs/kg 3,461/1,570 3,538/1,605 3,571/1,620

00320051004F004C00510048000300280047004C0057004C005200510003

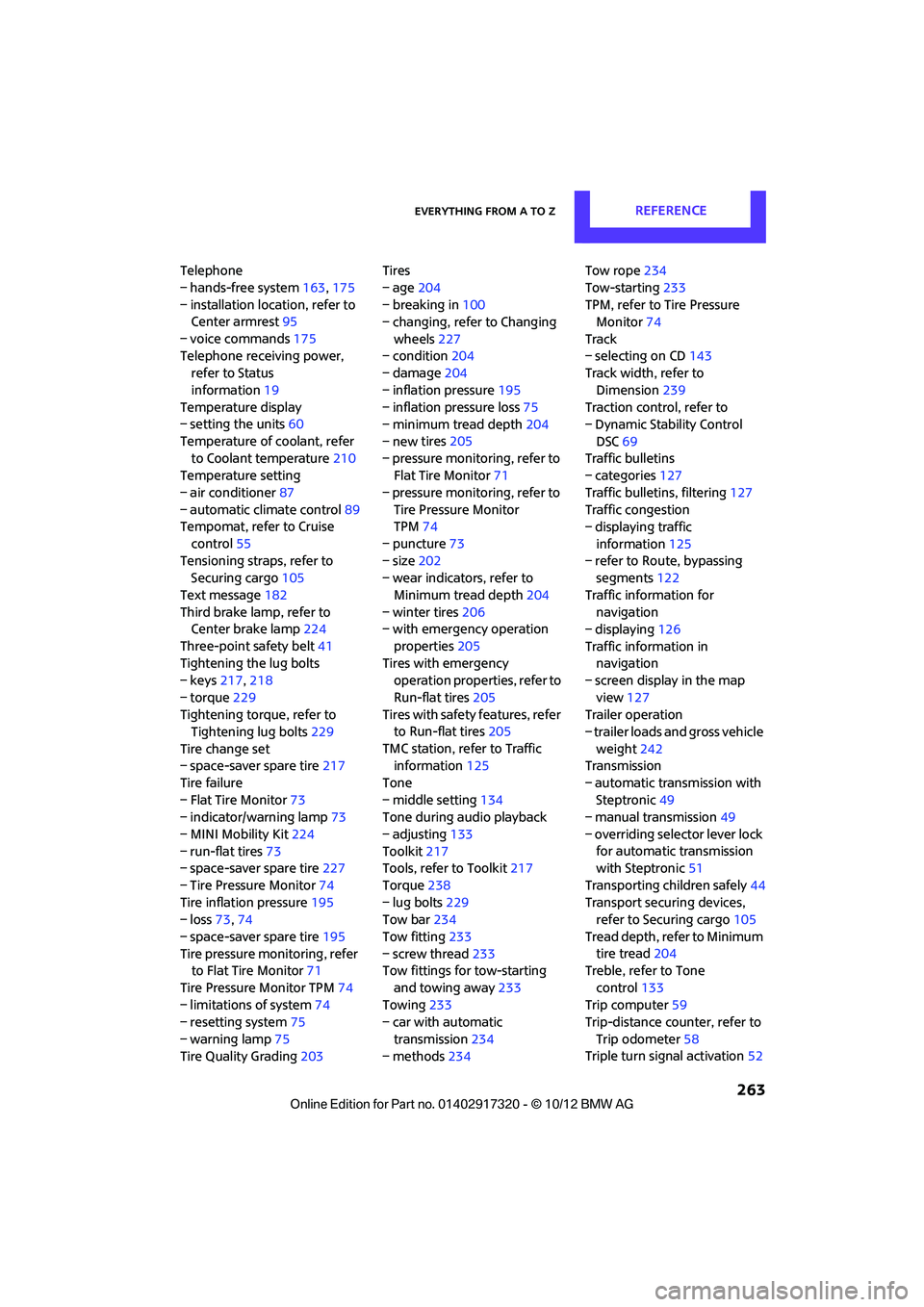

Everything from A to ZREFERENCE
263
Telephone
– hands-free system163,175
– installation location, refer to Center armrest 95
– voice commands 175
Telephone receiving power, refer to Status
information 19
Temperature display
– setting the units 60
Temperature of coolant, refer to Coolant temperature 210
Temperature setting
– air conditioner 87
– automatic climate control 89
Tempomat, refer to Cruise
control 55
Tensioning straps, refer to Securing cargo 105
Text message 182
Third brake lamp, refer to Center brake lamp 224
Three-point safety belt 41
Tightening the lug bolts
– keys 217,218
– torque 229
Tightening torque, refer to Tightening lug bolts 229
Tire change set
– space-saver spare tire 217
Tire failure
– Flat Tire Monitor 73
– indicator/warning lamp 73
– MINI Mobility Kit 224
– run-flat tires 73
– space-saver spare tire 227
– Tire Pressure Monitor 74
Tire inflation pressure 195
– loss 73,74
– space-saver spare tire 195
Tire pressure monitoring, refer to Flat Tire Monitor 71
Tire Pressure Monitor TPM 74
– limitations of system 74
– resetting system 75
– warning lamp 75
Tire Quality Grading 203Tires
– age
204
– breaking in 100
– changing, refe r to Changing
wheels 227
– condition 204
– damage 204
– inflation pressure 195
– inflation pressure loss 75
– minimum tread depth 204
– new tires
205
– pressure moni toring,

refer to
Flat Tire Monitor 71
– pressure monitoring, refer to Tire Pressure Monitor
TPM 74
– puncture 73
– size 202
– wear indicators, refer to
Minimum tread depth 204
– winter tires 206
– with emergency operation
properties 205
Tires with emergency operation properties, refer to
Run-flat tires 205
Tires with safety features, refer
to Run-flat tires 205
TMC station, refer to Traffic information 125
Tone
– middle setting 134
Tone during audio playback
– adjusting 133
Toolkit 217
Tools, refer to Toolkit 217
Torque 238
– lug bolts 229
Tow bar 234
Tow fitting 233
– screw thread 233
Tow fittings for tow-starting
and towing away 233
Towing 233
– car with automatic
transmission 234
– methods 234 Tow rope
234
Tow-starting 233
TPM, refer to Tire Pressure Monitor 74
Track
– selecting on CD 143
Track width, refer to
Dimension 239
Traction control, refer to
– Dynamic Stability Control
DSC 69
Traffic bulletins
– categories 127
Traffic bulletins, filtering 127
Traffic congestion
– displaying traffic
information 125
– refer to Route, bypassing segments 122
Traffic information for navigation
– displaying 126
Traffic information in navigation
– screen display in the map
view 127
Trailer operation
– trailer loads and gross vehicle
weight 242
Transmission
– automatic transmission with Steptron ic
49
– manual transmission 49
– overriding selector lever lo ck
f

or automatic transmission
with Steptronic 51
Transporting children safely 44
Transport securing devices, refer to Securing cargo 105
Tread depth, refer to Minimum tire tread 204
Treble, refer to Tone
control 133
Trip computer 59
Trip-distance counter, refer to
Trip odometer 58
Triple turn signal activation 52

00320051004F004C00510048000300280047004C0057004C005200510003

REFERENCEEverything from A to Z
264
Trip odometer58
Turning circle, refer to Dimensions 239
Turn signal
– front, replacing bulb 220
– indicator lamp 12,13
– rear, replacing bulb 222
– side, replacing bulb 222
Turn signals 52
Tying down load s, refer to
Cargo loading 105
U
Uniform Tire Quality Grading
UTQR 203
Units
– average fuel consumption 60
– temperature 60
Universal garage door opener, refer to Integrated universal
remote control 90
Universal remote control 90
Unlatching, refer to Unlocking 34
Unlocking
– from inside 30
– from outside 27
– tailgate 34
– without remote control, refer
to Comfort Access 33
Updating the navigation data 110
Upholstery, care 215
USB audio interface 146
USB interface 94
Using contact data 185
V
Valve
– dust cap228 Vehicle
– battery
229
– breaking in 100
– cargo loading 102
– dimensions 239
– identification number, refer to Engine compartment 207
– parking 48
– storage 216
– weight 242
Vehicle equipment 4
Vehicle jack 217,218
– jacking points 228
Ventilation
– air conditioner 89
Vents, refer to Air vents 86
Vents, refer to Ventilation 89
Voice commands
– overview 21
– short commands 245
– telephone 175
Voice instructions for
navigation system 125
– repeating 125
– switching on/off 125
– volume 125
Voice phone book 176
Volume 132
– audio sources 132
– mobile phone 159,171
– voice instructions 125
Volume balance, tone setting 133
Volume of cargo area 242
W
Warning and indicator
lamps 13
Warning messages, refer to Check Control 63
Warning triangle 231
Washer fluid 54
– capacity of reservoir 55
Washer fluid reservoir 55
Waste tray, refer to Ashtray 96Waterfall lighti
ng, refer to
Ambient lighting 84
Water on roads, refer to Driving through water 101
Waveband for radio 135
Wear indicators in tires, refer to Minimum tread depth 204
Weights 242
Welcome lamps 82
Wheelbase, refer to
Dimensions 239
Wheels, new 205
Wheels and tires 195
Wheel stud wrench
– space-saver spare tire 217, 218
Width, refer to Dimensions 239
Windows 36
– closing 36
– convenience operation 28
– opening 36
– pinch protection system 37
Windows, indicator on Control Display 16
Window washer, refer to Washer fluid 55
Window washer reservoir,
refer to Washer fluid
– volume, refer to
Capacities 244
Window washer system 52
– washer fluid 55
– washer jets 54
Windshield
– cleaning 54
– defrosting and removing condensation 87,89
Windshield wiper blades,
changing 218
Windshield wipers, refer to Wiper system 52
Winter tires 206
– setting speed limit 65
– storage 206
Wiper blade replacement 218
Wiper system 52

00320051004F004C00510048000300280047004C0057004C005200510003
