MINI COOPER CONVERTIBLE 2008 Owner's Manual

19
OVERVIEW REPAIRS OPERATION CONTROLS DATA INDEX
INDICATOR AND WARNING LAMPSYellow: for your information
The warning lamp
* comes on.
The gas cap is not correctly closed
or missing. Check if the gas cap is
correctly closed.
Green: for your information
Turn signal indicator
Flashes when turn signal indicator
is on.
Rapid flashing: at least one turn signal indi-
cator has failed.
More information on page61.
Cruise control
Comes on while the system is
switched on: operation via the
multifunction steering wheel or the sports
steering wheel with multifunction buttons.
More information on page65.
Blue: for your information
High beams
Comes on when the high beams
are on or the headlamp flasher is
actuated.
More information on page61.

20
MULTIFUNCTION STEERING WHEEL
*
Multifunction sports steering wheel
The multifunction sports steering wheel
comes with integrated control buttons
enabling you to operate the following func-
tions quickly and safely, without having to
take your eyes from the road:
>Some audio source functions
>Cruise control
>Telephone.
Multifunction sports steering wheel1 Call up and continue cruise control
2 Store speed and accelerate
3 Activate/interrupt/deactivate cruise
control
4 Store speed and decelerate
5 Fast forward/rewind or scroll through
phone book:
>Radio
Press button briefly: next/previous
stored station
Press for longer: station search
>CD/MD
Press button briefly: track skip
Press for longer: search within track
>Cassette
Press button briefly: track skip or stop
fast forward
Press for longer: fast forward
If the Wave radio is installed, the
above options for cassette player
operation are not available.<
6 Volume up/down
7 Switch between telephone and other
audio sources
8 Accept or terminate a phone call

21
OVERVIEW REPAIRS OPERATION CONTROLS DATA INDEX

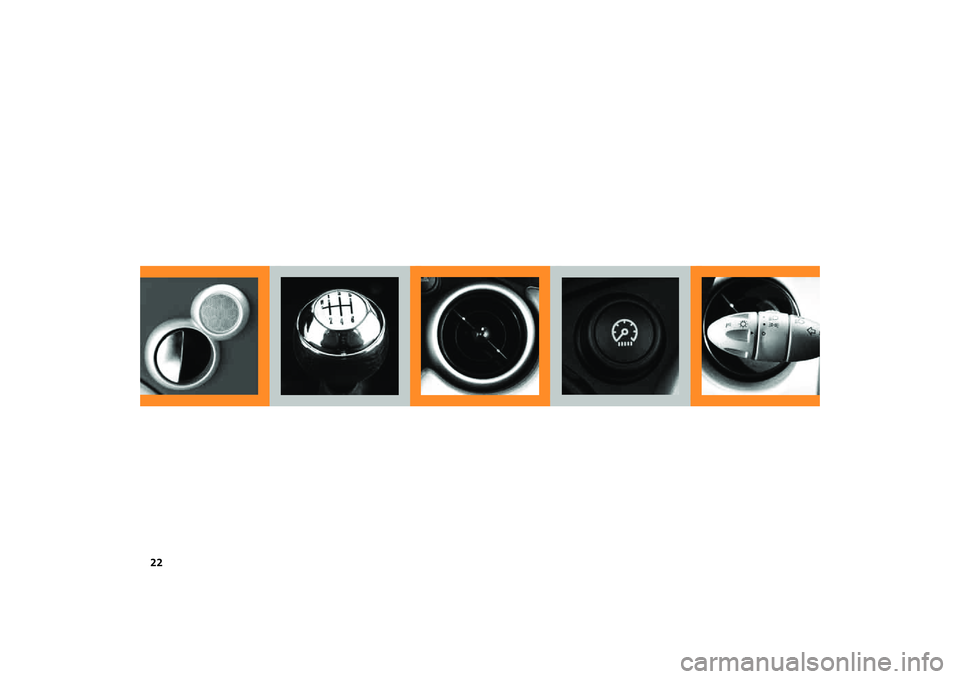

22

OVERVIEW
CONTROLS
OPERATION, CARE, MAINTENANCE
OWNER SERVICE PROCEDURES
INDEX TECHNICAL DATA
23
OVERVIEW REPAIRS OPERATIONCONTROLS DATA INDEX
Controls

24
KEYS CENTRAL LOCKING SYSTEMDepending on your vehicle's equipment
vesion, you will have received the following
keys:
1 Master keys with remote control
2Spare keyMaster keys with remote controlIn every master key with remote control,
there is an extended-life battery as a power
supply that is charged automatically in the
ignition lock as you drive.
You should therefore use each master key
at least twice a year to maintain the charge
status.
Depending on which master key the vehicle
detects when it is unlocked, different set-
tings will be called up and executed inside
the vehicle, refer to Vehicle Memory on
page49.Spare keyFor keeping in a safe place, e.g. in your wal-
let. This key is not intended for constant
use.
The conceptThe central locking system is ready for
operation whenever the driver's door is
closed. The doors, the tailgate and the fuel
filler door are unlocked or locked.
The central locking system locks or unlocks
your vehicle:
>When operated from the outside via the
remote control as well as via the door
lock
>When operated from the inside via a
switch
>The vehicle is unlocked automatically
when the ignition key is pulled out of the
ignition switch.
If operated from outside, the anti-theft sys-
tem is activated at the same time. This pre-
vents the doors from being unlocked via
safety lock buttons or door handles.
In the event of a sufficiently severe acci-
dent, the central locking system unlocks
automatically. The hazard warning flashers
and interior lamps are also switched on.

25
OVERVIEW REPAIRS OPERATIONCONTROLS DATA INDEX
OPENING AND CLOSING: FROM OUTSIDEVia remote controlWhen the vehicle is unlocked or locked, the
anti-theft system is also deactivated/acti-
vated and the interior lamp is switched on/
off.
People or animals could lock the
doors from the inside. Always take
the vehicle keys with you so that the vehi-
cle can be opened again from the outside at
any time. with part 15 of the FCC, Federal Communi-
cations Commission, regulations. Opera-
tion is governed by the following:
FCC ID: LX8765S
LX8765E
LX8CAS
Compliance statement:
This device complies with part 15 of the
FCC Rules. Operation is subject to the fol-
lowing two conditions:
>This device may not cause harmful inter-
ference, and
>this device must accept any interference
received, including interference that may
cause undesired operation.
Any unauthorized modifications or
changes to these devices could void
the user's authority to operate this equip-
ment.<

26
OPENING AND CLOSING: FROM OUTSIDE1 Unlocking and convenience opening
2 Locking and securing
3 Unlocking the tailgateTo unlock1. Press button .
The driver's door is unlocked.
The interior lamps are switched on and
the hazard warning flashers flash twice
*
2. Press the button again.
First the driver's door will unlock, then
the entire vehicle.
You can have this function activated/
deactivated.<
If none of the vehicle doors are
opened within 2 minutes, the central
locking system locks the vehicle automati-
cally. The anti-theft system is not acti-
vated.<
You can have the vehicle's automatic
locking feature activated/deacti-
vated. In the MINI, the windows and the glass
sunroof are opened.
In the MINI Convertible, the windows and
the sliding sunroof are opened.
To open the convertible top on the MINI
Convertible: release the button and press it
again until the convertible top is com-
pletely open.
Convenience closing is not possible
by means of the remote control.<
You can have remote control opening
of the windows, glass sunroof or con-
vertible top activated/deactivated.<
Locking and securingPress button .
The hazard warning flashers flash once.Unlocking the tailgate Press the button briefly.
The rear and side turn signal indicators
flash twice.
The tailgate can be unlocked separately if
the vehicle has been locked via central lock-
ing.
Open the tailgate within 20 seconds,
refer to page29, or it will otherwise
be locked again automatically. The rear and
side turn signal indicators flash once.
If the tailgate was previously locked, then it
is locked again after it is closed.<

27
OVERVIEW REPAIRS OPERATIONCONTROLS DATA INDEX
OPENING AND CLOSING: FROM OUTSIDEMalfunctionLocal radio waves can interfere with func-
tions of the remote control.
If this occurs, lock and unlock the vehicle
via a door lock.
In the event of a system malfunction,
please contact your MINI Dealer. You can
also obtain replacement keys there.
If it is no longer possible to lock the
vehicle with the remote control, then
the battery is discharged. Use the corre-
sponding key for a longer journey so that
its battery can be recharged.<
Via the door lock1. Turn the key.
The driver's door is unlocked.
2. Turn the key again.
All other doors, the tailgate and the fuel
filler door are unlocked.
You can have this function activated/
deactivated.<
When the vehicle is locked, the hazard
warning flashers flash once.
When the vehicle is unlocked, the hazard
warning flashers flash twice
*.
Manual operationIn the event of an electrical malfunction,
the driver's door can be unlocked or locked
by turning the key in the door lock to the
end positions.Convenience closing via the door lockYou can also close the power windows,
glass sunroof or the convertible top via the
door lock.
With the door closed, hold the key in the
locking position.
In the MINI Convertible, the convertible top
is closed first and then the side windows.
You can have the closing of the win-
dows and glass sunroof via the door
lock activated/deactivated.<

28
OPENING AND CLOSING: FROM INSIDEThis switch locks or unlocks the doors and
tailgate when the front doors are closed,
but the anti-theft system is not activated.
The fuel filler door remains unlocked.
To lock>Briefly press the switch downward or
>push down the safety lock button on the
passenger door. To prevent yourself from
being locked outside the vehicle acciden-
tally, the driver's door cannot be locked
with its safety lock button while it is
open.
After you have driven off, the central
locking system automatically locks
your vehicle once a certain speed has been
reached.<
You can have this function activated/
deactivated and the speed set.<
People or animals inside the vehicle
could lock the doors from the inside.
Always take the vehicle's keys with you so
that you can open the vehicle again from
the outside at any time.<
To unlock and open the doors1. Briefly press the switch upward
2. Pull the respective door handle above
the armrest or pull the door handle
twice on each door:
The first pull unlocks the door, the sec-
ond opens it.Convenience opening modePress the central locking switch and hold it
pressed.
MINI:
Windows and glass sunroof are opened.
MINI Convertible:
Windows and sliding sunroof are opened.
To open the convertible top:
Release the switch, then press it upwards
until the convertible top is completely open
and the windows are again closed.
