battery replacement MINI COOPER CONVERTIBLE 2008 Owners Manual

CONTENTS
4
In the engine compartment:
Bonnet 118
Engine compartment:
MINI COOPER and
MINI COOPER Convertible119
MINI COOPER S and
MINI COOPER S Convertible120
Engine oil 121
Coolant 122
Brake system 124
Maintenance and care:
MINI Maintenance System 125
Socket for Onboard Diagnostics
OBD 126
Caring for your vehicle 126
Vehicle storage 129
OWNER SERVICE PROCEDURESReplacement procedures:
Onboard tool kit 132
Wiper blades 132
Lamps and bulbs 133
Repairing a flat tire 137
Space-saver spare tire137
Changing tires 139
MINI Mobility System141
Vehicle battery144
Fuses 145
Giving and receiving assistance:
Jump-starting146
Towing and tow-starting 147
TECHNICAL DATAEngine data 152
Dimensions:
MINI153
MINI Convertible154
Weights:
MINI155
MINI Convertible156
Capacities 157

27
OVERVIEW REPAIRS OPERATIONCONTROLS DATA INDEX
OPENING AND CLOSING: FROM OUTSIDEMalfunctionLocal radio waves can interfere with func-
tions of the remote control.
If this occurs, lock and unlock the vehicle
via a door lock.
In the event of a system malfunction,
please contact your MINI Dealer. You can
also obtain replacement keys there.
If it is no longer possible to lock the
vehicle with the remote control, then
the battery is discharged. Use the corre-
sponding key for a longer journey so that
its battery can be recharged.<
Via the door lock1. Turn the key.
The driver's door is unlocked.
2. Turn the key again.
All other doors, the tailgate and the fuel
filler door are unlocked.
You can have this function activated/
deactivated.<
When the vehicle is locked, the hazard
warning flashers flash once.
When the vehicle is unlocked, the hazard
warning flashers flash twice
*.
Manual operationIn the event of an electrical malfunction,
the driver's door can be unlocked or locked
by turning the key in the door lock to the
end positions.Convenience closing via the door lockYou can also close the power windows,
glass sunroof or the convertible top via the
door lock.
With the door closed, hold the key in the
locking position.
In the MINI Convertible, the convertible top
is closed first and then the side windows.
You can have the closing of the win-
dows and glass sunroof via the door
lock activated/deactivated.<

133
OVERVIEW REPAIRSOPERATION CONTROLS DATA INDEX

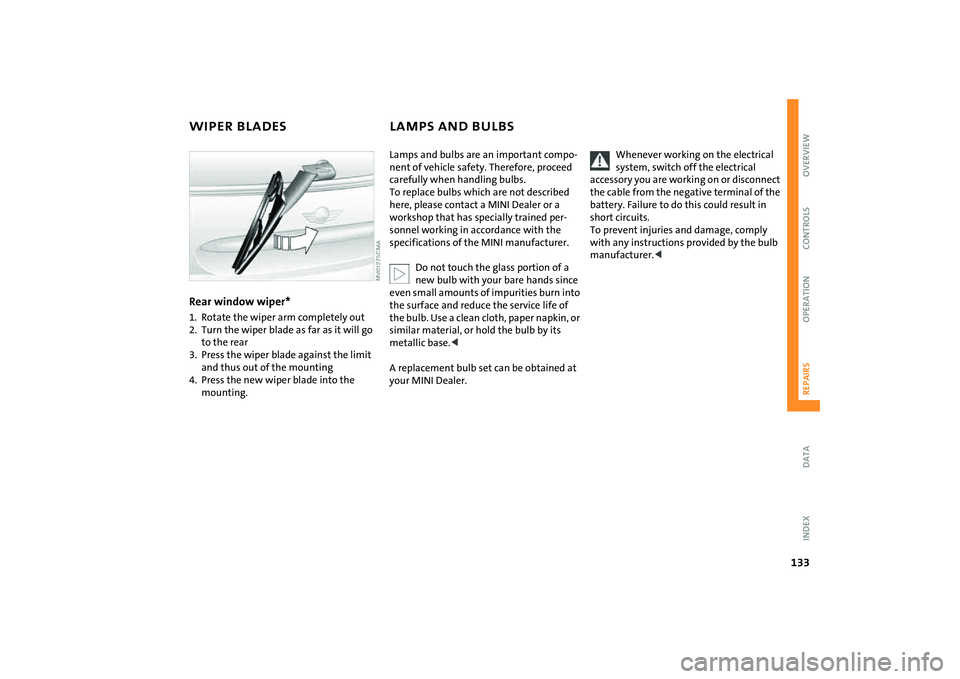

WIPER BLADES LAMPS AND BULBSRear window wiper*1. Rotate the wiper arm completely out
2. Turn the wiper blade as far as it will go
to the rear
3. Press the wiper blade against the limit
and thus out of the mounting
4. Press the new wiper blade into the
mounting.
Lamps and bulbs are an important compo-
nent of vehicle safety. Therefore, proceed
carefully when handling bulbs.
To replace bulbs which are not described
here, please contact a MINI Dealer or a
workshop that has specially trained per-
sonnel working in accordance with the
specifications of the MINI manufacturer.
Do not touch the glass portion of a
new bulb with your bare hands since
even small amounts of impurities burn into
the surface and reduce the service life of
the bulb. Use a clean cloth, paper napkin, or
similar material, or hold the bulb by its
metallic base.<
A replacement bulb set can be obtained at
your MINI Dealer.
Whenever working on the electrical
system, switch off the electrical
accessory you are working on or disconnect
the cable from the negative terminal of the
battery. Failure to do this could result in
short circuits.
To prevent injuries and damage, comply
with any instructions provided by the bulb
manufacturer.<

EVERYTHING FROM A TO Z
160
A
ABS Antilock Brake System72
indicator lamp17
,18
Accessories, refer to Your
individual vehicle6
Activated-charcoal filter87
Adjusting interior
temperature83
,86
Airbags79
passenger airbag status
lamp80
safe seating position42
warning lamp18
Air circulation, refer to
Recirculated air mode83
,86
Air conditioning system82
Air distribution
air conditioning system83
automatic climate control86
individual87
manual83
Air outlets, refer to
Ventilation84
,87
Air pressure, refer to Tire
inflation pressure108
Air volume
air conditioning system83
automatic climate control86
AKI, refer to Fuel quality105
All-season tires, refer to Winter
tires117All Season traction Control
(ASC)72
indicator lamps17
,18
Antenna127
Antifreeze
coolant122
washer fluid64
Antilock Brake System (ABS)72
indicator lamp17,18
Anti-theft system24
Approved axle load, refer to
Weights155
,156
Approved engine oils122
Approved gross vehicle weight,
refer to Weights155
,156
Armrest, refer to Center
armrest89
ASC All Season traction
Control72
indicator lamps17
,18
Assistant systems, refer to
All Season traction Control
(ASC)72
Dynamic Stability Control
(DSC)72
Automatic
air distribution86
air volume86
cruise control65
Automatic car washes126
Automatic climate control85Automatic transmission with
Steptronic
ignition53
indicator lamp57
interlock53
selector lever lock56
shiftlock56
towing148
tow-starting149
AUTO program, refer to
Automatic air distribution86
Aux-In socket88
Average consumption71
setting units71
Average speed71
setting units71
Axle loads, refer to
Weights155
,156
B
Backrests, refer to
Adjusting seats44
Backup lamp
bulb replacement135
Bar, towing148
Base plate for telephone or
mobile phone89Battery144
charging144
disposal144
indicator lamp16
jump-starting146
power failure144
Battery care69
,125
Being towed148
Belts, refer to Safety belts46
Beverage holders89
Black ice, refer to Temperature
warning70
Blower
air conditioning system83
automatic climate control86
Blower, refer to Air volume83
Blowers, refer to Draft-free
ventilation84,87
Bonnet118
indicator lamp17
Bottle holders, refer to
Beverage holders89
Brake discs
brake system103
break-in procedures102
Brake fluid124
level124
warning lamp16
Brake lamps, bulb
replacement135

EVERYTHING FROM A TO Z
170
Tire puncture
Run-Flat Tires75
Run Flat tires77
Tires
age112
air loss77
break-in procedures102
changing139
condition113
damage114
flat tire115
,137
inflation pressure108
pressure monitoring, refer to
Tire Pressure Monitor
TPM76
replacement116
size, refer to New wheels and
tires116
storage117
tread113
wear indicator, refer to Tire
tread113
winter tires117
Tires with emergency
properties, refer to Run-Flat
Tires115
Tools, refer to Onboard tool
kit132
Torque
engine152
lug bolts140Tow bar148
Towing147
with automatic
transmission148
,149
Towing eyelet147
Tow rope148
Tow-starting149
TPM, refer to Tire Pressure
Monitor76
Track width, refer to
Dimensions153,154
Traction grades113
Transmission
automatic transmission with
Steptronic56
manual transmission55
Transmission lock, refer to
Range selection56
Transmission malfunction,
refer to Malfunction58
Transporting children safely50
Transporting securely, refer to
Securing the load97
Trash container, refer to
Ashtray89
Tread depth, refer to Tire
tread113
Treadwear grade112
Trip odometer67Trunk, refer to Luggage
compartment in the MINI
Convertible94
Turning circle, refer to
Dimensions153
,154
Turn signal indicators61
indicator lamp19
Turn signal indicators on the
side, bulb replacement135
U
Uniform Tire Quality
Grading112
Units
average consumption71
average speed71
temperature70
Universal garage door
opener91
Universal remote control91
Unlocking
bonnet118
from inside28
from outside26
Used batteries, refer to
Disposal144
Using antifreeze64,122V
Vacuum cleaner, connecting,
refer to Cigarette lighter
socket90
Valve
core141
dust cap139
remover141
spare141
Valve remover, refer to
Onboard tool kit141
Valve stem and replacement
valve, refer to Onboard tool
kit141
Vanity mirror, illuminated48
Vehicle
battery144
break-in procedures102
care126
dimensions153
loading cargo95
parking104
storage129
washing126
weight155
,156
Vehicle battery144
Vehicle identification number,
refer to Engine
compartment119
,120
Vehicle illumination, refer to
Lamps60
