jump start MINI COOPER CONVERTIBLE 2008 Owners Manual

CONTENTS
4
In the engine compartment:
Bonnet 118
Engine compartment:
MINI COOPER and
MINI COOPER Convertible119
MINI COOPER S and
MINI COOPER S Convertible120
Engine oil 121
Coolant 122
Brake system 124
Maintenance and care:
MINI Maintenance System 125
Socket for Onboard Diagnostics
OBD 126
Caring for your vehicle 126
Vehicle storage 129
OWNER SERVICE PROCEDURESReplacement procedures:
Onboard tool kit 132
Wiper blades 132
Lamps and bulbs 133
Repairing a flat tire 137
Space-saver spare tire137
Changing tires 139
MINI Mobility System141
Vehicle battery144
Fuses 145
Giving and receiving assistance:
Jump-starting146
Towing and tow-starting 147
TECHNICAL DATAEngine data 152
Dimensions:
MINI153
MINI Convertible154
Weights:
MINI155
MINI Convertible156
Capacities 157

58
AUTOMATIC TRANSMISSION WITH STEPTRONIC
*
Switching from M/S + – Manual mode into
the selector lever positions P, R and N is
only possible via D.Shifting with the selector lever>Briefly press the selector lever in the +
direction:
Transmission shifts up
>Briefly press the selector lever in the –
direction:
Transmission shifts down.
M1 to M6 appear in the gear indicator.
Shifting on the steering wheel*The shift paddles allow the gears to be
changed rapidly and, above all, safely, since
both hands can remain on the steering
wheel.
To shift up or down with one of the two
shift paddles:
>Pull the shift paddle:
Transmission shifts up
>Press the shift paddle:
Transmission shifts down.
M1 to M6 appear in the gear indicator.
The transmission will execute only gear
changes that result in a plausible combina-
tion of vehicle speed and engine rpm, e.g. it
will not shift down if that would result in
excessive engine speed.
In the MINI COOPER S, with the selec-
tor lever in position D, automatic
mode, you can shift gears using the shift
paddles on the steering wheel. The trans-
mission automatically switches to manual
mode. If you do not shift gears with the
shift paddles or accelerate for a certain
amount of time, the transmission auto-
matically returns to automatic mode.<
MalfunctionEP appears on the display. The transmission
system is malfunctioning. Avoid high loads.
All selector lever positions can still be
engaged; in the forward driving positions,
however, the vehicle can only be driven
with a limited gear selection.
Have the system checked immediately.
Jump-starting and towing, refer to
page146 ff.

120
1 Reservoir for windshield and rear
window washer system
*
64
2 Vehicle identification number3 Coolant expansion tank122
4 Engine oil filler neck121
5 Auxiliary terminal for
jump-starting1466 Brake fluid reservoir124
7 Reservoir for headlamp cleaning
system
*
64
8 Engine oil dipstick121
ENGINE COMPARTMENT: MINI COOPER S AND MINI COOPER S CONVERTIBLE

144
VEHICLE BATTERYStorage locationMINI COOPER and MINI COOPER Convert-
ible:
The battery is located in the engine com-
partment, refer to page119.
MINI COOPER S and MINI COOPER S Con-
vertible:
The battery is located in the luggage com-
partment under the floor mat.Battery careThe battery is absolutely maintenance-free,
that is, the original electrolyte will normally
last for the service life of the battery under
moderate climatic conditions. Your MINI
Dealer will be glad to advise you if you have
any questions regarding the battery.Charging the batteryOnly charge the battery in the vehicle via
the terminals in the engine compartment
with the engine switched off, refer to
'Jump-starting', page146.
Disposal
After replacing old batteries, return
the used batteries to your MINI
Dealer or to a recycling point. Maintain the
battery in an upright position for transport
and storage. Secure the battery to prevent
it from tilting during transport.<
Power failureAfter a temporary power failure, e.g. due to
a discharged battery, some of your vehicle's
equipment will function only to a limited
extent and must be reinitialized or read-
justed. Individual settings are also lost and
must be reprogrammed:
>The clock must be reset, refer to page67
>The power windows must be reinitial-
ized, refer to page32
>Radio
*:
The stations must be reset, refer to the
Owner's Manual for Radio
>Navigation system
*:
It may take some time for its operability
to be restored, refer to the Owner's Man-
ual for Navigation System.

146

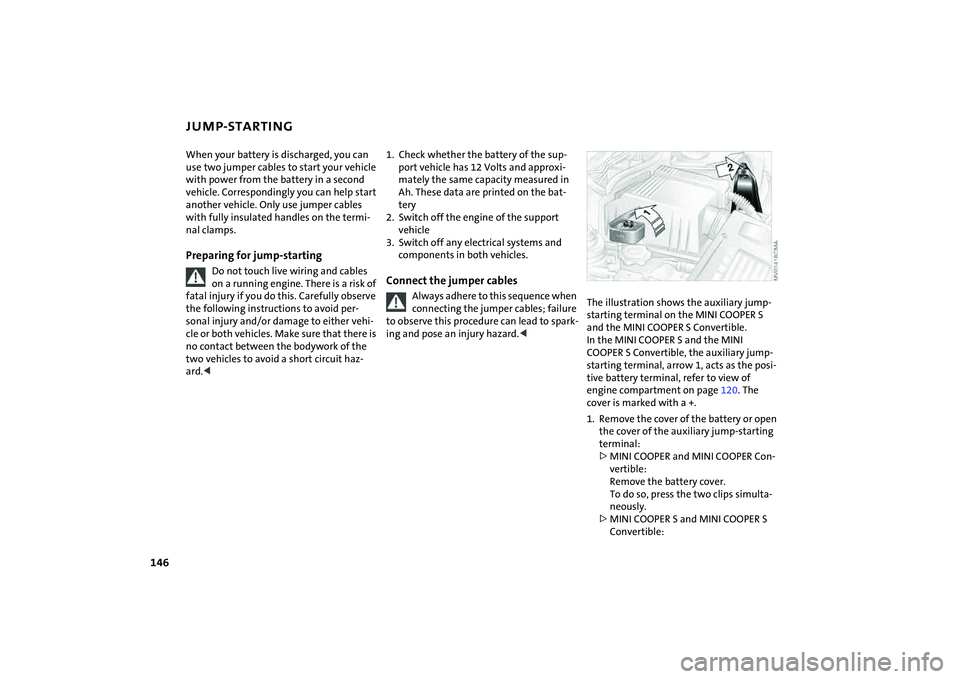

JUMP-STARTINGWhen your battery is discharged, you can
use two jumper cables to start your vehicle
with power from the battery in a second
vehicle. Correspondingly you can help start
another vehicle. Only use jumper cables
with fully insulated handles on the termi-
nal clamps.Preparing for jump-starting
Do not touch live wiring and cables
on a running engine. There is a risk of
fatal injury if you do this. Carefully observe
the following instructions to avoid per-
sonal injury and/or damage to either vehi-
cle or both vehicles. Make sure that there is
no contact between the bodywork of the
two vehicles to avoid a short circuit haz-
ard.<
1. Check whether the battery of the sup-
port vehicle has 12 Volts and approxi-
mately the same capacity measured in
Ah. These data are printed on the bat-
tery
2. Switch off the engine of the support
vehicle
3. Switch off any electrical systems and
components in both vehicles.Connect the jumper cables
Al ways adh ere to th is seque nce w hen
connecting the jumper cables; failure
to observe this procedure can lead to spark-
ing and pose an injury hazard.<
The illustration shows the auxiliary jump-
starting terminal on the MINI COOPER S
and the MINI COOPER S Convertible.
In the MINI COOPER S and the MINI
COOPER S Convertible, the auxiliary jump-
starting terminal, arrow 1, acts as the posi-
tive battery terminal, refer to view of
engine compartment on page120. The
cover is marked with a +.
1. Remove the cover of the battery or open
the cover of the auxiliary jump-starting
terminal:
>MINI COOPER and MINI COOPER Con-
vertible:
Remove the battery cover.
To do so, press the two clips simulta-
neously.
>MINI COOPER S and MINI COOPER S
Convertible:

147
OVERVIEW REPAIRSOPERATION CONTROLS DATA INDEX
JUMP-STARTING TOWING AND TOW-STARTING
Flip open the cover of the auxiliary
jump-starting terminal, arrow 1
2. Connect one terminal clamp of the
plus/+ jumper cable to the positive bat-
tery terminal or to an auxiliary jump-
starting terminal of the support vehicle
3. Connect the other terminal clamp of the
plus/+ jumper cable to the positive bat-
tery terminal or to an auxiliary jump-
starting terminal of the vehicle to be
started
Engine or body ground in your MINI or MINI
Convertible: arrow 2.
4. Connect one terminal clamp of the
minus/– jumper cable to the negative
battery terminal or to an engine or body
ground of the support vehicle
5. Connect the second terminal clamp of
the minus/– jumper cable to the nega-
tive terminal of the battery or to the
engine or body ground of the vehicle to
be started.
Performing the jump-start1. Start the engine of the support vehicle
and allow it to run at increased idle
speed for several minutes
2. Start the engine of the other vehicle in
the usual manner.
If the first start attempt is not success-
ful, wait a few minutes before another
attempt in order to allow the discharged
battery to recharge
3. Allow the engines of both vehicles to run
for several minutes.
On the MINI or MINI Convertible:
Before disconnecting the jumper
cables, switch on the lighting, the rear
window defroster and the highest
blower speed to prevent a voltage surge
from the regulator to the electrical sys-
tems and components.<
4. Then disconnect the jumper cables in
the reverse order.
If necessary have the battery checked and
completely charged at a MINI Dealer.
Do not use spray starter fluids to start
the engine.<
Observe all applicable laws and regu-
lations for towing and tow-start-
ing.<
Do not transport any occupant other
than the driver in a vehicle that is
being towed.<
Using the towing eyelet The screw-in towing eyelet is stored in the
onboard tool kit, refer to page132; be sure
that it remains with the vehicle at all times.
It can be attached at the front or rear of
your vehicle.
Use only the towing eyelet supplied
with the vehicle and screw it in firmly
until it stops. Use the towing eyelet for
towing on paved roads only. Avoid subject-
ing the towing eyelet to lateral loads, e.g.
do not lift the vehicle using the towing eye-
let. Otherwise, the towing eyelet and the
vehicle could be damaged.<

149
OVERVIEW REPAIRSOPERATION CONTROLS DATA INDEX

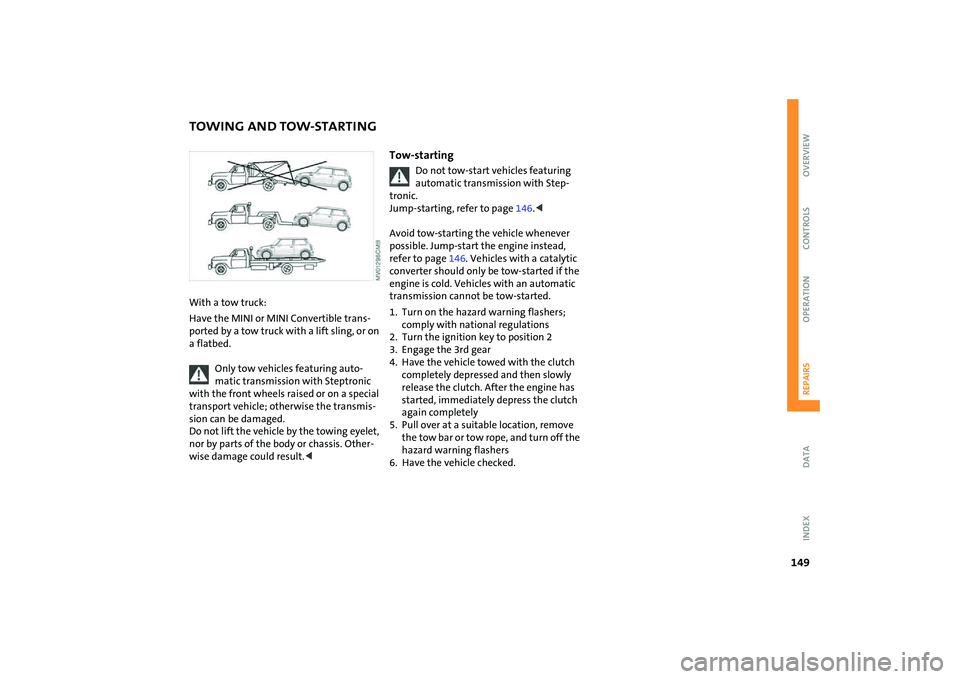

TOWING AND TOW-STARTINGWith a tow truck:
Have the MINI or MINI Convertible trans-
ported by a tow truck with a lift sling, or on
a flatbed.
Only tow vehicles featuring auto-
matic transmission with Steptronic
with the front wheels raised or on a special
transport vehicle; otherwise the transmis-
sion can be damaged.
Do not lift the vehicle by the towing eyelet,
nor by parts of the body or chassis. Other-
wise damage could result.<
Tow-starting
Do not tow-start vehicles featuring
automatic transmission with Step-
tronic.
Jump-starting, refer to page146.<
Avoid tow-starting the vehicle whenever
possible. Jump-start the engine instead,
refer to page146. Vehicles with a catalytic
converter should only be tow-started if the
engine is cold. Vehicles with an automatic
transmission cannot be tow-started.
1. Turn on the hazard warning flashers;
comply with national regulations
2. Turn the ignition key to position 2
3. Engage the 3rd gear
4. Have the vehicle towed with the clutch
completely depressed and then slowly
release the clutch. After the engine has
started, immediately depress the clutch
again completely
5. Pull over at a suitable location, remove
the tow bar or tow rope, and turn off the
hazard warning flashers
6. Have the vehicle checked.

EVERYTHING FROM A TO Z
160
A
ABS Antilock Brake System72
indicator lamp17
,18
Accessories, refer to Your
individual vehicle6
Activated-charcoal filter87
Adjusting interior
temperature83
,86
Airbags79
passenger airbag status
lamp80
safe seating position42
warning lamp18
Air circulation, refer to
Recirculated air mode83
,86
Air conditioning system82
Air distribution
air conditioning system83
automatic climate control86
individual87
manual83
Air outlets, refer to
Ventilation84
,87
Air pressure, refer to Tire
inflation pressure108
Air volume
air conditioning system83
automatic climate control86
AKI, refer to Fuel quality105
All-season tires, refer to Winter
tires117All Season traction Control
(ASC)72
indicator lamps17
,18
Antenna127
Antifreeze
coolant122
washer fluid64
Antilock Brake System (ABS)72
indicator lamp17,18
Anti-theft system24
Approved axle load, refer to
Weights155
,156
Approved engine oils122
Approved gross vehicle weight,
refer to Weights155
,156
Armrest, refer to Center
armrest89
ASC All Season traction
Control72
indicator lamps17
,18
Assistant systems, refer to
All Season traction Control
(ASC)72
Dynamic Stability Control
(DSC)72
Automatic
air distribution86
air volume86
cruise control65
Automatic car washes126
Automatic climate control85Automatic transmission with
Steptronic
ignition53
indicator lamp57
interlock53
selector lever lock56
shiftlock56
towing148
tow-starting149
AUTO program, refer to
Automatic air distribution86
Aux-In socket88
Average consumption71
setting units71
Average speed71
setting units71
Axle loads, refer to
Weights155
,156
B
Backrests, refer to
Adjusting seats44
Backup lamp
bulb replacement135
Bar, towing148
Base plate for telephone or
mobile phone89Battery144
charging144
disposal144
indicator lamp16
jump-starting146
power failure144
Battery care69
,125
Being towed148
Belts, refer to Safety belts46
Beverage holders89
Black ice, refer to Temperature
warning70
Blower
air conditioning system83
automatic climate control86
Blower, refer to Air volume83
Blowers, refer to Draft-free
ventilation84,87
Bonnet118
indicator lamp17
Bottle holders, refer to
Beverage holders89
Brake discs
brake system103
break-in procedures102
Brake fluid124
level124
warning lamp16
Brake lamps, bulb
replacement135

EVERYTHING FROM A TO Z
165
OVERVIEW REPAIRS OPERATION CONTROLS DATA INDEX
I
Ice warning, refer to Outside
temperature warning70
Ignition53
Ignition key24
Ignition key positions, refer to
Ignition lock53
Ignition lock53
Illuminated vanity mirror48
Imitation leather127
Imprint2
Index160
Indicator/warning lamp
airbags80
ASC73
brakes124
coolant temperature68
DSC73
fasten safety belts46
Flat Tire Monitor75
fog lamps62
reserve fuel capacity67
,68
Indicator and warning lamps
Tire Pressure Monitor
TPM77
Indicator and warning lamps,
overview16
Individual air distribution87
Individual settings, refer to
Vehicle Memory49Inflation pressure, refer to Tire
inflation pressure108
Inflation pressure monitor,
refer to Flat Tire Monitor74
Inflation pressure monitoring,
refer to Tire Pressure Monitor
TPM76
Inspection69
Instrument cluster, refer to
Display elements13
Instrument lighting62
Instrument panel, refer to
Cockpit12
Integrated universal remote
control91
Interior lamp, remote
control26
Interior lamps62
Interior rearview mirror48
automatic dimming102
Interlock, refer to Steering
locked53
Intermittent operation of the
wipers63
Interval
display, service125
J
Jack137
,141
points140Jack, refer to Tire change set
MINI Mobility System141
Run-Flat Tires115
space-saver spare tire137
Jacking points140
Jets, refer to Ventilation84
,87
Jets, refer to Windshield
washer jets64
John Cooper Works Kit152
Jump-starting146
K
Keys24
Kickdown57
Knock control105
L
Lamp defect133
Lamp replacement, refer to
Lamps and bulbs133
Lamps, refer to Parking lamps/
Low beams60
Lamps and bulbs133
Lashing eyelets, refer to
Securing the load97
LATCH child-restraint fixing
system52
Leather care128
LEDs light-emitting diodes136
Length, refer to
Dimensions153
,154License plate lamp, bulb
replacement136
Lifting handle, space-saver
spare tire137
Light-alloy wheels, care127
Light-emitting diodes
(LEDs)136
Lighter90
Lighting
lamps and bulbs133
Lighting of the instruments62
Lights on warning61
Light switch60
Loading
securing cargo97
stowing cargo97
Loading the vehicle95
Loads, refer to Loading cargo95
Load securing devices, refer to
Securing the load97
Locking
from inside28
from outside26
Locking/unlocking the vehicle,
acknowledgment
signals26
,27
Low beams60
bulb replacement134
Lower back support, refer to
Lumbar support44

EVERYTHING FROM A TO Z
169
OVERVIEW REPAIRS OPERATION CONTROLS DATA INDEX
Speed152
with Run-Flat Tires75
with Run Flat tires77
with the space-saver spare
tire139
with winter tires117
Speedometer13
,14
Speedometer, refer to Display
elements13
,14
Split rear backrest, refer to
Foldable rear backrest93
Through-loading system94
Sport program, automatic
transmission with
Steptronic57
Stability control, refer to
Driving stability control
systems72
Standing lamps60
bulb replacement134
Starting, refer to Starting the
engine53
Starting aid, refer to Jump-
starting146
Starting problems
at very low temperatures54
jump-starting146
Starting the engine53
Start-off assistance, refer to
ASC72Start-off assistance, refer to
DSC72
Steering lock53
Steering wheel12
buttons on the steering
wheel20
settings47
Steering wheel lock53
Steptronic, refer to Manual
mode57
Storage compartments88
Storage space, refer to
Luggage compartment in the
MINI93
Luggage compartment in the
MINI Convertible94
Storing the tires117
Storing the vehicle129
Sun blind, refer to Roller sun
blind34
Sun visors48
Switches, refer to Cockpit12
Switching off
the engine54
Switching the cooling function
on and off manually83
,86
Symbols6T
Tachometer69
Tailgate29
emergency operation30
indicator lamp17
opening from the outside29
releasing manually30
remote control26
Tail lamps, bulb
replacement135
Tail lamps, refer to Rear
lamps135
Tank capacity, refer to Fuel tank
capacity157
Tank gauge, refer to Fuel
gauge67
,68
Technical data152
Technical modifications7
Technical modifications, refer
to For your own safety7
Telephone call, refer to the
Owner's Manual for the
telephone
Temperature
air conditioning system83
automatic climate control86
Temperature display
ice warning70
outside temperature70
setting units70
Temperature grades113Temperature warning70
Tempomat, refer to Cruise
control65
Threaded hole for towing
eyelet148
Three-point safety belt46
Through-loading system93
,94
Tightening the lug bolts
keys137
,141
torque140
Tightening torque, refer to
Tightening the lug bolts140
Tire change set
MINI Mobility System143
Run-Flat Tires115
space-saver spare tire137
Tire failure137
MINI Mobility System141
space-saver spare tire137
Tire inflation pressure108
reinflation142
Tire pressure monitor, refer to
Flat Tire Monitor74
Tire pressure monitoring, Flat
Tire Monitor74
Tire Pressure Monitor TPM76
resetting the system76
system limitations76
warning lamp77
