load capacity MINI COOPER CONVERTIBLE 2008 Owners Manual

95
OVERVIEW REPAIRS OPERATIONCONTROLS DATA INDEX

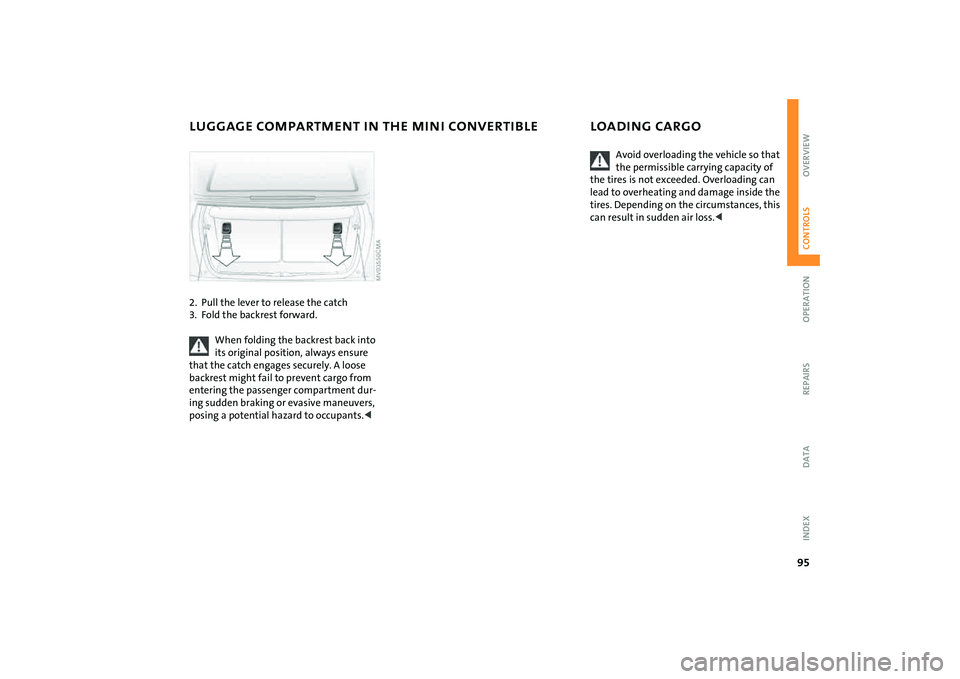

LUGGAGE COMPARTMENT IN THE MINI CONVERTIBLE LOADING CARGO2. Pull the lever to release the catch
3. Fold the backrest forward.
When folding the backrest back into
its original position, always ensure
that the catch engages securely. A loose
backrest might fail to prevent cargo from
entering the passenger compartment dur-
ing sudden braking or evasive maneuvers,
posing a potential hazard to occupants.<
Avoid overloading the vehicle so that
the permissible carrying capacity of
the tires is not exceeded. Overloading can
lead to overheating and damage inside the
tires. Depending on the circumstances, this
can result in sudden air loss.<

96

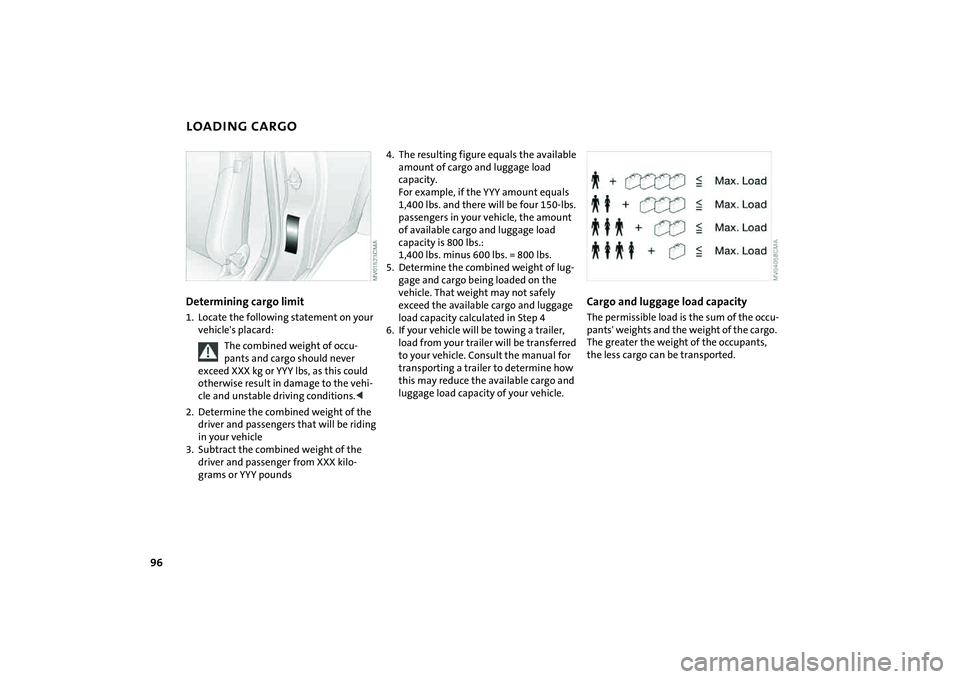

LOADING CARGODetermining cargo limit1. Locate the following statement on your
vehicle's placard:
The combined weight of occu-
pants and cargo should never
exceed XXX kg or YYY lbs, as this could
otherwise result in damage to the vehi-
cle and unstable driving conditions.<
2. Determine the combined weight of the
driver and passengers that will be riding
in your vehicle
3. Subtract the combined weight of the
driver and passenger from XXX kilo-
grams or YYY pounds
4. The resulting figure equals the available
amount of cargo and luggage load
capacity.
For example, if the YYY amount equals
1,400 lbs. and there will be four 150-lbs.
passengers in your vehicle, the amount
of available cargo and luggage load
capacity is 800 lbs.:
1,400 lbs. minus 600 lbs. = 800 lbs.
5. Determine the combined weight of lug-
gage and cargo being loaded on the
vehicle. That weight may not safely
exceed the available cargo and luggage
load capacity calculated in Step 4
6. If your vehicle will be towing a trailer,
load from your trailer will be transferred
to your vehicle. Consult the manual for
transporting a trailer to determine how
this may reduce the available cargo and
luggage load capacity of your vehicle.
Cargo and luggage load capacityThe permissible load is the sum of the occu-
pants' weights and the weight of the cargo.
The greater the weight of the occupants,
the less cargo can be transported.

155
OVERVIEW REPAIRS OPERATION CONTROLS DATA INDEX

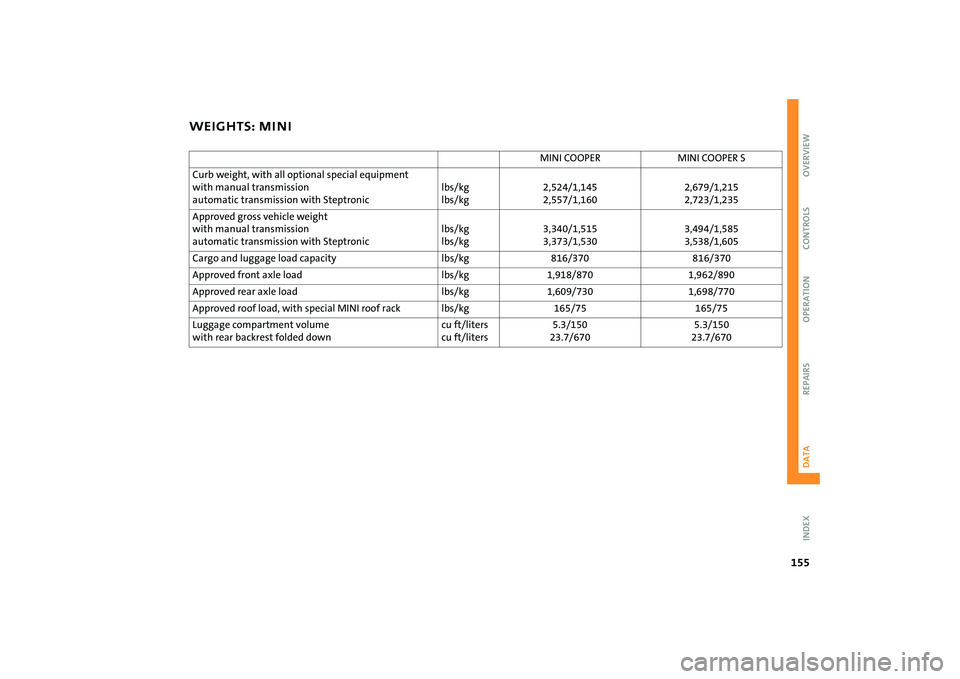

WEIGHTS: MINI
MINI COOPER MINI COOPER S
Curb weight, with all optional special equipment
with manual transmission
automatic transmission with Steptroniclbs/kg
lbs/kg2,524/1,145
2,557/1,1602,679/1,215
2,723/1,235
Approved gross vehicle weight
with manual transmission
automatic transmission with Steptroniclbs/kg
lbs/kg3,340/1,515
3,373/1,5303,494/1,585
3,538/1,605
Cargo and luggage load capacity lbs/kg 816/370 816/370
Approved front axle load lbs/kg 1,918/870 1,962/890
Approved rear axle load lbs/kg 1,609/730 1,698/770
Approved roof load, with special MINI roof rack lbs/kg 165/75 165/75
Luggage compartment volume
with rear backrest folded downcu ft/liters
cu ft/liters5.3/150
23.7/6705.3/150
23.7/670

156

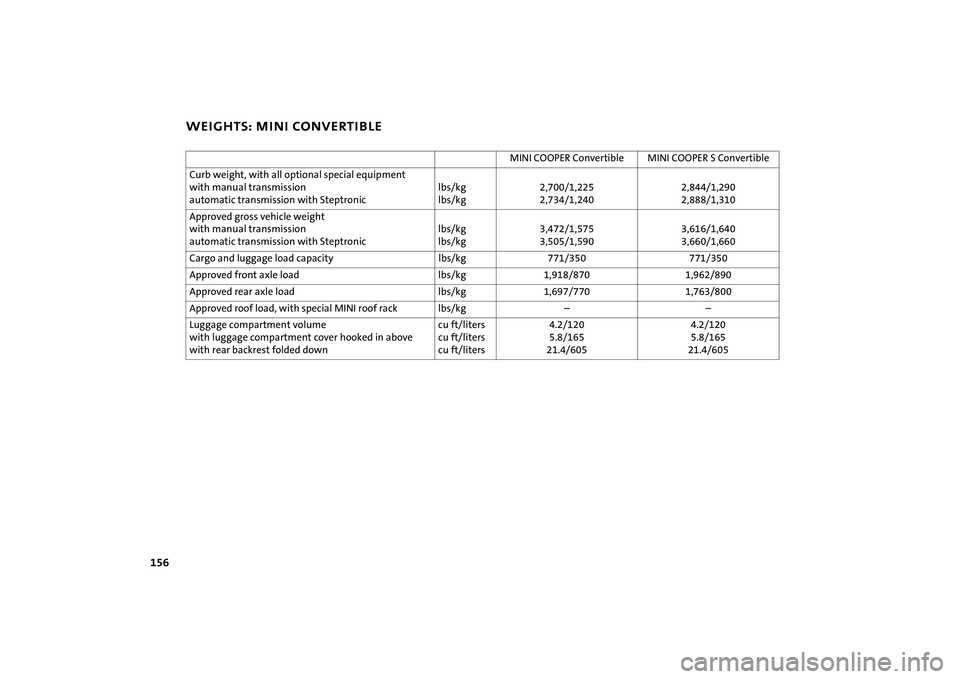

WEIGHTS: MINI CONVERTIBLE
MINI COOPER Convertible MINI COOPER S Convertible
Curb weight, with all optional special equipment
with manual transmission
automatic transmission with Steptroniclbs/kg
lbs/kg2,700/1,225
2,734/1,2402,844/1,290
2,888/1,310
Approved gross vehicle weight
with manual transmission
automatic transmission with Steptroniclbs/kg
lbs/kg3,472/1,575
3,505/1,5903,616/1,640
3,660/1,660
Cargo and luggage load capacity lbs/kg 771/350 771/350
Approved front axle load lbs/kg 1,918/870 1,962/890
Approved rear axle load lbs/kg 1,697/770 1,763/800
Approved roof load, with special MINI roof rack lbs/kg – –
Luggage compartment volume
with luggage compartment cover hooked in above
with rear backrest folded downcu ft/liters
cu ft/liters
cu ft/liters4.2/120
5.8/165
21.4/6054.2/120
5.8/165
21.4/605

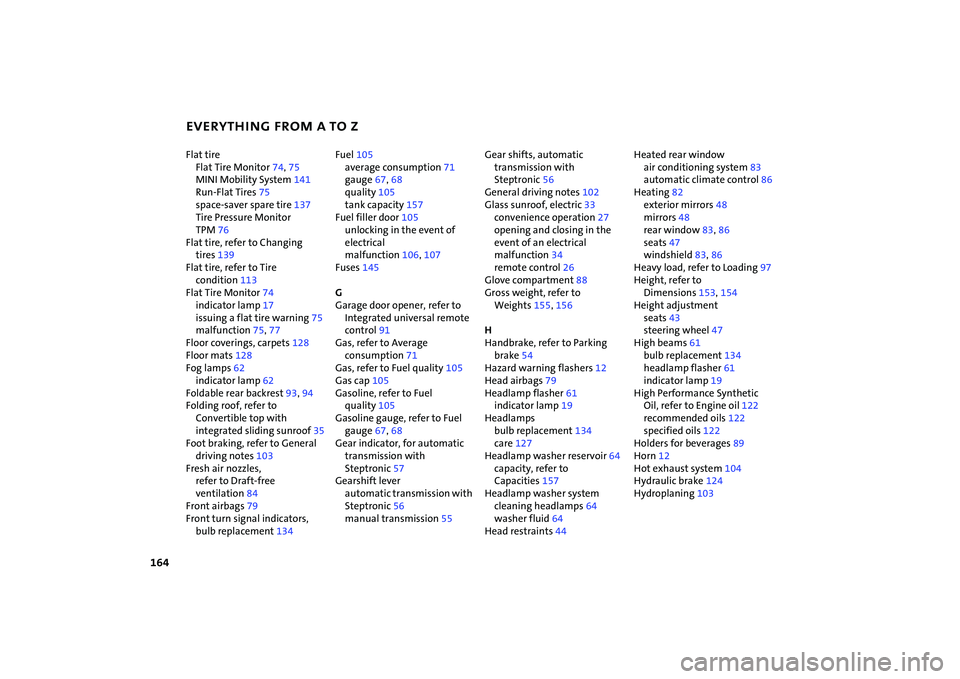

EVERYTHING FROM A TO Z
164
Flat tire
Flat Tire Monitor74
,75
MINI Mobility System141
Run-Flat Tires75
space-saver spare tire137
Tire Pressure Monitor
TPM76
Flat tire, refer to Changing
tires139
Flat tire, refer to Tire
condition113
Flat Tire Monitor74
indicator lamp17
issuing a flat tire warning75
malfunction75
,77
Floor coverings, carpets128
Floor mats128
Fog lamps62
indicator lamp62
Foldable rear backrest93
,94
Folding roof, refer to
Convertible top with
integrated sliding sunroof35
Foot braking, refer to General
driving notes103
Fresh air nozzles,
refer to Draft-free
ventilation84
Front airbags79
Front turn signal indicators,
bulb replacement134Fuel105
average consumption71
gauge67
,68
quality105
tank capacity157
Fuel filler door105
unlocking in the event of
electrical
malfunction106
,107
Fuses145
G
Garage door opener, refer to
Integrated universal remote
control91
Gas, refer to Average
consumption71
Gas, refer to Fuel quality105
Gas cap105
Gasoline, refer to Fuel
quality105
Gasoline gauge, refer to Fuel
gauge67
,68
Gear indicator, for automatic
transmission with
Steptronic57
Gearshift lever
automatic transmission with
Steptronic56
manual transmission55Gear shifts, automatic
transmission with
Steptronic56
General driving notes102
Glass sunroof, electric33
convenience operation27
opening and closing in the
event of an electrical
malfunction34
remote control26
Glove compartment88
Gross weight, refer to
Weights155
,156
H
Handbrake, refer to Parking
brake54
Hazard warning flashers12
Head airbags79
Headlamp flasher61
indicator lamp19
Headlamps
bulb replacement134
care127
Headlamp washer reservoir64
capacity, refer to
Capacities157
Headlamp washer system
cleaning headlamps64
washer fluid64
Head restraints44Heated rear window
air conditioning system83
automatic climate control86
Heating82
exterior mirrors48
mirrors48
rear window83
,86
seats47
windshield83
,86
Heavy load, refer to Loading97
Height, refer to
Dimensions153,154
Height adjustment
seats43
steering wheel47
High beams61
bulb replacement134
headlamp flasher61
indicator lamp19
High Performance Synthetic
Oil, refer to Engine oil122
recommended oils122
specified oils122
Holders for beverages89
Horn12
Hot exhaust system104
Hydraulic brake124
Hydroplaning103

EVERYTHING FROM A TO Z
165
OVERVIEW REPAIRS OPERATION CONTROLS DATA INDEX
I
Ice warning, refer to Outside
temperature warning70
Ignition53
Ignition key24
Ignition key positions, refer to
Ignition lock53
Ignition lock53
Illuminated vanity mirror48
Imitation leather127
Imprint2
Index160
Indicator/warning lamp
airbags80
ASC73
brakes124
coolant temperature68
DSC73
fasten safety belts46
Flat Tire Monitor75
fog lamps62
reserve fuel capacity67
,68
Indicator and warning lamps
Tire Pressure Monitor
TPM77
Indicator and warning lamps,
overview16
Individual air distribution87
Individual settings, refer to
Vehicle Memory49Inflation pressure, refer to Tire
inflation pressure108
Inflation pressure monitor,
refer to Flat Tire Monitor74
Inflation pressure monitoring,
refer to Tire Pressure Monitor
TPM76
Inspection69
Instrument cluster, refer to
Display elements13
Instrument lighting62
Instrument panel, refer to
Cockpit12
Integrated universal remote
control91
Interior lamp, remote
control26
Interior lamps62
Interior rearview mirror48
automatic dimming102
Interlock, refer to Steering
locked53
Intermittent operation of the
wipers63
Interval
display, service125
J
Jack137
,141
points140Jack, refer to Tire change set
MINI Mobility System141
Run-Flat Tires115
space-saver spare tire137
Jacking points140
Jets, refer to Ventilation84
,87
Jets, refer to Windshield
washer jets64
John Cooper Works Kit152
Jump-starting146
K
Keys24
Kickdown57
Knock control105
L
Lamp defect133
Lamp replacement, refer to
Lamps and bulbs133
Lamps, refer to Parking lamps/
Low beams60
Lamps and bulbs133
Lashing eyelets, refer to
Securing the load97
LATCH child-restraint fixing
system52
Leather care128
LEDs light-emitting diodes136
Length, refer to
Dimensions153
,154License plate lamp, bulb
replacement136
Lifting handle, space-saver
spare tire137
Light-alloy wheels, care127
Light-emitting diodes
(LEDs)136
Lighter90
Lighting
lamps and bulbs133
Lighting of the instruments62
Lights on warning61
Light switch60
Loading
securing cargo97
stowing cargo97
Loading the vehicle95
Loads, refer to Loading cargo95
Load securing devices, refer to
Securing the load97
Locking
from inside28
from outside26
Locking/unlocking the vehicle,
acknowledgment
signals26
,27
Low beams60
bulb replacement134
Lower back support, refer to
Lumbar support44

EVERYTHING FROM A TO Z
169
OVERVIEW REPAIRS OPERATION CONTROLS DATA INDEX
Speed152
with Run-Flat Tires75
with Run Flat tires77
with the space-saver spare
tire139
with winter tires117
Speedometer13
,14
Speedometer, refer to Display
elements13
,14
Split rear backrest, refer to
Foldable rear backrest93
Through-loading system94
Sport program, automatic
transmission with
Steptronic57
Stability control, refer to
Driving stability control
systems72
Standing lamps60
bulb replacement134
Starting, refer to Starting the
engine53
Starting aid, refer to Jump-
starting146
Starting problems
at very low temperatures54
jump-starting146
Starting the engine53
Start-off assistance, refer to
ASC72Start-off assistance, refer to
DSC72
Steering lock53
Steering wheel12
buttons on the steering
wheel20
settings47
Steering wheel lock53
Steptronic, refer to Manual
mode57
Storage compartments88
Storage space, refer to
Luggage compartment in the
MINI93
Luggage compartment in the
MINI Convertible94
Storing the tires117
Storing the vehicle129
Sun blind, refer to Roller sun
blind34
Sun visors48
Switches, refer to Cockpit12
Switching off
the engine54
Switching the cooling function
on and off manually83
,86
Symbols6T
Tachometer69
Tailgate29
emergency operation30
indicator lamp17
opening from the outside29
releasing manually30
remote control26
Tail lamps, bulb
replacement135
Tail lamps, refer to Rear
lamps135
Tank capacity, refer to Fuel tank
capacity157
Tank gauge, refer to Fuel
gauge67
,68
Technical data152
Technical modifications7
Technical modifications, refer
to For your own safety7
Telephone call, refer to the
Owner's Manual for the
telephone
Temperature
air conditioning system83
automatic climate control86
Temperature display
ice warning70
outside temperature70
setting units70
Temperature grades113Temperature warning70
Tempomat, refer to Cruise
control65
Threaded hole for towing
eyelet148
Three-point safety belt46
Through-loading system93
,94
Tightening the lug bolts
keys137
,141
torque140
Tightening torque, refer to
Tightening the lug bolts140
Tire change set
MINI Mobility System143
Run-Flat Tires115
space-saver spare tire137
Tire failure137
MINI Mobility System141
space-saver spare tire137
Tire inflation pressure108
reinflation142
Tire pressure monitor, refer to
Flat Tire Monitor74
Tire pressure monitoring, Flat
Tire Monitor74
Tire Pressure Monitor TPM76
resetting the system76
system limitations76
warning lamp77
