Page 151 of 172
REFERENCEAT A GLANCE CONTROLS DRIVING TIPS MOBILITY
149

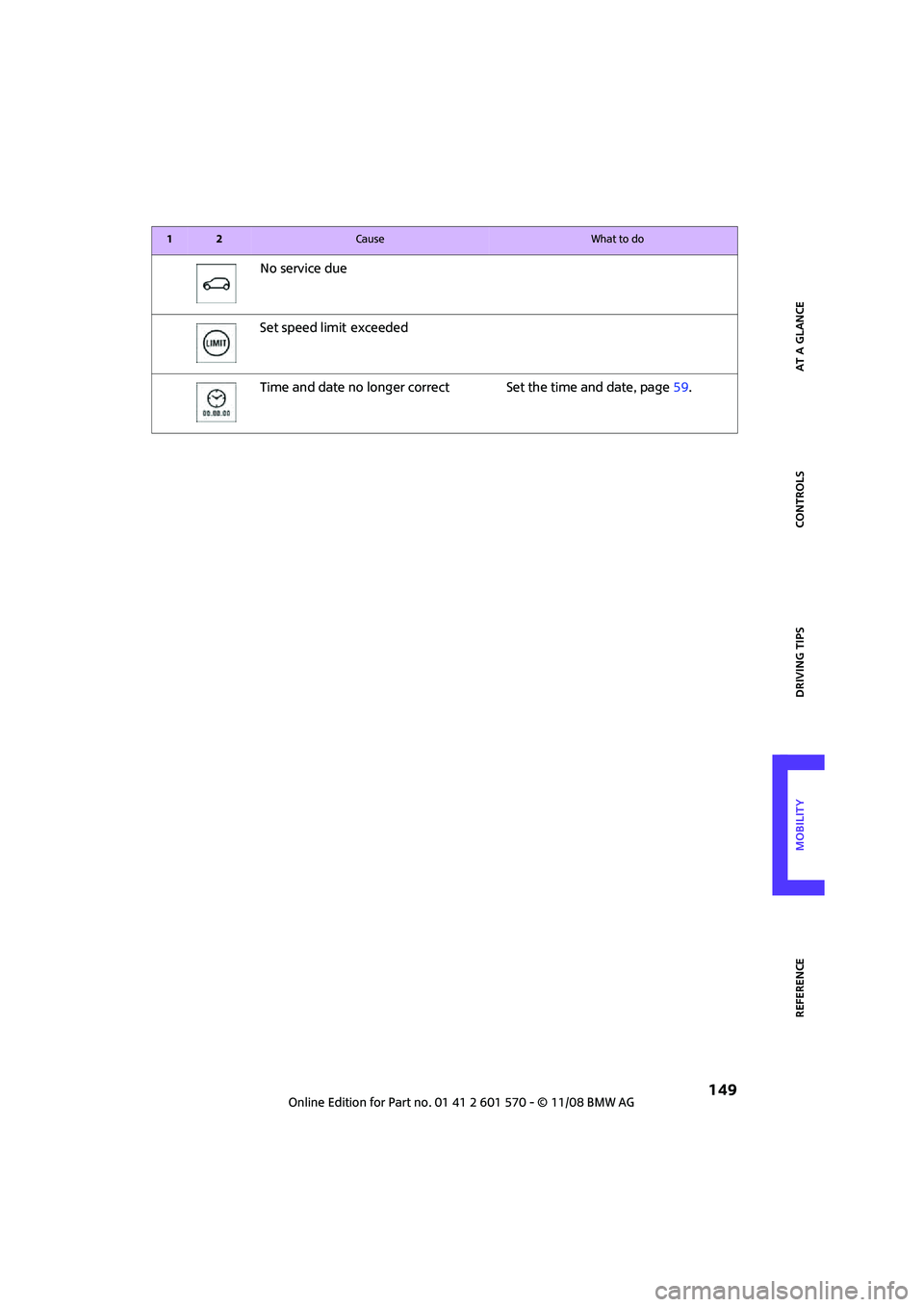

No service due
Set speed limit
exceeded
Time and date no longer correct Set the time and date, page59.
12Cause What to do
Page 152 of 172
Page 153 of 172

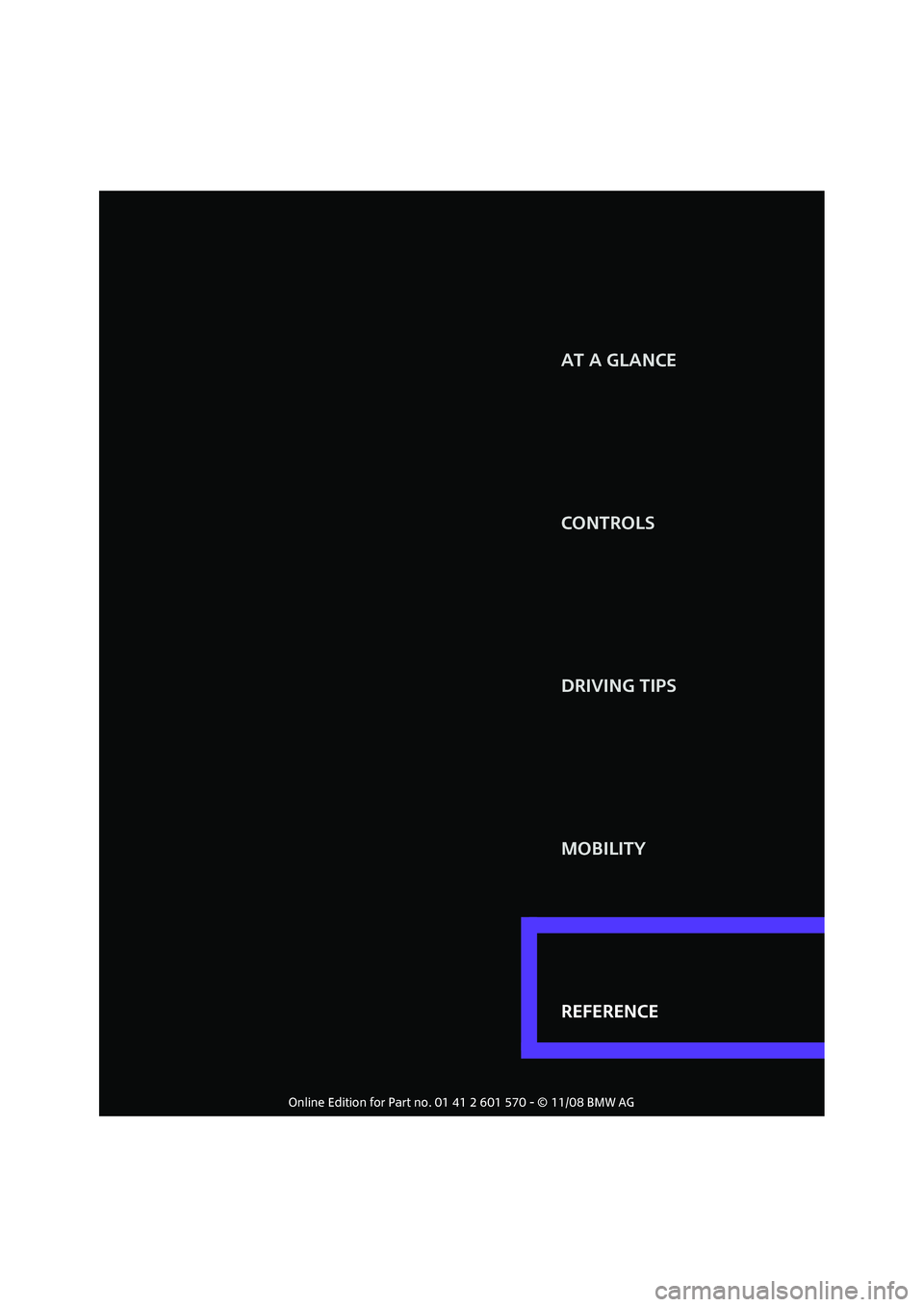

REFERENCE CONTROLS
DRIVING TIPS
MOBILITY AT A GLANCE
REFERENCE
Page 154 of 172

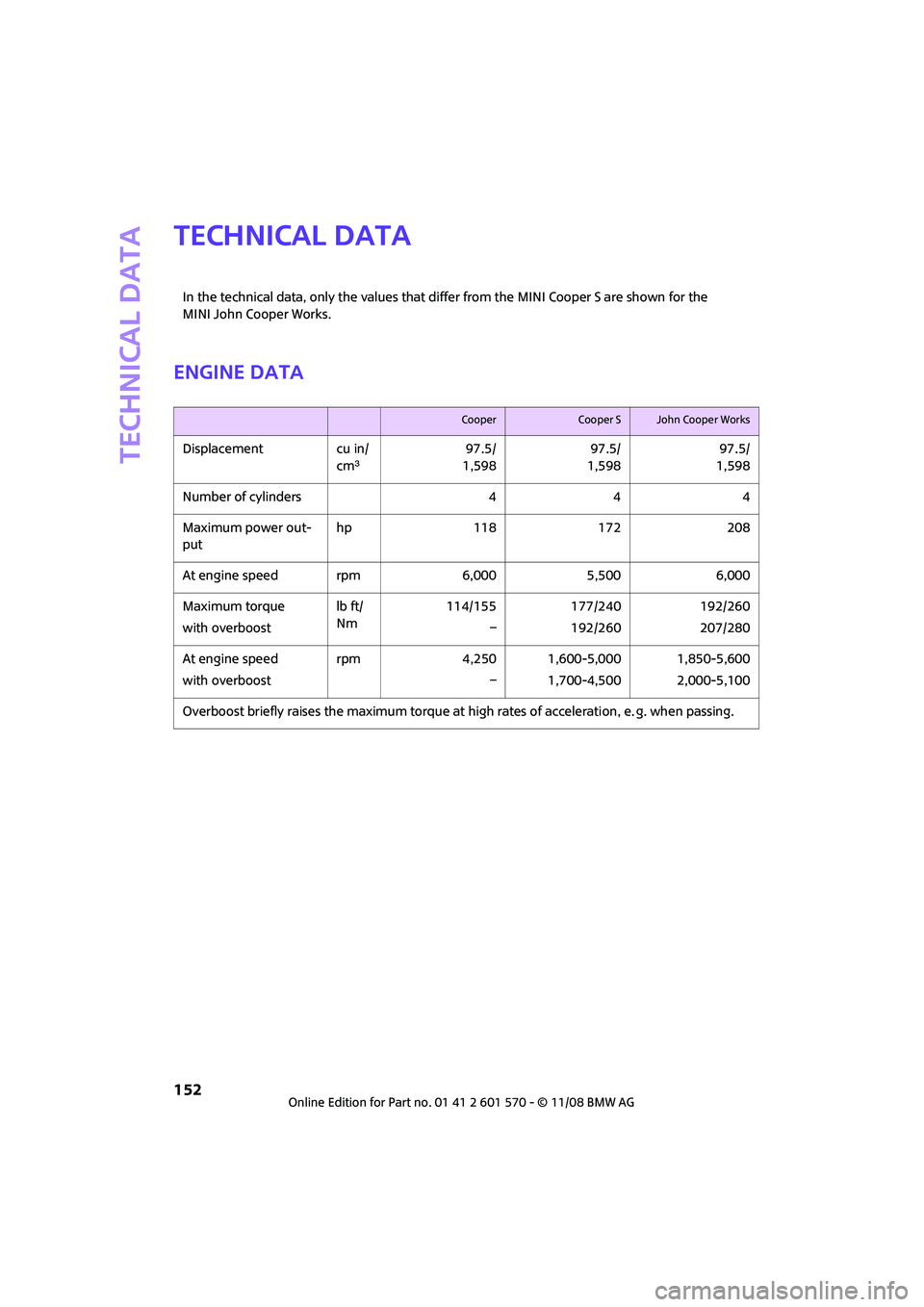

Technical data
152
Technical data
Engine data
In the technical data, only the values that differ from the MINI Cooper S are shown for the
MINI John Cooper Works.
Cooper Cooper SJohn Cooper Works
Displacement cu in/
cmμ97.5/
1,59897.5/
1,59897.5/
1,598
Number of cylinders 4 4 4
Maximum power out-
puthp 118 172 208
At engine speed rpm 6,000 5,500 6,000
Maximum torque
with overboostlb ft/
Nm114/155
–177/240
192/260192/260
207/280
At engine speed
with overboostrpm 4,250
–1,600-5,000
1,700-4,5001,850-5,600
2,000-5,100
Overboost briefly raises the maximum torque at high rates of acceleration, e. g. when passing.
Page 155 of 172
REFERENCEAT A GLANCE CONTROLS DRIVING TIPS MOBILITY
153
Dimensions
MINI
All dimensions given in inches/mm. Smallest turning circle diam.: 35 ft 10 in/10.7 m.
Figures following the semicolons: Values that differ for the MINI Cooper S.
Page 156 of 172
Technical data
154
MINI Convertible
All dimensions given in inches/mm. Smallest turning circle diam.: 35 ft 10 in/10.7 m.
Figures following the semicolons: Values that differ for the MINI Cooper S.
Page 157 of 172
REFERENCEAT A GLANCE CONTROLS DRIVING TIPS MOBILITY
155

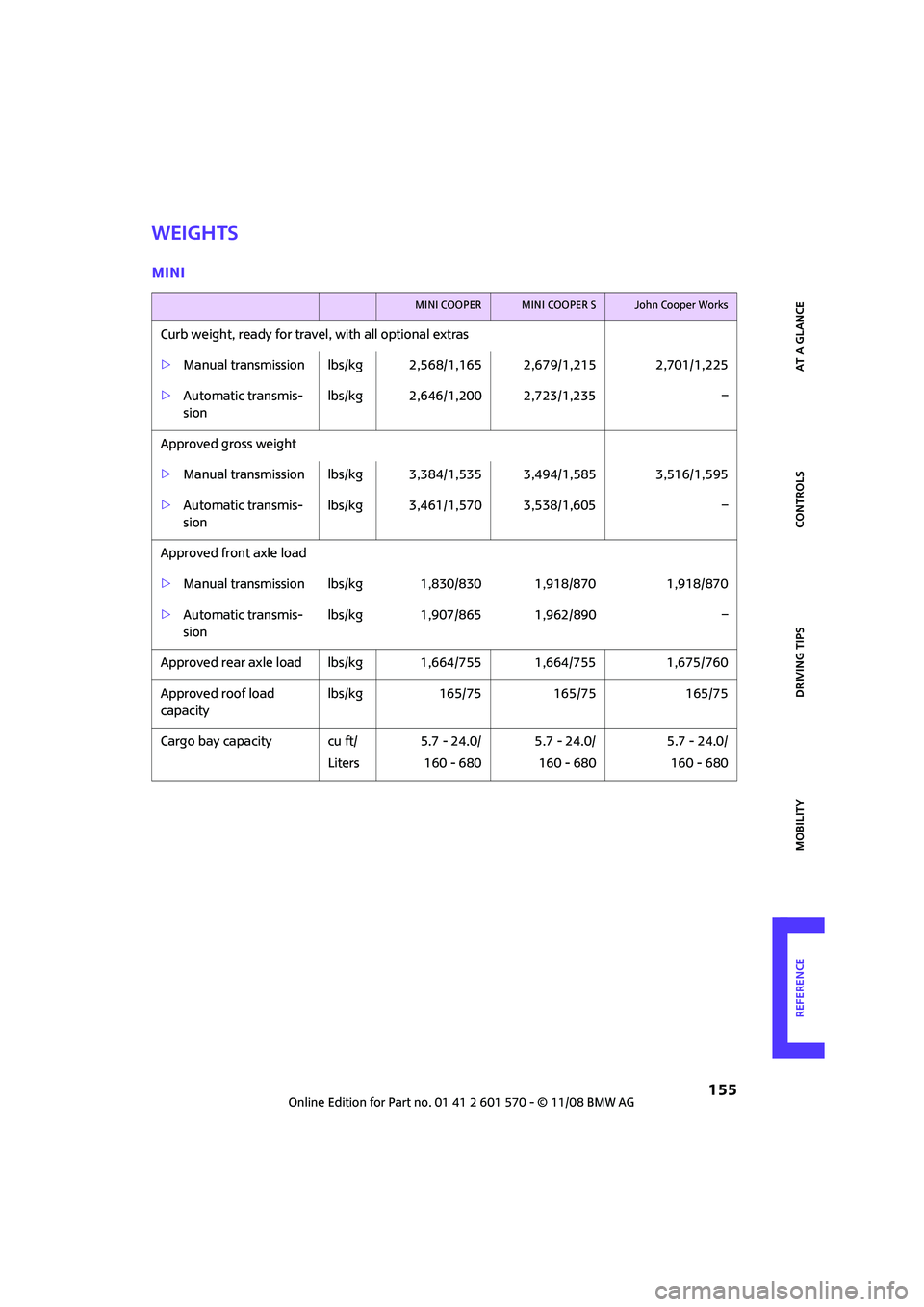

Weights
MINI
MINI COOPERMINI COOPER SJohn Cooper Works
Curb weight, ready for travel, with all optional extras
>Manual transmission lbs/kg 2,568/1,165 2,679/1,215 2,701/1,225
>Automatic transmis-
sion lbs/kg 2,646/1,200 2,723/1,235 –
Approved gross weight
>Manual transmission lbs/kg 3,384/1,535 3,494/1,585 3,516/1,595
>Automatic transmis-
sion lbs/kg 3,461/1,570 3,538/1,605 –
Approved front axle load
>Manual transmission lbs/kg 1,830/830 1,918/870 1,918/870
>Automatic transmis-
sion lbs/kg 1,907/865 1,962/890 –
Approved rear axle load lbs/kg 1,664/755 1,664/755 1,675/760
Approved roof load
capacitylbs/kg 165/75 165/75 165/75
Cargo bay capacity cu ft/
Liters5.7 - 24.0/
160 - 6805.7 - 24.0/
160 - 6805.7 - 24.0/
160 - 680
Page 158 of 172

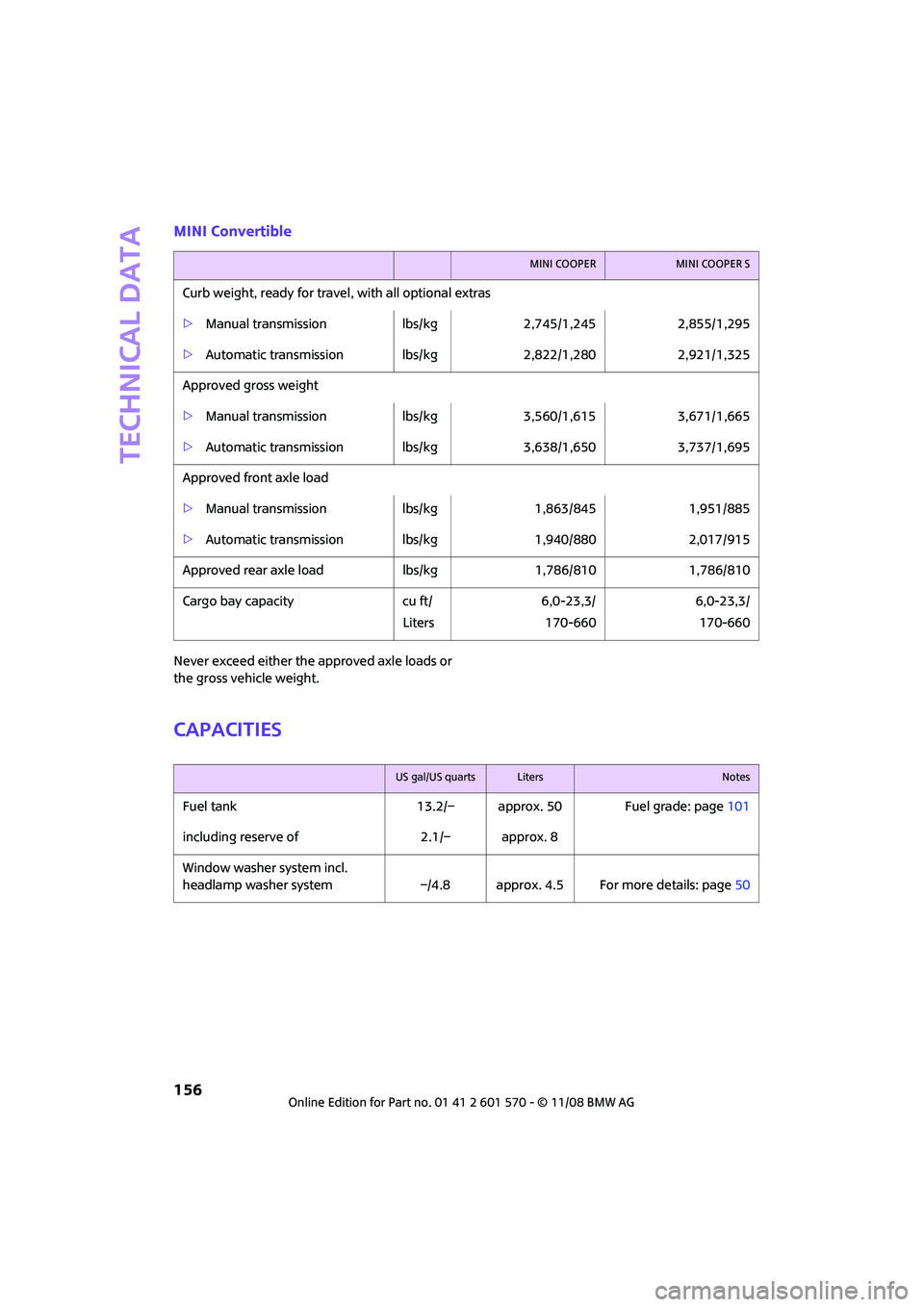

Technical data
156
MINI Convertible
Never exceed either the approved axle loads or
the gross vehicle weight.
Capacities
MINI COOPERMINI COOPER S
Curb weight, ready for travel, with all optional extras
>Manual transmission lbs/kg 2,745/1,245 2,855/1,295
>Automatic transmission lbs/kg 2,822/1,280 2,921/1,325
Approved gross weight
>Manual transmission lbs/kg 3,560/1,615 3,671/1,665
>Automatic transmission lbs/kg 3,638/1,650 3,737/1,695
Approved front axle load
>Manual transmission lbs/kg 1,863/845 1,951/885
>Automatic transmission lbs/kg 1,940/880 2,017/915
Approved rear axle load lbs/kg 1,786/810 1,786/810
Cargo bay capacity cu ft/
Liters6,0-23,3/
170-6606,0-23,3/
170-660
US gal/US quartsLitersNotes
Fuel tank 13.2/– approx. 50 Fuel grade: page101
including reserve of 2.1/– approx. 8
Window washer system incl.
headlamp washer system –/4.8 approx. 4.5 For more details: page50
Page 159 of 172
REFERENCEAT A GLANCE CONTROLS DRIVING TIPS MOBILITY
157
Page 160 of 172

From A to Z
158
From A to Z
INDEX
A
Accessories, refer to Your
individual vehicle4
Activated-charcoal filter for
automatic climate control82
Additives
– coolant115
– engine oil115
Adjusting temperature inside
the car, refer to Air
conditioner79
Adjusting temperature inside
the car, refer to Automatic
climate control80
Air conditioner78
Air conditioning mode
– air conditioner79
– automatic climate control80
– ventilation82
Air distribution
– automatic81
– individual80
– manual80
Air flow rate79,81
– air conditioning system79
– automatic climate control81
– heating, ventilation79
Air outlets, refer to Air vents78
Air pressure, checking, refer to
Tire inflation pressure102
Air recirculation, refer to
Recirculated-air
mode79,81
Air supply
– air conditioner79
– automatic climate control80
– ventilation82
Air vents78
Airbags70
– sitting safely34
– warning lamp72
Airing, refer to Ventilation82AKI, refer to Fuel
specifications101
Alarm system24
All-season tires, refer to Winter
tires112
Always Open Timer54
Ambient air, refer to
Recirculated-air
mode79,81
Ambient lighting77
Antenna, care119
Antifreeze
– coolant115
– washer fluid50
Antilock Brake System ABS63
Anti-theft alarm system, refer
to Alarm system
24
Anti-theft system19
Approved axle loads, refer to
Weights155
Approved engine oils115
Approved gross vehicle
weight, refer to Weights155
Armrest, refer to Center
armrest85
Ashtray87
Assistant systems, refer to
– Dynamic Stability Control
DSC63
AUC Automatic recirculated-
air control81
Audio device, external85
AUTO program for automatic
climate control81
Automatic
– air distribution81
– air flow rate81
– cruise control50
– headlamp control73
Automatic climate control78
– automatic air distribution81
Automatic recirculated-air
control AUC81Automatic transmission with
Steptronic45
– interlock46
– overriding selector lever
lock47
– shiftlock46
– sport program46
AUX-In, refer to External audio
device85
Average fuel consumption53
– setting the units56
Average speed54
Axle loads, refer to
Weights155B
Background lighting, refer to
Ambient lighting77
Backrests, refer to Seats34
Backup lamps
– replacing bulb126,127
Band-aids, refer to First aid
pouch134
Bar, refer to Tow-starting,
towing away136
Battery132
– charging132
– disposal27,132
– jump starting134
– temporary power failure132
Battery renewal
– remote control27
Being towed136
Belt tensioner, refer to Safety
belts37
Belts, refer to Safety belts37
Beverage holders, refer to Cup
holders87
Blower, refer to Air flow
rate79,81
Bonnet113
