MINI COOPER CONVERTIBLE 2011 Owners Manual

169
AT A GLANCE REFERENCEMOBILITYCONTROLS DRIVING TIPS COMMUNICATIONS

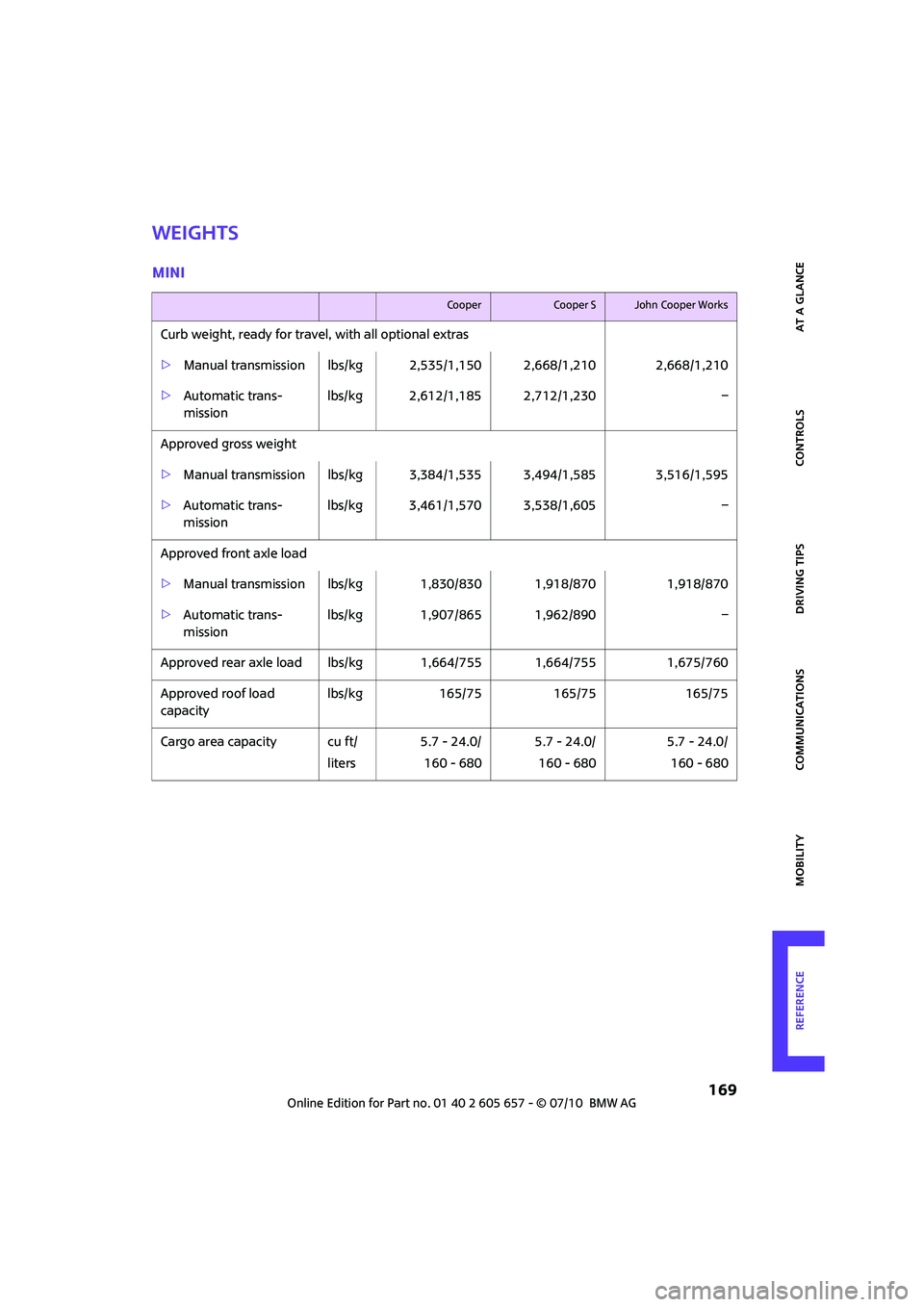

Weights
MINI
CooperCooper SJohn Cooper Works
Curb weight, ready for travel, with all optional extras
>Manual transmission lbs/kg 2,535/1,150 2,668/1,210 2,668/1,210
>Automatic trans-
mission lbs/kg 2,612/1,185 2,712/1,230 –
Approved gross weight
>Manual transmission lbs/kg 3,384/1,535 3,494/1,585 3,516/1,595
>Automatic trans-
mission lbs/kg 3,461/1,570 3,538/1,605 –
Approved front axle load
>Manual transmission lbs/kg 1,830/830 1,918/870 1,918/870
>Automatic trans-
mission lbs/kg 1,907/865 1,962/890 –
Approved rear axle load lbs/kg 1,664/755 1,664/755 1,675/760
Approved roof load
capacitylbs/kg 165/75 165/75 165/75
Cargo area capacity cu ft/
liters5.7 - 24.0/
160 - 6805.7 - 24.0/
160 - 6805.7 - 24.0/
160 - 680

Technical data
170
MINI Convertible
Never exceed either the approved axle loads or
the gross vehicle weight.
Capacities
CooperCooper SJohn Cooper Works
Curb weight, ready for travel, with all optional extras
>Manual transmission lbs/kg 2,701/1,225 2,811/1,275 2,811/1,275
>Automatic trans-
mission lbs/kg 2,778/1,260 2,855/1,295 –
Approved gross weight
>Manual transmission lbs/kg 3,560/1,615 3,671/1,665 3,693/1,675
>Automatic trans-
mission lbs/kg 3,638/1,650 3,737/1,695 –
Approved front axle load
>Manual transmission
>Automatic trans-
mission lbs/kg 1,863/845 1,951/885 1,962/890
lbs/kg 1,940/880 2,017/915 –
Approved rear axle load lbs/kg 1,786/810 1,786/810 1,797/815
Cargo area capacity cu ft/
liters6.0-23.3/
170-6606.0-23.3/
170-6606.0-23.3/
170-660
US gal/US quartslitersNotes
Fuel tank 13.2/– approx. 50 Fuel grade: page117
including reserve of 2.1/– approx. 8
Window washer system incl.
headlamp washer system –/4.8 approx. 4.5 For more details: page51

171
AT A GLANCE REFERENCEMOBILITYCONTROLS DRIVING TIPS COMMUNICATIONS

Everything from A to Z
172
Everything from A to Z
INDEX
A
ABS Antilock Brake System63
Accessories, refer to Your
individual vehicle4
Acknowledgment signals for
locking/unlocking vehicle21
Activated-charcoal filter for
automatic climate control82
Adaptive Light Control75
Additives
– coolant129
– engine oil129
Adjusting temperature inside
the car, refer to Air
conditioner79
Adjusting temperature inside
the car, refer to Automatic
climate control80
Air conditioner78
Air conditioning mode
– air conditioner79
– automatic climate control80
– ventilation82
Air distribution
– automatic81
– individual80
– manual80
Air flow rate79,81
– air conditioning system79
– automatic climate control81
– heating, ventilation79
Air outlets, refer to Air vents78
Air pressure, checking, refer to
Tire inflation pressure118
Air recirculation, refer to
Recirculated-air
mode79,81
Air supply
– air conditioner79
– automatic climate control80
– ventilation82
Air vents78Airbags70
– sitting safely35
– warning lamp72
Airing, refer to Ventilation82
AKI, refer to fuel grade117
Alarm system25
All-season tires, refer to Winter
tires126
Always Open Timer55
Ambient air, refer to
Recirculated-air
mode79,81
Ambient lighting77
Antenna, care133
Antifreeze
– coolant129
– washer fluid
51
Antilock Brake System ABS63
Anti-theft alarm system, refer
to Alarm system25
Anti-theft system19
Approved axle loads, refer to
Weights169
Approved engine oils129
Approved gross vehicle
weight, refer to Weights169
Armrest, refer to Center
armrest85
Ashtray87
Assistant systems, refer to
– Dynamic Stability Control
DSC63
Audio device, external85
AUTO program for automatic
climate control81
Automatic
– air distribution81
– air flow rate81
– cruise control51
– headlamp control73
Automatic climate control78
– automatic air distribution81Automatic transmission with
Steptronic46
– interlock46
– overriding selector lever
lock48
– shiftlock46
– sport program47
AUX-IN, refer to External audio
device85
Average fuel consumption54
– setting the units57
Average speed54
Axle loads, refer to
Weights169B
Background lighting, refer to
Ambient lighting77
Backrests, refer to Seats36
Backup lamps
– replacing bulb140,141
Band-aids, refer to First aid
pouch148
Bar, refer to Tow-starting,
towing away150
Base plate for telephone or
mobile phone
– refer to Snap-in adapter113
Battery146
– charging147
– disposal28,147
– jump-starting148
– temporary power failure147
Battery renewal
– remote control28
Being towed150
Belt tensioner, refer to Safety
belts38
Belts, refer to Safety belts38
Beverage holders, refer to
Cupholders87

173
AT A GLANCE REFERENCEMOBILITYCONTROLS DRIVING TIPS COMMUNICATIONS
Black ice, refer to Outside
temperature warning53
Blower, refer to Air flow
rate79,81
Bluetooth, activating/
deactivating104
Bottle holders, refer to
Cupholders87
Brake Assist63
Brake fluid, refer to Service
requirements58
Brake lamps
– replacing bulbs141
Brake pads, breaking in92
Brake rotors93
– brakes92
– breaking in92
Brake system92
– breaking in92
– disc brakes93
– MINI Maintenance
System131
Brakes
– ABS63
– breaking in92
– MINI Maintenance
System131
– parking brake45
– service requirements58
Brakes, refer to Braking
safely93
Breakdown service, refer to
Roadside Assistance148
Break-in period92
Breaking in the clutch92
Bulb changing, refer to Lamps
and bulbs137
Button for starting the
engine44
Buttons on steering wheel11
C
California Proposition 65
warning5
Call
– accepting108
– ending108
– rejecting108Calling, refer to Phone
numbers, dialing108
Can holders, refer to
Cupholders87
Capacities170
Car battery, refer to Vehicle
battery146
Car care133
Car key, refer to Keys/remote
controls18
Car phone
– installation location, refer to
Center armrest85
– refer to separate Owner's
Manual
Car phone, refer to
Telephone102
Car wash, care133
Car washes133
Care133
– car washes133
– car-care products133
– CD/DVD drives136
– external133
– high-pressure washers134
– internal135
– leather135
– manual washing134
– upholstery and fabrics135
– windows134
– wiper blades134
Cargo area94
– capacity169
– Comfort Access27
– cover94
– lamp77
– opening from outside24
Cargo area, expanding94
Cargo area lamp77
Cargo area lid, refer to
Liftgate24
Cargo loading96
– securing cargo97
– stowing cargo96
– vehicle94
Cargo, securing97
Carpets, care136
Catalytic converter, refer to
Hot exhaust system92Center armrest85
Center brake lamp141
Center console, refer to
Around the center
console14
Central locking system19
– Comfort Access26
– from inside23
– from outside19
Changing bulbs137
Changing wheels144
Chassis number, refer to
Engine compartment128
Check Control60
Child restraint fixing system
LATCH42
Child restraint systems41
Child seats41
Chock, folding
– space-saver spare tire144
Chrome parts, care135
Chrome parts, refer to
Care133
Cigarette lighter87
Cleaning headlamps50
– washer fluid51
Clock
– 12h/24h mode57
– setting time60
Closing
– from inside23
– from outside19
Clothes hooks87
Cockpit10
Cold start, refer to Starting the
engine45
Comfort Access26
– replacing the battery28
– what to observe before
entering a car wash27
Comfort area, refer to Around
the center console14
Compartment for remote
control, refer to Ignition
lock44
Computer54
Condensation, refer to When
the vehicle is parked94

Everything from A to Z
174
Condition Based Service
CBS131
Configuring settings, refer to
Personal Profile18
Connecting vacuum cleaner,
refer to Connecting electrical
appliances87
Consumption, refer to Average
fuel consumption54
Control Display
– settings56
Controls and displays10
Convenient access, refer to
Comfort Access26
Convenient operation
– convertible top22
– windows20
Convenient start, refer to
Starting the engine45
Convertible top30
Coolant129
– checking level129
– filling129
Coolant temperature53
Cooling fluid, refer to
Coolant129
Cooling, maximum81
Copyright2
Cornering light, refer to
Adaptive Light Control75
Cruising range54
Cupholders87
Curb weight, refer to
Weights169
Current fuel consumption54
D
Dashboard instruments, refer
to Displays12
Dashboard lighting, refer to
Instrument lighting76
Dashboard, refer to Cockpit10
Data166
– capacities170
– dimensions167
– engine166
– weights169
Data memory132Date
– setting60
Daytime running lights74
DBC Dynamic Brake Control,
refer to Brake Assist63
Deactivating front passenger
airbags71
Deadlocking, refer to
Locking20
Defect
– door lock22
– fuel filler flap116
Defogging windows80,82
Defrost position, refer to
Defrosting windows80,82
Defrosting windows80,82
Defrosting windows and
removing condensation
– air conditioner80
– automatic climate control82
Defrosting windshield, refer to
Defrosting windows80,82
Differential, breaking in92
Dimensions167
Dipstick, engine oil128
Directional indicators, refer to
Turn signals48
Displacement, refer to Engine
data166
Display lighting, refer to
Instrument lighting76
Displays12
– instrument cluster12
Displays and controls10
Displays, care136
Disposal
– of coolant129
– remote control battery28
– vehicle battery147
Distance remaining to service,
refer to Service
requirements58
Distance warning, refer to Park
Distance Control PDC62
Door key, refer to Integrated
key/remote control
18
Door lock22
Door lock, confirmation
signals21Doors, manual operation22
DOT Quality Grades123
Drinks holders, refer to
Cupholders87
Drive-off assistant, refer to Hill
Assist64
Driving dynamics control, refer
to Sport button64
Driving lamps, refer to Parking
lamps/low beams73
Driving notes92
Driving off on inclines, refer to
Hill Assist64
Driving stability control
systems62
Driving through water93
Driving tips, refer to Driving
notes92
Dry air, refer to Cooling
function82
DTC Dynamic Traction Control
DTC63
Dynamic Brake Control DBC,
refer to Brake Assist63
Dynamic Stability Control
DSC63
Dynamic Traction Control63
E
Electric power windows
– initializing29
Electrical malfunction
– convertible top32
– door lock22
– fuel filler flap116
– liftgate24
Electronic brake-force
distribution63
Electronic Stability Program
ESP, refer to Dynamic
Stability Control DSC63

175
AT A GLANCE REFERENCEMOBILITYCONTROLS DRIVING TIPS COMMUNICATIONS
Emergency operation, refer to
Manual operation
– convertible top32
– door lock22
– fuel filler flap116
– liftgate24
– transmission lock, automatic
transmission48
Emergency services, refer to
Roadside Assistance148
Engine
– breaking in92
– data166
– overheated, refer to Coolant
temperature53
– speed166
– starting45
– starting, Comfort Access26
– switching off45
Engine compartment128
Engine coolant, refer to
Coolant129
Engine oil
– adding129
– additives, refer to Approved
engine oils129
– alternative oil types129
– approved engine oils129
– capacity129
– checking level128
– dipstick128
– intervals between changes,
refer to Service
requirements58
– MINI Maintenance
System131
Engine oil level, checking128
Engine output, refer to Engine
data166
Engine starting, refer to
Starting the engine45
ESP Electronic Stability
Program, refer to Dynamic
Stability Control DSC63
Exhaust system, refer to Hot
exhaust system92Exterior mirrors39
– adjusting39
– automatic heating39
– folding in and out39
External audio device85
Eyes
– for tow-starting and towing
away150
– for tying down loads97
F
Failure messages, refer to
Check Control60
Failure of an electrical
consumer147
Fastening safety belts, refer to
Safety belts38
Fault messages, refer to Check
Control60
Filter
– microfilter for air
conditioner80
– microfilter/activated-
charcoal filter for automatic
climate control82
Fine wood, care136
First aid pouch148
Fixture for remote control,
refer to Ignition lock44
Flash when locking/
unlocking21
Flat tire
– run-flat tires125
– Tire Pressure Monitor TPM67
Flat Tire Monitor FTM65
– indicating a flat tire66
– initializing the system65
– snow chains65
– system limits65
Flat tires, refer to Tire
condition124
Floor mats, care136
Fog lamps
– replacing bulb139,141
Folding rear seat backrest94
Folding roof, refer to
Convertible top with
integrated sliding sunroof30Footbrake, refer to Braking
safely93
Footwell lamps77
For your own safety5
Front airbags70
Front fog lamps76
– indicator lamp152
– replacing bulb139
Front seat adjustment36
Frost on windows, refer to
Defrosting windows80,82
FTM, refer to Flat Tire
Monitor65
Fuel117
– gauge53
– high-quality brands117
– quality117
– specifications117
– tank capacity170
Fuel clock, refer to Fuel
gauge53
Fuel consumption display
– average fuel consumption54
Fuel display, refer to Fuel
gauge53
Fuel filler flap116
– releasing in the event of
electrical malfunction116
Fuses147
G
Garage door opener, refer to
Integrated universal remote
control83
Gasoline
– refer to Average fuel
consumption54
Gasoline display, refer to Fuel
gauge53
Gasoline, refer to Required
fuel117
Gear indicator
– automatic transmission with
Steptronic46
Gear shifting
– automatic transmission46
– manual transmission46

Everything from A to Z
176
Gearshift lever
– automatic transmission with
Steptronic46
– manual transmission46
General driving notes92
Glass sunroof, electric28
– Convenient operation20,22
– opening, closing28
– remote control20
– tilting28
Glove compartment85
Grills, refer to Air vents78
Gross vehicle weight, refer to
Weights169
H
Halogen lamps
– replacing bulb138
Handbrake, refer to Parking
brake45
Hands-free system14,110
Hazard warning flashers14
Head airbags70
Head Light, refer to Adaptive
Light Control75
Head restraints37
– sitting safely35
Headlamp control,
automatic73
Headlamp flasher48
– indicator lamp11,152
Headlamps
– replacing bulb138
Headlamps, care134
Headlight glass lens138
Heated
– mirrors39
– rear window79,82
– seats38
Heating78
– mirrors39
– rear window79,82
– seats38
Heavy loads, refer to Stowing
cargo96
Height adjustment
– seats36
– steering wheel40Height, refer to
Dimensions167
High beams75
– headlamp flasher75
– indicator lamp152
– replacing bulb138
High water, refer to Driving
through water93
Hill Assist64
Hills93
Holders for cups87
Homepage4
Hood127
Horn10
Hot exhaust system92
Hydroplaning93I
Ignition44
– switched off44
– switched on44
Ignition key position 1, refer to
Radio readiness44
Ignition key position 2, refer to
Ignition on44
Ignition key, refer to
Integrated key/remote
control18
Ignition lock44
Imprint2
Incoming call108
Indicator and warning
lamps13,152
– Tire Pressure Monitor TPM68
Indicator lighting, refer to
Instrument lighting76
Individual air distribution80
Individual settings, refer to
Personal Profile18
Inflation pressure monitoring,
refer to Tire Pressure Monitor
TPM67
Initializing
– Flat Tire Monitor FTM65
– glass sunroof, electric29
Instrument cluster, refer to
Displays12
Instrument lighting76Instrument panel, refer to
Cockpit10
Instrument panel, refer to
Displays12
Integrated key18
Integrated universal remote
control83
Interior lamps77
– remote control21
Interior rearview mirror40
– automatic dimming
feature40
Interlock46
Intermittent mode of the
wipers49
Internet page4
J
Jacking points146
Jets, refer to Window washer
nozzles51
Jumpering, refer to Jump-
starting148
Jump-starting148
K
Key Memory, refer to Personal
Profile18
Key, refer to Keys/remote
controls18
Keyless opening and closing,
refer to Comfort Access26
Keyless-Go, refer to Comfort
Access26
Keypad dialing108
Kickdown47
– automatic transmission with
Steptronic47
Knock control117
L
Lamps and bulbs, replacing
bulbs137
Lamps, refer to Parking lamps/
Low beams73

177
AT A GLANCE REFERENCEMOBILITYCONTROLS DRIVING TIPS COMMUNICATIONS
Lashing eyes, refer to Securing
cargo97
LATCH child restraint fixing
system42
Leather care135
LEDs light-emitting diodes138
Length, refer to
Dimensions167
License plate lamp
– bulb replacement141
Liftgate24
– Comfort Access27
– emergency operation24
– manually releasing24
– opening from outside24
– opening/closing24
– unlocking with remote
control21
Light switch73
Light-alloy wheels, care135
Light-emitting diodes
LEDs138
Lighter87
– socket87
Lighting
– lamps and bulbs137
– of the instruments76
– of vehicle, refer to Lamps73
Limit163
Load96
Load securing equipment,
refer to Securing cargo97
Lock buttons of doors, refer to
Locking23
Locking
– adjusting confirmation
signal21
– from inside23
– from outside20
– without remote control, refer
to Comfort Access26
Locking and unlocking doors
– confirmation signals21
– from inside23
– from outside19
Low beams73
– automatic73
– replacing bulb138Lower back support, refer to
Lumbar support36
Luggage compartment
– emergency operation, refer
to Manually releasing24
– increasing the capacity95
– opening from the inside24
Luggage compartment lid
– emergency actuation, refer
to manually releasing24
Luggage compartment lid,
refer to Liftgate24
Luggage compartment, refer
to Cargo area
24
Luggage rack, refer to Roof-
mounted luggage rack97
Lumbar support36
M
M+S tires, refer to Winter
tires126
Maintenance, refer to Service
Booklet
Maintenance system131
Malfunction
– convertible top32
– liftgate24
Malfunction warnings, refer to
Check Control60
Manual air distribution80
Manual mode
– automatic transmission with
Steptronic47
Manual operation
– door lock22
– fuel filler flap116
– liftgate24
– power convertible top32
– transmission lock, automatic
transmission48
Manual transmission46
Manual washing134
Master key, refer to Integrated
key/remote control18
Maximum cooling81
Maximum speed
– with winter tires126Medical assistance, refer to
First aid pouch148
Microfilter
– for air conditioner80
– for automatic climate
control82
– MINI Maintenance
System131
Microfilter/activated-charcoal
filter
– MINI Maintenance
System131
Microphone for telephone14
MINI Internet page4
MINI Maintenance System131
Mirror dimming feature40
Mirrors39
– exterior mirrors39
– heating39
– interior rearview mirror40
Mobile phone
– adjusting volume108
– connecting, refer to Mobile
phone, pairing104
– installation location, refer to
Center armrest85
– pairing104
– refer to separate Owner's
Manual
– What to do if…107
Mobile phone, installation
location, refer to Center
armrest85
Mobile phone, refer to the
separate Owner's Manual
Mobility System142
Modifications, technical, refer
to For your own safety5
Monitoring system for tire
pressures, refer to Flat Tire
Monitor65
Multifunction switch
– refer to Turn signals/
headlamp flasher48
– refer to Wiper system49
Multifunctional steering
wheel, refer to Buttons on
the steering wheel11

Everything from A to Z
178
N
Neck support, refer to Head
restraints37
Nets, refer to Storage
compartments86
New tires125
Number of cylinders, refer to
Engine data166
Number of safety belts35
Nylon rope, refer to Tow
rope151
O
OBD socket, refer to Socket for
On-Board Diagnosis131
Octane ratings, refer to Fuel
specifications117
Odometer53
Oil consumption128
Oil level128
Oil, refer to Engine oil128
Oil types129
Old batteries, refer to
Disposal147
On-board vehicle tool kit137
Opening and closing
– Comfort Access26
– from inside23
– from outside19
– using the door lock22
– using the remote control19
Opening and unlocking
– from inside23
Outlets
– refer to Ventilation82
Outlets, refer to Air vents78
Output, refer to Engine
data166
Outside temperature display
– change units of measure57
– in the onboard computer57
Outside-air mode
– automatic climate control81
Overheated engine, refer to
Coolant temperature53
P
Paintwork, care135
Park Distance Control PDC62
Parking
– vehicle45
Parking aid, refer to Park
Distance Control PDC62
Parking brake45
Parking lamps, replacing
bulb139
Parking lamps/low beams73
Parts and accessories, refer to
Your individual vehicle4
Pathway lighting73
Personal Profile18
Phone numbers
– dialing108
Pinch protection system
– windows30
Plastic parts, care136
Pollen
– refer to Microfilter for air
conditioner80
– refer to Microfilter/activated-
charcoal filter for automatic
climate control82
Power convertible top30
Power failure147
Power windows29
Power windows, refer to
Windows29
Pressure monitoring of tires,
refer to Tire Pressure Monitor
TPM67
Pressure monitoring, tires65
– Flat Tire Monitor65
Pressure, tires118
Protective function, refer to
Pinch protection system
– windows30
Puncture
– Flat Tire Monitor65
R
Radio key, refer to Integrated
key/remote control18Radio position, refer to Radio
readiness44
Radio readiness44
– switched off44
– switched on44
Rain sensor49
Range, refer to Cruising
range54
Reading lamps77
Rear fog lamp76
– indicator lamp152
– replacing bulb141
Rear lamps
– bulb replacement141
Rear lamps, refer to Tail
lamps140
Rear seat backrest, folding94
Rear seats
– folding the backrests94
Rear window defroster79,82
Rearview mirror, refer to
Mirrors39
Recirculated-air mode79,81
Recirculation of air, refer to
Recirculated-air
mode79,81
Reclining seat, refer to
Backrest36
Refueling116
Releasing
– hood127
Remote control18
– battery renewal28
– Comfort Access26
– garage door opener83
– liftgate21
– malfunctions22,27
– service data131
Replacement remote
control18
Replacing bulbs, refer to
Lamps and bulbs137
Replacing tires, refer to New
wheels and tires125
Reporting safety defects6
Reserve warning, refer to Fuel
gauge53
Reservoir for washer
systems51
