MINI COOPER CONVERTIBLE 2016 Owners Manual

Seite 231CareMOBILITY231
Online Edition for Part no. 01 40 2 969 276 - II/16

FIND ME.
Online Edition for Part no. 01 40 2 969 276 - II/16

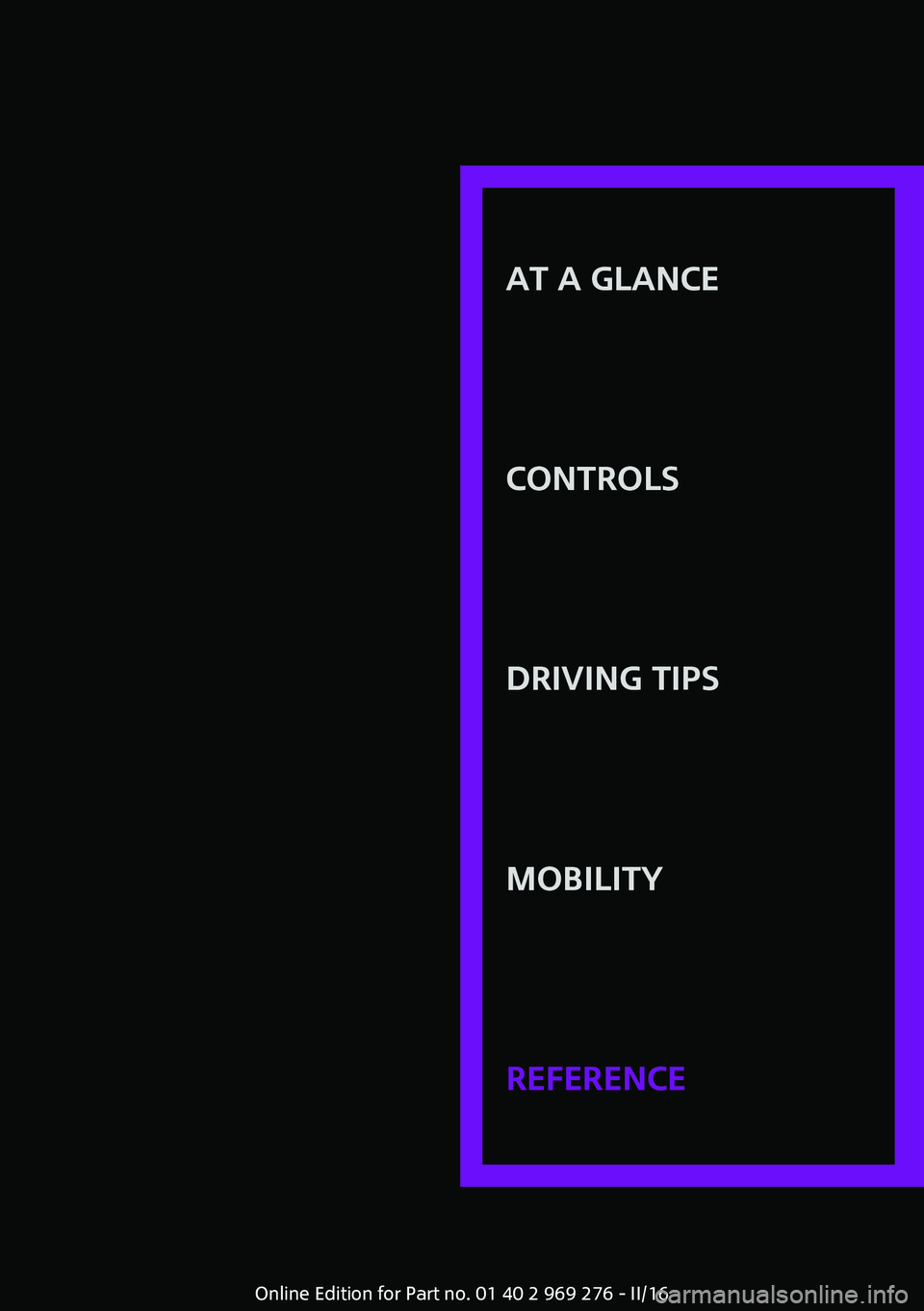

AT A GLANCE
CONTROLSDRIVING TIPSMOBILITYREFERENCE
Online Edition for Part no. 01 40 2 969 276 - II/16

Technical dataVehicle features and op‐
tions
This chapter describes all standard, country-
specific and optional features offered with the
series. It also describes features that are notnecessarily available in your car, e. g., due to
the selected options or country versions. This
also applies to safety-related functions and sys‐
tems. The respectively applicable country provi‐
sions must be observed when using the respec‐
tive features and systems.
Information
The technical data and specifications in this
Owner's Manual are used as guidance values.
The vehicle-specific data can deviate from this,
for example, due to the selected special equip‐
ment, country version or country-specific
measurement method. Detailed values can be
found in the approval documents, on labels onthe vehicle or can be obtained from a dealer’s
service center or another qualified service cen‐
ter or repair shop.
The information in the vehicle documents al‐
ways has priority over the information in this
Owner's Manual.
Dimensions
The dimensions can vary depending on the
model version, equipment or country-specific
measurement method.
The specified heights do not take into account
attached parts, for example, a roof antenna,roof racks or spoiler. The heights can deviate,
for example, due to the selected special equip‐
ment, tires, load and chassis version. MINI CONVERTIBLEWidth with mirrorsinches/mm76.1/1,932Width without mirrorsinches/mm68/1,727Heightinches/mm55.7/1,415Lengthinches/mm151.1-152.5/3,837-3,874Wheelbaseinches/mm98.2/2,495Smallest turning radius diam.ft/m35.5/10.8Seite 234REFERENCETechnical data234
Online Edition for Part no. 01 40 2 969 276 - II/16

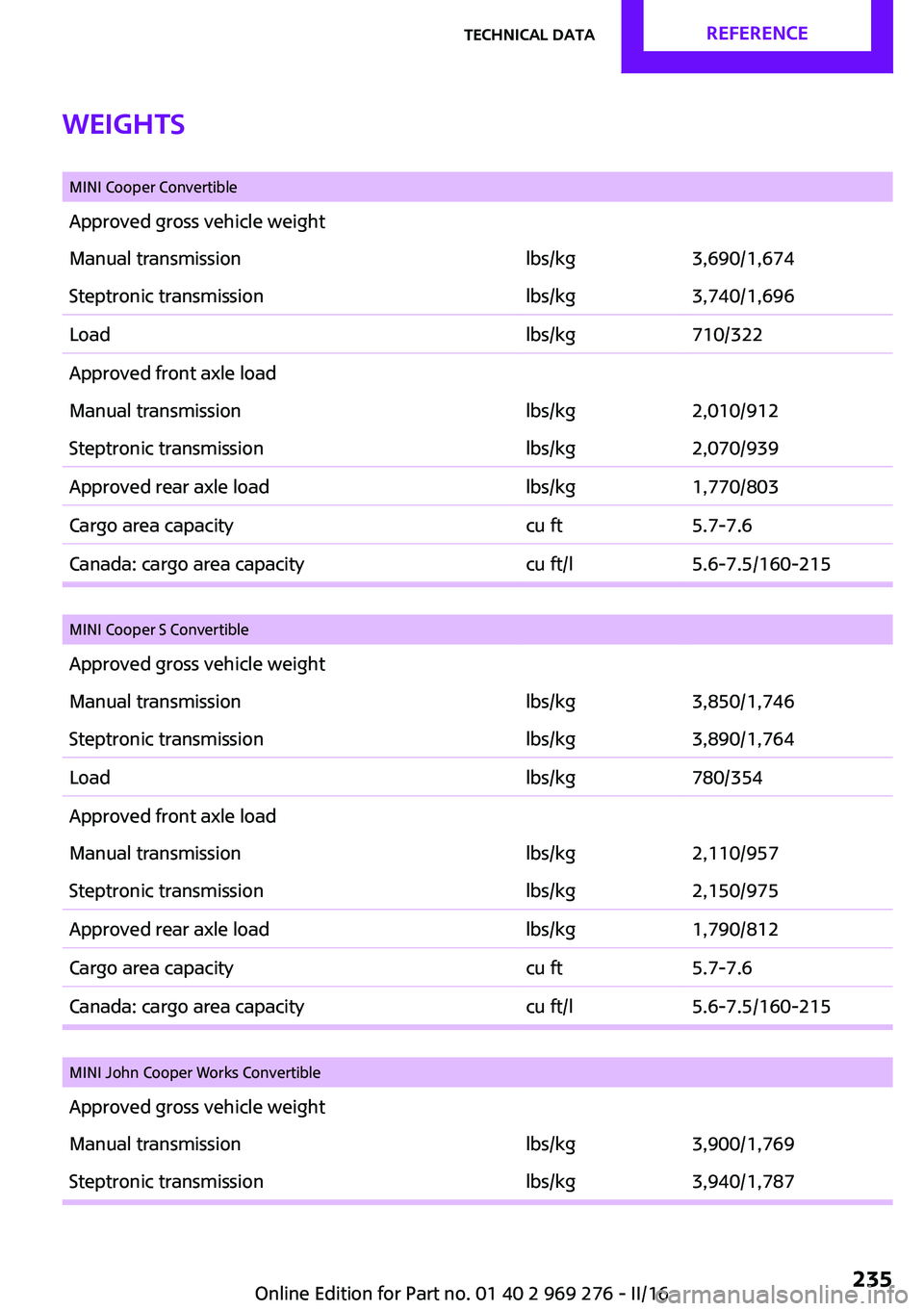

Weights
MINI Cooper ConvertibleApproved gross vehicle weightManual transmissionlbs/kg3,690/1,674Steptronic transmissionlbs/kg3,740/1,696Loadlbs/kg710/322Approved front axle loadManual transmissionlbs/kg2,010/912Steptronic transmissionlbs/kg2,070/939Approved rear axle loadlbs/kg1,770/803Cargo area capacitycu ft5.7-7.6Canada: cargo area capacitycu ft/l5.6-7.5/160-215

MINI Cooper S ConvertibleApproved gross vehicle weightManual transmissionlbs/kg3,850/1,746Steptronic transmissionlbs/kg3,890/1,764Loadlbs/kg780/354Approved front axle loadManual transmissionlbs/kg2,110/957Steptronic transmissionlbs/kg2,150/975Approved rear axle loadlbs/kg1,790/812Cargo area capacitycu ft5.7-7.6Canada: cargo area capacitycu ft/l5.6-7.5/160-215

MINI John Cooper Works ConvertibleApproved gross vehicle weightManual transmissionlbs/kg3,900/1,769Steptronic transmissionlbs/kg3,940/1,787Seite 235Technical dataREFERENCE235
Online Edition for Part no. 01 40 2 969 276 - II/16

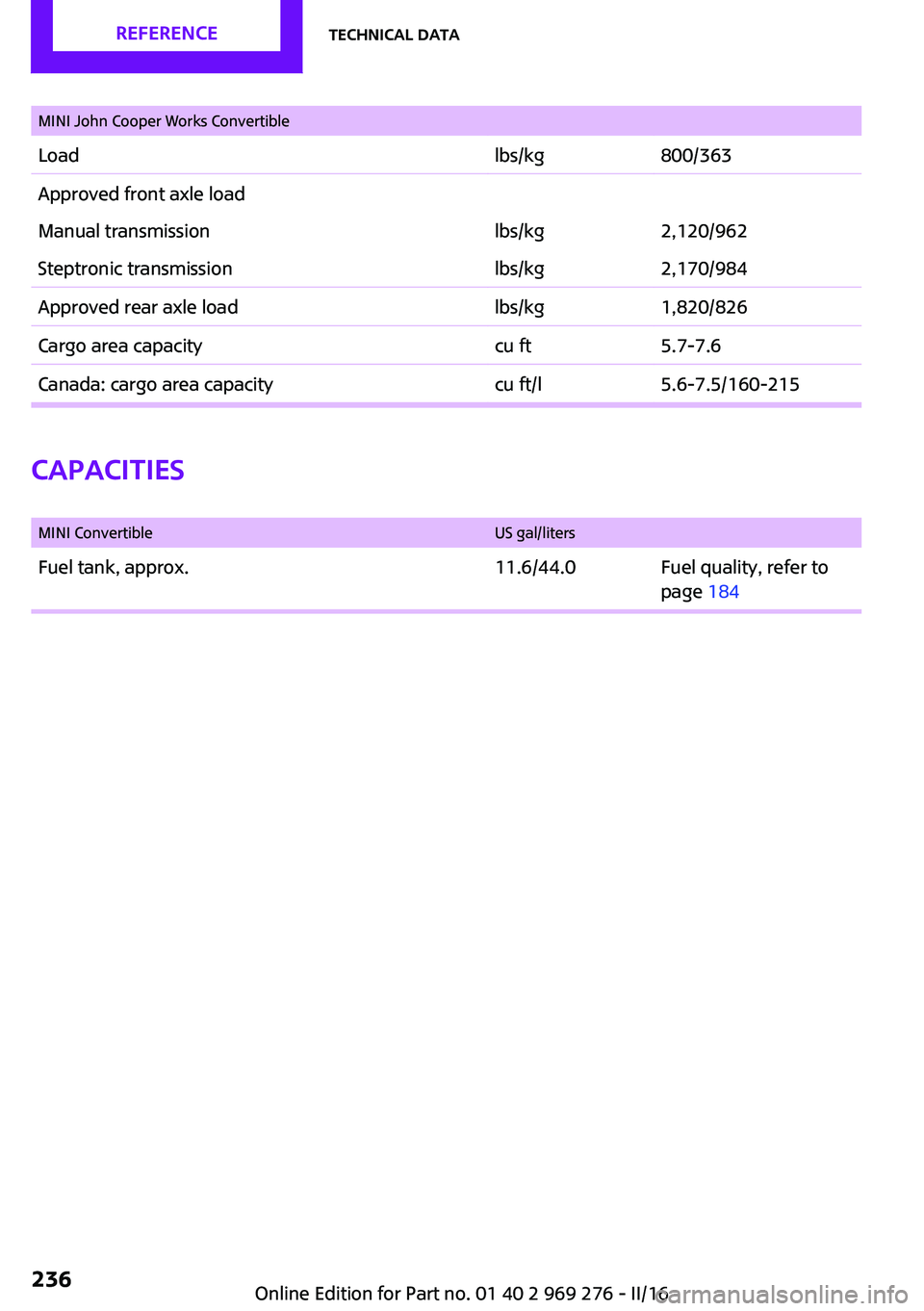

MINI John Cooper Works ConvertibleLoadlbs/kg800/363Approved front axle loadManual transmissionlbs/kg2,120/962Steptronic transmissionlbs/kg2,170/984Approved rear axle loadlbs/kg1,820/826Cargo area capacitycu ft5.7-7.6Canada: cargo area capacitycu ft/l5.6-7.5/160-215
Capacities

MINI ConvertibleUS gal/litersFuel tank, approx.11.6/44.0Fuel quality, refer to
page 184Seite 236REFERENCETechnical data236
Online Edition for Part no. 01 40 2 969 276 - II/16

AppendixAny updates to the Owner's Manual of the ve‐
hicle are listed here.
Updates made after the editorial deadline
These chapters of the printed Owner's Manual
contain updates made after the editorial dead‐
line.▷Opening and closing: convertible top: Man‐
ually closing the convertible top, refer to
page 50.▷Wheels and tires: snow chains: Use, refer to
page 197.Seite 237AppendixREFERENCE237
Online Edition for Part no. 01 40 2 969 276 - II/16

Seite 238REFERENCE238
Online Edition for Part no. 01 40 2 969 276 - II/16

Seite 239REFERENCE239
Online Edition for Part no. 01 40 2 969 276 - II/16

Seite 240REFERENCE240
Online Edition for Part no. 01 40 2 969 276 - II/16
