MINI Countryman 2012 User Guide

AT A GLANCECockpit
10
Cockpit
Vehicle equipment
In this chapter, all production, country, and
optional equipment that is offered in the model range is described. Equi
pment is also described
that is not available because of, for example,
selected options or coun try version. This also
applies to safety relate d functions and systems.
Around the steering wheel
Online Edition for Part no. 01 40 2 914 828 - \251 07/12 BMW AG

CockpitAT A GLANCE
11
1Adjusting the exterior mirrors in and out39
6 Ignition lock 45 7
Buttons on steering wheel,
right
left side
8 Horn: the entire surface
9 Adjusting the steering wheel 40
10 Releasing the hood 146
2
Parking lamps 76
Low beams 76
Automatic headlamp control 76
Adaptive Light Control 78
Turn signals 50
High beams 78
Headlamp flasher 50
Roadside parking lamps 78
Computer 56
3 Tachometer 12
Instrument lighting 79
Resetting the trip odometer 55
4 Wiper system 51
5 Switching the ignition on/off and
starting/stopping the engine
45
Resuming cruise control53
Storing speed and accelerating or
decelerating
Activating/deactivating cruise
control 53
Increasing or reducing volume
Telephone
Accepting and ending a call,
starting dialing of selected phone
number and redialing if no phone
number is selected
Activating/deactivating voice
activation system
Changing the radio station
Selecting a music track
Scrolling through the redial list
Online Edition for Part no. 01 40 2 914 828 - \251 07/12 BMW AG

AT A GLANCECockpit
12
Displays
1Tachometer 55
with indicator and warning lamps 13
2 Display for
>Current vehicle speed 55
> Indicator and warning lamps 13
3 Resetting the trip odometer 55
4 Display for
>Position of automatic transmission 47
> Computer 56
> Date of next scheduled service, and
remaining distance to be driven 61
> Odometer and trip odometer 55
> Initializing the Fl at Tire Monitor 68
> Resetting the Tire Pressure Monitor 70
> Settings and information 57
> Personal Prof ile settings22 5
Instrument lighting 79
6 Speedometer
with indicator and warning lamps 13
7 Fuel gauge 55
8 Radio display 16
9 Radio 16
Online Edition for Part no. 01 40 2 914 828 - \251 07/12 BMW AG

CockpitAT A GLANCE
13
Indicator and warning
lamps
The concept
Indicator and warning lamps can light up in var-
ious combinations and colors in indicator area1
or 2.
Some lamps will be tested for proper functioning
when the engine is started or the ignition is
switched on and will therefore light up briefly.
What to do in case of a malfunction
A list of all indicator and warning lamps, as well
as notes on possible caus es of malfunctions and
on how to respond, can be found starting on
page 169.
Online Edition for Part no. 01 40 2 914 828 - \251 07/12 BMW AG

AT A GLANCECockpit
14
Around the center console
1Hazard warning flashers
2 Speedometer with radio 12
3 CD slot
4 Air conditioner or automatic climate
control 81
Temperature
Recirculated-air mode
Air distribution for air conditioner
Air distribution to the windshield
Air distribution to the upper body
area
Air distribution to the footwell
Automatic air distribution and flow
rate
Maximum cooling
Cooling function
Defrosting windows
Online Edition for Part no. 01 40 2 914 828 - \251 07/12 BMW AG

CockpitAT A GLANCE
15
5Switches in the center console
6 Buttons in the center console
7 AUX-In connection
USB audio interface 115
Around the headliner
1Microphone for voice activation system and
for telephone in hands-free mode
2 Indicator/warning lamp
for front passenger
airbags 74
Rear window defroster
Windshield heating
Air flow rate
Seat heating
37
Power windows, front 32
Power windows, rear 32
Central locking system, inside 26
Front fog lamps 79
Safety switch for power windows in
rear passenger compartment 33
Sport button 67
Driving stability control systems
Dynamic Stability Control DSC 65
Dynamic Traction Control
DTC 66
3
Reading lamps 80
Ambient lighting 80
Glass roof, electric 31
Interior lamps 79
Online Edition for Part no. 01 40 2 914 828 - \251 07/12 BMW AG

AT A GLANCERadio
16
Radio
Vehicle equipment
In this chapter, all production, country, and
optional equipment that is offered in the model range is described. Equi
pment is also described
that is not available because of, for example,
selected options or coun try version. This also
applies to safety relate d functions and systems.
Radio MINI Boost CD
Online Edition for Part no. 01 40 2 914 828 - \251 07/12 BMW AG

RadioAT A GLANCE
17
1Selecting audio sources
2 On/off, loudsp eaker controls
3 Accessing settings
>Speed-dependent volume
> Tone setting
4 Function buttons to confirm the menu items
displayed above
5 Changing stations, tracks
>Changing stations
> Changing tracks on the CD player
6 Display
7 Selecting functions
>Turn: to select menu items or set values
> Press: to confirm selection or store
settings
8 Establishing/ending voice connections
9 Calling up settings menu
10 Selecting frequency manually
11 CD slot
12 Ejecting a CD
Menu navigation
Radio and telephone functions can be called up
by using the buttons on the radio and menus.
Calling up settings menu
Press the MENU button
> Settings
> MINI phone numbers
> Telephone
Calling up the audio menu
Press the MODEbutton
> Radio
> HD Radio
> Satellite radio
> CD player
> External audio devi ce, e.g., MP3 player
> USB audio interface
Selecting a menu item
Menu items can be selected by using the knob
on the right, the MODEbutton or function
buttons.
Using the knob on the right
1. Turn knob, arrow 2, to mark a menu item,
for example, "CONFIG".
2. Press the knob, arrow 1, to confirm a high-
lighted function.
Using function buttons
Press the button.
To carry out a function that is shown on the
display, press the button that is below on the left
or right.
If only a single function is displayed, press the
button in the center.
Depiction in the Owner's Manual
Function buttons that can be pressed on the left
or right are provided with an arrow on each side.
For example, press the button on the
left.
Menu items that are to be selected are displayed
in quotes, for example "CONFIG".
Online Edition for Part no. 01 40 2 914 828 - \251 07/12 BMW AG

AT A GLANCERadio
18

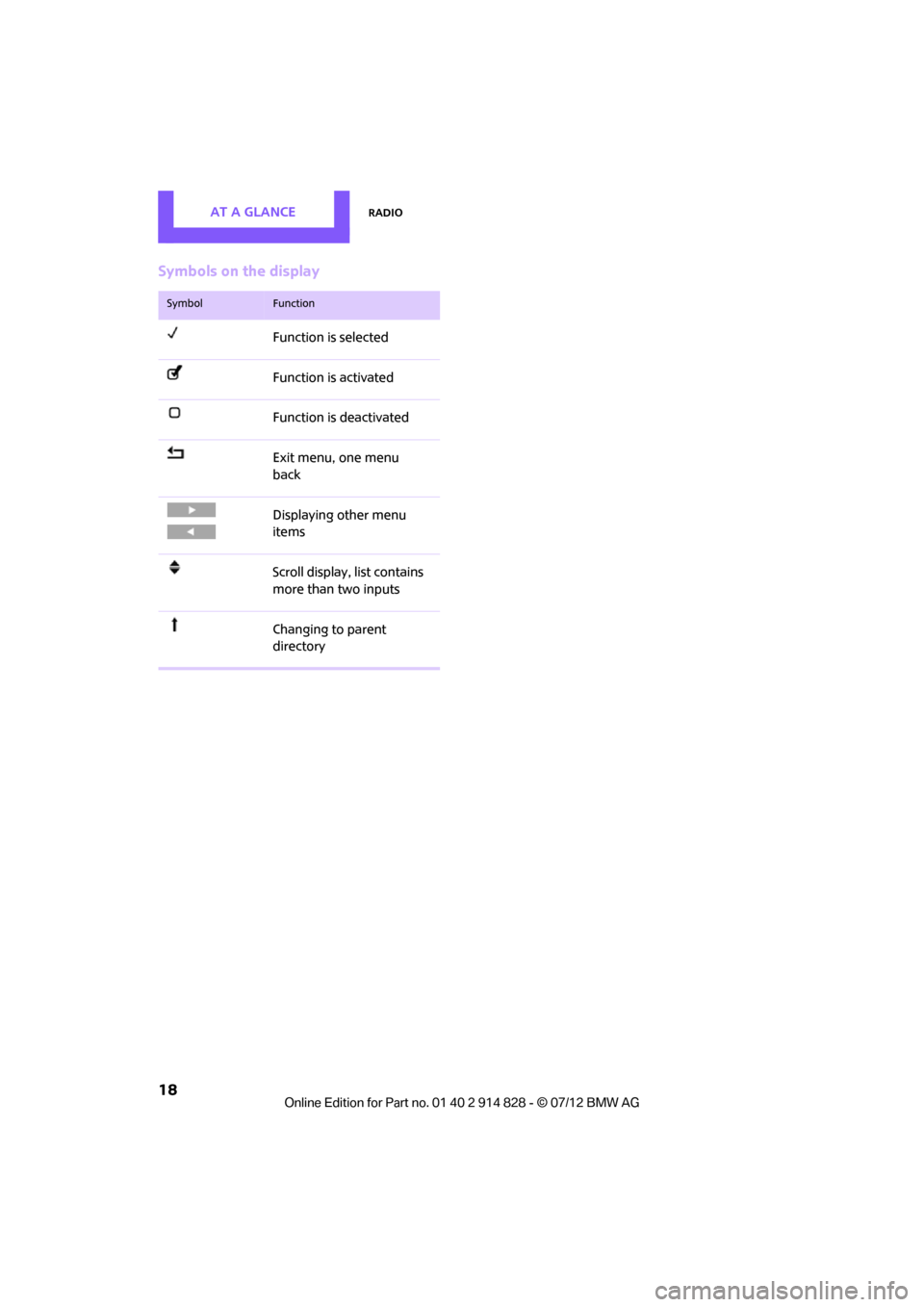

Symbols on the display
SymbolFunction
Function is selected
Function is activated
Function is deactivated
Exit menu, one menu
back
Displaying other menu
items
Scroll display, list contains
more than two inputs
Changing to parent
directory
Online Edition for Part no. 01 40 2 914 828 - \251 07/12 BMW AG

RadioAT A GLANCE
19
Online Edition for Part no. 01 40 2 914 828 - \251 07/12 BMW AG
