COMMUNICATIONSTelephone
120
Telephone
Vehicle equipment
In this chapter, all production, country, and
optional equipment that is offered in the model
range is described. Equipment is also described
that is not available because of, for example,
selected options or coun try version. This also
applies to safety relate d functions and systems.
Overview
The concept
Mobile phones can be connected to the vehicle
through Bluetooth.
Bluetooth® is a registered trademark of Blue-
tooth® SIG, Inc.
Your MINI is equipped with a mobile phone
preparation package. Af ter a suitable mobile
phone is paired with the vehicle once, the
mobile phone can be controlled via the radio,
the buttons on the steering wheel, and by voice.
It may be necessary for some functions to be
activated by the mobile phone provider.
Only make entries when traffic conditions
permit. Do not hold the mobile phone in
your hand while you are driving; use the hands-
free system instead. If you do not observe this
precaution, your being distracted can endanger
vehicle occupants and other road users. <
Snap-in adapter
The snap-in adapter, refer to page130, makes it
possible to:
> Accommodate the mobile phone.
> Recharge its battery.
> Connect it to an exte rnal antenna of the
vehicle.
This assures a better network connection
and constant sound quality. A mobile phone that is connected to the vehicle
should not be operated via the mobile phone
keypad; otherwise, ma
lfunctions may occur.
Suitable mobile phones
Precise information as to which mobile phones
are supported by the hands-free device can be
found at www.mini.com/connectivity.
Notes
Do not expose your mobile phone to extreme
ambient conditions, for example, very high tem-
peratures; otherwise, fu nctions on your mobile
phone may not work. Follow the operating
instructions for yo ur mobile phone.
Online Edition for Part no. 01 40 2 914 828 - \251 07/12 BMW AG

TelephoneCOMMUNICATIONS
121
Mobile phone operation over the radio
To open the menu shown above, refer to
page126.
1 Making and receiving phone calls 125
> "#": dial phone number
> "A-Z": phone book
> "TOP8": most frequently dialed phone
numbers
> "LAST8": last phone numbers dialed
> "CALLS": accepted calls
> "MISSED": missed calls
2 Marking to select a function
3 Reception of the mobile phone network:
Display depends upon signal strength. 4
Pairing a new mobile phone, delete pairing
data of a mobile phon e, or switching Blue-
tooth on/off 122
5 Time
6 Backspace
7 Function buttons for confirming the func-
tions displayed above them
8 Redialing, answering a ca ll, starting to dial,
ending a call, and switching to the phone
menu
9 Selecting and confirming function
>Turn: to select a function or number
> Press: to activate a function or number
Online Edition for Part no. 01 40 2 914 828 - \251 07/12 BMW AG

TelephoneCOMMUNICATIONS
123
4. Press the button.
5. Press the button.
6. Press the button.
Turn the right rotary knob to display the Blue-
tooth name of your vehicle on the display.
Preparation with mobile phone
7. Other operations must be performed on the
mobile phone and differ depending on the
type of mobile phone, refer to Owner's
Manual for the mobile phone, e.g. under
Connecting or pairing Bluetooth device. The
Bluetooth name of the vehicle appears on
the mobile phone display.
8. Select the Bluetooth name of the vehicle on
the mobile phone display.
Pairing
The mobile phone or the radio display will
prompt you to enter the same Bluetooth
passkey.
Depending on the mobile phone, you have
approx. 30 seconds to enter the Bluetooth
passkey using the mobile phone and the radio
display.
If the Bluetooth passkey can be entered using
the radio, then the following appears on the
display:
:
9.Enter the Bluetooth passkey using the num-
ber buttons of the mobile phone. 10.
Press the button to enter the Blue-
tooth passkey using the radio.
11. Using the function buttons 0-9, enter the
same Bluetooth passke y that was entered
into the mobile phone.
To delete the last digit:
Press the button.
12. Press the button to confirm the
Bluetooth passkey.
The following display will appear after a few
seconds:
13. Press the button if necessary.
The following display will appear after the
mobile phone is paired:
If pairing was successful, the mobile phone
appears at the top of the list of mobile phones.
If the pairing was not successful: What to do if…,
refer to page 124.
To repeat the pairing procedure:
1. Press the button.
2. Repeat steps 6 to 13.
If the pairing procedur e was not successful
repeated times:
> Suitable mobile phones can be found at:
www.mini.com/connectivity
> E-mail: [email protected]
> Hotline, also refer to page 130.
Online Edition for Part no. 01 40 2 914 828 - \251 07/12 BMW AG

COMMUNICATIONSTelephone
126
Accepting a call
Press the button on the radio or on the steer-
ing wheel.
Alternative: Press the button.
Rejecting a call
Press the button.
Ending a call
Press the button on the radio or on the steer-
ing wheel.
Alternative: Press the button.
Entering phone numbers
Dialing a number
1.Press the MENU button.
2. Press the button
3. Press the button.
4. Enter the desired phone number using the
0-9 buttons.
To delete the last digit:
Press the button.
5. Press the button on the radio or on the
steering wheel. Alternative:
Press the right rotary knob to dial the phone
number.
For your phone number to be displayed to the
person you are calling, the display of phone
numbers must be enabled by your service pro-
vider.
Keypad dialing
Use keypad dialing to gain access to network
services or to control de
vices, e.g. to remotely
access an answering machine. This requires the
DTMF code.
This function is available if a connection has
been established and the call is being made
using the hands-free system.
1. Press the button.
2. Enter the desired code using the 0-9 but-
tons.
3.
If needed, press and hold the but-
ton on the right or left side to enter special
characters.
Dialing a phone number from the phone
book or from phone numbers stored in a
list
Phone numbers dialed, incoming calls, and
phone book entries are stored in lists when the
mobile phone is connected to the vehicle via
Bluetooth. If the caller is entered in the phone
book, then the name of the entry is displayed
instead of the phone number.
Select the desired name from the list and estab-
lish the connection.
There are five available lists:
> "A-Z"
The entries of the phone book, the SIM card,
or the mobile phone, composed of a name
and phone number, are sorted alphabeti-
cally.
Online Edition for Part no. 01 40 2 914 828 - \251 07/12 BMW AG

TelephoneCOMMUNICATIONS
127
>"TOP8"
The eight most frequently dialed numbers
are automatically stored in the Top 8 list.
> "LAST8"
The last eight phone numbers you have
dialed are stored automatically. The phone
number dialed last appears at the top of the
list.
> "CALLS"
The phone numbers of the last eight
accepted calls are stored. This requires the
phone number of the caller to have been
transmitted.
> "MISSED"
The phone numbers of the last eight calls
that were not accepted are stored. This
requires the phone number of the caller to
have been transmitted.
Dialing a phone number from the phone
book
The A-Z list is available fo r phone book entries. If
entries with different names, but the same
phone number are transferred from the mobile
phone to the vehicle, only one entry is displayed.
The displays of the phone book entries on the
radio display can differ fr om the displays on the
mobile phone display, e.g. sequence of the first
and last names.
1. Press the MENU button.
2. Press the button.
3. Press the button.
The arrows indicate that
additional letters can be displayed.
Turn the right rotary knob to display addi-
tional letters. 4.
Turn the right rotary knob to select the first
letters of the desired entry.
5. Press the button if so desired.
The phone number is dialed.
To display all entries:
1. Turn the right rotary knob to select the first
letters of the desired entry and press the
right rotary knob.
2. Turn the right rotary knob to select the
desired entry and pre ss the right rotary
knob.
The phone number is dialed.
The phone number can also be dialed using the
buttons on the steering wheel or radio:
Press the button.
Editing and dialing a phone number
from the phone book
The phone number of an entry can be edited
before a call. This change is not stored in the
phone book.
1. Select an entry.
2. Press the button.
3. Press the button to delete a digit.
4. Enter additional digits using the 0-9 buttons.
5. Press the right rotary knob to dial the phone
number.
Dialing a phone number from the phone
book using buttons on the steering
wheel
1.Press and hold the button to display the
telephone menu.
2. Use the arrow buttons on the steering wheel
to scroll through the phone book.
3. Press and hold the button to dial the
phone number.
Online Edition for Part no. 01 40 2 914 828 - \251 07/12 BMW AG

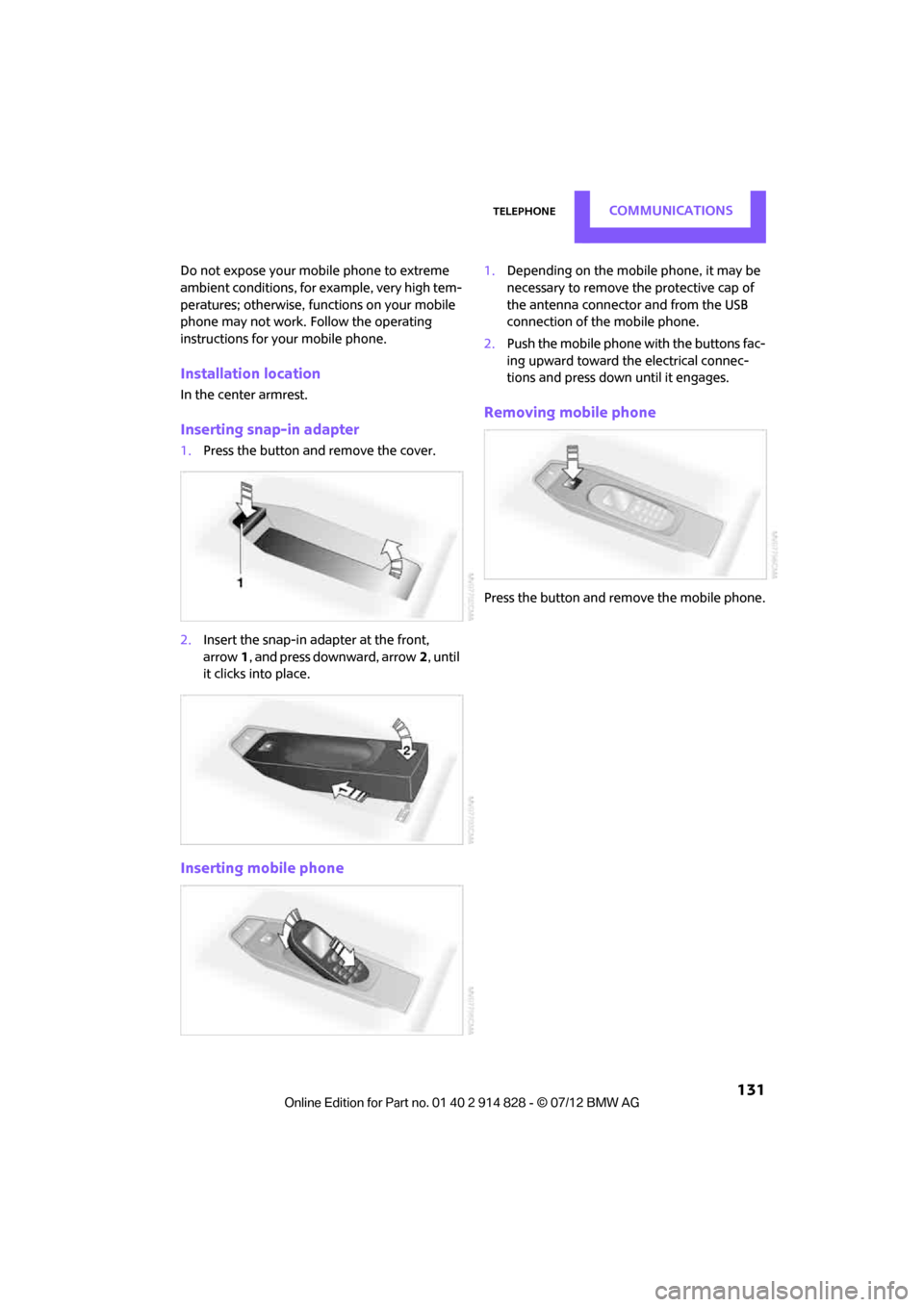

TelephoneCOMMUNICATIONS
131
Do not expose your mobile phone to extreme
ambient conditions, for example, very high tem-
peratures; otherwise, functions on your mobile
phone may not work. Follow the operating
instructions for your mobile phone.
Installation location
In the center armrest.
Inserting snap-in adapter
1. Press the button an d remove the cover.
2. Insert the snap-in adapter at the front,
arrow 1, and press downward, arrow 2, until
it clicks into place.
Inserting mobile phone
1. Depending on the mobile phone, it may be
necessary to remove the protective cap of
the antenna connector and from the USB
connection of the mobile phone.
2. Push the mobile phone with the buttons fac-
ing upward toward the electrical connec-
tions and press down until it engages.
Removing mobile phone
Press the button and remove the mobile phone.
Online Edition for Part no. 01 40 2 914 828 - \251 07/12 BMW AG

Everything from A to ZREFERENCE
189
Base plate for telephone or mobile phone
– refer to Snap-in adapter 130
Battery 163
– disposal 31,163
– jump-starting 165
– temporary power failure 164
Battery renewal
– remote control 31
Being towed 167
Belts, refer to Safety belts 37
Belt tensioner, refer to Safety belts 37
Beverage holders, refer to Cupholders 93
Black ice, refer to External
temperature warning 56
Blower, refer to Air flow rate 82,84
Bluetooth, activating/ deactivating 122
Bottle holders, refer to
Cupholders 93
Brake Assist 65
Brake fluid, refer to Service
requirements 61
Brake lamps
– replacing bulbs 159
Brake pads, breaking in 96
Brake rotors 98
– brakes 96
– breaking in 96
Brakes
– ABS 65
– breaking in 96
– MINI Maintenance
System 149
– parking brake 47
– service requirements 61
Brakes, refer to Braking safely 97
Brake system 96
– breaking in 96
– disc brakes 98
– MINI Maintenance
System 149 Breakdown service, refer to
Roadside Assistance 165
Breaking in the clutch 96
Break-in period 96
Bulb changing, refer to Lamps and bulbs 155
Button for starting the
engine 45
Buttons on the steering wheel 11
C
California Proposition 65
warning 5
Call ending 126
Calling, refer to Phone numbers, dialing 126
Can holders, refer to
Cupholders 93
Capacities 187
Car battery, refer to Vehicle
battery 163
Car care 151
Care 151
– car-care products 151
– car washes 151
– CD/DVD drives 154
– high-pressure washers 152
– leather 153
– manual washing 152
– upholstery and fabrics 153
– windows 152
– wiper blades 152
Cargo, securing 102
Cargo area 98
– capacity 186
– Comfort Access 30
– lamp 79
– opening from outside 28
– trunk lid, refer to Tailgate 28
Cargo area, expanding 98
Cargo area lamp 79
Cargo area lid, refer to Tailgate 28
Cargo area partition net, refer to Cargo net 100 Cargo loading
101
– securing cargo 102
– stowing cargo 102
– vehicle 98
Cargo net 100
Car key, refer to Keys/remote controls 22
Carpets, care 153
Car phone
– installation location, refer to
Center armrest 90
Car phone, refer to Telephone 120
Car wash
– before driving in 47
Car wash, care 151
Car washes 151
Catalytic converter, refer to Hot exhaust system 97
CD player 113
– changing the track 113
– fast forward/reverse 113
– playing a track 114
– random order 113
– volume 108
Center armr

est90
Center brake lamp 159
Center console, refer to
Around the center
console 14
Center Rail 91
Center Rail, refer to Storage compartments 91
Central locking system 23
– Comfort Access 30
– from inside 26
– from outside 23
– setting unlocking behavior 23
Changing bulbs 155
Changing wheels 162
Charging the battery 163
Chassis number, refer to Engine compartment 145
Check Control 62
Child restraint fixing system LATCH 42
Online Edition for Part no. 01 40 2 914 828 - \251 07/12 BMW AG

Everything from A to ZREFERENCE
193
Indicator and warning lamps 13,169
– Tire Pressure Monitor TPM 71
Indicator lighting, refer to
Instrument lighting 79
Individual air distribution 83
Individual settings, refer to
Personal Profile 22
Inflation pressure monitoring, refer to Tire Pressure Monitor
TPM 70
Initializing
– Flat Tire Monitor FTM 68
– glass roof, electric 32
Initializing the
– compass, see Calibration 89
Instrument lighting 79
Instrument panel, refer to Cockpit 10
Instrument panel, refer to Displays 12
Integrated key 22
Integrated universal remote control 86
Interior lamps 79
– remote control 25
Interior rearview mirror 40
– automatic dimming
feature 40
Interlock 48
Intermittent mode of the wipers 51
Internal care 153
Internet page 4
J
Jacking points 162
Jets, refer to Window washer
nozzles 52
Jumpering, refer to Jump- starting 165
Jump-starting 165
K
Key, refer to Keys/remote
controls 22
Keyless-Go, refer to Comfort Access 30
Keyless opening and closing,
refer to Comfort Access 30
Key Memory, refer to Personal Profile 22
Keypad dialing 126
Kickdown 48
– automatic transmission with
Steptronic 48
Knock control 135
L
Lamps, refer to Parking lamps/
Low beams 76
Lamps and bulbs, replacing bulbs 155
Lashing eyes, refer to Securing cargo 102
LATCH child restraint fixing
system 42
Leather care 153
LEDs light-emitting diodes 156
Length, refer to Dimensions 185
License plate lamp
– bulb replacement 159
Light
– automatic headlamp control 76
Light alloy wheels, care 153
Light-emitting diodes LEDs 156
Lighter 93
– socket 93
Lighting
– lamps and bulbs 155
– of the instruments 79
– of vehicle, refer to Lamps 76
Light switch 76
Limit 180 Listening to test, scan
– radio MINI Boost CD
110
Load 101
Load securing equipment,
refer to Securing cargo 102
Lock buttons of doors, refer to
Locking 27
Locking
– adjusting confirmation signal 24
– from inside 27
– from outside 24
– without remote control, refer
to Comfort Access 30
Locking and unlocking doors
– confirmation signals 24
– from inside 26
– from outside 23
Longlife oils
– approved motor oils 147
Low beams 76
– automatic 76
– replacing bulb 156
Lower back suppo rt, refer to
Lumbar support 35
Luggage compartment
– doors, refer to Tailgate 28
Luggage compartment
partition net, refer to Cargo
net 100
Luggage rack, re fer to Roof-
mounted luggage rack 103
Lumbar support 35
M
M+S tires, refer to Winter
tires 144
Maintenance, refer to Service
and Warranty Information
Booklet for US models and
Service Guide Booklet for
Canadian models
Maintenance system 149
Malfunction warnings, refer to
Check Control 62
Manual air distribution 83
Online Edition for Part no. 01 40 2 914 828 - \251 07/12 BMW AG

REFERENCEEverything from A to Z
194
Manual mode
– automatic transmission with Steptronic 49
Manual operation
– door lock 26
– fuel filler flap 134
– transmission lock, automatic
transmission 49
Manual station search 109
Manual transmission 47
Manual washing 152
Master key, refer to Integrated key/remote control 22
Maximum cooling 84
Maximum speed
– with winter tires 144
Medical assistance, refer to First aid pouch 165
Microfilter
– for air conditioner 83
– for automatic climate control 85
– MINI Maintenance System 149
Microfilter/activated-charcoal
filter
– MINI Maintenance System 149
Microphone for telephone 14
MINI Internet page 4
MINI Maintenance System 149
Mirror dimming feature 40
Mirrors 39
– exterior mirrors 39
– heating 40
– interior rearview mirror 40
Mobile phone
– adjusting volume 125
– connecting, refer to Mobile
phone, pairing 122
– installation location, refer to Center armrest 90
– pairing 122
– What to do if…. 124
Mobility Kit 160
Modifications, technical, refer to For your own safety 4Monitoring syst
em for tire
pressures, refer to Flat Tire
Monitor 68
MP3 113
Multifunctional steering wheel, refer to Buttons on
the steering wheel 11
Multifunction switch
– refer to Turn signals/ headlamp flasher 50
– refer to Wiper system 51
Music tracks
– playing a track 114
– random order 113
N
Neck support, refer to Head
restraints 36
Nets, refer to Storage compartments 91
New tires 143
Number of cylinders, refer to Engine data 184
Number of safety belts 34
Nylon rope, refer to Tow rope 168
O
OBD socket, refer to Socket for
On-Board Diagnosis 150
Octane ratings, refer to Fuel
specifications 135
Odometer 56
Oil, refer to Engine oil 146
Oil consumption 146
Oil level 146
Oil types 147
Old batteries, refer to Disposal 163
Opening and closing
– Comfort Access 30
– from inside 26
– from outside 23
– using the door lock 26
– using the remote control 23Opening and unlocking
– from inside
26
Outlets
– refer to Ventilation 85
Outlets, refer to Air vents 81
Output, refer to Engine data 184
Outside-air mode
– automatic climate control 84
Overheated engine, refer to
Coolant temperature 148
P
Paintwork, care152
Park Distance Control PDC 64
Parking
– vehicle 46
Parking aid, refer to Park
Distance Control PDC 64
Parking brake 47
Parking lamps, replacing
bulb 157
Parking lamps/low beams 76
Parts and accessories, see
Vehicle equipment 4
Pathway lighting 77
PDC
– volume 108
Personal Profile 22
Phone numbers
– dialing 126
Pinch protection system
– windows 33
Plastic parts, care 154
Playing a track, scan
– CD 114
Pollen
– refer to Microfilter/activated-
charcoal filter for automatic
climate control 85
– refer to Microfilter for air
conditioner 83
Power failure 164
Power window
– safety switch 33
Power windows 32
Online Edition for Part no. 01 40 2 914 828 - \251 07/12 BMW AG

REFERENCEEverything from A to Z
196
Safety systems
– airbags73
– Antilock Brake System ABS 65
– driving stability control systems 65
– Dynamic Stability Control
DSC 65
– safety belts 37
Safety tires, refer to Run-flat
tires 143
Satellite radio 111
– activating 112
Scan, listening to test
– radio MINI Boost CD 110
Screw thread for tow
fitting 167
Searching
– CD player 113
– radio 109
Searching for a music track
– CD 113
Seat adjustment
– mechanical 35
– rear 36
Seats 35
– adjusting the seats 35
– heating 37
– sitting safely 34
Securing the vehicle
– from inside 26
– from outside 23
Selector lever
– automatic transmission with Steptronic 48
Selector lever lock
– automatic transmission with Steptronic, refer to
Shiftlock 48
– overriding manually 49
Selector lever positions
– automatic transmission with
Steptronic 48
Service, refer to Roadside Assistance 165
Service car, refer to Roadside Assistance 165 Service data in the remote
control 149
Service Interval Display, refer to Condition Based Service
CBS 149
Service requirement display, refer to Condition Based
Service CBS 149
Service requirements 61
Settings
– clock, 12 h/24 h mode 59
Settings and information 57
Setting the date 109
Setting the time format 109
Setting tone controls 109
Shifting gears
– automatic transmission with Steptronic 49
– manual transmission 47
Shiftlock
– automatic transmission, refer to Chang
i

ng selector lever
positions 48
Shift paddles 49
Side airbags 73
Side marker lamps, replacing bulbs 158
Side turn signal
– replacing bulb 158
Side windows, refer to
Windows 32
Signal horn, refer to Horn 10
Sitting safely 34
– airbags 34
– safety belts 34
– with head restraint 34
Size, refer to Dimensions 185
Sliding/tilt sunroof
– refer to Glass roof, electric 31
Slot for remote control 45
Smokers' package, refer to Ashtray 93
Snap-in adapter
– inserting/removing 130
– use 120 Snap-in adapter, refer to
Center armrest storage
compartment 90
Snow chains 144
Socket, refer to Connecting electrical appliances 93
Socket for On-Board Diagnosis
OBD 150
Special oils, refer to Approved engine oils 147
Speed 184
– with winter tires 144
Speed-dependent volume 108
Speedo, refer to Speedometer 12
Speedometer 12
Split rear seat backrest, refer to Expanding the cargo area 98
Sport button 67
Stability control, refer to Driving stability control
systems 65
Start/Stop button 45
– starting the engine 46
– switching off the engine 46
Starting, refer to Starting the engine 46
Starting assistance, refer to
Jump-starting 165
Starting the CD player 113
Starting the engine 46
– Start/Stop button 45
Start-off assistance, refer to
– DSC 65
– Hill Assist 67
Stations, refer to Radio MINI
Boost CD 110
Status of this Ow
ner's Manual
at

time of printing 4
Steering wheel 40
– adjustment 40
– buttons on steering wheel 11
– lock 45
– shift paddles 49
Online Edition for Part no. 01 40 2 914 828 - \251 07/12 BMW AG
