lumbar support MINI Countryman 2014 Owner's Manual

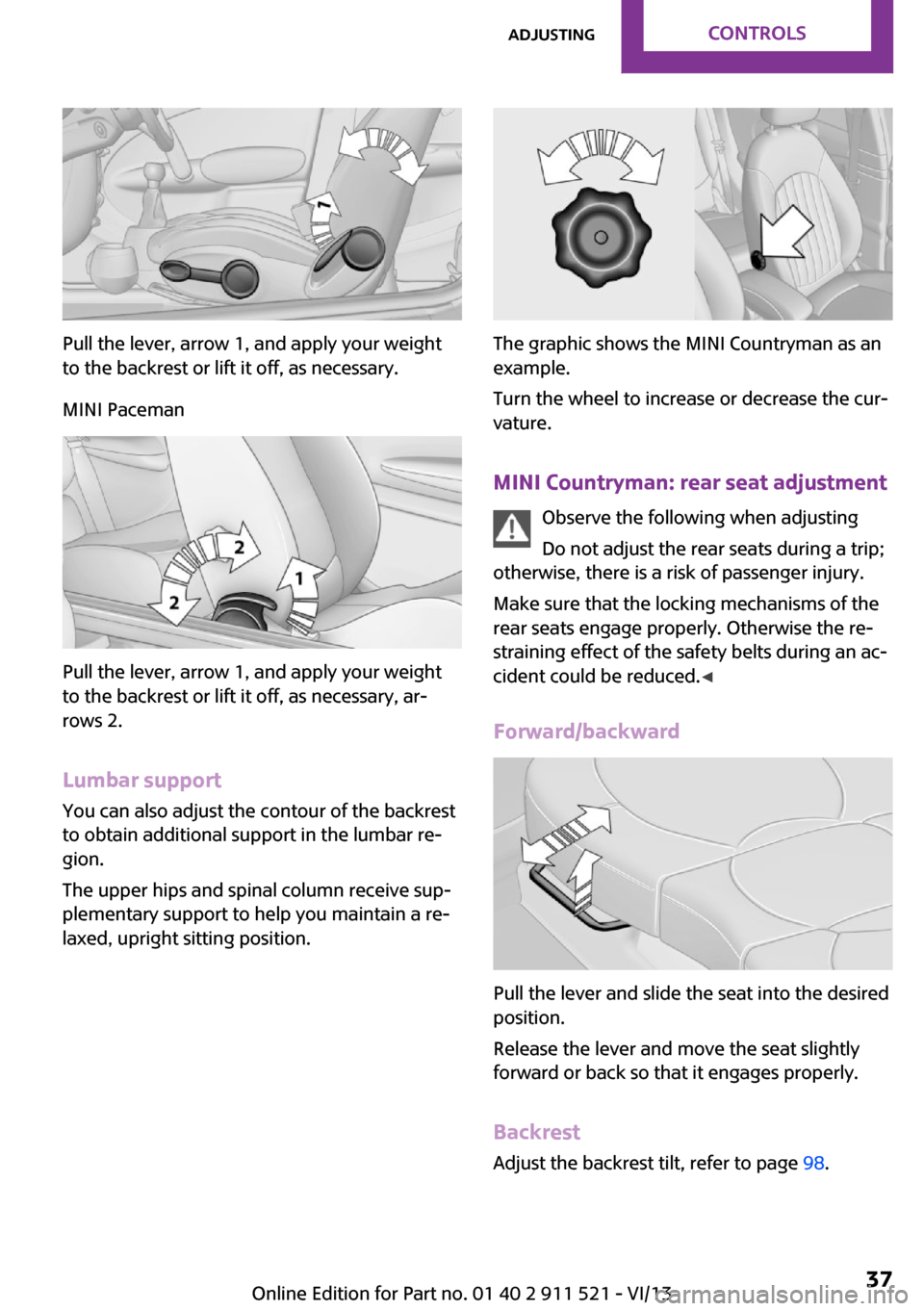

Pull the lever, arrow 1, and apply your weight
to the backrest or lift it off, as necessary.
MINI Paceman
Pull the lever, arrow 1, and apply your weight
to the backrest or lift it off, as necessary, ar‐
rows 2.
Lumbar support
You can also adjust the contour of the backrest
to obtain additional support in the lumbar re‐
gion.
The upper hips and spinal column receive sup‐
plementary support to help you maintain a re‐
laxed, upright sitting position.
The graphic shows the MINI Countryman as an
example.
Turn the wheel to increase or decrease the cur‐
vature.
MINI Countryman: rear seat adjustment Observe the following when adjusting
Do not adjust the rear seats during a trip;
otherwise, there is a risk of passenger injury.
Make sure that the locking mechanisms of the
rear seats engage properly. Otherwise the re‐
straining effect of the safety belts during an ac‐
cident could be reduced. ◀
Forward/backward
Pull the lever and slide the seat into the desired
position.
Release the lever and move the seat slightly
forward or back so that it engages properly.
Backrest Adjust the backrest tilt, refer to page 98.
Seite 37AdjustingControls37
Online Edition for Part no. 01 40 2 911 521 - VI/13

Everything from A to ZIndexA
ABS, Antilock Brake Sys‐ tem 81
Acoustic signal, refer to Check Control 65
Activated charcoal filter with automatic climate con‐
trol 91
Adaptive Light Control 69
Additives, engine oil 167
Airbags 72
Airbags, indicator/warning light 75
Air circulation, refer to Recir‐ culated air mode 88, 90
Air conditioner 87
Air conditioning 87
Air conditioning mode– Air conditioner 87– Automatic climate con‐
trol 89
Air distribution
– Automatic 90– Individual 88– Manual 88, 90
Air drying, refer to Cooling
function 91
Air flow rate 87, 90
Air pressure, refer to Tire infla‐ tion pressure 152
Air supply
– Air conditioner 87– Automatic climate con‐
trol 89
Alarm system 32
Alarm system
– Avoiding unintentional
alarms 32– Interior motion sensor 32– Tilt alarm sensor 32
ALL4 all-wheel system 83
All-wheel drive, refer to
ALL4 83
Alternating-code hand-held transmitter 93
Ambient lighting 71
Antifreeze, washer fluid 55
Antilock Brake System, ABS 81
Anti-slip control, refer to Dy‐ namic Stability Control
DSC 81
Anti-theft protection 23
Approved engine oils 167
Ashtray 96
Assistance, roadside 180
Assistance when driving off, refer to Hill drive-off assis‐
tant 83
Assistance with starting en‐ gine, refer to Jump-start‐
ing 180
Automatic– Air distribution 90– Air flow rate 90
Automatic car wash 186
Automatic climate control
– Automatic air distribution 90
Automatic, cruise control 84
Automatic headlamp con‐ trol 67
Automatic transmission with
Steptronic
– Kickdown 57– Overriding selector lever
lock 58
AUTO program with auto‐
matic climate control 90
AUX-IN port 130
Average fuel consumption 61
Average fuel consumption
– Setting the units 62Average speed 61
Average speed, refer to Com‐ puter 60
B Backrest curvature, refer to Lumbar support 37
Backrests, refer to Seats 36
Backup lamps, bulb replace‐ ment 175
Battery– Disposal 32– Remote control 22
Battery, refer to Vehicle bat‐
tery 178
Battery replacement
– Remote control 32
Belts, refer to Safety belts 38
Belt tensioners, refer to Safety belts 38
Bi-xenon headlamps 172
Blower, refer to Air flow rate 87, 90
Brake assistant 81
Brake discs, breaking in 110
Brake fluid, refer to Service re‐ quirements 64
Brake force distribution, elec‐ tronic 81
Brake pads, breaking in 110
Brakes
– Handbrake 51
Brakes, MINI maintenance
system 169
Brakes, service require‐ ments 64
Brake system, MINI mainte‐ nance system 169
Braking, notes 111
Seite 208ReferenceEverything from A to Z208
Online Edition for Part no. 01 40 2 911 521 - VI/13

Low beams, bulb replace‐ment 173
Lower back support, refer to Lumbar support 37
Lumbar support 37
M
Main inspection, refer to Serv‐ ice requirements 64
Maintenance, refer to Service booklet
Maintenance, refer to Service requirements 64
Maintenance require‐ ments 169
Maintenance system MINI 169
Malfunction– Automatic transmission with
Steptronic 58– Door lock 27– Fuel filler flap 148
Malfunction warnings, refer to
Check Control 65
Manual air distribution 88, 90
Manual mode, automatic transmission with Step‐
tronic 57
Manual operation
– Door lock 27– Selector lever lock, auto‐
matic transmission 58
Manual operation, fuel filler
flap 148
Manual transmission 56
Marking on approved tires 159
Maximum cooling 90
Maximum speed, winter tires 160
Microfilter 89
Microfilter
– With automatic climate con‐
trol 91
MINI Homepage 6
MINI Internet page 6
MINI maintenance sys‐
tem 169
MINI Mobility System 161
Minimum tread, tires 158
Mirrors 42
Mirrors, folding in and out 42
Mirrors, interior mirror 43
Mobile communication devi‐ ces in the vehicle 111
Mobile phone, refer to Tele‐ phone 136
Mobility System 161
Modifications, technical, refer to Safety 7
Mounting of child restraint fix‐ ing systems 44
N Neck restraints, refer to Head restraints 41
New wheels and tires 159
Notes 6
Nozzles, refer to Ventila‐ tion 91
O
OBD Onboard Diagnos‐ tics 170
OBD socket, refer to Socket for OBD Onboard Diagno‐
sis 170
Octane number, refer to Fuel quality 150
Octane rating, refer to Gaso‐ line quality 150
Odometer 59
Oil additives 167
Oil level 166
Oil types, alternative 167
Oil types, approved 167
Onboard Diagnostics OBD 170 Opening and closing– Comfort Access 30– From the inside 27– From the outside 24– Using the door lock 26– Via the remote control 24
Opening and unlocking
– From the inside 27
Outside air mode
– Automatic climate con‐
trol 90
Outside air, refer to Recircu‐
lated air mode 88, 90
Overheating of engine, refer to Coolant temperature 60
P Park Distance Control PDC 85
Parking aid, refer to Park Dis‐ tance Control PDC 85
Parking assistant, refer to Park Distance Control PDC 85
Parking brake, refer to Hand‐ brake 51
Parking lamp, bulb replace‐ ment 173
Parking lamps 67
Parking lamps/low beams 67
PDC Park Distance Control 85
Personal Profile 22
Pinch protection
– Windows 34
Plastic, care 188
Pollen
– Refer to Microfilter 89– Refer to Microfilter/acti‐
vated-charcoal filter 89– Refer to Microfilter/acti‐
vated-charcoal filter with
automatic climate control 91
Poor road operation 113
Power, refer to Engine data 204
Power windows 34
Power windows, refer to Win‐ dows 33
Seite 213Everything from A to ZReference213
Online Edition for Part no. 01 40 2 911 521 - VI/13
