fuel reserve MINI COUNTRYMAN PACEMAN 2015 Owners Manual

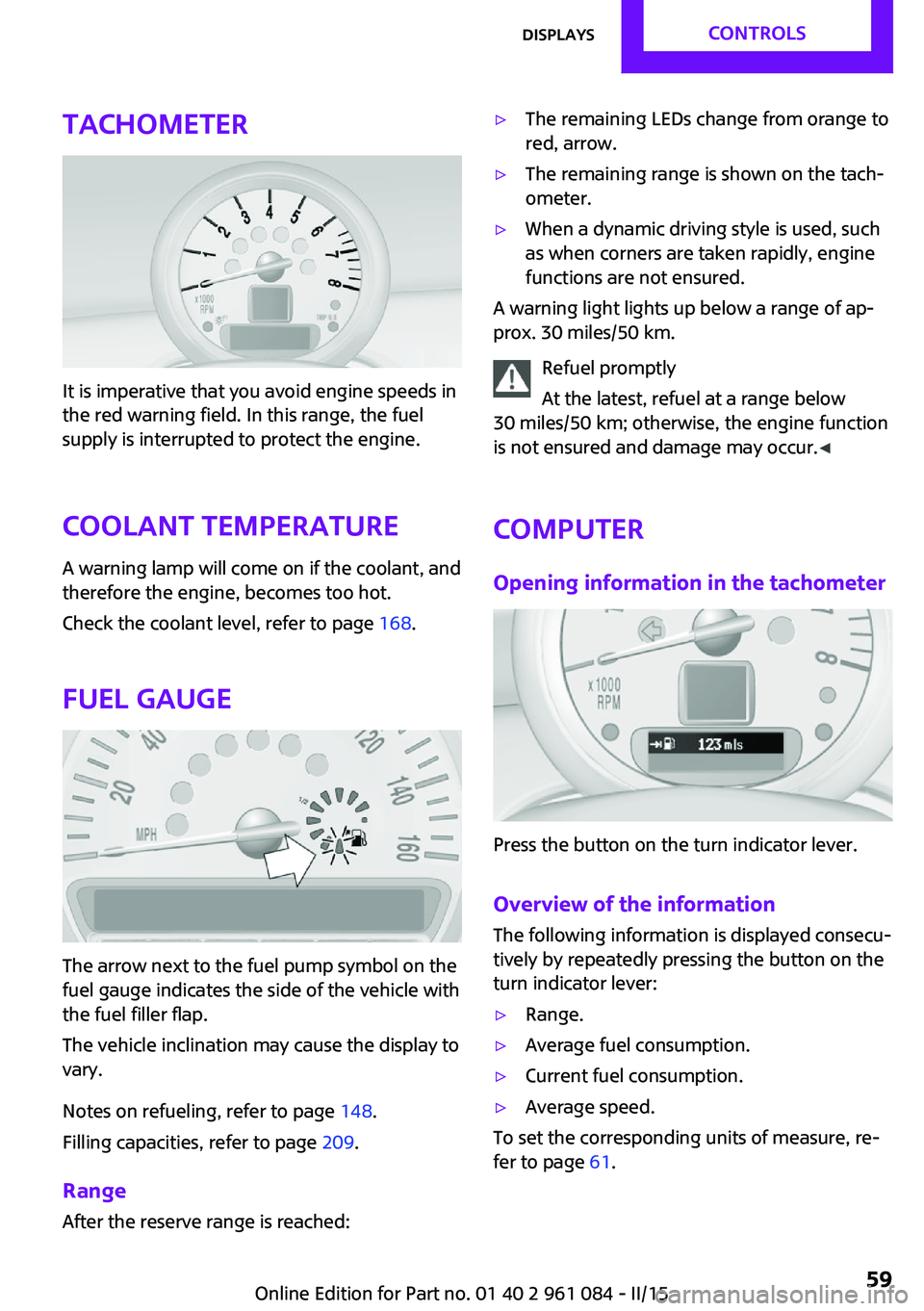

Tachometer
It is imperative that you avoid engine speeds in
the red warning field. In this range, the fuel
supply is interrupted to protect the engine.
Coolant temperature A warning lamp will come on if the coolant, and
therefore the engine, becomes too hot.
Check the coolant level, refer to page 168.
Fuel gauge
The arrow next to the fuel pump symbol on the
fuel gauge indicates the side of the vehicle with
the fuel filler flap.
The vehicle inclination may cause the display to
vary.
Notes on refueling, refer to page 148.
Filling capacities, refer to page 209.
Range After the reserve range is reached:
▷The remaining LEDs change from orange to
red, arrow.▷The remaining range is shown on the tach‐
ometer.▷When a dynamic driving style is used, such
as when corners are taken rapidly, engine
functions are not ensured.
A warning light lights up below a range of ap‐
prox. 30 miles/50 km.
Refuel promptly
At the latest, refuel at a range below
30 miles/50 km; otherwise, the engine function
is not ensured and damage may occur. ◀
Computer
Opening information in the tachometer
Press the button on the turn indicator lever.
Overview of the information
The following information is displayed consecu‐
tively by repeatedly pressing the button on the
turn indicator lever:
▷Range.▷Average fuel consumption.▷Current fuel consumption.▷Average speed.
To set the corresponding units of measure, re‐
fer to page 61.
Seite 59DisplaysCONTROLS59
Online Edition for Part no. 01 40 2 961 084 - II/15

Opening and closing, from theoutside 22
Opening and closing, using the door lock 24
Opening and closing, via the remote control 22
Opening and unlocking from the inside 25
Outside air mode, automatic climate control 91
Outside air, refer to Recircu‐ lated air mode, air condi‐
tioner 89
Outside air, refer to Recircu‐ lated air mode, automatic
climate control 91
Overheating of engine, refer to Coolant temperature 59
P Park Distance Control PDC 86
Parking aid, refer to Park Dis‐ tance Control PDC 86
Parking assistant, refer to Park Distance Control PDC 86
Parking brake 50
Parking light, bulb replace‐ ment 174
Parking lights 66
Parking lights/low beams 66
PDC Park Distance Control 86
Personal Profile 20
Pinch protection, windows 33
Pivoting sun visor 96
Plastic, care 188
Pollen, refer to Microfilter 90
Pollen, refer to Microfilter/ activated-charcoal filter 90
Pollen, refer to Microfilter/ activated-charcoal filter with
automatic climate con‐
trol 92
Poor road operation 113
Power windows 33 Power windows, refer to Win‐
dows 32
Prescribed engine oils, refer to Approved engine oils 167
Pressure monitoring of tires, refer to Tire Pressure Monitor
TPM 76
Pressure, tires 152
Pressure warning, tires 74
Profile depth, refer to Mini‐ mum tread depth 158
Profile, tires 157
Protective function, refer to Pinch protection system,
windows 33
R
Radio MINI Boost CD 122
Radio-operated key, refer to Remote control with
integrated key 20
Radio ready state 48
Radio ready state, switched off 49
Radio ready state, switched on 48
Radio setting, refer to Radio ready state 48
Rain sensor 52
Range 60
Rear 36
Rear fog light, bulb replace‐ ment 176
Rear lights, refer to Tail lights 176
Rear seat backrests, foldable, MINI Countryman 100
Rear seat backrests, foldable, MINI Paceman 101
Rearview mirror, refer to Mir‐ rors 40
Rear window defroster with air conditioner 89 Rear window defroster with
automatic climate con‐
trol 92
Rear window, washing 54
Rear window wiper 54
Recirculated air mode, air conditioner 89
Recirculated air mode, auto‐ matic climate control 91
Recommended fuel grade 150
Recommended tire brands 159
Releasing, refer to Unlock‐ ing 28
Remaining range for service, refer to Service require‐
ments 63
Remaining range, refer to Range 60
Remote control 20
Remote control, battery re‐ placement 30
Remote control, Comfort Ac‐ cess 28
Remote control, Comfort Ac‐ cess, malfunctions 29
Remote control, garage door opener 94
Remote control, radio interfer‐ ence 24
Remote control, removing from the ignition lock 48
Remote control, service data 169
Remote control, universal 94
Replacement remote con‐ trol 20
Replacing wheels/tires 159
Reporting safety defects 9
Reserve warning, refer to Fuel gauge 59
Reservoir for washer fluid, re‐ fer to Washer fluid reser‐
voir 54 Seite 216REFERENCEEverything from A to Z216
Online Edition for Part no. 01 40 2 961 084 - II/15
