MOBILITYCare
164
Leather/leather coverings
The leather processed by the manufac-
turer of your MINI is a high-quality natural
product. Light variations in the grain is one of
the typical properties of natural leather. <
Dust and road grit in th e pores and folds of the
leather have an abrasive effect, leading to
increased wear and causing the leather surface
to become brittle prematurely. Use a cloth or
vacuum cleaner to remo ve dust on a regular
basis.
Especially when the leather has a light color, it
should be cleaned regularl y since it tends to get
heavily soiled.
Treat the leather twice a year using a leather
lotion since dirt and grease will gradually attack
the leather's protective layer.
Carpets/floor mats
Keep floor mats, carpet, and other objects
out of the movement range of the pedals;
otherwise, they may inhibit the function of the
pedals during driving.
Do not place additional floor mats onto an
existing one or onto other objects.
Only use floor mats that have been approved for
the vehicle and can be appropriately fastened.
Make sure that the fl oor mats are securely
fastened again after they have been removed,
e.g. for cleaning. <
Floor mats can be removed to be cleaned.
If the carpets are very dirty, clean with a micro-
fiber cloth and water or an interior cleaner.
When doing so, rub forw ard and back in the
driving direction; othe rwise, the carpet may
become matted.
Interior plastic parts
These include:
> Plastic surfaces
> Lamp glass
> Display panes
> Mat parts Only clean with water and, if necessary, solvent-
free plastic cleaners.
Do not use solvents such as alcohol,
lacquer thinner, cold cleaners, fuel, or
similar, as these will damage the surfaces. <
Decorative strips
Only clean decorative strips and fine wood parts
with damp cloths. Wipe dry with a soft cloth.
Safety belts
Dirty belt straps impede the reeling action and
thus have a negative impact on safety.
Do not clean chemically, as this may
destroy the webbing. <
Displays
To clean displays, such as the radio or display
elements, use an anti-static microfiber cloth.
Avoid pressing too hard when cleaning
the display as this can cause damage. <
Do not use chemical or abrasive house-
hold cleaning agents. Keep fluids of any
kind away from the device. Surfaces or electrical
components may otherwise become corroded
or damaged. <
CD/DVD drives
Do not use cleaning CDs as this could
damage parts of the drive. <
Vehicle storage
If you park your vehicle longer than three
months, ask your MINI dealer to advise you.
Online Edition for Part no. 01 40 2 914 786 - \251 07/12 BMW AG

MOBILITYReplacing components
166
2.Press together the lo cking spring, arrows1,
and fold out the wiper blade, arrow 2.
3. Pull the wiper blade forward and out of the
catch mechanism.
4. Press the new wiper blade into the fixture
until it engages audibly.
To avoid damage, make sure that the
wiper arms are against the windshield
before you open the hood. <
MINI Convertible: wiper blade
replacement
1.Fold out the wiper arm and hold it.
2. Press locking spring together, arrows1.
3. Hold locking spring pressed together and
pull wiper blade from wiper arm, arrow 2.
4. Slide the new wiper blade onto the wind-
shield wiper arm until it audibly engages.
5. Fold down the wiper arm.
To avoid damage, make sure that the
wiper arms are against the windshield
before you open the hood. <
Lamps and bulbs
Lamps and bulbs make an essential contribution
to vehicle safety. They should, therefore, be
handled carefully. The manufacturer of your
MINI recommends having your MINI dealer per-
form any work that you do not feel competent to
perform yourself or that is not described here.
Never touch the glass of new bulbs with
your bare fingers, as even minute amounts of contaminatio
n will burn into the
bulb's surface and reduce its service life. Use a
clean tissue, cloth or some thing similar, or hold
the bulb by its base. <
You can obtain a selectio n of replacement bulbs
at your MINI dealer.
Only replace bulbs after they have cooled
down; otherwise, you may burn your
fingers. <
When working on electrical systems,
always begin by switching off the
consumer in question; ot herwise, short circuits
could result. To avoid possible injury or equip-
ment damage when replacing bulbs, observe
any instructions provided by the bulb manu-
facturer. <
Caring for headlamp s, refer to page162.
For any bulb replacement not described
below, contact a MINI dealer or a work-
shop that has specia lly trained personnel
working in accordance wi th the specifications
of the MINI manufacturer. <
For checking and adjusting headlamp aim,
please contact your MINI dealer. <
Light-emitting diodes LEDs
Light-emitting diodes installed behind translu-
cent lenses serve as the light sources for many of
the controls and displays in your vehicle. These
light-emitting diodes are related to conven-
tional laser diodes, and legislation defines them
as Class 1 light-emitting diodes.
Do not remove the covers or expose the
eyes directly to the unfiltered light source
for several hours; otherw ise, this could cause
irritation of the retina. <
Headlamp glass lens
In cool or humid weather, condensation may
occur on the interiors of the headlamps. The
condensation disappears a short time after the
light is switched on. The headlamps do not need
to be changed.
Do not remove the condensation from head-
Online Edition for Part no. 01 40 2 914 786 - \251 07/12 BMW AG

MOBILITYIndicator and warning lamps
186
Lights up in red:
Battery is no longer being charged.
Alternator malfunctionSwitch off all unnecessary electrical
consumers. Have the battery checked
without delay.
Lights up in yellow:
Battery charge level very low, battery
aged or not securely connected C h a r g e i t b y t a k i n g a longer drive or by
using an external charger. Possibly
automatic switch-off of power
consuming devices. Have the battery
checked as soon as possible.
Display in US models
Parking brake applied
Display in Canadian models
Parking brake applied
Display in US models
Parking brake applied while driv ing Release the parking brake.
Display in Canadian models
Parking brake applied while driv ing Release the parking brake.
Display in US models
Lights up in red:
Brake fluid level too low Braking action is reduced, stop with
care. Contact your nearest MINI
dealer.
12Cause What to do
Online Edition for Part no. 01 40 2 914 786 - \251 07/12 BMW AG

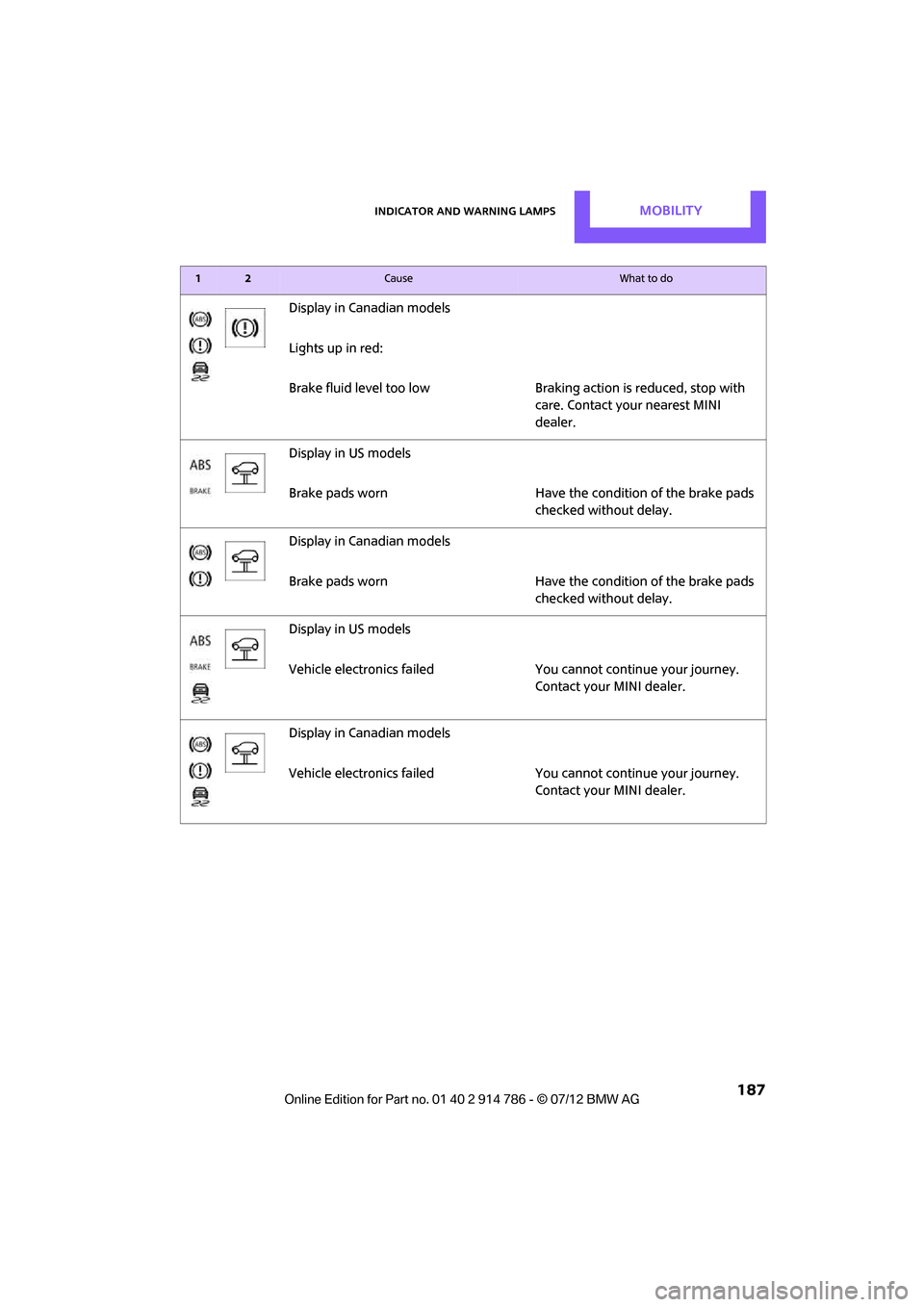

Indicator and warning lampsMOBILITY
187
Display in Canadian models
Lights up in red:
Brake fluid level too lowBraking action is reduced, stop with
care. Contact your nearest MINI
dealer.
Display in US models
Brake pads worn Have the condition of the brake pads
checked without delay.
Display in Canadian models
Brake pads worn Have the condition of the brake pads
checked without delay.
Display in US models
Vehicle electronics failed You cannot continue your journey.
Contact your MINI dealer.
Display in Canadian models
Vehicle electronics failed You cannot continue your journey.
Contact your MINI dealer.
12Cause What to do
Online Edition for Part no. 01 40 2 914 786 - \251 07/12 BMW AG

Indicator and warning lampsMOBILITY
189
The Dynamic Stability Control DSC
and Dynamic Traction Control DTC
systems have failedDriving stability limited during
acceleration and cornering.
You can continue your journey, but
moderate your speed and exercise
due caution. Have the system
checked as soon as possible.
Display in US models
The driving stabili ty control systems,
including ABS and the Tire Pressure
Monitor, have failed, refer also to
page 76 Reduced braking and driving stability.
Drive cautiously and think well ahead.
Avoid braking with full force, driving
on rough tracks, and depressing the
accelerator pedal to full throttle or
kickdown position. Have the system
checked immediately.
Display in Canadian models
The driving stabili ty control systems,
including ABS and the Flat Tire
Monitor or the Tire Pressure Monitor,
have failed, refer also to page 76Reduced braking and driving stability.
Drive cautiously and think well ahead.
Avoid braking with full force, driving
on rough tracks, and depressing the
accelerator pedal to full throttle or
kickdown position. Have the system
checked immediately.
Vehicles with Flat Tire Monitor
Light up in yellow and red:
> Tire damage Carefully bring the car to a stop.
Observe the information starting on
page
80.
> Flat Tire Monitor not initialized Initialize Flat Tire Monitor, page
80.
Light up in yellow:
Flat Tire Monitor failed. Punctures are
not indicated Have the system checked.
12Cause What to do
Online Edition for Part no. 01 40 2 914 786 - \251 07/12 BMW AG

REFERENCEEverything from A to Z
208
Cleaning headlamps62
– washer fluid 62
Clock
– setting time 73
– 12 h/24 h mode 70
Closing
– from inside 27
– from outside 23
Clothes hooks 100
Cockpit 10
Cold start, refer to Starting the engine 56
Comfort Access 31
– replacing the battery 33
– what to observe before entering a car wash 32
Comfort area, refer to Around the center console 14
Compartment for remote
control, refer to Ignition
lock 55
Compressed audio files 121
Computer 66
Condensation, refer to When the vehicle is parked 108
Condition Based Service CBS 159
Configuring settings, refer to
Personal Profile 22
Connecting vacuum cleaner,
refer to Connecting electrical
appliances 101,102
Consumption, refer to Average
fuel consumption 66
Control Display
– settings 68
Controls and displays 10
Convenience operation
– windows 24
Convenient access, refer to Comfort Access 31
Convenient start, refer to
Starting the engine 56
Convertible top 34
– manual 39
– mechanical 39 Coolant
158
– checking level 158
– filling 158
– temperature 158
Cooling, maximum 97
Cooling fluid, refer to Coolant 158
Copyright 2
Cornering light, refer to Adaptive Light Control 90
Cruising range 66,67
Cupholders 101
Curb weight, refer to
Weights 203
Current fuel consumption 67
D
Dashboard, refer to Cockpit
10
Dashboard instruments, refer to Displays 12
Dashboard lighting, refer to
Instrument lighting 92
Data 196
– capacities 205
– dimensions 197
– engine 196
– weights 203
Data memory 160
Date
– setting 73
Daytime running lights 89
DBC Dynamic Brake Control,
refer to Brake Assist 76
Deactivating front passenger airbags 85
Deadlocking, refer to Locking 25
Defect
– door lock 27
– fuel filler flap 140
Defogging windows 96,98
Defrosting windows 96,98
Defrosting windows and removing condensation
– air conditioner 96
– automatic climate control 98Defrosting windshield, refer to
Defrosting windows 96,98
Defrost positi on, refer to
Defrosting windows 96,98
Differential, breaking in 106
Digital radio, refer to HD Radio 119
Dimensions 197
Dipstick, engine oil 156
Directional indicators, refer to
Turn signals 60
Displacement, refer to Engine data 196
Display lighting, refer to Instrument lighting 92
Displays 12
– care 164
– instrument panel 12
Displays and controls 10
Disposal
– of coolant 158
– remote control battery 33
– vehicle battery 176
Distance remaining to service, refer to Service
requirements 71
Distance warning, refer
to Park
Distance Control PDC 75
Door key, refer to Integrated key/remote control 22
Door lock 26
Door lock, confirmation signals 25
Doors, manual operation 27
DOT Quality Grades 151
Drinks holders, refer to
Cupholders 101
Drive-off assistant, refer to Hill Assist 78
Driving dynamics control, refer to Sport button 78
Driving lamps, refer to Parking
lamps/low beams 88
Driving notes 106
Driving off on inclines, refer to
Hill Assist 78
Online Edition for Part no. 01 40 2 914 786 - \251 07/12 BMW AG

Everything from A to ZREFERENCE
209
Driving stability control systems 76
Driving through water 107
Driving tips, refer to Driving
notes 106
Dry air, refer to Cooling function 98
DSC Dynamic Stability Control 76
DTC Dynamic Traction
Control 77
Dynamic Brake Control DBC, refer to Brake Assist 76
Dynamic Stability Control DSC 76
Dynamic Traction Control
DTC 77
E
Eject button 122
Electrical malfunction
– convertible top 36,42
– door lock 27
– fuel filler flap 140
– tailgate 28
Electric power windows
– initializing 33
Electronic brake-force distribution 76
Electronic Stability Program ESP, refer to Dynamic
Stability Control DSC 76
Emergency operation, refer to Manual operation
– convertible top 36,42
– door lock 27
– fuel filler flap 140
– transmission lock, automatic
transmission 59
Emergency operation, see manual operation
– tailgate 28
Emergency services, refer to Roadside Assistance 177
Emergency unlocking 29
Ending a call 134 Engine
– breaking in
106
– data 196
– overheated, refer to Coolant
temperature 158
– speed 196
– starting, Comfort Access 31
Engine compartment 155
Engine coolant, refer to Coolant 158
Engine oil
– additives, refer to Approved engine oils 157
– alternative oil types 157
– approved engine oils 157
– capacity 157
– checking level 156
– dipstick 156
– intervals between changes,
refer to Service
requirements 71
– MINI Maintenance
System 159
Engine oil level, checking 156
Engine output, refer to Engine
data 196
Engine starting, refer to Starting the engine 56
ESP Electronic Stability Program, refer to Dynamic
Stability Control DSC 76
Exhaust system, refer to Hot exhaust system 107
Exterior mirrors 49
– adjusting 49
– auto

matic heating 50
– folding in and out 49
External audio device 99,116
External care 161
External temperature display
– change units of measure 70
– in the onboard computer 70
Eyes
– for tow-starting and towing away 179
– for tying down loads 111
F
Failure messages, refer to
Check Control 73
Failure of an electrical consumer 176
Fastening safety be lts, refer to
Safety belts 48
Fast forward
– CD 121
Fault messages, refer to Check
Control 73
Filter
– microfilter/activated- charcoal filter for automatic
climate control 98
– microfilter for air conditioner 96
Fine wood, care 164
First aid pouch 177
Fixture for remote control, refer to Ignition lock 55
Flash when locking/ unlocking 25
Flat tire
– run-flat tires 152
– Tire Pressure Monitor TPM 82
Flat Tire Monitor FTM 80
– indicating a flat tire 81
– initializing the system 80
– snow chains 80
– system limits 80
Flat tires, refer to Tire
condition 151
Floor mats, care 164
Fog lamps
– replacing bulb 168,170
Folding roof, refer to Convertible top with
integrated sliding sunroof 34
Footbrake, refer to Braking safely 107
Footwell lamps 92
For your own safety 4
Front airbags 85
Online Edition for Part no. 01 40 2 914 786 - \251 07/12 BMW AG

REFERENCEEverything from A to Z
210
Front fog lamps91
– indicator lamp 181
– replacing bulb 168
Front seat adjustment 46
Frost on windows, refer to Defrosting windows 96,98
FTM, refer to Flat Tire
Monitor 80
Fuel 141
– fuel tank volume 205
– gauge 65
– high-quality brands 141
– quality 141
Fuel clock, refer to Fuel gauge 65
Fuel consumption display
– average fuel consumption 66
Fuel display, refer to Fuel gauge 65
Fuel filler flap 140
– releasing in the event of electrical malfunction 140
Fuel specifications 141
Fuses 176
G
Gasoline
– refer to Average fuel
consumption 66
– refer to Required fuel 141
Gasoline display, refer to Fuel gauge 65
Gear indicator
– automatic transmission with Steptronic 58
Gear shifting
– automatic transmission 58
– manual transmission 57
Gearshift lever
– automatic transmission with Steptronic 58
– manual transmission 57
General driving notes 106Glass roof, electric
– convenience operation
24
– remote control 24
Glove compartment 99
Gong
– volume 116
Grills, refer to Air vents 94
Gross vehicle weight, refer to Weights 203
H
Halogen lamps
– replacing bulb 167
Handbrake, refe r to Parking
brake 57
Hands-free system 14,136
Hazard warning flashers 14
HD Radio 119
Head airbags 85
Headlamp control, automatic 88
Headlamp flasher 60
– indicator lamp 11,95,181
Headlamp glass lens 166
Headlamps
– care 162
– replacing bulb 167
Head Light, refer to Adaptive Light Control 90
Head restraints 47
– sitting safely 45
Heated
– mirrors 50
– rear window 95,98
– seats 48
Heating 94
– mirrors 50
– rear window 95,98
– seats 48
Heavy loads, refer to Stowing cargo 111
Height, refer to Dimensions 197 Height adjustment
– seats
46
– steering wheel 50
High beams 91
– headlamp flasher 91
– indicator lamp 95,181
– replacing bulb 167
High water, refer to Driving through water 107
Hill Assist 78
Hills 107
Holders for cups 101
Homepage 4
Hood 156
Horn 10
Hot exhaust system 107
Hydroplaning 107
I
IBOC, refer to HD Radio 119
Ignition 55
– switched off 56
– switched on 55
Ignition key, refer to
Integrated key/remote
control 22
Ignition key position 1, refer to
Radio readiness 55
Ignition key position 2, refer to
Ignition on 55
Ignition lock 55
Imprint 2
Incoming call 133
Indicator and warning lamps 13,181
– Tire Pressure Monitor TPM 83
Indicator lighting, refer to Instrument lighting 92
Individual air distribution 96
Individual settings, refer to Personal Profile 22
Inflation pressure monitoring, refer to Tire Pressure Monitor
TPM 82
Online Edition for Part no. 01 40 2 914 786 - \251 07/12 BMW AG

Everything from A to ZREFERENCE
211
Initializing
– Flat Tire Monitor FTM80
Instrument lighting 92
Instrument panel, refer to
Cockpit 10
Instrument panel, refer to Displays 12
Integrated key 22
Interior lamps 92
– remote control 26
Interior rearview mirror 50
– automatic dimming feature 50
Interlock 58
Intermittent mode of the wipers 61
Internal care 163
Internet page 4
J
Jacking points 174
Jets, refer to Window washer nozzles 62
Jumpering, refer to Jump-
starting 177
Jump-starting 177
K
Key, refer to Keys/remote
controls 22
Keyless-Go, refer to Comfort
Access 31
Keyless opening and closing, refer to Comfort Access 31
Key Memory, refe r to Personal
Profile 22
Keypad dialing 134
Kickdown 58
– automatic transmission with Steptronic 58
Knock control 141
L
Lamps, refer to Parking lamps/
Low beams 88
Lamps and bulbs, replacing bulbs 166
Lashing eyes, refer to Securing
cargo 111
LATCH child restraint fixing system 52
Leather care 164
LEDs light-emitting diodes 166
Length, refer to
Dimensions 197
License plate lamp
– bulb replacement 170
Light alloy wheels, care 163
Light-emitting diodes LEDs 166
Lighter 101
– socket 101
Lighting
– lamps and bulbs 166
– of the instruments 92
– of vehicle, refer to Lamps 88
Light switch 88
Limit 193
Listening to test, scan
– radio MINI Boost CD 118
Load 110
Load securing equipment, refer to Secu ring cargo111
Lock buttons of doors, refer to
Locking 27
Locking
– adjusting confirmation
signal 25
– from inside 27
– from outside 25
– without remote control, refer to Comfort Access 31
Locking and unlocking doors
– confirmation signals 25
– from inside 27
– from outside 24 Longlife oils
– approved motor oils
157
Low beams 88
– automatic 88
– replacing bulb 167
Lower back suppo rt, refer to
Lumbar support 46
Luggage compartment
– emergency unlocking 29
– increasing the capacity 109
– opening from the inside 28
– refer to Cargo area 28
Luggage compartment lid
– emergency operation, see manual unlocking 28
– refer to Tailgate 28
Lumbar support 46
M
M+S tires, refer to Winter
tires 153
Maintenance, refer to Service and Warranty Information
Booklet for US models and
Service Guide Booklet for
Canadian models
Maintenance system 159
Malfunction
– convertible top 36,42
– tailgate 28
Malfunction warnings, refer to Check Control 73
Manual air distribution 96
Manual convertible top 39
Manually operated convertible
top 39
Manual mode
– automatic transmission with
Steptronic 59
Manual operation
– door lock 27
– fuel filler flap 140
– power convertible top 36,42
– tailgate 28
– transmission lock, automatic transmission 59
Online Edition for Part no. 01 40 2 914 786 - \251 07/12 BMW AG

REFERENCEEverything from A to Z
214
Selector lever
– automatic transmission with Steptronic 58
Selector lever lock
– automatic transmission with Steptronic, refer to
Shiftlock 58
– overriding manually 59
Selector lever positions
– automatic transmission with
Steptronic 58
Service, refer to Roadside Assistance 177
Service car, refer to Roadside Assistance 177
Service data in the remote
control 159
Service Interval Display, refer to Condition Based Service
CBS 159
Service requirement display, refer to Condition Based
Service CBS 159
Service requirements 71
Settings
– clock, 12 h/24 h mode 70
Setting the date 117
Setting the time format 117
Setting tone controls 117
Shifting gears
– automatic transmission with Steptronic 59
– manual transmission 57
Shiftlock
– automatic transmission, refer to Changing selector lever
positions 58
Side airbags 85
Side turn signal
– replacing bulb 169
Side windows, refer to Windows 33
Signal horn, refer to Horn 10Sitting safely
45
– airbags 45
– safety belts 45
– with head restraint 45
Size, refer to Dimensions 197
Slipstream deflec tor, refer to
Wind deflector 38,43
Slot for remote control 55
Smokers' package, refer to Ashtray 101
Snap-in adapter
– inserting/removing 136
– refer to Center armrest
storage compartment 100
– use 128
Snow chains 154
Socket, refer to Connecting electrical appliances 101
Socket for On-Board Diagnosis
OBD 160
Space-saver spare tire
– changing tires 173
– inflation pressure 143
Spare wh
eel, refer to Space-
saver spare tire 173
Special oils, refer to Approved engine oils 157
Speed 196
– with winter tires 154
Speed-dependent volume 116
Speedo, refer to Speedometer 12
Speedometer 12
Split-folding rear seats 110
Split rear backrest, refer to Split-folding rear seats 110
Sport button 78
Stability contro l, refer to
Driving stability control
systems 76
Start/Stop button 55
– starting the engine 56
– switching off the engine 56
Starting, refer to Starting the engine 56 Starting assistance, refer to
Jump-starting 177
Starting the CD player 121
Starting the engine 56
– Start/Stop button 55
Start-off assistance, refer to
– DSC 76
– Hill Assist 78
Stations, refer to Radio MINI
Boost CD 118
Status of this Owner's Manual at time of printing 4
Steering wheel 50
– adjustment 50
– buttons on steering wheel 11
– lock 55
– shift paddles 59
Steptronic, refer to Automatic transmission with
Steptronic 57
Storage area
– cargo area 108
Storage compartment, front passenger side 100
Storage compartments 100
Storage space
– refer to Luggage compartment in the MINI
Convertible 109
– storage compartments 100
Storing the vehicle 164
Storing tires 154
Stowage, refer to Storage
compartments 100
Summer tires, refer to Wheels and tires 143
Switches, refer to Cockpit 10
Switching off
– engine 56
Switching off
the engine56
– Start/Stop button 55
Switching on
– CD player 116,121
– radio MINI Boost CD 116
Switching the cooling function
on and off 98
Symbols 4
Online Edition for Part no. 01 40 2 914 786 - \251 07/12 BMW AG
