tailgate MINI Coupe 2014 User Guide

Closing the tailgateDrive with the tailgate closed
Only drive with the tailgate closed; other‐
wise, passengers and other road users may be
endangered or the vehicle may be damaged if
an accident occurs or during braking or swerv‐
ing. In addition, exhaust fumes may enter the
passenger compartment. ◀
If, despite this, the vehicle must be driven with
the tailgate open:▷Drive moderately.▷Coupe: close all windows.▷Switch off recirculated air mode and greatly
increase the blower speed.
Hot exhaust system
Hot exhaust system
High temperatures are generated in the
exhaust system.
Do not remove the heat shields installed and
never apply undercoating to them. Make sure
that flammable materials, e. g. hay, leaves,
grass, etc. do not come in contact with the hot
exhaust system during driving, while in idle po‐
sition mode, or when parked. Such contact
could lead to a fire, and with it the risk of seri‐
ous personal injury as well as property damage.
Do not touch hot exhaust pipes; otherwise,
there is the danger of getting burned. ◀
Mobile communication devices in the
vehicle
Mobile communication devices in the ve‐
hicle
It is not recommended to use mobile phones,
such as mobile phones without a direct con‐
nection to an external aerial in the vehicle's
passenger compartment. Otherwise, the vehi‐
cle electronics and mobile communication de‐
vices can interfere with each other. In addition,
there is no assurance that the radiation gener‐
ated during transmission will be discharged
from the vehicle interior. ◀
Hydroplaning On wet or slushy roads, a wedge of water can
form between the tires and road surface.
This phenomenon is referred to as hydroplan‐
ing. It is characterized by a partial or complete
loss of contact between the tires and the road
surface, ultimately undermining your ability to
steer and brake the vehicle.
Hydroplaning
When driving on wet or slushy roads, re‐
duce your speed to prevent hydroplaning. ◀
The risk of hydroplaning increases as the tire
tread depth decreases. Minimum tread depth,
refer to page 162.
Driving through water Drive though calm water only if it is not deeper
than 12 inches/30 cm and at this height, no
faster than walking speed, up to
6 mph/10 km/h.
Adhere to water depth and speed limita‐
tions
Do not exceed this water depth and walking
speed; otherwise, the vehicle's engine, the
electrical systems and the transmission may be
damaged. ◀
Using the handbrake on inclines Using the handbrake
On inclines, do not hold the vehicle sta‐
tionary with a slipping clutch for extended pe‐
riod; use the handbrake instead. Otherwise, the
clutch will be subject to increased wear. ◀
Support from the hill drive-off assistant, refer to
page 91.Seite 113Things to remember when drivingDriving tips113
Online Edition for Part no. 01 40 2 911 475 - VI/13

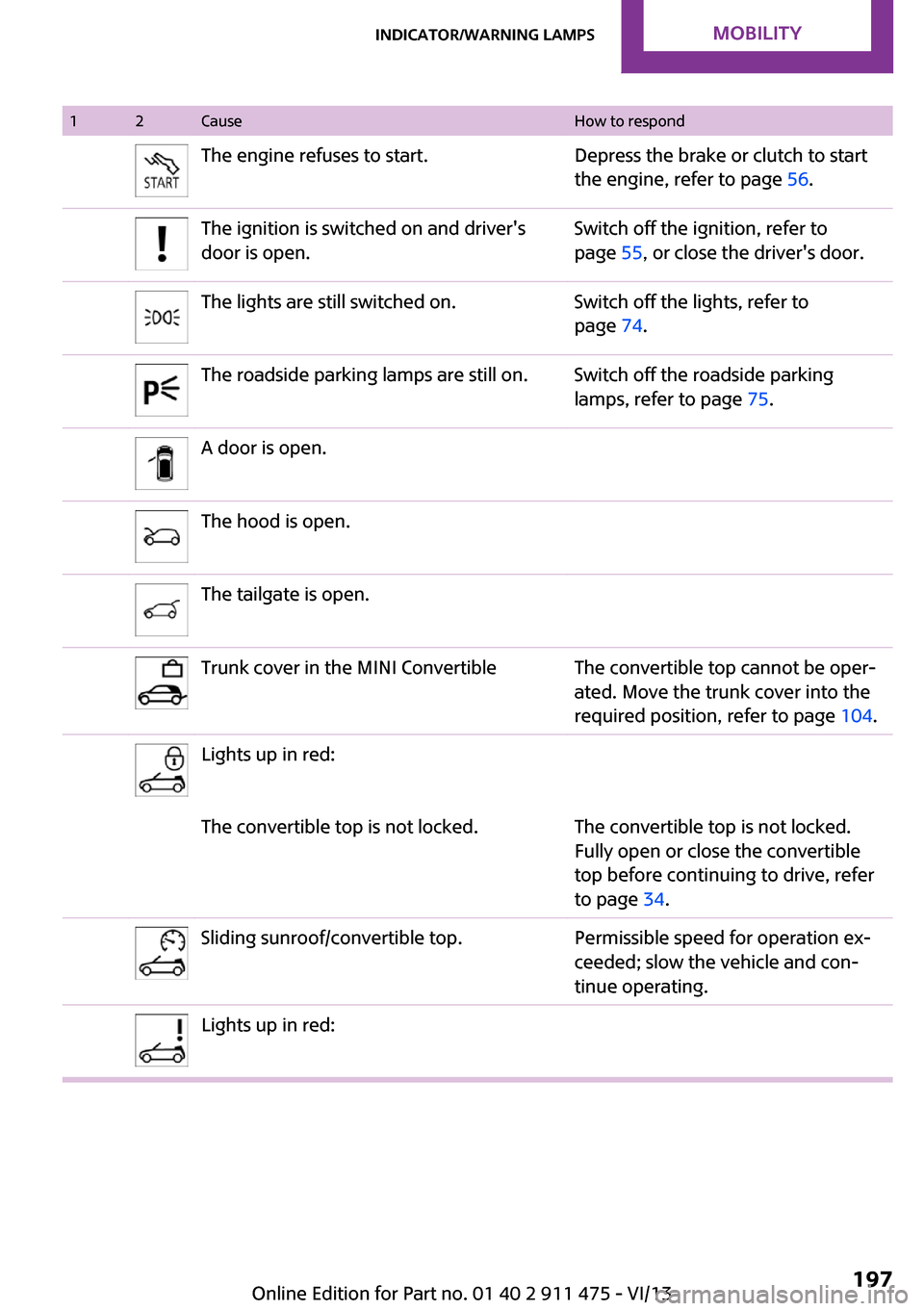

12CauseHow to respondThe engine refuses to start.Depress the brake or clutch to start
the engine, refer to page 56.The ignition is switched on and driver's
door is open.Switch off the ignition, refer to
page 55, or close the driver's door.The lights are still switched on.Switch off the lights, refer to
page 74.The roadside parking lamps are still on.Switch off the roadside parking
lamps, refer to page 75.A door is open.The hood is open.The tailgate is open.Trunk cover in the MINI ConvertibleThe convertible top cannot be oper‐
ated. Move the trunk cover into the
required position, refer to page 104.Lights up in red:The convertible top is not locked.The convertible top is not locked.
Fully open or close the convertible
top before continuing to drive, refer
to page 34.Sliding sunroof/convertible top.Permissible speed for operation ex‐
ceeded; slow the vehicle and con‐
tinue operating.Lights up in red:Seite 197Indicator/warning lampsMobility197
Online Edition for Part no. 01 40 2 911 475 - VI/13

12CauseHow to respondConvertible top control failed!The convertible top position and lock
cannot be detected. When the
convertible top has been securely
locked, you can continue driving.
Close the convertible top/sliding sun‐
roof manually, refer to page 35.
Have the system checked by the
service center.Lights up in yellow:Convertible top drive overheated!Allow the convertible top drive to
cool, refer to page 34.Sliding sunroof/convertible top.Failure of the convertible top/sliding
sunroof control. Close the convertible
top/sliding sunroof manually, refer to
page 35. Contact your service center.Tailgate of the MINI Convertible is not
closedClose the tailgate.MINI Roadster: the indicator lamp lights
up. Fully open the semi-automatic
convertible top.MINI Roadster: the indicator lamp lights
up. The semi-automatic convertible top
movement is completed. Close the
convertible top using the handle.Lights up in yellow:The rear spoiler is extended, refer to
page 91.Before driving into the car wash, re‐
tract the rear spoiler.The rear spoiler cannot be fully extended,
refer to page 91.Drive slowly and have the system
checked by the nearest service cen‐
ter.The fuel cap is missing or loose.Make sure that the fuel cap is cor‐
rectly positioned and close it until it
clicks audibly. Do not jam the strap
between the fuel cap and the vehi‐
cle.Seite 198MobilityIndicator/warning lamps198
Online Edition for Part no. 01 40 2 911 475 - VI/13

C
California Proposition 65 Warning 7
Car battery, refer to Vehicle battery 184
Car care products 192
Care, displays 195
Care, vehicle 192
Cargo area– Comfort Access 29– Emergency activation, refer
to Unlocking manually 27– Emergency unlocking 28– Opening from the out‐
side 27
Cargo area lamp, refer to Inte‐
rior lamps 78
Cargo area tailgate, refer to Tailgate 27
Car horn, refer to Horn 12
Carpet, care 194
Car phone, refer to Tele‐ phone 138
Car wash 191
CBC, Cornering Brake Con‐ trol 89
CBS Condition Based Serv‐ ice 173
CD/DVD drives, care 195
Center console, refer to Around the center con‐
sole 15
Central locking
– Comfort Access 28– From the inside 25– From the outside 22
Central locking system
– Concept 21– From the outside 21
Changes, technical, refer to
Safety 6
Changing wheels/tires 163
Check Control 72
Children, transporting 50
Child restraint fixing system LATCH 52
Child restraint fixing sys‐
tems 50
Child restraint fixing systems, mounting 50
Child seat, mounting 50
Child seats, refer to Transport‐ ing children safely 50
Chrome parts, care 194
Circulation of air, refer to Re‐ circulated air mode 97, 99
Cleaning, displays 195
Cleaning, refer to Care 191
Climate 96
Climate mode– Ventilation 101
Clock 65
Clock
– 12h/24h format 69
Closing
– From the inside 25– From the outside 22
Clutch, breaking in 112
Cockpit 12
Cold start, refer to Starting the engine 56
Combination instrument, refer to Displays 14
Combination switch, refer to Turn signal/high beams/
headlamp flasher 58
Combination switch, refer to Washer/wiper system 59
Comfort Access
– In the car wash 30– Replacing the battery 30
Comfort area, refer to Around
the center console 15
Compact wheel, inflation pres‐ sure 158
Compartment for remote con‐ trol, refer to Ignition lock 55
Computer 66
Computer, displaying informa‐ tion 66
Condition Based Service CBS 173
Confirmation signals for vehi‐
cle locking/unlocking 23
Consumption, refer to Aver‐ age fuel consumption 67
Control Display, care 195
Controls and displays 12
Control systems, driving stabil‐ ity 89
Convenient operation– Windows 23
Convertible top 32
Convertible top
– Manual 38– Mechanical 38
Coolant temperature 66
Cooling function, switching on and off 100
Cooling, maximum 99
Cornering Brake Control, CBC 89
Corrosion on brake discs 114
Cradle for telephone or mobile phone, refer to Snap-in
adapter 145
Cruise control 93
Cupholders 102
Current fuel consumption 67
Curve lights, refer to Adaptive Light Control 76
Cylinders, number of, refer to Engine data 210
D
Dashboard lighting, refer to Instrument lighting 77
Dashboard, refer to Cock‐ pit 12
Dashboard, refer to Dis‐ plays 14
Data, technical 210
Date
– Display format 69– Setting 70
Daytime running lights 75
Decorative trim, care 194
Defogging windows 97
Seite 215Everything from A to ZReference215
Online Edition for Part no. 01 40 2 911 475 - VI/13

Defroster– Rear window 97, 100
Defrosting windows 97
Defrost setting, refer to De‐ frosting windows 97
Dip stick, engine oil 170
Directional indicators, refer to Turn signals 58
Displacement, refer to Engine data 210
Display lighting, refer to In‐ strument lighting 77
Displays 14
Displays and controls 12
Displays, care 195
Displays, cleaning 195
Displays, refer to Instrument cluster 14
Disposal
– Remote control battery 30
Distance warning, refer to
Park Distance Control
PDC 94
Door key, refer to Remote
control with integrated
key 20
Door lock 25
Door lock, confirmation sig‐ nals 23
Doors, manual operation 25
Doors, unlocking and locking
– Confirmation signals 23– From the inside 25– From the outside 22
DOT Quality Grades 160
Drive-off assistant, refer to Hill drive-off assistant 91
Driving notes, breaking in 112
Driving off on hills, refer to Hill drive-off assistant 91
Driving stability control sys‐ tems 89
Driving tips, refer to Driving notes 112
Dry air, refer to Cooling func‐ tion 100
DSC Dynamic Stability Con‐
trol 89
DTC Dynamic Traction Con‐ trol 90
Dynamic Stability Control DSC 89
Dynamic Traction Control DTC 90
E Electrical convertible top 33
Electrical malfunction– Convertible top 35, 41– Door lock 25– Fuel filler flap 150– Tailgate 27
Electronic brake-force distri‐
bution 89
Electronic Stability Program ESP, refer to Dynamic Stabil‐
ity Control DSC 89
Emergency activation
– Automatic transmission, re‐
fer to Overriding selector
lever lock 64
Emergency activation, refer to
Manual activation
– Tailgate 27
Emergency operation, fuel
filler flap, unlocking man‐
ually 150
Emergency operation, refer to
Manual operation
– Convertible top 35, 41– Door lock 25
Energy, saving, refer to Saving
fuel 119
Engine, breaking in 112
Engine compartment 168
Engine oil, adding 170
Engine oil, additives, refer to Approved engine oils 171
Engine oil, alternative oil types 171
Engine oil change intervals,
refer to Service require‐
ments 70
Engine oil, dip stick 170
Engine oil, filling capacity 213
Engine oil, MINI maintenance system 173
Engine oil types, alterna‐ tive 171
Engine oil types, ap‐ proved 171
Engine, overheating, refer to Coolant temperature 66
Engine power, refer to Engine data 210
Engine, RPM 210
Engine start, assistance 186
Engine, starting 56
Engine, starting– Comfort Access 28
Engine, starting, Start/Stop
button 55
Engine, stopping, Start/Stop
button 55
Engine, switching off 57
ESP Electronic Stability Pro‐ gram, refer to Dynamic Sta‐
bility Control DSC 89
Exchanging wheels/tires 163
Exterior mirrors 48
Exterior mirrors, adjusting 48
Exterior mirrors, folding in and out 48
Exterior sensors, care 194
External temperature dis‐ play 65
External temperature display
– Changing the units 69– On the computer 69
External temperature warn‐
ing 65
Externel temperature dis‐ play 65
Seite 216ReferenceEverything from A to Z216
Online Edition for Part no. 01 40 2 911 475 - VI/13

Maintenance require‐ments 173
Maintenance system MINI 173
Malfunction– Automatic transmission with
Steptronic 64– Convertible top 35, 41– Door lock 25– Fuel filler flap 150– Tailgate 27
Malfunction warnings, refer to
Check Control 72
Manual activation
– Tailgate 27
Manual air distribu‐
tion 97, 100
Manual convertible top 38
Manual mode, automatic transmission with Step‐
tronic 63
Manual operation
– Door lock 25– Electrical convertible
top 35, 41– Selector lever lock, auto‐
matic transmission 64
Manual operation, fuel filler
flap 150
Manual transmission 61
Marking on approved tires 163
Maximum cooling 99
Maximum speed, winter tires 164
Mechanical convertible top 38
Microfilter 98
Microfilter
– With automatic climate con‐
trol 100
MINI Homepage 6
MINI Internet page 6
MINI maintenance sys‐ tem 173
MINI Mobility System 165
Minimum tread, tires 162
Mirrors 48
Mirrors, folding in and out 48
Mirrors, interior mirror 48
Mobile communication devi‐ ces in the vehicle 113
Mobile phone, refer to Tele‐ phone 138
Mobility System 165
Modifications, technical, refer to Safety 6
Mounting of child restraint fix‐ ing systems 50
N Neck restraints, refer to Head restraints 47
New wheels and tires 163
Notes 6
Nozzles, refer to Ventila‐ tion 101
O
OBD Onboard Diagnos‐ tics 174
OBD socket, refer to Socket for OBD Onboard Diagno‐
sis 174
Octane number, refer to Fuel quality 152
Octane rating, refer to Gaso‐ line quality 152
Odometer 65
Oil additives 171
Oil level 170
Oil types, alternative 171
Oil types, approved 171
Onboard Diagnostics OBD 174
Onboard vehicle tool kit 175
Opening and closing– Comfort Access 28– From the inside 25– From the outside 22– Using the door lock 25– Via the remote control 22Opening and unlocking– From the inside 26
Outside air mode
– Automatic climate con‐
trol 99
Outside air, refer to Recircu‐
lated air mode 97, 99
Overheating of engine, refer to Coolant temperature 66
P Park Distance Control PDC 94
Parking aid, refer to Park Dis‐ tance Control PDC 94
Parking assistant, refer to Park Distance Control PDC 94
Parking brake, refer to Hand‐ brake 57
Parking lamp, bulb replace‐ ment 178
Parking lamps 74
Parking lamps/low beams 74
PDC Park Distance Control 94
Personal Profile 21
Plastic, care 194
Pollen
– Refer to Microfilter 98– Refer to Microfilter/acti‐
vated-charcoal filter 98– Refer to Microfilter/acti‐
vated-charcoal filter with
automatic climate con‐
trol 100
Power, refer to Engine
data 210
Power windows 31, 32
Power windows
– Initializing 32
Power windows, refer to Win‐
dows 31
Prescribed engine oils, refer to Approved engine oils 171
Pressure monitoring of tires, refer to Tire Pressure Monitor
TPM 85
Pressure, tires 154
Seite 219Everything from A to ZReference219
Online Edition for Part no. 01 40 2 911 475 - VI/13

Pressure warning, tires 83
Profile depth, refer to Mini‐ mum tread depth 162
Profile, tires 161
R
Radio MINI Boost CD 124
Radio-operated key, refer to Remote control with
integrated key 20
Radio ready state 55
Radio ready state, switched off 56
Radio ready state, switched on 55
Radio setting, refer to Radio ready state 55
Rain sensor 59
Range 67
Rear fog lamp 77
Rear fog lamp, bulb replace‐ ment 179
Rear lamps, refer to Tail lamps 179
Rear spoiler 91
Rearview mirror, refer to Mir‐ rors 48
Rear window de‐ froster 97, 100
Recirculated air mode 97, 99
Recommended tire brands 163
Releasing, refer to Unlock‐ ing 29
Remaining range for service, refer to Service require‐
ments 70
Remaining range, refer to Range 67
Remote control– Battery replacement 30– Comfort Access 28– Malfunctions 24, 30– Tailgate 24
Remote control, removing
from the ignition lock 55
Remote control, service
data 173
Replacement remote con‐ trol 20
Replacing wheels/tires 163
Reporting safety defects 9
Reserve warning, refer to Fuel gauge 66
Reservoir for washer fluid, re‐ fer to Washer fluid reser‐
voir 61
Restraining systems– Refer to Safety belts 46
Restraint systems for chil‐
dren 50
Retreaded tires 163
Reverse gear, manual trans‐ mission 62
Roadside Assistance 186
Roadside parking lamp, bulb replacement 178
Roadside parking lamps 75
RON gasoline quality 152
RON, refer to Fuel quality 152
RPM, refer to Engine data 210
Rubber seals, care 194
Run-flat tires 164
Run-flat tires
– Flat tire 84
Run-flat tires, tire inflation
pressure 154
Running lights, refer to Park‐ ing lamps/low beams 74
S Safe braking 114
Safety 6
Safety belts 46
Safety belts
– Damage 47
Safety belts, care 194
Safety belts, indicator/warning lamp 47
Safety belts, reminder 47
Safety systems
– Safety belts 46Safety systems, airbags 80
Saving fuel 119
Seat adjustment– Manual 44
Seat belts
– Refer to Safety belts 46
Seat heating 46
Seats
– Adjusting 44– Heating 46– Sitting safely 44
Selector lever, automatic
transmission with Step‐
tronic 62
Selector lever lock, overrid‐ ing 64
Selector lever lock, refer to Changing selector lever posi‐
tions, Shiftlock 62
Selector lever positions, auto‐ matic transmission with
Steptronic 62
Service and warranty 7
Service data in the remote control 173
Service interval display, refer to Condition Based Service
CBS 173
Service interval display, refer to Service requirements 70
Service requirements 70
Service requirements, CBS Condition Based Service 173
Settings
– Clock, 12h/24h format 69
Settings and information 68
Settings, configuring, refer to Personal Profile 21
Shifting
– Automatic transmission with
Steptronic 63
Shifting, manual transmis‐
sion 61
Shift lever
– Automatic transmission with
Steptronic 62Seite 220ReferenceEverything from A to Z220
Online Edition for Part no. 01 40 2 911 475 - VI/13

Shift paddles on the steeringwheel 63
Side airbags 80
Side windows, refer to Win‐ dows 31
Slot for remote control 55
Snap-in adapter, mobile phone 145
Socket, OBD Onboard Diagno‐ sis 174
Special equipment, series equipment 6
Speed, average 67
Speedometer 14
Speed, with winter tires 164
Sport button 91
Sport program, automatic transmission with Step‐
tronic 63
Stability control systems 89
Start/Stop button 55
Start/Stop button, starting the engine 56
Start/Stop button, switching off the engine 57
Starting the engine 56
Start problems, refer to Jump- starting 186
Steering wheel 49
Steering wheel– Shift paddles 63
Steering wheel, adjusting 49
Steering wheel lock 55
Stopping, engine 57
Storage, tires 164
Storing the vehicle 195
Summer tires, refer to Wheels and tires 154
Summer tires, tread 161
Switches, refer to Cockpit 12
Switching off, engine 57
Switching off, vehicle 57
Symbols 6
T
Tachometer 66
Tailgate– Comfort Access 29– Emergency activation 28– Emergency unlocking 28– Opening/closing 27– Opening from the out‐
side 27– Unlocking manually 27– Unlocking with remote con‐
trol 24
Tail lamps 179
Tank gauge, refer to Fuel gauge 66
Technical changes, refer to Safety 6
Technical data 210
Telephone 138
Temperature
– Air conditioner 97– Automatic climate con‐
trol 100
Temperature, coolant, refer to
Coolant temperature 66
Temperature display
– External temperature 65– External temperature warn‐
ing 65– Setting the units 69
Temperature warning 65
Theft alarm system, refer to Alarm system 31
Time
– Setting the time 70
Tire age 162
Tire identification marks 160
Tire inflation pressure 154
Tire inflation pressure
– Pressure loss 84
Tire pressure monitor, refer to
Flat Tire Monitor 83
Tire Pressure Monitor TPM
– System limits 85– System reset 86– Warning lamp 86
Tire Quality Grading 160
Tires– Flat tire 84– Inflation pressure 154– Inflation pressure loss 86– Pressure monitoring, refer to
Tire Pressure Monitor
TPM 85
Tires, breaking in 112
Tires, changing 163
Tires, condition 161
Tires, damage 162
Tire size 160
Tires, minimum tread 162
Tires, retreaded tires 163
Tires, storage 164
Tire tread 161
Tool kit, refer to Onboard ve‐ hicle tool kit 175
Tools, refer to Onboard vehi‐ cle tool kit 175
Torque, refer to Engine data 210
Towing another vehicle 188
Towing, being towed 188
Tow-starting 188
TPM, refer to Tire Pressure Monitor 85
Traction control 90
Transmission
– Overriding selector lever
lock in case of automatic
transmission with Step‐
tronic 64
Transmission lock
– Refer to Changing selector
lever positions 62
Transmission, manual 61
Transporting children safely 50
Trip-distance counter, refer to Trip odometer 65
Triple turn signal activa‐ tion 58
Trip odometer 65
Trunk
– Opening from the inside 27Seite 221Everything from A to ZReference221
Online Edition for Part no. 01 40 2 911 475 - VI/13

Trunk lid– Emergency activation, refer
to Unlocking manually 27
Trunk lid, refer to Tailgate 27
Trunk, refer to Cargo area 27
Turning lamps, refer to Adap‐ tive Light Control 76
Turn signal
– Indicator lamp 14
Turn signal, bulb replace‐
ment 178
Turn signals 58
Turn signals, triple turn signal activation 58
U
Uniform Tire Quality Grading/ UTQG 160
Unintentional alarms, avoid‐ ing 31
Units
– Average fuel consump‐
tion 69– Temperature 69
Unlocking
– From the inside 26– From the outside 22– Tailgate 29– Without remote control, re‐
fer to Comfort Access 28
Upholstery care 194
Upholstery material care 194
USB audio interface 133
V Vehicle battery 184
Vehicle, breaking in 112
Vehicle care 192
Vehicle care, refer to Care 191
Vehicle equipment 6
Vehicle paintwork, care 193
Vehicle storage 195
Vehicle, switching off 57
Vehicle wash 191
Ventilation– Air conditioning 101
W
Warning and indicator lamps 15
Warning and indicator lamps, overview 196
Warning messages, refer to Check Control 72
Warning triangle 186
Washer/wiper system 59
Washer/wiper system, rain sensor 59
Washer/wiper system, washer fluid 61
Washer fluid 61
Washer fluid reservoir 61
Washing, vehicle 191
Welcome lamps 76
Wheel change 181
Wheels and tires 154
Wheels, changing 163
Wheels, Flat Tire Monitor FTM 83
Wind baffle, refer to Wind de‐ flector 37, 42
Wind deflector 37, 42
Windows
– Closing 31, 32– Convenient operation 23– Opening 31, 32
Windows, care 192
Windows, defrosting and de‐ fogging 97
Windshield
– Defrosting and defogging 97
Windshield, defrosting, refer
to Defrosting windows 97
Windshield wash 59
Windshield washer fluid 61
Windshield wash, reservoir for washer fluid 61
Windshield wash, washer fluid 61
Windshield wiper blades,
changing 175
Windshield wiper, refer to Washer/wiper system 59
Winter storage, care 195
Winter tires 163
Winter tires, tread 161
Wiper blades, care 192
Wiper blades, changing 175
Wiper fluid 61
Y
Your individual vehicle– Settings, refer to Personal
Profile 21Seite 222ReferenceEverything from A to Z222
Online Edition for Part no. 01 40 2 911 475 - VI/13
