adding oil MINI COUPE ROADSTER CONVERTIBLE 2014 Owners Manual

Engine oilVehicle equipment
This chapter describes all series equipment as
well as country-specific and special equipment
offered for this model series.Therefore, it also
describes equipment that may not be found in
your vehicle, for instance due to the selected
special equipment or the country version. This
also applies to safety-related functions and sys‐
tems.

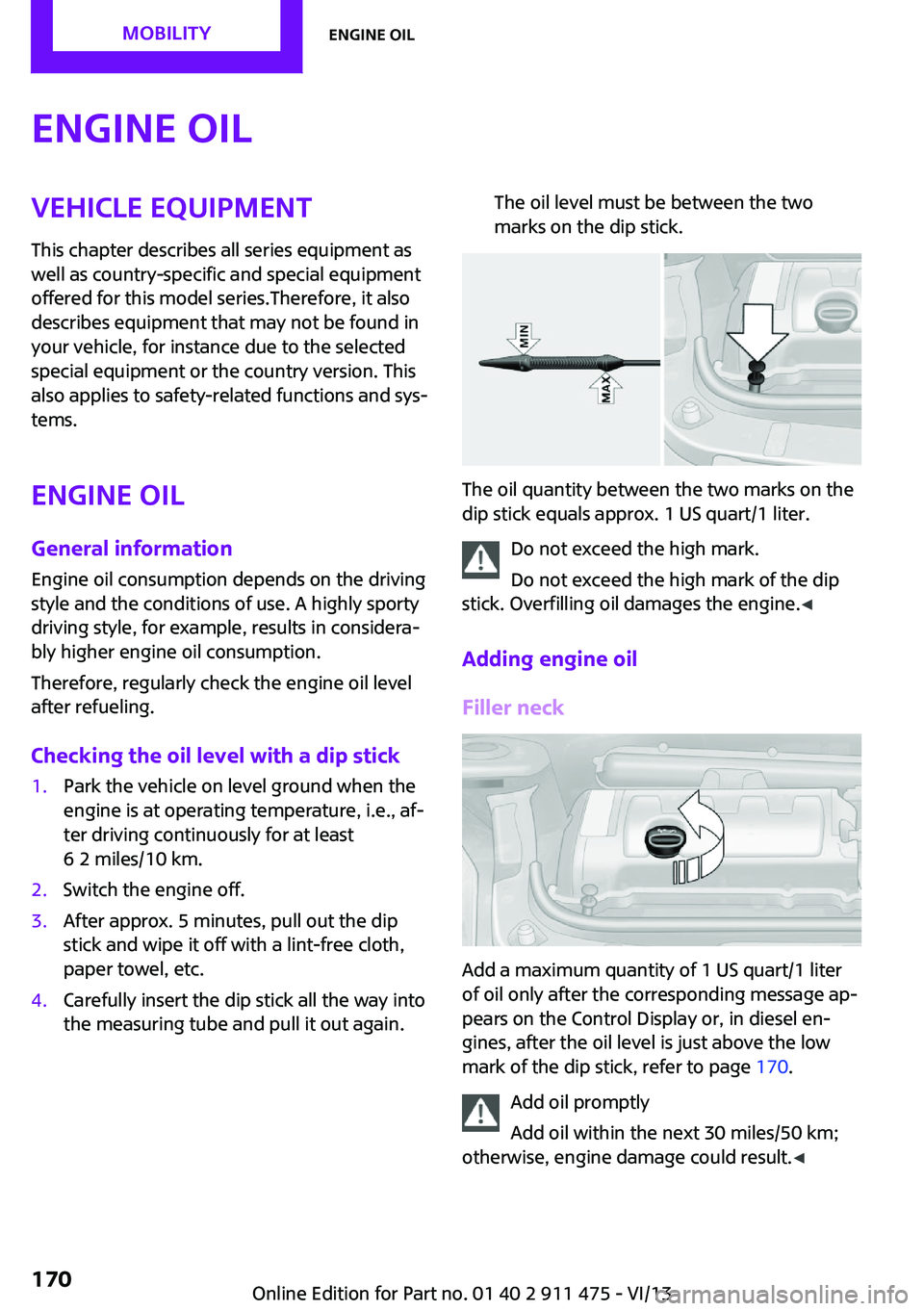

Engine oil General information
Engine oil consumption depends on the driving
style and the conditions of use. A highly sporty
driving style, for example, results in considera‐
bly higher engine oil consumption.
Therefore, regularly check the engine oil level
after refueling.
Checking the oil level with a dip stick1.Park the vehicle on level ground when the
engine is at operating temperature, i.e., af‐
ter driving continuously for at least
6 2 miles/10 km.2.Switch the engine off.3.After approx. 5 minutes, pull out the dip
stick and wipe it off with a lint-free cloth,
paper towel, etc.4.Carefully insert the dip stick all the way into
the measuring tube and pull it out again.The oil level must be between the two
marks on the dip stick.
The oil quantity between the two marks on the
dip stick equals approx. 1 US quart/1 liter.
Do not exceed the high mark.
Do not exceed the high mark of the dip
stick. Overfilling oil damages the engine. ◀
Adding engine oil
Filler neck
Add a maximum quantity of 1 US quart/1 liter
of oil only after the corresponding message ap‐
pears on the Control Display or, in diesel en‐
gines, after the oil level is just above the low
mark of the dip stick, refer to page 170.
Add oil promptly
Add oil within the next 30 miles/50 km;
otherwise, engine damage could result. ◀
Seite 170MobilityEngine oil170
Online Edition for Part no. 01 40 2 911 475 - VI/13

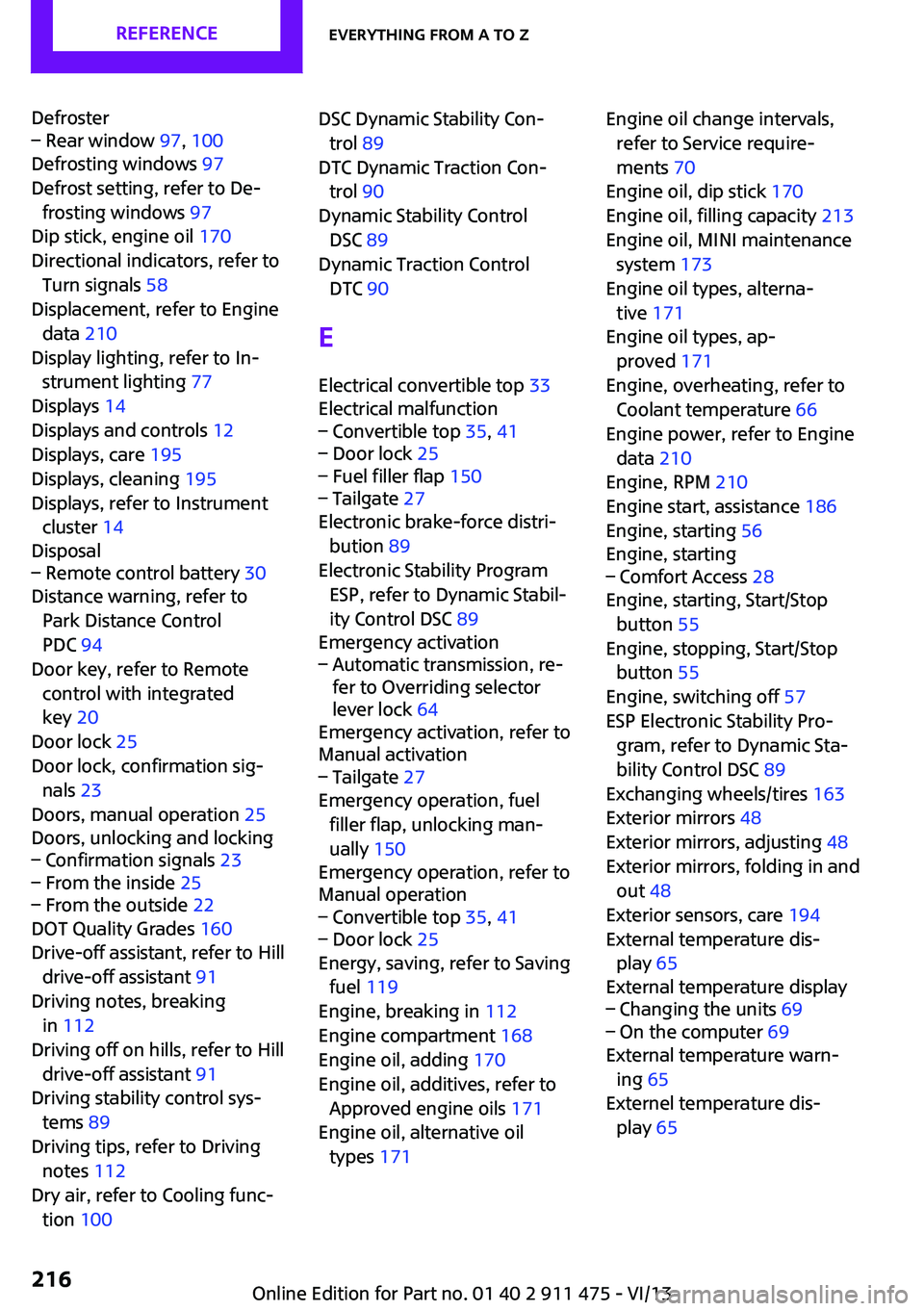

Defroster– Rear window 97, 100
Defrosting windows 97
Defrost setting, refer to De‐ frosting windows 97
Dip stick, engine oil 170
Directional indicators, refer to Turn signals 58
Displacement, refer to Engine data 210
Display lighting, refer to In‐ strument lighting 77
Displays 14
Displays and controls 12
Displays, care 195
Displays, cleaning 195
Displays, refer to Instrument cluster 14
Disposal
– Remote control battery 30
Distance warning, refer to
Park Distance Control
PDC 94
Door key, refer to Remote
control with integrated
key 20
Door lock 25
Door lock, confirmation sig‐ nals 23
Doors, manual operation 25
Doors, unlocking and locking
– Confirmation signals 23– From the inside 25– From the outside 22
DOT Quality Grades 160
Drive-off assistant, refer to Hill drive-off assistant 91
Driving notes, breaking in 112
Driving off on hills, refer to Hill drive-off assistant 91
Driving stability control sys‐ tems 89
Driving tips, refer to Driving notes 112
Dry air, refer to Cooling func‐ tion 100
DSC Dynamic Stability Con‐
trol 89
DTC Dynamic Traction Con‐ trol 90
Dynamic Stability Control DSC 89
Dynamic Traction Control DTC 90
E Electrical convertible top 33
Electrical malfunction– Convertible top 35, 41– Door lock 25– Fuel filler flap 150– Tailgate 27
Electronic brake-force distri‐
bution 89
Electronic Stability Program ESP, refer to Dynamic Stabil‐
ity Control DSC 89
Emergency activation
– Automatic transmission, re‐
fer to Overriding selector
lever lock 64
Emergency activation, refer to
Manual activation
– Tailgate 27
Emergency operation, fuel
filler flap, unlocking man‐
ually 150
Emergency operation, refer to
Manual operation
– Convertible top 35, 41– Door lock 25
Energy, saving, refer to Saving
fuel 119
Engine, breaking in 112
Engine compartment 168
Engine oil, adding 170
Engine oil, additives, refer to Approved engine oils 171
Engine oil, alternative oil types 171
Engine oil change intervals,
refer to Service require‐
ments 70
Engine oil, dip stick 170
Engine oil, filling capacity 213
Engine oil, MINI maintenance system 173
Engine oil types, alterna‐ tive 171
Engine oil types, ap‐ proved 171
Engine, overheating, refer to Coolant temperature 66
Engine power, refer to Engine data 210
Engine, RPM 210
Engine start, assistance 186
Engine, starting 56
Engine, starting– Comfort Access 28
Engine, starting, Start/Stop
button 55
Engine, stopping, Start/Stop
button 55
Engine, switching off 57
ESP Electronic Stability Pro‐ gram, refer to Dynamic Sta‐
bility Control DSC 89
Exchanging wheels/tires 163
Exterior mirrors 48
Exterior mirrors, adjusting 48
Exterior mirrors, folding in and out 48
Exterior sensors, care 194
External temperature dis‐ play 65
External temperature display
– Changing the units 69– On the computer 69
External temperature warn‐
ing 65
Externel temperature dis‐ play 65
Seite 216ReferenceEverything from A to Z216
Online Edition for Part no. 01 40 2 911 475 - VI/13
