MINI COUPE ROADSTER CONVERTIBLE 2015 Owners Manual

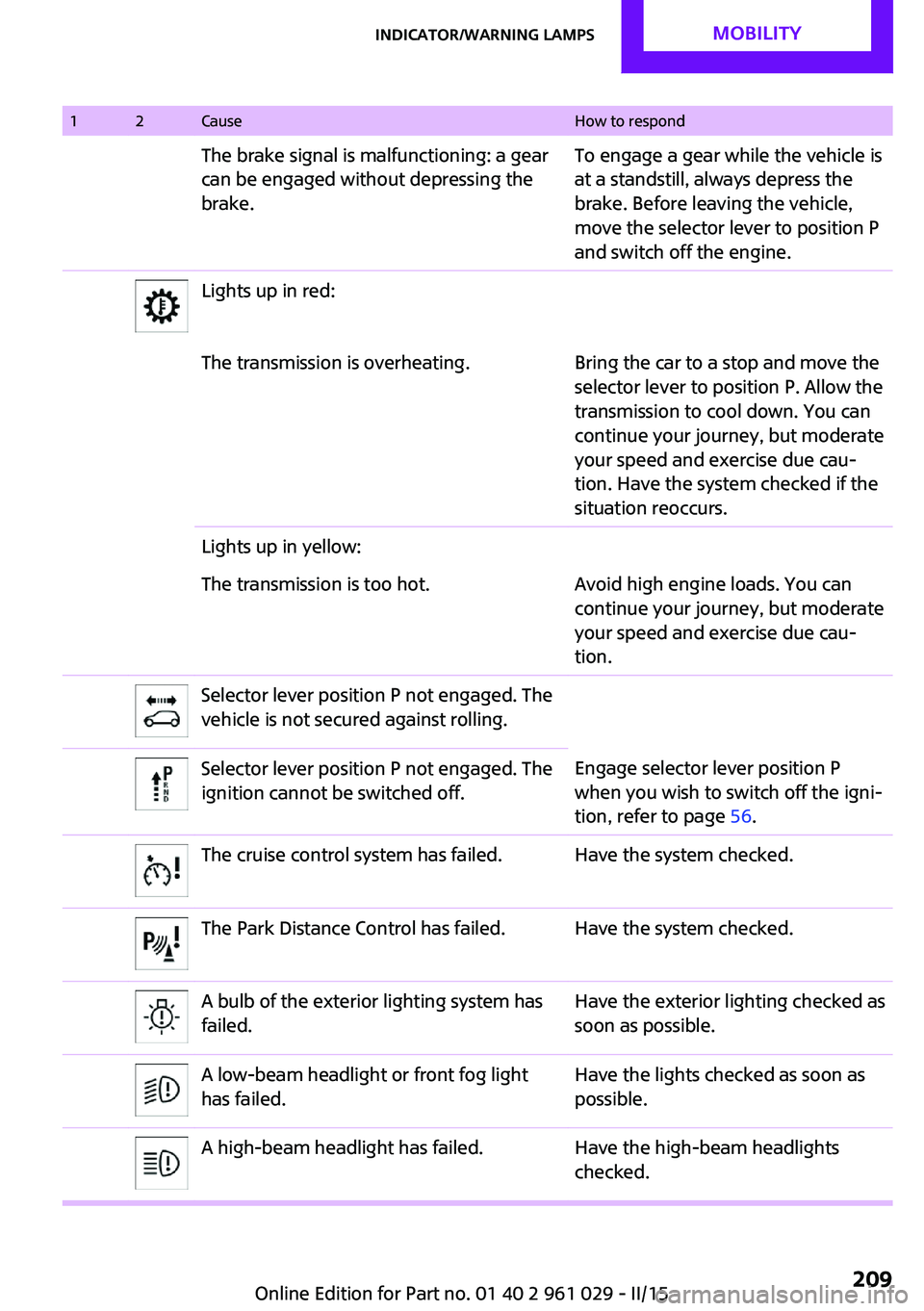

12CauseHow to respondThe brake signal is malfunctioning: a gear
can be engaged without depressing the
brake.To engage a gear while the vehicle is
at a standstill, always depress the
brake. Before leaving the vehicle,
move the selector lever to position P
and switch off the engine.Lights up in red:The transmission is overheating.Bring the car to a stop and move the
selector lever to position P. Allow the
transmission to cool down. You can
continue your journey, but moderate
your speed and exercise due cau‐
tion. Have the system checked if the
situation reoccurs.Lights up in yellow:The transmission is too hot.Avoid high engine loads. You can
continue your journey, but moderate
your speed and exercise due cau‐
tion.Selector lever position P not engaged. The
vehicle is not secured against rolling.Selector lever position P not engaged. The
ignition cannot be switched off.Engage selector lever position P
when you wish to switch off the igni‐
tion, refer to page 56.The cruise control system has failed.Have the system checked.The Park Distance Control has failed.Have the system checked.A bulb of the exterior lighting system has
failed.Have the exterior lighting checked as
soon as possible.A low-beam headlight or front fog light
has failed.Have the lights checked as soon as
possible.A high-beam headlight has failed.Have the high-beam headlights
checked.Seite 209Indicator/warning lampsMOBILITY209
Online Edition for Part no. 01 40 2 961 029 - II/15

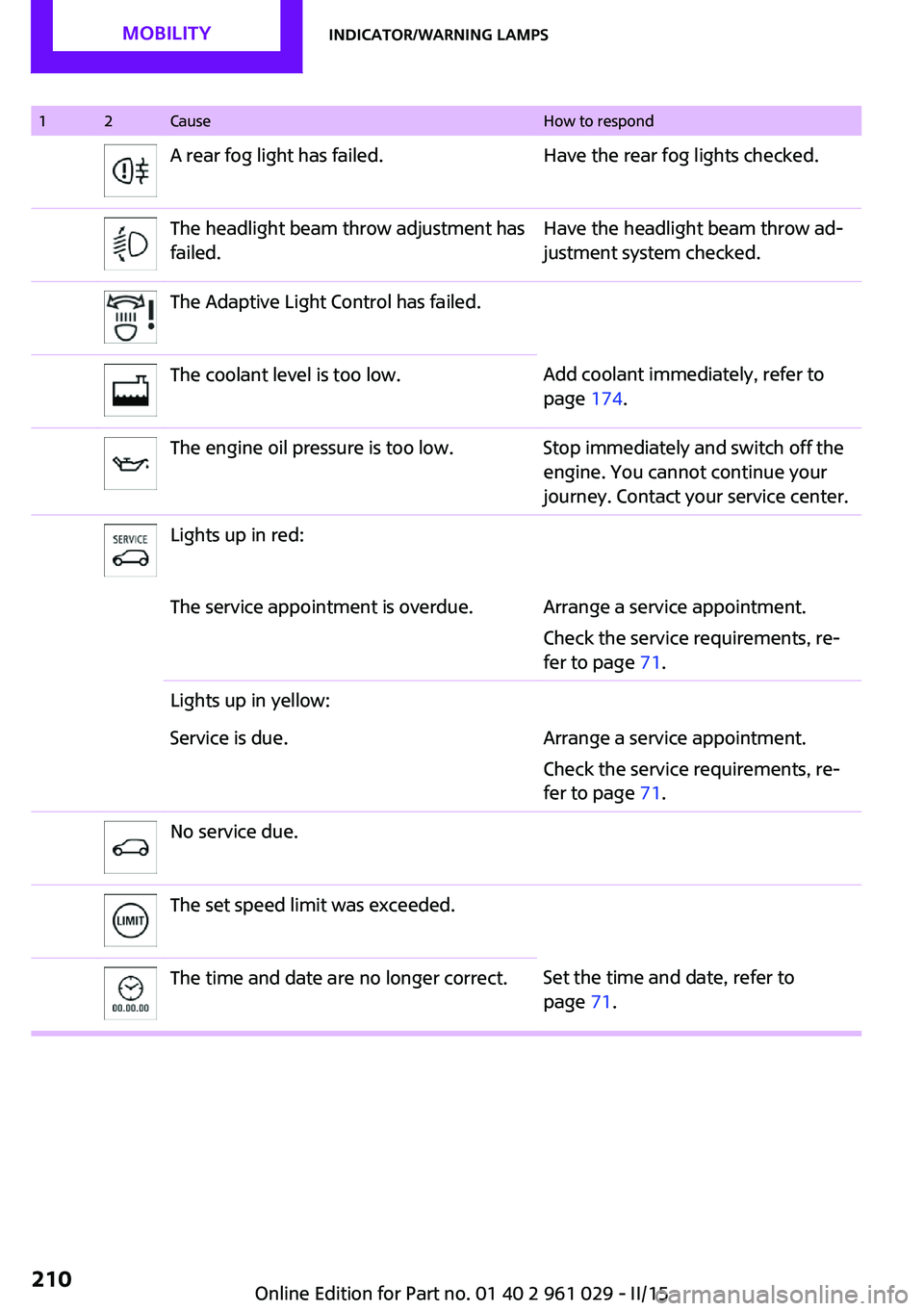

12CauseHow to respondA rear fog light has failed.Have the rear fog lights checked.The headlight beam throw adjustment has
failed.Have the headlight beam throw ad‐
justment system checked.The Adaptive Light Control has failed.The coolant level is too low.Add coolant immediately, refer to
page 174.The engine oil pressure is too low.Stop immediately and switch off the
engine. You cannot continue your
journey. Contact your service center.Lights up in red:The service appointment is overdue.Arrange a service appointment.
Check the service requirements, re‐
fer to page 71.Lights up in yellow:Service is due.Arrange a service appointment.
Check the service requirements, re‐
fer to page 71.No service due.The set speed limit was exceeded.The time and date are no longer correct.Set the time and date, refer to
page 71.Seite 210MOBILITYIndicator/warning lamps210
Online Edition for Part no. 01 40 2 961 029 - II/15

Seite 211Indicator/warning lampsMOBILITY211
Online Edition for Part no. 01 40 2 961 029 - II/15

FIND ME.
Online Edition for Part no. 01 40 2 961 029 - II/15

AT A GLANCE
CONTROLSDRIVING TIPSENTERTAINMENTCOMMUNICATIONMOBILITYREFERENCE
Online Edition for Part no. 01 40 2 961 029 - II/15

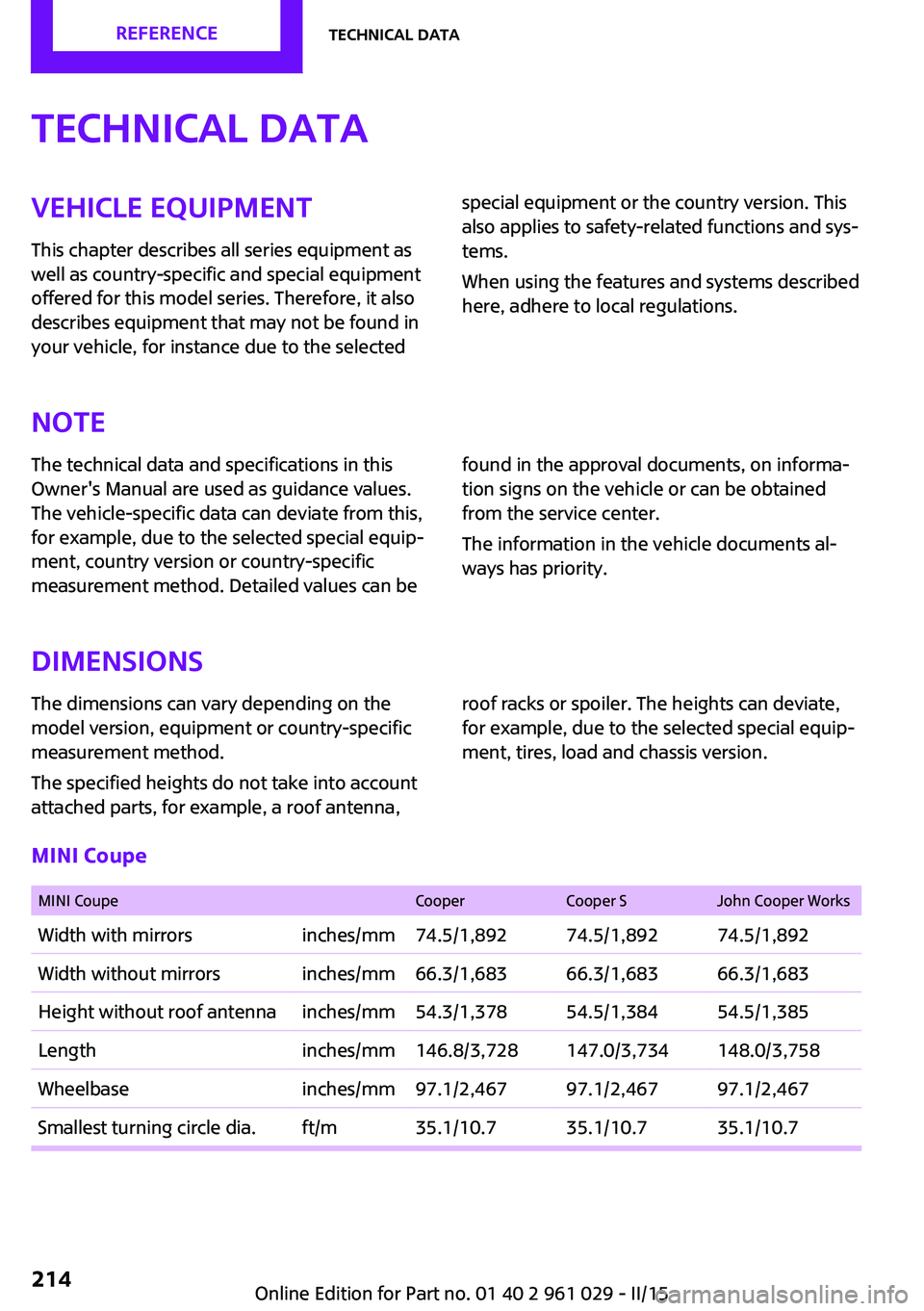

Technical dataVehicle equipment
This chapter describes all series equipment as
well as country-specific and special equipment
offered for this model series. Therefore, it also
describes equipment that may not be found in
your vehicle, for instance due to the selectedspecial equipment or the country version. This
also applies to safety-related functions and sys‐
tems.
When using the features and systems described
here, adhere to local regulations.
Note
The technical data and specifications in this
Owner's Manual are used as guidance values.
The vehicle-specific data can deviate from this,
for example, due to the selected special equip‐
ment, country version or country-specific
measurement method. Detailed values can befound in the approval documents, on informa‐
tion signs on the vehicle or can be obtained
from the service center.
The information in the vehicle documents al‐
ways has priority.
Dimensions
The dimensions can vary depending on the
model version, equipment or country-specific
measurement method.
The specified heights do not take into account
attached parts, for example, a roof antenna,roof racks or spoiler. The heights can deviate,
for example, due to the selected special equip‐
ment, tires, load and chassis version.
MINI Coupe

MINI CoupeCooperCooper SJohn Cooper WorksWidth with mirrorsinches/mm74.5/1,89274.5/1,89274.5/1,892Width without mirrorsinches/mm66.3/1,68366.3/1,68366.3/1,683Height without roof antennainches/mm54.3/1,37854.5/1,38454.5/1,385Lengthinches/mm146.8/3,728147.0/3,734148.0/3,758Wheelbaseinches/mm97.1/2,46797.1/2,46797.1/2,467Smallest turning circle dia.ft/m35.1/10.735.1/10.735.1/10.7Seite 214REFERENCETechnical data214
Online Edition for Part no. 01 40 2 961 029 - II/15

MINI Roadster
MINI RoadsterCooperCooper SJohn Cooper WorksWidth with mirrorsinches/mm74.5/1,89274.5/1,89274.5/1,892Width without mirrorsinches/mm66.3/1,68366.3/1,68366.3/1,683Height without roof antennainches/mm54.5/1,38454.7/1,39054.8/1,391Lengthinches/mm146.8/3,728147.0/3,734148.0/3,758Wheelbaseinches/mm97.1/2,46797.1/2,46797.1/2,467Smallest turning circle dia.ft/m35.1/10.735.1/10.735.1/10.7
MINI Convertible
MINI ConvertibleCooperCooper SJohn Cooper WorksWidth with mirrorsinches/mm75.3/1,91375.3/1,91375.3/1,913Width without mirrorsinches/mm66.3/1,68366.3/1,68366.3/1,683Height without roof antennainches/mm55.7/1,41455.7/1,41455.7/1,414Lengthinches/mm146.6/3,723146.8/3,729148.0/3,758Wheelbaseinches/mm97.1/2,46797.1/2,46797.1/2,467Smallest turning circle dia.ft/m35.1/10.735.1/10.735.1/10.7Weights
Never exceed either the approved axle loads or
the gross vehicle weight.MINI Coupe

CooperCooper SJohn Cooper WorksApproved gross vehicle weightManual transmissionlbs/kg3,175/1,4403,252/1,4753,263/1,480Steptronic transmissionlbs/kg3,252/1,4753,307/1,5003,318/1,505Loadlbs/kg507/230507/230507/230Approved front axle loadManual transmissionlbs/kg1,786/8101,885/8551,896/860Seite 215Technical dataREFERENCE215
Online Edition for Part no. 01 40 2 961 029 - II/15

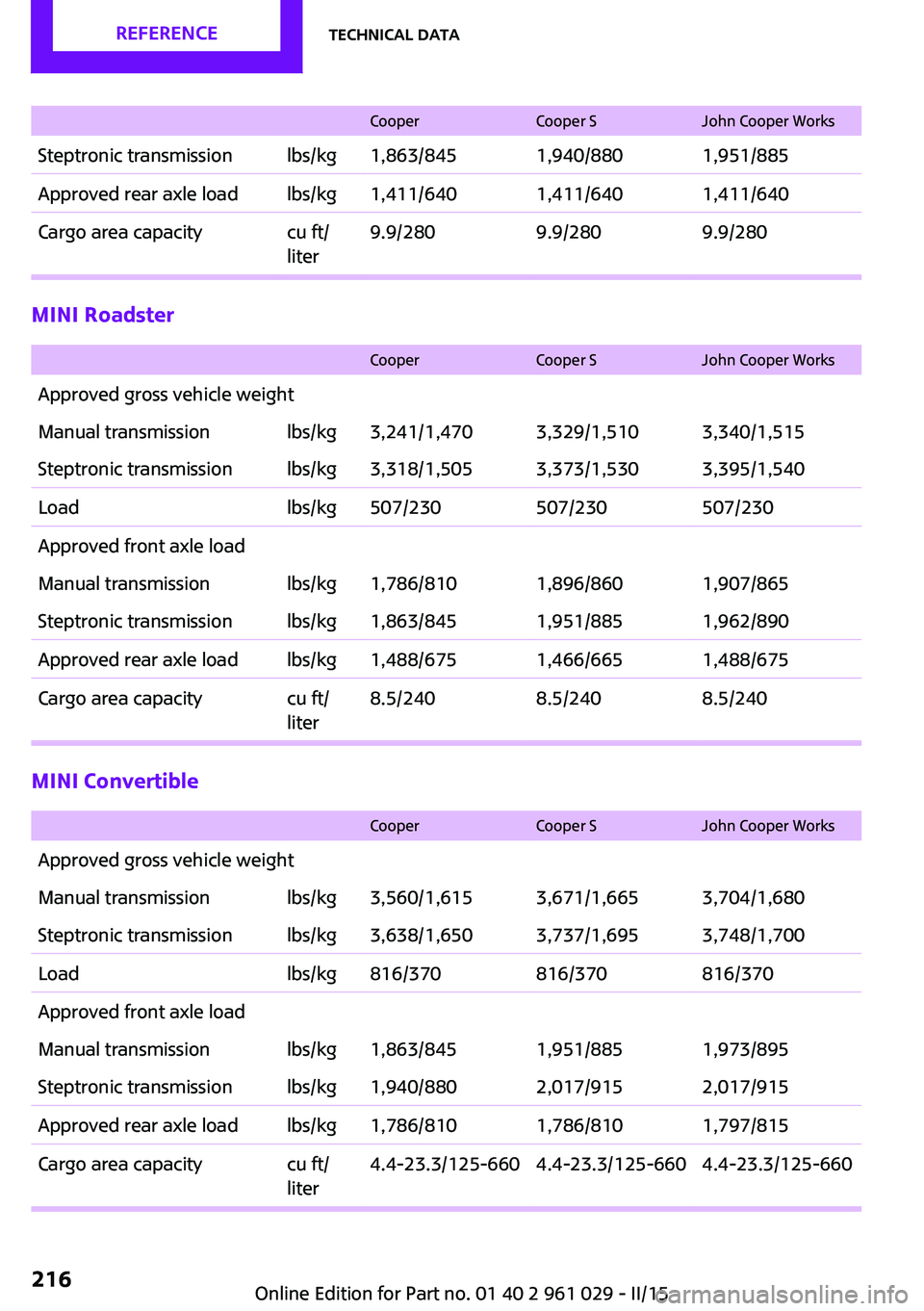

CooperCooper SJohn Cooper WorksSteptronic transmissionlbs/kg1,863/8451,940/8801,951/885Approved rear axle loadlbs/kg1,411/6401,411/6401,411/640Cargo area capacitycu ft/
liter9.9/2809.9/2809.9/280
MINI Roadster

CooperCooper SJohn Cooper WorksApproved gross vehicle weightManual transmissionlbs/kg3,241/1,4703,329/1,5103,340/1,515Steptronic transmissionlbs/kg3,318/1,5053,373/1,5303,395/1,540Loadlbs/kg507/230507/230507/230Approved front axle loadManual transmissionlbs/kg1,786/8101,896/8601,907/865Steptronic transmissionlbs/kg1,863/8451,951/8851,962/890Approved rear axle loadlbs/kg1,488/6751,466/6651,488/675Cargo area capacitycu ft/
liter8.5/2408.5/2408.5/240
MINI Convertible
CooperCooper SJohn Cooper WorksApproved gross vehicle weightManual transmissionlbs/kg3,560/1,6153,671/1,6653,704/1,680Steptronic transmissionlbs/kg3,638/1,6503,737/1,6953,748/1,700Loadlbs/kg816/370816/370816/370Approved front axle loadManual transmissionlbs/kg1,863/8451,951/8851,973/895Steptronic transmissionlbs/kg1,940/8802,017/9152,017/915Approved rear axle loadlbs/kg1,786/8101,786/8101,797/815Cargo area capacitycu ft/
liter4.4-23.3/125-6604.4-23.3/125-6604.4-23.3/125-660Seite 216REFERENCETechnical data216
Online Edition for Part no. 01 40 2 961 029 - II/15

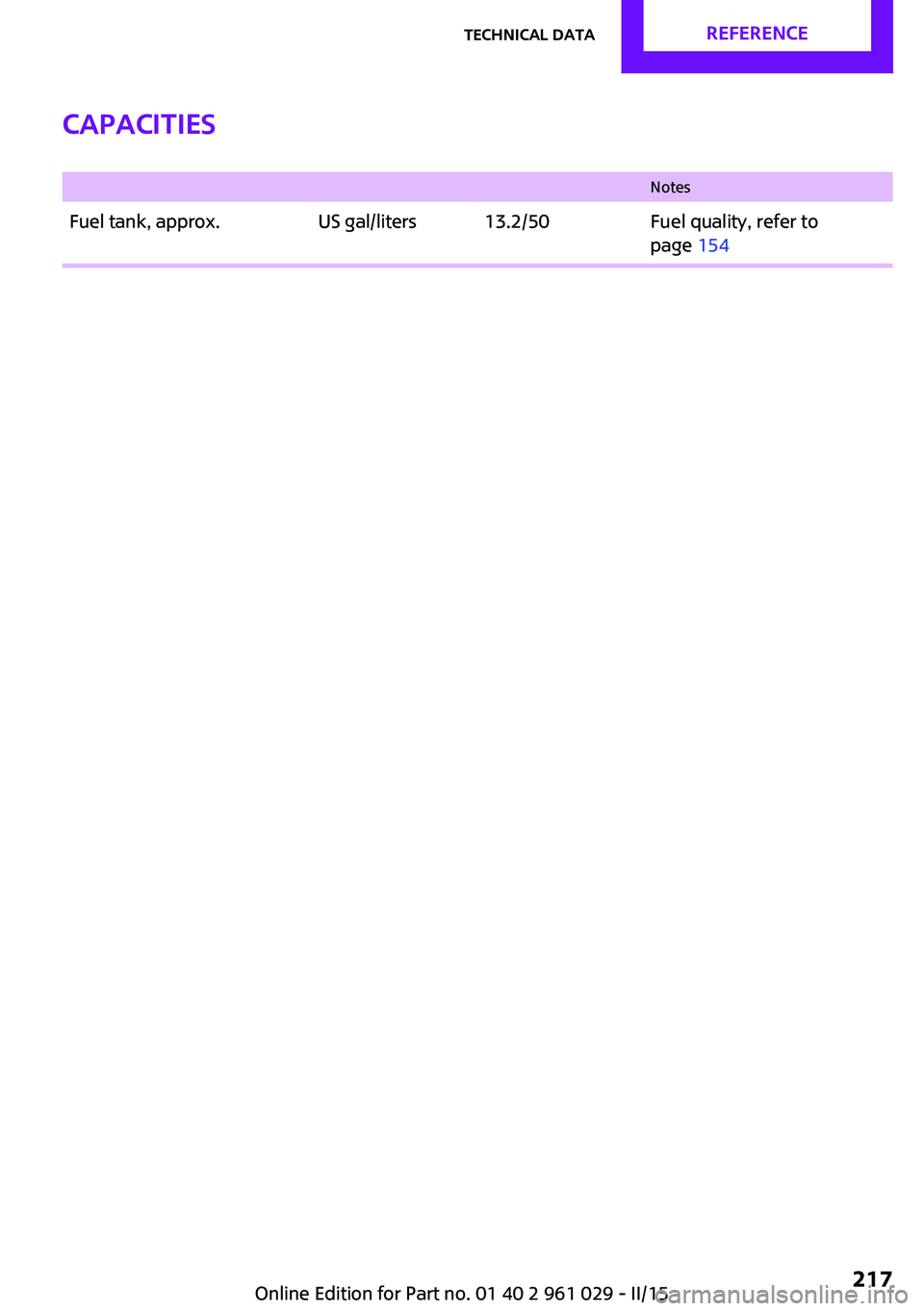

Capacities
NotesFuel tank, approx.US gal/liters13.2/50Fuel quality, refer to
page 154Seite 217Technical dataREFERENCE217
Online Edition for Part no. 01 40 2 961 029 - II/15

Everything from A to ZIndexA
ABS, Antilock Brake Sys‐ tem 91
Acoustic signal, refer to Check Control 73
Activated charcoal filter with automatic climate con‐
trol 103
Adaptive Light Control 77
Additives, engine oil 173
Airbags 81
Airbags, indicator/warning light 83
Air circulation, refer to Recir‐ culated air mode, air condi‐
tioner 100
Air circulation, refer to Recir‐ culated air mode, automatic
climate control 102
Air conditioning 99
Air conditioning mode, air conditioner 99
Air conditioning mode, auto‐ matic climate control 101
Air distribution, air condi‐ tioner, manual 100
Air distribution, auto‐ matic 102
Air distribution, automatic cli‐ mate control, manual 103
Air distribution, individual 100
Air drying, refer to Cooling function 103
Air flow rate for air condi‐ tioner 100
Air flow rate with automatic climate control 102
Air pressure, refer to Tire infla‐ tion pressure 156
Air supply, air conditioner 99 Air supply, automatic climate
control 101
Alarm system 31
Alarm system, avoiding unin‐ tentional alarms 32
Alarm system, ending an alarm 31
Alarm system, interior motion sensor 32
Alarm system, tilt alarm sen‐ sor 32
Always Open Timer 68
Ambient lighting 79
Antifreeze, washer fluid 62
Antilock Brake System, ABS 91
Anti-slip control, refer to Dy‐ namic Stability Control
DSC 91
Anti-theft protection 21
Approved engine oils 173
Ashtray 105
Assistance, roadside 189
Assistance when driving off, refer to Hill drive-off assis‐
tant 93
Assistance with starting en‐ gine, refer to Jump-start‐
ing 189
Automatic air distribution 102
Automatic air flow 102
Automatic car wash 194
Automatic climate con‐ trol 101
Automatic climate control, au‐ tomatic air distribution 102
Automatic, cruise control 96
Automatic headlight con‐ trol 75
Automatic rear spoiler 93 Automatic transmission with
Steptronic 63
AUTO program with auto‐ matic climate control 102
AUX-IN port 134
Average fuel consumption 68
Average fuel consumption, setting the units 70
Average speed 68
Average speed, refer to Com‐ puter 67
B Backrest curvature, refer to Lumbar support 46
Backrests, refer to Seats 45
Backup lights, bulb replace‐ ment 182
Battery disposal 31
Battery, refer to Vehicle bat‐ tery 187
Battery, remote control 20
Battery replacement, remote control 31
Belts, refer to Safety belts 47
Belt tensioners, refer to Safety belts 47
Bi-xenon headlights 179
Brake assistant 91
Brake discs, breaking in 114
Brake fluid, refer to Service re‐ quirements 71
Brake force distribution, elec‐ tronic 91
Brake pads, breaking in 114
Brake, refer to Parking brake 58
Brakes, MINI maintenance system 175 Seite 218REFERENCEEverything from A to Z218
Online Edition for Part no. 01 40 2 961 029 - II/15
