dimensions MINI Hardtop 2 Door 2005 Owner's Manual

CONTENTS
4
In the engine compartment:Bonnet
105
Engine compartment:

MINI COOPER and
MINI
COOPER
CONVERTIBLE
106

MINI COOPER S and
MINI
COOPER
S CONVERTIBLE
107
Washer fluid
108
Engine oil
108
Coolant
110
Brake fluid
111
Maintenance and care:MINI Maintenance System
112
OBD socket
113
Caring for your vehicle
113
Vehicle storage
116
OWNER SERVICE PROCEDURESReplacement procedures:Onboard tool kit
120
Wiper blades
120
Lamps and bulbs
121
Repairing a flat tire
125
Space-saver spare tire
125
Changing tires
127
MINI Mobility System
129
Battery
132
Fuses
133
Giving and receiving assistance:Jump-starting
134
Towing and tow-starting
136
TECHNICAL DATAEngine data
140
Dimensions:

MINI
141

MINI Convertible
142
Weights:

MINI
143

MINI Convertible
144
Capacities
145

103
OVERVIEW REPAIRSOPERATIONCONTROLS DATA INDEX
NEW WHEELS AND TIRESThe correct wheels and tires
The manufacturer of your vehicle

recommends mounting only wheels
and tires that it has specifically tested and
approved for use on your particular model.
Although other wheels and tires may theo
-
retically have the same dimensions, varia
-
tions in factors such as manufacturing tol
-
erances can result in contact between tire
and bodywork, ultimately leading to seri
-
ous accidents. The manufacturer of your
vehicle cannot evaluate non-approved
wheels and tires to determine if they are
suited for use, and therefore cannot ensure
the operating safety of the vehicle if they
are fitted. response, use only tires of a single brand
and tread configuration. In the event of a
flat tire, remount the previous wheel and
tire combination as soon as possible.Recommended tire sizes and brands:For each tire size, certain tire brands have
been tested, classified as road safe and
approved by the manufacturer of your
vehicle. You can find out about these from
a professional tire center, preferably your
MINI Dealer. Observe any local regulations,
e.g. on making a corresponding entry in the
vehicle documents. The factory-approved radial belt tires are
matched to your vehicle and provide opti
-
mum safety and driving comfort when
used properly.Run Flat tires:If your vehicle is equipped with Run Flat
tires, refer to Run Flat tires, please note the
following: when mounting new tires or
replacing summer tires with winter tires, or
vice versa, use only Run Flat tires since no
spare wheel is available in the event of a
flat. The manufacturer of your vehicle will
be glad to advise you.Special characteristics of winter tires The manufacturer of your vehicle recom
-
mends winter tires for driving in adverse
winter road conditions. While all-season
tires with the M+S designation provide bet
-
ter winter traction than summer tires, they
generally do not achieve the full perfor
-
mance of winter tires. Observing speed ratings:
Never exceed the maximum speed for which the winter tires are rated.
Unprofessional attempts by laymen to ser
-
vice tires can lead to damage and acci
-
dents. Have this work performed by skilled
professionals only. The technicans at your
MINI Dealer will be glad to assist you with
the required professional knowledge and
specialized equipment. them against light whenever possible. Pro
-
tect the tires against contact with oil,
grease and fuel. Do not exceed the tire
inflation pressure specified on the tire side
-
wall.

127
OVERVIEW REPAIRSOPERATION CONTROLS DATA INDEX
SPACE-SAVER SPARE TIRE
*
CHANGING TIRES
9.
Pull out the space-saver spare tire towards the rear underneath the vehi
-
cle
10. Position the space-saver spare tire with
the valve facing upwards11. Unscrew the valve extension from the
valve of the space-saver spare tire12. Unscrew the dust cap from the exten
-
sion and place it on the valve of the
space-saver spare tire.Due to its different dimensions, the damaged wheel cannot be placed in
the recess for the space-saver spare tire.<
Driving with the space-saver spare tireDrive cautiously. Do not exceed a speed of
50 mph
/ 80
km/h.
You must expect changes in vehicle han
-
dling such as lower track stability during
braking, longer braking distances and
changes in self-steering properties when
close to the handling limit. These effects
are more pronounced when driving with
winter tires.
Only one space-saver spare tire may be mounted at one time. Reinstall a
wheel and tire of the original size as soon
as possible. if necessary. Replace the defective tire as
soon as possible and have the new wheel/
tire assembly balanced.<
Additional safety measures in the event of a tire change:

Change the tire only on a level, firm surface
which is not slippery.

The vehicle or the jack could slip sideways
on soft or slippery support surfaces, such as
snow, ice, flagstones, etc..

Do not use a wooden block or similar object
as a support base for the jack, as this would
prevent it from extending to its full support
height and reduce its load-carrying capac
-
ity.

Do not lie under the vehicle or start the
engine when the vehicle is supported by
the jack – risk of fatal injury. Observe the safety precautions regarding flat tires on page
125
.<
1. For vehicles with a space-saver spare
tire:

Place the folding chock behind the front
wheel on the other side of the vehicle;
on downward inclines, place it in front of
this wheel. If the wheel is changed on a
surface with a more severe slope, take
additional precautions to secure the
vehicle from rolling
2. Loosen the lug bolts by a half turn.

141
OVERVIEW REPAIRS OPERATION CONTROLS DATA INDEX
DIMENSIONS: MINI
All measurements in inches / millimeters. Smallest turning circle dia. 34 ft 10 in / 10.66 m.
Values following a ; are differing values for MINI COOPER S.

142

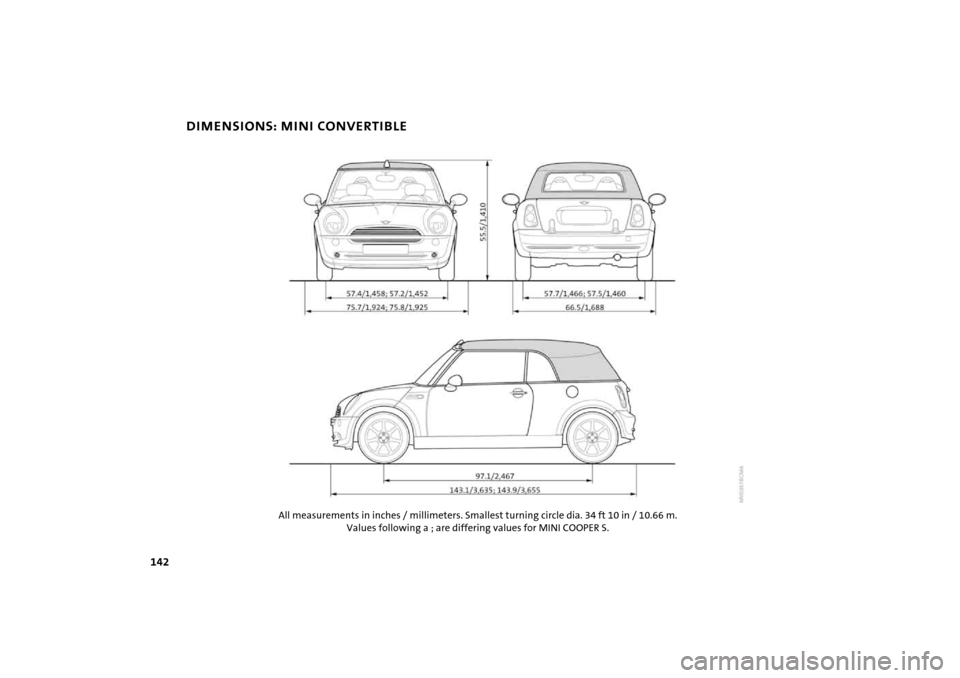

DIMENSIONS: MINI CONVERTIBLE
All measurements in inches / millimeters. Smallest turning circle dia. 34 ft 10 in / 10.66 m.
Values following a ; are differing values for MINI COOPER S.

EVERYTHING FROM A TO Z
150
Convenience operation

convertible top
37
from outside
26, 27
glass sunroof, electric
33
windows
31
Convertible top
35
care
115

convenience operation
37
electrical malfunction
37
emergency closing
37
malfunction
37
Coolant
110

indicator lamp
16
level
110

temperature gauge
64
Coolant temperature gauge
64
Cooling system, refer to
Capacities
145

Cooling, refer to Air
conditioning
76, 79
Copyright
2
Cornering Brake Control
(CBC)
70
warning lamp
17
Correct tires
99
Cosmetic mirror, refer to
Illuminated vanity mirror
47
Cruise control
61
buttons in the steering
wheel
20, 21
indicator lamp
19
Cup holders, refer to Beverage
holders
81
Curb weight, refer to
Weights
143
, 144

Current fuel consumption
67
setting units
67
Cylinders, refer to Engine
data
140

D Daily odometer, refer to Trip
odometer
63
Dashboard lighting, refer to
Instrument lighting
58
Dashboard, refer to Cockpit
12
Data

capacities
145

dimensions
141

engine
140

technical
140

weights
143

Date of the Owner's Manual
7
Daytime driving lamps
57
Deep water, refer to Driving
through water
93
Defrost setting, refer to
Defrosting and demisting
windows
80
Defrosting and demisting
windows

automatic climate control
80
Defrosting windows
80
air conditioning system
76
automatic climate control
79
Defrosting windshield, refer to
Defrosting and demisting
windows
80
Demisting windows
80
Digital clock
63
Dimensions
141
, 142

Dimming interior rearview
mirror
47
Dipstick, engine oil
108

Directional turn signal,

refer to Turn signal
indicators
58
Disc brakes
96
Displacement, refer to Engine
data
140

Display elements
13
with navigation system or
Cockpit Chrono Pack
14
Display lighting, refer to
Instrument lighting
58
Disposal

engine oil
109

vehicle battery
132

Distance covered, refer to
Odometer
63
Distance warning, refer to Park
Distance Control (PDC)
74
Door keys
24
Door lock
27
Doors, locking and unlocking

acknowledgment
signals
26, 27
from inside
28
from outside
26
DOT quality grades
99
Draft-free ventilation
77, 80
Drink holders, refer to Beverage
holders
81
Driving lamps, refer to Parking
lamps/Low beams
57
Driving notes
93
Driving stability control
systems
68, 69
Dry air, refer to Air
conditioning
76, 79
Drying air,

refer to Air
conditioning
76, 79
DSC Dynamic Stability
Control
69
indicator lamp
17
Dynamic Stability

Control (DSC)
69
indicator lamp
17
E Easy entry to the rear
44
EBD Electronic Brake Force
Distribution
70

EVERYTHING FROM A TO Z
152
Gasoline gauge, refer to Fuel
gauge
63, 64
Gasoline, refer to Fuel
quality
94
Gear indicator, with
Continuously Variable
automatic Transmission
(CVT)
56
Gearshift lever

Continuously Variable
automatic Transmission
(CVT)
54
manual transmission
53
Gearshifts, with Continuously
Variable automatic
Transmission (CVT)
54
General driving notes
93
Glass sunroof, electric
33
convenience operation
27
opening and closing in the
event of an electrical
malfunction
34
remote control
26
Glove compartment
81
Gross weight, refer to
Weights
143
, 144

H Handbrake, refer to Parking
brake
53
Hazard warning flashers
12
Head airbags
72
Head restraints
43
Headlamp flasher
58
indicator lamp
19
Headlamp range control,
dynamic, xenon lamps
57
Headlamp washer
reservoir
108

capacity, refer to
Capacities
145

Headlamp washer system

cleaning headlamps
60
washer fluid
108

Headlamps

bulb replacement
122

care
114

Heated mirrors
46
Heated rear window

air conditioning system
76
automatic climate control
79
Heating
75
exterior mirrors
46
rear window
76, 79
seats
46
windshield
76, 79
Heavy load, refer to Loading
88
Height adjustment

seats
42
steering wheel
46
Height, refer to
Dimensions
141
, 142

High beams
58
bulb replacement
122

headlamp flasher
58
indicator lamp
19
High Performance Synthetic
Oil, refer to Engine oil
109

alternative oils
109

capacity
145

recommended oils
109

specified oils
109

Holders for beverages
81
Horn
12
Hot exhaust system
93
Hydraulic brake
96
Hydroplaning
93
I Ice warning
66
Ignition
51
Ignition key
24
Ignition lock
51
Illuminated vanity mirror
47
Imitation leather
114

Imprint
2
Index
148

Indicator and warning lamps,
overview
16
Indicator/warning lamp

Airbags
73
ASC
68
brakes
111

coolant temperature
64
DSC
69
fasten safety belts
45
Flat Tire Monitor
72
fog lamps
58
reserve fuel capacity
63, 64
Individual air distribution
80
Individual settings, refer to
Vehicle Memory
47
Inflation pressure monitor,
refer to Flat Tire Monitor
71
Inflation pressure, refer to Tire
inflation pressure
97
Inspection
65
Instrument cluster, refer to
Display elements
13
Instrument lighting
58
Instrument panel, refer to
Cockpit
12
Integrated universal remote
control
83
Interior lamp, remote
control
26
Interior lamps
59
Interior rearview mirror
47
automatic dimming
47

EVERYTHING FROM A TO Z
153
OVERVIEW REPAIRS OPERATION CONTROLS DATA INDEX
Interlock, refer to Steering
locked
51
Intermittent operation of the
wipers
59
Interval

display, service
112

J Jack
125
, 129

points
128

Jack, refer to Tire change set

MINI Mobility System
129

Run Flat tires
102

space-saver spare tire
125

Jacking points
128

Jets, refer to Ventilation
77, 80
Jets, refer to Windshield
washer jets
60
Jump-starting
134

K Keys
24
Kickdown
55
Knock control
94
L Lamp defect
121

Lamp replacement, refer to
Lamps and bulbs
121

Lamps and bulbs
121

Lamps, refer to Parking lamps/
Low beams
57
Lashing eyelets, refer to
Securing the load
88
LATCH child-restraint
mounting system
50
Leather care
115

LEDs light-emitting diodes
124

Length, refer to
Dimensions
141
, 142

License plate lamp, bulb
replacement
124

Lifting handle, space-saver
spare tire
125

Light switch
57
Light-alloy wheels, care
114

Light-emitting diodes
(LEDs)
124

Lighter
82
Lighting of the instruments
58
'Lights on' warning
57
Load securing devices, refer to
Securing the load
88
Loading the vehicle
86
Loads, refer to Loading cargo
86
Locking

from inside
28
from outside
26
Locking/unlocking the vehicle,
acknowledgment
signals
26, 27
Low beams
57
bulb replacement
122

Lower back support, refer to
Lumbar support
43
Luggage compartment

cover
85
emergency operation, refer
to Manual release
30
opening from the outside
29
opening with the remote
control
26
opening/closing, refer to
Tailgate
29
tailgate
29
volume
143
, 144

Luggage compartment in the
MINI
85
Luggage compartment lid

emergency operation, refer
to Manual release
30
opening, remote control
26
Luggage compartment lid, refer
to Tailgate
29
Luggage compartment net
88
Luggage rack, refer to Roof-
mounted luggage rack
89
Lumbar support
43
M M+S tires, refer to Winter
tires
103

Maintenance system
112

Make-up mirror, illuminated
47
Malfunction

Continuously Variable
automatic Transmission
(CVT)
56
convertible top
37
door lock
27
fuel filler door
95
glass sunroof, electric
34
tailgate
30
Manual air distribution
76
Manual operation

door lock
27
driver's door
27
fuel filler door
95
glass sunroof, electric
34
power convertible top
37
tailgate
30
transmission lock for
Continuously Variable
automatic Transmission
(CVT)
54
Manual transmission
53
Master keys with remote
control
24
Maximum cooling
79
Maximum speed, with winter
tires
103

MC operation, refer to

Owner's Manual for Radio

EVERYTHING FROM A TO Z
157
OVERVIEW REPAIRS OPERATION CONTROLS DATA INDEX
Technical modifications, refer
to For your own safety
7
Telephone call, refer to the Owner's Manual for the telephone

Temperature

air conditioning system
76
automatic climate control
79
Temperature display

ice warning
66
outside temperature
66
setting units
66
Temperature grades
100

Tempomat, refer to Cruise
control
61
Three-point safety belt
45
Through-loading system
85, 86
Tightening the lug bolts

keys
125
, 129

torque
128

Tightening torque, refer to
Tightening the lug bolts
128

Tire change set

MINI Mobility System
131

Run Flat tires
102

space-saver spare tire
125

Tire failure
125

MINI Mobility System
129

space-saver spare tire
125

Tire inflation pressure
97
reinflation
130

Tire pressure monitor, refer to
Flat Tire Monitor
71
Tire pressure monitoring, Flat
Tire Monitor
71
Tires

age
99
break-in procedures
92
changing
127

condition
100

damage
101

flat tire
101
, 125

inflation pressure
97
replacement
102

size, refer to New wheels and
tires
102

storage
103

tread
100

wear indicator, refer to Tire
tread
100

winter tires
103

Tires with emergency
properties, refer to Run Flat
tires
101

Tools, refer to Onboard tool
kit
120

Torque

engine
140

lug bolts
128

Tow bar
137

Tow rope
137

Tow socket for towing
eyelet
136

Towing
136

with automatic
transmission
136
, 137

Towing eyelet
136

Tow-starting
137

Track width, refer to
Dimensions
141
, 142

Traction grades
100

Transmission

Continuously Variable
automatic Transmission
(CVT)
54
manual transmission
53
Transmission lock, refer to
Range selection
54
Transmission malfunction,
refer to Malfunction
56
Transporting children safely
48
Transporting securely, refer to
Securing the load
88
Trap protection,

electric glass sunroof
34
Trash container, refer to
Ashtray
81
Tread depth, refer to Tire
tread
100

Treadwear grade
99
Trip odometer
63
Trunk, refer to Luggage
compartment in the MINI
85
Turn signal indicators
58
indicator lamp
19
Turn signal indicators on the
side, bulb replacement
123

Turning circle, refer to
Dimensions
141
, 142

U Uniform Tire Quality
Grading
99
Units

average consumption
67
average speed
67
temperature
66
Universal garage door
opener
83
Universal remote control
83
Unlocking

bonnet
105

from inside
28
from outside
26
Used batteries, refer to
Disposal
132

Using antifreeze
108
, 110

V Vacuum cleaner, connecting,
refer to Cigarette lighter
socket
82

EVERYTHING FROM A TO Z
158
Valve

core
129

dust cap
127

remover
129

spare
129

Valve remover, refer to
Onboard tool kit
129

Valve stem and replacement
valve, refer to Onboard tool
kit
129

Vehicle

battery
132

break-in procedures
92
care
113

dimensions
141

loading cargo
86
parking
93
storage
116

washing
113

weight
143
, 144

Vehicle battery
132

Vehicle identification number,
refer to
Engine
compartment
106
, 107

Vehicle Memory
47
Ventilation, draft-free
77, 80
Ventilation, refer to Draft-free
ventilation
77, 80
Viscosity
109

Volume

luggage
compartment
143
, 144

W Warning and indicator
lamps
16
Washer fluid
108

Washer fluid reservoir,
capacity
145

Washer fluid reservoir, refer to
Washer/Wiper system
108

Washer systems
108

Washer/wiper system
59
Washing your vehicle
113

Water on roadways, deep
water
93
Wear indicators in the tires,
refer to Tire condition
101

Weights
143
, 144

Wheel stud wrench

MINI Mobility System
129

space-saver spare tire
125

Wheel/tire combination
102

Wheelbase, refer to
Dimensions
141
, 142

Wheels and tires
102

Wheelslip control

All Season traction Control
(ASC)
68
Dynamic Stability Control
(DSC)
69
Width, refer to Dimensions
141

Wind deflector
39
Window washer reservoir
108

capacity, refer to
Capacities
145

Window washer system

washer fluid
108

washer/wiper system
59
Windows, convenience
operation
26, 27
Windscreen wipers

replacement
120
, 121

Windshield heating

air conditioning system
76
automatic climate control
79
Windshield washer jets
60
Windshield wiper blades

care
115

replacement
120
, 121

Windshield wipers

intermittent operation
59
Windshield wipers, refer to
Washer/wiper system
59
Windshield, cleaning
60
Winter tires
103

changing
127

condition
100

Run Flat tires
103

storage
103

Wood paneling
115

Work in the engine
compartment
105

Wrench, refer to Onboard tool
kit
120

X Xenon lamps

bulb replacement
122

daytime driving lamps
57
