technical data MINI Hardtop 2 Door 2010 Owner's Manual

REFERENCEAT A GLANCE CONTROLS DRIVING TIPS MOBILITY
3
CONTENTS
The fastest way to find information on a particu-
lar topic or item is by using the index, refer to
page160.
Using this Owner's Manual
4Notes
6Reporting safety defects
AT A GLANCE
10Cockpit
CONTROLS
18Opening and closing
35Adjustments
41Transporting children safely
44Driving
53Controls overview
63Technology for driving comfort and safety
74Lamps
79Climate
84Practical interior accessories
DRIVING TIPS
92Things to remember when driving
MOBILITY
102Refueling
104Wheels and tires
116Under the hood
119Maintenance
121Care
125Replacing components
136Giving and receiving assistance
140Indicator and warning lamps
REFERENCE
154Technical data
160Everything from A to Z

Technical data
154
Technical data
Engine data
In the technical data, only the values that differ from the Cooper S are shown for the
John Cooper Works.
Cooper Cooper SJohn Cooper Works
Displacement cu in/
cmμ97.5/
1,59897.5/
1,59897.5/
1,598
Number of cylinders 4 4 4
Maximum power out-
puthp 118 172 208
At engine speed rpm 6,000 5,500 6,000
Maximum torque
with overboostlb ft/
Nm114/155
–177/240
192/260192/260
207/280
At engine speed
with overboostrpm 4,250
–1,600-5,000
1,700-4,5001,850-5,600
2,000-5,100
Overboost briefly raises the maximum torque at high rates of acceleration, e. g. when passing.

Technical data
156

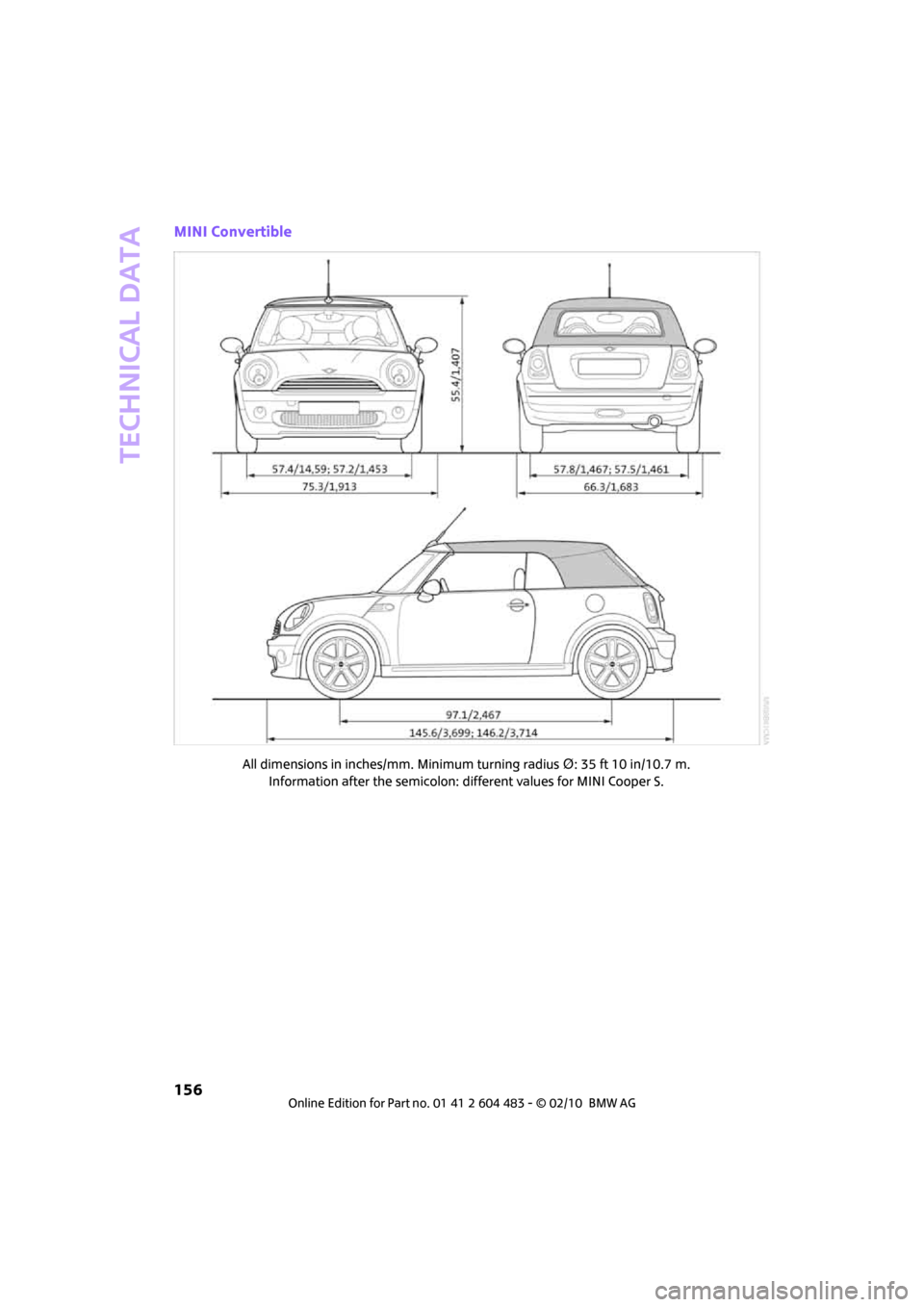

MINI Convertible
All dimensions in inches/mm. Minimum turning radius Δ: 35 ft 10 in/10.7 m.
Information after the semicolon: different values for MINI Cooper S.

Technical data
158
MINI Convertible
Never exceed either the approved axle loads or
the gross vehicle weight.
Capacities
CooperCooper SJohn Cooper Works
Curb weight, ready for travel, with all optional extras
>Manual transmission lbs/kg 2,745/1,245 2,855/1,295 2,877/1,305
>Automatic transmis-
sion lbs/kg 2,822/1,280 2,921/1,325 –
Approved gross weight
>Manual transmission lbs/kg 3,560/1,615 3,671/1,665 3,693/1,675
>Automatic transmis-
sion lbs/kg 3,638/1,650 3,737/1,695 –
Approved front axle load
>Manual transmission
>Automatic transmis-
sion lbs/kg 1,863/845 1,951/885 1,962/890
lbs/kg 1,940/880 2,017/915 –
Approved rear axle load lbs/kg 1,786/810 1,786/810 1,797/815
Cargo bay capacity cu ft/
liters6.0-23.3/
170-6606.0-23.3/
170-6606.0-23.3/
170-660
US gal/US quartslitersNotes
Fuel tank 13.2/– approx. 50 Fuel grade: page103
including reserve of 2.1/– approx. 8
Window washer system incl.
headlamp washer system –/4.8 approx. 4.5 For more details: page51

REFERENCEAT A GLANCE CONTROLS DRIVING TIPS MOBILITY
165
Liftgate24
– Comfort Access27
– opening from outside24
– opening/closing24
– unlocking with remote
control21
Light switch74
Light-alloy wheels, care123
Light-emitting diodes
LEDs126
Lighter88
– socket88
Lighting
– lamps and bulbs125
– of the instruments77
– of vehicle, refer to Lamps74
Limit151
Load95
Load securing equipment,
refer to Securing cargo96
Lock buttons of doors, refer to
Locking23
Locking
– adjusting confirmation
signal21
– from inside23
– from outside20
– without remote control, refer
to Comfort Access26
Locking and unlocking doors
– confirmation signals21
– from inside23
– from outside19
Low beams74
– automatic74
– replacing bulb126
Lower back support, refer to
Lumbar support36
Luggage compartment
– emergency operation, refer
to Manual release24
– increasing the capacity95
– opening from the inside24
Luggage compartment lid
– emergency operation, refer
to Manual release24
Luggage compartment lid,
refer to Liftgate24Luggage compartment, refer
to Cargo bay24
Luggage rack, refer to Roof-
mounted luggage rack97
Lumbar support36
M
M+S tires, refer to Winter
tires115
Maintenance, refer to Service
Booklet
Maintenance system119
Malfunction
– convertible top32
– trunk lid24
Malfunction warnings, refer to
Check Control61
Manual air distribution81
Manual mode
– automatic transmission with
Steptronic47
Manual operation
– door lock22
– fuel filler flap102
– power convertible top32
– transmission lock, automatic
transmission48
– trunk lid24
Manual transmission46
Manual washing122
Master key, refer to Integrated
key/remote control18
Maximum cooling82
Maximum speed
– with winter tires115
Medical assistance, refer to
First aid pouch136
Microfilter
– for air conditioner81
– for automatic climate
control83
– MINI Maintenance
System119
Microfilter/activated-charcoal
filter
– MINI Maintenance
System119
Microphone for telephone14MINI Internet page4
MINI Maintenance System119
Mirror dimming feature40
Mirrors39
– exterior mirrors39
– heating39
– interior rearview mirror39
Mobile phone
– installation location, refer to
Center armrest86
– refer to separate Owner's
Manual
Mobile phone, installation
location, refer to Center
armrest86
Mobile phone, refer to the
separate Owner's Manual
Mobility System130
Modifications, technical, refer
to For your own safety5
Monitoring system for tire
pressures, refer to Flat Tire
Monitor66
Multifunction switch
– refer to Turn signals/
headlamp flasher48
– refer to Wiper system49
Multifunctional steering
wheel, refer to Buttons on
the steering wheel11
N
Neck support, refer to Head
restraints37
Nets, refer to Storage
compartments87
New tires114
Number of cylinders, refer to
Engine data154
Number of safety belts35
Nylon rope, refer to Tow
rope138
O
OBD socket, refer to Socket for
Onboard Diagnosis119

Everything from A to Z
168
Steering wheel40
– adjustment40
– buttons on steering wheel11
– lock44
– shift paddles47
Steptronic, refer to Automatic
transmission with
Steptronic46
Storage area
– cargo bay94
Storage compartment, front
passenger side87
Storage compartments87
Storage space
– storage compartments87
Storage space, refer to
– Luggage compartment in the
MINI Convertible94
Storing the vehicle124
Storing tires115
Stowage, refer to Storage
compartments87
Summer tires, refer to Wheels
and tires104
Switches, refer to Cockpit10
Switching off
– engine45
Switching off the engine
– start/stop button44
Switching the cooling function
on and off83
Symbols4
T
Tachometer53
Tail lamp, refer to Tail
lamps128
– replacing bulb128
Tail lamps128
Tank volume, refer to
Capacities158
Technical data154
Technical modifications5
Telephone
– installation location, refer to
Center armrest86
– refer to separate Owner's
ManualTelephone call, refer to the
Owner's Manual for the
telephone
Temperature display
– ice warning53
– outside temperature53
– setting the units57
Temperature of coolant, refer
to Coolant temperature53
Temperature setting
– air conditioner80
– automatic climate control82
Tempomat, refer to Cruise
control51
Tensioning straps, refer to
Securing cargo96
The individual vehicle4
Third brake lamp, refer to
Center brake lamp129
Three-point safety belt38
Through-loading system95
Tightening the lug bolts
– keys132
– torque134
Tightening torque, refer to
Tightening lug bolts134
Tire change set
– space-saver spare tire132
Tire failure
– Flat Tire Monitor67
– indicator/warning lamp67
– MINI Mobility System130
– run-flat tires67
– space-saver spare tire132
– Tire Pressure Monitor68
Tire inflation pressure104
– loss67
– space-saver spare tire104
Tire Pressure Monitor TPM68
– limitations of system68
– resetting system68
– warning lamp69
Tire pressure monitoring, refer
to Flat Tire Monitor66
Tire Quality Grading112Tires
– age113
– breaking in92
– changing, refer to Changing
wheels132
– condition113
– damage113
– inflation pressure104
– inflation pressure loss69
– minimum tread depth113
– new tires114
– pressure monitoring, refer to
Flat Tire Monitor66
– pressure monitoring, refer to
Tire Pressure Monitor
TPM68
– puncture67
– size112
– wear indicators, refer to
Minimum tread depth113
– winter tires115
– with emergency operation
properties114
Tires with emergency
operation properties, refer to
Run-flat tires114
Tires with safety features, refer
to Run-flat tires114
Tools, refer to Onboard vehicle
tool kit125
Torque154
– lug bolts134
Tow bar138
Tow fitting138
– screw thread138
Tow fittings for tow-starting
and towing away138
Tow rope138
Towing137
– car with automatic
transmission138
– methods138
Tow-starting137
TPM, refer to Tire Pressure
Monitor68
Track width, refer to
Dimension155
