Page 9 of 223
sary to adapt your vehicle to potentially differ‐
ing operating conditions and permit
requirements. If your vehicle does not comply
with the homologation requirements in a cer‐
tain country you cannot lodge warranty claims
for your vehicle there. Further information can
be obtained from your Service Center.
Maintenance and repairs Advanced technology, e.g., the use of modern
materials and high-performance electronics,
requires suitable maintenance and repair
methods.
Therefore, have this work performed only by a
MINI service center or a workshop that works
according to MINI repair procedures with ap‐
propriately trained personnel.
If this work is not carried out properly, there is
the danger of subsequent damage and related
safety hazards.
Parts and accessories
For your own safety, it is recommended that
you use genuine parts and accessories ap‐
proved by MINI. When you purchase accesso‐
ries tested and approved by MINI and Genuine
MINI Parts, you simultaneously acquire the as‐
surance that they have been thoroughly tested
by MINI to ensure optimum performance when
installed on your vehicle. MINI warrants these
parts to be free from defects in material and
workmanship. MINI will not accept any liability
for damage resulting from installation of parts
and accessories not approved by MINI. MINI
cannot test every product made by other man‐
ufacturers to verify if it can be used on a MINI
safely and without risk to either the vehicle, its
operation, or its occupants. Genuine MINI Parts,
MINI Accessories and other products approved
by MINI, together with professional advice on
using these items, are available from all MINI
centers. Installation and operation of non MINI
approved accessories such as alarms, radios,
amplifiers, radar detectors, wheels, suspension
components, brake dust shields, telephones,including operation of any mobile phone from
within the vehicle without using an externally
mounted antenna, or transceiver equipment,
for instance, CBs, walkie-talkies, ham radios or
similar accessories, may cause extensive dam‐
age to the vehicle, compromise its safety, inter‐
fere with the vehicle's electrical system or af‐
fect the validity of the MINI Limited Warranty.
See your MINI center for additional informa‐
tion. Maintenance, replacement, or repair of
the emission control devices and systems may
be performed by any automotive repair estab‐
lishment or individual using any certified auto‐
motive part.
California Proposition 65 Warning California laws require us to state the following
warning:
Engine exhaust and a wide variety of automo‐
bile components and parts, including compo‐
nents found in the interior furnishings in a vehi‐
cle, contain or emit chemicals known to the
State of California to cause cancer and birth de‐
fects and reproductive harm. In addition, cer‐
tain fluids contained in vehicles and certain
products of component wear contain or emit
chemicals known to the State of California to
cause cancer and birth defects or other repro‐
ductive harm. Battery posts, terminals and re‐
lated accessories contain lead and lead com‐
pounds. Wash your hands after handling. Used
engine oil contains chemicals that have caused
cancer in laboratory animals. Always protect
your skin by washing thoroughly with soap and
water.
Service and warranty
We recommend that you read this publication
thoroughly. Your vehicle is covered by the fol‐
lowing warranties:▷New Vehicle Limited Warranty.▷Rust Perforation Limited Warranty.▷Federal Emissions System Defect Warranty.▷Federal Emissions Performance Warranty.Seite 7Notes7
Online Edition for Part no. 01 40 2 961 084 - II/15
Page 57 of 223
All washer nozzles are supplied from one reser‐
voir.
The recommended minimum filling quantity is
0.2 US gal/1 liter.
Fill with a mixture of window washing concen‐
trate and water; if needed, add antifreeze ac‐
cording to the manufacturer instructions.
Mix the washer fluid before adding to maintain
the correct mixing ratio.
Do not fill in undiluted window washing con‐
centrate and do not fill in pure water; this could
damage the washer system.
Do not mix window washing concentrate from
different manufacturers; this could cause the
washer nozzles to clog.
Manual transmission
Pay attention to the shift plane
When shifting into 5th or 6th gear, push
the gearshift lever to the right; otherwise inad‐
vertent shifting into the 3rd or 4th gear could
lead to engine damage. ◀
Reverse gear
Select only when the vehicle is stationary. When
the gearshift lever is pressed to the left, a slight
resistance needs to be overcome.
Steptronic transmission In addition to the fully automatic mode, gears
can also be shifted manually using Steptronic,
refer to page 56.
Parking the vehicle Secure the vehicle
Before leaving the vehicle with the en‐
gine running, move the selector lever to posi‐
tion P and set the handbrake; otherwise, the
vehicle will begin moving. ◀
Disengaging the remote control
To remove the remote control from the ignition
lock, first move the selector lever to position P
and switch off the engine: interlock. Remove
the remote control from the ignition lock, refer
to page 48.
Selector lever positions
P R N D M/S + –
Displays in the tachometer
The selector lever position is displayed and the
engaged gear, such as M4, is displayed in
manual mode.
Seite 55DrivingCONTROLS55
Online Edition for Part no. 01 40 2 961 084 - II/15
Page 66 of 223
SymbolFunctionRoadworthiness testFront brake padsRear brake padsBrake fluidExit the display, refer to
page 61Next setting or information, re‐
fer to page 61
Check Control
The concept
The Check Control monitors vehicle functions
and alerts you to any malfunctions in the sys‐
tems being monitored.
A Check Control message consists of indicator
and warning lamps in the instrument cluster
and, in some circumstances, an acoustic signal.
Indicator/warning lamps
The indicator and warning lamps can light up in
a variety of combinations and colors in display
area 1 or 2.
Several of the lamps are checked for proper
functioning and light up temporarily when the
engine is started or the ignition is switched on.
The symbol indicates that Check Control
messages have been stored. The Check Control
messages can be displayed later.
What to do in case of a malfunction
The meaning of each lamp in the event of a
malfunction and tips on how to respond are
provided in the list, refer to page 191.
Seite 64CONTROLSDisplays64
Online Edition for Part no. 01 40 2 961 084 - II/15
Page 191 of 223
grease removers, fuel, or such; this could lead
to surface damage. ◀
Rubber seals Only treat with water or a rubber care product.
When cleaning rubber seals, do not use silicone
sprays or other care products containing sili‐
cone; otherwise, noise and damage may result.
Chrome surfaces
Carefully clean components such as the radia‐
tor grille or door handles with an ample supply
of water, possibly with shampoo added, partic‐
ularly when they have been exposed to road
salt. For additional treatment, use a chrome
polish.
Light-alloy wheels
When cleaning the wheels on the vehicle, only
use a neutral wheel rim cleaner with a pH value
of 5 to 9.
Do not use abrasive cleaners or a steam jet hot‐
ter than 140 ℉/60 ℃; otherwise, damage may
result. Adhere to the manufacturer instructions.
Aggressive, acidic, or alkaline cleaners may de‐
stroy the protective coating of neighboring
components such as the brake disc.
Exterior sensors
The sensors on the outside of the vehicle, such
as for Park Distance Control, must be kept clean
and free of ice to ensure that they remain fully
functional.
Decorative trim
Clean decorative trims and fine wood compo‐
nents with a moist cloth only. Then dry with a
soft cloth.
Safety belts Dirty belt straps impede the reeling action and
thus have a negative impact on safety.No chemical cleaning
Do not clean chemically; this can destroy
the webbing. ◀
Carpets/floor mats No objects in the area around the pedals
Keep floor mats, carpets, and any other
objects out of the area of motion of the pedals;
otherwise, the function of the pedals could be
impeded while driving
Do not place additional floor mats over existing
mats or other objects.
Only use floor mats that have been approved
for the vehicle and can be properly fixed in
place.
Ensure that the floor mats are securely fastened
again when they are returned after being re‐
moved, such as for cleaning. ◀
Floor mats can be removed for cleaning.
If they are very dirty, clean with a microfiber
cloth and water or an interior cleaner. To pre‐
vent matting of the carpet, rub back and forth
in the direction of travel only.
Displays To clean the displays, such as the radio or dis‐
play elements, use an antistatic microfiber
cloth.
Cleaning displays
Do not use chemical or household cleans‐
ers.
Keep all fluids and moisture away from the
unit.
Otherwise, they could affect or damage surfa‐
ces or electrical components.
Avoid pressing too hard when cleaning and do
not use abrasive materials; otherwise, damage
can result. ◀Seite 189CareMOBILITY189
Online Edition for Part no. 01 40 2 961 084 - II/15
Page 194 of 223
12CauseHow to respondLights up briefly:
Approx. 2.1 US gal/8 liters of fuel remain in
the tank.
Remains on:
The remaining range is no more than
30 miles/50 km, refer to page 59.The engine refuses to start.Depress the brake or clutch to start
the engine, refer to page 49.The ignition is switched on and driver's door
is open.Switch off the ignition, refer to
page 48, or close the driver's door.The lights are still switched on.Switch off the lights, refer to
page 66.The roadside parking lamps are still on.Switch off the roadside parking
lights, refer to page 67.A door is open.The hood is open.The tailgate is open.The fuel cap is missing or loose.Make sure that the fuel cap is cor‐
rectly positioned and close it until it
clicks audibly. Do not jam the strap
between the fuel cap and the vehi‐
cle.The windshield washer fluid level is too low.Add washer fluid, refer to page 54,
as soon as possible.Lights up in red:Service is due.Arrange a service appointment.
Check the service requirements, re‐
fer to page 169.Seite 192MOBILITYIndicator/warning lamps192
Online Edition for Part no. 01 40 2 961 084 - II/15

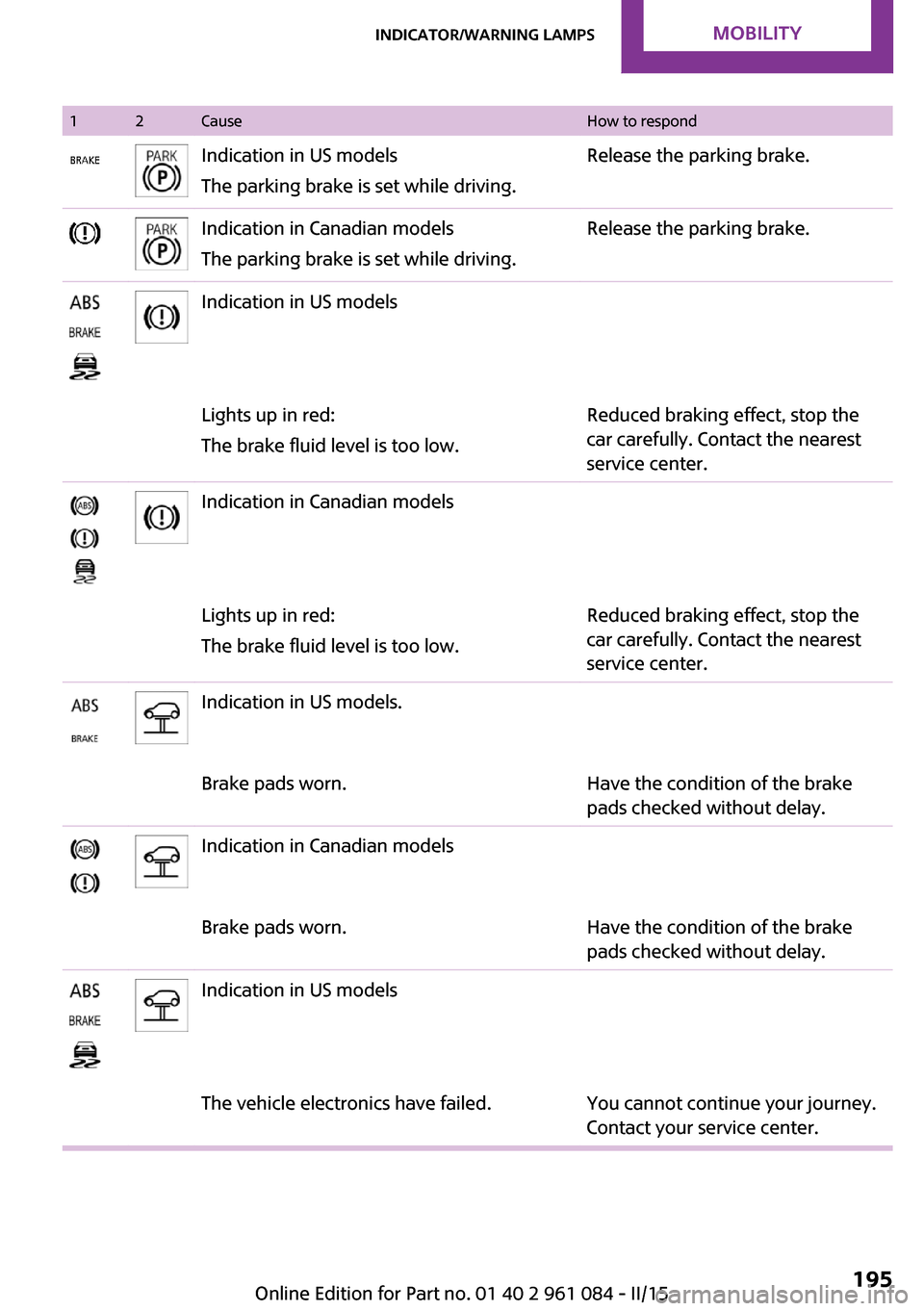

Page 197 of 223
12CauseHow to respondIndication in US models
The parking brake is set while driving.Release the parking brake.Indication in Canadian models
The parking brake is set while driving.Release the parking brake.Indication in US modelsLights up in red:
The brake fluid level is too low.Reduced braking effect, stop the
car carefully. Contact the nearest
service center.Indication in Canadian modelsLights up in red:
The brake fluid level is too low.Reduced braking effect, stop the
car carefully. Contact the nearest
service center.Indication in US models.Brake pads worn.Have the condition of the brake
pads checked without delay.Indication in Canadian modelsBrake pads worn.Have the condition of the brake
pads checked without delay.Indication in US modelsThe vehicle electronics have failed.You cannot continue your journey.
Contact your service center.Seite 195Indicator/warning lampsMOBILITY195
Online Edition for Part no. 01 40 2 961 084 - II/15
Page 212 of 223
Everything from A to ZIndexA
ABS, Antilock Brake Sys‐ tem 81
Acoustic signal, refer to Check Control 64
Activated charcoal filter with automatic climate con‐
trol 92
Adaptive Light Control 68
Additives, engine oil 167
Airbags 71
Airbags, indicator/warning light 74
Air circulation, refer to Recir‐ culated air mode, air condi‐
tioner 89
Air circulation, refer to Recir‐ culated air mode, automatic
climate control 91
Air conditioning 88
Air conditioning mode, air conditioner 88
Air conditioning mode, auto‐ matic climate control 90
Air distribution, air condi‐ tioner, manual 89
Air distribution, automatic 91
Air distribution, automatic cli‐ mate control, manual 92
Air distribution, individual 89
Air drying, refer to Cooling function 92
Air flow rate for air condi‐ tioner 89
Air flow rate with automatic climate control 91
Air pressure, refer to Tire infla‐ tion pressure 152
Air supply, air conditioner 88 Air supply, automatic climate
control 90
Alarm system 30
Alarm system, avoiding unin‐ tentional alarms 31
Alarm system, ending an alarm 30
Alarm system, interior motion sensor 31
Alarm system, tilt alarm sen‐ sor 31
ALL4 all-wheel system 83
All-wheel drive, refer to ALL4 83
Alternating-code hand-held transmitter 95
Ambient lighting 70
Antifreeze, washer fluid 54
Antilock Brake System, ABS 81
Anti-slip control, refer to Dy‐ namic Stability Control
DSC 81
Anti-theft protection 21
Approved engine oils 167
Ashtray 98
Assistance, roadside 181
Assistance when driving off, refer to Hill drive-off assis‐
tant 83
Assistance with starting en‐ gine, refer to Jump-start‐
ing 181
Automatic air distribution 91
Automatic air flow 91
Automatic car wash 186
Automatic climate control 90
Automatic climate control, au‐ tomatic air distribution 91
Automatic, cruise control 85 Automatic headlight con‐
trol 66
Automatic transmission with Steptronic 55
AUTO program with auto‐ matic climate control 91
AUX-IN port 130
Average fuel consumption 60
Average fuel consumption, setting the units 61
Average speed 60
Average speed, refer to Com‐ puter 59
B Backrest curvature, refer to Lumbar support 36
Backrests, refer to Seats 35
Backup lights, bulb replace‐ ment 176
Battery disposal 30
Battery, refer to Vehicle bat‐ tery 179
Battery, remote control 20
Battery replacement, remote control 30
Belts, refer to Safety belts 37
Belt tensioners, refer to Safety belts 37
Bi-xenon headlights 172
Brake assistant 81
Brake discs, breaking in 110
Brake fluid, refer to Service re‐ quirements 63
Brake force distribution, elec‐ tronic 81
Brake pads, breaking in 110
Brake, refer to Parking brake 50 Seite 210REFERENCEEverything from A to Z210
Online Edition for Part no. 01 40 2 961 084 - II/15
Page 216 of 223
Hazard warning system 15
Head airbags 71
Headlamp control, refer to Parking lamps/low
beams 66
Headlamps, care 187
Headlight control, auto‐ matic 66
Headlight courtesy delay fea‐ ture 68
Headlight flasher 51
Headlights 66
Headlights, cleaning, washer fluid 54
Head restraints 39
Head restraints, adjusting the height 39
Head restraints, removing 40
Heatable rear window, air conditioner 89
Heatable windshield 92
Heating, rear window with au‐ tomatic climate control 92
Heating, seats 37
Heating, windshield 92
Height adjustment, seats 35
High-beams 67
High beams, bulb replace‐ ment 173
Hill drive-off assistant 83
Hills 112
Holder for remote control, re‐ fer to Ignition lock 48
Homepage 6
Hood 165
Hood, closing 165
Hood, opening 165
Hood, unlocking 165
Horn 12
Hydraulic brake assistant 81
I
Ice warning, refer to External temperature warning 58 Icy roads, refer to External
temperature warning 58
Identification marks, run-flat tires 160
Identification marks, tires 156
Ignition 49
Ignition key position 1, refer to Radio ready state 48
Ignition key position 2, refer to Ignition on 49
Ignition key, refer to Remote control with integrated
key 20
Ignition lock 48
Ignition, switched off 49
Ignition, switched on 49
Indicator and warning lamps, overview 191
Indicator and warning lamps, Tire Pressure Monitor
TPM 77
Indicator and warning lights 15
Individual air distribution 89
Inflation pressure monitor, re‐ fer to Flat Tire Monitor 74
Inflation pressure monitor, re‐ fer to Tire Pressure Monitor
TPM 76
Inflation pressure, refer to Tire inflation pressure 152
Initializing, compass, refer to Calibrating 97
Initializing, Flat Tire Monitor FTM 74
Initializing, glass sunroof, electrical 32
Instrument cluster, refer to Displays 14
Instrument lighting 69
Instruments, refer to Cock‐ pit 12
Integrated key 20
Integrated universal remote control 94
Interior equipment 94 Interior lights 69
Interior lights, remote con‐ trol 24
Interior mirror 41
Interior motion sensor 31
Interior rearview mirror, com‐ pass 96
Interior temperature, setting, air conditioner 88
Interior temperature, setting, automatic climate con‐
trol 90
Internet page 6
J Jump-starting 181
K
Keyless Go, refer to Comfort Access 28
Keyless opening and closing, refer to Comfort Access 28
Key Memory, refer to Personal Profile 20
Key, refer to Remote control with integrated key 20
Kickdown, Steptronic trans‐ mission 56
Knee airbag 71
Knocking control 150
L Lamp and bulb replacement, bulb replacement 172
Lamp, replacing, refer to Lamp and bulb replace‐
ment 172
Lamps 66
Lamps, automatic headlight control 66
Lap-and-shoulder belt, refer to Safety belts 37 Seite 214REFERENCEEverything from A to Z214
Online Edition for Part no. 01 40 2 961 084 - II/15
Page 218 of 223
Opening and closing, from theoutside 22
Opening and closing, using the door lock 24
Opening and closing, via the remote control 22
Opening and unlocking from the inside 25
Outside air mode, automatic climate control 91
Outside air, refer to Recircu‐ lated air mode, air condi‐
tioner 89
Outside air, refer to Recircu‐ lated air mode, automatic
climate control 91
Overheating of engine, refer to Coolant temperature 59
P Park Distance Control PDC 86
Parking aid, refer to Park Dis‐ tance Control PDC 86
Parking assistant, refer to Park Distance Control PDC 86
Parking brake 50
Parking light, bulb replace‐ ment 174
Parking lights 66
Parking lights/low beams 66
PDC Park Distance Control 86
Personal Profile 20
Pinch protection, windows 33
Pivoting sun visor 96
Plastic, care 188
Pollen, refer to Microfilter 90
Pollen, refer to Microfilter/ activated-charcoal filter 90
Pollen, refer to Microfilter/ activated-charcoal filter with
automatic climate con‐
trol 92
Poor road operation 113
Power windows 33 Power windows, refer to Win‐
dows 32
Prescribed engine oils, refer to Approved engine oils 167
Pressure monitoring of tires, refer to Tire Pressure Monitor
TPM 76
Pressure, tires 152
Pressure warning, tires 74
Profile depth, refer to Mini‐ mum tread depth 158
Profile, tires 157
Protective function, refer to Pinch protection system,
windows 33
R
Radio MINI Boost CD 122
Radio-operated key, refer to Remote control with
integrated key 20
Radio ready state 48
Radio ready state, switched off 49
Radio ready state, switched on 48
Radio setting, refer to Radio ready state 48
Rain sensor 52
Range 60
Rear 36
Rear fog light, bulb replace‐ ment 176
Rear lights, refer to Tail lights 176
Rear seat backrests, foldable, MINI Countryman 100
Rear seat backrests, foldable, MINI Paceman 101
Rearview mirror, refer to Mir‐ rors 40
Rear window defroster with air conditioner 89 Rear window defroster with
automatic climate con‐
trol 92
Rear window, washing 54
Rear window wiper 54
Recirculated air mode, air conditioner 89
Recirculated air mode, auto‐ matic climate control 91
Recommended fuel grade 150
Recommended tire brands 159
Releasing, refer to Unlock‐ ing 28
Remaining range for service, refer to Service require‐
ments 63
Remaining range, refer to Range 60
Remote control 20
Remote control, battery re‐ placement 30
Remote control, Comfort Ac‐ cess 28
Remote control, Comfort Ac‐ cess, malfunctions 29
Remote control, garage door opener 94
Remote control, radio interfer‐ ence 24
Remote control, removing from the ignition lock 48
Remote control, service data 169
Remote control, universal 94
Replacement remote con‐ trol 20
Replacing wheels/tires 159
Reporting safety defects 9
Reserve warning, refer to Fuel gauge 59
Reservoir for washer fluid, re‐ fer to Washer fluid reser‐
voir 54 Seite 216REFERENCEEverything from A to Z216
Online Edition for Part no. 01 40 2 961 084 - II/15
