MINI Roadster 2014 Owner's Manual (Mini Connected)

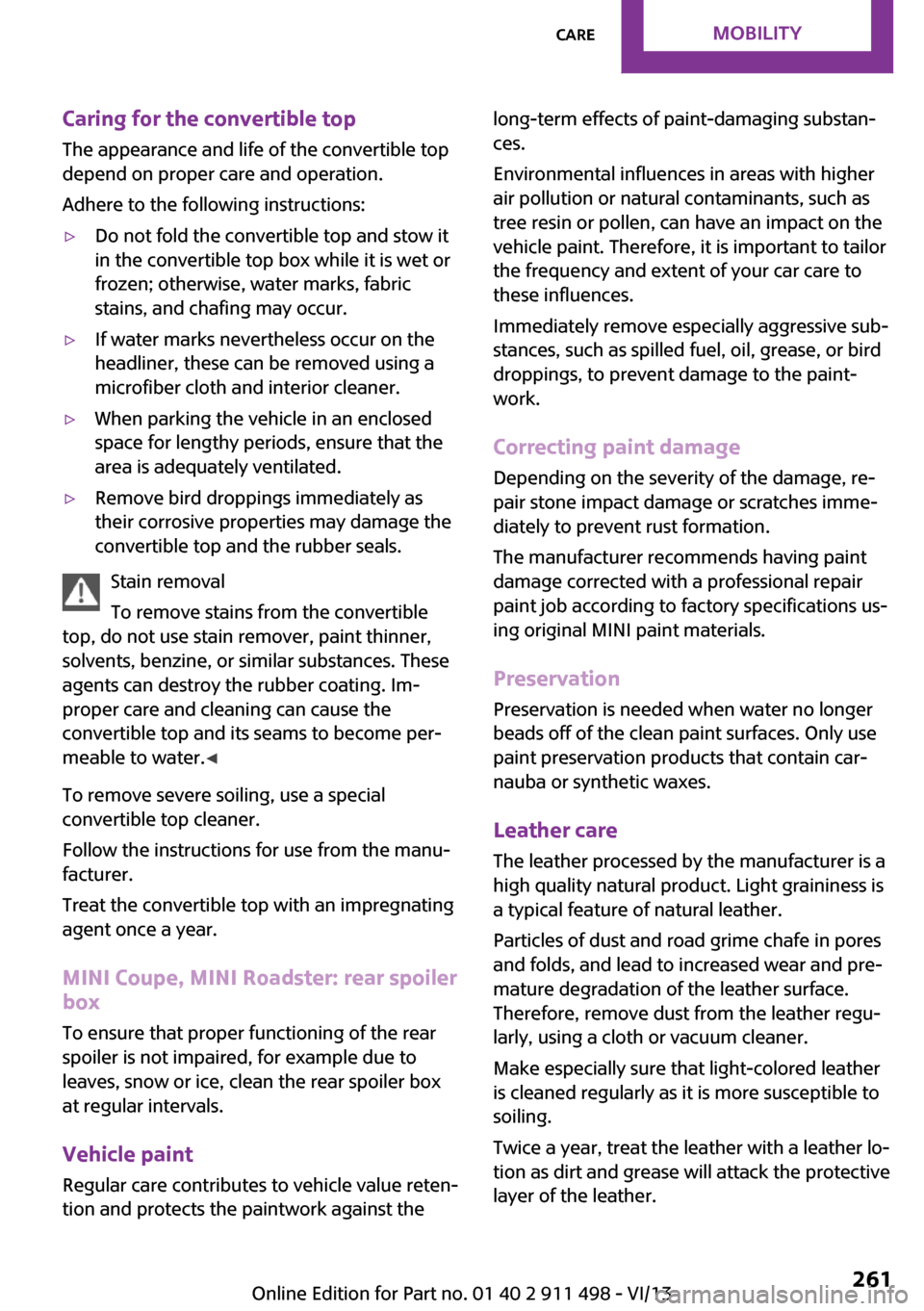

Caring for the convertible top
The appearance and life of the convertible top
depend on proper care and operation.
Adhere to the following instructions:▷Do not fold the convertible top and stow it
in the convertible top box while it is wet or
frozen; otherwise, water marks, fabric
stains, and chafing may occur.▷If water marks nevertheless occur on the
headliner, these can be removed using a
microfiber cloth and interior cleaner.▷When parking the vehicle in an enclosed
space for lengthy periods, ensure that the
area is adequately ventilated.▷Remove bird droppings immediately as
their corrosive properties may damage the
convertible top and the rubber seals.
Stain removal
To remove stains from the convertible
top, do not use stain remover, paint thinner,
solvents, benzine, or similar substances. These
agents can destroy the rubber coating. Im‐
proper care and cleaning can cause the
convertible top and its seams to become per‐
meable to water. ◀
To remove severe soiling, use a special
convertible top cleaner.
Follow the instructions for use from the manu‐
facturer.
Treat the convertible top with an impregnating
agent once a year.
MINI Coupe, MINI Roadster: rear spoiler
box
To ensure that proper functioning of the rear
spoiler is not impaired, for example due to
leaves, snow or ice, clean the rear spoiler box
at regular intervals.
Vehicle paint
Regular care contributes to vehicle value reten‐
tion and protects the paintwork against the
long-term effects of paint-damaging substan‐
ces.
Environmental influences in areas with higher
air pollution or natural contaminants, such as
tree resin or pollen, can have an impact on the
vehicle paint. Therefore, it is important to tailor
the frequency and extent of your car care to
these influences.
Immediately remove especially aggressive sub‐
stances, such as spilled fuel, oil, grease, or bird
droppings, to prevent damage to the paint‐
work.
Correcting paint damage
Depending on the severity of the damage, re‐
pair stone impact damage or scratches imme‐
diately to prevent rust formation.
The manufacturer recommends having paint
damage corrected with a professional repair
paint job according to factory specifications us‐
ing original MINI paint materials.
Preservation
Preservation is needed when water no longer
beads off of the clean paint surfaces. Only use
paint preservation products that contain car‐
nauba or synthetic waxes.
Leather care The leather processed by the manufacturer is a
high quality natural product. Light graininess is
a typical feature of natural leather.
Particles of dust and road grime chafe in pores
and folds, and lead to increased wear and pre‐
mature degradation of the leather surface.
Therefore, remove dust from the leather regu‐
larly, using a cloth or vacuum cleaner.
Make especially sure that light-colored leather
is cleaned regularly as it is more susceptible to
soiling.
Twice a year, treat the leather with a leather lo‐
tion as dirt and grease will attack the protective
layer of the leather.Seite 261CareMobility261
Online Edition for Part no. 01 40 2 911 498 - VI/13

Upholstery material care
Vacuum regularly with a vacuum cleaner to re‐
move superficial soiling.
In case of heavy soiling, e.g., beverage stains,
use a soft sponge or lint-free microfiber cloth in
combination with a suitable interior cleaner.
Follow the instructions on the container.
Clean the upholstery material down to the
seams using large sweeping motions. Avoid
rubbing the material vigorously.
Damage from Velcro® fasteners
Open Velcro® fasteners on pants or other
articles of clothing can damage the seat covers.
Ensure that any Velcro® fasteners are closed. ◀
Caring for special components Interior plastic parts
These include:▷Imitation leather surfaces▷Lamp lenses▷Indicator covers▷Matte components
Clean with water and a solvent-free plastic
cleaner if necessary.
Do not use cleansers that contain alcohol
or solvents
Do not use cleansers that contain alcohol or
solvents, such as lacquer thinners, heavy-duty
grease removers, fuel, or such; this could lead
to surface damage. ◀
Rubber seals Only treat with water or a rubber care product.
When cleaning rubber seals, do not use silicone
sprays or other care products containing sili‐
cone; otherwise, noise and damage may result.
Chrome surfaces
Carefully clean components such as the radia‐
tor grille or door handles with an ample supply
of water, possibly with shampoo added, partic‐
ularly when they have been exposed to road
salt. For additional treatment, use a chrome
polish.
Light-alloy wheels
When cleaning the wheels on the vehicle, only
use a neutral wheel rim cleaner with a pH value
of 5 to 9.
Do not use abrasive cleaners or a steam jet hot‐
ter than 140 ℉/60 ℃; otherwise, damage may
result. Adhere to the manufacturer instructions.
Aggressive, acidic, or alkaline cleaners may de‐
stroy the protective coating of neighboring
components such as the brake disc.
Exterior sensors The sensors on the outside of the vehicle, such
as for Park Distance Control, must be kept clean
and free of ice to ensure that they remain fully
functional.
Decorative trim
Clean decorative trims and fine wood compo‐
nents with a moist cloth only. Then dry with a
soft cloth.
Safety belts Dirty belt straps impede the reeling action and
thus have a negative impact on safety.
No chemical cleaning
Do not clean chemically; this can destroy
the webbing. ◀
Carpets/floor mats No objects in the area around the pedals
Keep floor mats, carpets, and any other
objects out of the area of motion of the pedals;
otherwise, the function of the pedals could be
impeded while driving
Do not place additional floor mats over existing
mats or other objects.Seite 262MobilityCare262
Online Edition for Part no. 01 40 2 911 498 - VI/13

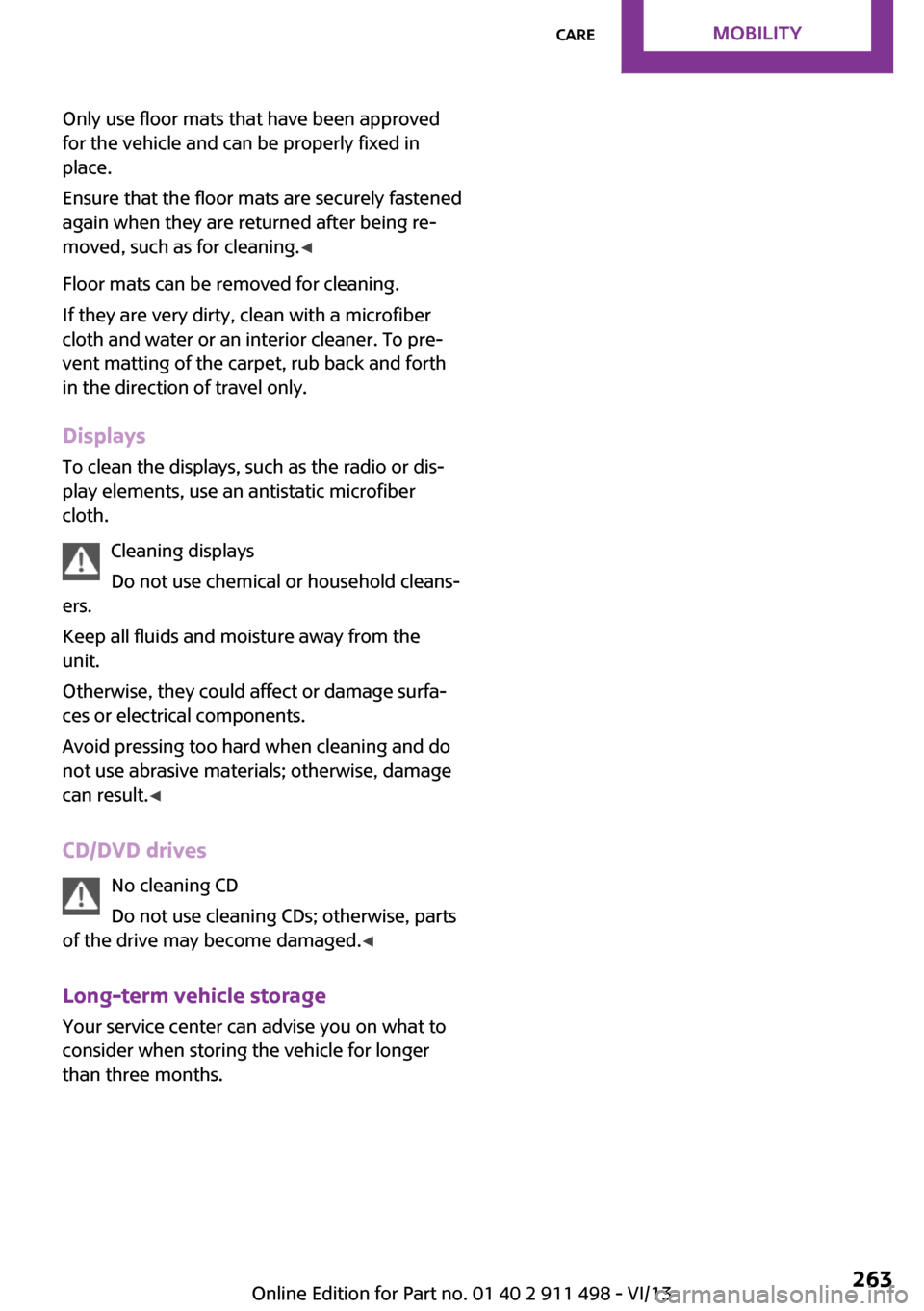

Only use floor mats that have been approved
for the vehicle and can be properly fixed in
place.
Ensure that the floor mats are securely fastened
again when they are returned after being re‐
moved, such as for cleaning. ◀
Floor mats can be removed for cleaning.
If they are very dirty, clean with a microfiber
cloth and water or an interior cleaner. To pre‐
vent matting of the carpet, rub back and forth
in the direction of travel only.
Displays
To clean the displays, such as the radio or dis‐
play elements, use an antistatic microfiber
cloth.
Cleaning displays
Do not use chemical or household cleans‐
ers.
Keep all fluids and moisture away from the
unit.
Otherwise, they could affect or damage surfa‐
ces or electrical components.
Avoid pressing too hard when cleaning and do
not use abrasive materials; otherwise, damage
can result. ◀
CD/DVD drives No cleaning CD
Do not use cleaning CDs; otherwise, parts
of the drive may become damaged. ◀
Long-term vehicle storage
Your service center can advise you on what to
consider when storing the vehicle for longer
than three months.Seite 263CareMobility263
Online Edition for Part no. 01 40 2 911 498 - VI/13

FIND ME.

Online Edition for Part no. 01 40 2 911 498 - VI/13

At a glanceControlsDriving tipsNavigationEntertainmentCommunicationMobilityReferenceOnline Edition for Part no. 01 40 2 911 498 - VI/13

Technical dataVehicle equipment
This chapter describes all series equipment as
well as country-specific and special equipment
offered for this model series.Therefore, it alsodescribes equipment that may not be found in
your vehicle, for instance due to the selected
special equipment or the country version. This
also applies to safety-related functions and sys‐
tems.
Engine specifications
CooperCooper SJohn Cooper WorksDisplacementcu in/cm³97.5/1,59897.5/1,59897.5/1,598No. of cylinders444Maximum outputhp121181208at engine speedrpm6,0005,5006,000Maximum torquelb ft/Nm114/155177/240192/260with overboost–192/260207/280at engine speedrpm4,2501,600-5,0001,750-5,500with overboost–1,730-4,5002,000-5,100Overboost briefly increases the highest torque during rapid acceleration, for example when pass‐
ing another vehicle.
Dimensions
MINI Coupe

MINI CoupeCooperCooper SJohn Cooper WorksWidth with mirrorsinches/mm74.5/1,89274.5/1,89274.5/1,892Width without mirrorsinches/mm66.3/1,68366.3/1,68366.3/1,683Height without roof antennainches/mm54.3/1,37854.5/1,38454.5/1,385Lengthinches/mm146.8/3,728147.0/3,734148.0/3,758Seite 266ReferenceTechnical data266
Online Edition for Part no. 01 40 2 911 498 - VI/13

MINI CoupeCooperCooper SJohn Cooper WorksTrack width, frontinches/mm57.4/1,45957.2/1,45357.2/1,453Track width, rearinches/mm57.8/1,46757.5/1,46157.5/1,461Wheelbaseinches/mm97.1/2,46797.1/2,46797.1/2,467Smallest turning circle dia.ft/m35/10.735/10.735/10.7
MINI Roadster

MINI RoadsterCooperCooper SJohn Cooper WorksWidth with mirrorsinches/mm74.5/1,89274.5/1,89274.5/1,892Width without mirrorsinches/mm66.3/1,68366.3/1,68366.3/1,683Height without roof antennainches/mm54.5/1,38454.7/1,39054.8/1,391Lengthinches/mm146.8/3,728147.0/3,734148.0/3,758Track width, frontinches/mm57.4/1,45957.2/1,45357.2/1,453Track width, rearinches/mm57.8/1,46757.5/1,46157.5/1,461Wheelbaseinches/mm97.1/2,46797.1/2,46797.1/2,467Smallest turning circle dia.ft/m35/10.735/10.735/10.7
MINI Convertible
MINI ConvertibleCooperCooper SJohn Cooper WorksWidth with mirrorsinches/mm75.3/1,91375.3/1,91375.3/1,913Width without mirrorsinches/mm66.3/1,68366.3/1,68366.3/1,683Height without roof antennainches/mm55.7/1,41455.7/1,41455.7/1,414Lengthinches/mm146.6/3,723146.8/3,729148.0/3,758Track width, frontinches/mm57.4/1,45957.2/1,45357.2/1,453Track width, rearinches/mm57.8/1,46757.5/1,46157.5/1,461Wheelbaseinches/mm97.1/2,46797.1/2,46797.1/2,467Smallest turning circle dia.ft/m35/10.735/10.735/10.7Weights
Never exceed either the approved axle loads or
the gross vehicle weight.Seite 267Technical dataReference267
Online Edition for Part no. 01 40 2 911 498 - VI/13

MINI Coupe
CooperCooper SJohn Cooper WorksCurb weight, road ready, with maximum special equipmentManual transmissionlbs/kg2,557/1,1602,679/1,2152,712/1,230Automatic transmissionlbs/kg2,635/1,1952,734/1,2402,767/1,255Approved gross vehicle weightManual transmissionlbs/kg3,175/1,4403,252/1,4753,263/1,480Automatic transmissionlbs/kg3,252/1,4753,307/1,5003,318/1,505Approved front axle loadManual transmissionlbs/kg1,786/8101,885/8551,896/860Automatic transmissionlbs/kg1,863/8451,940/8801,951/885Approved rear axle loadlbs/kg1,411/6401,411/6401,411/640Cargo area capacitycu ft/
liter9.9/2809.9/2809.9/280
MINI Roadster

CooperCooper SJohn Cooper WorksCurb weight, road ready, with maximum special equipmentManual transmissionlbs/kg2,635/1,1952,745/1,2452,778/1,260Automatic transmissionlbs/kg2,712/1,2302,800/1,2702,833/1,285Approved gross vehicle weightManual transmissionlbs/kg3,241/1,4703,329/1,5103,340/1,515Automatic transmissionlbs/kg3,318/1,5053,373/1,5303,395/1,540Approved front axle loadManual transmissionlbs/kg1,786/8101,896/8601,907/865Automatic transmissionlbs/kg1,863/8451,951/8851,962/890Approved rear axle loadlbs/kg1,488/6751,466/6651,488/675Cargo area capacitycu ft/
liter8.5/2408.5/2408.5/240Seite 268ReferenceTechnical data268
Online Edition for Part no. 01 40 2 911 498 - VI/13

MINI Convertible CooperCooper SJohn Cooper WorksCurb weight, road ready, with maximum special equipmentManual transmissionlbs/kg2,701/1,2252,811/1,2752,822/1,280Automatic transmissionlbs/kg2,778/1,2602,855/1,2952,866/1,300Approved gross vehicle weightManual transmissionlbs/kg3,560/1,6153,671/1,6653,704/1,680Automatic transmissionlbs/kg3,638/1,6503,737/1,6953,748/1,700Approved front axle loadManual transmissionlbs/kg1,863/8451,951/8851,973/895Automatic transmissionlbs/kg1,940/8802,017/9152,017/915Approved rear axle loadlbs/kg1,786/8101,786/8101,797/815Cargo area capacitycu ft/
liter4.4-23.3/125-6604.4-23.3/125-6604.4-23.3/125-660
Capacities

NotesFuel tankUS gal/litersApprox. 13.2/50Fuel quality, refer to
page 220Including reserve ofUS gal/litersApprox. 2.1/8Seite 269Technical dataReference269
Online Edition for Part no. 01 40 2 911 498 - VI/13

Short commands for voice
activation systemVehicle equipment
This chapter describes all series equipment as
well as country-specific and special equipment
offered for this model series.Therefore, it also
describes equipment that may not be found in
your vehicle, for instance due to the selected
special equipment or the country version. This
also applies to safety-related functions and sys‐
tems.
General information Instructions for voice activation system, refer to
page 26.To have the available spoken instructions read
out loud: ›Voice commands‹
The following short commands apply to vehi‐
cles equipped with a voice activation system.
They have no function in vehicles in which only
the mobile phone is operated using the voice.
Adjusting
Vehicle
FunctionCommandOpens the main menu.›Main menu‹Open the options.›Options‹Open the settings.›Settings‹Settings on the Control Display.›Control display‹Open the time and date.›Time and date‹Open the language and units.›Language and units‹Open the speed limit.›Speed‹Open the light.›Lighting‹Open the door lock.›Door locks‹Seite 270ReferenceShort commands for voice activation system270
