Breakdown assistanceVehicle equipment
This chapter describes all series equipment as
well as country-specific and special equipment
offered for this model series.Therefore, it also
describes equipment that may not be found in
your vehicle, for instance due to the selected
special equipment or the country version. This
also applies to safety-related functions and sys‐
tems.
Hazard warning flash‐
ers
The button is located on the speedometer.
Warning triangle The warning triangle is located in the front on
the trunk floor.
First aid kit Some of the articles contained in the first aid kit
have a limited service life. Therefore, check the
use-by dates of the contents regularly and re‐
place the items before they expire.
The first aid kit is located in the left side trim on
the cargo area floor.
Roadside Assistance
Service availability Roadside Assistance can be reached around the
clock in many countries. You can obtain assis‐
tance there in the event of a vehicle break‐
down.
Roadside Assistance A phone number for Roadside Assistance can
be displayed, refer to page 144, via the radio.
Jump-starting Notes
If the battery is discharged, the engine can be
started using the battery of another vehicle and
two jumper cables. In the same way, you can
help jump-start another vehicle. Only use
jumper cables with fully insulated clamp han‐
dles.
To prevent personal injury or damage to both
vehicles, adhere strictly to the following proce‐
dure.
Seite 186MobilityBreakdown assistance186
Online Edition for Part no. 01 40 2 911 475 - VI/13

Do not touch live parts
To avoid the risk of potentially fatal injury,
always avoid all contact with electrical compo‐
nents while the engine is running. ◀
Preparation1.Check whether the battery of the other ve‐
hicle has a voltage of 12 volts and approxi‐
mately the same capacitance in Ah. This in‐
formation can be found on the battery.2.Switch off the engine of the assisting vehi‐
cle.3.Switch off any electronic systems/power
consumers in both vehicles.
Bodywork contact between vehicles
There must not be any contact between
the bodies of the two vehicles, otherwise there
is a danger of shorting. ◀

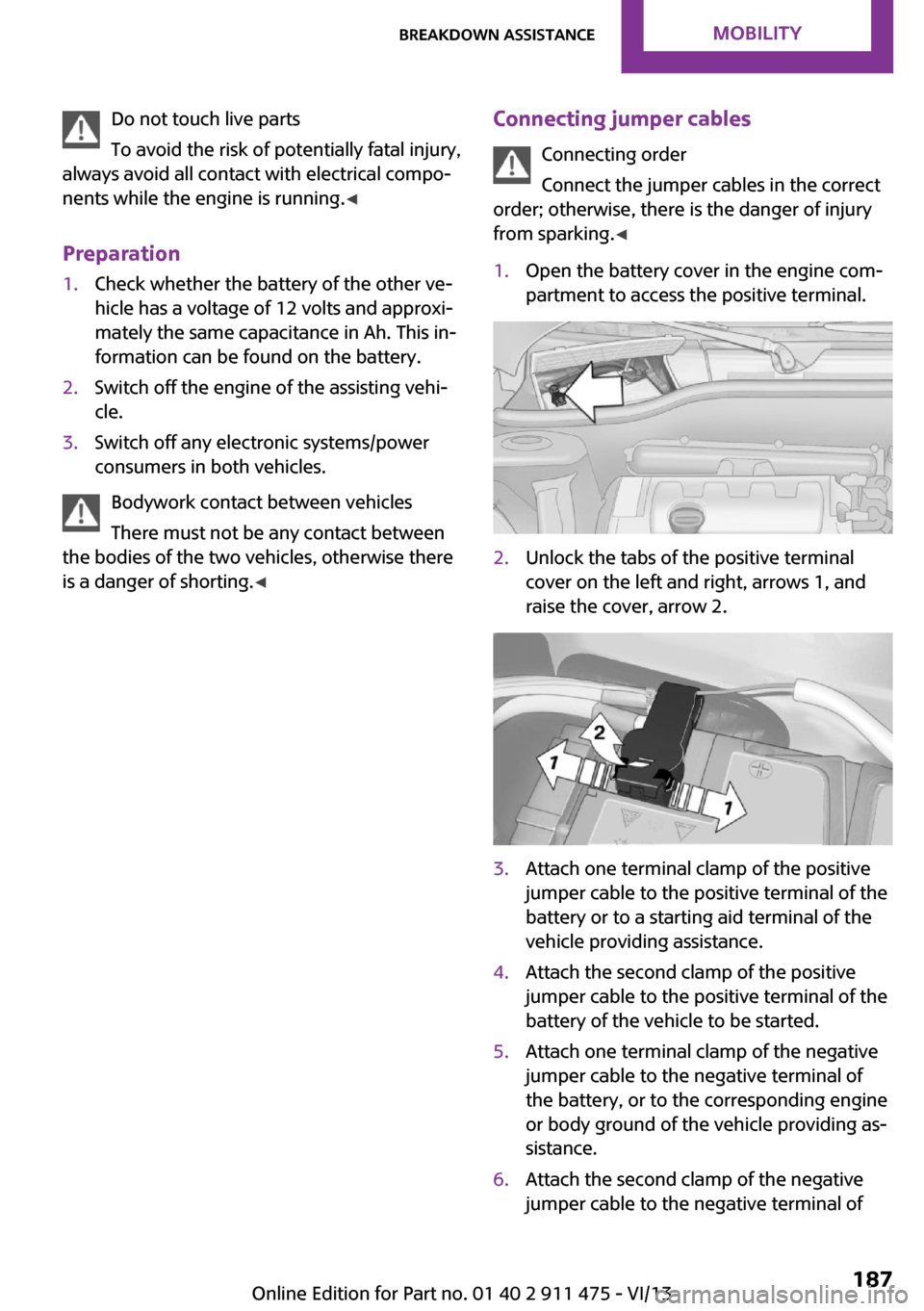

Connecting jumper cables
Connecting order
Connect the jumper cables in the correct
order; otherwise, there is the danger of injury
from sparking. ◀1.Open the battery cover in the engine com‐
partment to access the positive terminal.2.Unlock the tabs of the positive terminal
cover on the left and right, arrows 1, and
raise the cover, arrow 2.3.Attach one terminal clamp of the positive
jumper cable to the positive terminal of the
battery or to a starting aid terminal of the
vehicle providing assistance.4.Attach the second clamp of the positive
jumper cable to the positive terminal of the
battery of the vehicle to be started.5.Attach one terminal clamp of the negative
jumper cable to the negative terminal of
the battery, or to the corresponding engine
or body ground of the vehicle providing as‐
sistance.6.Attach the second clamp of the negative
jumper cable to the negative terminal ofSeite 187Breakdown assistanceMobility187
Online Edition for Part no. 01 40 2 911 475 - VI/13

the battery, or to the engine or body
ground of the vehicle to be started.

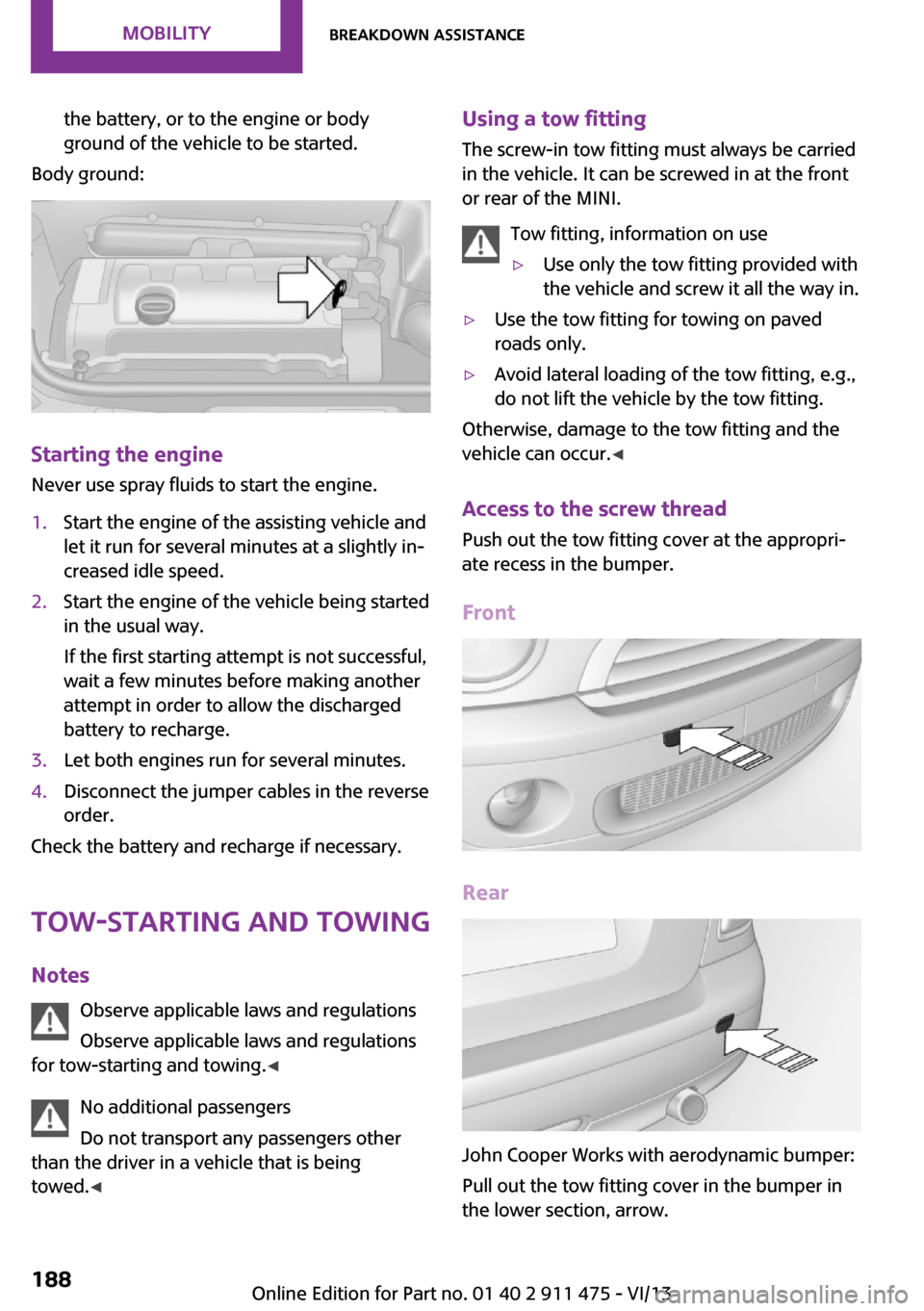

Body ground:
Starting the engine
Never use spray fluids to start the engine.
1.Start the engine of the assisting vehicle and
let it run for several minutes at a slightly in‐
creased idle speed.2.Start the engine of the vehicle being started
in the usual way.
If the first starting attempt is not successful,
wait a few minutes before making another
attempt in order to allow the discharged
battery to recharge.3.Let both engines run for several minutes.4.Disconnect the jumper cables in the reverse
order.
Check the battery and recharge if necessary.
Tow-starting and towing
Notes Observe applicable laws and regulations
Observe applicable laws and regulations
for tow-starting and towing. ◀
No additional passengers
Do not transport any passengers other
than the driver in a vehicle that is being
towed. ◀
Using a tow fitting
The screw-in tow fitting must always be carried
in the vehicle. It can be screwed in at the front
or rear of the MINI.
Tow fitting, information on use▷Use only the tow fitting provided with
the vehicle and screw it all the way in.▷Use the tow fitting for towing on paved
roads only.▷Avoid lateral loading of the tow fitting, e.g.,
do not lift the vehicle by the tow fitting.
Otherwise, damage to the tow fitting and the
vehicle can occur. ◀
Access to the screw thread Push out the tow fitting cover at the appropri‐
ate recess in the bumper.
Front
Rear
John Cooper Works with aerodynamic bumper:
Pull out the tow fitting cover in the bumper in
the lower section, arrow.
Seite 188MobilityBreakdown assistance188
Online Edition for Part no. 01 40 2 911 475 - VI/13

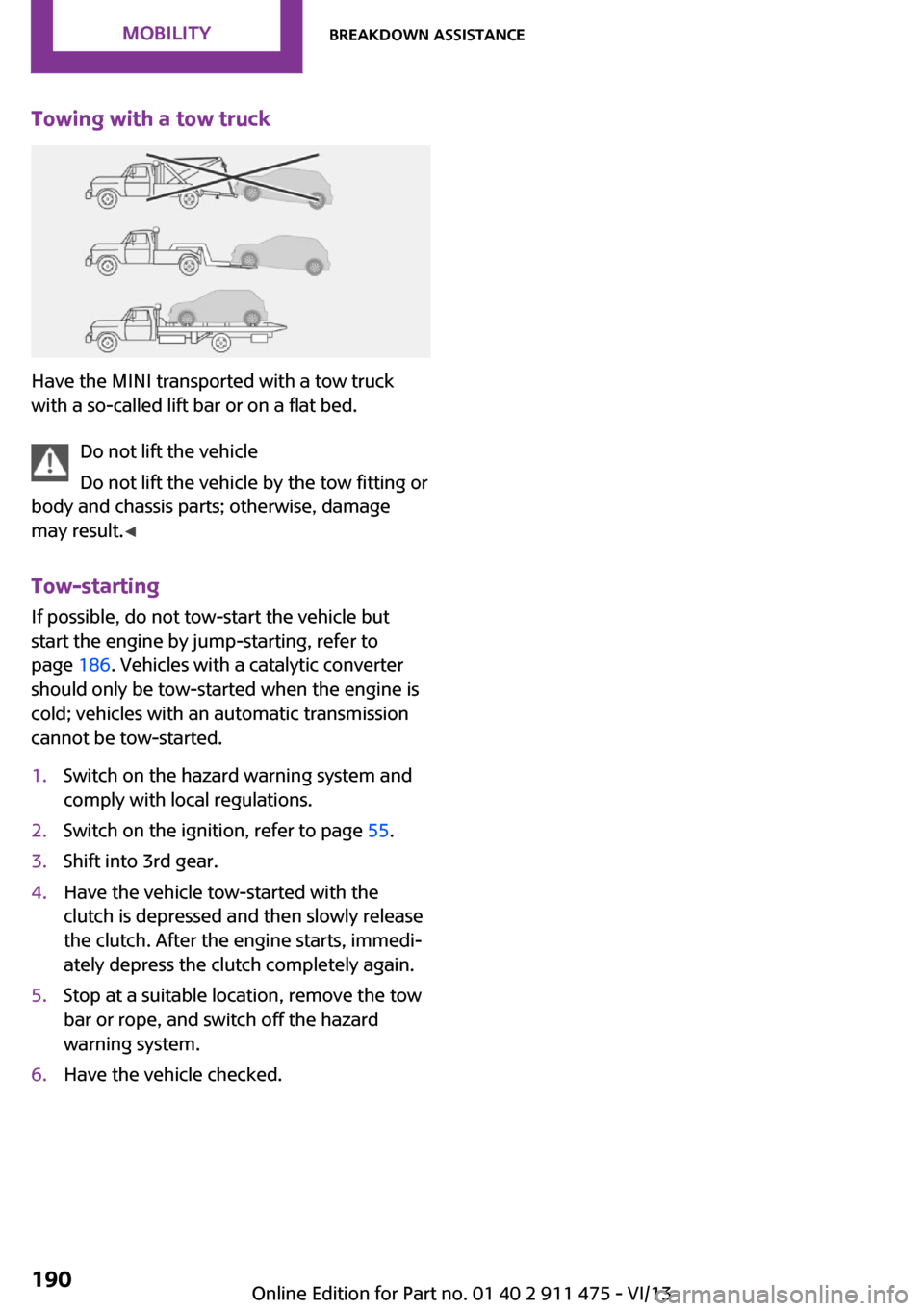

Towing with a tow truck
Have the MINI transported with a tow truck
with a so-called lift bar or on a flat bed.
Do not lift the vehicle
Do not lift the vehicle by the tow fitting or
body and chassis parts; otherwise, damage
may result. ◀
Tow-starting
If possible, do not tow-start the vehicle but
start the engine by jump-starting, refer to
page 186. Vehicles with a catalytic converter
should only be tow-started when the engine is
cold; vehicles with an automatic transmission
cannot be tow-started.
1.Switch on the hazard warning system and
comply with local regulations.2.Switch on the ignition, refer to page 55.3.Shift into 3rd gear.4.Have the vehicle tow-started with the
clutch is depressed and then slowly release
the clutch. After the engine starts, immedi‐
ately depress the clutch completely again.5.Stop at a suitable location, remove the tow
bar or rope, and switch off the hazard
warning system.6.Have the vehicle checked.Seite 190MobilityBreakdown assistance190
Online Edition for Part no. 01 40 2 911 475 - VI/13

12CauseHow to respondThe windshield washer fluid level is too
low.Add washer fluid, refer to page 61,
as soon as possible.Lights up in red:Service is due.Arrange a service appointment.
Check the service requirements, re‐
fer to page 173.Lights up in yellow:The engine will start the next time the
Start/Stop button is touched, possibly with‐
out the brake or clutch being depressedThe remote control is malfunctioning or, in
cars with Comfort Access, was not de‐
tected.The engine cannot be started. Have
the remote control checked, if nec‐
essary.The battery in the remote control is dis‐
charged.Use the remote control for a longer
journey or, in cars with Comfort Ac‐
cess, replace the battery.The belt tensioners and/or airbag system
has failed.Have the system checked immedi‐
ately.
Fasten the safety belts anyway.Steering assistance has failed.You can continue your journey, but
moderate your speed and exercise
due caution. Markedly different
steering response. Have the system
checked as soon as possible.Lights up in red:Engine malfunctionStop the car and switch off the en‐
gine. You cannot continue your jour‐
ney. Contact your service center.Lights up in yellow:Full engine power is no longer available.You can continue your journey, but
moderate your speed and exercise
due caution. Have the engine
checked as soon as possible.Seite 199Indicator/warning lampsMobility199
Online Edition for Part no. 01 40 2 911 475 - VI/13

12CauseHow to respondIndicator lamp 1 flashes:Engine malfunction under high load. High
engine load will result in damage to the
catalytic converter.You can continue your journey, but
moderate your speed and exercise
due caution. Have the vehicle
checked immediately.Indicator lamp 1 lights up:Engine malfunction with adverse effect on
emissions.You can continue your journey, but
moderate your speed and exercise
due caution. Have the vehicle
checked as soon as possible.Lights up in red:The engine is overheating.Carefully bring the car to a stop,
switch off the engine and allow it to
cool down. Do not open the hood;
otherwise, there would be a risk of
injury due to scalding. Contact your
service center.Lights up in yellow:The engine is too hot.Continue driving at more moderate
speed so that the engine can cool
down. Have the engine checked
without delay if the situation reoc‐
curs.Lights up in red:Battery is no longer being charged. Alter‐
nator malfunction.Switch off all unnecessary electrical
consumers. Have the power supply
system checked without delay.Lights up in yellow:The battery charge level is very low, the
battery is old or is not securely connected.Charge the battery by taking a long
drive or using an external charger. If
necessary, switch off automatic
power consumers. Have the battery
checked as soon as possible.Seite 200MobilityIndicator/warning lamps200
Online Edition for Part no. 01 40 2 911 475 - VI/13

12CauseHow to respondIndication in US modelsThe vehicle electronics have failed.You cannot continue your journey.
Contact your service center.Indication in Canadian modelsThe vehicle electronics have failed.You cannot continue your journey.
Contact your service center.Lights up in red:Have the system in question checked
immediately.The starter has failed orThe engine cannot be restarted.Ignition malfunctioning. The engine can
only be restarted when the brake is de‐
pressed or
Lighting system failed. Low beams/tail
lamps and brake lights still operational. All
other lamps failed.Depress the brake to restart the en‐
gine.Lights up in yellow:Brake light control failed or
The fuel supply is malfunctioning.You can continue your journey, but
moderate your speed and exercise
due caution. Have the system in
question checked immediately.Drive malfunctioning.You can continue your journey, but
moderate your speed and exercise
due caution. Transmission limp-
home program with reduced accel‐
eration is active. Have the system
checked immediately.Flashing:
Dynamic Stability Control DSC or Dynamic
Traction Control DTC is controlling drive
and braking forces, refer to page 89.Seite 202MobilityIndicator/warning lamps202
Online Edition for Part no. 01 40 2 911 475 - VI/13

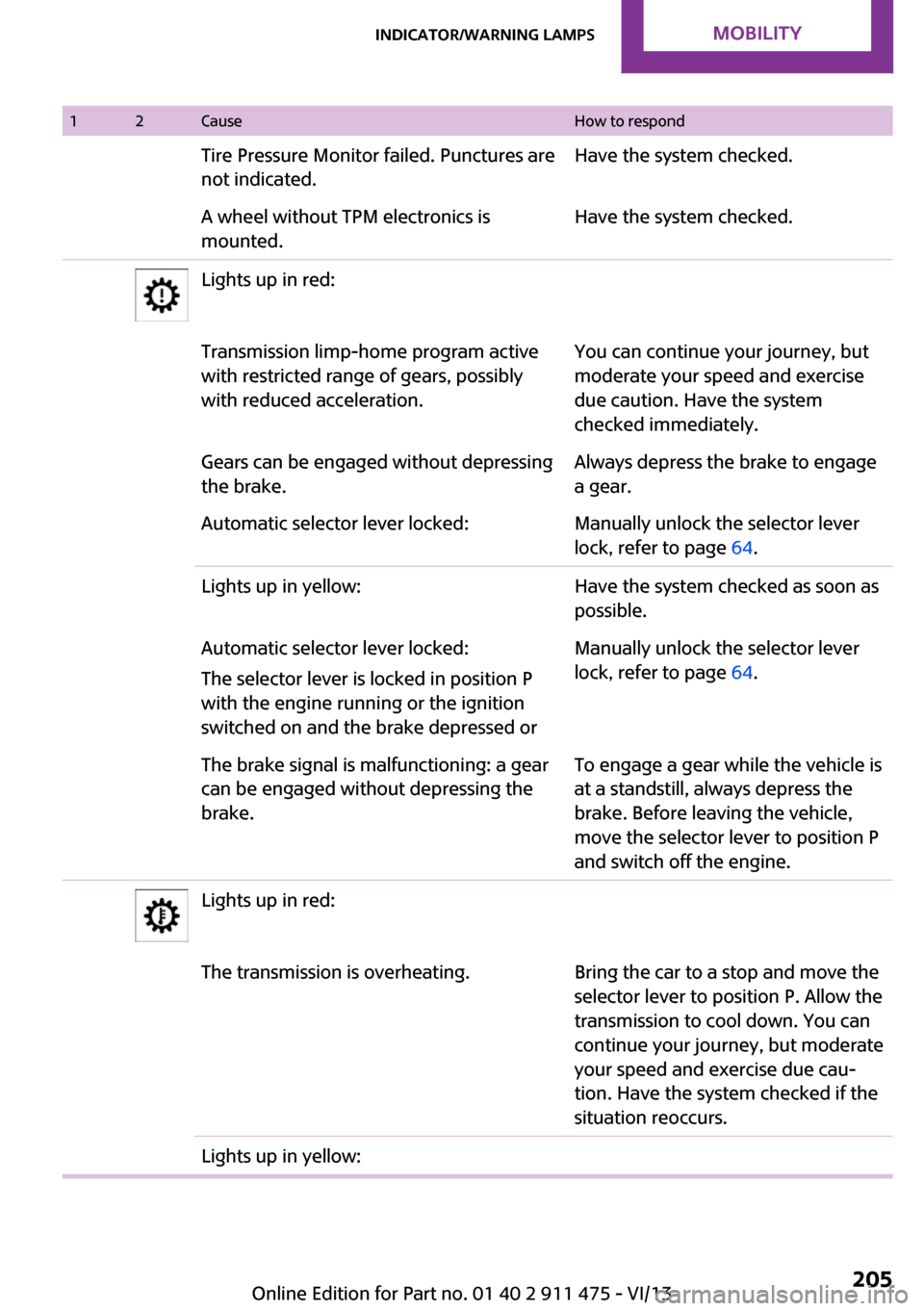

12CauseHow to respondTire Pressure Monitor failed. Punctures are
not indicated.Have the system checked.A wheel without TPM electronics is
mounted.Have the system checked.Lights up in red:Transmission limp-home program active
with restricted range of gears, possibly
with reduced acceleration.You can continue your journey, but
moderate your speed and exercise
due caution. Have the system
checked immediately.Gears can be engaged without depressing
the brake.Always depress the brake to engage
a gear.Automatic selector lever locked:Manually unlock the selector lever
lock, refer to page 64.Lights up in yellow:Have the system checked as soon as
possible.Automatic selector lever locked:
The selector lever is locked in position P
with the engine running or the ignition
switched on and the brake depressed orManually unlock the selector lever
lock, refer to page 64.The brake signal is malfunctioning: a gear
can be engaged without depressing the
brake.To engage a gear while the vehicle is
at a standstill, always depress the
brake. Before leaving the vehicle,
move the selector lever to position P
and switch off the engine.Lights up in red:The transmission is overheating.Bring the car to a stop and move the
selector lever to position P. Allow the
transmission to cool down. You can
continue your journey, but moderate
your speed and exercise due cau‐
tion. Have the system checked if the
situation reoccurs.Lights up in yellow:Seite 205Indicator/warning lampsMobility205
Online Edition for Part no. 01 40 2 911 475 - VI/13

12CauseHow to respondThe transmission is too hot.Avoid high engine loads. You can
continue your journey, but moderate
your speed and exercise due cau‐
tion.Selector lever position P not engaged. The
vehicle is not secured against rolling.Selector lever position P not engaged. The
ignition cannot be switched off.Engage selector lever position P
when you wish to switch off the igni‐
tion, refer to page 55.The cruise control system has failed.Have the system checked.The Park Distance Control has failed.Have the system checked.A bulb of the exterior lighting system has
failed.Have the exterior lighting checked as
soon as possible.A low-beam headlamp or front fog lamp
has failed.Have the lights checked as soon as
possible.A high-beam headlamp has failed.Have the high-beam headlamps
checked.A rear fog lamp has failed.Have the rear fog lamps checked.The headlamp beam throw adjustment
has failed.Have the headlamp beam throw ad‐
justment system checked.The Adaptive Light Control has failed.The coolant level is too low.Add coolant immediately, refer to
page 172.The engine oil pressure is too low.Stop immediately and switch off the
engine. You cannot continue your
journey. Contact your service center.Seite 206MobilityIndicator/warning lamps206
Online Edition for Part no. 01 40 2 911 475 - VI/13

Everything from A to ZIndexA
ABS, Antilock Brake Sys‐ tem 89
Acoustic signal, refer to Check Control 72
Activated charcoal filter with automatic climate con‐
trol 100
Adaptive Light Control 76
Additives, engine oil 171
Airbags 80
Airbags, indicator/warning light 82
Air circulation, refer to Recir‐ culated air mode 97, 99
Air conditioner 96
Air conditioning 96
Air conditioning mode– Air conditioner 96– Automatic climate con‐
trol 98
Air distribution
– Automatic 99– Individual 97– Manual 97, 100
Air drying, refer to Cooling
function 100
Air flow rate 96, 99
Air pressure, refer to Tire infla‐ tion pressure 154
Air supply
– Air conditioner 96– Automatic climate con‐
trol 98
Alarm system 31
Alarm system
– Avoiding unintentional
alarms 31– Interior motion sensor 31– Tilt alarm sensor 31
Always Open Timer 67
Ambient lighting 78
Antifreeze, washer fluid 61
Antilock Brake System, ABS 89
Anti-slip control, refer to Dy‐ namic Stability Control
DSC 89
Anti-theft protection 21
Approved engine oils 171
Ashtray 102
Assistance, roadside 186
Assistance when driving off, refer to Hill drive-off assis‐
tant 91
Assistance with starting en‐ gine, refer to Jump-start‐
ing 186
Automatic– Air distribution 99– Air flow rate 99
Automatic car wash 191
Automatic climate control
– Automatic air distribution 99
Automatic, cruise control 93
Automatic headlamp con‐ trol 74
Automatic rear spoiler 91
Automatic transmission with
Steptronic
– Kickdown 63– Overriding selector lever
lock 64
AUTO program with auto‐
matic climate control 99
AUX-IN port 132
Average fuel consumption 67
Average fuel consumption
– Setting the units 69
Average speed 67
Average speed, refer to Com‐ puter 66
B
Backrest curvature, refer to Lumbar support 45
Backrests, refer to Seats 44
Backup lamps, bulb replace‐ ment 179
Battery– Disposal 30– Remote control 20
Battery, refer to Vehicle bat‐
tery 184
Battery replacement
– Remote control 30
Belts, refer to Safety belts 46
Belt tensioners, refer to Safety belts 46
Bi-xenon headlamps 177
Blower, refer to Air flow rate 96, 99
Brake assistant 89
Brake discs, breaking in 112
Brake fluid, refer to Service re‐ quirements 70
Brake force distribution, elec‐ tronic 89
Brake pads, breaking in 112
Brakes
– Handbrake 57
Brakes, MINI maintenance
system 173
Brakes, service require‐ ments 70
Brake system, MINI mainte‐ nance system 173
Braking, notes 114
Breakdown assistance, Road‐ side Assistance 186
Breaking in 112
Button for starting the engine, refer to Start/Stop button 55
Seite 214ReferenceEverything from A to Z214
Online Edition for Part no. 01 40 2 911 475 - VI/13
