INSTRUMENT PANEL ASSEMBLY
INTERIOR52A-5

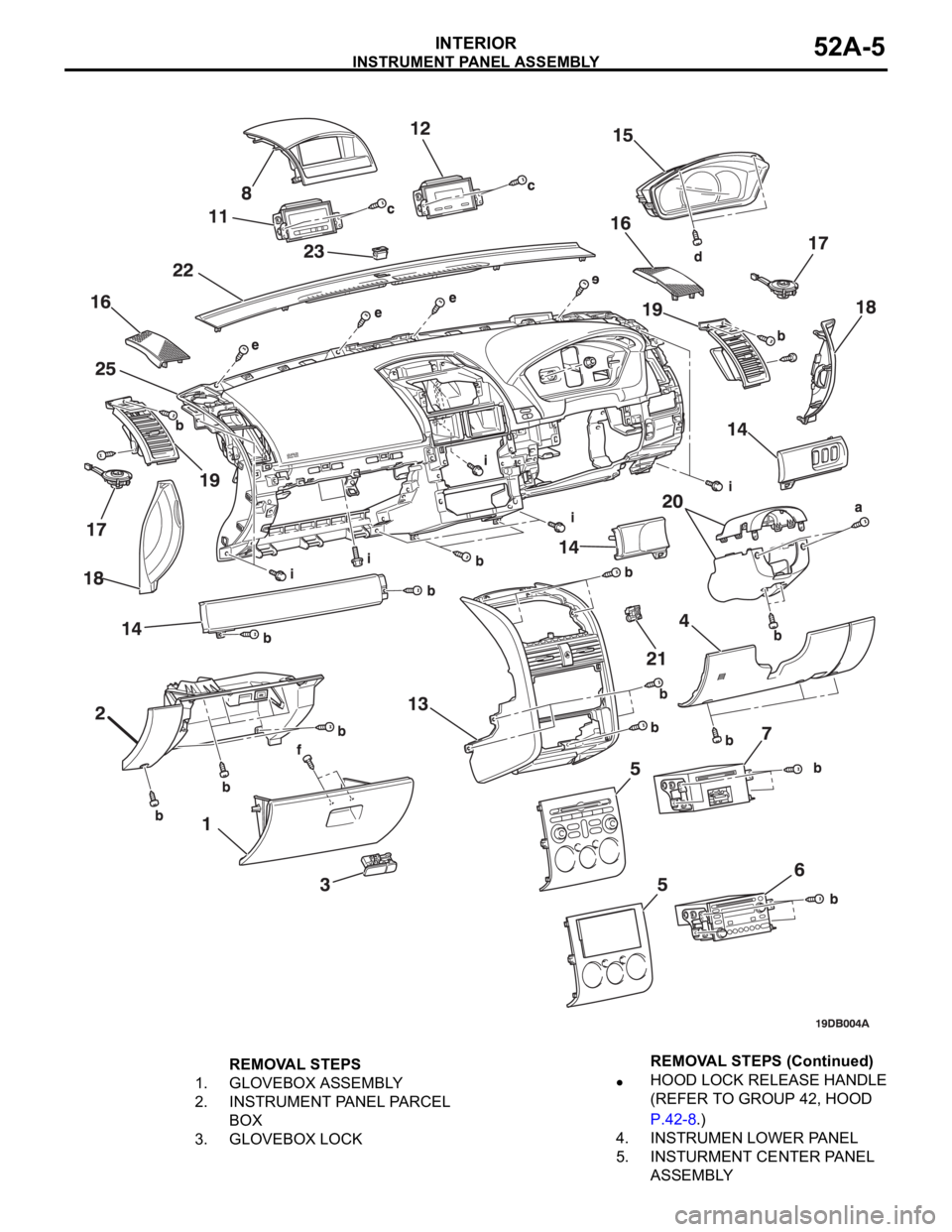

REMOVAL STEPS
1. GLOVEBOX ASSEMBLY
2. INSTRUMENT PANEL PARCEL
BOX
3. GLOVEBOX LOCKHOOD LOCK RELEASE HANDLE
(REFER TO GROUP 42, HOOD
P.42-8.)
4. INSTRUMEN LOWER PANEL
5. INSTURMENT CENTER PANEL
ASSEMBLY REMOVAL STEPS (Continued)

INSTRUMENT PANEL ASSEMBLY
INTERIOR52A-9
DISASSEMBLY AND ASSEMBLYM1521001900376
DISASSEMBLY STEPS
1. DISTRIBUTION DUCT. REAR
CONSOLE DUCTS REFER TO
GROUP 55 HEATER ,AIR
CONDITIONING AN
VENTILATION P.55-175
2. BACKBONE BRACKET3. AIR BAG MODULE ASSEMBLY
(FRONT PASSENGER’S SIDE)
(REFER TO GROUP 52B, AIR
BAG MODULE(S) AND CLOCK
SPRING P.52B-237.)
4. SIDE DEFROSTER DUCT
5. DEFROSTER NOZZLE
6. COMBINATION METER BRACKET
7. GLOVEBOX STRIKER
8. INSTRUMENT PANELDISASSEMBLY STEPS

DASH PANEL
CONFIGURATION DIAGRAMS80-12
C-101 (22) COMBINATION METER
C-102 (7) MODE SELECTION DAMPER
CONTROL MOTOR AND
POTENTIOMETER
C-104 (4) POWER TRANSISTOR
C-105 (7) AIR MIXING DAMPER CONTROL
MOTOR AND POTENTIOMETER
C-106 (5) OUTSIDE/INSIDE AIR SELECTION
DAMPER CONTROL MOTORC-108 (2-B) TWEETER SPEAKER (RH)
C-110 (2-Y) AIR BAG MODULE (SQUIB)
(PASSENGER’S SIDE)
C-111 (14) RADIO, CD PLAYER AND MP3
PLAYER OR RADIO, 6-CD PLAYER
CHANGER AND MP3 PLAYER
C-112 (2) GLOVE BOX LAMP

90-1
GROUP 90
CIRCUIT DIAGRAMS
CONTENTS
HOW TO READ CIRCUIT DIAGRAMS90-3
JUNCTION BLOCK . . . . . . . . . . . . . .90-9
JOINT CONNECTOR . . . . . . . . . . . . .90-11
CENTRALISED JUNCTION . . . . . . . .90-12
POWER DISTRIBUTION SYSTEM . .90-18
STARTING SYSTEM . . . . . . . . . . . . .90-21
IGNITION SYSTEM . . . . . . . . . . . . . .90-22
CHARGING SYSTEM . . . . . . . . . . . .90-23
MULTIPOINT FUEL INJECTION (MPI)
SYSTEM . . . . . . . . . . . . . . . . . . . . . . .90-24
COOLING SYSTEM . . . . . . . . . . . . . .90-29
INVECS-II 5A/T . . . . . . . . . . . . . . . . .90-30
HEADLAMPS . . . . . . . . . . . . . . . . . . .90-35
TAIL LAMP, POSITION LAMP, AND
LICENCE PLATE LAMP . . . . . . . . . .90-38
FOG LAMPS . . . . . . . . . . . . . . . . . . .90-41FRONT DOME LAMP, REAR DOME LAMP,
TRUNK LAMP AND IGNITION KEY HOLE
ILLUMINATION LAMP . . . . . . . . . . . .90-44
GLOVE BOX LAMP . . . . . . . . . . . . . .90-48
VANITY MIRROR LAMP. . . . . . . . . . .90-49
TURN-SIGNAL LAMP AND HAZARD
WARNING LAMP . . . . . . . . . . . . . . . .90-50
BACKUP LAMP . . . . . . . . . . . . . . . . .90-54
STOPLAMP. . . . . . . . . . . . . . . . . . . . .90-55
HORN . . . . . . . . . . . . . . . . . . . . . . . . .90-56
METER AND GAUGE . . . . . . . . . . . . .90-57
BRAKE WARNING LAMP, OIL
PRESSURE WARNING LAMP, FUEL
WARNING LAMP . . . . . . . . . . . . . . . .90-60
POWER WINDOWS . . . . . . . . . . . . . .90-62
CENTRAL DOOR LOCKING
SYSTEM . . . . . . . . . . . . . . . . . . . . . . .90-64
Continued on next page

CENTRALISED JUNCTION
CIRCUIT DIAGRAMS90-13
19 Front-ECU (Field
effect transistor for
headlamp: Low)Fuse 10 Red Headlamp (LH) and headlamp (Low:
LH)
20 Front-ECU (Taillamp
relay)7.5 Brown A/C-ECU, A/T selector lever position
illumination lamp, combination meter,
fog lamp switch, headlamp (RH),
glove box lamp, hazard warning lamp
switch, multi-center display unit,
radio, CD player, rear combination
lamp (RH), rheostat and TCL switch
21 7.5 Brown Headlamp (LH), license plate lamp
and rear combination lamp (LH)
22 Battery/Alternator
(Fusible link No.27)15 Blue A/C-ECU, column switch,
combination meter, ETACS-ECU,
front-ECU, key reminder switch, multi-
center display unit, radio, CD player,
and vanity mirror lamp
23 Ignition switch (ACC) 10 Red A/C-ECU, accessory socket relay,
ETACS-ECU, multi-center display
unit, radio, CD player.
24 Battery/Alternator
(Fusible link No.27)15 Blue Fuel pump module
25 Ignition switch (ACC) 30 Green Front-ECU and windshield wiper
motor
26 Battery/Alternator
(Fusible link No.27)Fusible
link20 Light blue Anti-lock braking system(solenoid
valve)
27
Alternator120
Battery, front-ECU, fusible link Nos.1,
2, 3, 4, 5 and 26 and fuse Nos.6, 7, 8,
9, 10, 11, 13, 14, 15, 22 and 24 (in
relay box) NO. POWER SUPPLY
CIRCUITNAME RATED
CAPACITY (A)HOUSING
COLOURLOAD CIRCUIT

GLOVE BOX LAMP
CIRCUIT DIAGRAMS90-48
GLOVE BOX LAMPM1901002200592

MOTORS AND TRANSISTOR
HEATER, AIR CONDITIONING AND VENTILATION55-157
MOTORS AND TRANSISTOR
REMOVAL AND INSTALLATIONM1551006900028
MODE SELECTION DAMPER
CONTROL MOTOR REMOVAL
STEP
1. MODE SELECTION DAMPER
CONTROL MOTOR
POWER TRANSISTOR REMOVAL
STEP
GLOVE BOX ASSEMBLY,
INSTRUMENT CENTER PANEL
ASSEMBLY (REFER TO GROUP
52A, INSTRUMENT PANEL
P.52A-4).
2. POWER TRANSISTORBLOWER MOTOR REMOVAL
STEP
3. BLOWER MOTOR
OUTSIDE/INSIDE AIR
SELECTION DAMPER MOTOR
REMOVAL STEP
GLOVE BOX ASSEMBLY,
INSTRUMENT CENTER PANEL
ASSEMBLY (REFER TO GROUP
52A, INSTRUMENT PANEL
P.52A-4).
4. OUTSIDE/INSIDE AIR
SELECTION DAMPER MOTOR
