DOOR TRIM
INTERIOR52A-17
DISASSEMBLY AND ASSEMBLYM1521006900100

DISASSEMBLY STEPS
1. ASSIST GRIP
2. POWER WINDOW MAIN SWITCH
3. REMOTE CONTROLLED MIRROR
SWITCH4. POWER WINDOW MEIN SWITCH
PA N E L
5. ARMREST BRACKET
6. ARMREST
7. FRONT DOOR TRIMDISASSEMBLY STEPS

DASH PANEL
CONFIGURATION DIAGRAMS80-16
C-301 (2-B) REMOTE CONTROLLED RADIO
SWITCH (RH)
C-302 (3-Y) AUTO-CRUISE CONTROL SWITCH
C-303 (5-GR) CLOCK SPRING AND CLOCK
SPRING WIRING HARNESS
COMBINATION
C-304 (1) HORN SWITCH
C-305 (2-Y) AIR BAG MODULE (SQUIB)
(DRIVER’S SIDE)C-306 (6) CLOCK SPRING
C-307 (4-Y) CLOCK SPRING
C-308 (6) IGNITION SWITCH
C-309 (10) COLUMN SWITCH
C-310 (7) KEY REMINDER SWITCH
C-311 (2-B) REMOTE CONTROLLED RADIO
SWITCH (LH)

DOOR
CONFIGURATION DIAGRAMS80-23
DOORM1801001400541
E-01 (3) REMOTE CONTROLLED MIRROR
(RH)
E-02 (2) FRONT DOOR SPEAKER (RH)
E-03 (2-GR) FRONT POWER WINDOW
REGULATOR MOTOR (RH)
E-04 (14) POWER WINDOW MAIN SWITCH
E-05 (6-B) FRONT DOOR LOCK ACTUATOR
(RH)
E-06 (8) REAR POWER WINDOW SUB
SWITCH (RH)
E-07 (2-GR) REAR POWER WINDOW
REGULATOR MOTOR (RH)
E-08 (6-B) REAR DOOR LOCK ACTUATOR
(RH)
E-09 (3) REMOTE CONTROLLED MIRROR
(LH)
E-10 (2) FRONT DOOR SPEAKER (LH)E-11 (11) REMOTE CONTROLLED MIRROR
SWITCH
E-12 (8) FRONT POWER WINDOW SUB
SWITCH
E-13 (2-GR) FRONT POWER WINDOW
REGULATOR MOTOR (LH)
E-14 (3-B) DOOR LOCK KEY CYLINDER
SWITCH
E-15 (6-B) FRONT DOOR LOCK ACTUATOR
(LH)
E-16 (2-GR) REAR POWER WINDOW
REGULATOR MOTOR (LH)
E-17 (8) REAR POWER WINDOW SUB
SWITCH (LH)
E-18 (6-B) REAR DOOR LOCK ACTUATOR (LH)

CIRCUIT DIAGRAMS90-2
AUTOMATIC AIR CONDITIONING
SYSTEM . . . . . . . . . . . . . . . . . . . . . . .90-71
WINDSHIELD WIPER AND WASHER90-75
REAR WINDOW DEFOGGER . . . . . .90-78
REMOTE CONTROLLED MIRROR . .90-79
AUDIO SYSTEM . . . . . . . . . . . . . . . .90-80
ACCESSORY SOCKET . . . . . . . . . . .90-82
CLOCK DISPLAY . . . . . . . . . . . . . . .90-83
MULTI-CENTER DISPLAY . . . . . . . .90-84
SUNROOF . . . . . . . . . . . . . . . . . . . . .90-87
AUTO-CRUISE CONTROL SYSTEM90-89
ANTI-LOCK BRAKING SYSTEM (ABS)
CONTROL (TCL)> . . . . . . . . . . . . . . .90-93
ANTI-LOCK BRAKING SYSTEM (ABS)
CONTROL (TCL)> . . . . . . . . . . . . . . .90-96SUPPLEMENTAL RESTRAINT
SYSTEM (SRS) . . . . . . . . . . . . . . . . . .90-99
ENGINE IMMOBILISER SYSTEM . . .90-103
POWER SEAT WITH MEMORY
(DRIVER). . . . . . . . . . . . . . . . . . . . . . .90-104
POWER SEAT (8-WAY)
(DRIVER AND PASSENGER) . . . . . .90-106
POWER SEAT [(6-WAY) DRIVER] . .90-108
FORGOTTEN KEY PREVENTION
FUNCTION . . . . . . . . . . . . . . . . . . . . .90-109
LIGHTING MONITOR TONE ALARM90-111
IGNITION KEY REMINDER TONE
ALARM . . . . . . . . . . . . . . . . . . . . . . . .90-112
SEAT BELT WARNING TONE
ALARM . . . . . . . . . . . . . . . . . . . . . . . .90-113
DOOR AJAR WARNING TONE
ALARM . . . . . . . . . . . . . . . . . . . . . . . .90-115
RHEOSTAT . . . . . . . . . . . . . . . . . . . . .90-118
CONTROLLER AREA NETWORK
(CAN) . . . . . . . . . . . . . . . . . . . . . . . . .90-119

CENTRALISED JUNCTION
CIRCUIT DIAGRAMS90-15
NO. POWER SUPPLY
CIRCUITNAME RATED
CAPACITY (A)HOUSING
COLOURLOAD CIRCUIT
1 Fusible link No.1 Fuse 30 Green Rear window demister
2 30 Green Blower motor and resistor
3
4
5 15 Blue Accessory socket
6 15 Blue Data link connector and ETACS-ECU
7 Ignition switch (ACC) 15 Blue ETACS-ECU
8
9 Ignition switch (IG2) 7.5 Brown Sunroof assembly
10 Ignition switch (ACC) 7.5 Brown Remote controlled mirror
11
12
13 Ignition switch (IG1) 7.5 Brown Fuel pump relay and Engine ECU
14 Ignition switch (ACC) 20 Yellow Windscreen wiper
15 Fusible link No.1
(Fuse No.5 in junction
block)7.5 Brown Remote controlled mirror
16 Ignition switch (IG2) 7.5 Brown A/C compressor clutch relay,
A/C-ECU, blower relay, condenser
fan motor, fan control relay,
front-ECU, outside/inside air selection
damper control motor and rear
window defogger relay
17 Ignition switch (IG1)
18 7.5 Brown A/T control relay, input shaft speed
sensor, output shaft speed sensor,
Engine ECU, rear combination lamp
and SRS-ECU
19 7.5 Brown ABS-ECU, ABS/TCL-ECU, column
switch, combination meter,
ETACS-ECU, multi-center display unit
and SRS-ECU
20 10 Red Ignition coil
21
22
23 Fusible link No.5 20 Yellow Sunroof assembly
24

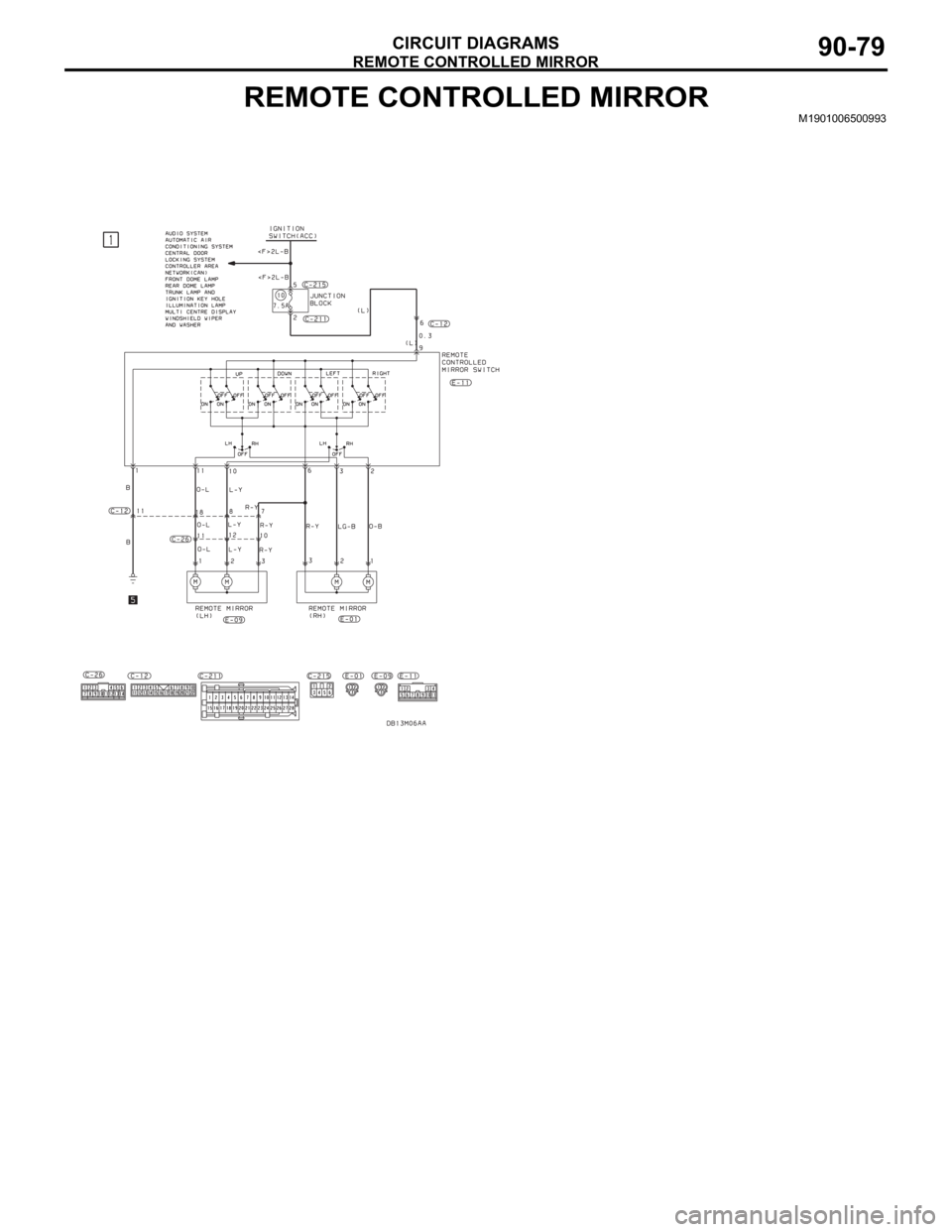

REMOTE CONTROLLED MIRROR
CIRCUIT DIAGRAMS90-79
REMOTE CONTROLLED MIRRORM1901006500993

DOOR MIRROR
EXTERIOR51-27
DOOR MIRROR
GENERAL DESCRIPTIONM1511000100570
OPERATION DOOR MIRROR
Remote Controlled Mirror Operation
The mirror on the door mirror moves up/down
and left/right by operating the remote controlled
door mirror switch when the ignition switch is in
the "ON" or "ACC" position.

DOOR MIRROR
EXTERIOR51-29
REMOVAL SERVICE POINT
.
<> POWER WINDOW SWITCH PANEL
ASSEMBLY REMOVAL
Insert special tool MB990874 as shown to remove the power
window switch panel assembly.
INSPECTIONM1511006500305
ELECTRIC REMOTE CONTROL MIRROR
OPERATION CHECK
Check that the mirror moves as described in the table when
each terminal is connected to the battery.
REMOTE CONTROLLED MIRROR
REMOVAL STEPS
FRONT DOOR TRIM (REFER TO
GROUP 52A, DOOR TRIMS
P.52A-14).
1. DOOR MIRROR COVER
2. REMOTE CONTROLLED MIRROR
ASSEMBLYREMOTE CONTROLLED MIRROR
SWITCH REMOVAL STEPS<>3. POWER WINDOW SWITCH PANEL
ASSEMBLY
4. REMOTE CONTROLLED MIRROR
SWITCH
BATTERY CONNECTION DIRECTION
OPERATION
Connect terminal 6 to the negative
battery terminal.
Connect terminal 4 to the positive battery
terminal.Up
Connect terminal 6 to the positive battery
terminal.
Connect terminal 4 to the negative
battery terminal.Down
Connect terminal 6 to the negative
battery terminal.
Connect terminal 5 to the positive battery
terminal.Right
Connect terminal 6 to the positive battery
terminal.
Connect terminal 5 to the negative
battery terminal.Left

SPECIFICATIONS
EXTERIOR51-31
SPECIFICATIONS
FASTENER TIGHTENING SPECIFICATIONSM1511015300279
SERVICE SPECIFICATIONSM1511000300358
ADHESIVEM1511000500448
ITEM SPECIFICATION
Front bumper
License plate screw 0.9
0.1 Nm (8 1 in-lb)
Windshield wiper and washer
Wiper arm and blade assembly nut 37
3.0 Nm (27 1 ft-lb)
Wiper link assembly to Body bolt 8.0
2.0 Nm
Wiper motor to link assembly screw 7.5
1.0 Nm (66 13 in-lb)
Washer tank bolt 12
1.0 Nm (102 15 in-lb)
Door mirror
Remote controlled mirror assembly bolt 5.0
1.0 Nm (44 9 in-lb)
ITEM STANDARD VALUE
Windshield wiper blade (RH) park position 38
5 mm (1.50 0.20 inches)
Windshield wiper blade (LH) park position 38
5 mm (1.50 0.20 inches)
ITEM SPECIFICATION
Door side protector molding Adhesive tape: Double-sided tape
8.0 mm (0.32 inch) width and 1.2 mm (0.05 inch)
thickness
Roof drip molding Adhesive tape: Double-sided tape
10.0 mm (0.39 inch) width and 1.52 mm (0.06 inch)
thickness

DOOR
BODY42-53
REMOVAL
>>D<<1. DOOR WINDOW GLASS
RUNCHANNEL
WATERPROOF FILM AND DOOR
PANEL CORE REMOVAL STEPS
DOOR TRIM ASSEMBLY (REFER
TO GROUP 52A, DOOR TRIM
P.52A-14).
DOOR INSIDE HANDLE (REFER TO
P.42-46).
2. DOOR ARMREST BRACKET
>>A<<3. WATERPROOF FILM
4. DOOR PANEL CORE
DOOR OPENING INNER
WEATHERSTRIP REMOVAL
STEPS
FRONT SCUFF PLATE (REFER TO
GROUP 52A, TRIMS P.52A-11).
>>C<<5. DOOR OPENING INNER
WEATHERSTRIP (BODY SIDE)DOOR OPENING OUTER
WEATHERSTRIP REMOVAL
STEPS
DOOR CHECK MOUNTING BOLT
(BODY SIDE) (REFER TO P.42-37).
>>B<<6. DOOR OPENING OUTER
WEATHERSTRIP
DOOR BELTLINE MOLDING
REMOVAL STEPS
DOOR TRIM ASSEMBLY (REFER
TO GROUP 52A, DOOR TRIM
P.52A-14).
REMOTE CONTROLLED MIRROR
ASSEMBLY (REFER TO GROUP 51,
DOOR MIRROR P.51-28).
7. DOOR BELTLINE MOLDING
