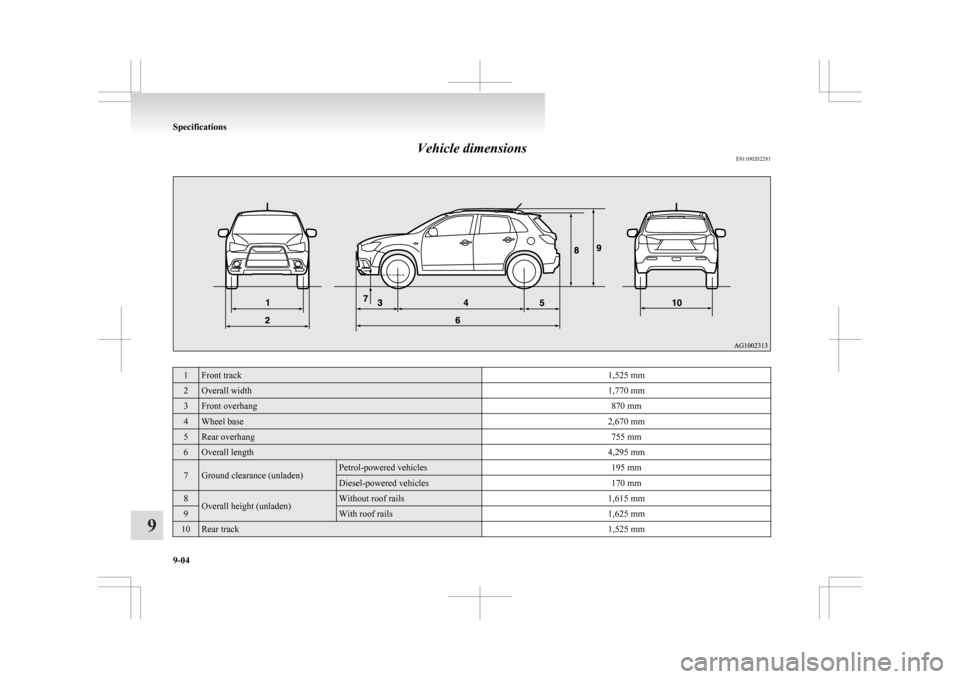

Vehicle dimensions
E011002022811 Front track
1,525 mm2 Overall width
1,770 mm3 Front overhang
870 mm4 Wheel base
2,670 mm5 Rear overhang
755 mm6 Overall length
4,295 mm7 Ground clearance (unladen) Petrol-powered vehicles
195 mmDiesel-powered vehicles
170 mm8
Overall height (unladen) Without roof rails
1,615 mm9 With roof rails
1,625 mm10 Rear track
1,525 mmSpecifications
9-04
9
