Disposal information for used
batteries E00201300032 Your vehicle contains batteries
and/or accumulators.
Do
not mix with general house-
hold waste.
For proper treatment, recovery
and recycling of used batteries,
please take them to applicable col-
lection points, in accordance
with your national legislation
and the Directives 2006/66/EC.
By disposing of these batteries
correctly, you will help to save
valuable resources and prevent
any potential negative effects on
human health and the environ-
ment which could otherwise
arise from inappropriate waste
handling. Auto Stop & Go (AS&G) system*
E00201500021
This paragraph summarizes the major items of the
Auto
Stop & Go (AS&G) system such as the char-
acteristics, operating procedures, etc. For details,
refer to “Auto Stop & Go (AS&G) system” on
page 4-18.
The

Auto Stop & Go (AS&G) system reduces the
emission of exhaust gases and increases fuel effi-
ciency.
The Auto Stop & Go (AS&G) system automatical-
ly stops and restarts the engine without the use of
the ignition switch or the engine switch when the
vehicle is stopped, such as at traffic lights or in a
traffic jam.
Activation E00201600051
The Auto Stop & Go (AS&G) system is automati-
cally activated when the ignition switch is turned to
the

“ON” position or the operation mode is put in
ON. Deactivation
E00201700065
You

can deactivate the system by pressing the “Au-
to Stop & Go (AS&G) OFF” switch. Then the “ ”
display/indicator will turn on. Auto stop
E00201800066
1. Stop the vehicle. General information
06
OGWE12E1

2. Place the gearshift lever in the “N” (Neutral)
position.
Vehicles with 5M/T Vehicles with 6M/T 3. Release the clutch pedal.
4.
The

“ ” display/indicator will turn on and
the engine will stop automatically. Auto go
E00201900067
Depress the clutch pedal while the gearshift lever is
in

the “N” (Neutral) position. The “ ” display/indi-
cator

turns off and the engine restarts automatically. System characteristics
E00202300055
The principle of the Auto Stop & Go (AS&G) sys-
tem

is that it adapts to the vehicle’s needs (i.e. ener-
gy supply). This means that in certain circumstan-
ces the engine will not stop and in other circumstan-
ces the engine will restart by itself.
Circumstances when the engine will restart by itself E00202400027
l The
interior temperature rises and the air con-
ditioning starts operating in order to lower
the temperature.
l Electric power consumption is high.
l The brake pedal is depressed repeatedly. l
Vehicle
speed is 3 km/h (2 mph) or higher
when coasting on a slope.
l Mode selection dial is set to the demister po-
sition.
l When the air conditioning is operated by
pressing the air conditioning switch.
l When the preset temperature of the air condi-
tioning is changed significantly.
l When the air conditioning is operated in AU-
TO mode where the temperature control dial
is set to the max. hot or the max. cool posi-
tion (for vehicles with automatic air condi-
tioning).
Other than the conditions mentioned above, the en-
gine may restart automatically. For details, refer to
“Auto Stop & Go (AS&G) system” on page 4-18.
Circumstances when the engine will not stop E00202500028
l Ambient
temperature is lower than approxi-
mately 3 °C.
l After the engine restarts automatically and
the vehicle stops again within 10 seconds.
l After the engine restarts automatically and
the vehicle remains stationary.
l Mode selection dial is set to the demister po-
sition (see illustration below). General information
07
OGWE12E1

When the operation mode is in any mode other
than
OFF, if you close all the doors and the tailgate
then try to lock the doors and tailgate by pressing
the driver’s or front passenger’s door lock/unlock
switch, or the tailgate LOCK switch, a warning is
issued with the warning display and the buzzer buzz-
ing for approximately 3 seconds and you cannot
lock the doors and tailgate.
Steering wheel lock E00306800235
To lock
Press
the engine switch to put the operation mode
in OFF.
Open one of the doors.
To unlock
The following methods can be used to unlock the
steering wheel.
l Put the operation mode in ACC.
l Start the engine. CAUTION
l
If
the engine is stopped while driving, do
not open a door or press the UNLOCK
switch on the remote control switch until
the vehicle stops in a safe place.
This could cause the steering wheel to
lock, making it impossible to operate the
vehicle.
l Carry the key with you when leaving the
vehicle.
If your vehicle needs to be towed, put the
operation mode in ACC to unlock the
steering wheel. NOTE
l When

the following operation is performed
with the operation mode in OFF, the steering
wheel is locked. • Open or close one of the doors (exceptthe tailgate).
• Lock all doors and the tailgate with the keyless entry system or the keyless opera-
tion function.
l When the steering wheel does not unlock,
the warning will be displayed on the informa-
tion screen in the multi-information display.
Press the engine switch again while moving
the steering wheel slightly. Starting and stopping the engine
E00306900395
Tips for starting l The

operation mode can be in any mode to
start the engine. l
The
starter motor will be turning for up to ap-
proximately 15 seconds if the engine switch
is released at once. Pressing the engine
switch again while the starter motor is still
turning will stop the starter motor. The start-
er motor will be turning for up to approxi-
mately 30 seconds while the engine switch is
pressed.
If the engine does not start, wait for a while
and then attempt to start the engine again. Try-
ing repeatedly with the starter motor still run-
ning will damage the starter mechanism.
l [Diesel-powered vehicles]
While the vehicle is stationary with the
clutch pedal fully depressed, the engine revo-
lutions do not rise to over 3,000 rpm in order
to protect the engine even if the accelerator
pedal is depressed. WARNING
l Never
run the engine in a closed or poor-
ly ventilated area any longer than is nee-
ded to move your vehicle in or out of the
area. Carbon monoxide gases are odour-
less and can be fatal. CAUTION
l
Never
attempt to start the engine by push-
ing or pulling the vehicle.
l Do not run the engine at high rpm or
drive the vehicle at high speed until the en-
gine has had a chance to warm up. Locking and unlocking
1-15 1
OGWE12E1

Starting the engine (petrol-powered vehicles)
E00307000478
The starting procedure is as follows:
1.
Fasten the seat belt.
2. Make sure the parking brake is applied.
3. Depress and hold the brake pedal.
4. Fully depress the clutch pedal (M/T).
NOTE l On vehicles with the Auto Stop & Go
(AS&G) system, the starter will not operate
unless the clutch pedal is fully depressed
(Clutch interlock).
5. On vehicles equipped with M/T, place the gearshift lever in the “N” (Neutral) position.
On vehicles equipped with CVT, make sure
the selector lever is in the “P” (PARK) posi-
tion.
Vehicles with M/T Vehicles with CVT NOTE
l The

engine can only be started when the se-
lector lever is in the “P” (PARK) or “N”
(NEUTRAL) position (CVT).
For safety reasons, the engine should be star-
ted when the selector lever is in the “P”
(PARK) position in which the driving wheels
lock.
6. Press the engine switch.
7. Make sure that all warning lamps are func- tioning properly.
NOTE l Minor noises may be heard on engine start-
up. These will disappear as the engine warms
up.
Starting the engine (diesel-powered vehicles) E00308600077
1. Fasten the seat belt.
2.

Make sure the parking brake is applied.
3. Depress and hold the brake pedal.
4. Fully depress and hold the clutch pedal.
NOTE l On vehicles with the Auto Stop & Go
(AS&G) system, the starter will not operate
unless the clutch pedal is fully depressed
(Clutch interlock). 5. Place
the gearshift lever in the “N” (Neutral)
position. 6. Press the engine switch.
The
diesel preheat indication lamp will first
illuminate, and then after a short time go out,
indicating that preheating is completed. The
engine will start.
NOTE l If the engine is cold, the diesel preheat indi-
cation lamp is on for a longer time.
l Putting the operation mode in ON will also
start preheating the engine. When the engine
has not been started within about 5 seconds
after the diesel preheat indication lamp went
out, put the operation mode in OFF. Then, at-
tempt the engine start procedure to preheat
the engine again.
l Minor noises may be heard on engine start-
up. These will disappear as the engine warms
up. Locking and unlocking
1-16
1
OGWE12E1

Using the MIVEC engine*
The
MIVEC engine automatically switches its in-
take-valve control between a low-speed mode and
a high-speed mode in accordance with driving con-
ditions for maximum engine performance.
NOTE
l To protect the engine, the high-speed mode
may not be selected while the engine coolant
temperature is low.
Stopping the engine E00312600023WARNING
l Do
not operate the engine switch while
driving except in an emergency. If the en-
gine is stopped while driving, the brake
servomechanism will cease to function
and braking efficiency will deteriorate.
Also, the power steering system will not
function and it will require greater man-
ual effort to operate the steering. This
could result in a serious accident.
NOTE l If

you have to bring the engine to an emergen-
cy stop while driving, press and hold the en-
gine switch for 3 seconds or more, or press it
quickly 3 times or more. The engine will
stop and the operation mode will go to ACC. l
Do not stop the engine with the selector lever
in

any position other than the “P” (PARK) po-
sition (CVT). If the engine is stopped with
the selector lever in any position other than
the “P” (PARK) position, the operation
mode will go to ACC rather than OFF.
Put the operation mode in OFF after placing
the selector lever in the “P” (PARK) position.
1. Stop the vehicle.
2. Fully engage the parking brake while depress- ing the brake pedal.
3. On vehicles with M/T, press the engine switch to stop the engine, move the gearshift
lever to the 1 st
(on a uphill) or “R” (Reverse)
(on a downhill) position.
On vehicles with CVT, move the selector lev-
er to the “P” (PARK) position, press the en-
gine switch to stop the engine.
If the keyless operation key is not oper-
ating properly E00312500093
Insert the keyless operation key into the key slot in
the

glove box. Starting the engine and changing the
operation mode should now be possible. Remove the keyless operation key from the key
slot

after starting the engine or changing the opera-
tion mode. NOTE
l Do

not insert into the key slot anything other
than the keyless operation key. This could
cause damage or a malfunction.
l Remove the object or additional key from the
the keyless operation key before inserting the
key into the key slot.
The vehicle may not be able to receive the
registered ID code from the registered key.
Therefore, the engine may not start and the
operation mode may not change.
Keyless operation key reminder Locking and unlocking
1-17 1
OGWE12E1

Refer to “To
deactivate the vehicle inclina-
tion detection function and the interior intru-
sion detection function” on page 1-32.
l The sensitivity of the interior intrusion detec-
tion function can be adjusted. For details,
please contact a MITSUBISHI MOTORS Au-
thorized Service Point.

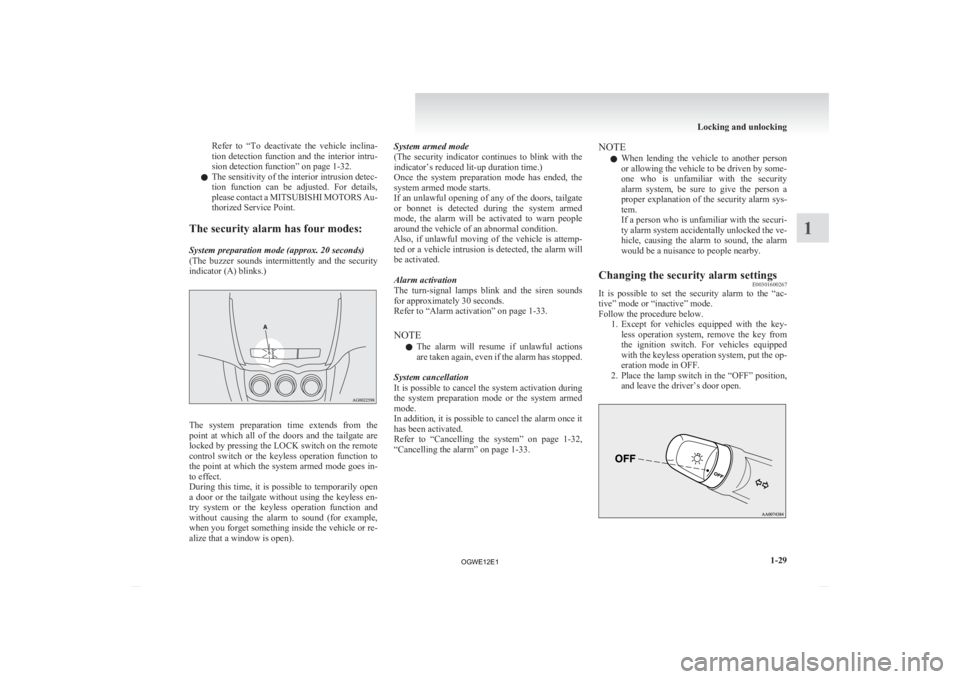

The security alarm has four modes:
System preparation mode (approx. 20 seconds)
(The buzzer sounds intermittently and the security
indicator (A) blinks.) The system preparation time extends from the
point

at which all of the doors and the tailgate are
locked by pressing the LOCK switch on the remote
control switch or the keyless operation function to
the point at which the system armed mode goes in-
to effect.
During this time, it is possible to temporarily open
a door or the tailgate without using the keyless en-
try system or the keyless operation function and
without causing the alarm to sound (for example,
when you forget something inside the vehicle or re-
alize that a window is open). System armed mode
(The

security indicator continues to blink with the
indicator’s reduced lit-up duration time.)
Once the system preparation mode has ended, the
system armed mode starts.
If an unlawful opening of any of the doors, tailgate
or bonnet is detected during the system armed
mode, the alarm will be activated to warn people
around the vehicle of an abnormal condition.
Also, if unlawful moving of the vehicle is attemp-
ted or a vehicle intrusion is detected, the alarm will
be activated.
Alarm activation
The turn-signal lamps blink and the siren sounds
for approximately 30 seconds.
Refer to “Alarm activation” on page 1-33.
NOTE
l The alarm will resume if unlawful actions
are taken again, even if the alarm has stopped.
System cancellation
It is possible to cancel the system activation during
the system preparation mode or the system armed
mode.
In addition, it is possible to cancel the alarm once it
has been activated.
Refer to “Cancelling the system” on page 1-32,
“Cancelling the alarm” on page 1-33. NOTE
l When
lending the vehicle to another person
or allowing the vehicle to be driven by some-
one who is unfamiliar with the security
alarm system, be sure to give the person a
proper explanation of the security alarm sys-
tem.
If a person who is unfamiliar with the securi-
ty alarm system accidentally unlocked the ve-
hicle, causing the alarm to sound, the alarm
would be a nuisance to people nearby.
Changing the security alarm settings E00301600267
It is possible to set the security alarm to the “ac-
tive” mode or “inactive” mode.
Follow the procedure below.
1. Except

for vehicles equipped with the key-
less operation system, remove the key from
the ignition switch. For vehicles equipped
with the keyless operation system, put the op-
eration mode in OFF.
2. Place the lamp switch in the “OFF” position, and leave the driver’s door open. Locking and unlocking
1-29 1
OGWE12E1

3. Pull the windscreen wiper and washer switch
towards you and hold it there. (Since the igni-
tion switch is in the “LOCK” position or the
operation mode is in OFF, washer fluid will
not be sprayed.) 4. After
approximately 10 seconds, the buzzer
will make a sound. Keep the windscreen wip-
er and washer switch pulled towards you. (If
the windscreen wiper and washer switch was
released, the setting change mode would be
cancelled. To start over, perform the proce-
dure again from step 3.) 5. When
the buzzer stops, with the windscreen
wiper and washer switch still pulled towards
you, press the UNLOCK switch (A) on the re-
mote control switch to select the security
alarm settings mode.
Except for vehicles equipped with the keyless
operation system
Vehicles with keyless operation system The settings mode can be toggled by press-
ing

the UNLOCK switch. The mode can be
confirmed from the number of times the buz-
zer sounds. Number of
times the buz- zer sounds Security alarm settings mode
1 Alarm inactive
2 Alarm active 6. Any
of the following operations can be used
to terminate the system settings change mode. • Releasing the windscreen wiper andwasher switch.
• Closing the driver’s door.
• Inserting the key into the ignition switch (except for vehicles equipped
with the keyless operation system).
• Putting the operation mode in ON or ACC. (vehicles equipped with the key-
less operation system)
• Placing the lamp switch in any posi- tion other than “OFF”.
• Allowing 30 seconds to pass without making any changes to the settings.
NOTE l If anything with regard to making changes to
the security alarm system settings is hard to
understand, please consult your
MITSUBISHI MOTORS Authorized Service
Point.
l Avoid leaving valuable items inside the vehi-
cle even when the security alarm system has
been set to the “active” mode.
Setting the system E00301700620
Follow the procedure below to set the system to the
system armed mode. Locking and unlocking
1-30
1
OGWE12E1

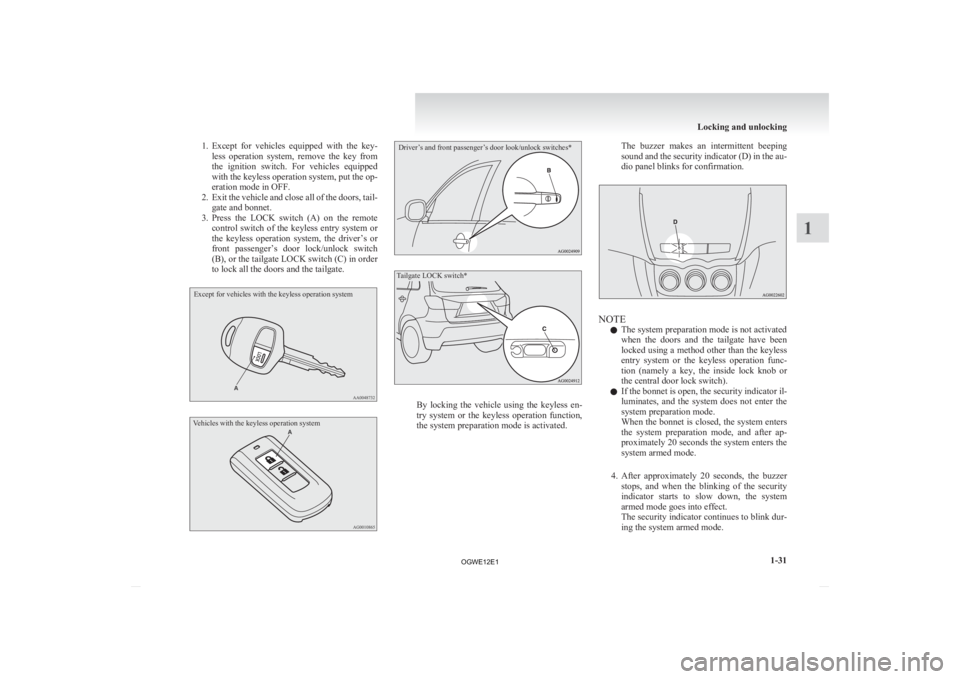

1. Except for vehicles equipped with the key-
less operation system, remove the key from
the ignition switch. For vehicles equipped
with the keyless operation system, put the op-
eration mode in OFF.
2. Exit the vehicle and close all of the doors, tail- gate and bonnet.
3. Press the LOCK switch (A) on the remote control switch of the keyless entry system or
the keyless operation system, the driver’s or
front passenger’s door lock/unlock switch
(B), or the tailgate LOCK switch (C) in order
to lock all the doors and the tailgate.
Except for vehicles with the keyless operation system
Vehicles with the keyless operation system
Driver’s and front passenger’s door look/unlock switches*
Tailgate LOCK switch* By locking the vehicle using the keyless en-
try

system or the keyless operation function,
the system preparation mode is activated. The buzzer makes an intermittent beeping
sound

and the security indicator (D) in the au-
dio panel blinks for confirmation. NOTE
l The system preparation mode is not activated
when

the doors and the tailgate have been
locked using a method other than the keyless
entry system or the keyless operation func-
tion (namely a key, the inside lock knob or
the central door lock switch).
l If the bonnet is open, the security indicator il-
luminates, and the system does not enter the
system preparation mode.
When the bonnet is closed, the system enters
the system preparation mode, and after ap-
proximately 20 seconds the system enters the
system armed mode.
4. After approximately 20 seconds, the buzzer stops, and when the blinking of the security
indicator starts to slow down, the system
armed mode goes into effect.
The security indicator continues to blink dur-
ing the system armed mode. Locking and unlocking
1-31 1
OGWE12E1

l
If the safety mechanism is activated three or
more times in a row, the safety mechanism
will be cancelled and the door window will
not close correctly.
In such a case, the following procedure
should be implemented to rectify this situa-
tion. If the window is open, repeatedly raise
the driver’s door window switch until the win-
dow has been fully closed. Following this, re-
lease the switch, raise the switch once again
and hold it in this condition for at least 1 sec-
ond, then release it. You should now be able
to operate the driver’s door window in the nor-

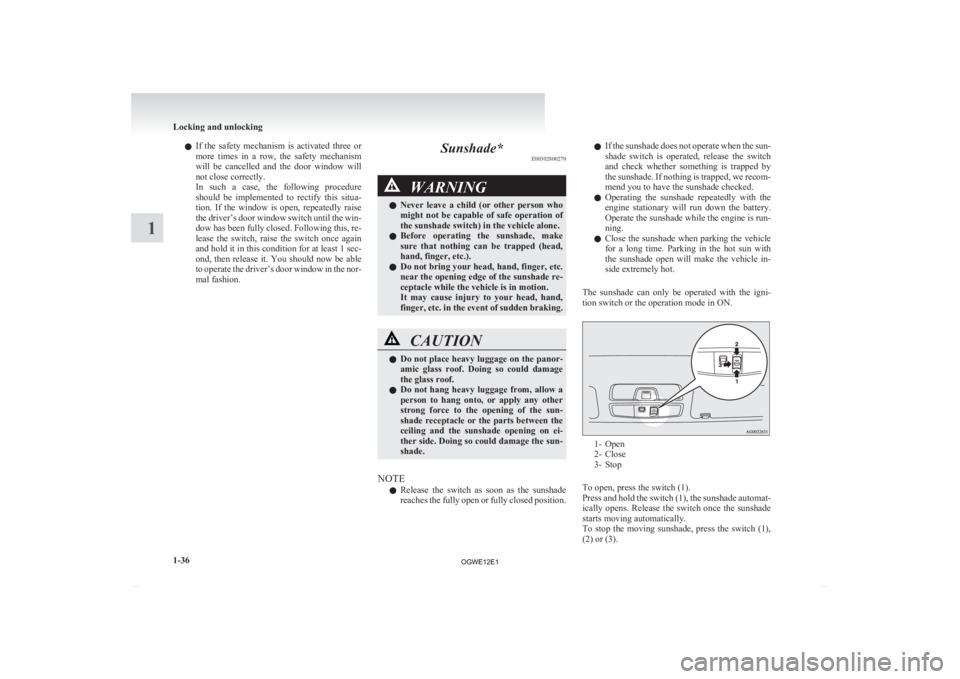

mal fashion. Sunshade*
E00302800279 WARNING
l Never
leave a child (or other person who
might not be capable of safe operation of
the sunshade switch) in the vehicle alone.
l Before operating the sunshade, make
sure that nothing can be trapped (head,
hand, finger, etc.).
l Do not bring your head, hand, finger, etc.
near the opening edge of the sunshade re-
ceptacle while the vehicle is in motion.
It may cause injury to your head, hand,
finger, etc. in the event of sudden braking. CAUTION
l
Do
not place heavy luggage on the panor-
amic glass roof. Doing so could damage
the glass roof.
l Do not hang heavy luggage from, allow a
person to hang onto, or apply any other
strong force to the opening of the sun-
shade receptacle or the parts between the
ceiling and the sunshade opening on ei-
ther side. Doing so could damage the sun-
shade.
NOTE l Release

the switch as soon as the sunshade
reaches the fully open or fully closed position. l
If
the sunshade does not operate when the sun-
shade switch is operated, release the switch
and check whether something is trapped by
the sunshade. If nothing is trapped, we recom-
mend you to have the sunshade checked.
l Operating the sunshade repeatedly with the
engine stationary will run down the battery.
Operate the sunshade while the engine is run-
ning.
l Close the sunshade when parking the vehicle
for a long time. Parking in the hot sun with
the sunshade open will make the vehicle in-
side extremely hot.
The sunshade can only be operated with the igni-
tion switch or the operation mode in ON. 1- Open
2-

Close
3- Stop
To open, press the switch (1).
Press and hold the switch (1), the sunshade automat-
ically opens. Release the switch once the sunshade
starts moving automatically.
To stop the moving sunshade, press the switch (1),
(2) or (3). Locking and unlocking
1-36
1
OGWE12E1

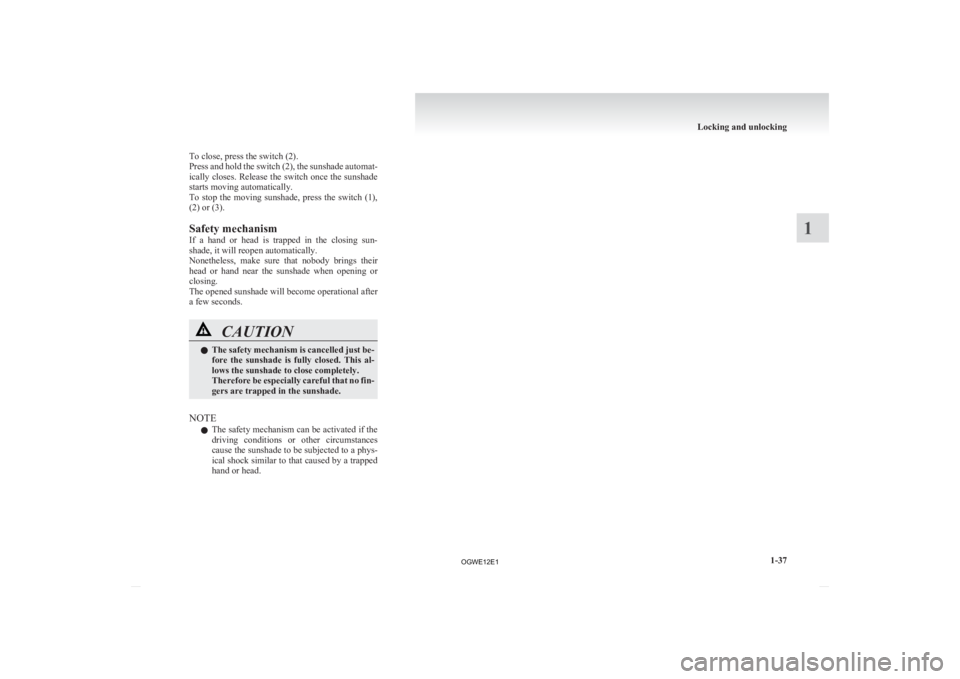

To close, press the switch (2).
Press
and hold the switch (2), the sunshade automat-
ically closes. Release the switch once the sunshade
starts moving automatically.
To stop the moving sunshade, press the switch (1),
(2) or (3).
Safety mechanism
If a hand or head is trapped in the closing sun-
shade, it will reopen automatically.
Nonetheless, make sure that nobody brings their
head or hand near the sunshade when opening or
closing.
The opened sunshade will become operational after
a few seconds. CAUTION
l
The
safety mechanism is cancelled just be-
fore the sunshade is fully closed. This al-
lows the sunshade to close completely.
Therefore be especially careful that no fin-
gers are trapped in the sunshade.
NOTE l The

safety mechanism can be activated if the
driving conditions or other circumstances
cause the sunshade to be subjected to a phys-
ical shock similar to that caused by a trapped
hand or head. Locking and unlocking
1-37 1
OGWE12E1
