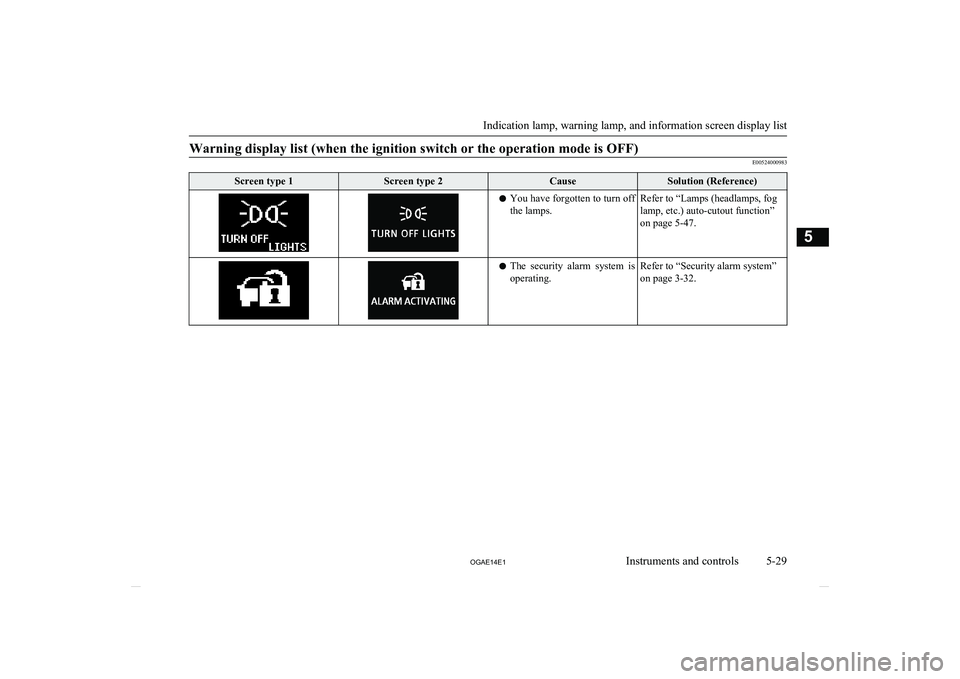

Warning display list (when the ignition switch or the operation mode is OFF)
E00524000983
Screen type 1Screen type 2CauseSolution (Reference)lYou have forgotten to turn off
the lamps.Refer to “Lamps (headlamps, fog
lamp, etc.) auto-cutout function”
on page 5-47.l The security alarm system is
operating.Refer to “Security alarm system”
on page 3-32.
Indication lamp, warning lamp, and information screen display list
5-29
OGAE14E1Instruments and controls5

Screen type 1Screen type 2CauseSolution (Reference)
––

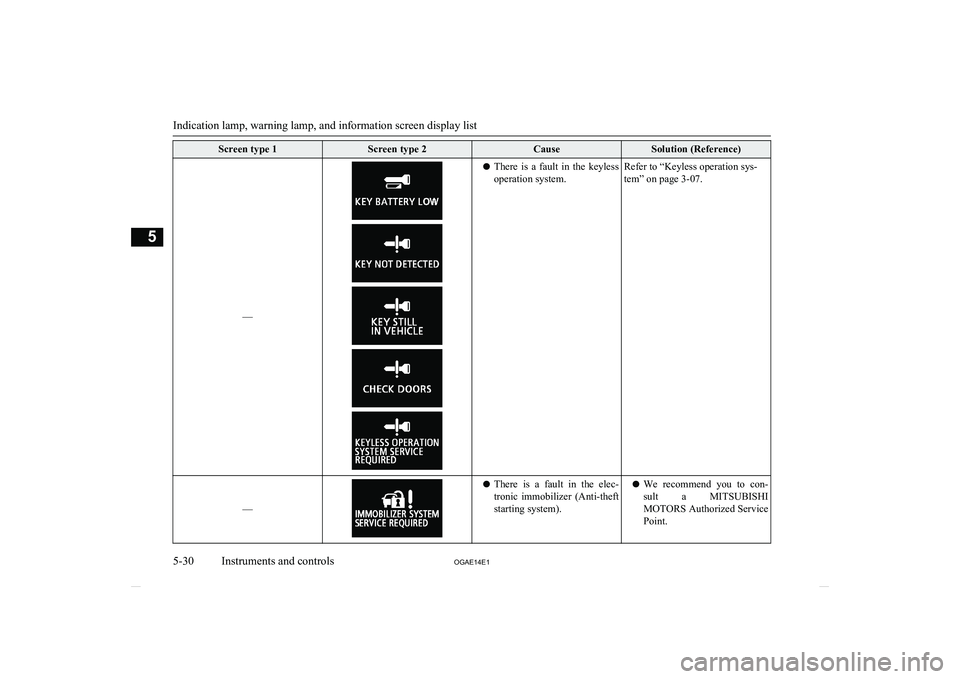

lThere is a fault in the keyless
operation system.Refer to “Keyless operation sys-
tem” on page 3-07.
––
l There is a fault in the elec-
tronic immobilizer (Anti-theft
starting system).l We recommend you to con-
sult a MITSUBISHI
MOTORS Authorized Service
Point.
Indication lamp, warning lamp, and information screen display list
5-30 OGAE14E1Instruments and controls5

Screen type 1Screen type 2CauseSolution (Reference)
––

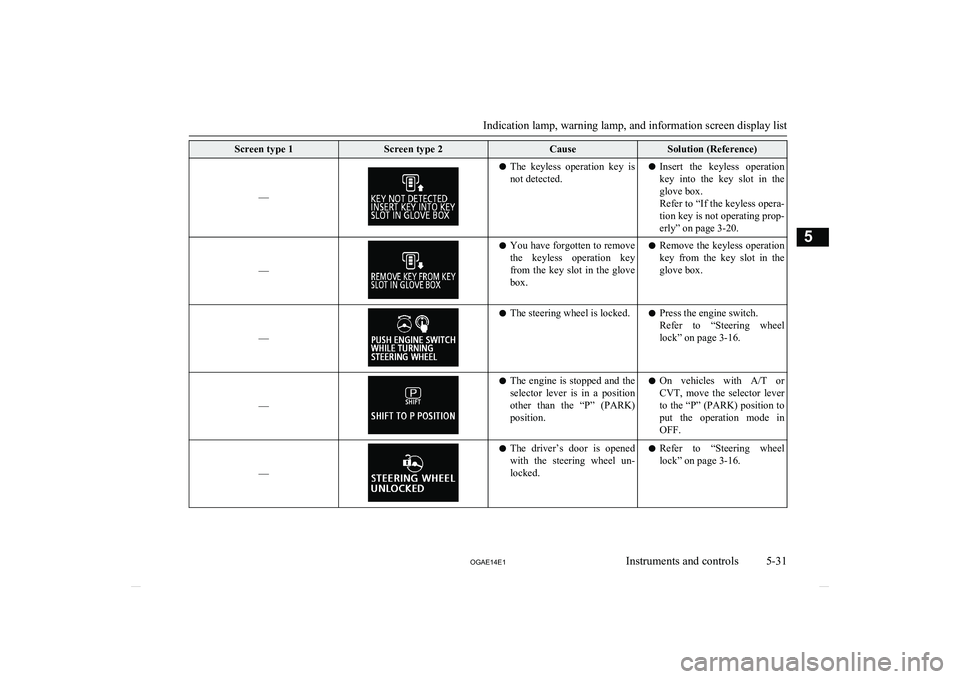

lThe keyless operation key is
not detected.l Insert the keyless operation
key into the key slot in the
glove box.
Refer to “If the keyless opera-
tion key is not operating prop- erly” on page 3-20.
––
l You have forgotten to remove
the keyless operation key
from the key slot in the glove box.l Remove the keyless operation
key from the key slot in the glove box.
––
l The steering wheel is locked.l Press the engine switch.
Refer to “Steering wheel
lock” on page 3-16.
––
l The engine is stopped and the
selector lever is in a position
other than the “P” (PARK)
position.l On vehicles with
A/T or
CVT, move the selector lever
to the “P” (PARK) position to
put the operation mode in
OFF.
––
l The driver’s door is opened
with the steering wheel un- locked.l Refer to “Steering wheel
lock” on page 3-16.
Indication lamp, warning lamp, and information screen display list
5-31
OGAE14E1Instruments and controls5

Screen type 1Screen type 2CauseSolution (Reference)
––

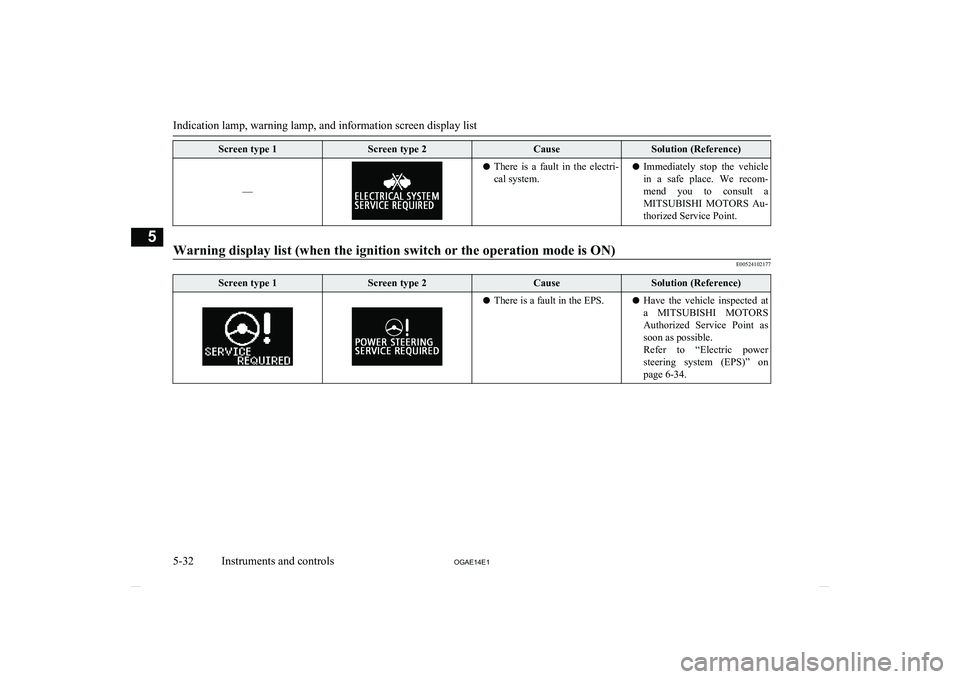

lThere is a fault in the electri-
cal system.l Immediately stop the vehicle
in a safe place. We recom-mend you to consult a MITSUBISHI MOTORS Au-
thorized Service Point.

Warning display list (when the ignition switch or the operation mode is ON)
E00524102177
Screen type 1Screen type 2CauseSolution (Reference)l There is a fault in the EPS.l Have the vehicle inspected at
a MITSUBISHI MOTORS
Authorized Service Point as soon as possible.
Refer to “Electric power
steering system (EPS)” on
page 6-34.
Indication lamp, warning lamp, and information screen display list
5-32 OGAE14E1Instruments and controls5

Screen type 1Screen type 2CauseSolution (Reference)
––

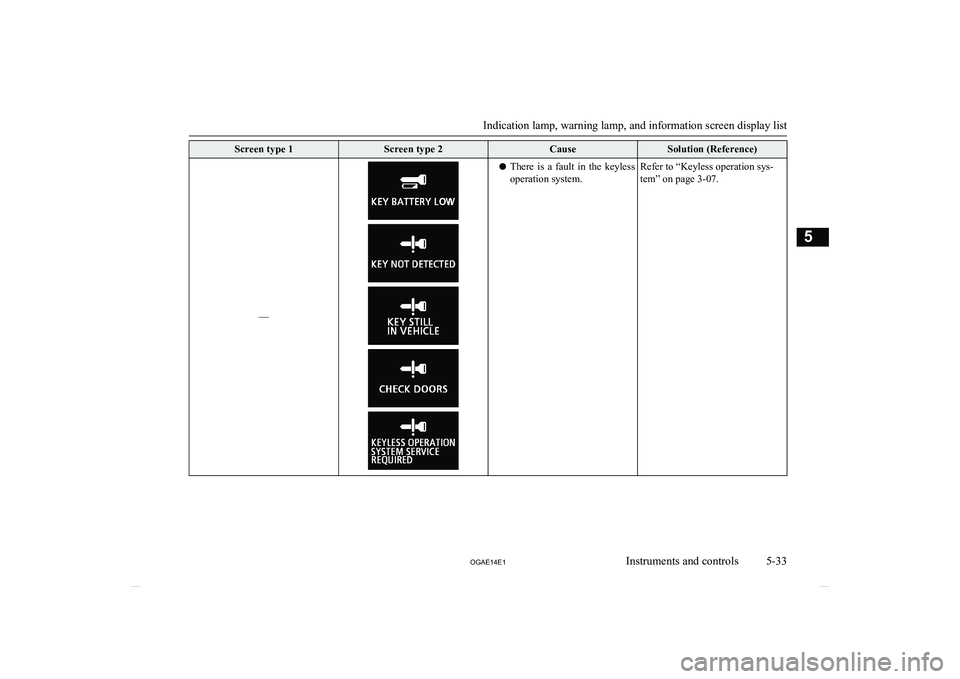

lThere is a fault in the keyless
operation system.Refer to “Keyless operation sys-
tem” on page 3-07.
Indication lamp, warning lamp, and information screen display list
5-33
OGAE14E1Instruments and controls5

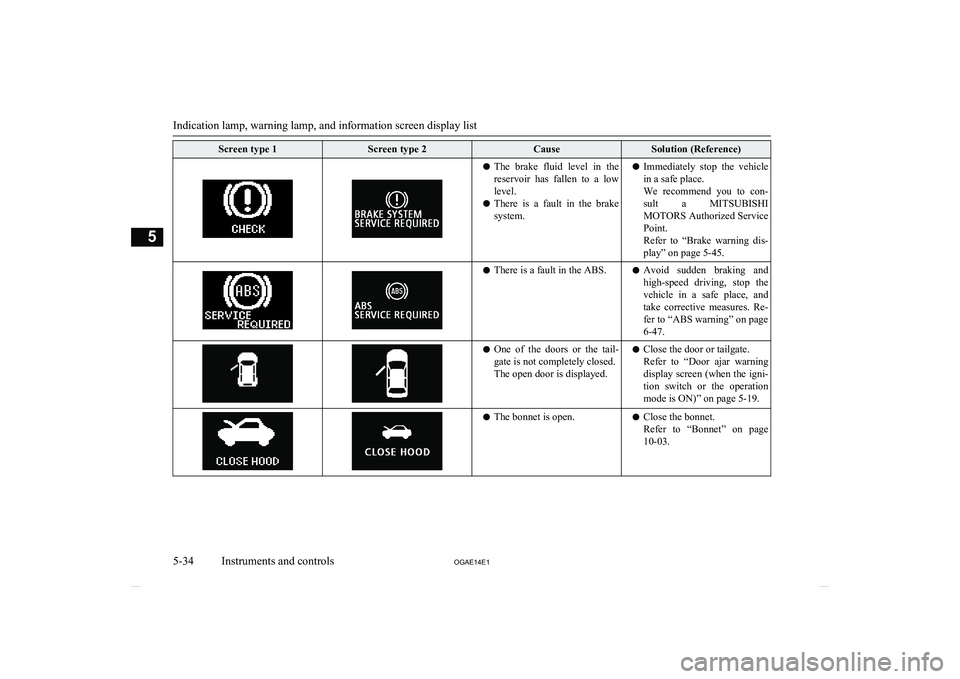

Screen type 1Screen type 2CauseSolution (Reference)lThe brake fluid level in the
reservoir has fallen to a low level.
l There is a fault in the brake
system.l Immediately stop the vehicle
in a safe place.
We recommend you to con-
sult a MITSUBISHI
MOTORS Authorized Service
Point.
Refer to “Brake warning dis-
play” on page 5-45.l There is a fault in the ABS.l Avoid sudden braking and
high-speed driving, stop the vehicle in a safe place, and take corrective measures. Re-fer to “ABS warning” on page
6-47.l One of the doors or the tail-
gate is not completely closed.
The open door is displayed.l Close the door or tailgate.
Refer to “Door ajar warning
display screen (when the igni- tion switch or the operation
mode is ON)” on page 5-19.l The bonnet is open.lClose the bonnet.
Refer to “Bonnet” on page 10-03.
Indication lamp, warning lamp, and information screen display list
5-34 OGAE14E1Instruments and controls5

Screen type 1Screen type 2CauseSolution (Reference)
––

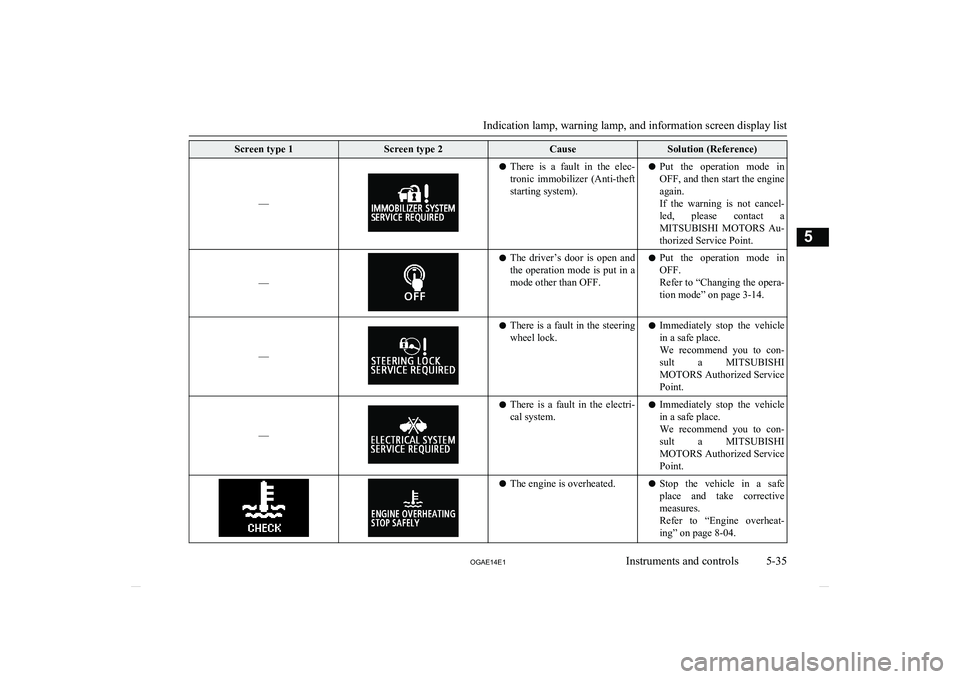

lThere is a fault in the elec-
tronic immobilizer (Anti-theft
starting system).l Put the operation mode in
OFF, and then start the engine again.
If the warning is not cancel-
led, please contact a
MITSUBISHI MOTORS Au-
thorized Service Point.
––
l The driver’s door is open and
the operation mode is put in a
mode other than OFF.l Put the operation mode in
OFF.
Refer to “Changing the opera- tion mode” on page 3-14.
––
l There is a fault in the steering
wheel lock.l Immediately stop the vehicle
in a safe place.
We recommend you to con-
sult a MITSUBISHI
MOTORS Authorized Service
Point.
––
l There is a fault in the electri-
cal system.l Immediately stop the vehicle
in a safe place.
We recommend you to con-
sult a MITSUBISHI
MOTORS Authorized Service
Point.l The engine is overheated.lStop the vehicle in a safe
place and take corrective measures.
Refer to “Engine overheat-
ing” on page 8-04.
Indication lamp, warning lamp, and information screen display list
5-35
OGAE14E1Instruments and controls5

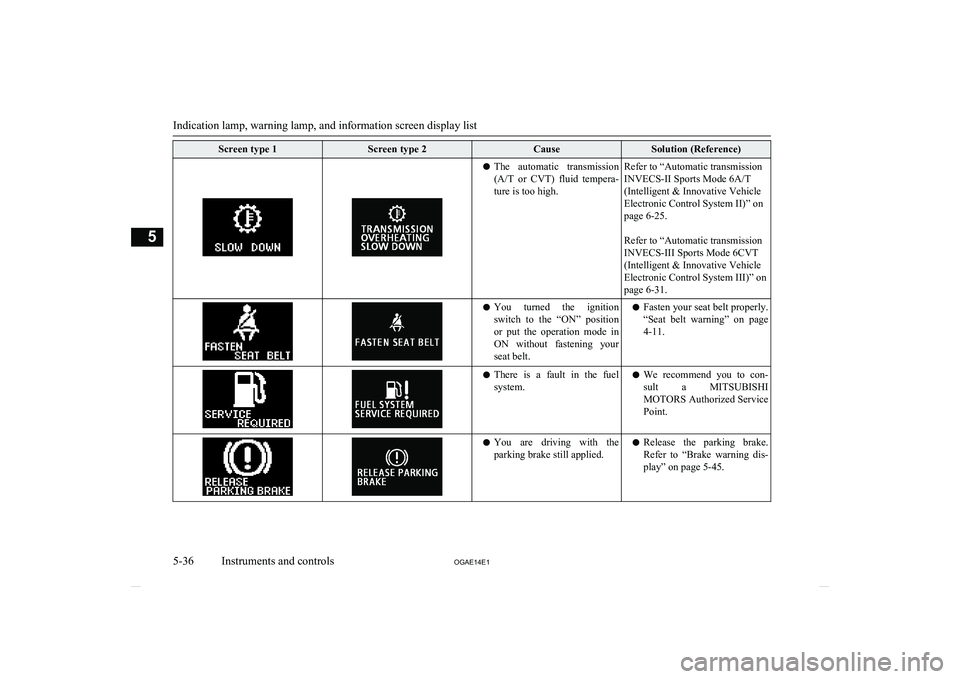

Screen type 1Screen type 2CauseSolution (Reference)lThe automatic transmission
(A/T or CVT) fluid tempera-
ture is too high.Refer to “Automatic transmission
INVECS-II Sports Mode 6A/T
(Intelligent & Innovative Vehicle
Electronic Control System II)” on
page 6-25.

Refer to “Automatic transmission
INVECS-III Sports Mode 6CVT
(Intelligent & Innovative Vehicle
Electronic Control System III)” on
page 6-31.l You turned the ignition
switch to the “ON” positionor put the operation mode in
ON without fastening your
seat belt.l Fasten your seat belt properly.
“Seat belt warning” on page
4-11.l There is a fault in the fuel
system.l We recommend you to con-
sult a MITSUBISHI
MOTORS Authorized Service
Point.l You are driving with the
parking brake still applied.l Release the parking brake.
Refer to “Brake warning dis- play” on page 5-45.
Indication lamp, warning lamp, and information screen display list
5-36 OGAE14E1Instruments and controls5

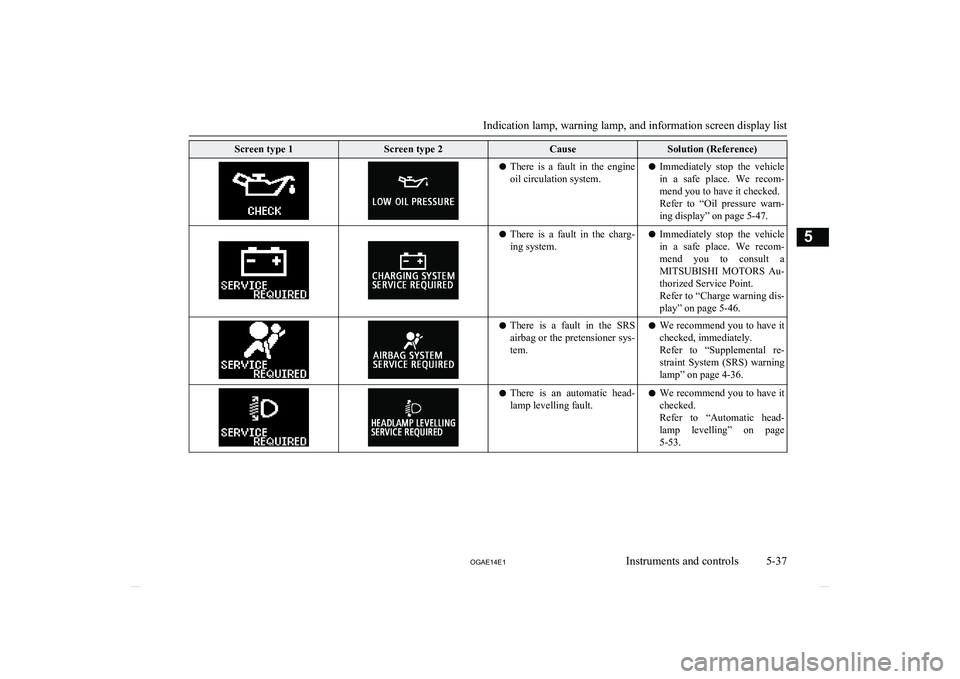

Screen type 1Screen type 2CauseSolution (Reference)lThere is a fault in the engine
oil circulation system.l Immediately stop the vehicle
in a safe place. We recom- mend you to have it checked.
Refer to “Oil pressure warn-
ing display” on page 5-47.l There is a fault in the charg-
ing system.l Immediately stop the vehicle
in a safe place. We recom-mend you to consult a
MITSUBISHI MOTORS Au-
thorized Service Point.
Refer to “Charge warning dis-
play” on page 5-46.l There is a fault in the SRS
airbag or the pretensioner sys-tem.l We recommend you to have it
checked, immediately.
Refer to “Supplemental re-
straint System (SRS) warning
lamp” on page 4-36.l There is an automatic head-
lamp levelling fault.l We recommend you to have it
checked.
Refer to “Automatic head-
lamp levelling” on page 5-53.
Indication lamp, warning lamp, and information screen display list
5-37
OGAE14E1Instruments and controls5

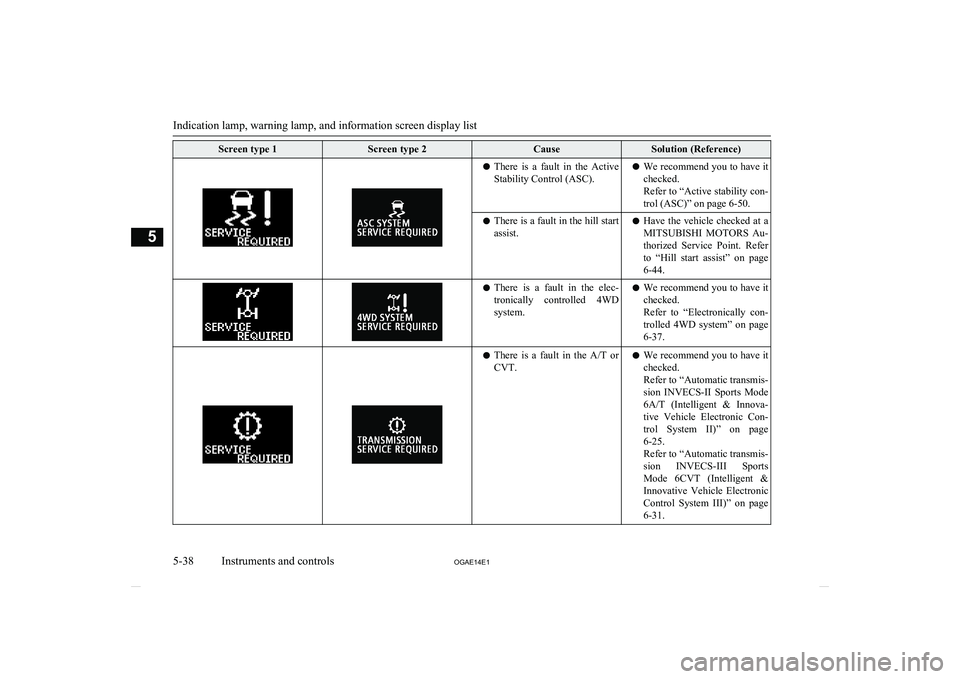

Screen type 1Screen type 2CauseSolution (Reference)lThere is a fault in the Active
Stability Control (ASC).l We recommend you to have it
checked.
Refer to “Active stability con- trol (ASC)” on page 6-50.l There is a fault in the hill start
assist.l Have the vehicle checked at a
MITSUBISHI MOTORS Au-
thorized Service Point. Refer
to “Hill start assist” on page 6-44.l There is a fault in the elec-
tronically controlled 4WD
system.l We recommend you to have it
checked.
Refer to “Electronically con- trolled 4WD system” on page
6-37.l There is a fault in the
A/T or
CVT.l We recommend you to have it
checked.
Refer to “Automatic transmis-
sion INVECS-II Sports Mode
6A/T (Intelligent & Innova-
tive Vehicle Electronic Con- trol System II)” on page6-25.
Refer to “Automatic transmis-
sion INVECS-III Sports
Mode 6CVT (Intelligent & Innovative Vehicle Electronic
Control System III)” on page
6-31.
Indication lamp, warning lamp, and information screen display list
