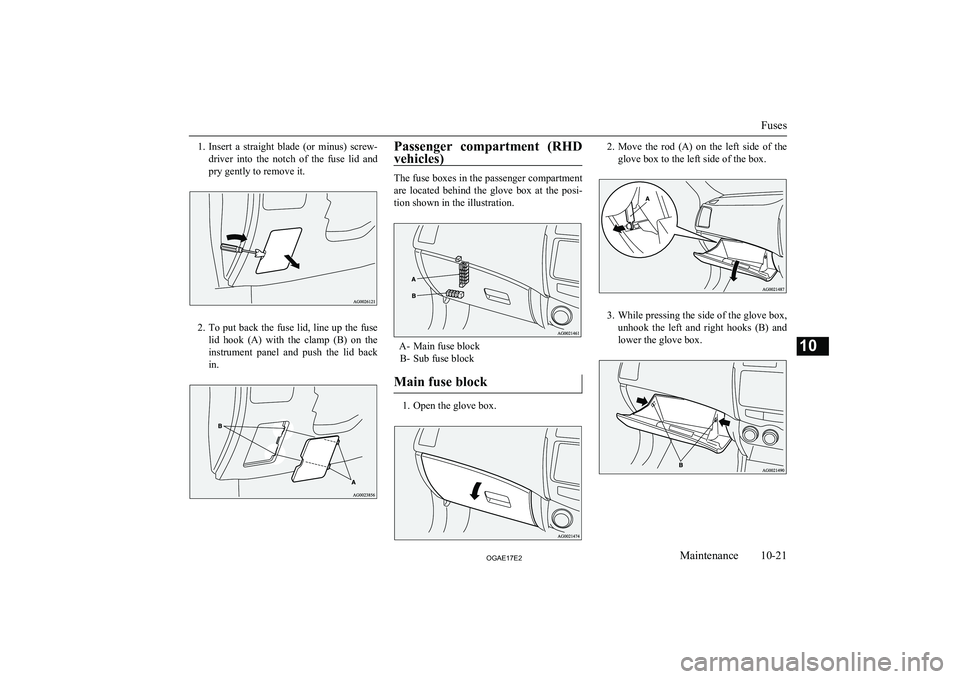

MITSUBISHI ASX 2017 Owner's Manual (in English)

1.Insert a straight blade (or minus) screw-
driver into the notch of the fuse lid and pry gently to remove it.
2. To put back the fuse lid, line up the fuse
lid hook (A) with the clamp (B) on the
instrument panel and push the lid back in.
Passenger compartment (RHD
vehicles)
The fuse boxes in the passenger compartment
are located behind the glove box at the posi-
tion shown in the illustration.
A- Main fuse block B- Sub fuse block
Main fuse block
1. Open the glove box.
2. Move the rod (A) on the left side of the
glove box to the left side of the box.
3. While pressing the side of the glove box,
unhook the left and right hooks (B) and lower the glove box.
Fuses
10-21OGAE17E2Maintenance10

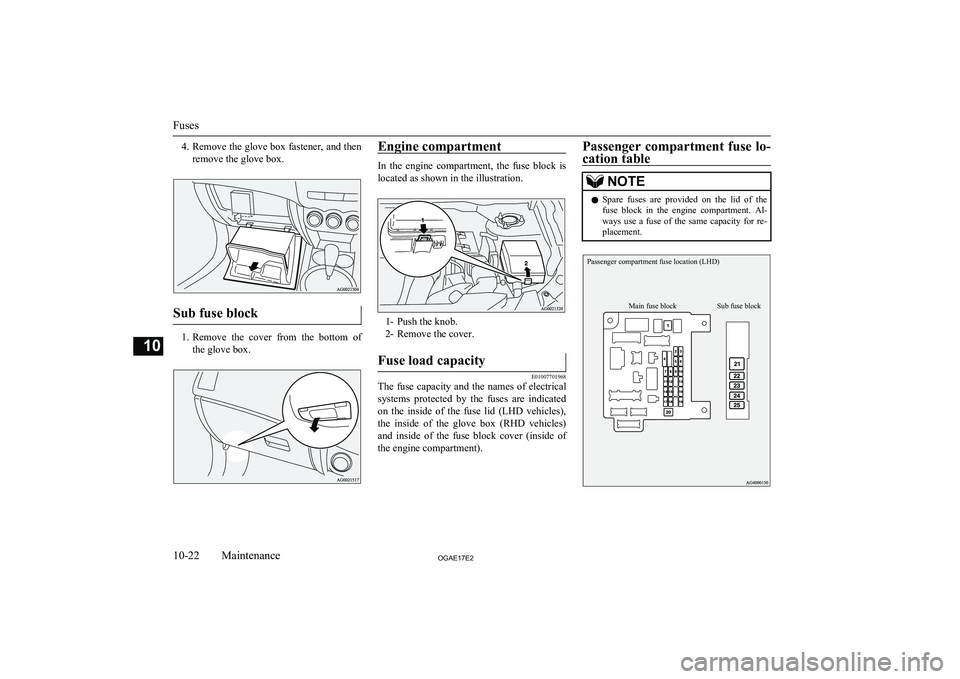

4.Remove the glove box fastener, and then
remove the glove box.
Sub fuse block
1. Remove the cover from the bottom of
the glove box.
Engine compartment
In the engine compartment, the fuse block is
located as shown in the illustration.
1- Push the knob.
2- Remove the cover.
Fuse load capacity
E01007701968
The fuse capacity and the names of electrical systems protected by the fuses are indicated
on the inside of the fuse lid (LHD vehicles), the inside of the glove box (RHD vehicles)
and inside of the fuse block cover (inside of the engine compartment).
Passenger compartment fuse lo-
cation tableNOTEl Spare fuses are provided on the lid of the
fuse block in the engine compartment. Al-ways use a fuse of the same capacity for re-
placement.Passenger compartment fuse location (LHD)Main fuse blockSub fuse block
Fuses
10-22OGAE17E2Maintenance10

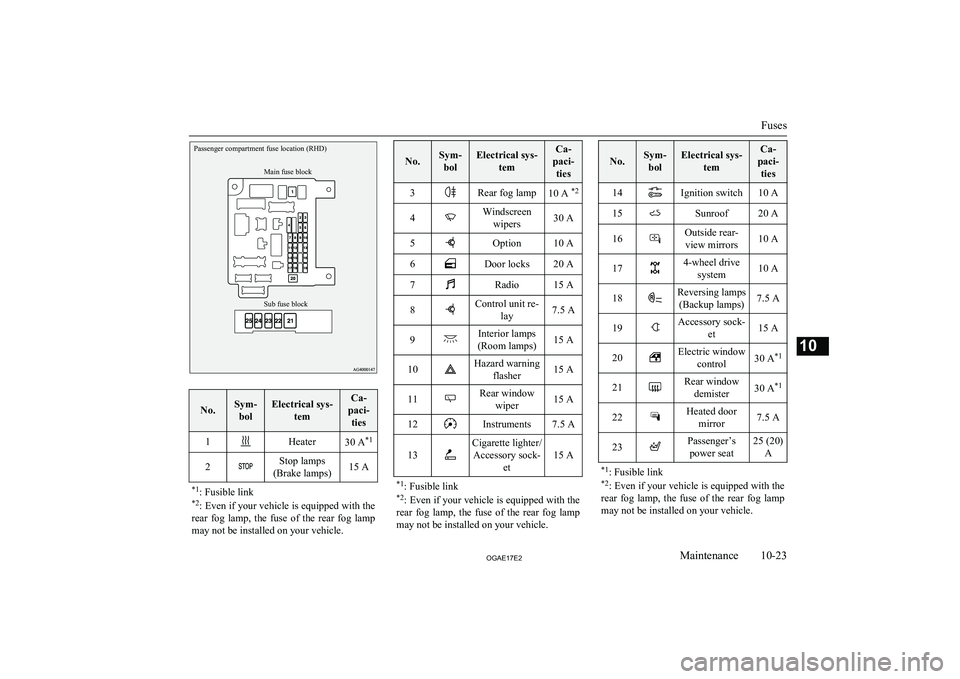

Passenger compartment fuse location (RHD)Sub fuse blockMain fuse block
No.Sym-bolElectrical sys- temCa-
paci- ties1Heater30 A *12Stop lamps
(Brake lamps)15 A*1 : Fusible link
*2 : Even if your vehicle is equipped with the
rear fog lamp, the fuse of the rear fog lamp
may not be installed on your vehicle.
No.Sym- bolElectrical sys- temCa-
paci- ties3Rear fog lamp10 A *24Windscreen
wipers30 A5Option10 A6Door locks20 A7Radio15 A8Control unit re- lay7.5 A9Interior lamps
(Room lamps)15 A10Hazard warning flasher15 A11Rear windowwiper15 A12Instruments7.5 A13
Cigarette lighter/Accessory sock- et
15 A
*1: Fusible link
*2 : Even if your vehicle is equipped with the
rear fog lamp, the fuse of the rear fog lamp
may not be installed on your vehicle.
No.Sym- bolElectrical sys- temCa-
paci- ties14Ignition switch10 A15Sunroof20 A16Outside rear-view mirrors10 A174-wheel drive system10 A18Reversing lamps(Backup lamps)7.5 A19Accessory sock- et15 A20Electric windowcontrol30 A *121Rear window
demister30 A *122Heated door
mirror7.5 A23Passenger’spower seat25 (20) A*1: Fusible link
*2 : Even if your vehicle is equipped with the
rear fog lamp, the fuse of the rear fog lamp
may not be installed on your vehicle.
Fuses
10-23OGAE17E2Maintenance10

No.Sym-bolElectrical sys- temCa-
paci- ties24Driver’s power seat25 (20)A25Heated seat30 A*1: Fusible link
*2 : Even if your vehicle is equipped with the
rear fog lamp, the fuse of the rear fog lamp
may not be installed on your vehicle.
l Some fuses may not be installed on your
vehicle, depending on the vehicle model
or specifications.
l The table above shows the main equip-
ment corresponding to each fuse.
Engine compartment fuse loca-
tion tableEngine compartment fuse locationBehind of the fuse block cover
No.Sym- bolElectrical sys- temCa-
paci- ties1Front fog lamps15 A2Engine7.5 A*1 : Fusible link
No.Sym-
bolElectrical sys- temCa-
paci- ties3Automatic trans- mission20 A4Horn10 A5Alternator7.5 A6Headlamp wash- er20 A7Air conditioning10 A
8
ETV/Oil coolerfan
(Twin Clutch SST)
15 A
9Security horn20 A10Wiper de-icer15 A11———12Electric tailgate30 A13Daytime running lamps10 A14Headlamp high-beam (left)10 A*1: Fusible link
Fuses
10-24OGAE17E2Maintenance10

No.Sym-bolElectrical sys- temCa-
paci- ties15Headlamp high- beam (right)10 A
16
Head-lamp low
beam (left)
Dis-
charge20 A17
Head- lamp low
beam
(right)
Dis-
charge20 A18
Head- lamp low
beam (left)
Halo- gen10 A19
Head-lamp low
beam
(right)
Halo- gen10 A
20ENG/POWER10 A21Ignition coil10 A*1 : Fusible link
No.Sym-
bolElectrical sys- temCa-
paci- ties
22
ENG/POWER20 AFuel line heater25 A23Fuel pump15 A24Starter30 A *125———26Anti-lock brake
system40 A *127Anti-lock brake
system30 A *128
Air conditioning
condenser fan motor
30 A *129Radiator fan mo-
tor40 A*130IODIOD30 A31Audio system
amp30 A32Diesel30 A33—Spare fuse10 A34—Spare fuse15 A*1: Fusible link
No.Sym-
bolElectrical sys- temCa-
paci- ties35—Spare fuse20 A*1 : Fusible link
l Some fuses may not be installed on your
vehicle, depending on the vehicle model
or specifications.
l The table above shows the main equip-
ment corresponding to each fuse.
The fuse box does not contain spare 7.5 A ,
25 A or 30 A fuses. If one of these fuses burns out, substitute with the following fuse.7.5 A: 10 A spare fuse
25 A: 20 A spare fuse
30 A: 30 A audio system amp fuse
When using a substitute fuse, replace with a
fuse of the correct capacity as soon as possi- ble.
Identification of fuse
CapacityColour7.5 ABrown10 ARed15 ABlue20 AYellow25 ANatural (White)
Fuses
10-25OGAE17E2Maintenance10

CapacityColour30 AGreen (fuse type)/Pink(fusible link type)40 AGreen (fusible link type)Fuse replacement
E01007800630
1. Before replacing a fuse, always turn off
the electrical circuit concerned and turn
the ignition switch to the “LOCK” posi-
tion or put the operation mode in OFF.
2. Remove the fuse puller (A) from the in-
side of the fuse box in the engine com-
partment.
3. Referring to the fuse load capacity table,
check the fuse pertaining to the problem.
B- Fuse is OK
C- Blown fuse
NOTEl If any system does not function but the fuse
corresponding to that system is normal, theremay be a fault in the system elsewhere. We recommend you to have your vehiclechecked.
4. Use the fuse puller to insert a new fuse
with the same capacity. Make sure you
insert the fuse into the same location in
the fuse block.
CAUTIONl If the newly inserted fuse blows again after a
short time, we recommend you to have the electrical system checked to find the causeand rectify it.
l Never use a fuse with a larger capacity than
specified or a substitute (such as a cable or
foil). Doing so could cause the circuit wires
to overheat and create a fire.Replacement of lamp bulbs
E01003101922
Before replacing a bulb, ensure the lamp isoff. Do not touch the glass part of the new
bulb with your bare fingers; the skin oil left
on the glass will evaporate when the bulb gets hot and the vapour will condense on the
reflector and dim the surface.
Replacement of lamp bulbs
10-26OGAE17E2Maintenance10

CAUTIONlBulbs are extremely hot immediately after
being turned off.
When replacing a bulb, wait for it to cool
sufficiently before touching it. You could otherwise be burnt.
l Do not install commercially available LED-
type bulbs.
Commercially available LED-type bulbs
could adversely affect the operation of the vehicle, such as by preventing the lamps andother vehicle equipment from operating
properly.NOTEl If you are unsure of how to carry out the
work as required, we recommend you to consult a specialist.
l Be careful not to scratch the vehicle body
when removing a lamp or lens.
l When it rains or when the vehicle has been
washed, the inside of the lens sometimes be-
comes foggy. This is the same phenomenon as when window glass mists up on a humid
day, and does not indicate a functional prob- lem.
When the lamp is switched on, the heat will
remove the fog. However, if water gathers inside the lamp, we recommend you to havethe lamp checked.Bulb capacity
E01003200290
When replacing a bulb, use a new bulb with
the same wattage and colour.
Outside
E01003305023
1- Front turn-signal lamps: 21 W
(WY21W)
2- Headlamps, high-beam: 60 W (HB3) 3- Type 1
Front fog lamps *1
: 35 W (H8)
Daytime running lamps *1
: 13 W
(P13W)
Type 2
Front fog lamps *1
: 19 W (H16)
4- Headlamps, low beam Halogen: 55 W (H11)
High intensity discharge *2
: 35 W
5- Position lamps: 5 W (W5W)
6- Side turn-signal lamps (on fender) *1
,*2
:
5 W
7- Side turn-signal lamps (on outside rear-
view mirror) *1*1
:If so equipped*2:Have the lamps bulbs replaced at a
MITSUBISHI MOTORS Author-
ized Service Point.
Codes in parentheses indicate bulb
types.
WARNINGl Always consult a specialist when repair-
ing or replacing the bulbs of high intensi- ty discharge headlamps.
This is because the power circuit, bulbs
and electrodes generate a high voltage that could cause an electric shock.NOTEl An LED, not a bulb, is used in the side turn-
signal lamp (on outside rear-view mirror).
Contact a MITSUBISHI MOTORS Author-
ized Service Point when there is a need for
repair or replacement.
Replacement of lamp bulbs
10-27OGAE17E2Maintenance10 Front

NOTElFor the side turn-signal lamp (on fender), it
is not possible to repair or replace just the
bulb.
Contact a MITSUBISHI MOTORS Author-
ized Service Point when there is a need for
repair or replacement.
8- High-mounted stop lamp
9- Licence plate lamps: 5 W (W5W)
10- Rear fog lamp: 21 W (W21W)
11- Reversing lamps: 16 W (W16W)
12- Rear turn-signal lamps: 21 W (W21W) 13- Stop and tail lamps
Codes in parentheses indicate bulb types.
NOTEl An LED, not a bulb, is used in the stop
lamp/tail lamp and high-mounted stop lamp.
Contact a MITSUBISHI MOTORS Author-
ized Service Point when there is a need for
repair or replacement.Inside
E01003403466
1- Room lamp (rear)*: 8 W
2- Vanity mirror lamps*: 2 W
3- Room lamp (front) & map lamps: 8 W
4- Luggage room lamp: 5 W
5- Glove box lamp: 1.4 W
*: If so equipped
Headlamps (low beam, exceptfor vehicles with high intensity discharge headlamps)
E01009301522
1. When replacing the bulb on the left side
of the vehicle in the case of diesel-pow-
ered vehicles, remove the bolt (A) hold- ing down the relay box and move the re-
lay box towards the rear of the vehicle.
*: Front of the vehicle
2. When replacing the bulb on the right
side of the vehicle in the case of diesel-
powered vehicles (1600 models only), remove the bolts (B), and then move thereserve tank.
Replacement of lamp bulbs
10-28OGAE17E2Maintenance10 Rear

*: Front of the vehicle
3. When replacing the bulb on the right
side of the vehicle in the case of diesel-
powered vehicles, remove the clips (C)
by prying with a straight blade (or mi- nus) screwdriver, and remove the side
cover.
*: Front of the vehicle
4. Turn the cap (D) anticlockwise to re-
move it.
*: Front of the vehicle
5. Turn the bulb (E) anticlockwise to re-
move it.
*: Front of the vehicle
6. While holding down the tab (F), pull out
the socket (G).
7. To install the bulb, perform the removal
steps in reverse.
CAUTIONl Handle halogen lamp bulbs with care. The
gas inside halogen lamp bulbs is highly pres- surized, so dropping, knocking, or scratching
a halogen lamp bulb can cause it to shatter.
l Never hold the halogen lamp bulb with a
bare hand, dirty glove, etc.
The oil from your hand could cause the bulb to break the next time the headlamps are op-
erated.
If the glass surface is dirty, it must be cleaned with alcohol, paint thinner, etc., and
refit it after drying it thoroughly.
Replacement of lamp bulbs
10-29OGAE17E2Maintenance10

Headlamps (low beam, for ve-hicles with high intensity dis- charge headlamps)
E01010100132
Do not attempt to disassemble or repair head- lamps, and do not attempt to replace their
bulbs.
WARNINGl A high voltage is present in the power cir-
cuit and in the bulbs and bulb terminals. To avoid the risk of an electric shock, con- tact a MITSUBISHI MOTORS Author-
ized Service Point whenever repair or re- placement is necessary.Headlamps (High-beam)
E01009400135
1. When replacing the bulb on the left side
of the vehicle in the case of diesel-pow-
ered vehicles, remove the bolt (A) hold-
ing down the relay box and move the re- lay box towards the rear of the vehicle.
*: Front of the vehicle
2. Turn the cap (B) anticlockwise to re-
move it.
*: Front of the vehicle
3. Turn the bulb (C) anticlockwise to re-
move it.
*: Front of the vehicle
Replacement of lamp bulbs
10-30OGAE17E2Maintenance10
