MITSUBISHI ASX 2019 (in English) Workshop Manual

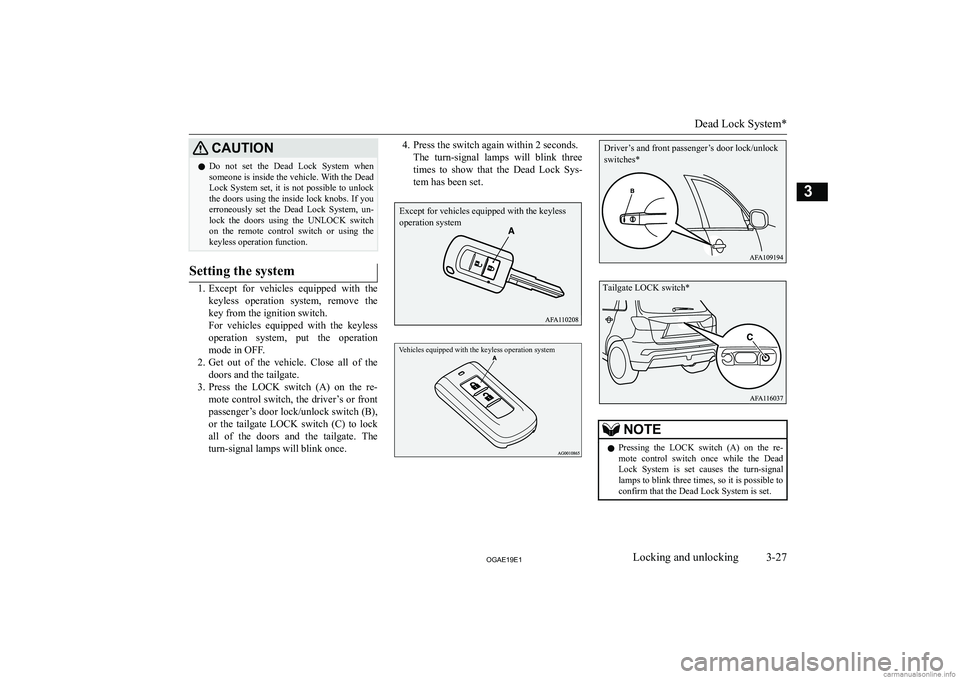

CAUT,ONzDo not set the Dead Lock System when
someone is inside the vehicle. With the Dead
Lock System set, it is not possible to unlock the doors using the inside lock knobs. If you
erroneously set the Dead Lock System, un-
lock the doors using the UNLOCK switch on the remote control switch or using the
keyless operation function.Setting the system
1. Except for vehicles equipped with the
keyless operation system, remove the
key from the ignition switch.
For vehicles equipped with the keyless operation system, put the operation
mode in OFF.
2. Get out of the vehicle. Close all of the
doors and the tailgate.
3. Press the LOCK switch (A) on the re-
mote control switch, the driver

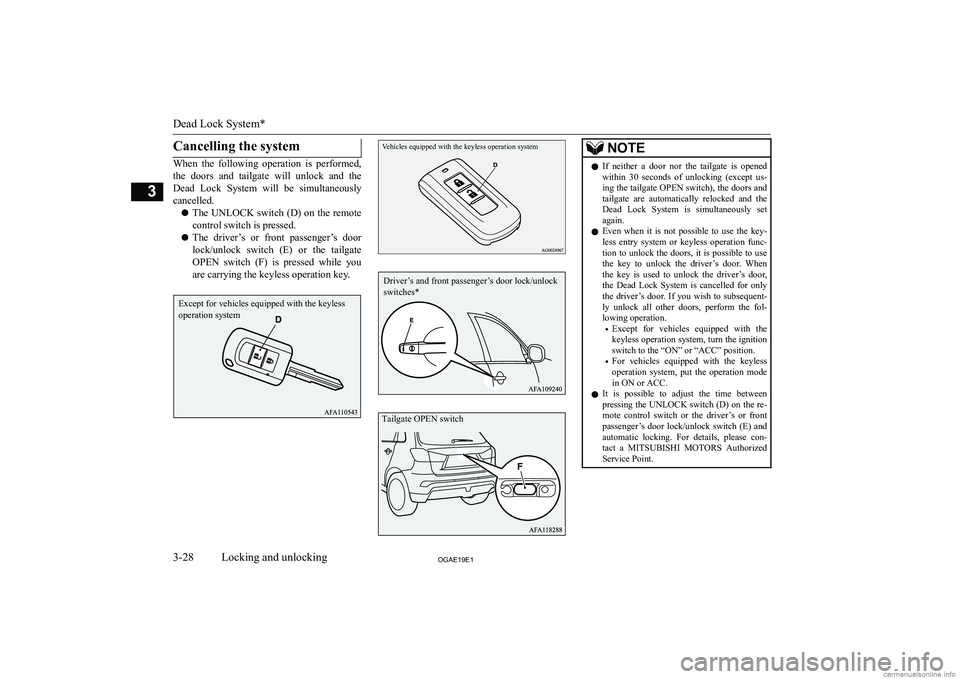

Cancelling the system
When the following operation is performed,
the doors and tailgate will unlock and the Dead Lock System will be simultaneously
cancelled.
z The UNLOCK switch (D) on the remote
control switch is pressed.
z The driver

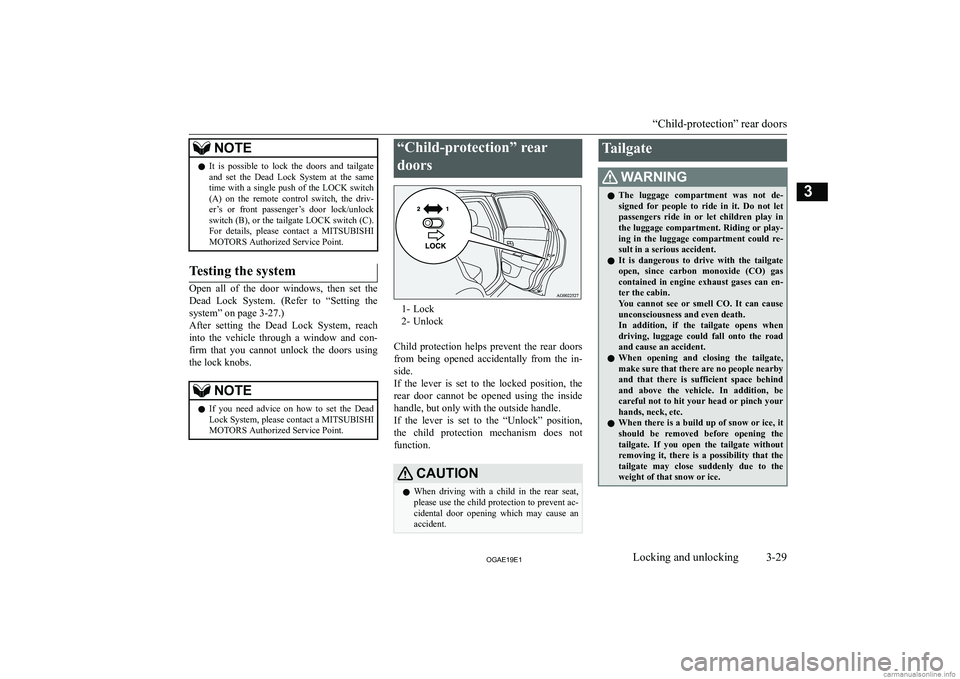

NOTEzIt is possible to lock the doors and tailgate
and set the Dead Lock System at the sametime with a single push of the LOCK switch (A) on the remote control switch, the driv-
er

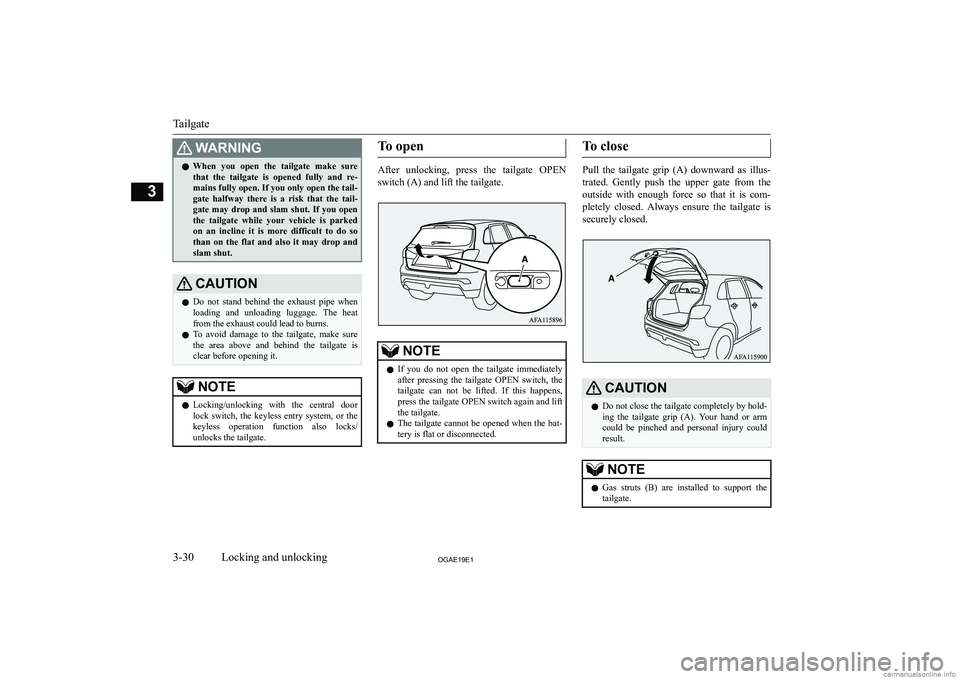

:ARN,NGzWhen you open the tailgate make sure
that the tailgate is opened fully and re- mains fully open. If you only open the tail-
gate halfway there is a risk that the tail- gate may drop and slam shut. If you open
the tailgate while your vehicle is parked on an incline it is more difficult to do so
than on the flat and also it may drop and slam shut.CAUT,ONz Do not stand behind the exhaust pipe when
loading and unloading luggage. The heat
from the exhaust could lead to burns.
z To avoid damage to the tailgate, make sure
the area above and behind the tailgate is
clear before opening it.NOTEz Locking/unlocking with the central door
lock switch, the keyless entry system, or the
keyless operation function also locks/ unlocks the tailgate.To open
After unlocking, press the tailgate OPEN
switch (A) and lift the tailgate.
NOTEz If you do not open the tailgate immediately
after pressing the tailgate OPEN switch, thetailgate can not be lifted. If this happens, press the tailgate OPEN switch again and lift
the tailgate.
z The tailgate cannot be opened when the bat-
tery is flat or disconnected.To close
Pull the tailgate grip (A) downward as illus-
trated. Gently push the upper gate from the
outside with enough force so that it is com-
pletely closed. Always ensure the tailgate is securely closed.
CAUT,ONz Do not close the tailgate completely by hold-
ing the tailgate grip (A). Your hand or arm
could be pinched and personal injury could result.NOTEz Gas struts (B) are installed to support the
tailgate.
Tailgate
3-302*$((Locking and unlocking3

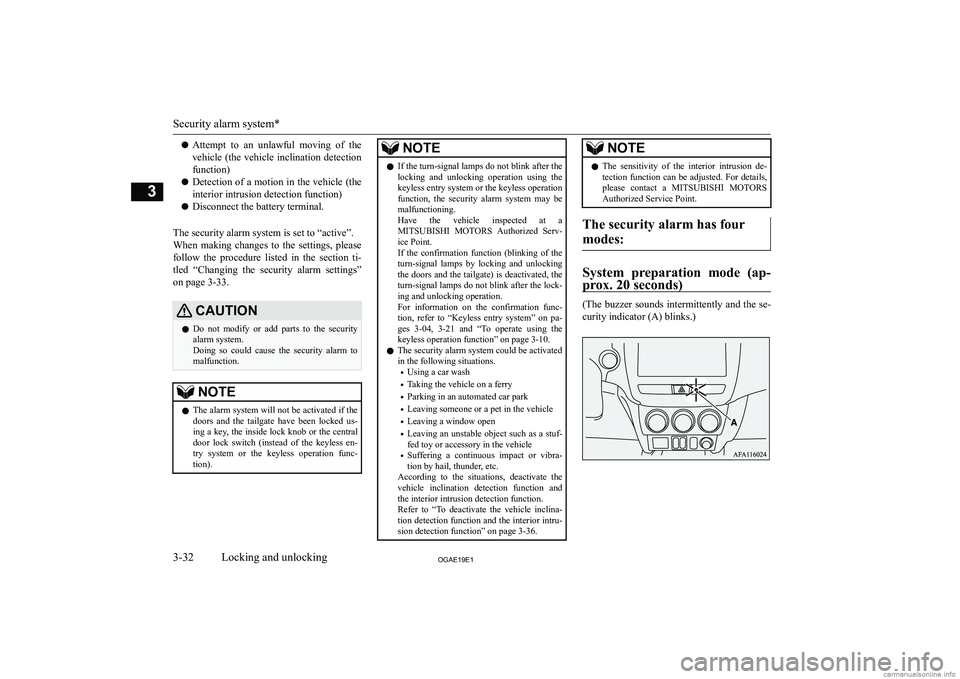

NOTE
To prevent damage or faulty operation.

zAttempt to an unlawful moving of the
vehicle (the vehicle inclination detection
function)
z Detection of a motion in the vehicle (the
interior intrusion detection function)
z Disconnect the battery terminal.
The security alarm system is set to “active”.
When making changes to the settings, please follow the procedure listed in the section ti- tled “Changing the security alarm settings”
on page 3-33.CAUT,ONz Do not modify or add parts to the security
alarm system.
Doing so could cause the security alarm to malfunction.NOTEz The alarm system will not be activated if the
doors and the tailgate have been locked us-ing a key, the inside lock knob or the central
door lock switch (instead of the keyless en- try system or the keyless operation func-
tion).NOTEz If the turn-signal lamps do not blink after the
locking and unlocking operation using thekeyless entry system or the keyless operation
function, the security alarm system may be malfunctioning.
Have the vehicle inspected at a
MITSUBISHI MOTORS Authorized Serv-
ice Point.
If the confirmation function (blinking of the
turn-signal lamps by locking and unlocking
the doors and the tailgate) is deactivated, the turn-signal lamps do not blink after the lock- ing and unlocking operation.
For information on the confirmation func- tion, refer to “Keyless entry system” on pa-
ges 3-04, 3-21 and “To operate using the
keyless operation function” on page 3-10.
z The security alarm system could be activated
in the following situations.

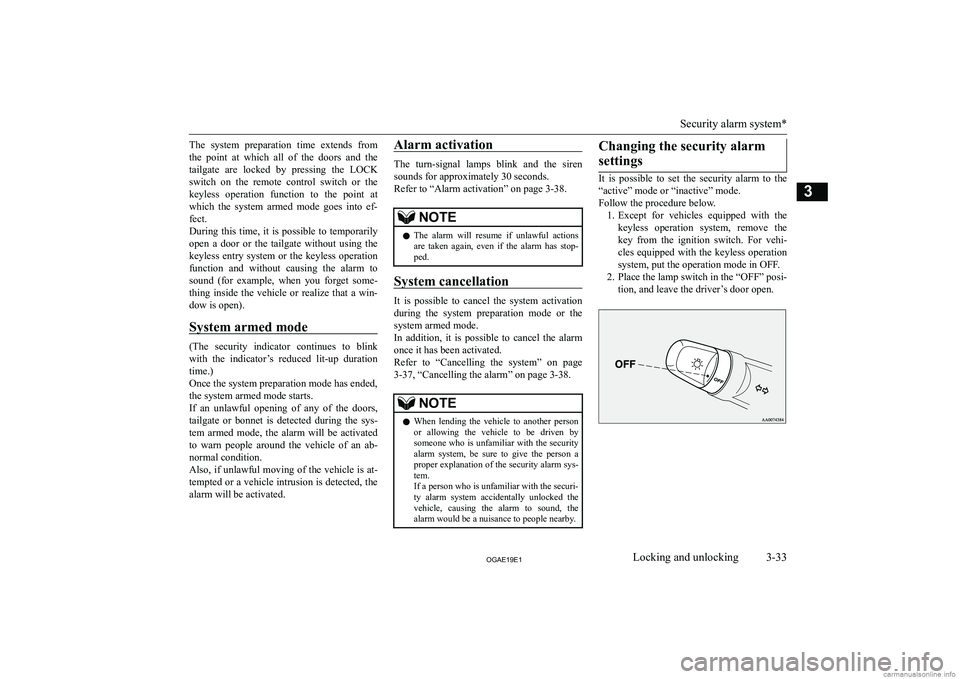

The system preparation time extends fromthe point at which all of the doors and the
tailgate are locked by pressing the LOCK
switch on the remote control switch or the
keyless operation function to the point at which the system armed mode goes into ef- fect.
During this time, it is possible to temporarily open a door or the tailgate without using the
keyless entry system or the keyless operation function and without causing the alarm tosound (for example, when you forget some-
thing inside the vehicle or realize that a win-
dow is open).
System armed mode
(The security indicator continues to blink
with the indicator

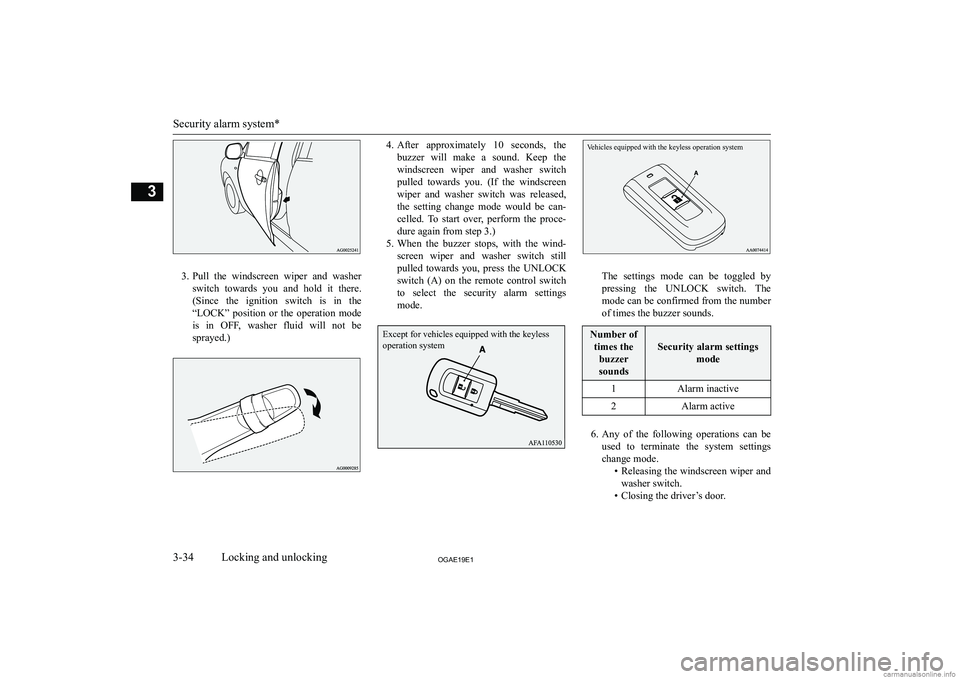

3.Pull the windscreen wiper and washer
switch towards you and hold it there. (Since the ignition switch is in the
“LOCK” position or the operation mode
is in OFF, washer fluid will not be
sprayed.)
4. After approximately 10 seconds, the
buzzer will make a sound. Keep the windscreen wiper and washer switch
pulled towards you. (If the windscreen
wiper and washer switch was released,
the setting change mode would be can-
celled. To start over, perform the proce- dure again from step 3.)
5. When the buzzer stops, with the wind-
screen wiper and washer switch stillpulled towards you, press the UNLOCK
switch (A) on the remote control switch to select the security alarm settings
mode.Vehicles equipped with the keyless operation system
The settings mode can be toggled by
pressing the UNLOCK switch. The mode can be confirmed from the numberof times the buzzer sounds.
Number of
times the buzzer
sounds
Security alarm settings mode
1Alarm inactive2Alarm active
6.Any of the following operations can be
used to terminate the system settings change mode.

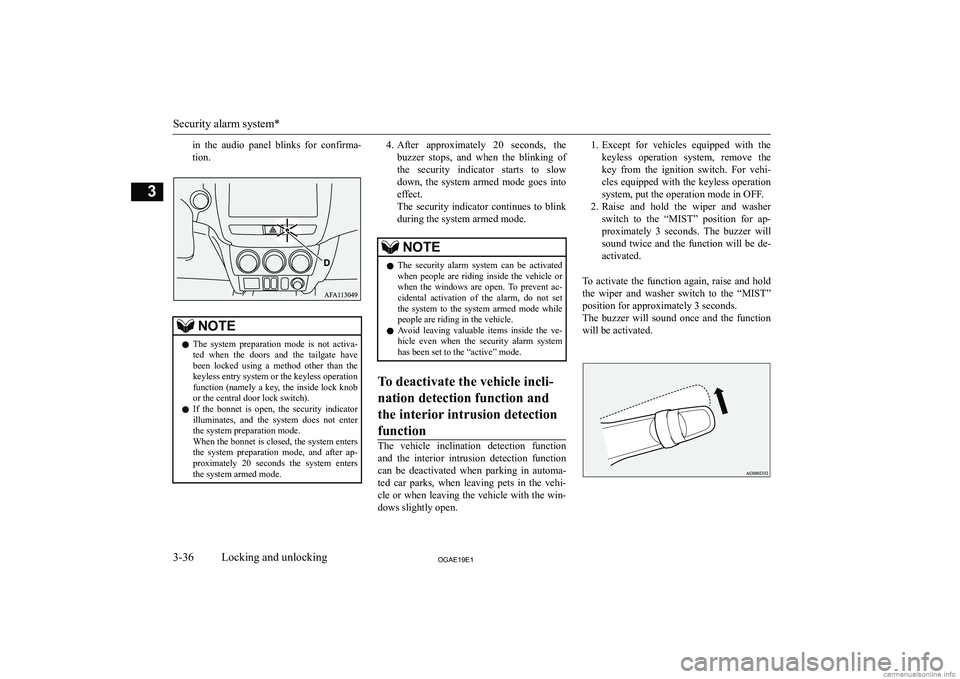

in the audio panel blinks for confirma-
tion.NOTEz The system preparation mode is not activa-
ted when the doors and the tailgate havebeen locked using a method other than the
keyless entry system or the keyless operation
function (namely a key, the inside lock knob or the central door lock switch).
z If the bonnet is open, the security indicator
illuminates, and the system does not enter the system preparation mode.
When the bonnet is closed, the system enters the system preparation mode, and after ap- proximately 20 seconds the system enters
the system armed mode.4. After approximately 20 seconds, the
buzzer stops, and when the blinking of the security indicator starts to slow
down, the system armed mode goes into effect.
The security indicator continues to blink
during the system armed mode.NOTEz The security alarm system can be activated
when people are riding inside the vehicle or when the windows are open. To prevent ac-cidental activation of the alarm, do not set
the system to the system armed mode while people are riding in the vehicle.
z Avoid leaving valuable items inside the ve-
hicle even when the security alarm system
has been set to the “active” mode.To deactivate the vehicle incli-
nation detection function and the interior intrusion detectionfunction
The vehicle inclination detection function
and the interior intrusion detection function can be deactivated when parking in automa-
ted car parks, when leaving pets in the vehi-
cle or when leaving the vehicle with the win- dows slightly open.
1. Except for vehicles equipped with the
keyless operation system, remove the key from the ignition switch. For vehi-
cles equipped with the keyless operation
system, put the operation mode in OFF.
2. Raise and hold the wiper and washer
switch to the “MIST” position for ap- proximately 3 seconds. The buzzer will
sound twice and the function will be de-
activated.
To activate the function again, raise and hold the wiper and washer switch to the “MIST”
position for approximately 3 seconds. The buzzer will sound once and the function will be activated.

Security alarm system*
3-362*$((Locking and unlocking3
