Page 2 of 280
overview–Instruments and Controls
EB21AMFf
1-Combination headlamps, dipper and turn signal
switch p. 4–12
Headlamp washer switch* p. 4–17
2-Supplemental restraint system (for driver’s seat)
p. 3–22
Horn switch p. 4–223-Meter and gauges p. 4–2
4- Windscreen wiper and washer switch p. 4–15
Rear window wiper and washer switch (Hatchback
only) p. 4–16
5-Ventilators p. 6–29
6-Multi centre display p. 4–24
Digital clock p. 4–26
7-Hazard warning flasher switch p. 4–18
8-Supplemental restraint system (for passenger’s seat)
p. 3–22
9-Front fog lamp switch* p. 4–20
10 - Headlamp levelling switch p. 4–13
11-Rheostat* (meter illumination control) p. 4–21
12 - Rear fog lamp switch p. 4–21
13 - Electric remote-controlled outside rear-view mirrors
switch* p. 5–32
14 - Bonnet release lever p. 2–8
15 - Auto-speed (cruise) control lever* p. 5–36
16 - Ignition switch p. 5–9
17 - Gearshift or selector lever p. 5–14, 5–16
18 - A/T mode change over switch (vehicle with auto-
matic transmission INVECS-II 4A/T) p. 5–21
19 - Ashtray p. 6–46
20 - Cigarette lighter p. 6–45
21 - Rear window demister switch p. 4–19
22 -
Centre accessory box p. 6–4723 - Heater/Air conditioning* p. 6–30, 6–36
24 - Audio* p. 6–2
EB21AMDf
LHD
B21A482t
Page 3 of 280
overview–Instruments and Controls
1-Supplemental restraint system (for passenger’s seat)
p. 3–22
2-Hazard warning flasher switch p. 4–18
3-Multi centre display p. 4–24
Digital clock p. 4–26
4-Ventilators p. 6–29
5-Combination headlamps, dipper and turn signal
switch p. 4–12
Headlamp washer switch* p. 4–17
6-Meter and gauges p. 4–2
7-Supplemental restraint system (for driver’s seat)
p. 3–22
Horn switch p. 4–22
8- Windscreen wiper and washer switch p. 4–15
Rear window wiper and washer switch (Hatchback
only) p. 4–16
9-Rheostat* (meter illumination control) p. 4–21
10 -
Headlamp levelling switch p. 4–1311-Front fog lamp switch* p. 4–20
12 - Electric remote-controlled outside rear-view mirrors
switch* p. 5–32
13 - Rear fog lamp switch p. 4–21
14 - Audio* p. 6–2
15 - Heater/Air conditioning* p. 6–30, 6–36
16 - Rear window demister switch p. 4–19
17 - Centre accessory box p. 6–47
18 - Cigarette lighter p. 6–45
19 - Ashtray p. 6–46
20 - A/T mode change over switch (vehicles with auto-
matic transmission INVECS II 4A/T) p. 5–21
21 - Gearshift or selector lever p. 5–14, 5–16
22 - Ignitition switch p. 5–9
23 - Bonnet release lever p. 2–8
24 - Auto-speed (cruise) control lever* p. 5–36
RHD
B21A483t

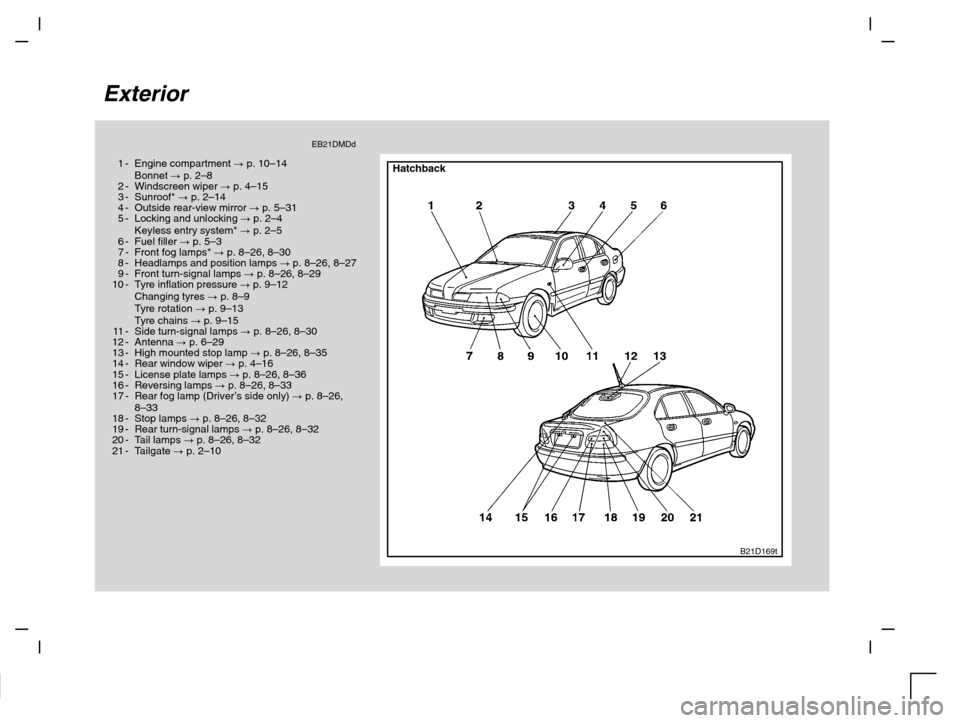

Page 6 of 280
Exterior
EB21DMDd
1-Engine compartment p. 10–14
Bonnet p. 2–8
2-Windscreen wiper p. 4–15
3-Sunroof* p. 2–14
4-Outside rear-view mirror p. 5–31
5-Locking and unlocking p. 2–4
Keyless entry system* p. 2–5
6-Fuel filler p. 5–3
7-Front fog lamps* p. 8–26, 8–30
8-Headlamps and position lamps p. 8–26, 8–27
9-Front turn-signal lamps p. 8–26, 8–29
10 - Tyre inflation pressure p. 9–12
Changing tyres p. 8–9
Tyre rotation p. 9–13
Tyre chains p. 9–15
11-Side turn-signal lamps p. 8–26, 8–30
12 - Antenna p. 6–29
13 - High mounted stop lamp p. 8–26, 8–35
14 - Rear window wiper p. 4–16
15 - License plate lamps p. 8–26, 8–36
16 - Reversing lamps p. 8–26, 8–33
17 - Rear fog lamp (Driver’s side only) p. 8–26,
8–33
18 - Stop lamps p. 8–26, 8–32
19 - Rear turn-signal lamps p. 8–26, 8–32
20 - Tail lamps p. 8–26, 8–32
21 - Tailgate p. 2–10Hatchback
B21D169t

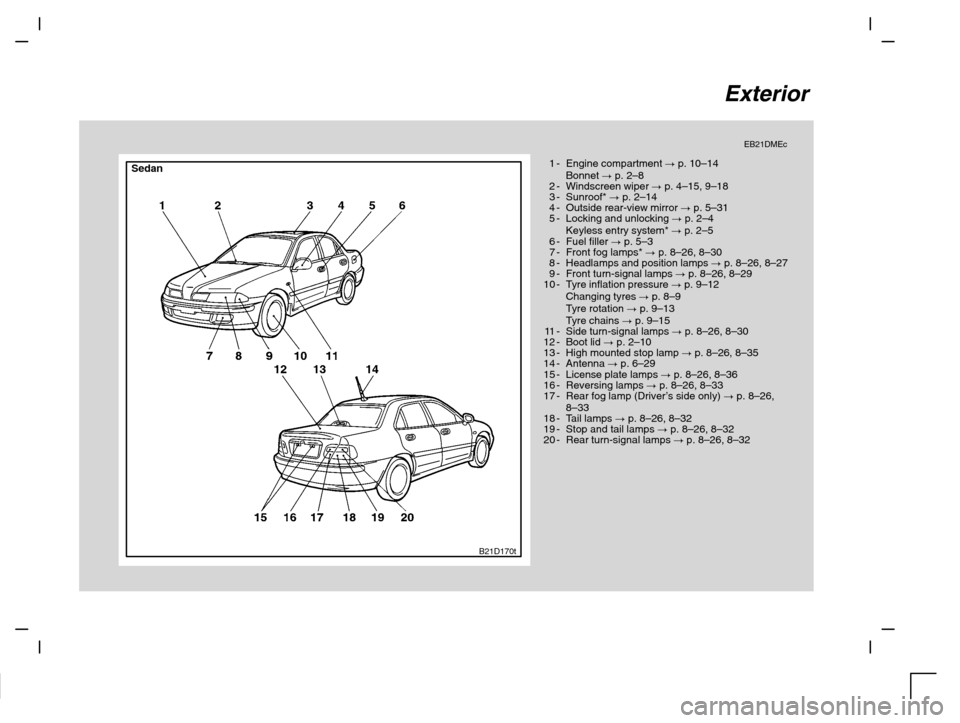

Page 7 of 280
Exterior
EB21DMEc
1-Engine compartment p. 10–14
Bonnet p. 2–8
2-Windscreen wiper p. 4–15, 9–18
3-Sunroof* p. 2–14
4-Outside rear-view mirror p. 5–31
5-Locking and unlocking p. 2–4
Keyless entry system* p. 2–5
6-Fuel filler p. 5–3
7-Front fog lamps* p. 8–26, 8–30
8-Headlamps and position lamps p. 8–26, 8–27
9-Front turn-signal lamps p. 8–26, 8–29
10 - Tyre inflation pressure p. 9–12
Changing tyres p. 8–9
Tyre rotation p. 9–13
Tyre chains p. 9–15
11-Side turn-signal lamps p. 8–26, 8–30
12 - Boot lid p. 2–10
13 - High mounted stop lamp p. 8–26, 8–35
14 - Antenna p. 6–29
15 - License plate lamps p. 8–26, 8–36
16 - Reversing lamps p. 8–26, 8–33
17 - Rear fog lamp (Driver’s side only) p. 8–26,
8–33
18 - Tail lamps p. 8–26, 8–32
19 - Stop and tail lamps p. 8–26, 8–32
20 - Rear turn-signal lamps p. 8–26, 8–32Sedan
B21D170t

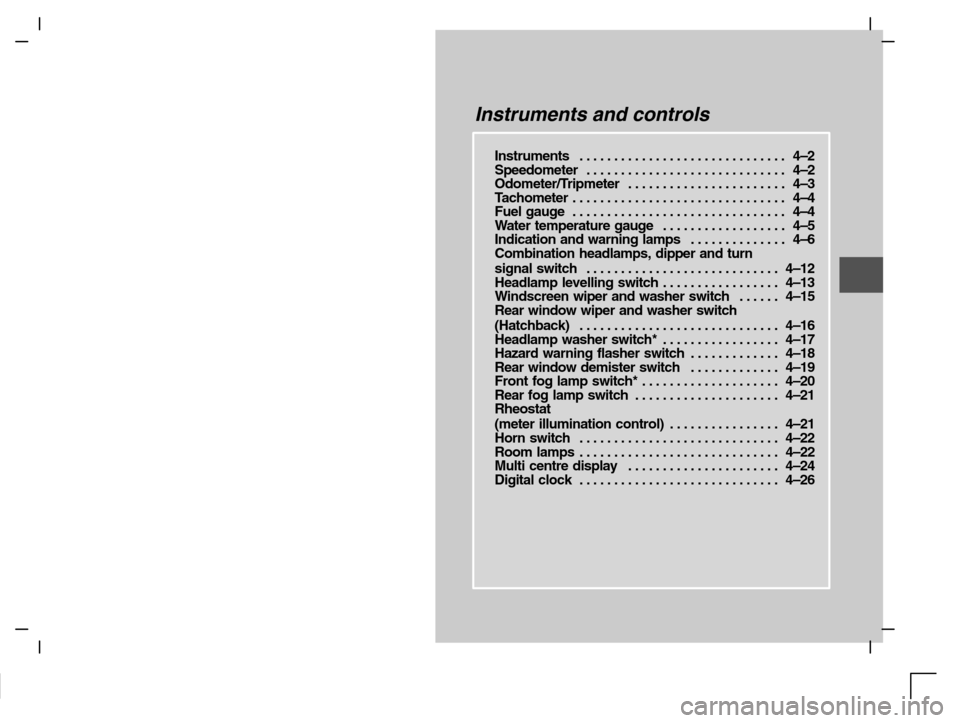

Page 67 of 280
Instruments and controls
Instruments 4–2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Speedometer 4–2. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Odometer/Tripmeter 4–3. . . . . . . . . . . . . . . . . . . . . . .
Tachometer 4–4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Fuel gauge 4–4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Water temperature gauge 4–5. . . . . . . . . . . . . . . . . .
Indication and warning lamps 4–6. . . . . . . . . . . . . .
Combination headlamps, dipper and turn
signal switch 4–12. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Headlamp levelling switch 4–13. . . . . . . . . . . . . . . . .
Windscreen wiper and washer switch 4–15. . . . . .
Rear window wiper and washer switch
(Hatchback) 4–16. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Headlamp washer switch* 4–17. . . . . . . . . . . . . . . . .
Hazard warning flasher switch 4–18. . . . . . . . . . . . .
Rear window demister switch 4–19. . . . . . . . . . . . .
Front fog lamp switch* 4–20. . . . . . . . . . . . . . . . . . . .
Rear fog lamp switch 4–21. . . . . . . . . . . . . . . . . . . . .
Rheostat
(meter illumination control) 4–21. . . . . . . . . . . . . . . .
Horn switch 4–22. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Room lamps 4–22. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Multi centre display 4–24. . . . . . . . . . . . . . . . . . . . . .
Digital clock 4–26. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

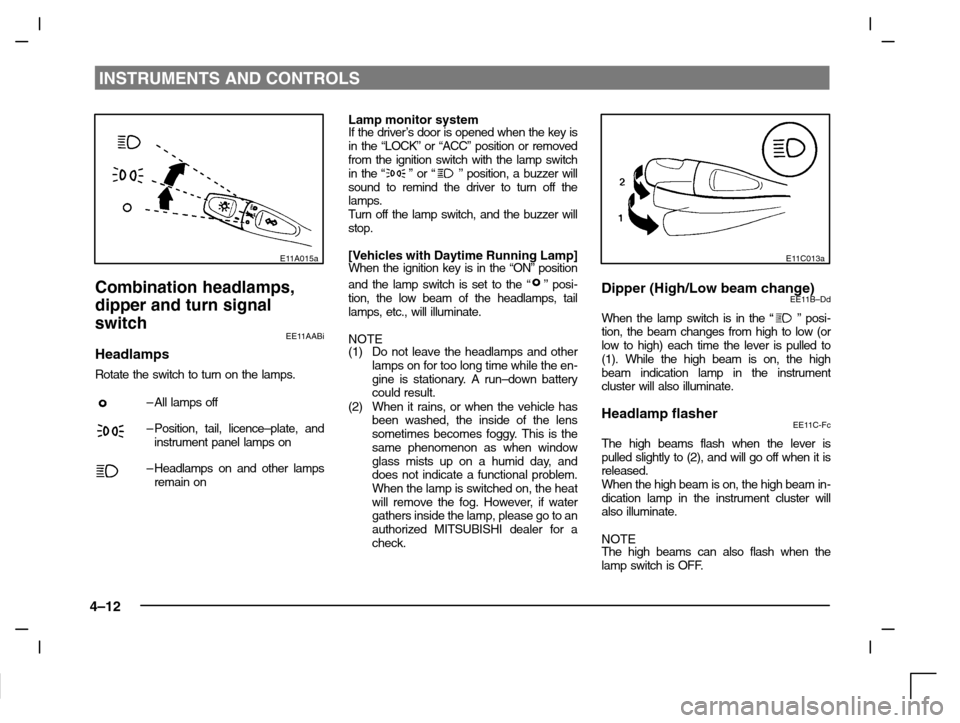

Page 78 of 280
INSTRUMENTS AND CONTROLS
4–12
E11A015a
Combination headlamps,
dipper and turn signal
switch
EE11AABi
Headlamps
Rotate the switch to turn on the lamps.
–All lamps off
–Position, tail, licence–plate, and
instrument panel lamps on
–Headlamps on and other lamps
remain on
Lamp monitor systemIf the driver’s door is opened when the key is
in the “LOCK” or “ACC” position or removed
from the ignition switch with the lamp switch
in the “
” or “” position, a buzzer will
sound to remind the driver to turn off the
lamps.
Turn off the lamp switch, and the buzzer will
stop.
[Vehicles with Daytime Running Lamp]When the ignition key is in the “ON” position
and the lamp switch is set to the “
” posi-
tion, the low beam of the headlamps, tail
lamps, etc., will illuminate.
NOTE
(1) Do not leave the headlamps and other
lamps on for too long time while the en-
gine is stationary. A run–down battery
could result.
(2) When it rains, or when the vehicle has
been washed, the inside of the lens
sometimes becomes foggy. This is the
same phenomenon as when window
glass mists up on a humid day, and
does not indicate a functional problem.
When the lamp is switched on, the heat
will remove the fog. However, if water
gathers inside the lamp, please go to an
authorized MITSUBISHI dealer for a
check.
E11C013a
Dipper (High/Low beam change)EE11B–Dd
When the lamp switch is in the “” posi-
tion, the beam changes from high to low (or
low to high) each time the lever is pulled to
(1). While the high beam is on, the high
beam indication lamp in the instrument
cluster will also illuminate.
Headlamp flasherEE11C-Fc
The high beams flash when the lever is
pulled slightly to (2), and will go off when it is
released.
When the high beam is on, the high beam in-
dication lamp in the instrument cluster will
also illuminate.
NOTE
The high beams can also flash when the
lamp switch is OFF.

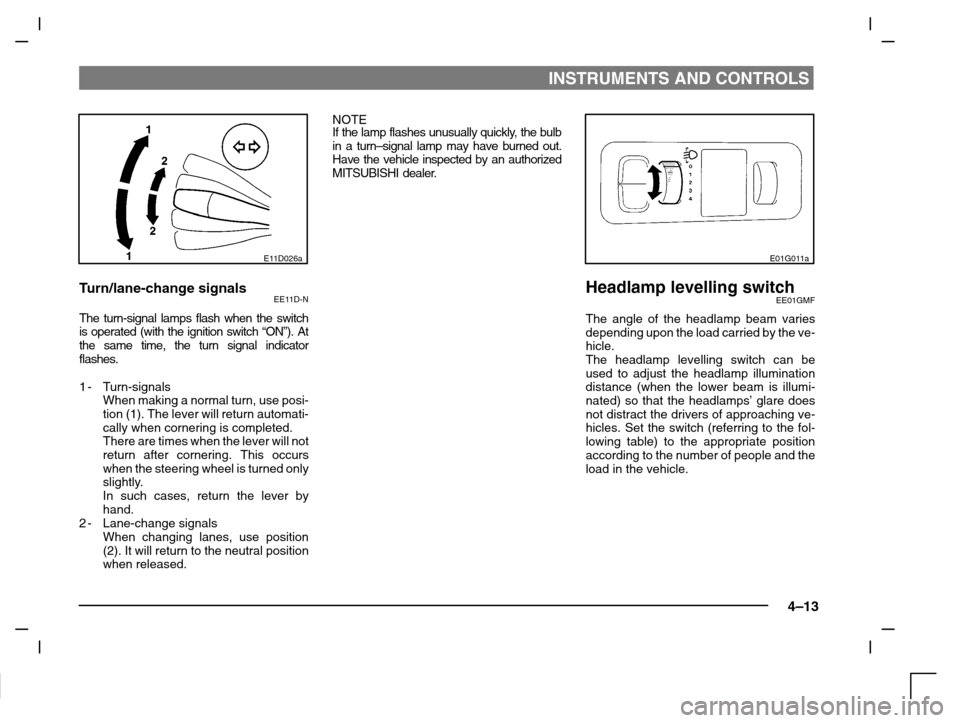

Page 79 of 280
INSTRUMENTS AND CONTROLS
4–13
E11D026a
Turn/lane-change signalsEE11D-N
The turn-signal lamps flash when the switch
is operated (with the ignition switch “ON”). At
the same time, the turn signal indicator
flashes.
1-Turn-signals
When making a normal turn, use posi-
tion (1). The lever will return automati-
cally when cornering is completed.
There are times when the lever will not
return after cornering. This occurs
when the steering wheel is turned only
slightly.
In such cases, return the lever by
hand.
2-Lane-change signals
When changing lanes, use position
(2). It will return to the neutral position
when released.NOTE
If the lamp flashes unusually quickly, the bulb
in a turn–signal lamp may have burned out.
Have the vehicle inspected by an authorized
MITSUBISHI dealer.
E01G011a
Headlamp levelling switchEE01GMF
The angle of the headlamp beam varies
depending upon the load carried by the ve-
hicle.
The headlamp levelling switch can be
used to adjust the headlamp illumination
distance (when the lower beam is illumi-
nated) so that the headlamps’ glare does
not distract the drivers of approaching ve-
hicles. Set the switch (referring to the fol-
lowing table) to the appropriate position
according to the number of people and the
load in the vehicle.

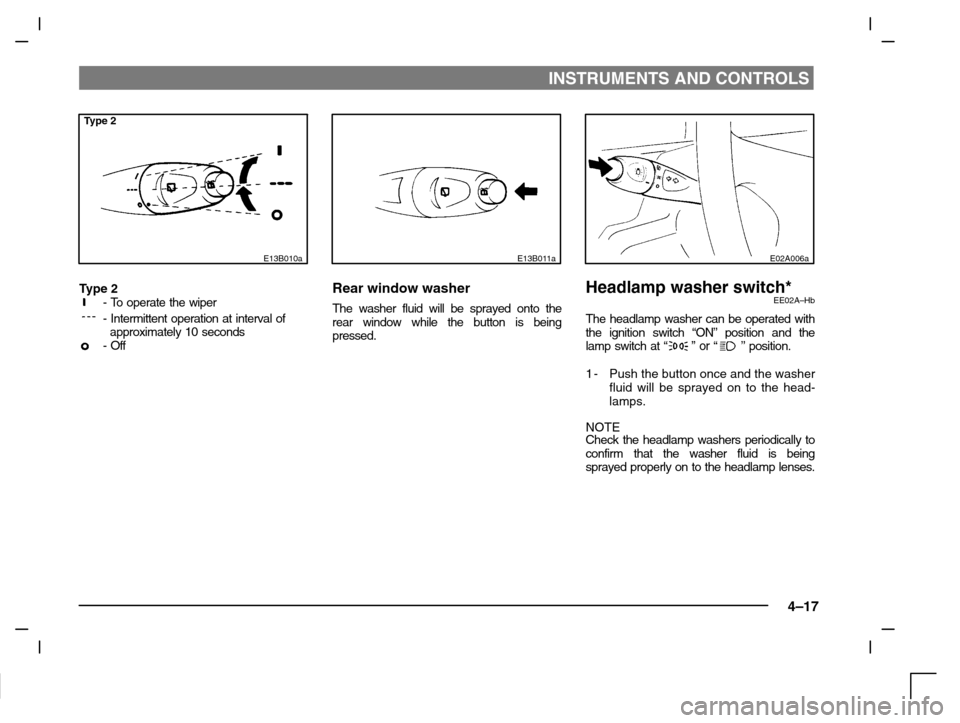

Page 83 of 280
INSTRUMENTS AND CONTROLS
4–17
Type 2
E13B010a
Type 2- To operate the wiper
- Intermittent operation at interval of
approximately 10 seconds
- Off
E13B011a
Rear window washer
The washer fluid will be sprayed onto the
rear window while the button is being
pressed.
E02A006a
Headlamp washer switch*EE02A–Hb
The headlamp washer can be operated with
the ignition switch “ON” position and the
lamp switch at “
” or “” position.
1-Push the button once and the washer
fluid will be sprayed on to the head-
lamps.
NOTE
Check the headlamp washers periodically to
confirm that the washer fluid is being
sprayed properly on to the headlamp lenses.

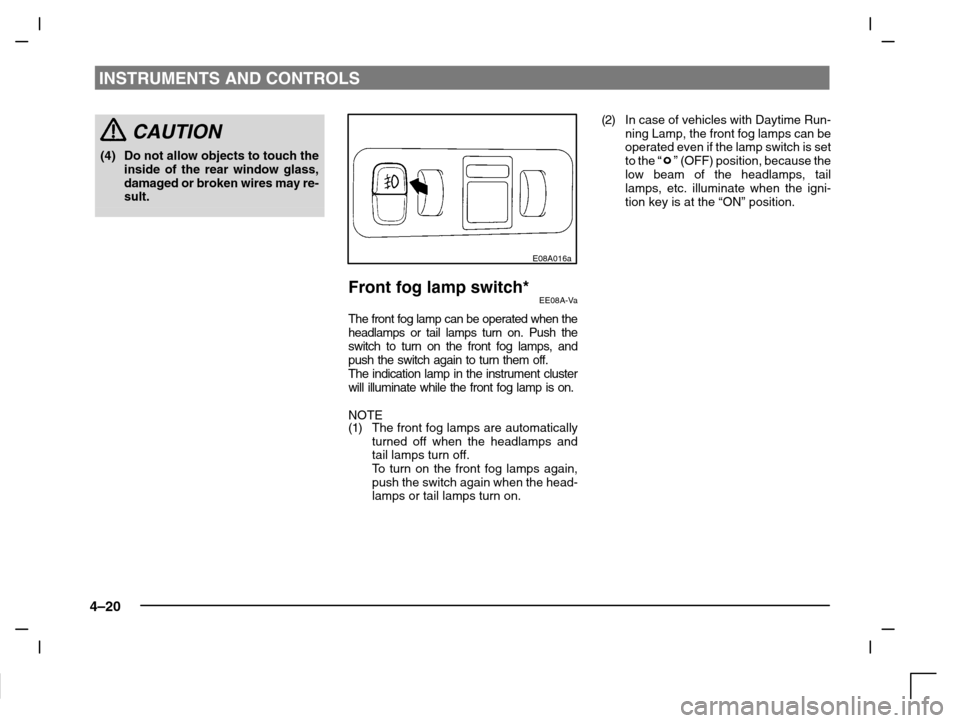

Page 86 of 280
INSTRUMENTS AND CONTROLS
4–20
CAUTION
(4) Do not allow objects to touch the
inside of the rear window glass,
damaged or broken wires may re-
sult.
E08A016a
Front fog lamp switch*EE08A-Va
The front fog lamp can be operated when the
headlamps or tail lamps turn on. Push the
switch to turn on the front fog lamps, and
push the switch again to turn them off.
The indication lamp in the instrument cluster
will illuminate while the front fog lamp is on.
NOTE
(1)The front fog lamps are automatically
turned off when the headlamps and
tail lamps turn off.
To turn on the front fog lamps again,
push the switch again when the head-
lamps or tail lamps turn on.(2)In case of vehicles with Daytime Run-
ning Lamp, the front fog lamps can be
operated even if the lamp switch is set
to the
“” (OFF) position, because the
low beam of the headlamps, tail
lamps, etc. illuminate when the igni-
tion key is at the “ON” position.

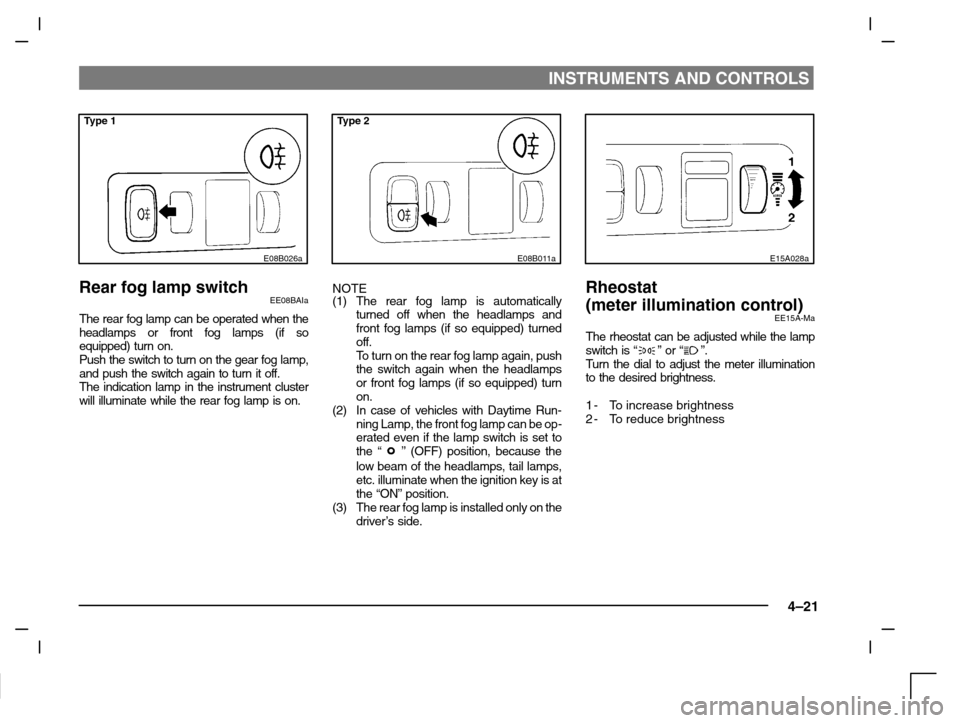

Page 87 of 280
INSTRUMENTS AND CONTROLS
4–21
Type 1
E08B026a
Rear fog lamp switchEE08BAIa
The rear fog lamp can be operated when the
headlamps or front fog lamps (if so
equipped) turn on.
Push the switch to turn on the gear fog lamp,
and push the switch again to turn it off.
The indication lamp in the instrument cluster
will illuminate while the rear fog lamp is on.
Type 2
E08B011a
NOTE
(1) The rear fog lamp is automatically
turned off when the headlamps and
front fog lamps (if so equipped) turned
off.
To t u r n on the rear fog lamp again, push
the switch again when the headlamps
or front fog lamps (if so equipped) turn
on.
(2) In case of vehicles with Daytime Run-
ning Lamp, the front fog lamp can be op-
erated even if the lamp switch is set to
the “
” (OFF) position, because the
low beam of the headlamps, tail lamps,
etc. illuminate when the ignition key is at
the “ON” position.
(3) The rear fog lamp is installed only on the
driver’s side.
E15A028a
Rheostat
(meter illumination control)
EE15A-Ma
The rheostat can be adjusted while the lamp
switch is “” or “”.
Turn the dial to adjust the meter illumination
to the desired brightness.
1-To increase brightness
2-To reduce brightness
