FOR EMERGENCIES
8–23
N09A031a

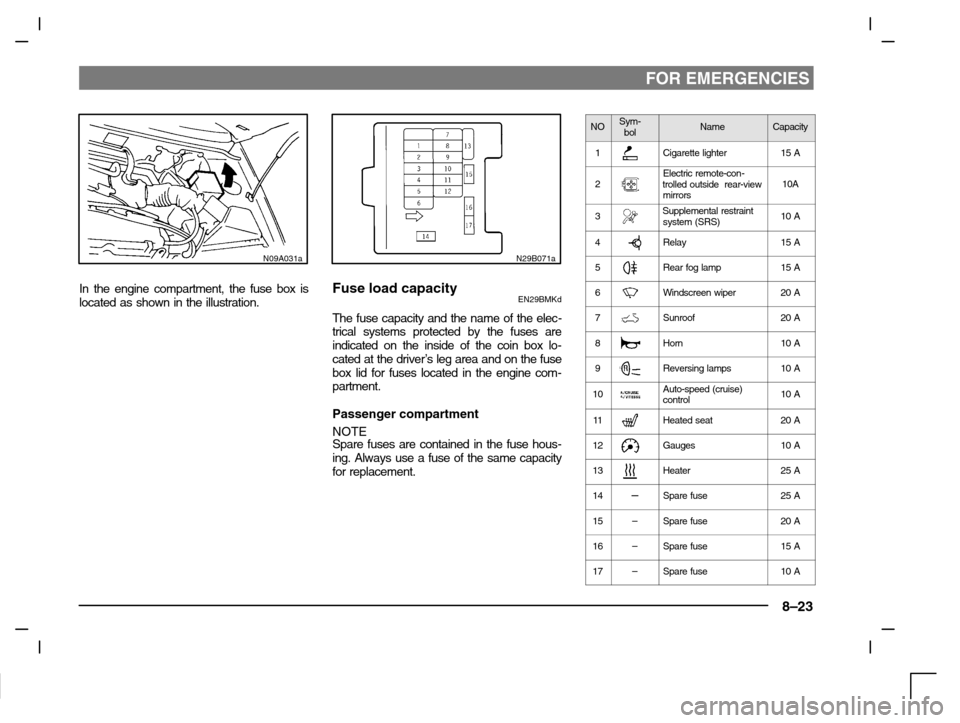

In the engine compartment, the fuse box is
located as shown in the illustration.
N29B071a
Fuse load capacityEN29BMKd
The fuse capacity and the name of the elec-
trical systems protected by the fuses are
indicated on the inside of the coin box lo-
cated at the driver’s leg area and on the fuse
box lid for fuses located in the engine com-
partment.
Passenger compartment
NOTE
Spare fuses are contained in the fuse hous-
ing. Always use a fuse of the same capacity
for replacement.
NOSym-
bolNameCapacity
1Cigarette lighter15 A
2Electric remote-con-
trolled outside rear-view
mirrors10A
3Supplemental restraint
system (SRS)10 A
4Relay15 A
5Rear fog lamp15 A
6Windscreen wiper20 A
7Sunroof20 A
8Horn10 A
9Reversing lamps10 A
10Auto-speed (cruise)
control10 A
11Heated seat20 A
12Gauges10 A
13Heater25 A
14–Spare fuse25 A
15–Spare fuse20 A
16–Spare fuse15 A
17–Spare fuse10 A
