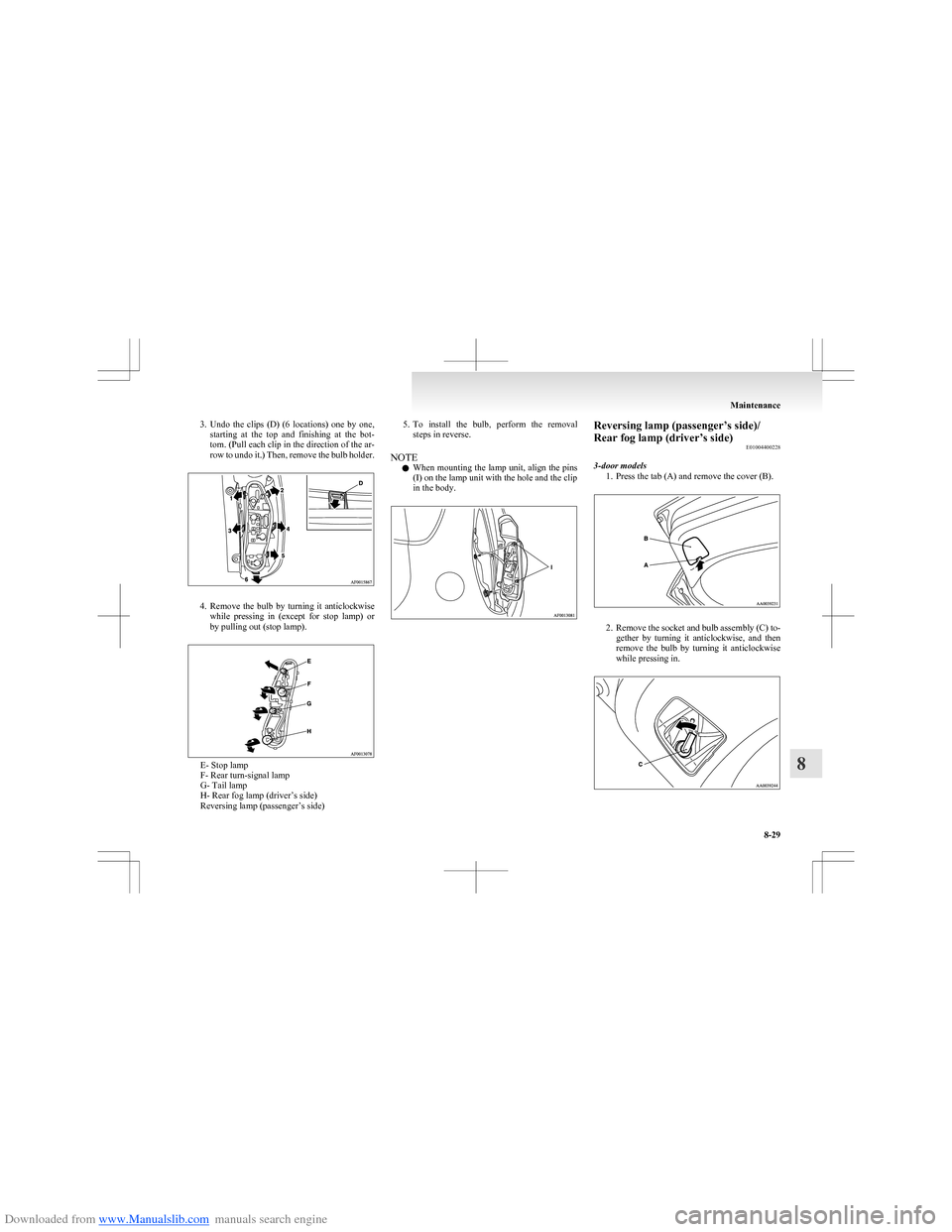

Downloaded from www.Manualslib.com manuals search engine 3.Undo the clips (D) (6 locations) one by one,
starting at the top and finishing at the bot-
tom. (Pull each clip in the direction of the ar-
row to undo it.) Then, remove the bulb holder.
4. Remove the bulb by turning it anticlockwise
while pressing in (except for stop lamp) or
by pulling out (stop lamp).
E- Stop lamp
F- Rear turn-signal lamp
G- Tail lamp
H- Rear fog lamp (driver’s side)
Reversing lamp (passenger’s side)
5. To install the bulb, perform the removal
steps in reverse.
NOTE l When mounting the lamp unit, align the pins
(I) on the lamp unit with the hole and the clip
in the body.Reversing lamp (passenger’s side)/
Rear fog lamp (driver’s side) E01004400228
3-door models 1. Press the tab (A) and remove the cover (B).
2.Remove the socket and bulb assembly (C) to-
gether by turning it anticlockwise, and then
remove the bulb by turning it anticlockwise
while pressing in.
Maintenance
8-29
8

Downloaded from www.Manualslib.com manuals search engine 3.To install the bulb, perform the removal

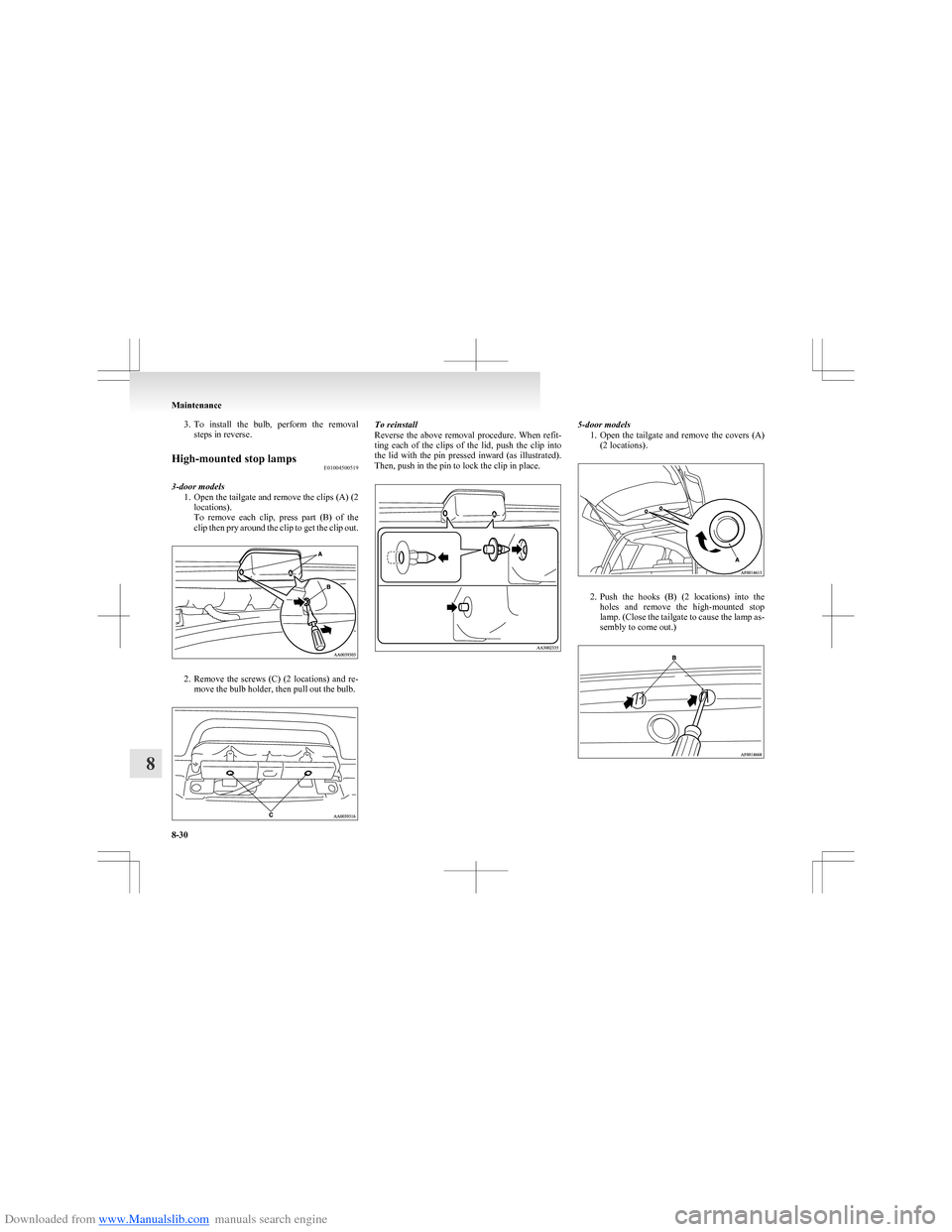

steps in reverse.High-mounted stop lamps E01004500519
3-door models
1.Open the tailgate and remove the clips (A) (2
locations).
To remove each clip, press part (B) of the
clip then pry around the clip to get the clip out.
2. Remove the screws (C) (2 locations) and re-
move the bulb holder, then pull out the bulb.
To reinstall
Reverse the above removal procedure. When refit-
ting each of the clips of the lid, push the clip into
the lid with the pin pressed inward (as illustrated).
Then, push in the pin to lock the clip in place.5-door models
1.Open the tailgate and remove the covers (A)
(2 locations).
2. Push the hooks (B) (2 locations) into the
holes and remove the high-mounted stop
lamp. (Close the tailgate to cause the lamp as-
sembly to come out.)
Maintenance
8-30
8

Downloaded from www.Manualslib.com manuals search engine 3.Gently close the tailgate, remove the lamp as-
sembly, and remove the connector (C), then
remove the lamp body.
4. Undo the clips (D) and remove the bulb hold-
er, then pull out the bulb.
5. To install the bulb, perform the removal
steps in reverse.

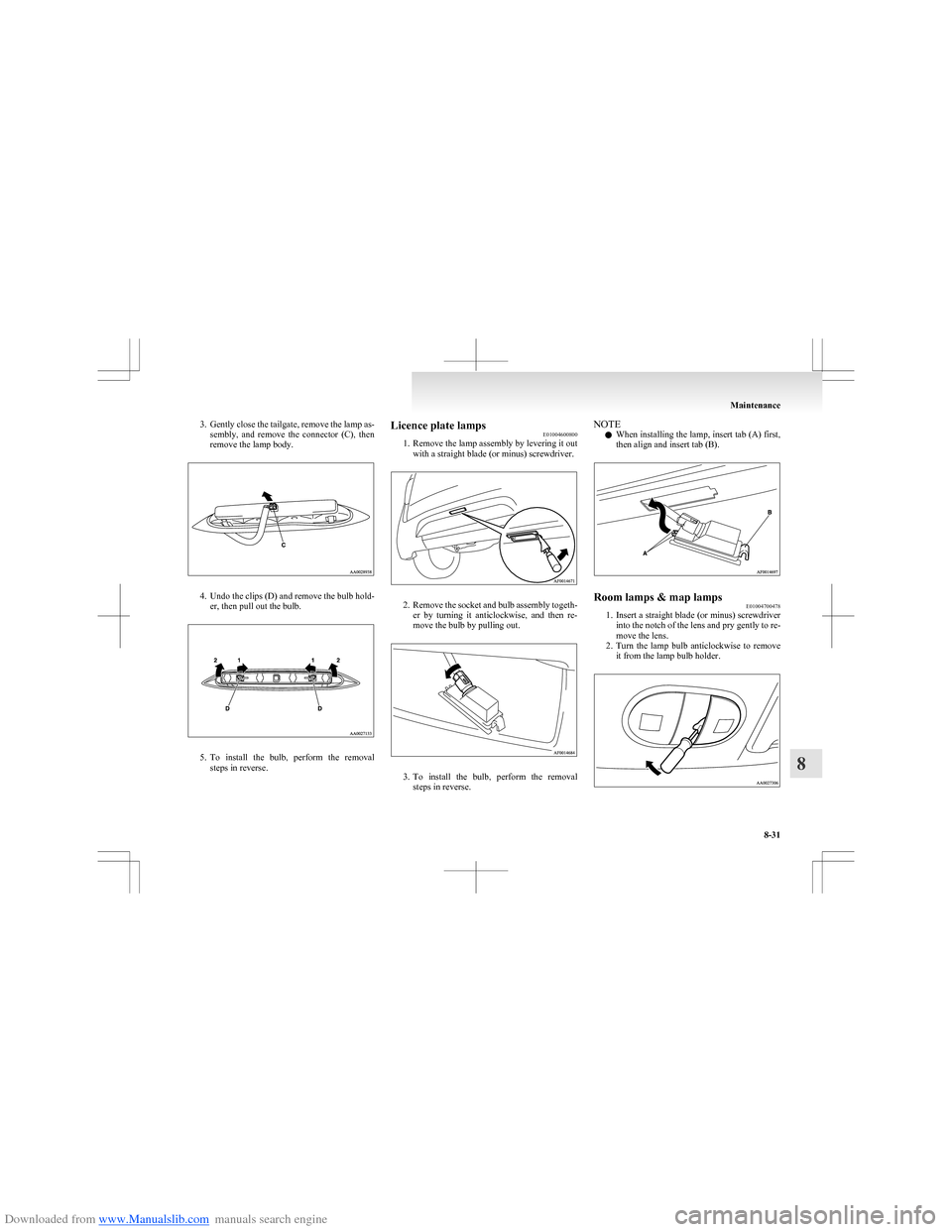

Licence plate lamps E01004600800
1. Remove the lamp assembly by levering it out
with a straight blade (or minus) screwdriver.
2. Remove the socket and bulb assembly togeth-
er by turning it anticlockwise, and then re-
move the bulb by pulling out.
3. To install the bulb, perform the removal
steps in reverse.
NOTE
l When installing the lamp, insert tab (A) first,
then align and insert tab (B).Room lamps & map lamps E01004700478
1.Insert a straight blade (or minus) screwdriver
into the notch of the lens and pry gently to re-
move the lens.
2. Turn the lamp bulb anticlockwise to remove
it from the lamp bulb holder.
Maintenance
8-31
8

Downloaded from www.Manualslib.com manuals search engine NOTEl Wrap a piece of cloth around the tip of the
screwdriver in order to avoid scratching the
lens.
3. To install the bulb, perform the removal

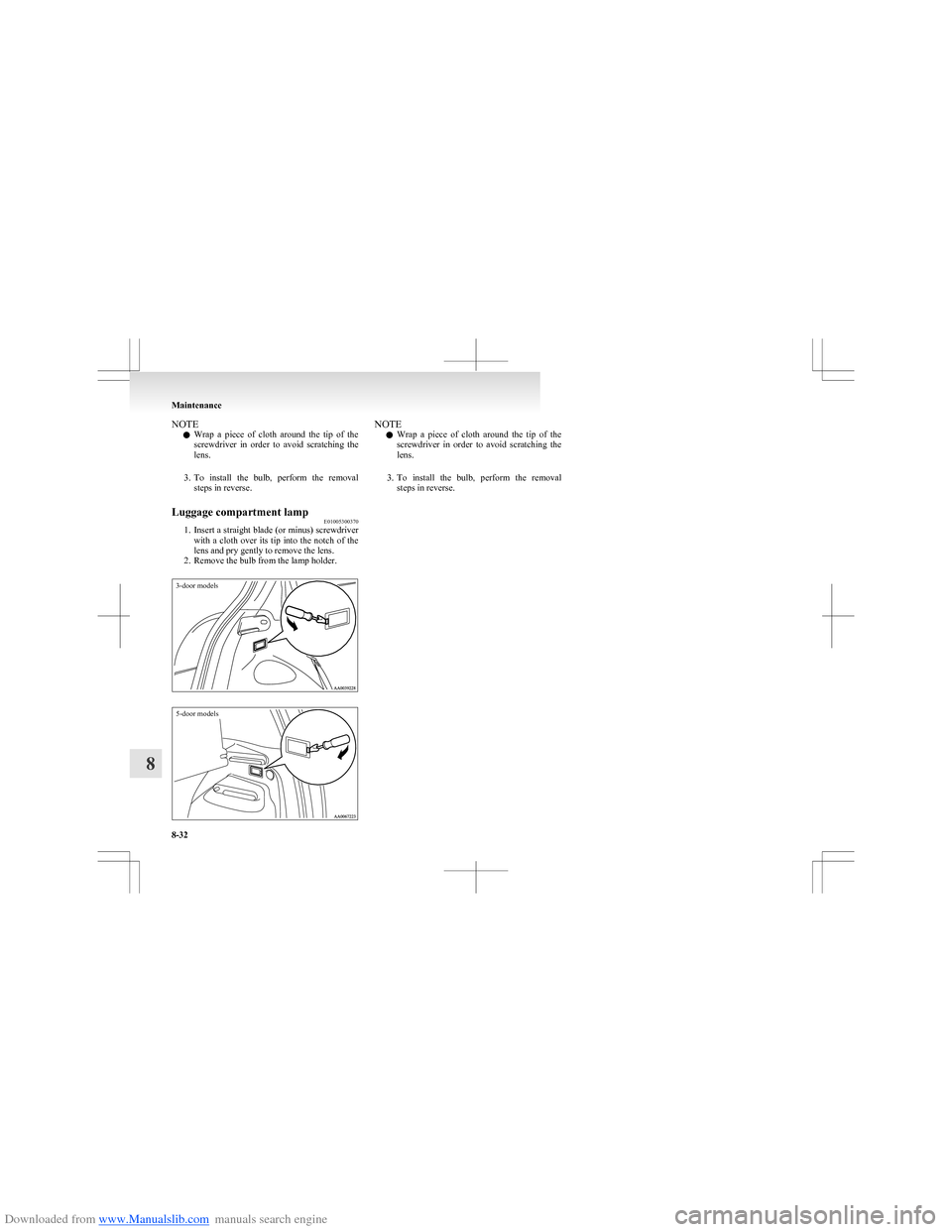

steps in reverse.Luggage compartment lamp E01005300370
1.Insert a straight blade (or minus) screwdriver
with a cloth over its tip into the notch of the
lens and pry gently to remove the lens.
2. Remove the bulb from the lamp holder.
3-door models5-door modelsNOTE
l Wrap a piece of cloth around the tip of the
screwdriver in order to avoid scratching the
lens.
3. To install the bulb, perform the removal
steps in reverse.
Maintenance
8-32
8

Downloaded from www.Manualslib.com manuals search engine A
Accessory (Installation) 04
Accessory socket 5-37
Active stability control system (ASC) 4-30 Indication lamp 4-31
Additional equipment 8-18
Air conditioning Automatic air conditioning 5-07
Important operation tips for the air condition-
ing 5-11
Air purifier 5-12
Airbag 2-22
Front passenger’s airbag OFF indication
lamp 2-25
Front passenger’s airbag ON-OFF switch 2-25
Antenna 5-33
Anti-lock brake system (ABS) 4-27 Warning lamp 4-28
Audio Error codes 5-30
Handling of compact discs 5-32
LW/MW/FM electronic tuning radio with CD
player 5-12
Auto Stop & Go (AS&G) system 4-13
Automated manual transmission 4-19 Oil 9-16
Automatic air conditioning 5-07
B
Battery 8-10Charge warning lamp 3-19
Discharged battery (Emergency starting) 6-02
Specification 9-11
Bonnet 8-03
Brake Anti-lock brake 4-27
Brake assist system 4-27
Braking 4-25
Fluid 8-09,9-16
Parking brake 4-06
Parking brake lever stroke 8-16
Pedal free play 8-16
Warning lamp 3-17
Bulb capacity 8-23
C
Capacities 9-16
Cargo loads 4-36
Catalytic converter 8-02
Central door locks 1-07
Changing a fuse 8-21
Charge warning lamp 3-19
Chassis number 9-02
Check engine warning lamp 3-18
Child restraint 2-13
Child-protection rear doors 1-09
Cleaning Exterior of your vehicle 7-03
Genuine leather 7-02
Interior of your vehicle 7-02
Plastic, vinyl leather, etc 7-02
Clock 5-34
Clutch Fluid 8-09
Pedal free play 8-15
Coat hooks 5-43
Combination headlamps and dipper switch 3-20
Coming home light 3-22
Compact spare wheel 6-13
Cool box 5-39
Coolant (engine) 8-07,9-16
Cruise control 4-32
Cup holder 5-42
D
Dead Lock System 1-07
Demister (rear window) 3-29
Digital clock 5-34
Dipper (High/Low beam change) 3-21
Door ajar warning lamp 3-19
Doors Central door locks 1-07
Child-protection 1-09
Dead Lock System 1-07
Lock and unlock 1-05
Driving, alcohol and drugs 4-02
E
Economical driving 4-02
Electric power steering system 4-29
Electric remote-controlled outside rear-view mir-
rors 4-09
Electric window control 1-11
Electrical system 9-11
Electronic immobilizer (Anti-theft starting sys-
tem) 1-02
Emergency starting 6-02
Emergency stop signal system 4-26
Engine
Coolant 8-07,9-16
High coolant temperature warning lamp 3-19
Number 9-03
Oil 8-05
Oil and filter 9-16
Overheating 6-04
Specifications 9-09
Used engine oils safety instructions and disposal
information 05
Error codes 5-30
Exterior and interior lamp operation 8-18
