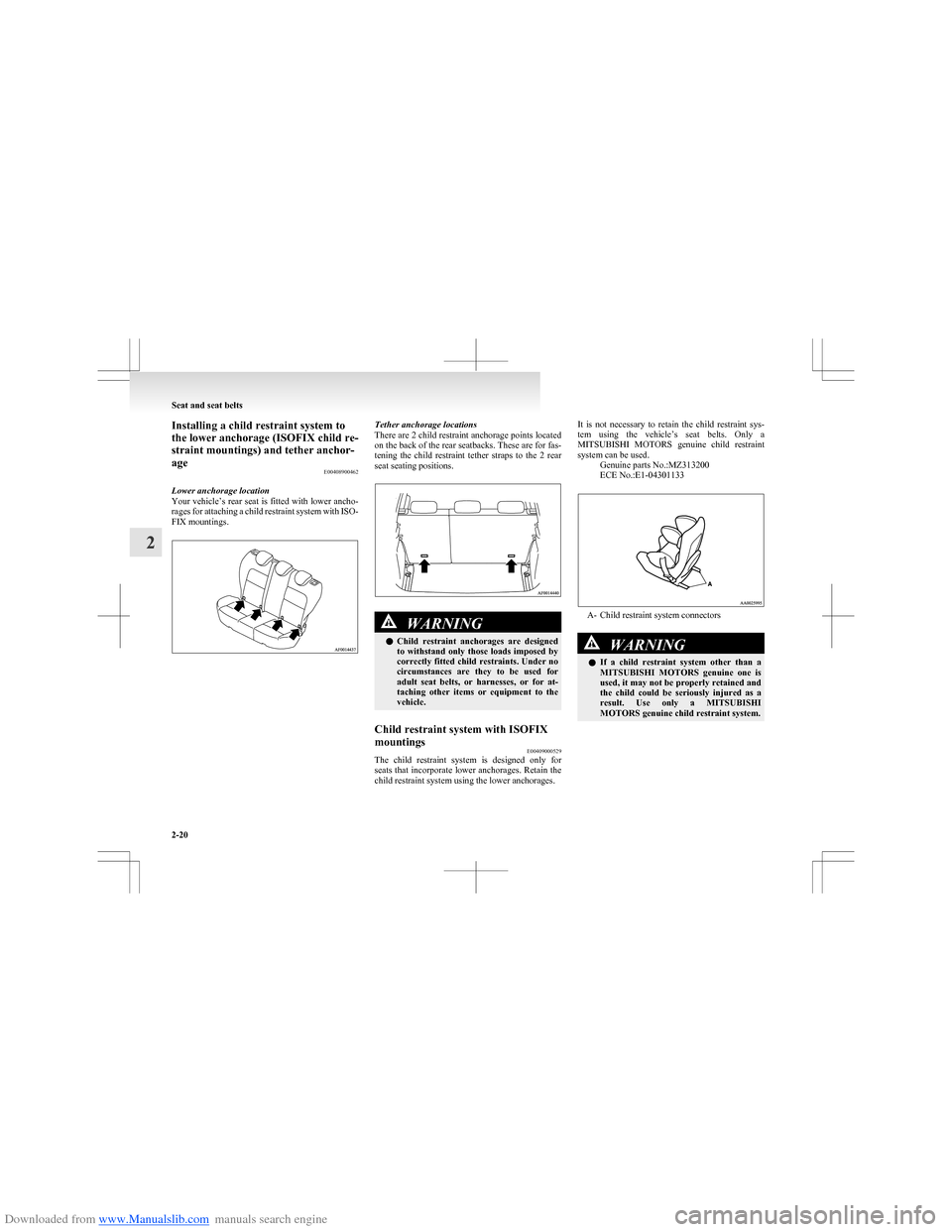

Page 59 of 273
Downloaded from www.Manualslib.com manuals search engine Installing a child restraint system to
the lower anchorage (ISOFIX child re-
straint mountings) and tether anchor-
age E00408900462
Lower anchorage location
Your vehicle’s rear seat is fitted with lower ancho-
rages for attaching a child restraint system with ISO-
FIX mountings.Tether anchorage locations
There are 2 child restraint anchorage points located
on the back of the rear seatbacks. These are for fas-
tening the child restraint tether straps to the 2 rear
seat seating positions.WARNINGl Child restraint anchorages are designed
to withstand only those loads imposed by
correctly fitted child restraints. Under no
circumstances are they to be used for
adult seat belts, or harnesses, or for at-
taching other items or equipment to the
vehicle.Child restraint system with ISOFIX
mountings E00409000529
The child restraint system is designed only for
seats that incorporate lower anchorages. Retain the
child restraint system using the lower anchorages.
It is not necessary to retain the child restraint sys-
tem using the vehicle’s seat belts. Only a
MITSUBISHI MOTORS genuine child restraint
system can be used. Genuine parts No.:MZ313200
ECE No.:E1-04301133
A- Child restraint system connectors
WARNINGl If a child restraint system other than a
MITSUBISHI MOTORS genuine one is
used, it may not be properly retained and
the child could be seriously injured as a
result. Use only a MITSUBISHI
MOTORS genuine child restraint system.
Seat and seat belts
2-20
2

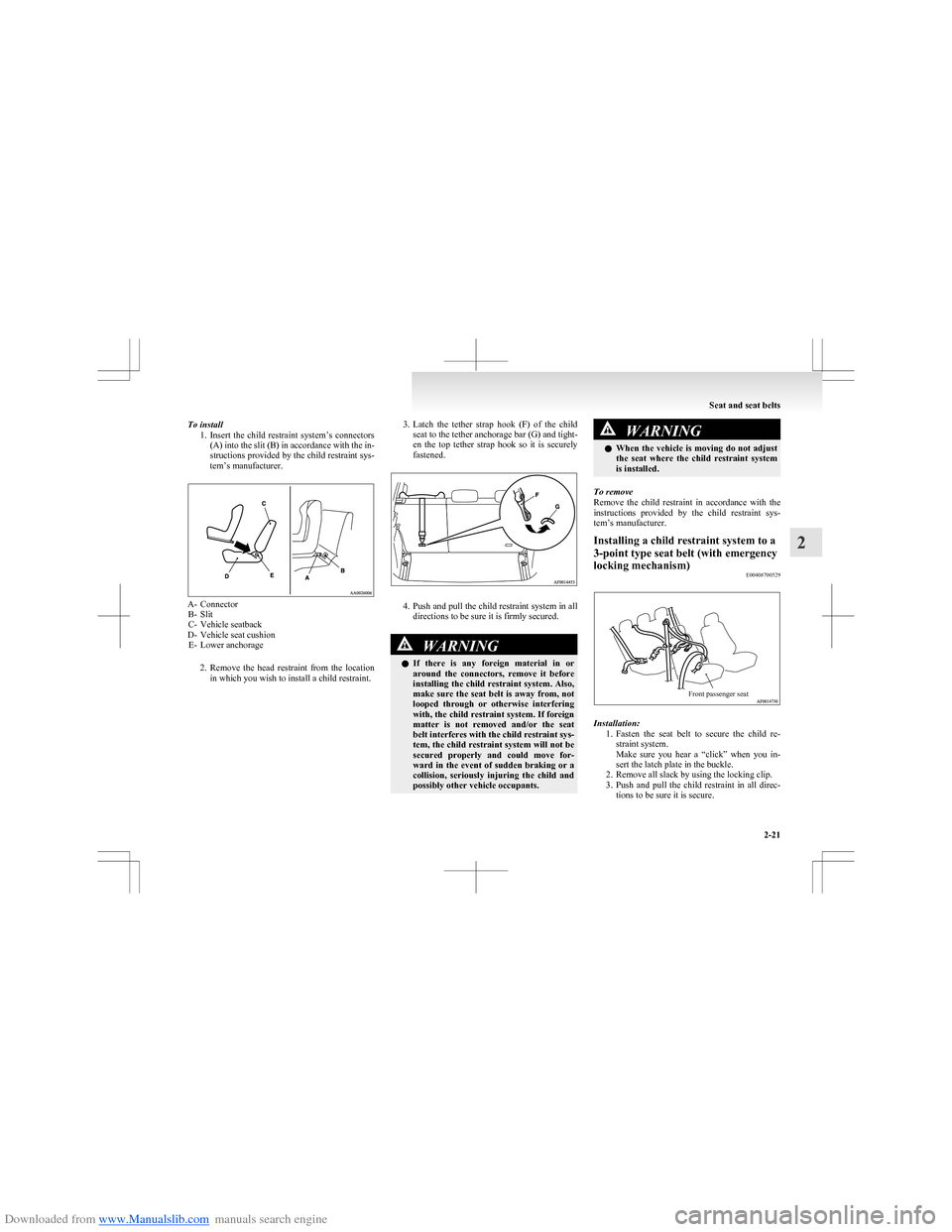

Page 60 of 273
Downloaded from www.Manualslib.com manuals search engine To install1.Insert the child restraint system’s connectors
(A) into the slit (B) in accordance with the in-
structions provided by the child restraint sys-
tem’s manufacturer.
A- Connector B- Slit
C- Vehicle seatback
D- Vehicle seat cushion E- Lower anchorage
2.Remove the head restraint from the location
in which you wish to install a child restraint.
3. Latch the tether strap hook (F) of the child
seat to the tether anchorage bar (G) and tight-
en the top tether strap hook so it is securely
fastened.
4. Push and pull the child restraint system in all
directions to be sure it is firmly secured.
WARNINGl If there is any foreign material in or
around the connectors, remove it before
installing the child restraint system. Also,
make sure the seat belt is away from, not
looped through or otherwise interfering
with, the child restraint system. If foreign
matter is not removed and/or the seat
belt interferes with the child restraint sys-
tem, the child restraint system will not be
secured properly and could move for-
ward in the event of sudden braking or a
collision, seriously injuring the child and
possibly other vehicle occupants.WARNINGl When the vehicle is moving do not adjust
the seat where the child restraint system
is installed.
To remove
Remove the child restraint in accordance with the
instructions provided by the child restraint sys-
tem’s manufacturer.
Installing a child restraint system to a
3-point type seat belt (with emergency
locking mechanism) E00408700529Front passenger seat
Installation:
1.Fasten the seat belt to secure the child re-
straint system.
Make sure you hear a “click” when you in-
sert the latch plate in the buckle.
2. Remove all slack by using the locking clip.
3. Push and pull the child restraint in all direc-
tions to be sure it is secure.
Seat and seat belts
2-21
2
