sensor MITSUBISHI ECLIPSE 2011 4.G Owner's Manual

7-12 Vehicle care and maintenance
7
3. Unclamp and take out the air cleaner filter.
After replacing the air cleaner filter, install the resonator by fol-
lowing the removal steps in reverse. Fit the resonator with
careful reference to the alignment position (A), and securely
tighten the bolt.NOTE
Genuine Mitsubishi Motors Parts are recommended when
replacing the air cleaner filter.
Automatic transaxle fluid
(if so equipped)
N00938000512
The automatic transaxle should be maintained and serviced by
an authorized Mitsubishi Motors dealer or a repair facility of
your choice to obtain the best performance and longest life. It
is important that the transaxle fluid is kept at the correct level. To check the fluid level The fluid level should be checked when the engine temperature
gauge shows the engine is warmed up and the fluid in the
transaxle is heated to its normal working temperature. Driving
with the wrong fluid level will rapidly wear out the transaxle
and destroy the fluid.
CAUTION
!
Take care not to scratch the engine air flow sensor
when removing the air cleaner cover.
BK0115900US.book 12 ページ ２００９年１０月２７日　火曜日　午後１２時１分

Vehicle care and maintenance
7-25
7
Replacing tires and wheels
N00939600296
Tire maintenance
N00939700167
The following maintenance steps are recommended:

Check tire pressures regularly.

Have regular maintenance done on the wheel balance and
front and rear suspension alignment.

Rotate your tires regularly as described in the “Tire rota-
tion” section on page 7-26.
CAUTION
!
Avoid using different size tires and wheels from the
ones listed, and avoid the combined use of different
types of tires and wheels. Using different size or type
tires and wheels may affect driving safety.
Refer to “Tires and wheels” on page 9-8.
Even if a wheel has the same rim size and offset as
the specified type of wheel, its shape may prevent it
from being fitted correctly. Consult an authorized
Mitsubishi Motors dealer or a repair facility of your
choice before using wheels that you have.
As your vehicle is equipped with a tire pressure
monitoring system, use only Mitsubishi genuine
wheels.
Other wheels do not permit correct installation of
tire inflation pressure sensors and can cause air
leakage and sensor failure, which would not be cov-
ered by your vehicle’s warranty.
See an authorized Mitsubishi Motors dealer when
you replace a tire or wheel.
BK0115900US.book 25 ページ ２００９年１０月２７日　火曜日　午後１２時１分

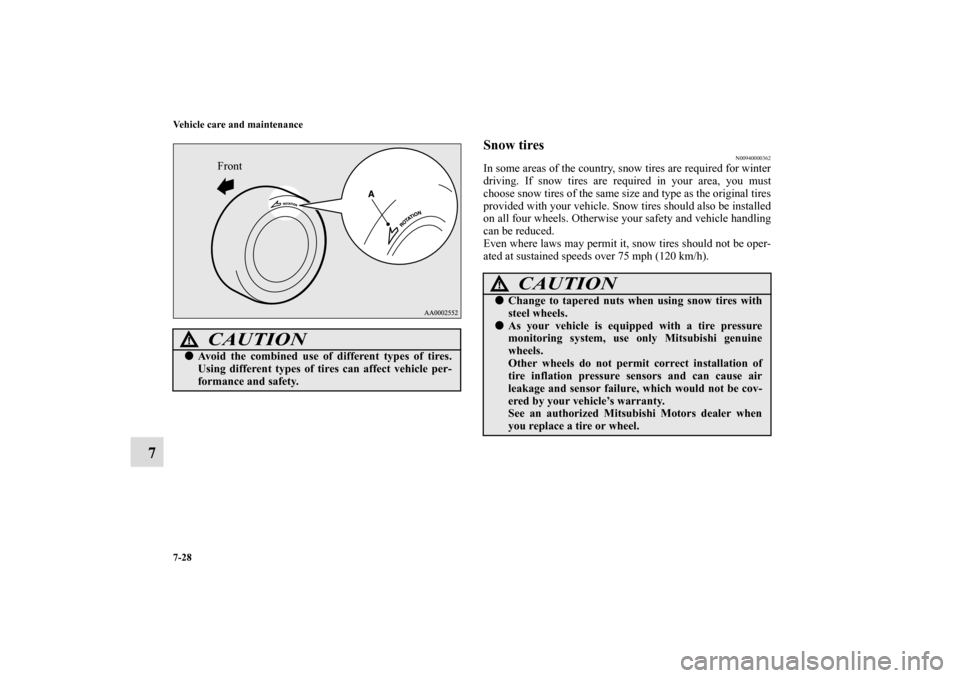

7-28 Vehicle care and maintenance
7
Snow tires
N00940000362
In some areas of the country, snow tires are required for winter
driving. If snow tires are required in your area, you must
choose snow tires of the same size and type as the original tires
provided with your vehicle. Snow tires should also be installed
on all four wheels. Otherwise your safety and vehicle handling
can be reduced.
Even where laws may permit it, snow tires should not be oper-
ated at sustained speeds over 75 mph (120 km/h).
CAUTION
!
Avoid the combined use of different types of tires.
Using different types of tires can affect vehicle per-
formance and safety.
Front
CAUTION
!
Change to tapered nuts when using snow tires with
steel wheels.
As your vehicle is equipped with a tire pressure
monitoring system, use only Mitsubishi genuine
wheels.
Other wheels do not permit correct installation of
tire inflation pressure sensors and can cause air
leakage and sensor failure, which would not be cov-
ered by your vehicle’s warranty.
See an authorized Mitsubishi Motors dealer when
you replace a tire or wheel.
BK0115900US.book 28 ページ ２００９年１０月２７日　火曜日　午後１２時１分
