6-14 For emergencies
6
2. Place the jack under one of the jacking points (A) shown
in the illustration. Use the jacking point closest to the tire
you wish to change.
3. Rotate the jack by hand until the flange portion (B) fits in
the groove (C) at the top of the jack. ECLIPSEECLIPSE SPYDER
Front Rear
WA R N I N G
!
Set the jack only at the positions shown here. If the
jack is set at a wrong position, it could dent your
vehicle or the jack might fall over and cause per-
sonal injury.
Do not use the jack on a tilted or soft surface.
Otherwise, the jack might slip and cause personal
injury. Always use the jack on a flat, hard surface.
Before setting the jack, make sure there are no sand
or pebbles under the jack base.
BK0115900US.book 14 ページ ２００９年１０月２７日　火曜日　午後１２時１分

For emergencies
6-15
6
4. Insert the bar (D) into the wheel nut wrench (E). Then put
the end of the bar into the shaft’s jack end, as shown in the
illustration.
Slowly rotate the wheel nut wrench until the tire is raised
slightly off the ground surface.
5. Remove the wheel nuts with the wheel nut wrench, then
take the wheel off.
WA R N I N G
!
Stop jacking up the vehicle as soon as the tire is
raised off the ground. It is dangerous to raise the
vehicle any higher.
Do not get under your vehicle while using the jack.
Do not bump the raised vehicle or leave it sitting on
the jack for a long time. Both are very dangerous.
Do not use a jack except the one that came with your
vehicle.
The jack should not be used for any purpose other
than to change a tire.

No one should be in your vehicle when using the
jack.
Do not start or run the engine while your vehicle is
on the jack.
Do not turn the raised wheel. The tires that are still
on the ground could turn and make your vehicle fall
off the jack.
CAUTION
!
Handle the wheel carefully when changing the tire,
to avoid scratching the wheel surface.
WA R N I N G
!
BK0115900US.book 15 ページ ２００９年１０月２７日　火曜日　午後１２時１分

6-16 For emergencies
6

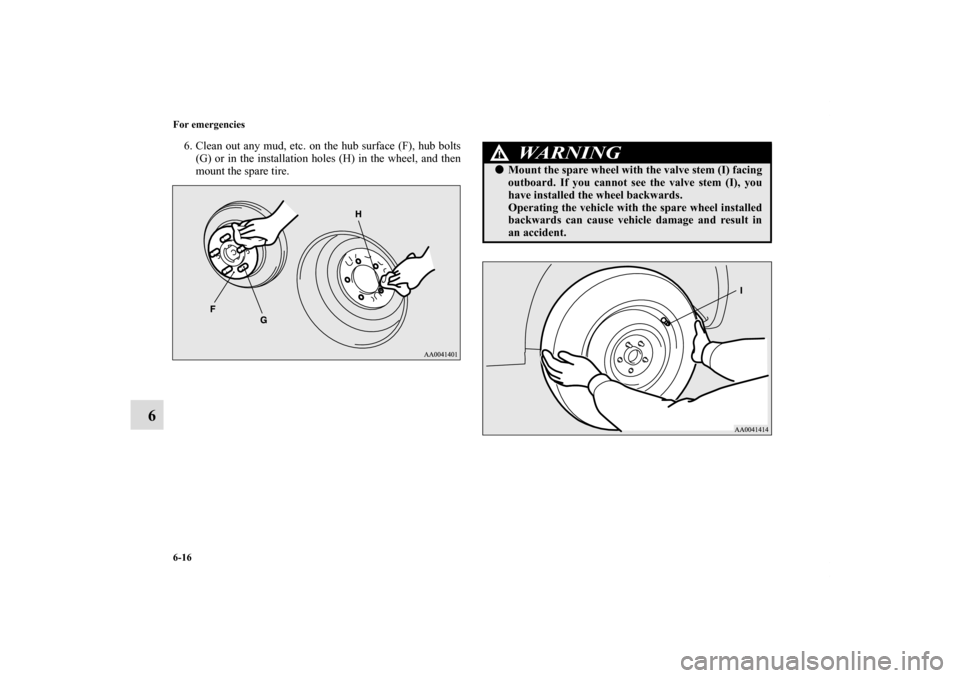

6. Clean out any mud, etc. on the hub surface (F), hub bolts
(G) or in the installation holes (H) in the wheel, and then
mount the spare tire.
WA R N I N G
!
Mount the spare wheel with the valve stem (I) facing
outboard. If you cannot see the valve stem (I), you
have installed the wheel backwards.
Operating the vehicle with the spare wheel installed
backwards can cause vehicle damage and result in
an accident.
BK0115900US.book 16 ページ ２００９年１０月２７日　火曜日　午後１２時１分

For emergencies
6-17
6
7. [Normal wheels]
Temporarily tighten the wheel nuts (flange nuts) until
their flange section comes in contact with the wheel and it
is no longer loose.[Compact spare wheel]
Install the wheel nuts with their tapered ends facing
inward, then tighten by hand until the wheel is no longer
loose.
NOTE
Flange nuts can be temporarily used on the compact spare
or steel wheel, but return them to the original wheel and
tire as soon as possible.

If all four wheels are changed to steel wheels, use tapered
nuts.
CAUTION
!

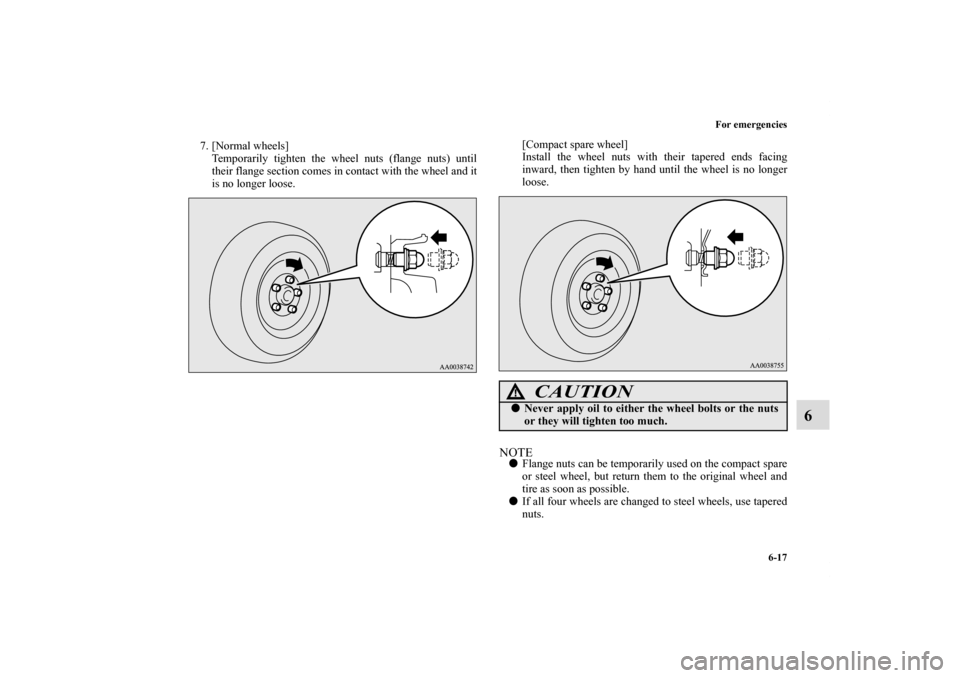

Never apply oil to either the wheel bolts or the nuts
or they will tighten too much.
BK0115900US.book 17 ページ ２００９年１０月２７日　火曜日　午後１２時１分

6-18 For emergencies
6
8. Lower the vehicle slowly by rotating the wheel nut
wrench counterclockwise until the tire touches the
ground.9. Tighten the nuts in the order shown in the illustration until
each nut has been tightened to the torque listed here.
88 to 108 N•m (65 to 80 ft-lb)
10. Lower the jack all the way and remove it.
CAUTION
!
Never use your foot or a pipe extension to apply
added force to the wheel nut wrench when tighten-
ing the wheel nuts. If you do so, you can over-tighten
the wheel nuts and damage the wheel.
BK0115900US.book 18 ページ ２００９年１０月２７日　火曜日　午後１２時１分

For emergencies
6-19
6
11. Check the tire inflation pressure. The recommended tire
pressure for your vehicle is listed on the tire and loading
information placard attached to the driver’s door sill as
shown in the illustration.
Refer to “Tire inflation pressures” on page 7-23.
To store the flat tire or spare tire, jack, bar and
wheel nut wrench
N00850000087
Reverse the removing procedure when storing the flat tire or
spare tire, jack, bar and wheel nut wrench.
Refer to “To remove the spare tire” on page 6-12 and “Tools
and jack” on page 6-8.
A- All vehicles
B- Vehicles sold in Canada
CAUTION
!
While the compact spare tire is stowed, the inflation
pressure should be checked at least once a month to
assure that it remains at the recommended inflation
pressure. See the tire and loading information plac-
ard attached to the driver’s door sill.
Refer to “Tire and loading information placard” on
page 9-4.

Driving with an improperly inflated tire can cause
an accident. If you have no choice but to drive with
an under-inflated tire, keep your speed down and
avoid sudden steering or braking, if possible. Inflate
the tire to the correct pressure as soon as possible.
Refer to “Tire inflation pressures” on page 7-23.
The compact spare tire should only be used tempo-
rarily. When the compact spare tire is used, the tire
pressure monitoring system will not work properly.
See an authorized Mitsubishi Motors dealer as soon
as possible to replace or repair the original tire.
After changing the tire and driving the vehicle about
620 miles (1,000 km), retighten the wheel nuts to
make sure that they have not come loose.
If the steering wheel vibrates when driving after
changing the tire, have the tire checked for balance
at your nearest authorized Mitsubishi Motors dealer
or a repair facility of your choice.
Do not mix one type of tire with another or use a dif-
ferent size from the one listed. This would cause
early wear and poor handling.
CAUTION
!
BK0115900US.book 19 ページ ２００９年１０月２７日　火曜日　午後１２時１分

6-20 For emergencies
6To w i n g
N00837000732
If your vehicle needs to be towedIf towing is necessary, we recommend you to have it done by a
commercial tow truck service.
When towing is required, transport the vehicle using a tow
truck.
Incorrect towing equipment could damage your vehicle.
There may be local regulations concerning towing in your area.
Obey the regulations of the area where you are driving your
vehicle.
CAUTION
!
Do not attempt to be towed by another vehicle with
a rope.
BK0115900US.book 20 ページ ２００９年１０月２７日　火曜日　午後１２時１分

For emergencies
6-21
6
Towing the vehicle by a tow truck
Towing with rear wheels off the ground (Type B)Place the gearshift lever in the “Neutral” position (manual
transaxle) or the selector lever in the “N” (NEUTRAL) posi-
tion (automatic transaxle).
Turn the ignition key to the “ACC” position and secure the
steering wheel in a straight-ahead position with a rope or tie-
down strap. Never place the ignition key in the “LOCK” posi-
tion when towing.
CAUTION
!

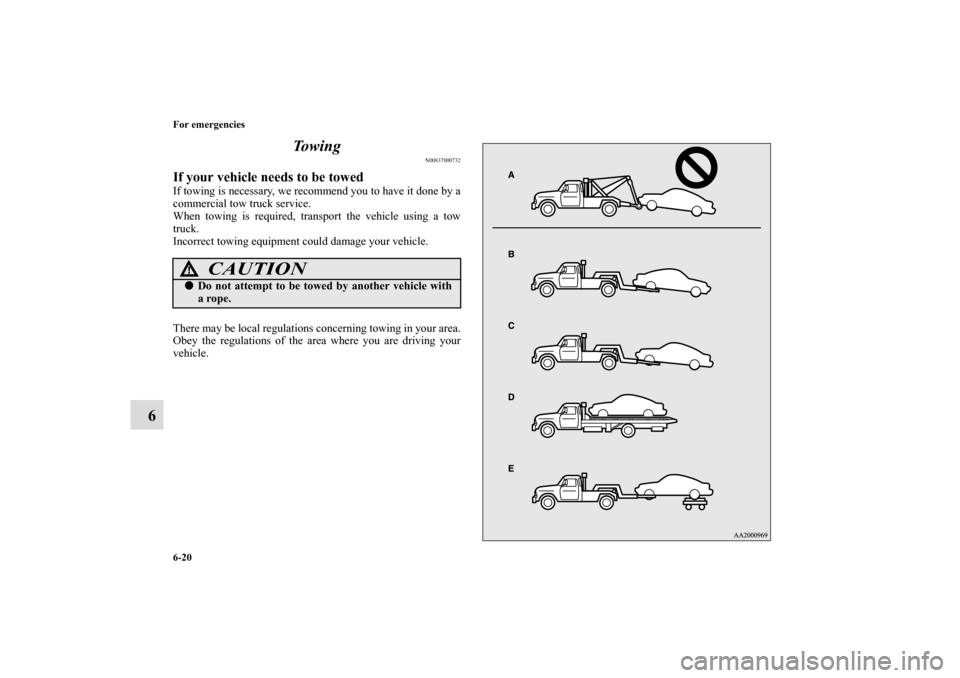

This vehicle must not be towed by a tow truck using
sling lift type equipment (Type A) as illustrated.
Using a sling lift will damage the bumper and front
end.
If the engine or transaxle is malfunctioning or dam-
aged, transport the vehicle with the driving wheels
on a carriage (Type C, D or E) as illustrated.
If the vehicle is towed with the ignition key in the
“ON” position and only the front wheels or only the
rear wheels raised off the ground, the ASC may
operate, resulting in an accident. When towing the
vehicle with the front wheels raised, keep the igni-
tion key in the “LOCK” or “ACC” position. When
towing the vehicle with the rear wheels raised, keep
the ignition key in the “ACC” position.
If you tow the vehicles with an automatic transaxle
with the driving wheels on the ground (Type B) as
illustrated, make sure that the towing speed and dis-
tance given below are never exceeded, causing the
transaxle damage.
Towing speed: 31 mph (50 km/h)
Towing distance: 18 miles (30 km)
For the towing speed and the towing distance, follow
the local driving laws and regulations.
CAUTION
!
Never tow an automatic transaxle vehicle with the
rear wheels up (and the front wheels on the ground)
(Type B) when the automatic transaxle fluid level is
low. This may cause serious and expensive damage
to the transaxle.
BK0115900US.book 21 ページ ２００９年１０月２７日　火曜日　午後１２時１分

6-22 For emergencies
6
Towing with front wheels off the ground (Type C)Release the parking brake.
Place the gearshift lever in the “Neutral” position (manual
transaxle) or the selector lever in the “N” (NEUTRAL) posi-
tion (automatic transaxle).
Operation under adverse driving conditions
N00837200659
If your vehicle becomes stuck in sand, mud or
snow If your vehicle becomes stuck in snow, sand, or mud, it can
often be moved by a rocking motion. Move the gearshift lever
(manual transaxle) or selector lever (automatic transaxle)
rhythmically between 1st and Reverse position (with manual
transaxle) or “Sports mode” and “R” (REVERSE) position
(with automatic transaxle), while pressing lightly on the accel-
erator pedal.
Do not race the engine nor spin the wheels. Constant efforts to
free a stuck vehicle can cause overheating and transaxle fail-
ure. Let the engine idle for a few minutes to cool the transaxle
before trying again.
If your vehicle is still stuck after several rocking attempts, call
for a commercial tow truck service.
WA R N I N G
!
To prevent entry of exhaust gas from the towing
vehicle, set the selection switch to the recirculation
position.
WA R N I N G
!
When trying to rock your vehicle out of a stuck posi-
tion, make sure that there are no people nearby. The
rocking motion can make your vehicle suddenly
lurch forward or backward, and injure any
bystanders.
BK0115900US.book 22 ページ ２００９年１０月２７日　火曜日　午後１２時１分

For emergencies
6-23
6
On wet roads On snowy or icy roads

When driving on a road covered with snow or ice, use
snow tires. Tire chains cannot be used on your vehicle.
There may be state or local regulations about using snow
tires. Always check the regulations in your local area
before using them. Refer to the section entitled “Snow
tires” on page 7-28 and “Tire chains” on page 7-29.

Drive slowly. Do not make sudden starts or stops, sharp
turns, or slam on the brakes.

Pressing the brake pedal when driving on snowy or icy
roads can make your tires slip and skid. When a skid
occurs, take your foot off the accelerator. Steer gently into
the skid. As your vehicle is equipped with an anti-lock
braking system (ABS), brake by pressing the brake pedal
firmly and keep it depressed.

Allow extra distance between your vehicle and the vehicle
in front of you, and avoid sudden braking.

After parking on snowy or icy road, it may be difficult to
move your vehicle due to freeze-up of the brake. Depress
the accelerator pedal little by little to move the vehicle
after confirming safety of the vehicle.
CAUTION
!
Avoid flooded roads. Water is often deeper than it
looks, and you could be seriously hurt by driving
into flood water.
When driving in rain, on water-covered roads, or
through a car wash, water could get into the brake
discs and make them fail temporarily. In such cases,
lightly press the brake pedal to see if they are work-
ing properly. If they are not, press the pedal lightly
several times while driving to dry the brake pads,
then check them again.
When driving in rain, a layer of water may form
between the tires and the road surface (aquaplan-
ing). This loosens your tires’ grip on the road, mak-
ing it difficult to steer or brake properly. When
driving on a wet road:
• Drive your vehicle at a safe speed.
• Do not drive on worn tires.
• Always keep the tires at the correct inflation pres-
sures.
CAUTION
!
Do not depress the accelerator pedal rapidly. The
vehicle could start moving when it breaks free from
the ice, possibly resulting in an accident.
BK0115900US.book 23 ページ ２００９年１０月２７日　火曜日　午後１２時１分
