6-8 For emergencies
6Tools and jack
N00836600223
StorageThe tools and jack are stowed beneath the luggage floor board
of the cargo area (trunk).
Tools
N00832600108
NOTE
When returning the tools to the tool bag, place each one in
its own pocket.
1- Tools
2- Jack
1- Tool bag
2- Bar
3- Wheel nut wrench
BK0115900US.book 8 ページ ２００９年１０月２７日　火曜日　午後１２時１分

For emergencies
6-19
6

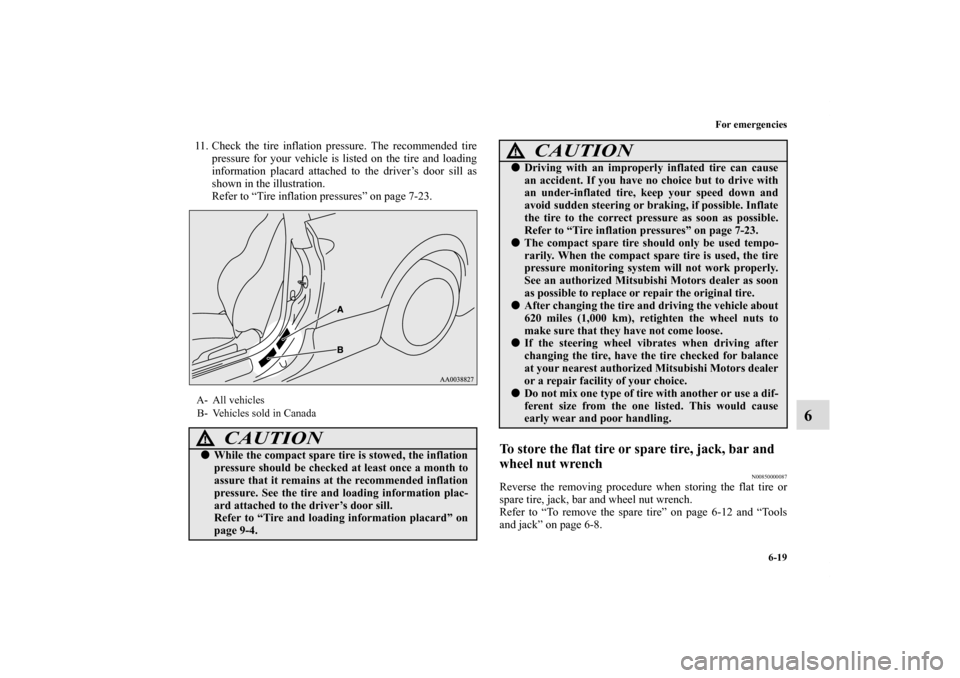

11. Check the tire inflation pressure. The recommended tire
pressure for your vehicle is listed on the tire and loading
information placard attached to the driver’s door sill as
shown in the illustration.
Refer to “Tire inflation pressures” on page 7-23.
To store the flat tire or spare tire, jack, bar and
wheel nut wrench
N00850000087
Reverse the removing procedure when storing the flat tire or
spare tire, jack, bar and wheel nut wrench.
Refer to “To remove the spare tire” on page 6-12 and “Tools
and jack” on page 6-8.
A- All vehicles
B- Vehicles sold in Canada
CAUTION
!
While the compact spare tire is stowed, the inflation
pressure should be checked at least once a month to
assure that it remains at the recommended inflation
pressure. See the tire and loading information plac-
ard attached to the driver’s door sill.
Refer to “Tire and loading information placard” on
page 9-4.

Driving with an improperly inflated tire can cause
an accident. If you have no choice but to drive with
an under-inflated tire, keep your speed down and
avoid sudden steering or braking, if possible. Inflate
the tire to the correct pressure as soon as possible.
Refer to “Tire inflation pressures” on page 7-23.
The compact spare tire should only be used tempo-
rarily. When the compact spare tire is used, the tire
pressure monitoring system will not work properly.
See an authorized Mitsubishi Motors dealer as soon
as possible to replace or repair the original tire.
After changing the tire and driving the vehicle about
620 miles (1,000 km), retighten the wheel nuts to
make sure that they have not come loose.
If the steering wheel vibrates when driving after
changing the tire, have the tire checked for balance
at your nearest authorized Mitsubishi Motors dealer
or a repair facility of your choice.
Do not mix one type of tire with another or use a dif-
ferent size from the one listed. This would cause
early wear and poor handling.
CAUTION
!
